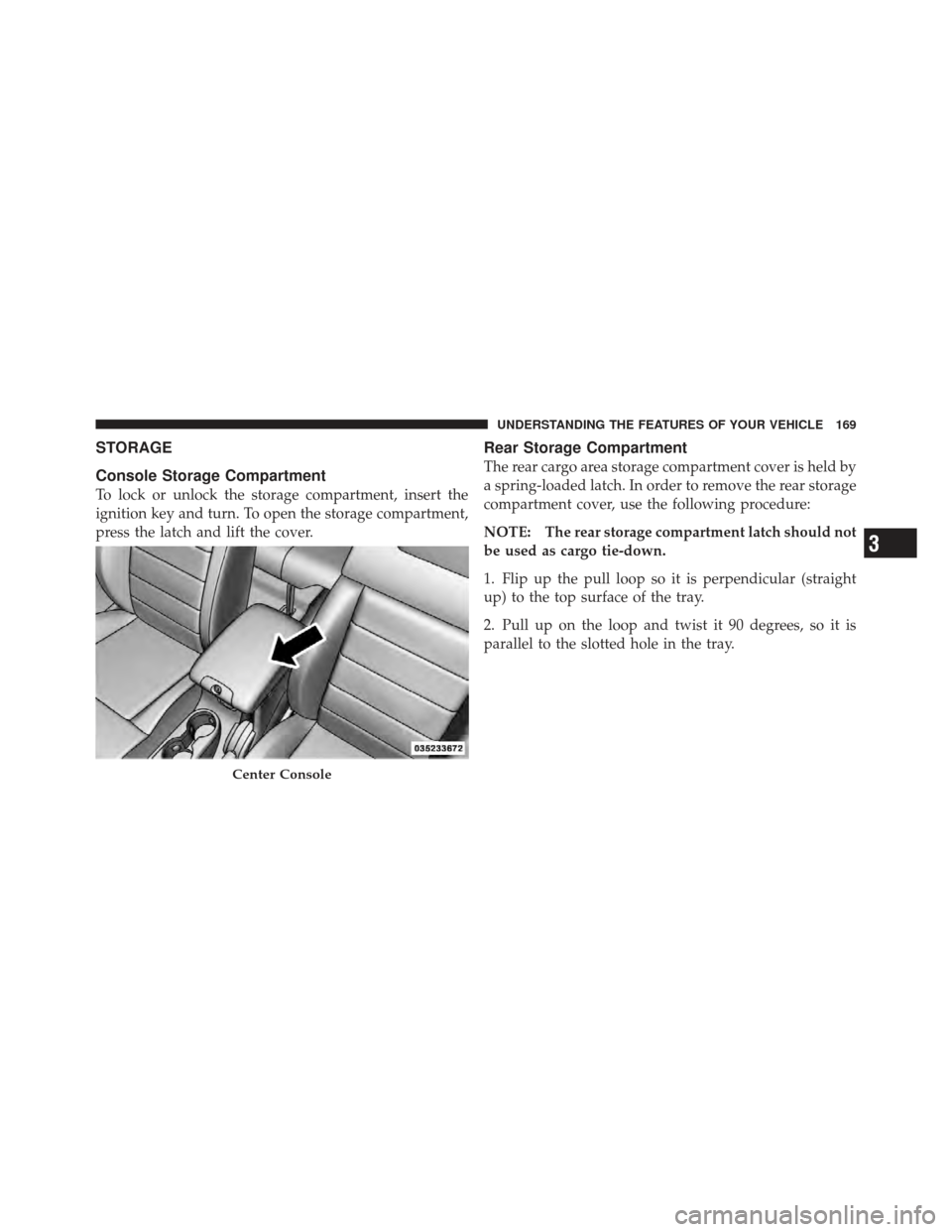

STORAGE
Console Storage Compartment
To lock or unlock the storage compartment, insert the
ignition key and turn. To open the storage compartment,
press the latch and lift the cover.
Rear Storage Compartment
The rear cargo area storage compartment cover is held by
a spring-loaded latch. In order to remove the rear storage
compartment cover, use the following procedure:
NOTE: The rear storage compartment latch should not
be used as cargo tie-down.
1. Flip up the pull loop so it is perpendicular (straight
up) to the top surface of the tray.
2. Pull up on the loop and twist it 90 degrees, so it is
parallel to the slotted hole in the tray.
Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169

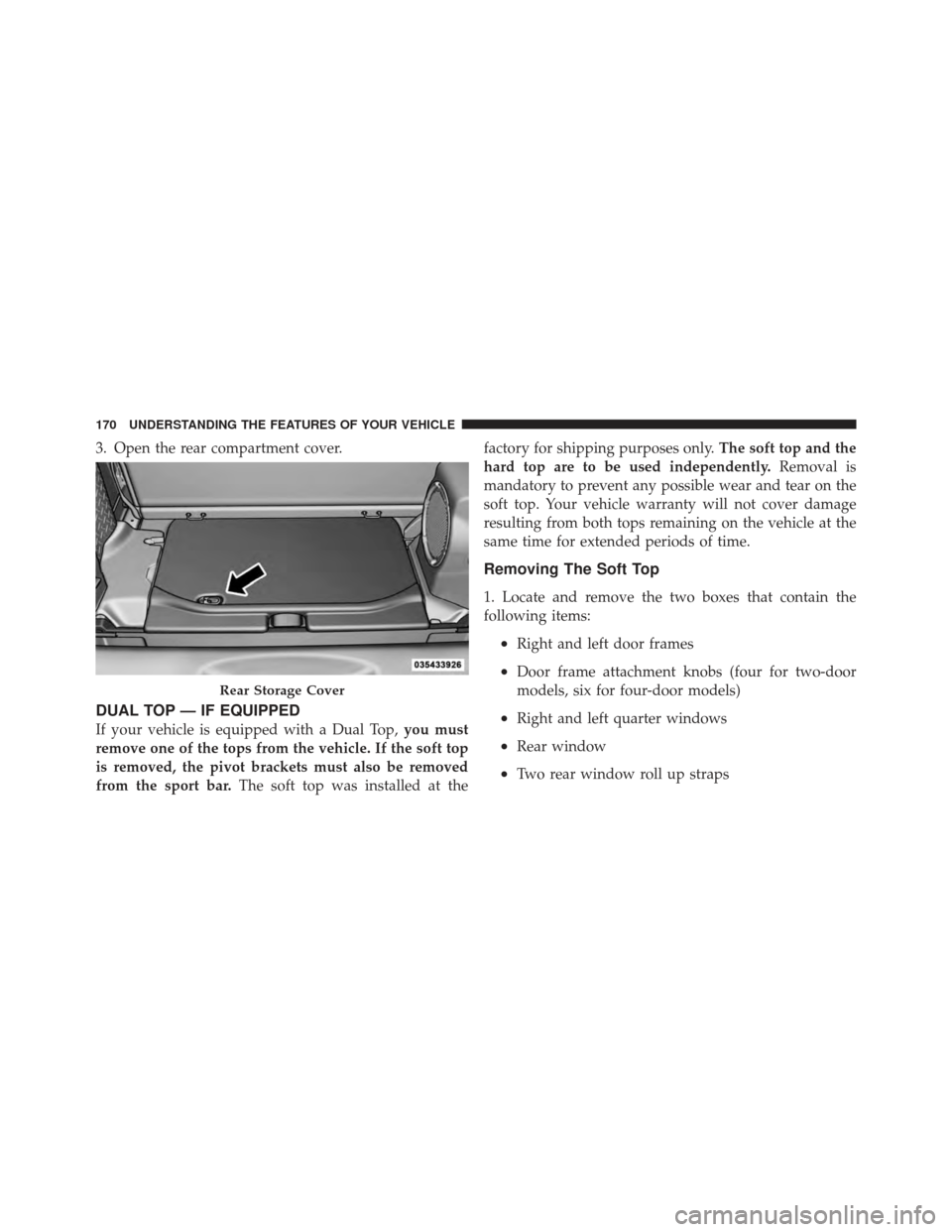

3. Open the rear compartment cover.
DUAL TOP — IF EQUIPPED
If your vehicle is equipped with a Dual Top,you must
remove one of the tops from the vehicle. If the soft top
is removed, the pivot brackets must also be removed
from the sport bar. The soft top was installed at the factory for shipping purposes only.
The soft top and the
hard top are to be used independently. Removal is
mandatory to prevent any possible wear and tear on the
soft top. Your vehicle warranty will not cover damage
resulting from both tops remaining on the vehicle at the
same time for extended periods of time.
Removing The Soft Top
1. Locate and remove the two boxes that contain the
following items:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window
•Two rear window roll up straps
Rear Storage Cover
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

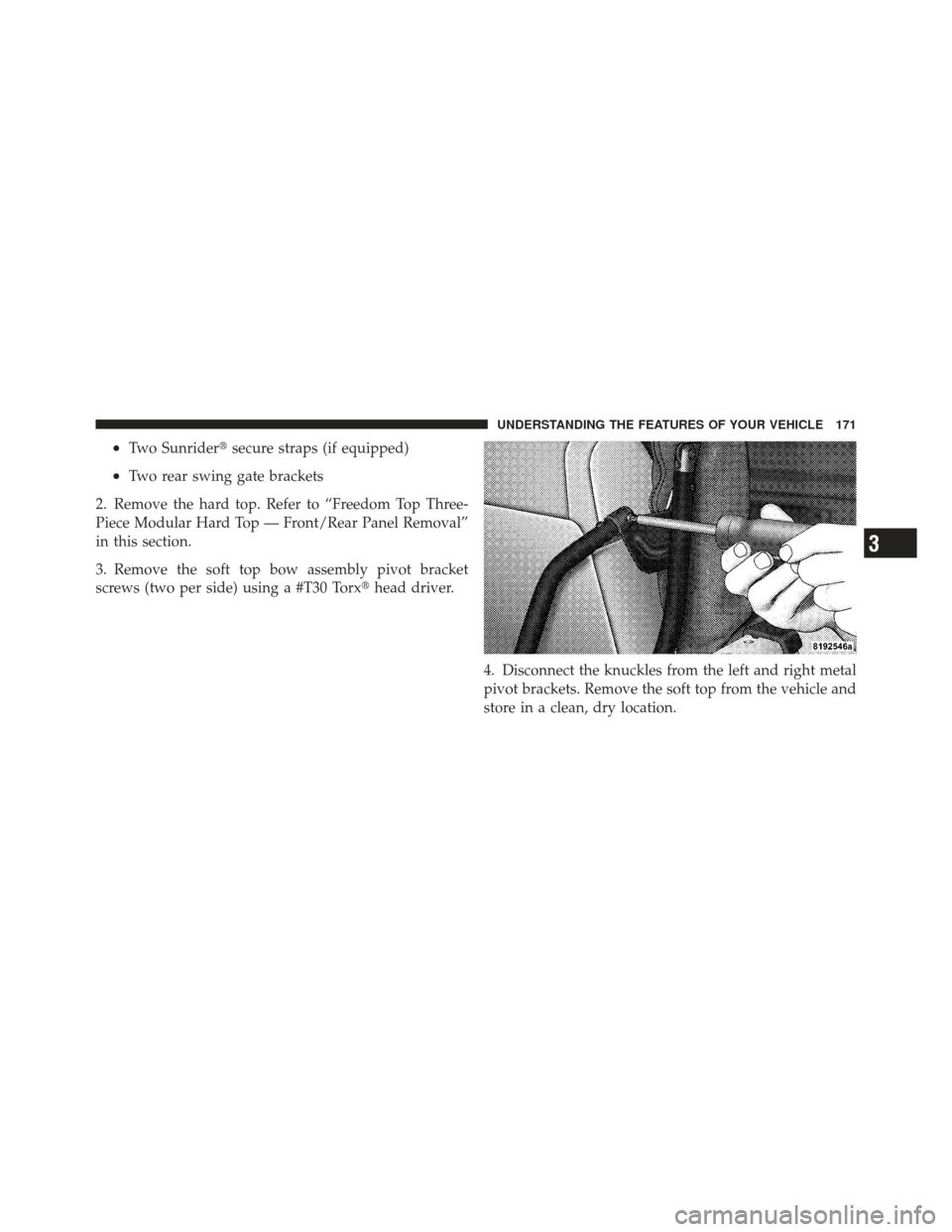

•Two Sunridersecure straps (if equipped)
•Two rear swing gate brackets
2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
in this section.
3. Remove the soft top bow assembly pivot bracket
screws (two per side) using a #T30 Torx head driver.
4. Disconnect the knuckles from the left and right metal
pivot brackets. Remove the soft top from the vehicle and
store in a clean, dry location.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

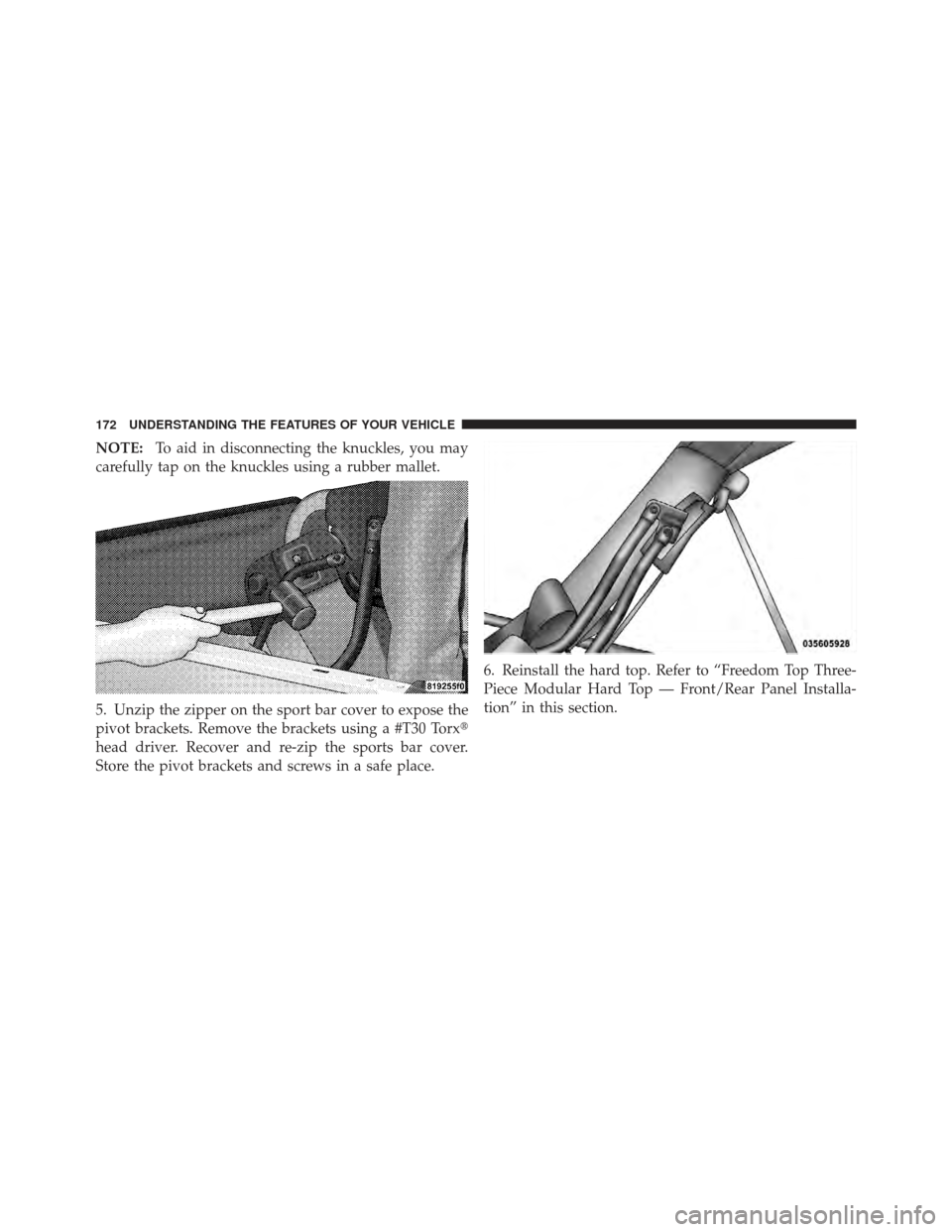

NOTE:To aid in disconnecting the knuckles, you may
carefully tap on the knuckles using a rubber mallet.
5. Unzip the zipper on the sport bar cover to expose the
pivot brackets. Remove the brackets using a #T30 Torx
head driver. Recover and re-zip the sports bar cover.
Store the pivot brackets and screws in a safe place. 6. Reinstall the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Installa-
tion” in this section.
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

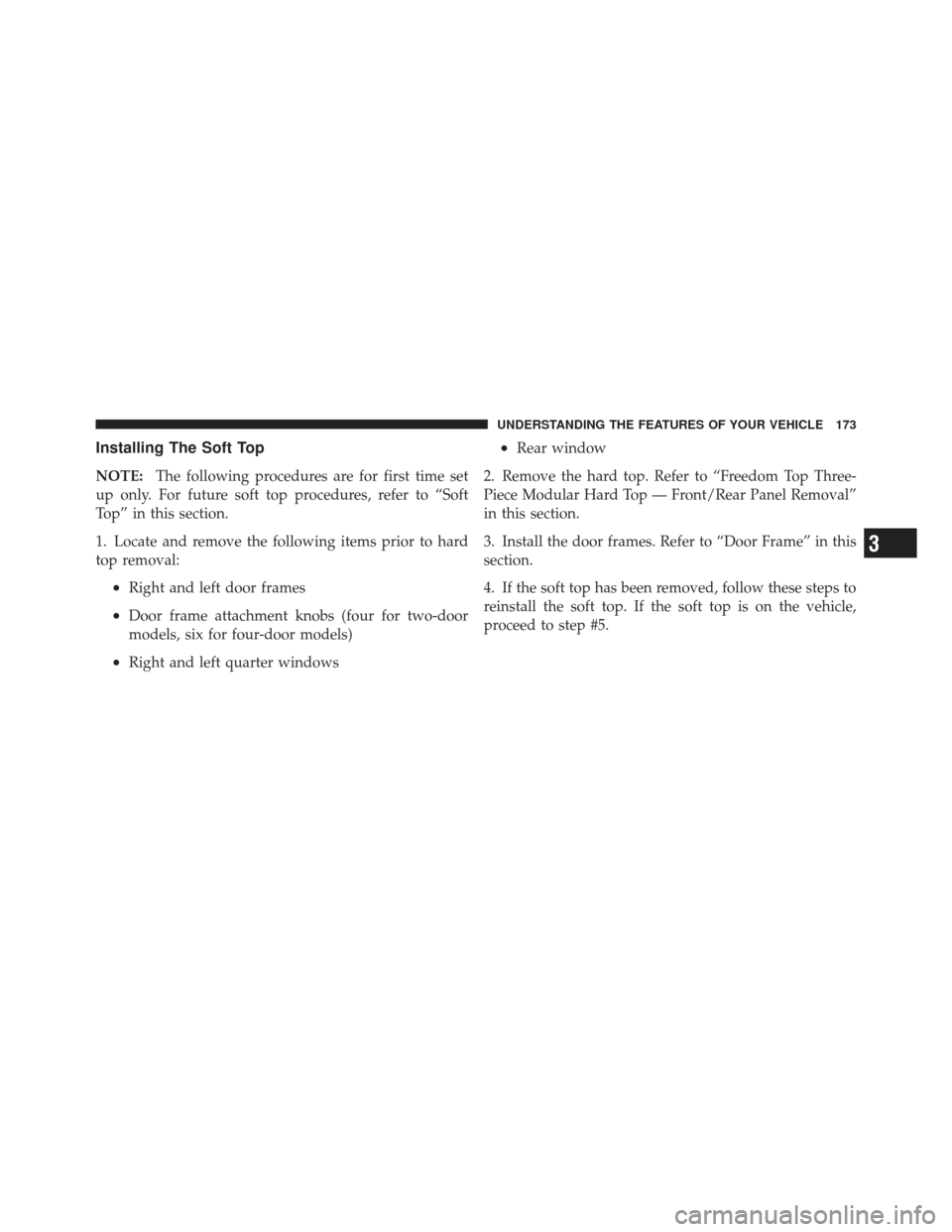

Installing The Soft Top
NOTE:The following procedures are for first time set
up only. For future soft top procedures, refer to “Soft
Top” in this section.
1. Locate and remove the following items prior to hard
top removal:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window
2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
in this section.
3. Install the door frames. Refer to “Door Frame” in this
section.
4. If the soft top has been removed, follow these steps to
reinstall the soft top. If the soft top is on the vehicle,
proceed to step #5.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173

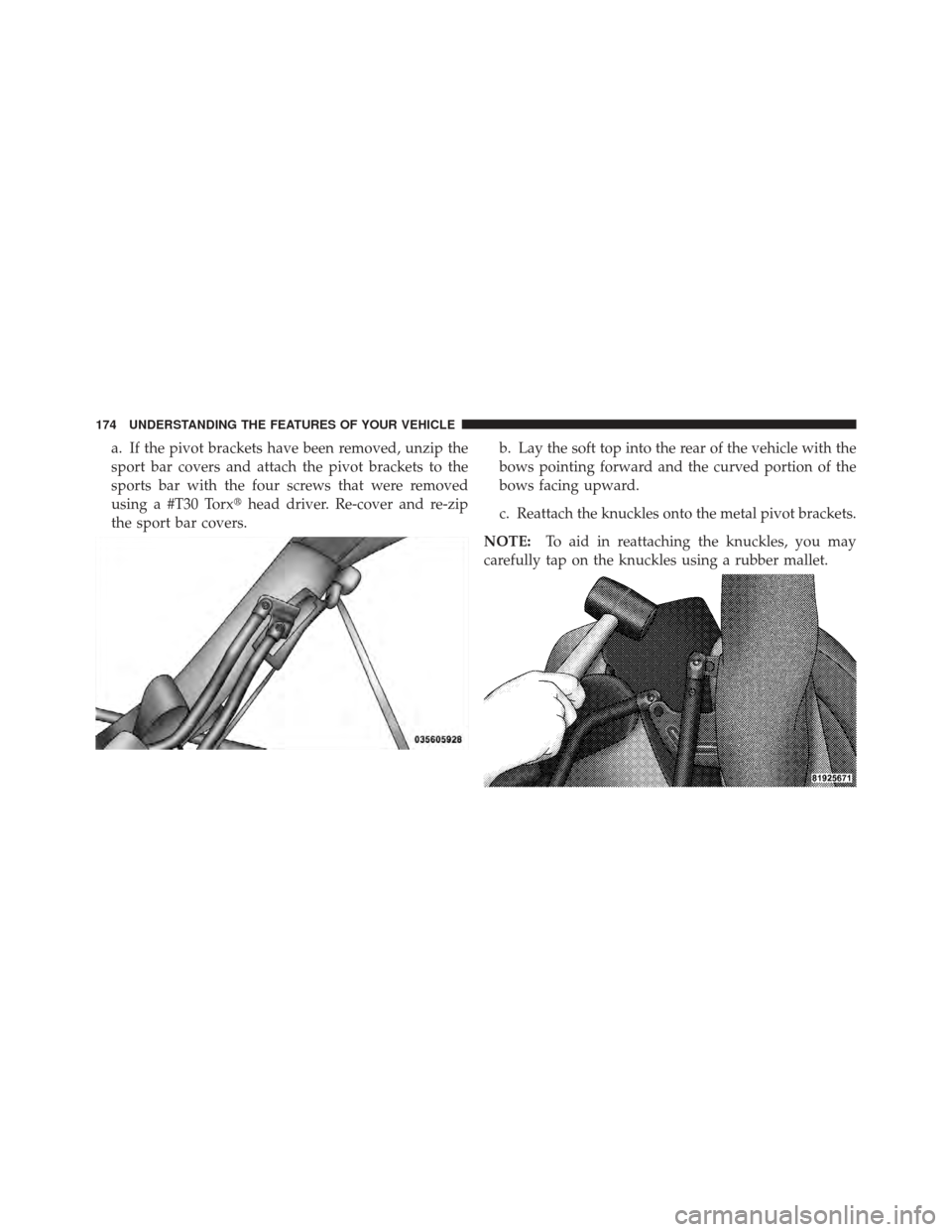

a. If the pivot brackets have been removed, unzip the
sport bar covers and attach the pivot brackets to the
sports bar with the four screws that were removed
using a #T30 Torxhead driver. Re-cover and re-zip
the sport bar covers. b. Lay the soft top into the rear of the vehicle with the
bows pointing forward and the curved portion of the
bows facing upward.
c. Reattach the knuckles onto the metal pivot brackets.
NOTE: To aid in reattaching the knuckles, you may
carefully tap on the knuckles using a rubber mallet.
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

d. Screw the pivot screws back into place using a #T30
Torxhead driver. Secure them until they are snug,
being careful not to cross-thread the screws or over-
tighten.CAUTION!
Do not overtighten the screws. You can strip the
screws if they are overtightened.
5. Remove the swing gate bar (black metal bar for
bottom of rear window) and set aside.
NOTE: Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
6. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
NOTE: A visual instruction sheet is enclosed in the dual
top wrap.
7. Put up the soft top. Refer to “Soft Top — Putting Up
The Soft Top” in this section.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

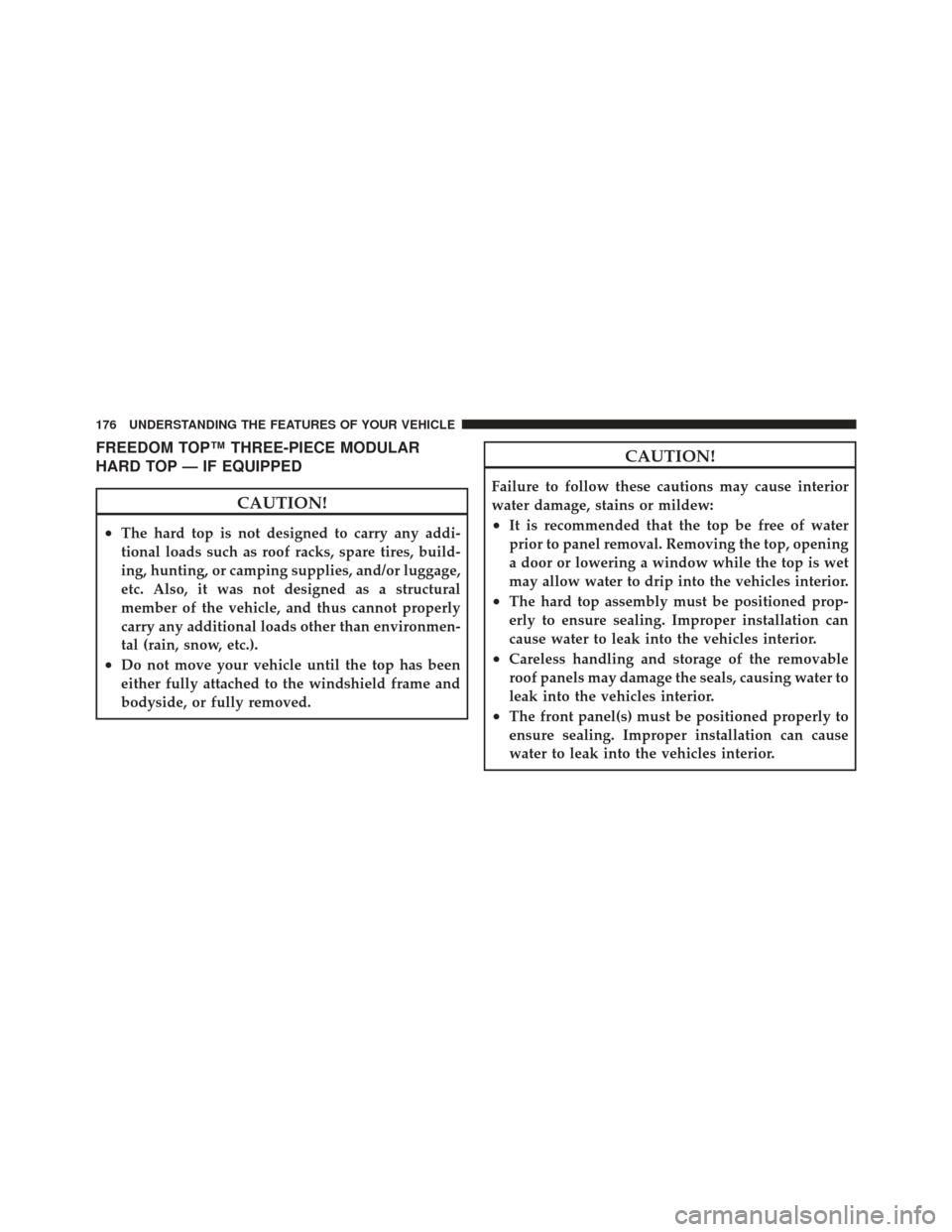

FREEDOM TOP™ THREE-PIECE MODULAR
HARD TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any addi-
tional loads such as roof racks, spare tires, build-
ing, hunting, or camping supplies, and/or luggage,
etc. Also, it was not designed as a structural
member of the vehicle, and thus cannot properly
carry any additional loads other than environmen-
tal (rain, snow, etc.).
•Do not move your vehicle until the top has been
either fully attached to the windshield frame and
bodyside, or fully removed.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew:
•It is recommended that the top be free of water
prior to panel removal. Removing the top, opening
a door or lowering a window while the top is wet
may allow water to drip into the vehicles interior.
•The hard top assembly must be positioned prop-
erly to ensure sealing. Improper installation can
cause water to leak into the vehicles interior.
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicles interior.
•The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicles interior.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Panel(s) Removal
NOTE: Left panel must be removed before removing
right panel.
1. Fold down the sun visor, and move it to the side.
2. Turn the rear fasteners (knobs) (located on the over-
head speaker bar assembly) counterclockwise until they
can be removed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

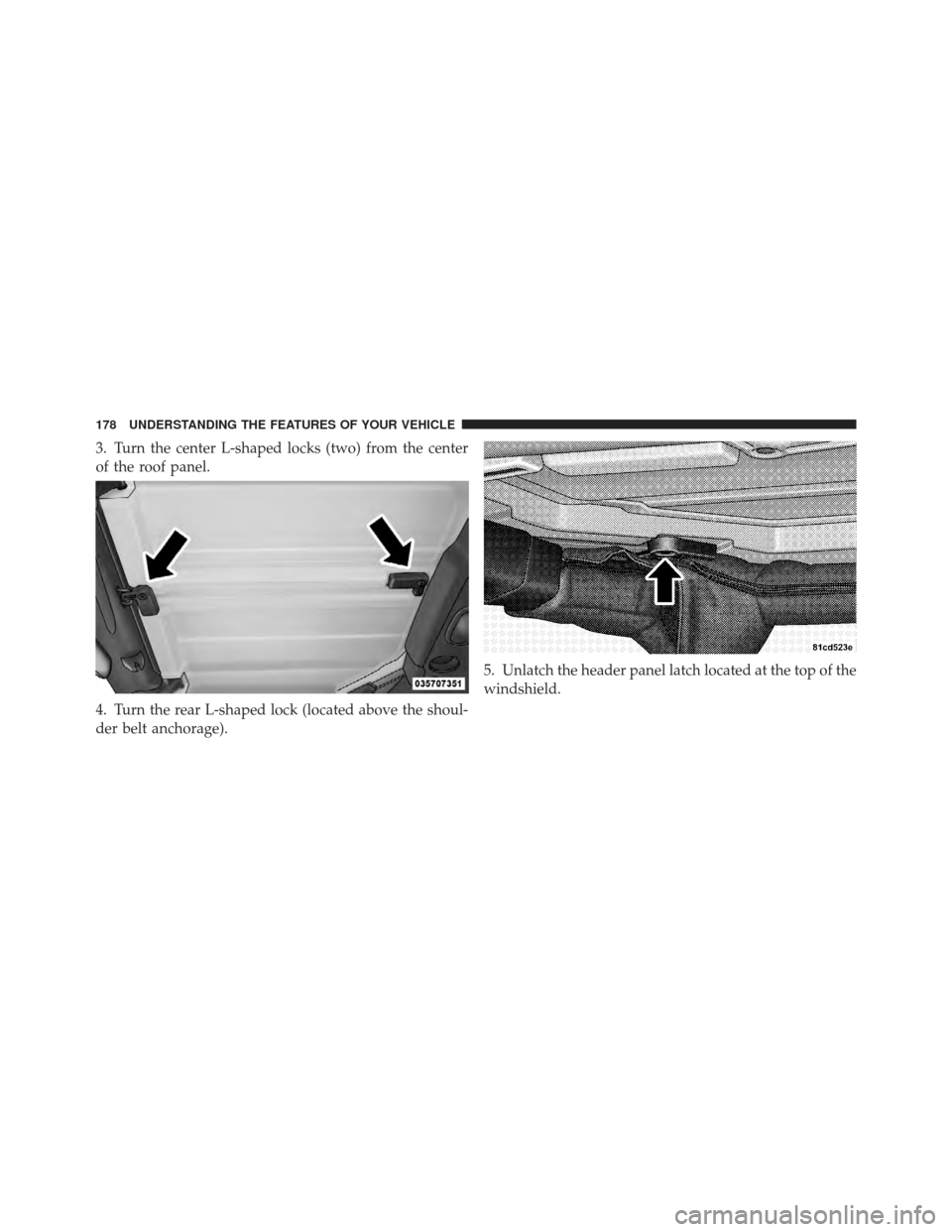

3. Turn the center L-shaped locks (two) from the center
of the roof panel.
4. Turn the rear L-shaped lock (located above the shoul-
der belt anchorage).5. Unlatch the header panel latch located at the top of the
windshield.
