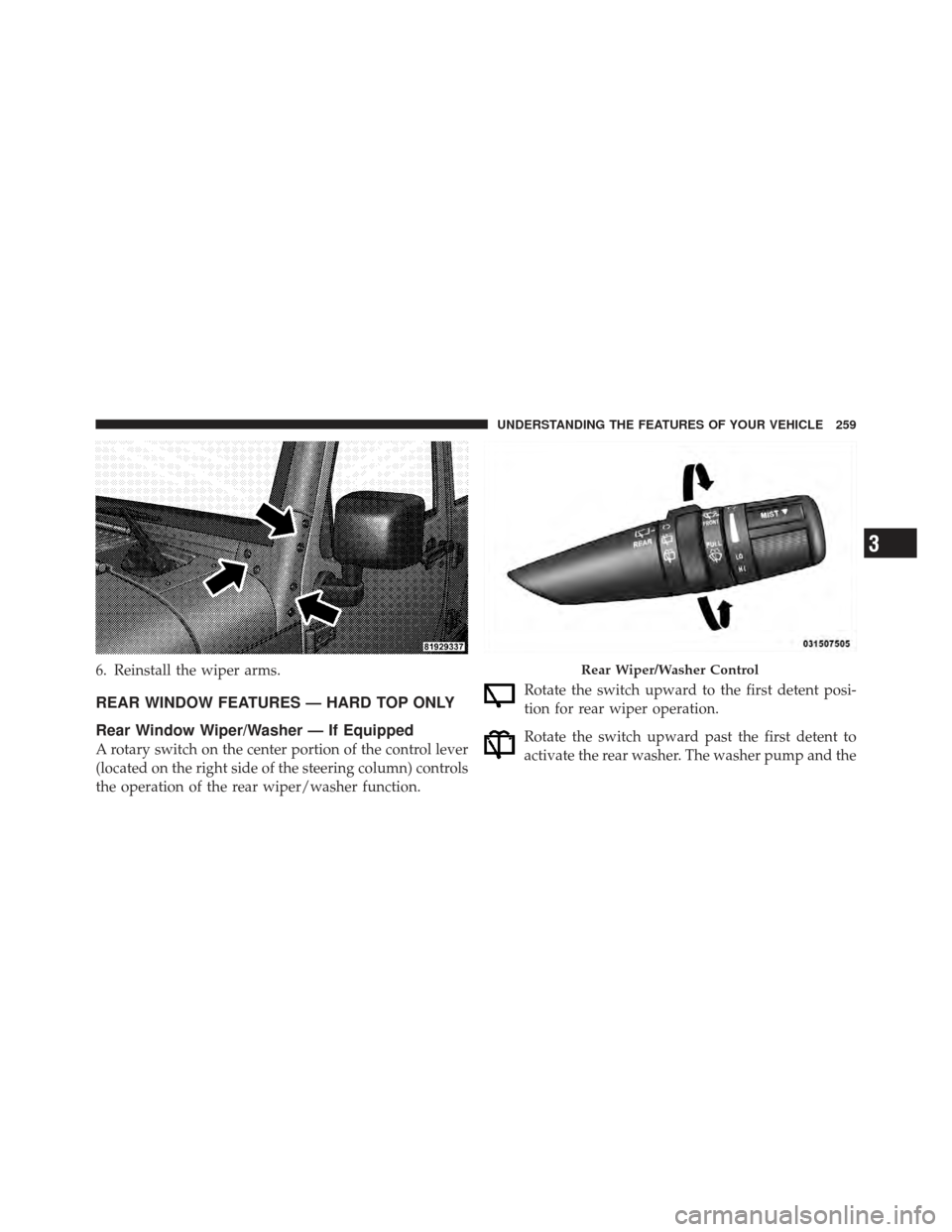

6. Reinstall the wiper arms.
REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary switch on the center portion of the control lever
(located on the right side of the steering column) controls
the operation of the rear wiper/washer function.Rotate the switch upward to the first detent posi-
tion for rear wiper operation.
Rotate the switch upward past the first detent to
activate the rear washer. The washer pump and the
Rear Wiper/Washer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

wiper will continue to operate as long as the switch is
held. Upon release, the wiper will cycle two to three
times before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Window Defroster — If Equipped
The rear window defroster button is located on the
bottom right-side of the blower control knob.
Press this button to turn on the rear window defroster.
An indicator in the button will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after approximately 10 minutes.
For an additional five minutes of operation, press the
button a second time. NOTE:
To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 264
 Instrument Cluster .................... 265
 Instrument Cluster Descriptions ........... 266
 Compass And Trip Computer — If Equipped . . 281
▫ Control Buttons ..................... 282
▫ Trip Conditions ..................... 283
▫ Compass/Temperature Display .......... 284
Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 286
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 288
▫ Oil Change Required .................. 289
▫ Trip Functions ...................... 290
▫ Compass Display / ECO
(Fuel Saver Mode) — If Equipped ........ 292
▫ Personal Settings
(Customer-Programmable Features) ....... 294
4

Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 298
▫ Operating Instructions - Radio Mode ...... 298
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 306
▫ Notes On Playing MP3/WMA Files ....... 308
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 311
▫ Info Button
(Disc Mode For MP3/WMA Play) ......... 311
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 313
Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV —
If Equipped .......................... 317
▫ Operating Instructions
(Voice Command System) — If Equipped . . . 317
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 317
 Media Center 130 (Sales Code RES) ......... 317
▫ Operating Instructions — Radio Mode ..... 318
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 321
▫ Notes On Playing MP3 Files ............ 323
▫ Operation Instructions - Auxiliary Mode .... 325
262 UNDERSTANDING YOUR INSTRUMENT PANEL

Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 326
▫ Operating Instructions — Radio Mode ..... 326
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 332
▫ Notes On Playing MP3 Files ............ 334
▫ List Button (CD Mode For MP3 Play) ...... 337
▫ Info Button (CD Mode For MP3 Play) ...... 337
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 338
 iPod/USB/MP3 Control — If Equipped ..... 342
▫ Connecting The iPod Or External USB
Device ............................ 342
▫ Using This Feature ................... 343
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 344▫
Play Mode ......................... 344
▫ List Or Browse Mode ................. 345
▫ Bluetooth Streaming Audio (BTSA) ........ 347
 Steering Wheel Audio Controls ............ 348
▫ Radio Operation ..................... 349
▫ CD Player ......................... 350
 CD/DVD Disc Maintenance .............. 350
 Radio Operation And Mobile Phones ....... 351
 Climate Controls ...................... 351
▫ Manual Heating And Air Conditioning ..... 351
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... 355
▫ Operating Tips ...................... 361
4
UNDERSTANDING YOUR INSTRUMENT PANEL 263

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches
264 UNDERSTANDING YOUR INSTRUMENT PANEL

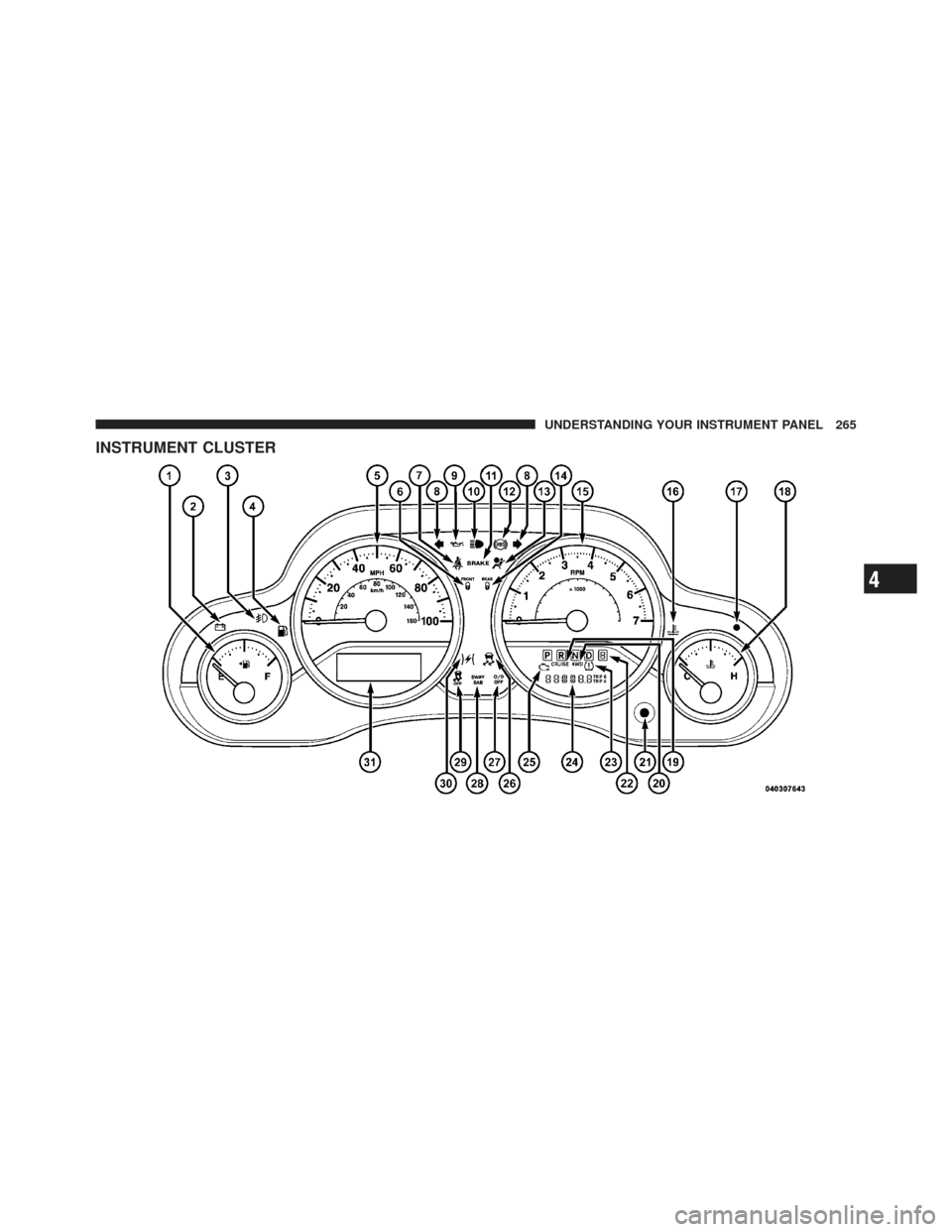

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 265

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank.
2. Charging System LightThis light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN, and remain
on briefly as a bulb check. If the light stays on or comes
on while driving, turn off some of the vehicle’s non-
essential electrical devices or increase engine speed (if at
idle). If the charging system light remains on, it means
that the vehicle is experiencing a problem with the
charging system. Obtain SERVICE IMMEDIATELY. See
an authorized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”. 3. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
4. Low Fuel Warning Light When the fuel level reaches approximately 2.8 gal
(10.6L) this light will turn on and a single chime
will sound.
5. Speedometer
Indicates vehicle speed.
6. Front Axle Lock Indicator — If Equipped Indicates when the front axle lock has been
activated.
7. Seat Belt Reminder Light When the ignition switch is first turned to ON/
RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if
266 UNDERSTANDING YOUR INSTRUMENT PANEL

the driver’s seat belt is unbuckled, a chime will sound.
After the bulb check or when driving, if the driver seat
belt remains unbuckled, the Seat Belt Reminder Light
will flash or remain on continuously. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for further information.
8. Turn Signal IndicatorsThe left or right arrow will flash with the corre-
sponding exterior turn signal lights when the turn
signal lever is operated. A chime will sound if the vehicle
is driven more than 1 mile (1.6 km) with either turn signal
on.
NOTE: If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
9. Oil Pressure Warning Light This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started; if the bulb does not come on, have the system checked by an authorized dealer. If the light turns on
while driving, stop the vehicle and shut off the engine as
soon as possible. A chime will sound when this light
turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
10. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction control lever
away from you to switch the headlights to high beam.
Pull the lever toward you to switch the headlights back to
low beam. If the driver’s door is open, and the headlights
or park lights are left on, the high beam indicator light
will remain illuminated and a chime will sound.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 267

11. Brake Warning LightThis light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on it may
indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the anti-lock brake system reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop. The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
The light will remain on until the cause is corrected.
NOTE:
The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
If brake failure is indicated, immediate repair is neces-
sary.
268 UNDERSTANDING YOUR INSTRUMENT PANEL
