mirror controls JEEP WRANGLER 2011 JK / 3.G Owners Manual

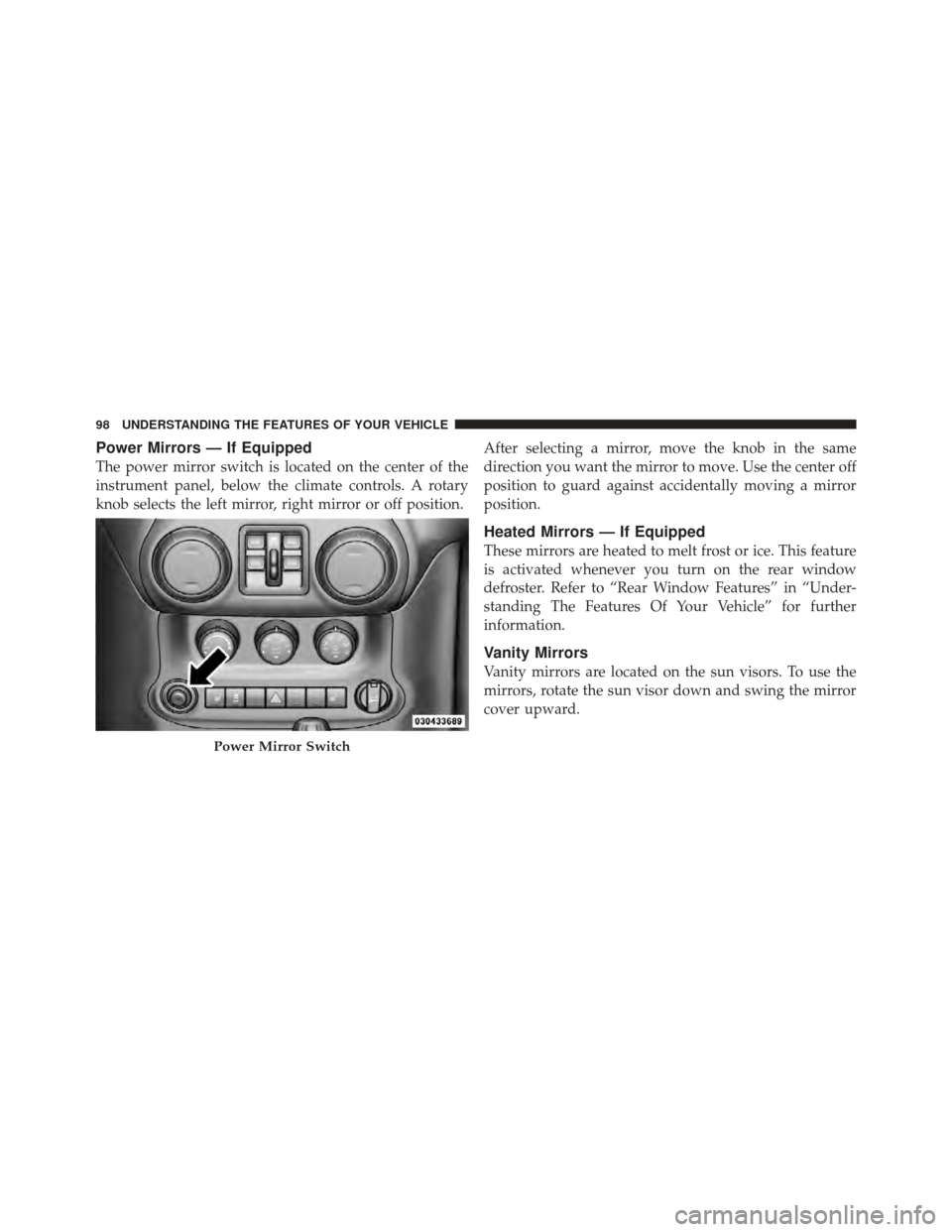

Power Mirrors — If Equipped
The power mirror switch is located on the center of the
instrument panel, below the climate controls. A rotary
knob selects the left mirror, right mirror or off position.After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This feature
is activated whenever you turn on the rear window
defroster. Refer to “Rear Window Features” in “Under-
standing The Features Of Your Vehicle” for further
information.
Vanity Mirrors
Vanity mirrors are located on the sun visors. To use the
mirrors, rotate the sun visor down and swing the mirror
cover upward.
Power Mirror Switch
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

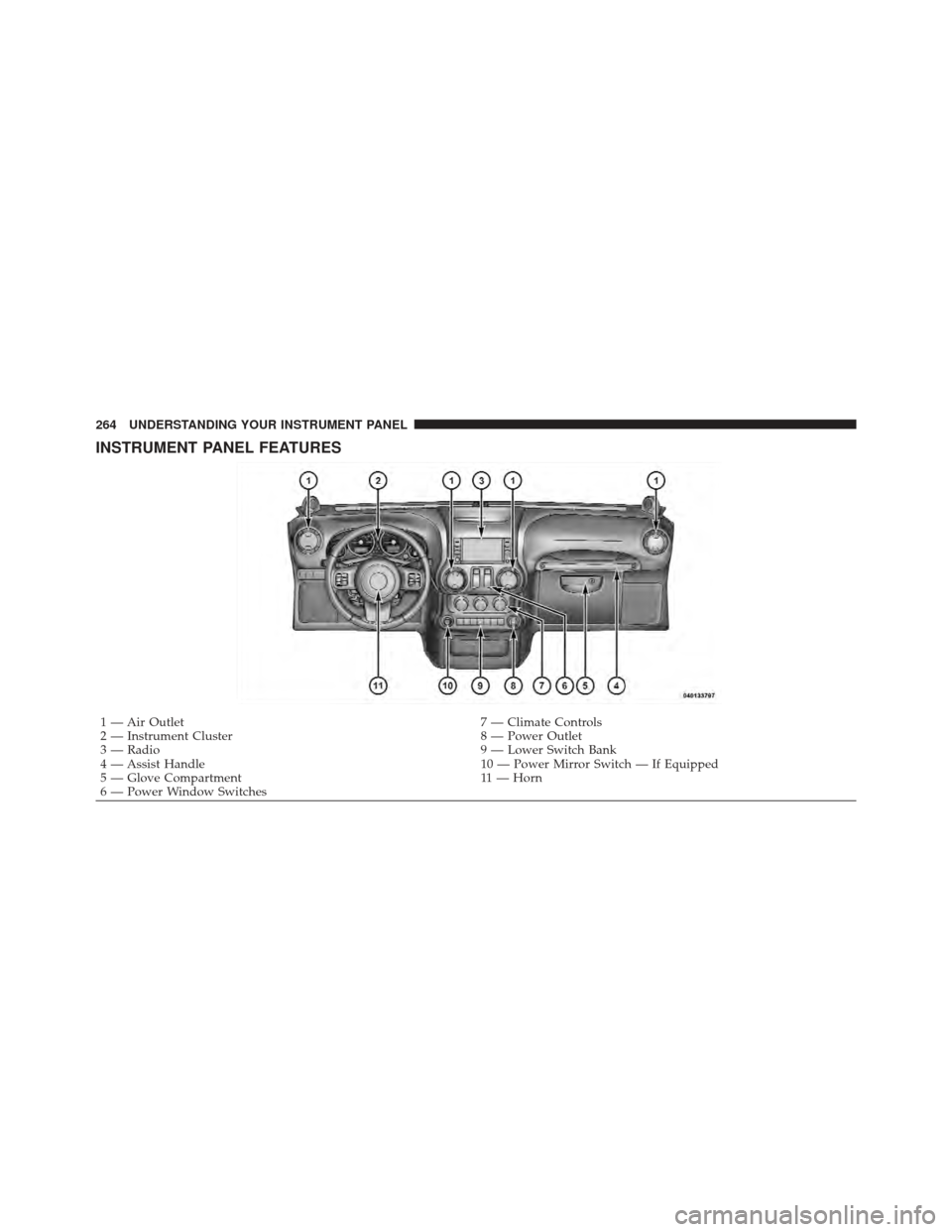

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches
264 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
Never leave children in the vehicle alone. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. The child or others could be
seriously or fatally injured. The child could operate
power windows, other controls or move the vehicle.
Manual Transmission – If Equipped
Apply the parking brake, place the shift lever in NEU-
TRAL, and press the clutch pedal before starting the
vehicle. This vehicle is equipped with a clutch interlock-
ing ignition system. It will not start unless the clutch
pedal is pressed to the floor.Four-Wheel Drive Models Only
In 4L mode, this vehicle will start regardless of whether
or not the clutch pedal is pressed to the floor. This feature
enhances off-road performance by allowing the vehicle to
start when in 4L without having to press the clutch pedal.
The “4WD Indicator Light” will illuminate when the
transfer case has been shifted into this mode.
Automatic Transmission – If Equipped
Start the vehicle with the shift lever in the PARK position
(vehicle can also be started in NEUTRAL). Apply the
brake before shifting to any driving range.
Normal Starting
NOTE:
Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
370 STARTING AND OPERATING

Hill Descent Control..................... 424
Hill Descent Control Indicator ............... 424
Hill Start Assist ......................... 412
Hitches Trailer Towing ....................... 464
Holder, Cup ........................... 168
Hood Release .......................... 148
Hydraulic Clutch Fluid .................... 530
Ignition ............................... 14
Key ............................... 14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 20
Immobilizer (Sentry Key) ................... 15
Infant Restraint .......................... 72
Inflation Pressure Tires .................... 437
Information Center, Vehicle ................. 286
Inside Rearview Mirror .................... 96
Instrument Cluster ....................... 265 Instrument Panel and Controls
.............. 264
Instrument Panel Lens Cleaning ............. 536
Integrated Power Module (Fuses) ............ 539
Interior Appearance Care .................. 535
Interior Lights .......................... 154
Intermittent Wipers (Delay Wipers) ........... 156
Introduction ............................. 4
Inverter, Power ......................... 166
Jack Location ........................... 486
Jack Operation .................... 485,488,489
Jacking Instructions ...................... 488
Jump Starting .......................... 491
Key-In Reminder ......................... 15
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Keyless Entry System ...................... 21
10
INDEX 589

Rearview Mirrors........................ 96
Recorder, Event Data ...................... 70
Recreational Towing ...................... 478
Shifting into Transfer Case Neutral (N) ..... 480
Shifting out of Transfer Case Neutral (N) .... 481
Reformulated Gasoline .................... 453
Refrigerant ............................ 515
Release, Hood .......................... 148
Reminder, Lights On ..................... 152
Reminder, Seat Belt ....................... 57
Remote Control Door Locks ......................... 21
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 348
Remote Starting System .................... 26
Replacement Bulbs ....................... 545
Replacement Keys ........................ 16
Replacement Parts ....................... 508
Replacement Tires ....................... 443 Reporting Safety Defects
................... 576
Resetting Oil Change Indicator .............. 289
Restraint, Head ......................... 142
Restraints, Child ....................... 71,75
Restraints, Occupant ...................... 43
Rotation, Tires .......................... 446
Safety Checks Inside Vehicle ................. 87
Safety Checks Outside Vehicle ............... 89
Safety Defects, Reporting .................. 576
Safety Information, Tire ................... 426
Safety Tips ............................. 85
Safety, Exhaust Gas ....................... 86
Satellite Radio Antenna .................314,339
Schedule, Maintenance .................... 554
Seat Belt Reminder ....................... 57
Seat Belts ............................ 47,87
Adjustable Upper Shoulder Anchorage ...... 53
And Pregnant Women .................. 58
594 INDEX
