4. Tighten all side bar attachment bolts.
5. Install the lower windshield plates with the six black
round-headed Torxhead screws (using a #40 Torx head
driver) on each side of the base of the windshield. 6. Reinstall the wiper arms.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

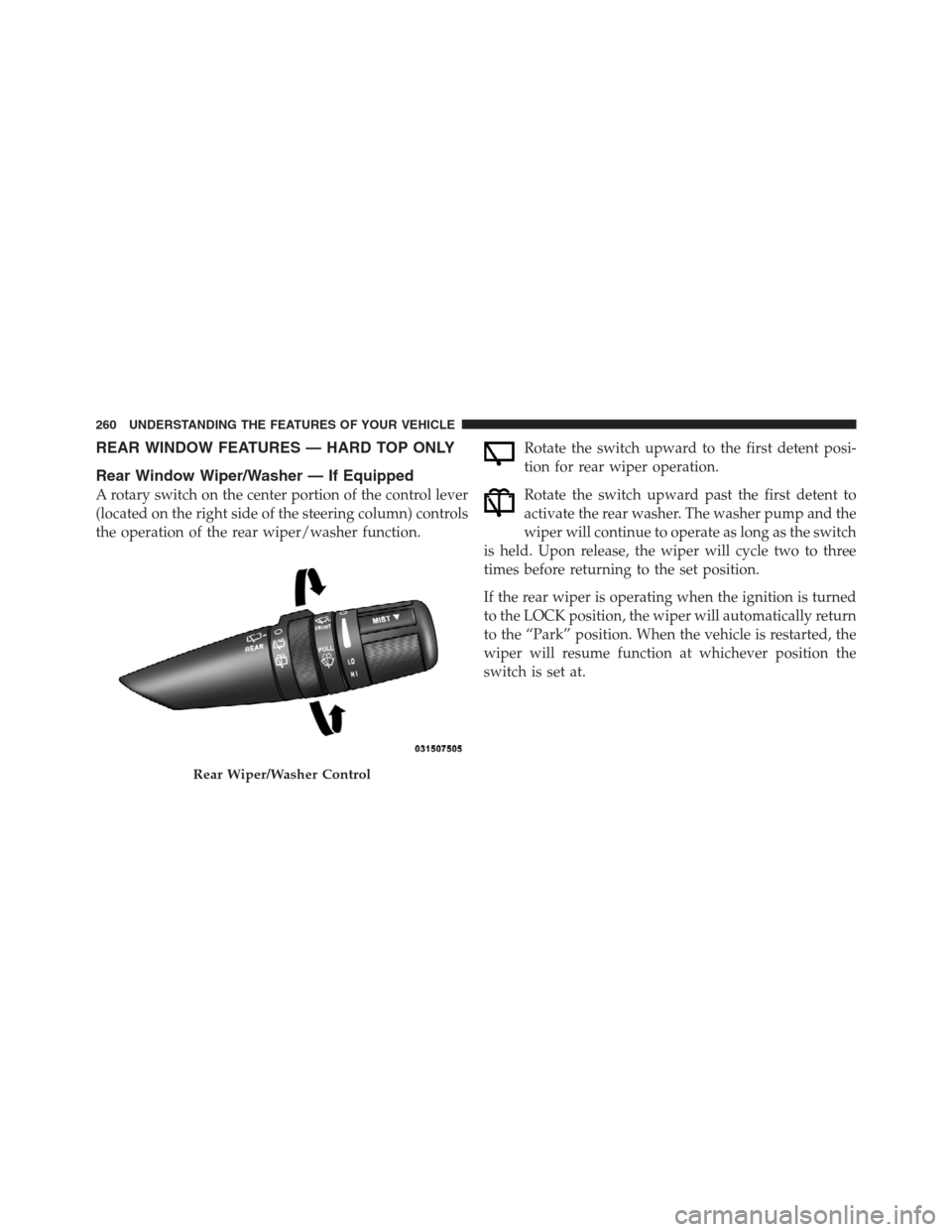

REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary switch on the center portion of the control lever
(located on the right side of the steering column) controls
the operation of the rear wiper/washer function.Rotate the switch upward to the first detent posi-
tion for rear wiper operation.
Rotate the switch upward past the first detent to
activate the rear washer. The washer pump and the
wiper will continue to operate as long as the switch
is held. Upon release, the wiper will cycle two to three
times before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Wiper/Washer Control
260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Window Defroster — If Equipped
The rear window defroster button is located on the
bottom right-side of the blower control knob.
Press this button to turn on the rear window defroster.
An indicator in the button will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after approximately 10 minutes.
For an additional five minutes of operation, press the
button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 261

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 267
 Instrument Cluster .................... 268
 Instrument Cluster Descriptions ........... 269
 Compass And Trip Computer — If Equipped . . 284
▫ Control Buttons ..................... 284
▫ Compass/Temperature Display .......... 285
▫ Trip Conditions ..................... 287
Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 289
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 291
▫ Oil Change Required .................. 292
▫ EVIC Main Menu .................... 293
▫ Compass Display / ECO (Fuel Saver Mode)
— If Equipped ...................... 293
▫ Average Fuel Economy ................ 296
▫ Distance To Empty (DTE) .............. 297
4

▫Elapsed Time ....................... 297
▫ EVIC Units Selection (Units In Display) .... 297
▫ System Status ....................... 298
▫ Personal Settings
(Customer-Programmable Features) ....... 298
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 301
▫ Operating Instructions - Radio Mode ...... 302
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 310
▫ Notes On Playing MP3/WMA Files ....... 312
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 314▫
Info Button
(Disc Mode For MP3/WMA Play) ......... 314
▫ Uconnect™ Multimedia (Satellite Radio) — If
Equipped .......................... 316
 Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV — If
Equipped ............................ 320
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 320
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 320
 Media Center 130 (Sales Code RES) ......... 321
▫ Operating Instructions — Radio Mode ..... 321
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 324
264 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Notes On Playing MP3 Files ............ 326
▫ Operation Instructions - Auxiliary Mode .... 329
 Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 329
▫ Operating Instructions — Radio Mode ..... 330
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 335
▫ Notes On Playing MP3 Files ............ 337
▫ List Button (CD Mode For MP3 Play) ...... 340
▫ Info Button (CD Mode For MP3 Play) ...... 340
▫ Uconnect™ Multimedia (Satellite Radio) — If
Equipped .......................... 341
iPod/USB/MP3 Control — If Equipped ..... 345
▫ Connecting The iPod Or External USB
Device ............................ 346
▫ Using This Feature ................... 346
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 347
▫ Play Mode ......................... 347
▫ List Or Browse Mode ................. 348
▫ Bluetooth Streaming Audio (BTSA) ........ 350
 Steering Wheel Audio Controls ............ 352
▫ Radio Operation ..................... 352
▫ CD Player ......................... 353
4
UNDERSTANDING YOUR INSTRUMENT PANEL 265

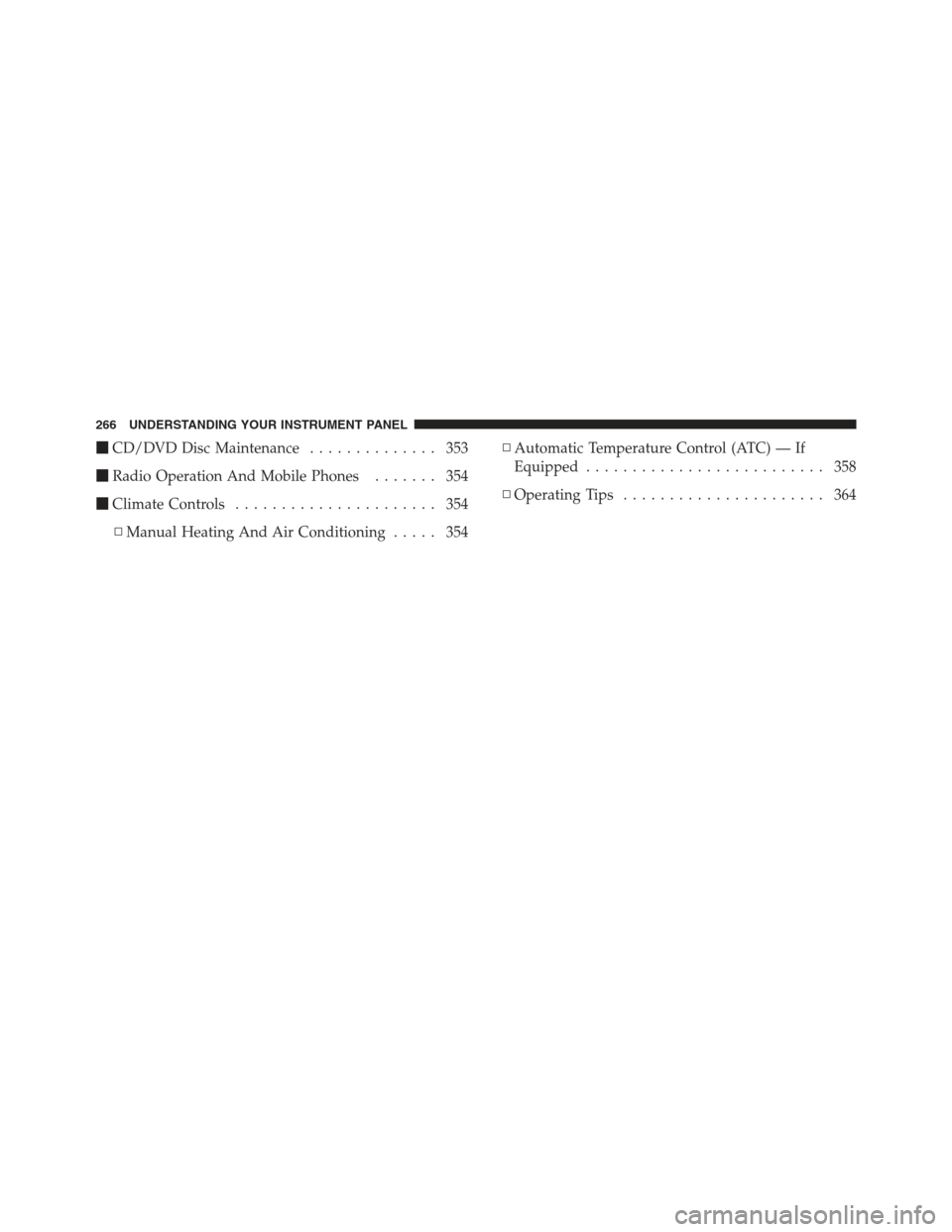

CD/DVD Disc Maintenance .............. 353
 Radio Operation And Mobile Phones ....... 354
 Climate Controls ...................... 354
▫ Manual Heating And Air Conditioning ..... 354▫
Automatic Temperature Control (ATC) — If
Equipped .......................... 358
▫ Operating Tips ...................... 364
266 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches
4
UNDERSTANDING YOUR INSTRUMENT PANEL 267

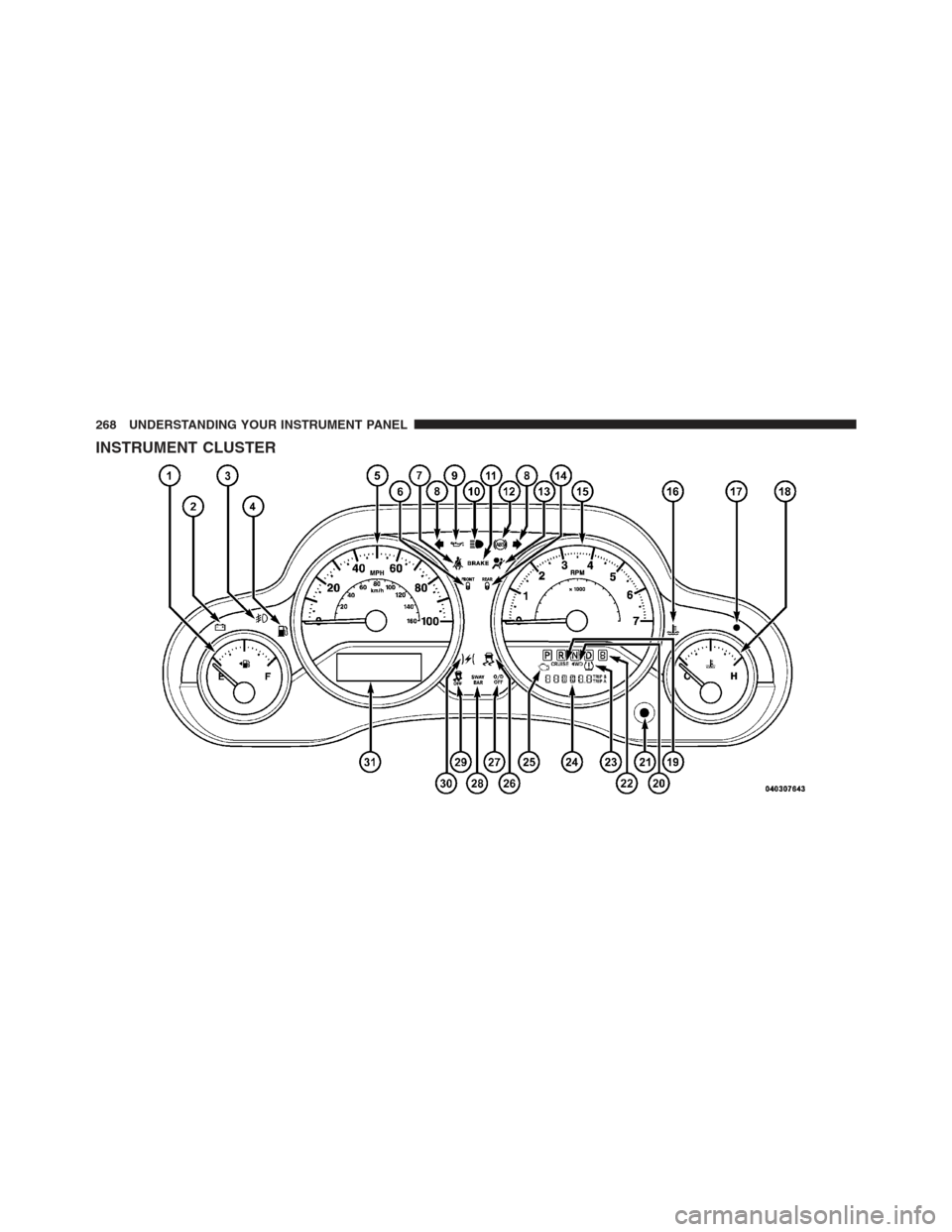

INSTRUMENT CLUSTER
268 UNDERSTANDING YOUR INSTRUMENT PANEL
