Page 231 of 613

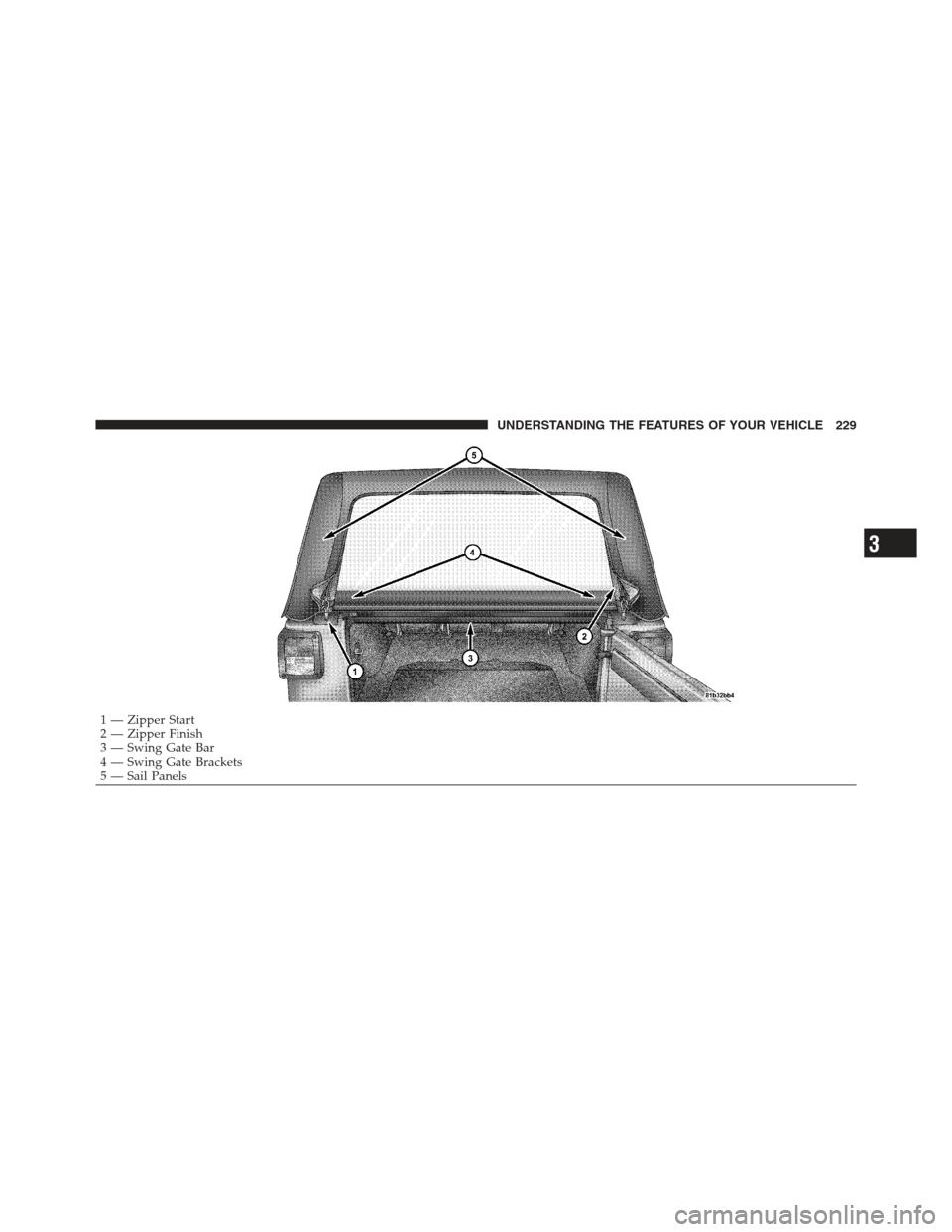

JEEP WRANGLER 2012 JK / 3.G Owners Manual 1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 229

Page 232 of 613

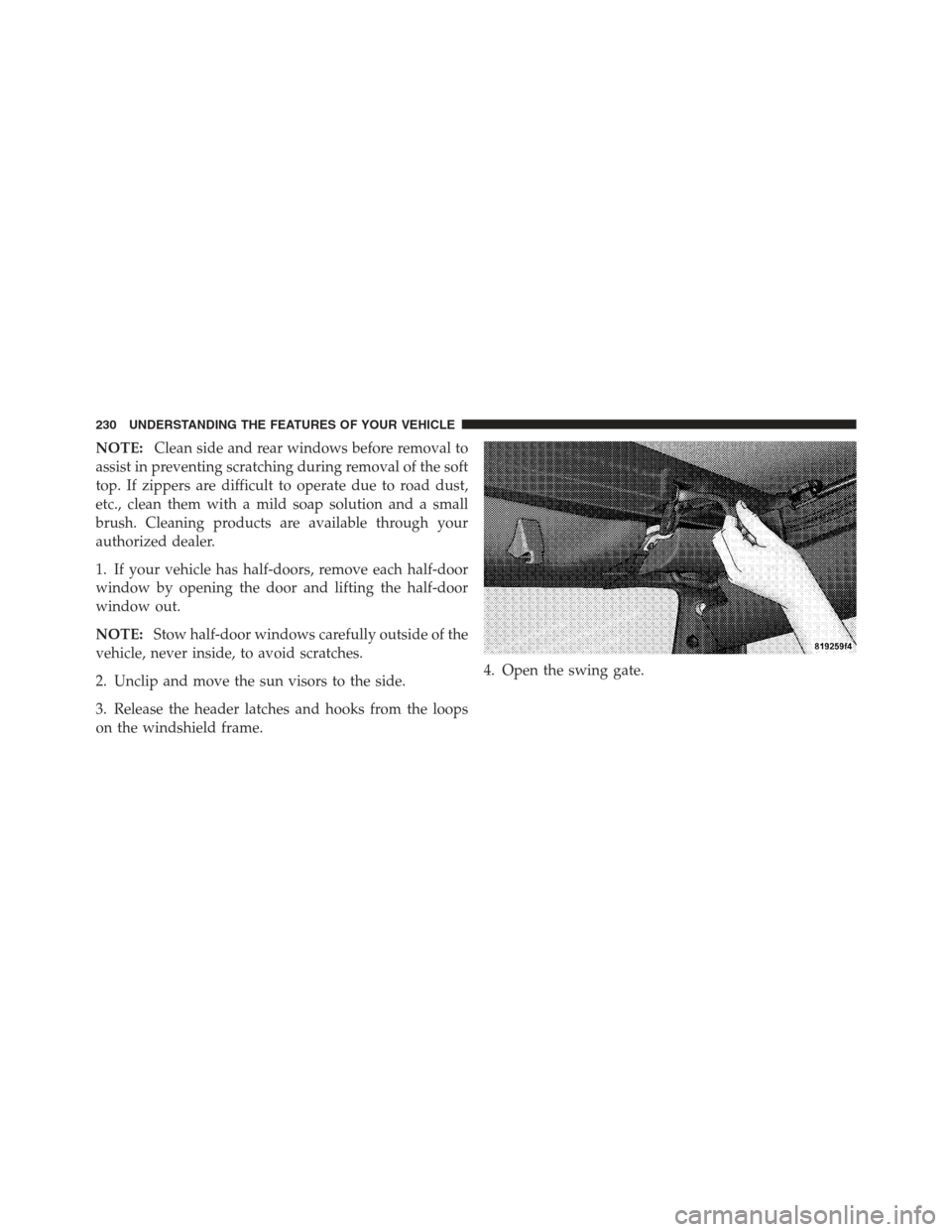

JEEP WRANGLER 2012 JK / 3.G Owners Manual NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild so

Page 233 of 613

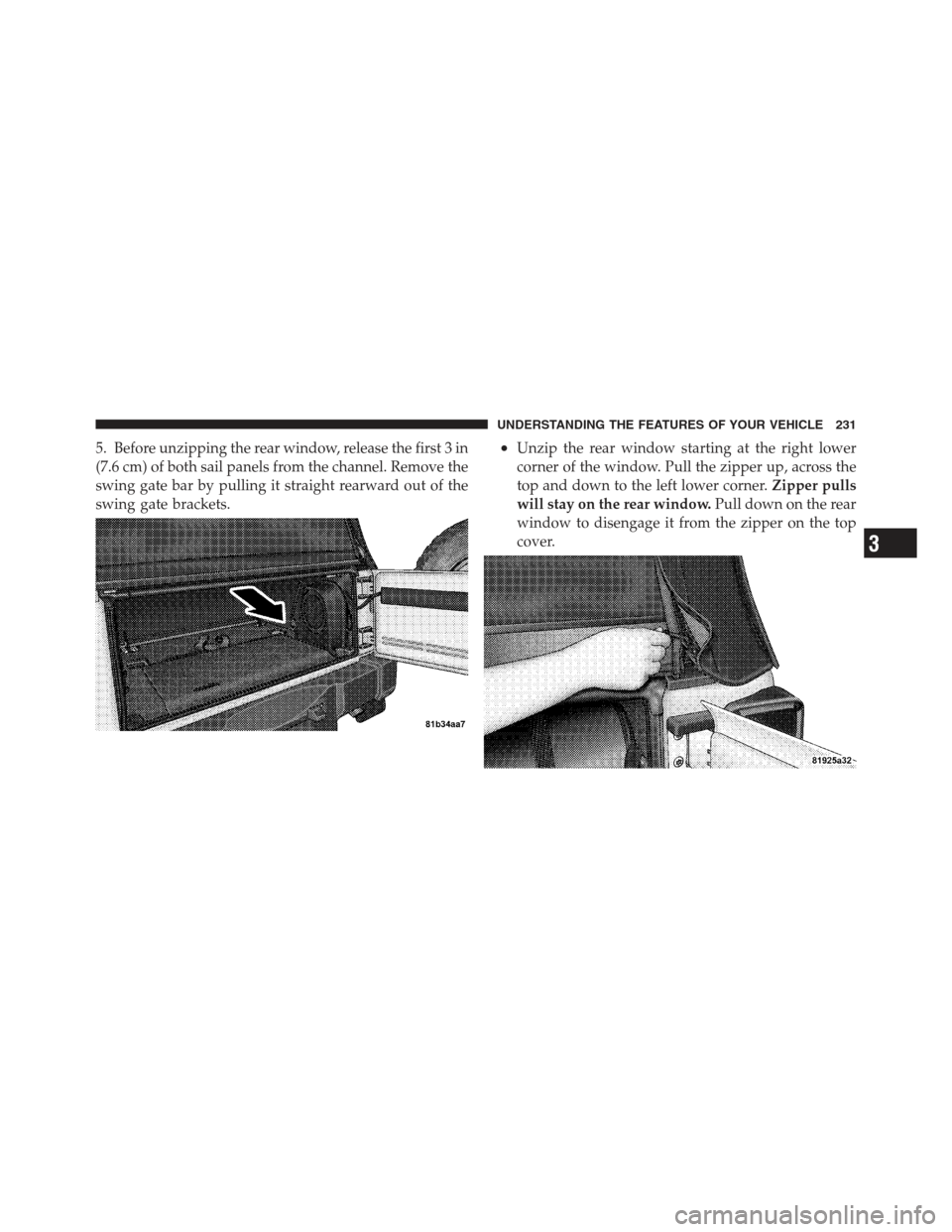

JEEP WRANGLER 2012 JK / 3.G Owners Manual 5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.•U

Page 234 of 613

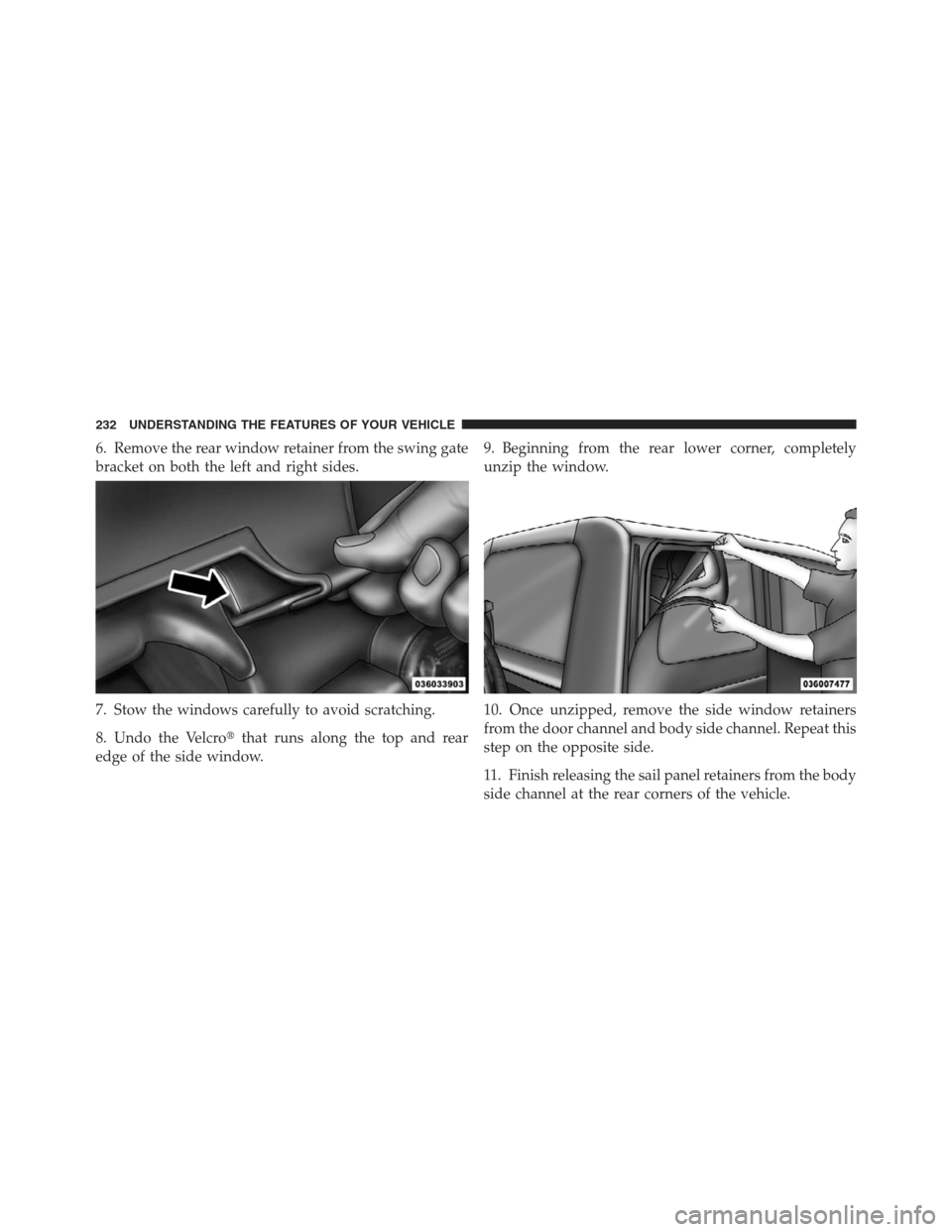

JEEP WRANGLER 2012 JK / 3.G Owners Manual 6. Remove the rear window retainer from the swing gate
bracket on both the left and right sides.
7. Stow the windows carefully to avoid scratching.
8. Undo the Velcrothat runs along the top and rear

Page 235 of 613

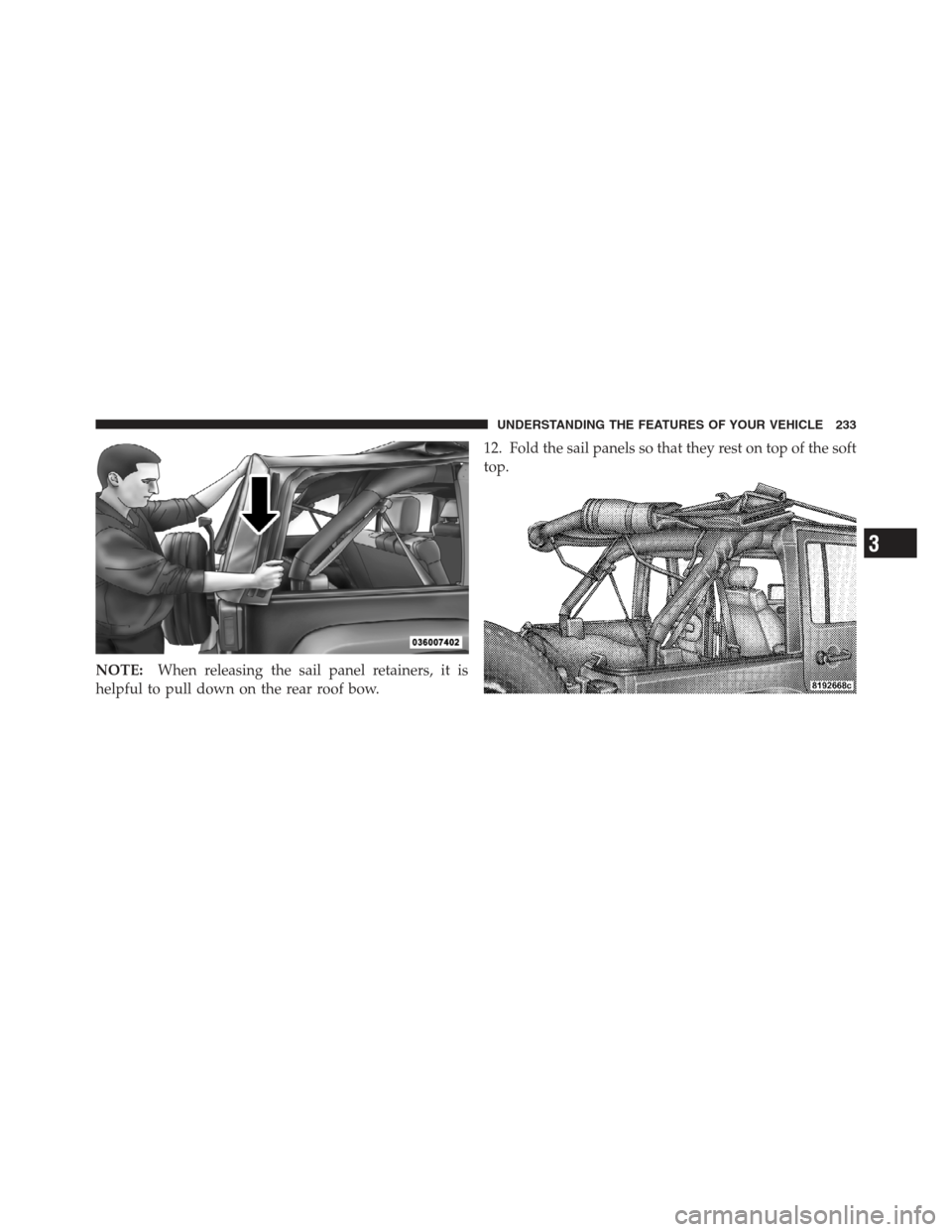

JEEP WRANGLER 2012 JK / 3.G Owners Manual NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow. 12. Fold the sail panels so that they rest on top of the soft
top.
3
UNDERSTANDING THE FEATURES OF YOUR V

Page 236 of 613

JEEP WRANGLER 2012 JK / 3.G Owners Manual 13. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket

Page 237 of 613

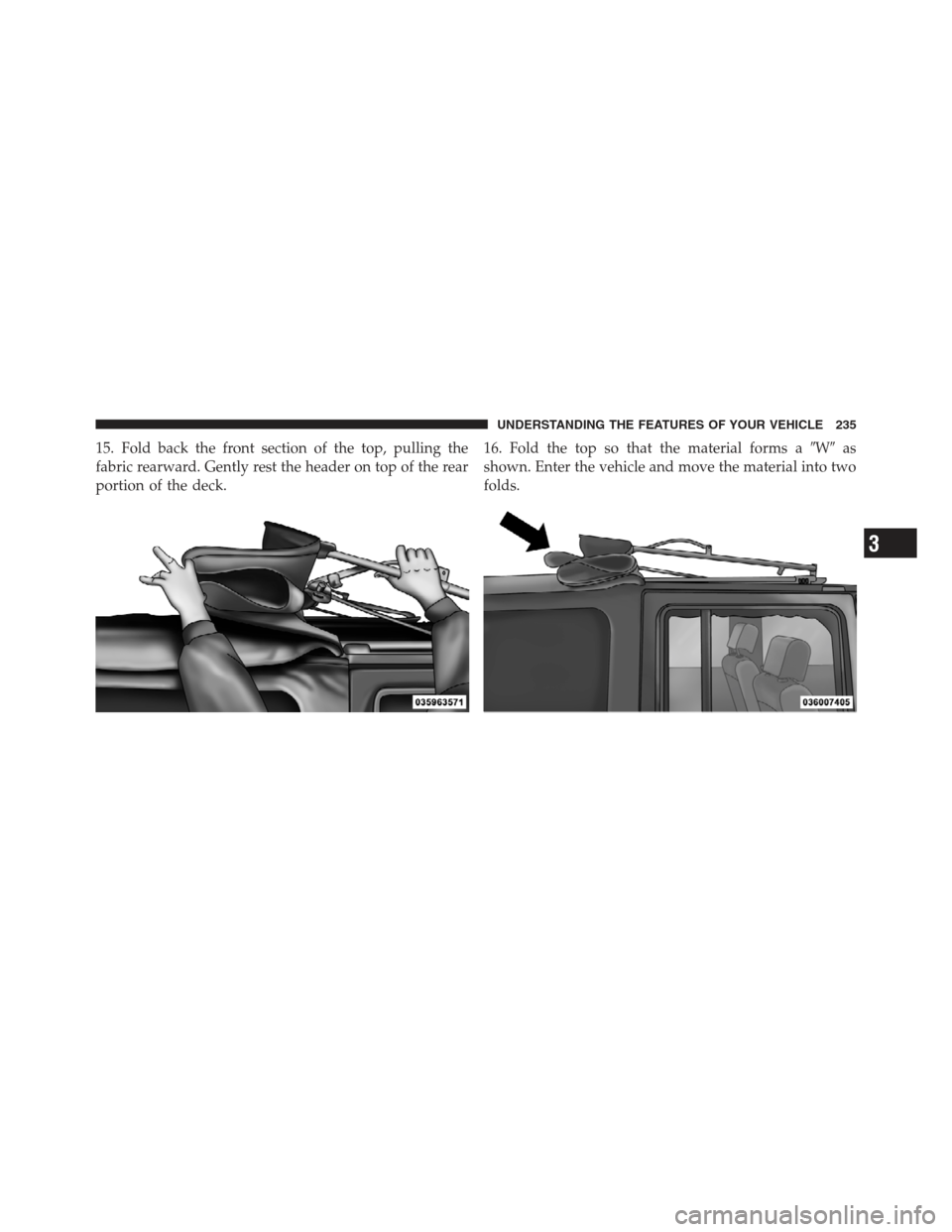

JEEP WRANGLER 2012 JK / 3.G Owners Manual 15. Fold back the front section of the top, pulling the
fabric rearward. Gently rest the header on top of the rear
portion of the deck.16. Fold the top so that the material forms a
Was
shown. Enter

Page 238 of 613

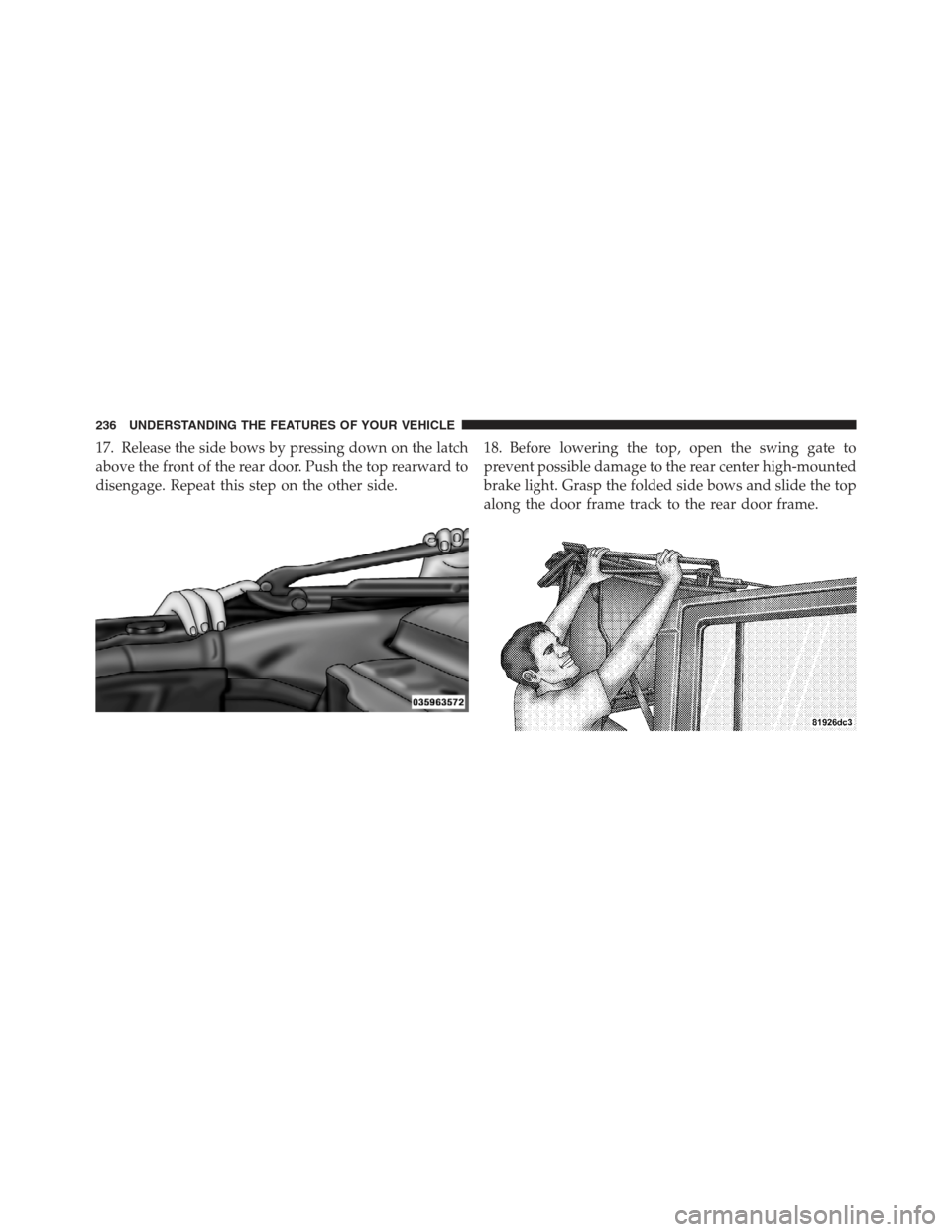

JEEP WRANGLER 2012 JK / 3.G Owners Manual 17. Release the side bows by pressing down on the latch
above the front of the rear door. Push the top rearward to
disengage. Repeat this step on the other side.18. Before lowering the top, open the s

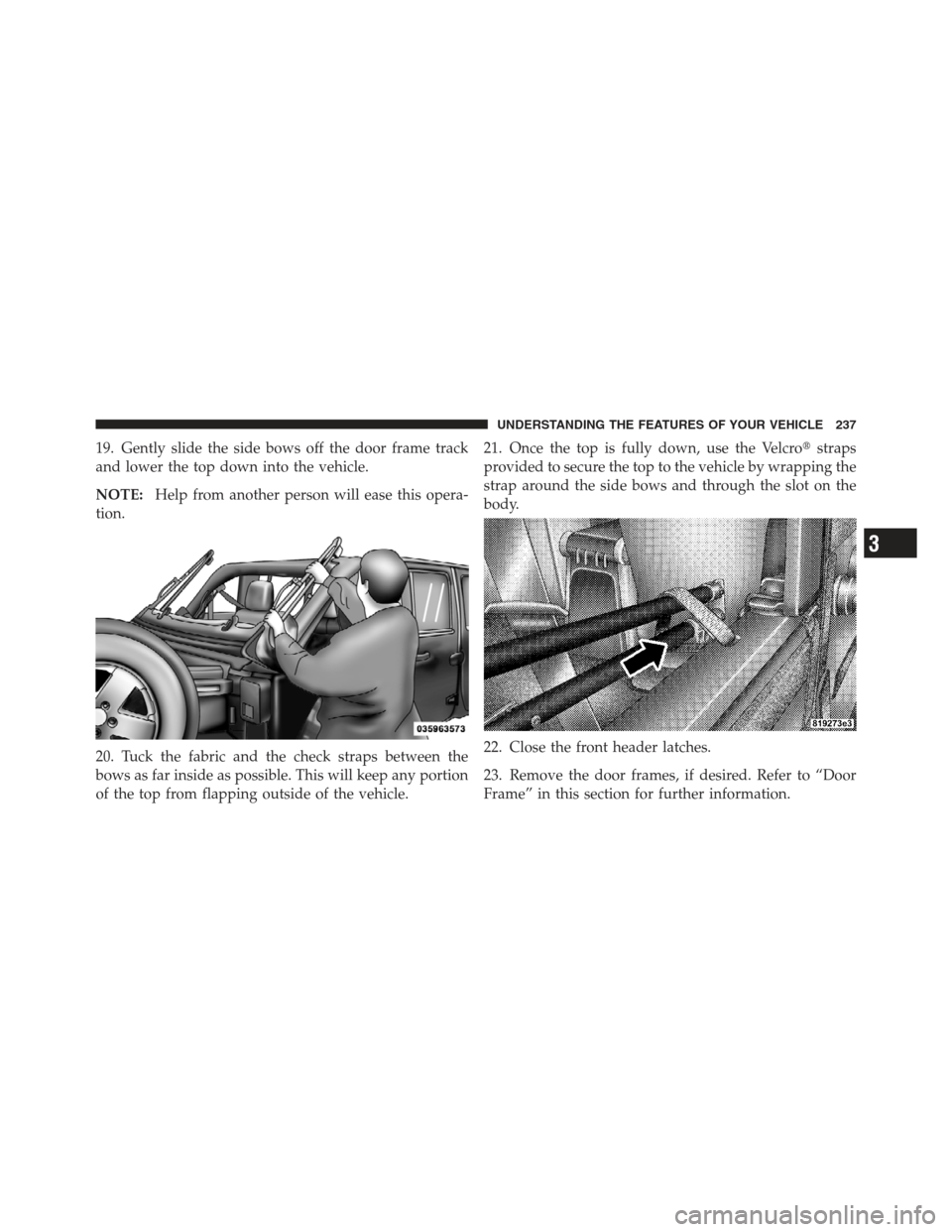

Page 239 of 613

JEEP WRANGLER 2012 JK / 3.G Owners Manual 19. Gently slide the side bows off the door frame track
and lower the top down into the vehicle.
NOTE:Help from another person will ease this opera-
tion.
20. Tuck the fabric and the check straps betw

Page 240 of 613

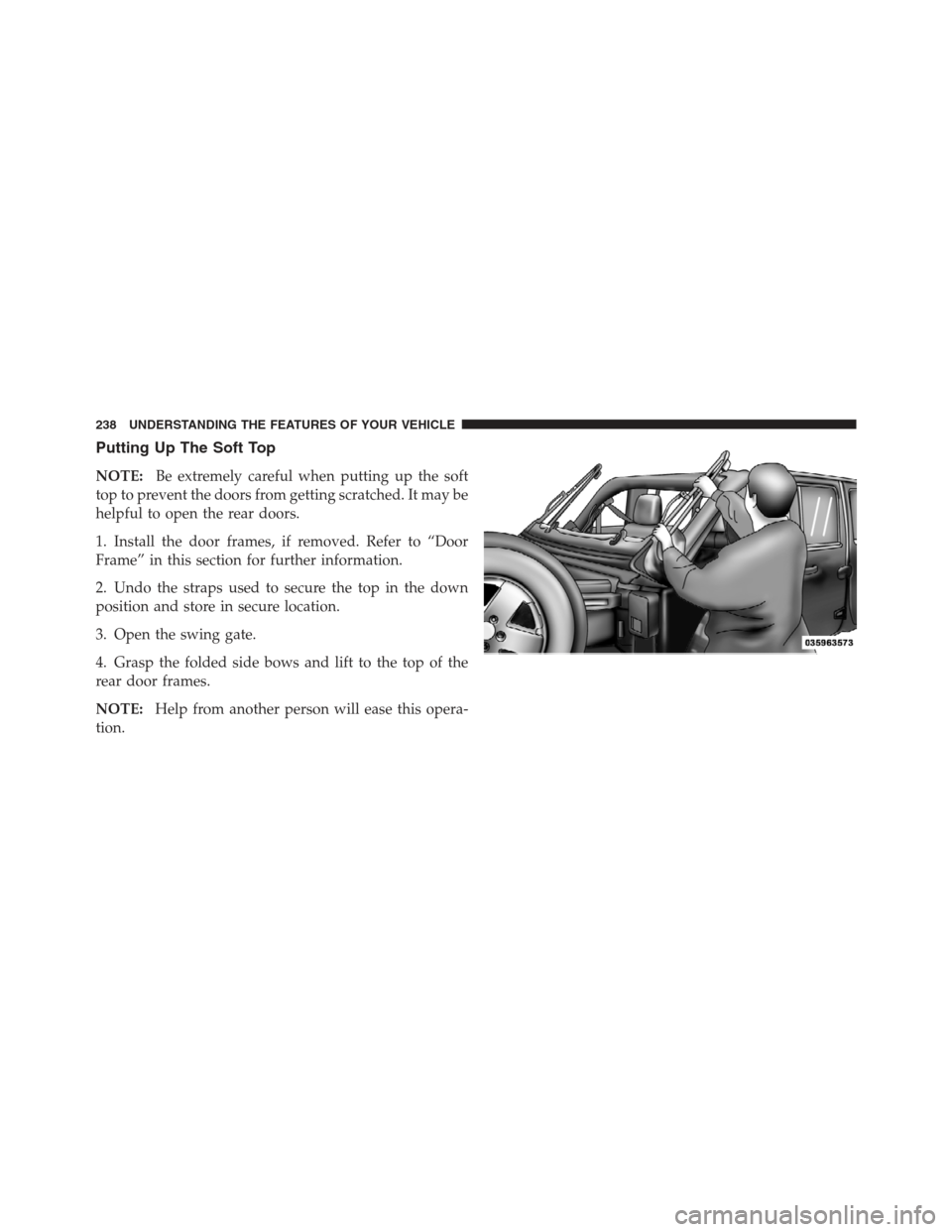

JEEP WRANGLER 2012 JK / 3.G Owners Manual Putting Up The Soft Top
NOTE:Be extremely careful when putting up the soft
top to prevent the doors from getting scratched. It may be
helpful to open the rear doors.
1. Install the door frames, if rem
