Shifting Out of NEUTRAL (N)
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring the vehicle to a complete stop, leaving it con-nected to the tow vehicle.
2. Firmly apply the parking brake.
3. Turn the ignition switch to the LOCK/OFF position.
4. Turn the ignition switch to the ON/RUN position, but do not start the engine.
5. Press and hold the brake pedal.
6. Shift the transmission into NEUTRAL.
7. Shift the transfer case lever to the desired position. NOTE:
When shifting the transfer case out of NEUTRAL
(N), turning the engine OFF may be required to avoid
gear clash.
8. Shift the automatic transmission into PARK, or place manual transmission in Neutral.
9. Release the brake pedal.
10. Disconnect vehicle from the tow vehicle.
11. Start the engine.
12. Press and hold the brake pedal.
13. Release the parking brake.
14. Shift the transmission into gear, release the brake pedal (and clutch pedal on manual transmissions),
and check that the vehicle operates normally.
544 STARTING AND OPERATING

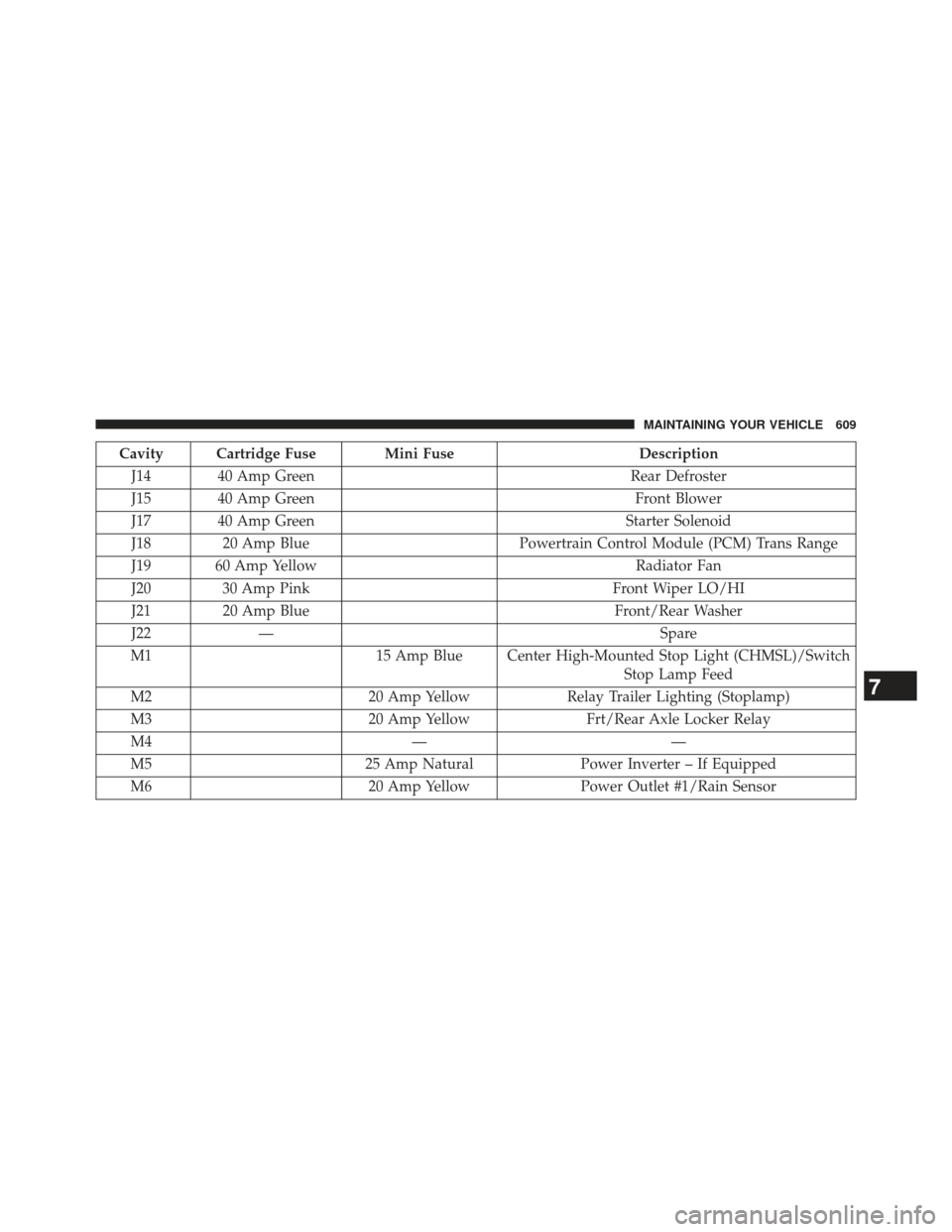

Cavity Cartridge Fuse Mini FuseDescription
J14 40 Amp Green Rear Defroster
J15 40 Amp Green Front Blower
J17 40 Amp Green Starter Solenoid
J18 20 Amp Blue Powertrain Control Module (PCM) Trans Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
J21 20 Amp Blue Front/Rear Washer
J22 — Spare
M1 15 Amp Blue Center High-Mounted Stop Light (CHMSL)/Switch
Stop Lamp Feed
M2 20 Amp YellowRelay Trailer Lighting (Stoplamp)
M3 20 Amp YellowFrt/Rear Axle Locker Relay
M4 ——
M5 25 Amp NaturalPower Inverter – If Equipped
M6 20 Amp YellowPower Outlet #1/Rain Sensor
7
MAINTAINING YOUR VEHICLE 609

Jack Operation.......................... .547
Jump Starting ........................... .555
Key-In Reminder ..........................16
Keyless Entry System .......................24
Key, Programming .........................20
Key, Replacement ..........................19
Keys ...................................15
Key, Sentry (Immobilizer) ....................18
Lane Change and Turn Signals ................305
Lane Change Assist ....................... .171
Lap Belts ................................50
Lap/Shoulder Belts .........................50
Latches ............................... .104
Lead Free Gasoline ....................... .513
Leaks, Fluid ............................ .104
Life of Tires ............................ .496
Light Bulbs ............................. .103Lights
................................ .103
Airbag ................................73
Alarm .............................. .309
Anti-Lock ............................ .307
Anti-Lock Warning ..................... .307
Automatic Headlights ....................170
Back-Up ............................. .617
Brake Assist Warning ....................472
Brake Warning ........................ .306
Bulb Replacement ...................... .615
Cargo .............................. .174
Center Mounted Stop ....................617
Check Engine (Malfunction Indicator) .........315
Cruise .............................. .310
Daytime Running ...................... .173
Electronic Stability Program (ESP) Indicator .....472
Electronic Throttle Control Warning ..........318
Exterior ............................. .103
Fog ................................ .172
652 INDEX
