buttons JEEP WRANGLER 2013 JK / 3.G Owners Manual

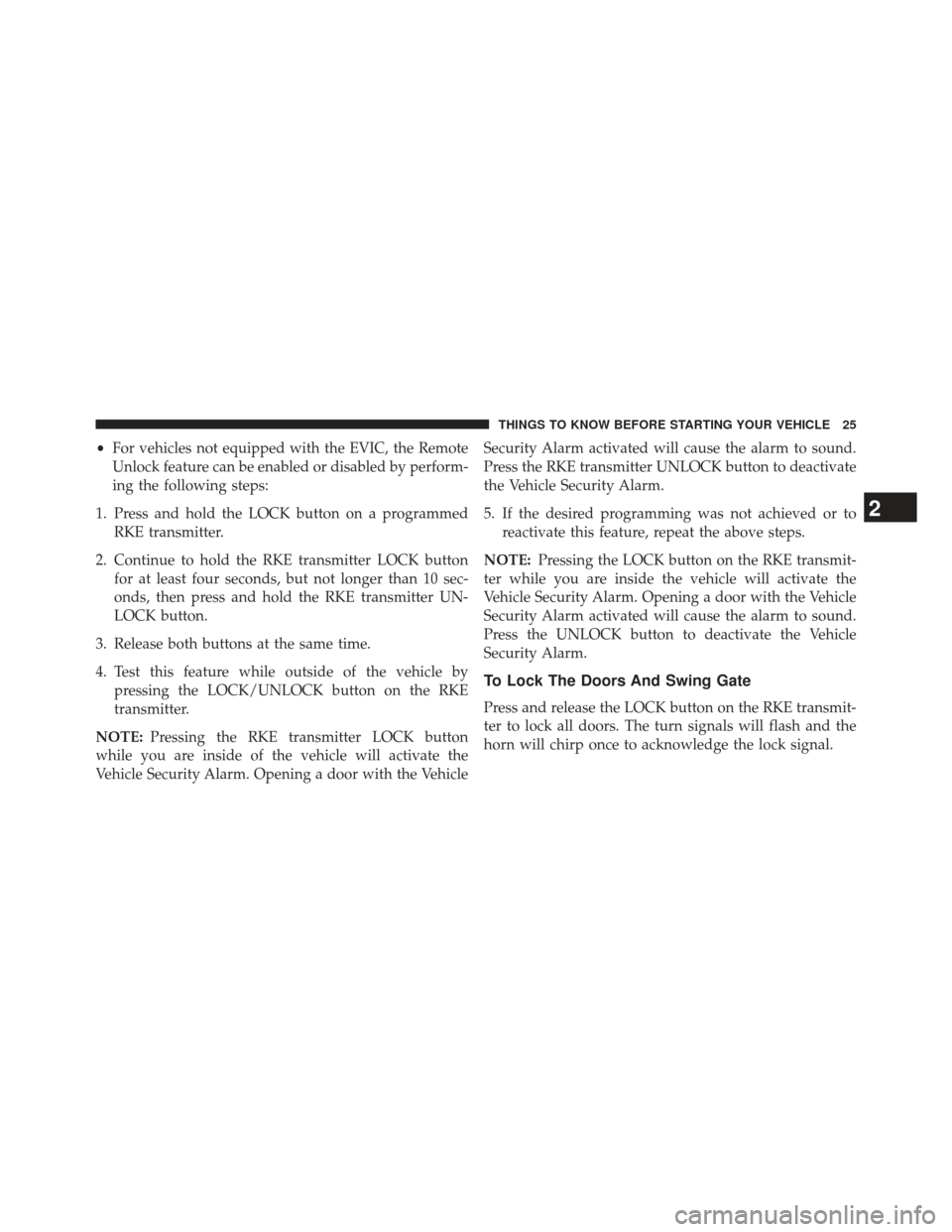

•For vehicles not equipped with the EVIC, the Remote
Unlock feature can be enabled or disabled by perform-
ing the following steps:
1. Press and hold the LOCK button on a programmed RKE transmitter.
2. Continue to hold the RKE transmitter LOCK button for at least four seconds, but not longer than 10 sec-
onds, then press and hold the RKE transmitter UN-
LOCK button.
3. Release both buttons at the same time.
4. Test this feature while outside of the vehicle by pressing the LOCK/UNLOCK button on the RKE
transmitter.
NOTE: Pressing the RKE transmitter LOCK button
while you are inside of the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound.
Press the RKE transmitter UNLOCK button to deactivate
the Vehicle Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
NOTE: Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.
To Lock The Doors And Swing Gate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signals will flash and the
horn will chirp once to acknowledge the lock signal.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

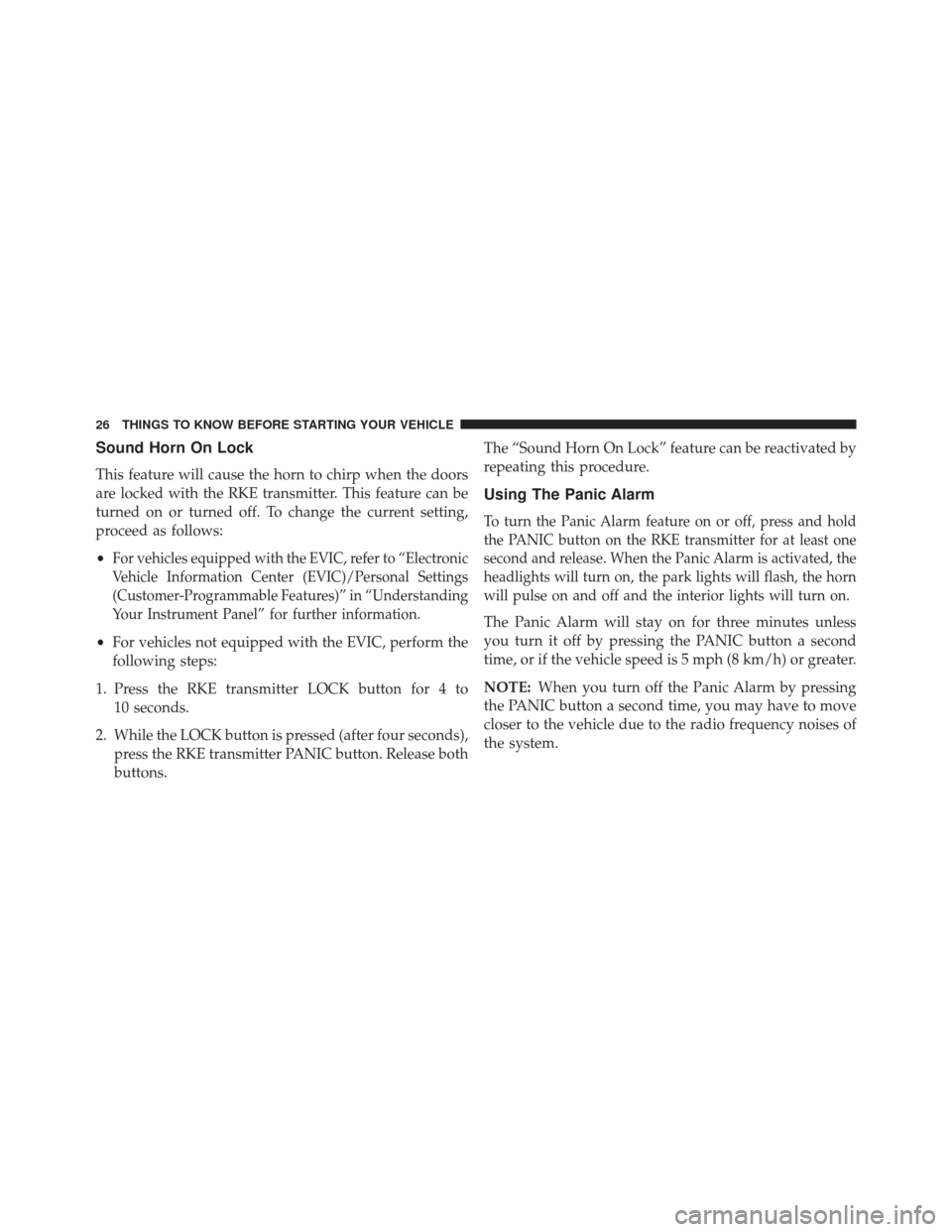

Sound Horn On Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
•
For vehicles equipped with the EVIC, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
• For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the RKE transmitter LOCK button for 4 to 10 seconds.
2. While the LOCK button is pressed (after four seconds), press the RKE transmitter PANIC button. Release both
buttons. The “Sound Horn On Lock” feature can be reactivated by
repeating this procedure.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is activated, the
headlights will turn on, the park lights will flash, the horn
will pulse on and off and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time, or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:
When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to move
closer to the vehicle due to the radio frequency noises of
the system.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

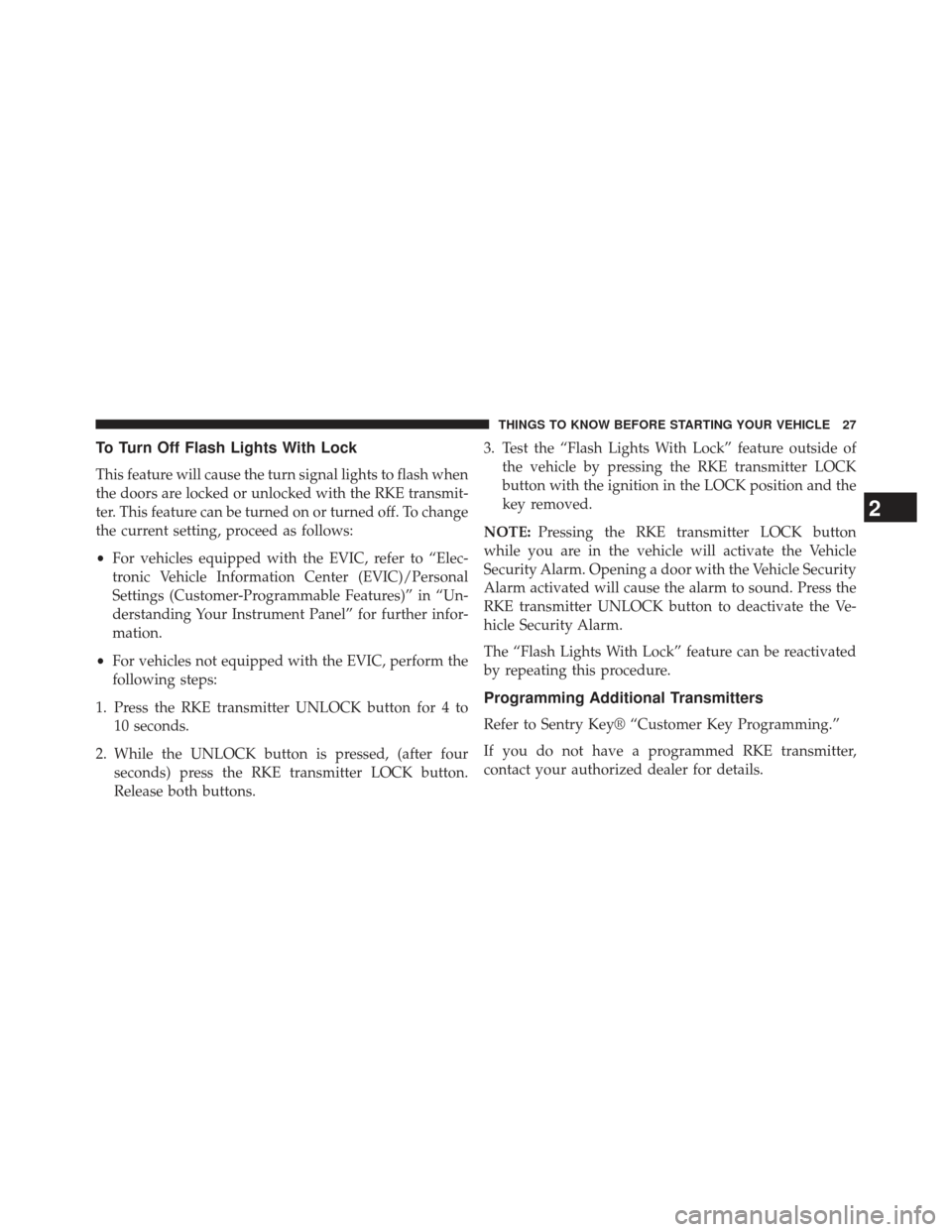

To Turn Off Flash Lights With Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Elec-
tronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
• For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the RKE transmitter UNLOCK button for 4 to 10 seconds.
2. While the UNLOCK button is pressed, (after four seconds) press the RKE transmitter LOCK button.
Release both buttons. 3. Test the “Flash Lights With Lock” feature outside of
the vehicle by pressing the RKE transmitter LOCK
button with the ignition in the LOCK position and the
key removed.
NOTE: Pressing the RKE transmitter LOCK button
while you are in the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
RKE transmitter UNLOCK button to deactivate the Ve-
hicle Security Alarm.
The “Flash Lights With Lock” feature can be reactivated
by repeating this procedure.
Programming Additional Transmitters
Refer to Sentry Key® “Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

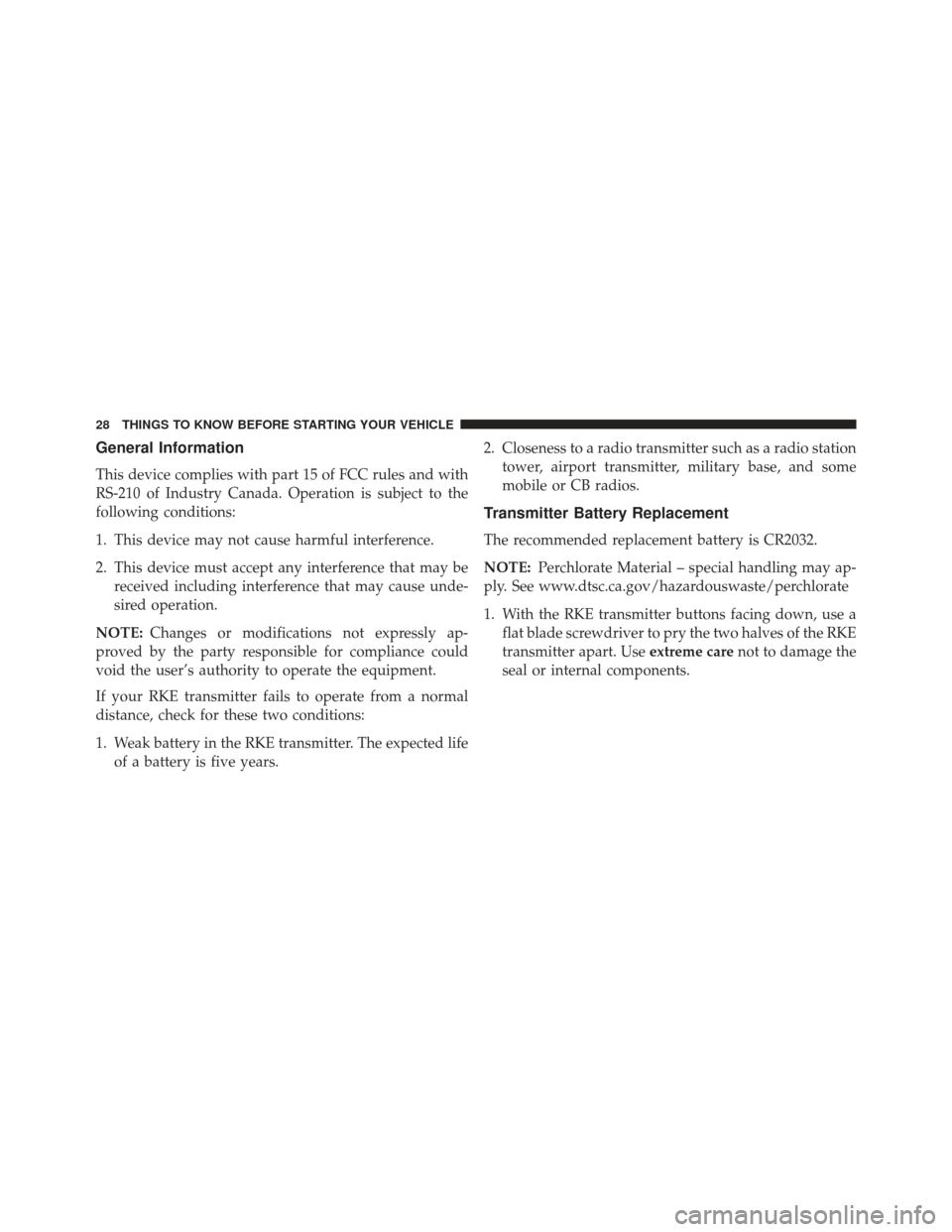

General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may bereceived including interference that may cause unde-
sired operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak battery in the RKE transmitter. The expected life of a battery is five years. 2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some
mobile or CB radios.
Transmitter Battery Replacement
The recommended replacement battery is CR2032.
NOTE: Perchlorate Material – special handling may ap-
ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. With the RKE transmitter buttons facing down, use a flat blade screwdriver to pry the two halves of the RKE
transmitter apart. Use extreme carenot to damage the
seal or internal components.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Uconnect® Phone Button
The radio or steering wheel controls (if equipped)
will contain the two control buttons (Uconnect®
Phone
button and Voice Command
button) that will enable you to access the
system. When you press the button you will hear the
word Uconnect® followed by a BEEP. The beep is your
signal to give a command.
NOTE: The driver side upper windshield trim contains
the microphone for the Uconnect® Phone.
Voice Command Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section. The Uconnect® Phone can be used with any Hands-Free
Profile certified Bluetooth® mobile phone. See the
Uconnect® website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.
The Uconnect® Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect® Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the Uconnect® Phone such as “CELL” or caller ID on
certain radios.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

Push down on the lever to unlock the steering column.
With one hand firmly on the steering wheel, move the
steering column up or down, as desired. Pull upwards on
the lever to lock the column firmly in place.WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause
the driver to lose control of the vehicle. Failure to
follow this warning may result in serious injury or
death.
ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, the Electronic Speed Control takes over
accelerator operations at speeds greater than 25 mph
(40 km/h).
The Electronic Speed Control buttons are located on the
right side of the steering wheel.
Tilt Steering Column Lever
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:In order to ensure proper operation, the Elec-
tronic Speed Control System has been designed to shut
down if multiple Speed Control functions are operated at
the same time. If this occurs, the Electronic Speed Control
System can be reactivated by pushing the Electronic
Speed Control ON/OFF button and resetting the desired
vehicle set speed.
To Activate
Push the ON/OFF button. The Cruise Indicator Light in
the instrument cluster will illuminate. To turn the system
off, push the ON/OFF button a second time. The Cruise
Indicator Light will turn off. The system should be
turned off when not in use.
Electronic Speed Control Buttons
1 — ON/OFF 2 — RES +
4 — CANCEL 3 — SET -
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

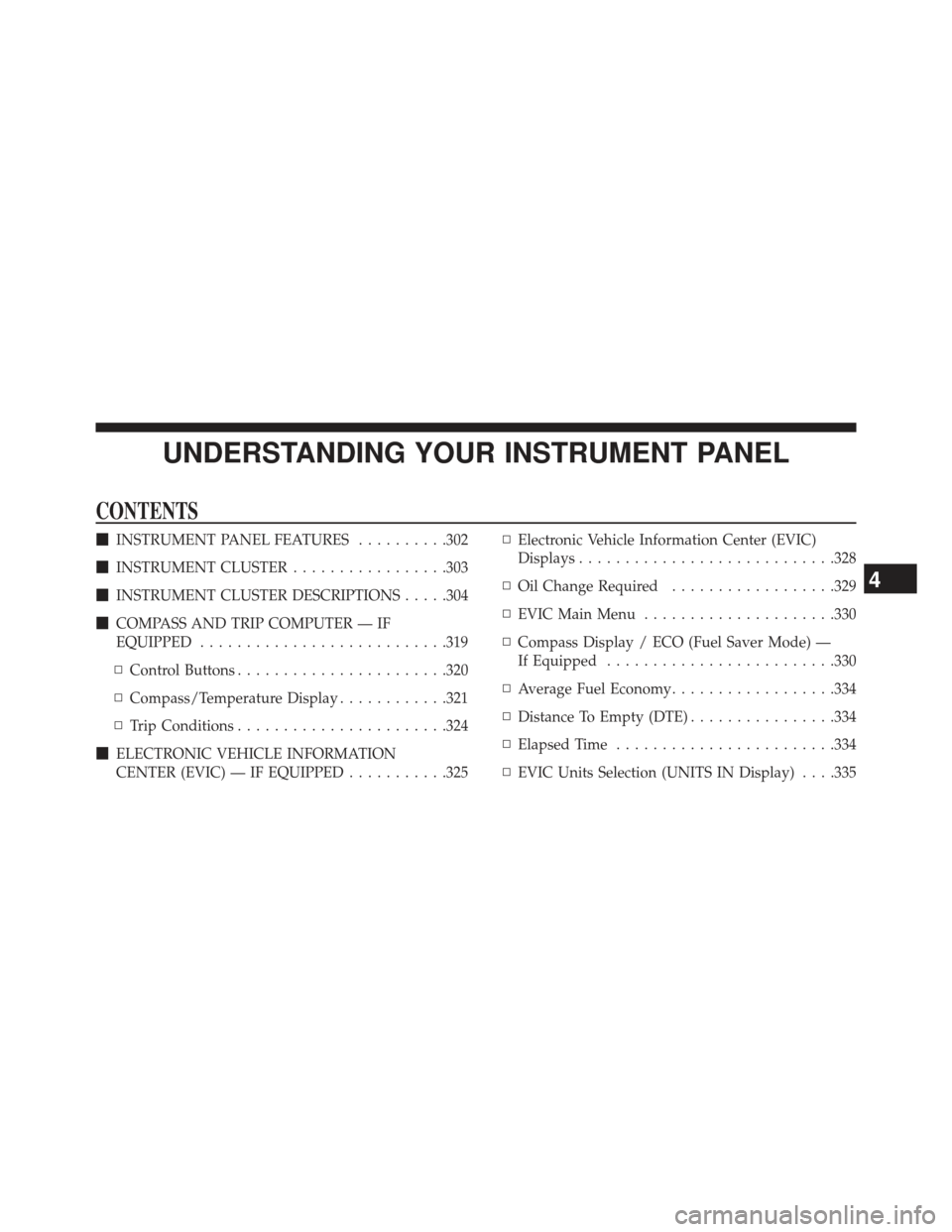

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........302
 INSTRUMENT CLUSTER .................303
 INSTRUMENT CLUSTER DESCRIPTIONS .....304
 COMPASS AND TRIP COMPUTER — IF
EQUIPPED .......................... .319
▫ Control Buttons ...................... .320
▫ Compass/Temperature Display ............321
▫ Trip Conditions ...................... .324
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) — IF EQUIPPED ...........325▫
Electronic Vehicle Information Center (EVIC)
Displays ........................... .328
▫ Oil Change Required ..................329
▫ EVIC Main Menu .....................330
▫ Compass Display / ECO (Fuel Saver Mode) —
If Equipped ........................ .330
▫ Average Fuel Economy ..................334
▫ Distance To Empty (DTE) ................334
▫ Elapsed Time ....................... .334
▫ EVIC Units Selection (UNITS IN Display) . . . .335
4

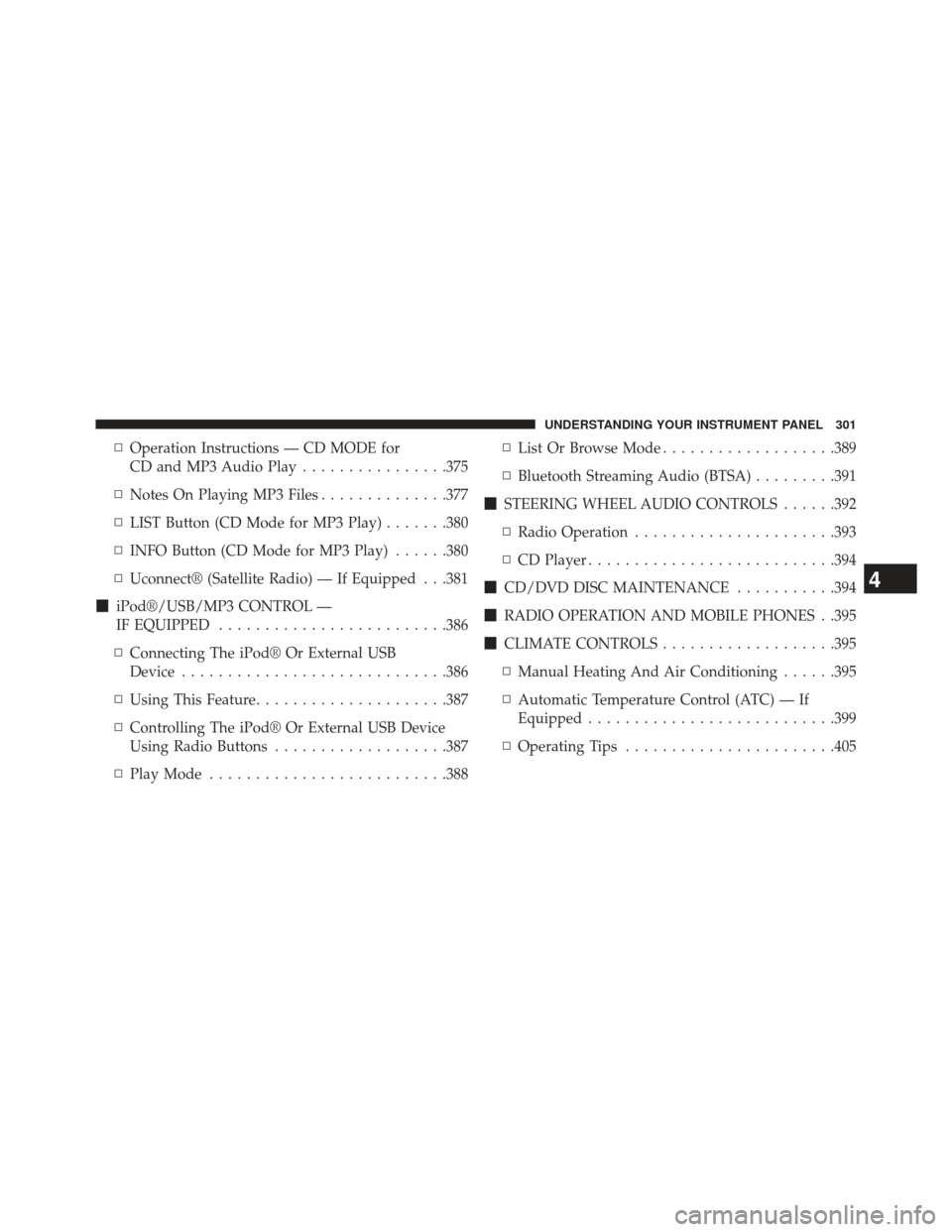

▫Operation Instructions — CD MODE for
CD and MP3 Audio Play ................375
▫ Notes On Playing MP3 Files ..............377
▫ LIST Button (CD Mode for MP3 Play) .......380
▫ INFO Button (CD Mode for MP3 Play) ......380
▫ Uconnect® (Satellite Radio) — If Equipped . . .381
 iPod®/USB/MP3 CONTROL —
IF EQUIPPED ........................ .386
▫ Connecting The iPod® Or External USB
Device ............................ .386
▫ Using This Feature .....................387
▫ Controlling The iPod® Or External USB Device
Using Radio Buttons ...................387
▫ Play Mode ......................... .388▫
List Or Browse Mode ...................389
▫ Bluetooth Streaming Audio (BTSA) .........391
 STEERING WHEEL AUDIO CONTROLS ......392
▫ Radio Operation ..................... .393
▫ CD Player .......................... .394
 CD/DVD DISC MAINTENANCE ...........394
 RADIO OPERATION AND MOBILE PHONES . .395
 CLIMATE CONTROLS ...................395
▫ Manual Heating And Air Conditioning ......395
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... .399
▫ Operating Tips ...................... .405
4
UNDERSTANDING YOUR INSTRUMENT PANEL 301

Control Buttons
The Compass/Temperature control buttons are located
on the left spoke of the steering wheel.
Press and release the STEP button on the steering wheel
to access the options in the Compass display.NOTE:
The system will display the last known outside
temperature when starting the vehicle and may need to
be driven several minutes before the updated tempera-
ture is displayed. Engine temperature can also affect the
displayed temperature; therefore, temperature readings
are not updated when the vehicle is not moving.
The following displays can be reset or changed:
• Compass/Temperature
• AVG ECO (changes to present fuel economy)
• ET (will reset display)
• DTE (distance to empty)
These messages can be cycled through by pressing the
STEP button on the steering wheel. To reset the AVG ECO
or ET, press and hold the STEP button for approximately
three seconds.
Mini-Trip Control Buttons
