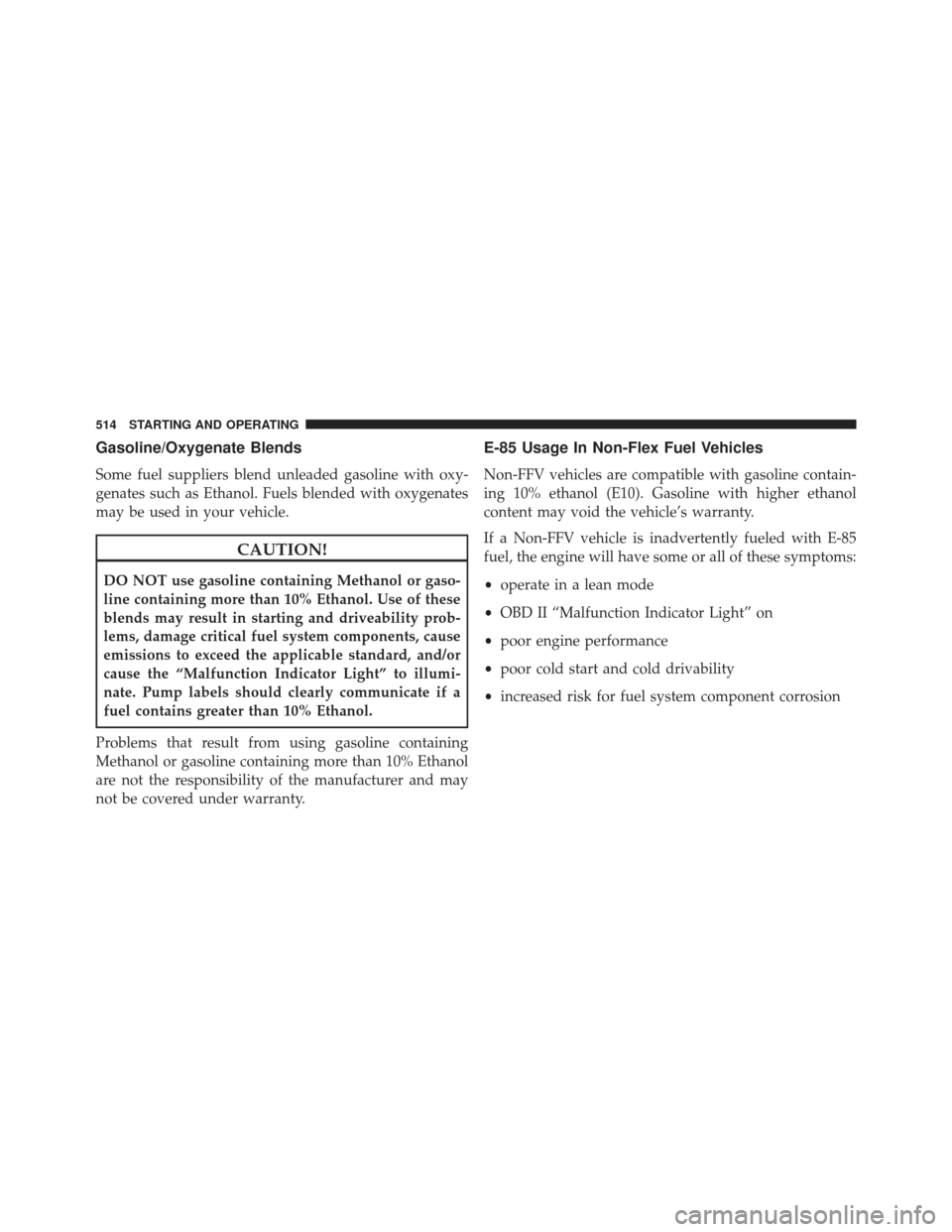

Gasoline/Oxygenate Blends
Some fuel suppliers blend unleaded gasoline with oxy-
genates such as Ethanol. Fuels blended with oxygenates
may be used in your vehicle.
CAUTION!
DO NOT use gasoline containing Methanol or gaso-
line containing more than 10% Ethanol. Use of these
blends may result in starting and driveability prob-
lems, damage critical fuel system components, cause
emissions to exceed the applicable standard, and/or
cause the “Malfunction Indicator Light” to illumi-
nate. Pump labels should clearly communicate if a
fuel contains greater than 10% Ethanol.
Problems that result from using gasoline containing
Methanol or gasoline containing more than 10% Ethanol
are not the responsibility of the manufacturer and may
not be covered under warranty.
E-85 Usage In Non-Flex Fuel Vehicles
Non-FFV vehicles are compatible with gasoline contain-
ing 10% ethanol (E10). Gasoline with higher ethanol
content may void the vehicle’s warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85
fuel, the engine will have some or all of these symptoms:
• operate in a lean mode
• OBD II “Malfunction Indicator Light” on
• poor engine performance
• poor cold start and cold drivability
• increased risk for fuel system component corrosion
514 STARTING AND OPERATING

To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
• change the engine oil and oil filter
• disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT (Methylcyclopentadienyl Manganese Tricarbonyl)
is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. MMT is prohibited in Federal
and California reformulated gasoline.
Materials Added To Fuel
All gasoline sold in the United States is required to contain
effective detergent additives. Use of additional detergents
or other additives is not needed under normal conditions
and they would result in additional cost. Therefore, you
should not have to add anything to the fuel.5
STARTING AND OPERATING 515

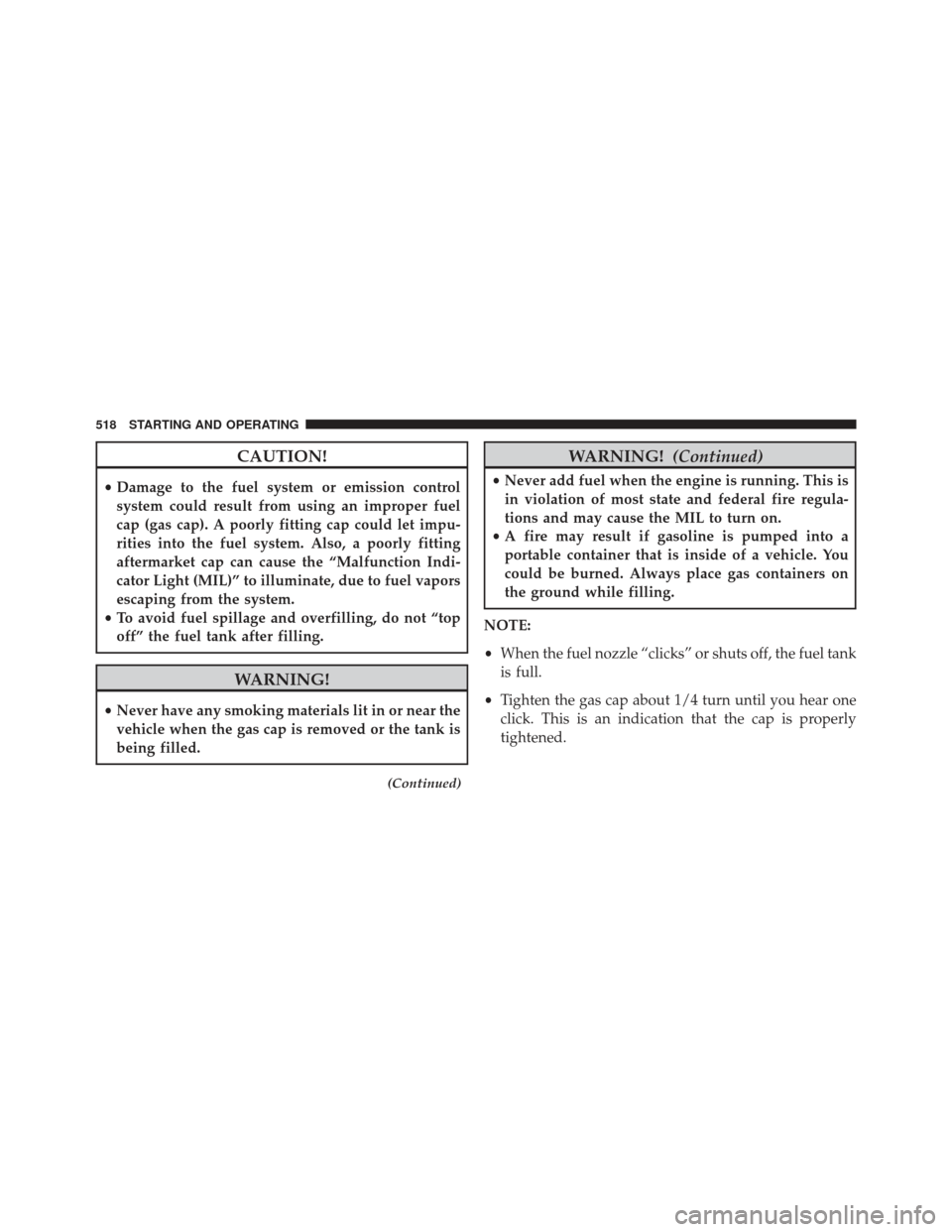

CAUTION!
•Damage to the fuel system or emission control
system could result from using an improper fuel
cap (gas cap). A poorly fitting cap could let impu-
rities into the fuel system. Also, a poorly fitting
aftermarket cap can cause the “Malfunction Indi-
cator Light (MIL)” to illuminate, due to fuel vapors
escaping from the system.
• To avoid fuel spillage and overfilling, do not “top
off” the fuel tank after filling.
WARNING!
• Never have any smoking materials lit in or near the
vehicle when the gas cap is removed or the tank is
being filled.
(Continued)
WARNING! (Continued)
•Never add fuel when the engine is running. This is
in violation of most state and federal fire regula-
tions and may cause the MIL to turn on.
• A fire may result if gasoline is pumped into a
portable container that is inside of a vehicle. You
could be burned. Always place gas containers on
the ground while filling.
NOTE:
• When the fuel nozzle “clicks” or shuts off, the fuel tank
is full.
• Tighten the gas cap about 1/4 turn until you hear one
click. This is an indication that the cap is properly
tightened.
518 STARTING AND OPERATING

Cavity Cartridge Fuse Mini FuseDescription
J1 — —
J2 30 Amp Pink Transfer Case Module
J3 — —
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake System (ABS) Pump/Stability
Control System
J7 30 Amp Pink Anti-Lock Brake System (ABS) Valve/Stability
Control System
J8 — —
J9 40 Amp Green PZEV Sec Motor/Flex Fuel
J10 30 Amp Pink Headlamp Wash Relay/Manifold Tuning Valve
J11 30 Amp Pink Sway Bar
J12 30 Amp Pink Rear Blower Motor/Radiator Fan
J13 60 Amp Yellow Ignition Off Draw (IOD) – Main
608 MAINTAINING YOUR VEHICLE

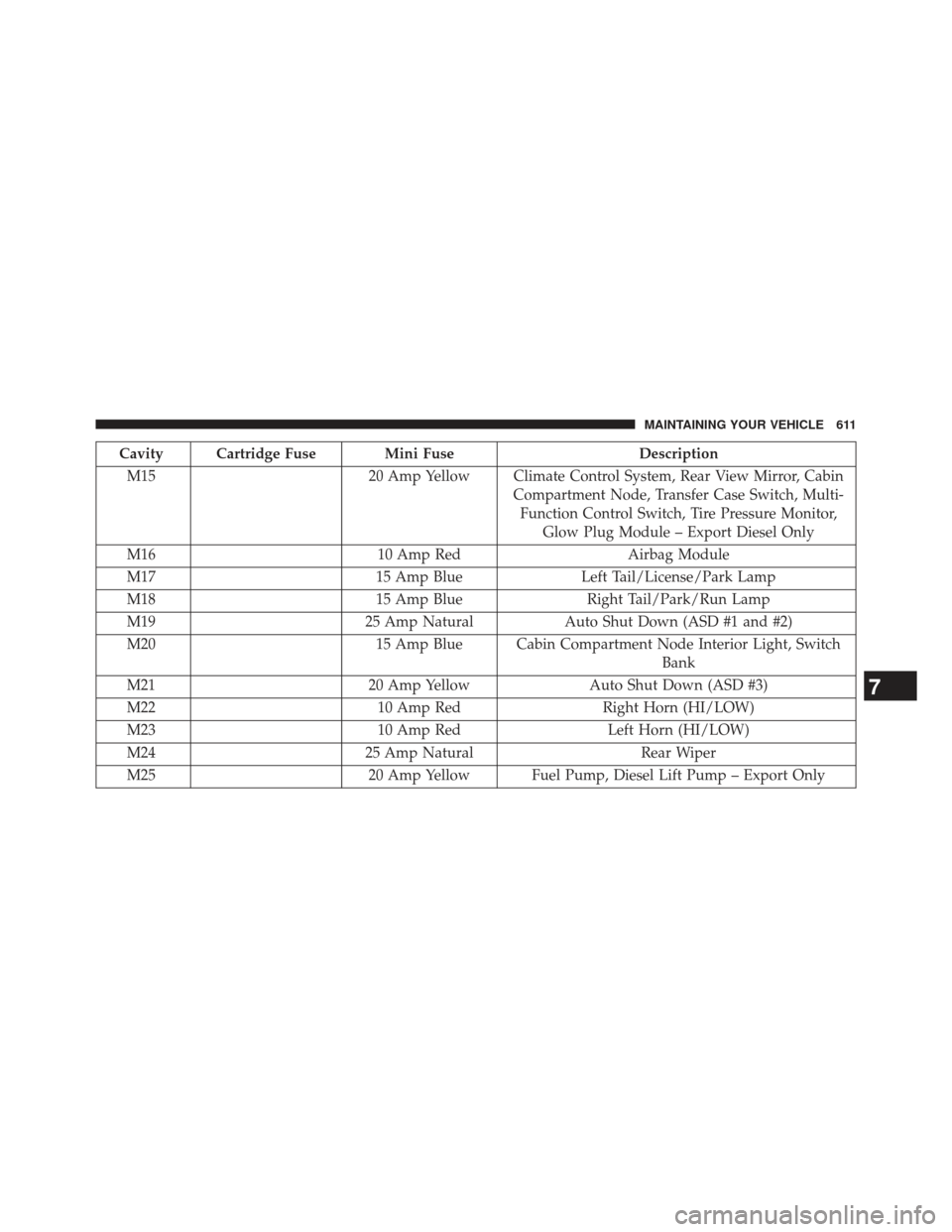

Cavity Cartridge Fuse Mini FuseDescription
M15 20 Amp Yellow Climate Control System, Rear View Mirror, Cabin
Compartment Node, Transfer Case Switch, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only
M16 10 Amp RedAirbag Module
M17 15 Amp BlueLeft Tail/License/Park Lamp
M18 15 Amp BlueRight Tail/Park/Run Lamp
M19 25 Amp NaturalAuto Shut Down (ASD #1 and #2)
M20 15 Amp Blue Cabin Compartment Node Interior Light, Switch
Bank
M21 20 Amp YellowAuto Shut Down (ASD #3)
M22 10 Amp RedRight Horn (HI/LOW)
M23 10 Amp RedLeft Horn (HI/LOW)
M24 25 Amp Natural Rear Wiper
M25 20 Amp Yellow Fuel Pump, Diesel Lift Pump – Export Only
7
MAINTAINING YOUR VEHICLE 611

Cavity Cartridge Fuse Mini FuseDescription
M26 10 Amp Red Power Window Switch, Driver Window Switch
M27 10 Amp RedIgnition Switch Feed, Wireless Module
M28 10 Amp RedPowertrain Control Module
M29 10 Amp Red Powertrain
M30 15 Amp BlueWiper Motor Frt, J1962 Diagnostic Feed
M31 20 Amp Yellow Backup Lamps
M32 10 Amp RedAirbag Controller, TT EUROPE
M33 10 Amp RedPowertrain Controller
M34 10 Amp Red Park Assist, Climate Control System, Headlamp
Wash, Compass
M35 10 Amp RedHeated Mirrors
M36 20 Amp Yellow Power Outlet
M37 10 Amp Red Anti-Lock Brake System, Electronic Stability
Control, Stop Lamp Switch, Fuel Pump Relay
M38 25 Amp Natural Lock/Unlock Motors
612 MAINTAINING YOUR VEHICLE
