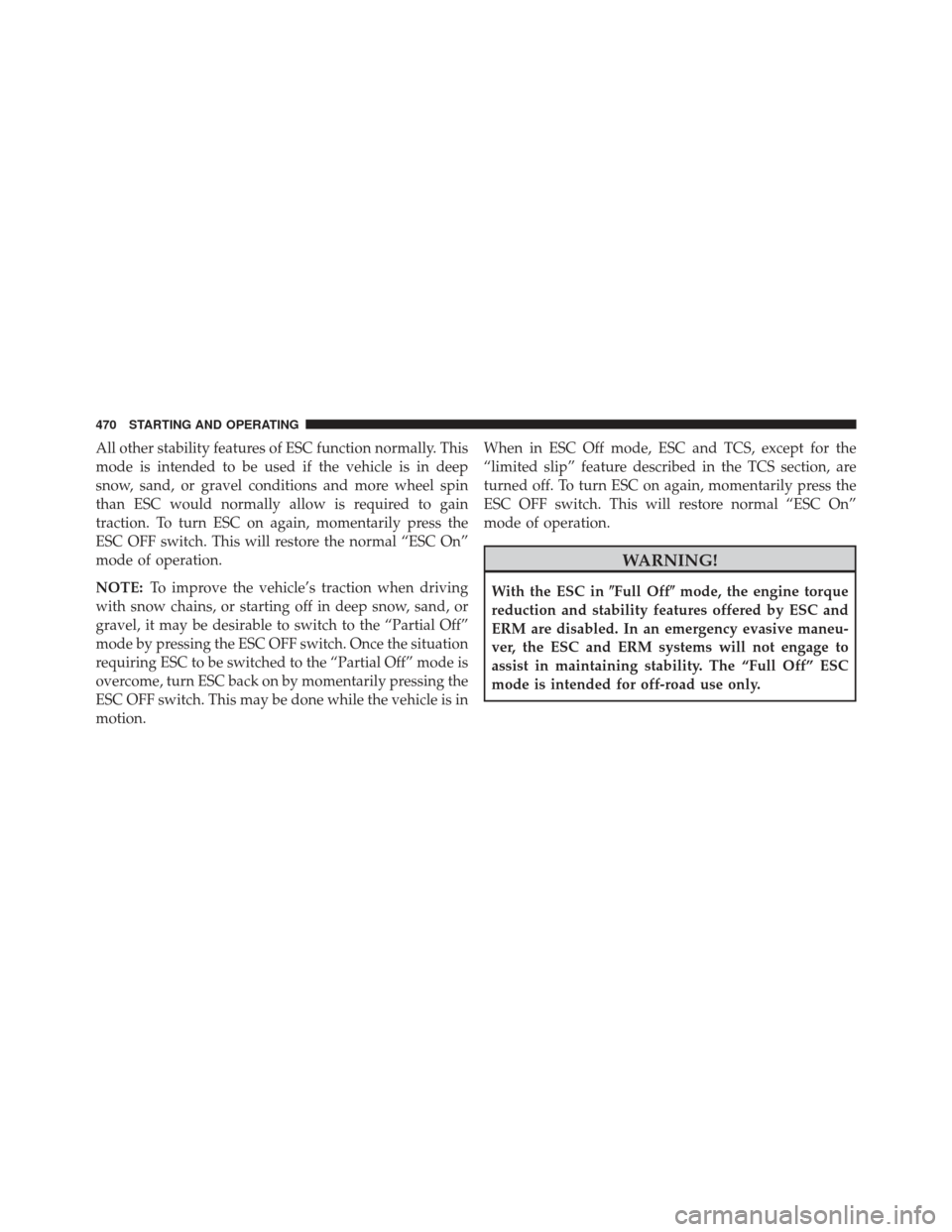

All other stability features of ESC function normally. This
mode is intended to be used if the vehicle is in deep
snow, sand, or gravel conditions and more wheel spin
than ESC would normally allow is required to gain
traction. To turn ESC on again, momentarily press the
ESC OFF switch. This will restore the normal “ESC On”
mode of operation.
NOTE:To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the ESC OFF switch. Once the situation
requiring ESC to be switched to the “Partial Off” mode is
overcome, turn ESC back on by momentarily pressing the
ESC OFF switch. This may be done while the vehicle is in
motion. When in ESC Off mode, ESC and TCS, except for the
“limited slip” feature described in the TCS section, are
turned off. To turn ESC on again, momentarily press the
ESC OFF switch. This will restore normal “ESC On”
mode of operation.
WARNING!
With the ESC in
Full Offmode, the engine torque
reduction and stability features offered by ESC and
ERM are disabled. In an emergency evasive maneu-
ver, the ESC and ERM systems will not engage to
assist in maintaining stability. The “Full Off” ESC
mode is intended for off-road use only.
470 STARTING AND OPERATING

Partial Off
When in “Partial Off” mode, the TCS portion of ESC has
been disabled and the “ESC Activation/Malfunction
Indicator Light” will be illuminated.
All other stability features of ESC function normally. This
mode is intended to be used if the vehicle is in deep
snow, sand, or gravel conditions and more wheel spin
than ESC would normally allow is required to gain
traction. To turn ESC on again, momentarily press the
ESC OFF switch. This will restore the normal “ESC On”
mode of operation.
NOTE:
To improve the vehicle’s traction when driving with
snow chains, or starting off in deep snow, sand, or gravel, it
may be desirable to switch to the “Partial Off” mode by
pressing the ESC OFF switch. Once the situation requiring
ESC to be switched to the “Partial Off” mode is overcome,
turn ESC back on by momentarily pressing the ESC OFF
switch. This may be done while the vehicle is in motion.
ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition switch is cycled to the ON
position. It should go out with the engine
running. If the “ESC Activation/Malfunction Indicator
Light” comes on continuously with the engine running, a
malfunction has been detected in the ESC system. If this
light remains on after several ignition cycles, and the
vehicle has been driven several miles (kilometers) at
speeds greater than 30 mph (48 km/h), see your autho-
rized dealer as soon as possible to have the problem
diagnosed and corrected.
The “ESC Activation/Malfunction Indicator Light” (lo-
cated in the instrument cluster) starts to flash as soon as
the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
flashes when TCS is active. If the “ESC Activation/
472 STARTING AND OPERATING

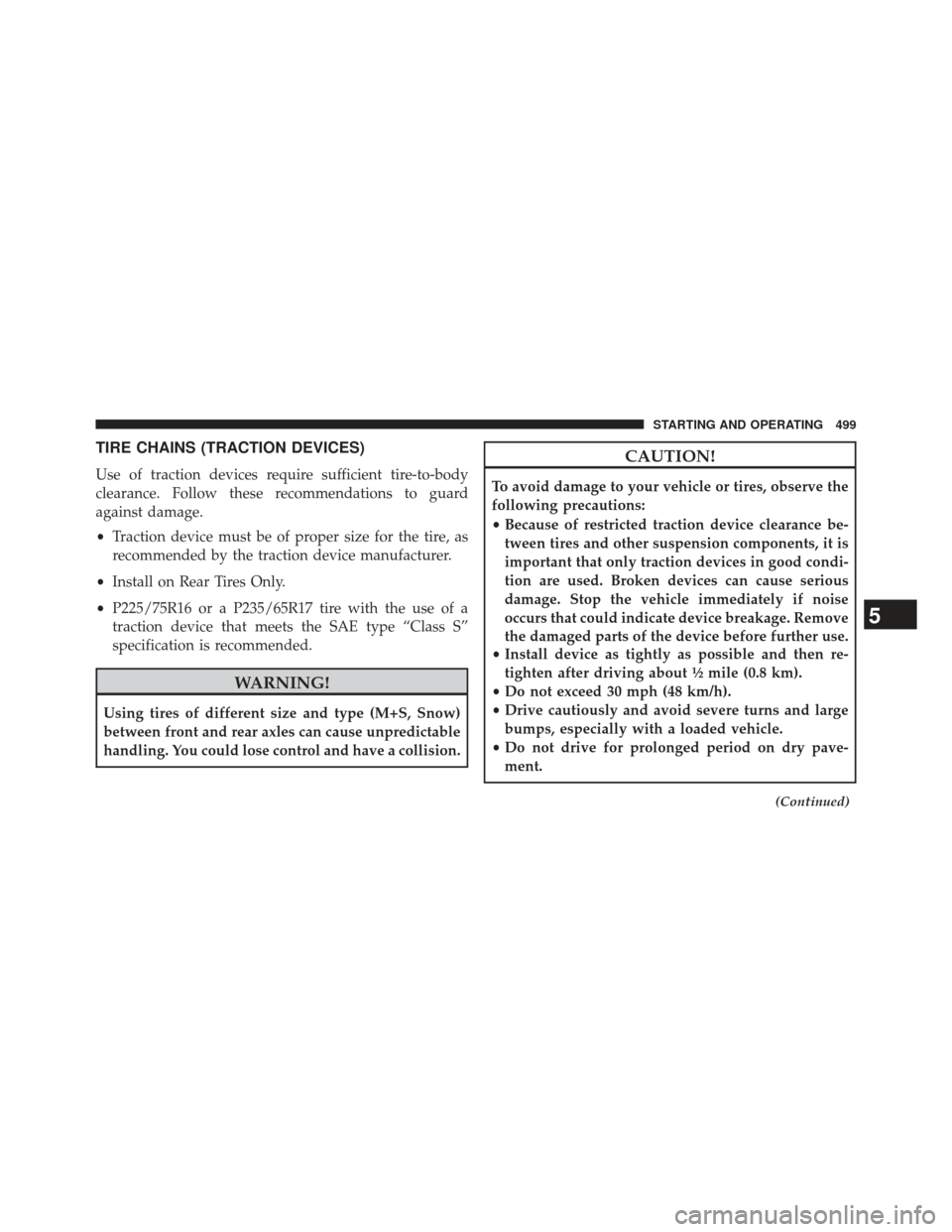

TIRE CHAINS (TRACTION DEVICES)
Use of traction devices require sufficient tire-to-body
clearance. Follow these recommendations to guard
against damage.
•Traction device must be of proper size for the tire, as
recommended by the traction device manufacturer.
• Install on Rear Tires Only.
• P225/75R16 or a P235/65R17 tire with the use of a
traction device that meets the SAE type “Class S”
specification is recommended.
WARNING!
Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredictable
handling. You could lose control and have a collision.
CAUTION!
To avoid damage to your vehicle or tires, observe the
following precautions:
• Because of restricted traction device clearance be-
tween tires and other suspension components, it is
important that only traction devices in good condi-
tion are used. Broken devices can cause serious
damage. Stop the vehicle immediately if noise
occurs that could indicate device breakage. Remove
the damaged parts of the device before further use.
• Install device as tightly as possible and then re-
tighten after driving about ½ mile (0.8 km).
• Do not exceed 30 mph (48 km/h).
• Drive cautiously and avoid severe turns and large
bumps, especially with a loaded vehicle.
• Do not drive for prolonged period on dry pave-
ment.
(Continued)
5
STARTING AND OPERATING 499

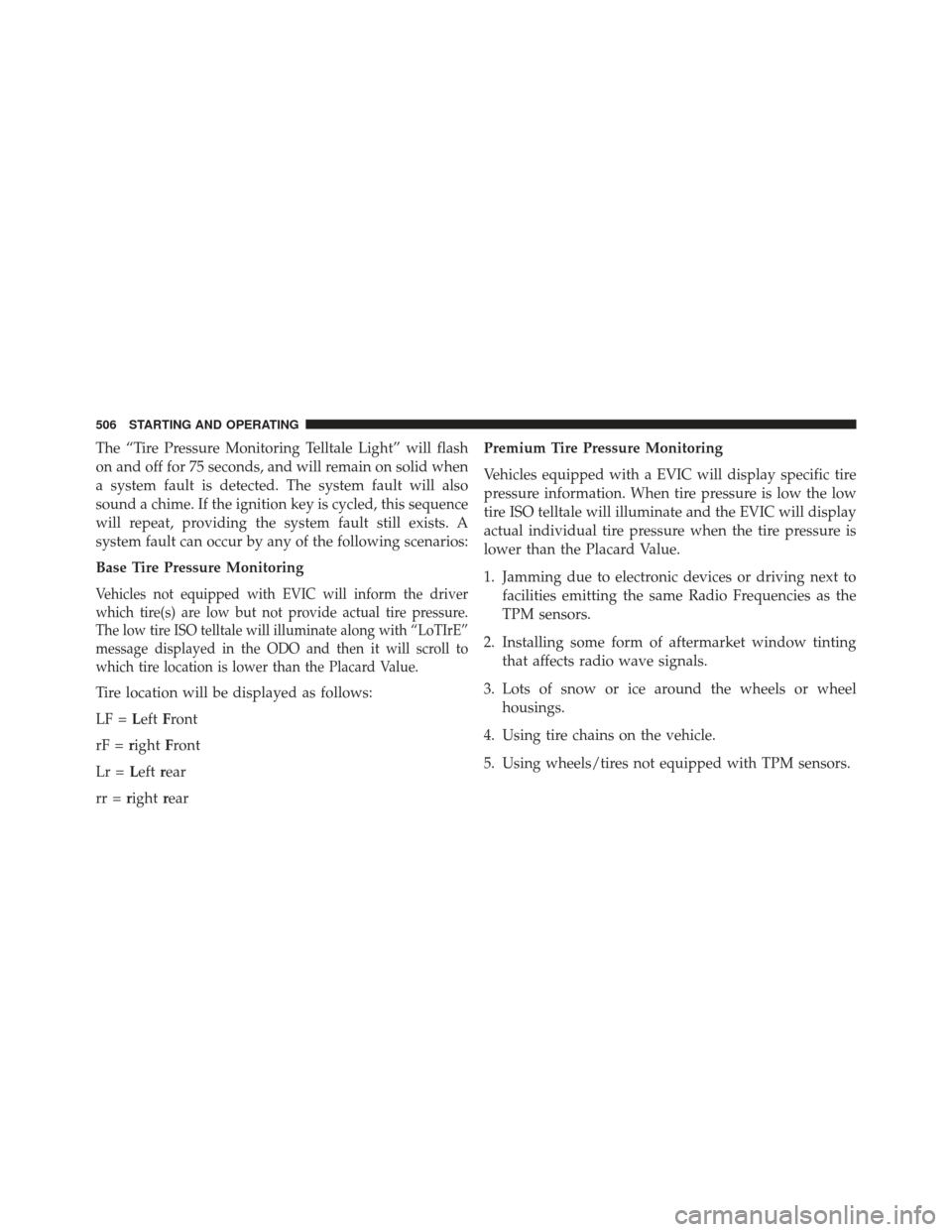

The “Tire Pressure Monitoring Telltale Light” will flash
on and off for 75 seconds, and will remain on solid when
a system fault is detected. The system fault will also
sound a chime. If the ignition key is cycled, this sequence
will repeat, providing the system fault still exists. A
system fault can occur by any of the following scenarios:
Base Tire Pressure Monitoring
Vehicles not equipped with EVIC will inform the driver
which tire(s) are low but not provide actual tire pressure.
The low tire ISO telltale will illuminate along with “LoTIrE”
message displayed in the ODO and then it will scroll to
which tire location is lower than the Placard Value.
Tire location will be displayed as follows:
LF =LeftFront
rF = right Front
Lr = Leftrear
rr = right rear Premium Tire Pressure Monitoring
Vehicles equipped with a EVIC will display specific tire
pressure information. When tire pressure is low the low
tire ISO telltale will illuminate and the EVIC will display
actual individual tire pressure when the tire pressure is
lower than the Placard Value.
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the
TPM sensors.
2. Installing some form of aftermarket window tinting that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
506 STARTING AND OPERATING

NOTE:Your system can be set to display pressure units
in PSI, kPa, or BAR.
If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, the SERVICE TPM SYSTEMmessage will not be present, and a pressure value will be
displayed instead of dashes. A system fault can occur by
any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the
TPM sensors.
2. Installing some form of aftermarket window tinting that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
The EVIC will also display a SERVICE TPM SYSTEM
message for a minimum of five seconds when a system
fault is detected possibly related to an incorrect sensor
location fault. In this case, the SERVICE TPM SYSTEM
510 STARTING AND OPERATING

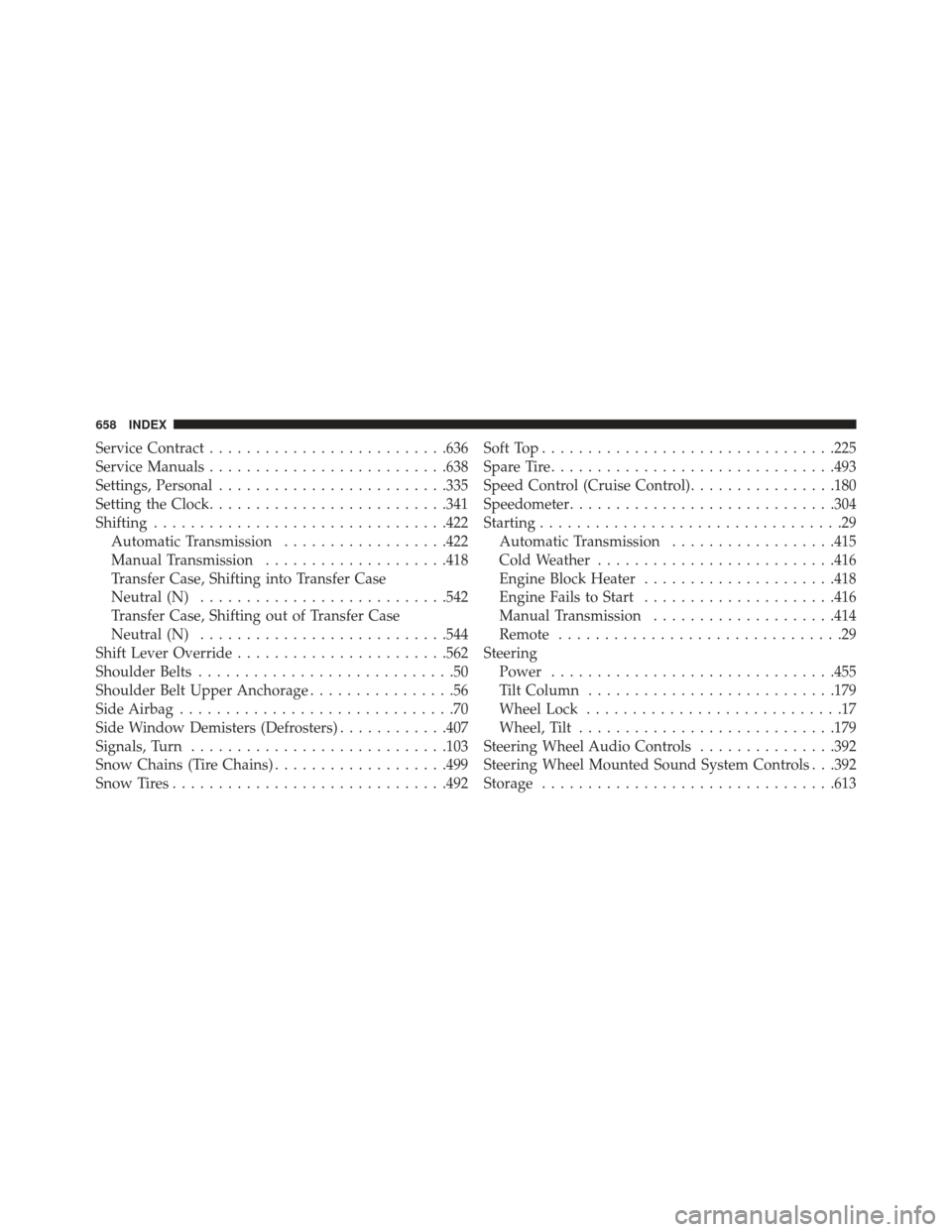

Service Contract......................... .636
Service Manuals ......................... .638
Settings, Personal ........................ .335
Setting the Clock ......................... .341
Shifting ............................... .422
Automatic Transmission ..................422
Manual Transmission ....................418
Transfer Case, Shifting into Transfer Case
Neutral (N) .......................... .542
Transfer Case, Shifting out of Transfer Case
Neutral (N) .......................... .544
Shift Lever Override ...................... .562
Shoulder Belts ............................50
Shoulder Belt Upper Anchorage ................56
Side Airbag ..............................70
Side Window Demisters (Defrosters) ............407
Signals, Turn ........................... .103
Snow Chains (Tire Chains) ...................499
Snow Tires ............................. .492Soft Top
............................... .225
Spare Tire .............................. .493
Speed Control (Cruise Control) ................180
Speedometer ............................ .304
Starting .................................29
Automatic Transmission ..................415
Cold Weather ......................... .416
Engine Block Heater .....................418
Engine Fails to Start .....................416
Manual Transmission ....................414
Remote ...............................29
Steering Power .............................. .455
Tilt Column .......................... .179
Wheel Lock ............................17
Wheel, Tilt ........................... .179
Steering Wheel Audio Controls ...............392
Steering Wheel Mounted Sound System Controls . . .392
Storage ............................... .613
658 INDEX
