4. Tighten all side bar attachment bolts.
5. Install the lower windshield plates with the six blackround-headed Torx® head screws (using a #40 Torx®
head driver) on each side of the base of the wind-
shield. 6. Reinstall the wiper arms.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 299

REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary switch on the center portion of the control lever
(located on the right side of the steering column) controls
the operation of the rear wiper/washer function.Rotate the switch upward to the first detent
position for rear wiper operation.Rotate the switch upward past the first detent to
activate the rear washer. The washer pump and
the wiper will continue to operate as long as the
switch is held. Upon release, the wiper will cycle
two to three times before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Window Defroster — If Equipped
The rear window defroster button is located on
the bottom right-side of the blower control knob.
Press this button to turn on the rear window defroster.
Rear Wiper/Washer Control
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

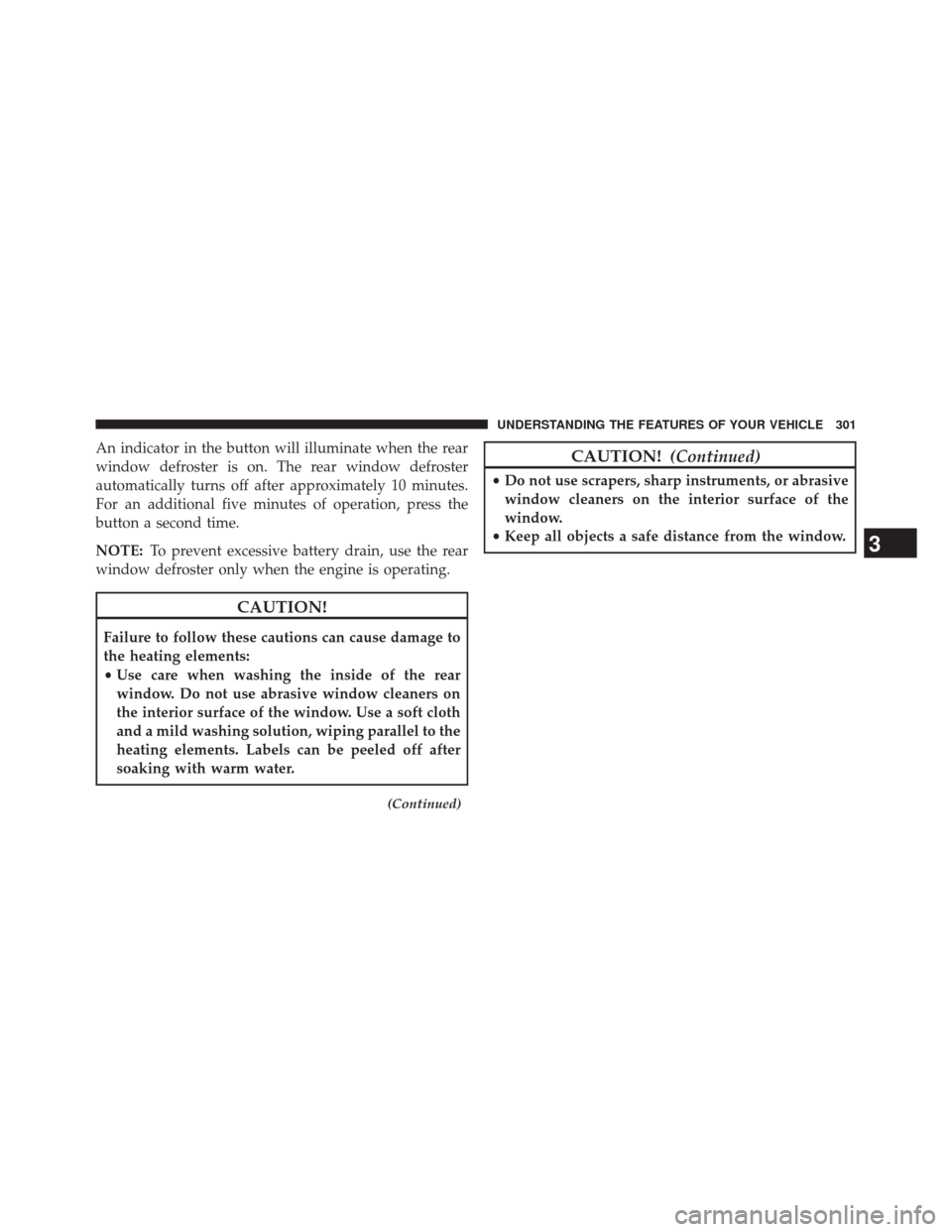

An indicator in the button will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after approximately 10 minutes.
For an additional five minutes of operation, press the
button a second time.
NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
(Continued)
CAUTION! (Continued)
•Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 301

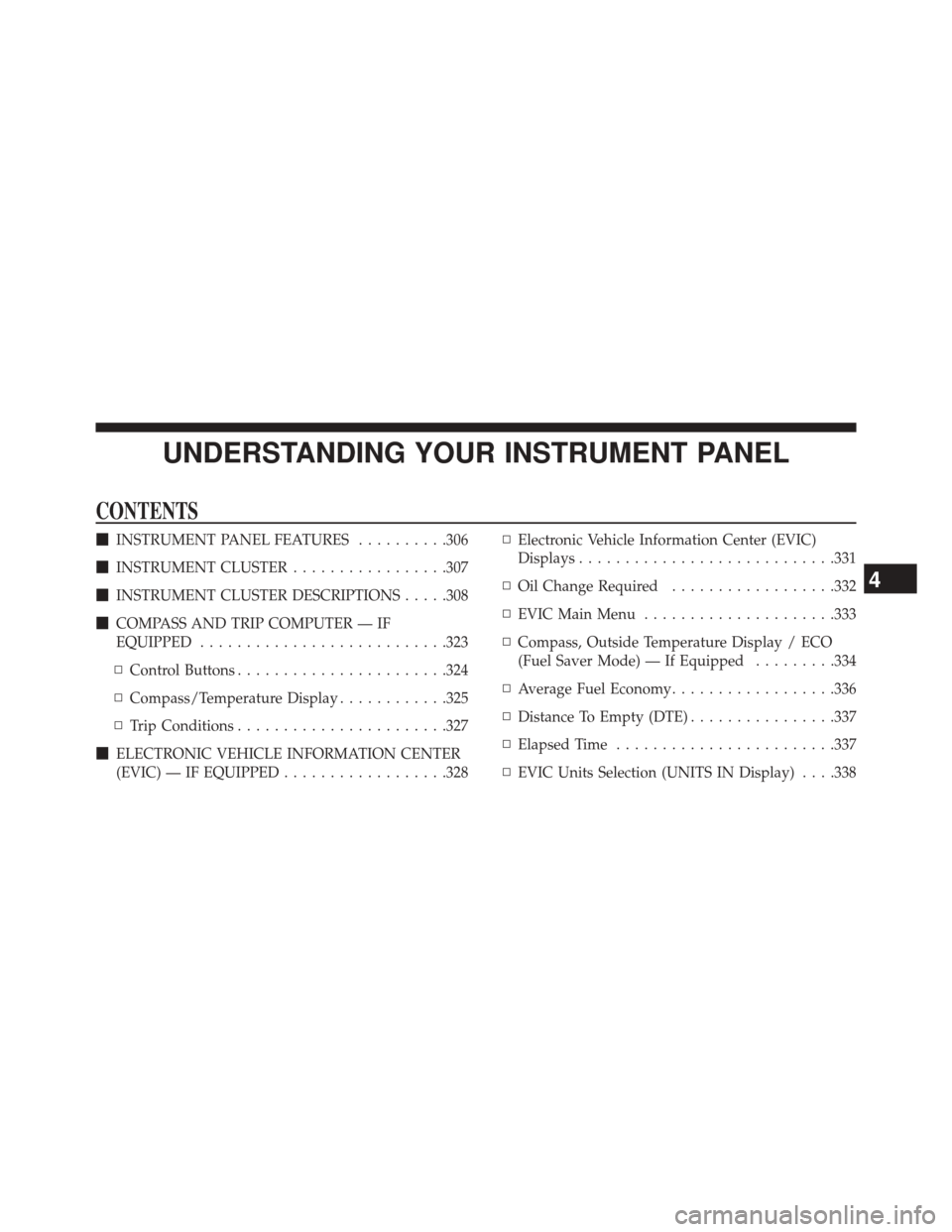

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........306
 INSTRUMENT CLUSTER .................307
 INSTRUMENT CLUSTER DESCRIPTIONS .....308
 COMPASS AND TRIP COMPUTER — IF
EQUIPPED .......................... .323
▫ Control Buttons ...................... .324
▫ Compass/Temperature Display ............325
▫ Trip Conditions ...................... .327
 ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) — IF EQUIPPED ..................328 ▫
Electronic Vehicle Information Center (EVIC)
Displays ........................... .331
▫ Oil Change Required ..................332
▫ EVIC Main Menu .....................333
▫ Compass, Outside Temperature Display / ECO
(Fuel Saver Mode) — If Equipped .........334
▫ Average Fuel Economy ..................336
▫ Distance To Empty (DTE) ................337
▫ Elapsed Time ....................... .337
▫ EVIC Units Selection (UNITS IN Display) . . . .338
4

▫Advanced EVIC Messages (Customer Information
Features) ........................... .338
▫ System Status ....................... .338
▫ Personal Settings (Customer-Programmable
Features) .......................... .339
 Uconnect® 230 – AM/FM STEREO RADIO AND
6–DISC CD/DVD CHANGER (MP3/WMA AUX
JACK) ............................. .343
▫ Operating Instructions — Radio Mode .......343
▫ Operation Instructions — DISC Mode For CD And
MP3/WMA Audio Play, DVD – Video .......352
▫ Notes On Playing MP3/WMA Files .........354
▫ LIST Button — DISC Mode For MP3/WMA
Play .............................. .356▫
INFO Button — DISC Mode For MP3/WMA
Play .............................. .357
▫ Uconnect® (Satellite Radio) — If Equipped . . .359
 Uconnect® 730N/430/430N CD/DVD/HDD/NAV
— IF EQUIPPED ...................... .363
▫ Operating Instructions (Voice Command System)
— If Equipped ...................... .363
▫ Operating Instructions (Uconnect® Phone) — If
Equipped .......................... .363
 Uconnect® 130 ....................... .363
▫ Operating Instructions — Radio Mode .......364
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ..................... .367
▫ Notes On Playing MP3 Files ..............369
▫ Operation Instructions — Auxiliary Mode . . . .372

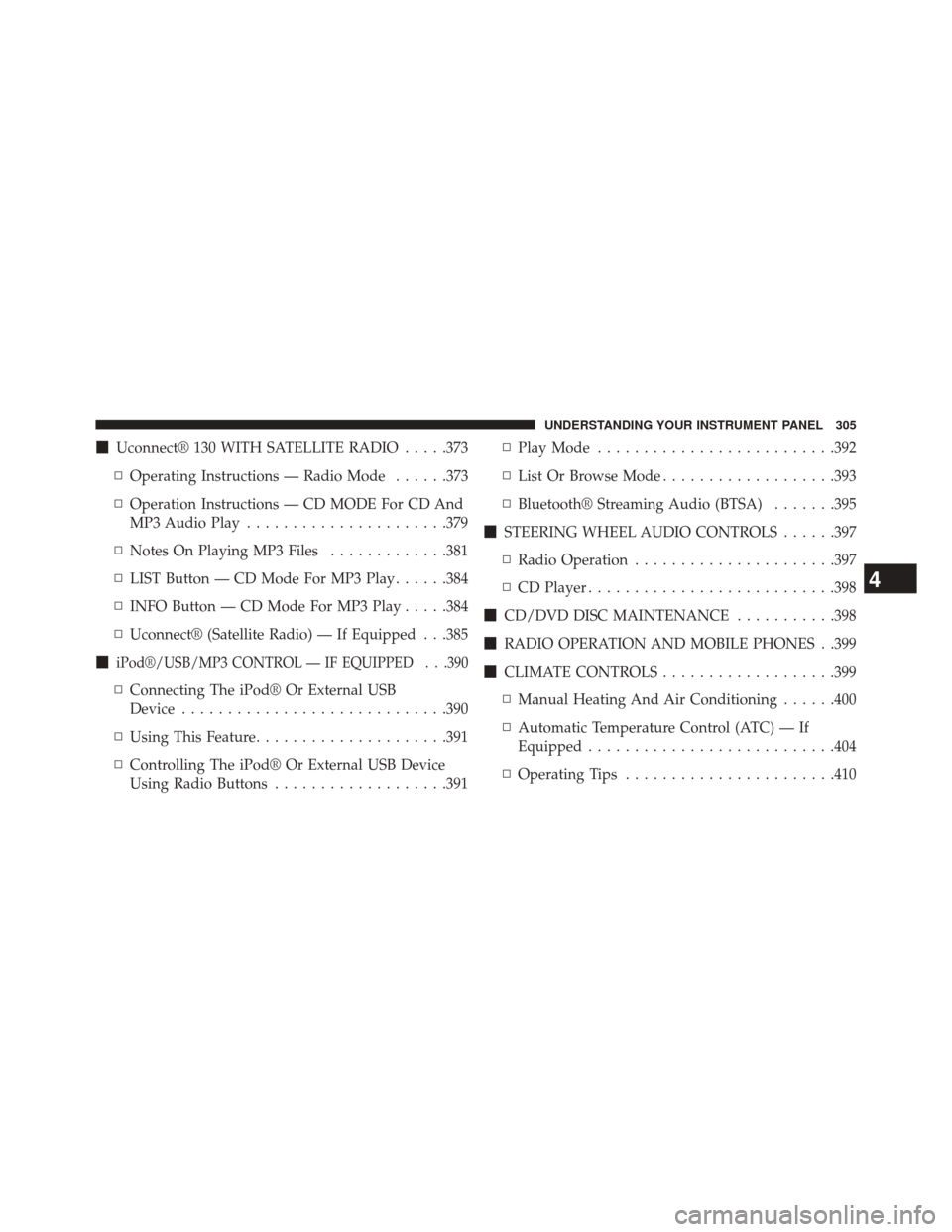

304 UNDERSTANDING YOUR INSTRUMENT PANEL

Uconnect® 130 WITH SATELLITE RADIO .....373
▫ Operating Instructions — Radio Mode ......373
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ..................... .379
▫ Notes On Playing MP3 Files .............381
▫ LIST Button — CD Mode For MP3 Play ......384
▫ INFO Button — CD Mode For MP3 Play .....384
▫ Uconnect® (Satellite Radio) — If Equipped . . .385

iPod®/USB/MP3 CONTROL — IF EQUIPPED . . .390
▫ Connecting The iPod® Or External USB
Device ............................ .390
▫ Using This Feature .....................391
▫ Controlling The iPod® Or External USB Device
Using Radio Buttons ...................391 ▫
Play Mode ......................... .392
▫ List Or Browse Mode ...................393
▫ Bluetooth® Streaming Audio (BTSA) .......395
 STEERING WHEEL AUDIO CONTROLS ......397
▫ Radio Operation ..................... .397
▫ CD Player .......................... .398
 CD/DVD DISC MAINTENANCE ...........398
 RADIO OPERATION AND MOBILE PHONES . .399
 CLIMATE CONTROLS ...................399
▫ Manual Heating And Air Conditioning ......400
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... .404
▫ Operating Tips ...................... .410
4
UNDERSTANDING YOUR INSTRUMENT PANEL 305

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches 306 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 307

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON/RUN position.
2. Charging System LightThis light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN, and remain
on briefly as a bulb check. If the light stays on or comes
on while driving, turn off some of the vehicle’s non-
essential electrical devices or increase engine speed (if at
idle). If the charging system light remains on, it means
that the vehicle is experiencing a problem with the
charging system. Obtain SERVICE IMMEDIATELY. See
an authorized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”. 3. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
4. Low Fuel Warning Light
When the fuel level reaches approximately 2.8 gal
(10.6L) this light will turn on and a single chime
will sound.
5. Speedometer
Indicates vehicle speed.
6. Front Axle Lock Indicator — If Equipped
Indicates when the front axle lock has been
activated.
308 UNDERSTANDING YOUR INSTRUMENT PANEL
