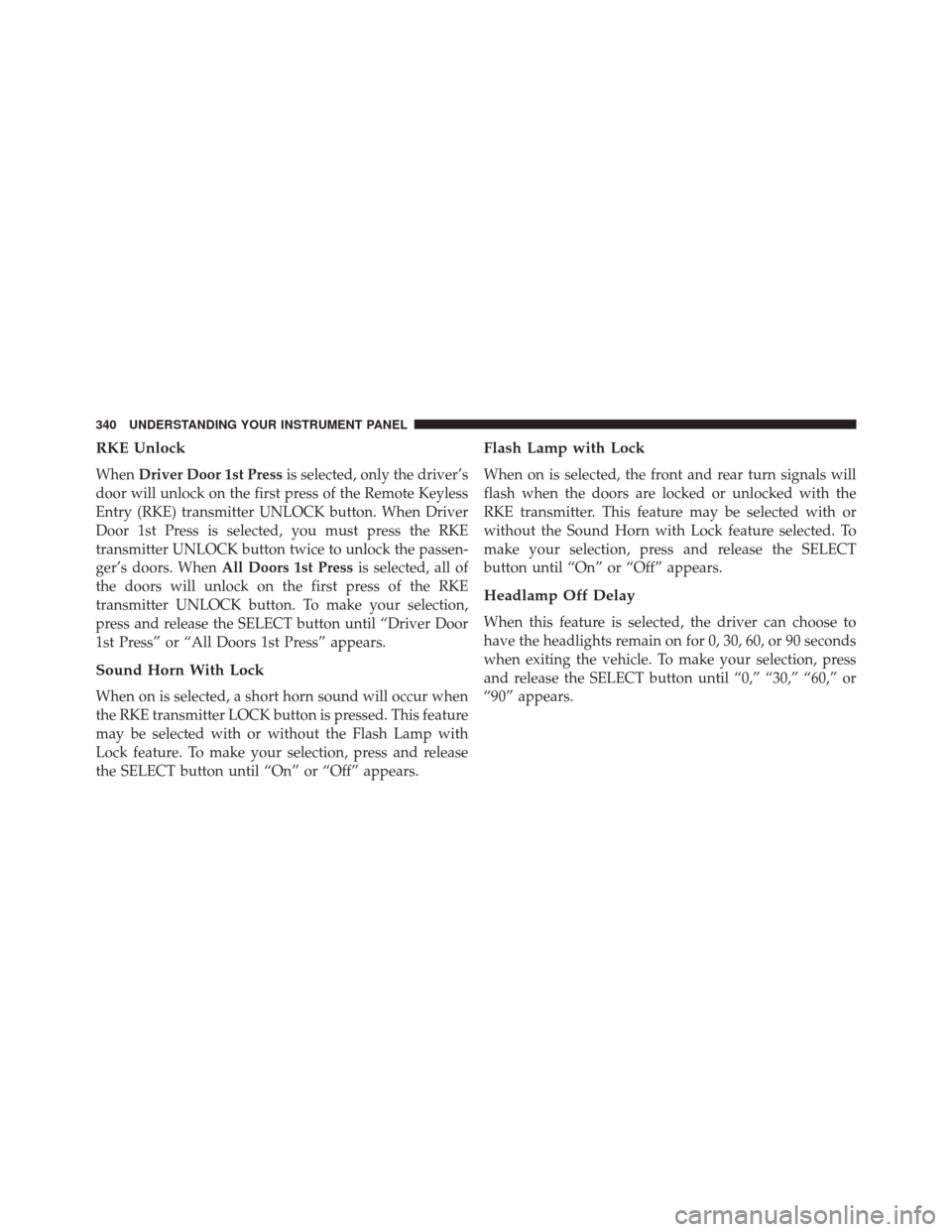

RKE Unlock
WhenDriver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice to unlock the passen-
ger’s doors. When All Doors 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the SELECT button until “Driver Door
1st Press” or “All Doors 1st Press” appears.
Sound Horn With Lock
When on is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lamp with
Lock feature. To make your selection, press and release
the SELECT button until “On” or “Off” appears.
Flash Lamp with Lock
When on is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the Sound Horn with Lock feature selected. To
make your selection, press and release the SELECT
button until “On” or “Off” appears.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
and release the SELECT button until “0,” “30,” “60,” or
“90” appears.
340 UNDERSTANDING YOUR INSTRUMENT PANEL

Headlamps with Wipers (Available with Auto
Headlights Only)
When on is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. If the
headlights were turned on by this feature they will also
turn off when the wipers are turned off. To make your
selection, press and release the SELECT button until
“ON” or “OFF” appears.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”
Key Off Power Delay
When this feature is selected, the power window
switches, radio, hands–free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes after the ignition switch is turned to the LOCK position.
Opening either front vehicle door will cancel this feature.
To make your selection, press and release the SELECT
button until “Off,” “45 sec.,” “5 min.,” or “10 min.”
appears.
Illumin. Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, press and hold the SELECT button until “Off,” “30
sec,” “60 sec,” or “90 sec” appears.
Hill Start Assist (HSA) — If Equipped
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, press and release the
SELECT button until “On” or “Off” appears.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 341

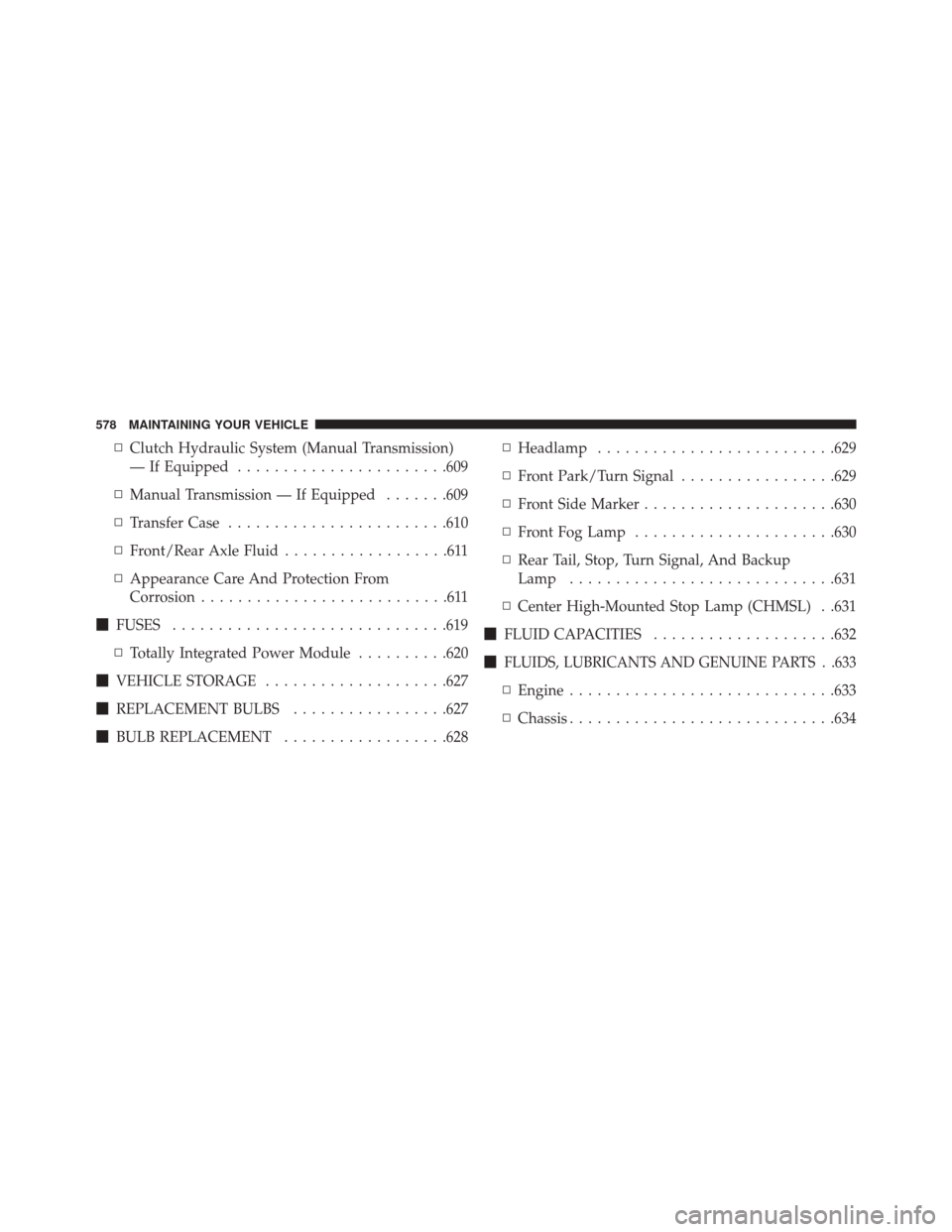

▫Clutch Hydraulic System (Manual Transmission)
— If Equipped ...................... .609
▫ Manual Transmission — If Equipped .......609
▫ Transfer Case ....................... .610
▫ Front/Rear Axle Fluid ..................611
▫ Appearance Care And Protection From
Corrosion ...........................611
 FUSES ............................. .619
▫ Totally Integrated Power Module ..........620
 VEHICLE STORAGE ....................627
 REPLACEMENT BULBS .................627
 BULB REPLACEMENT ..................628 ▫
Headlamp ......................... .629
▫ Front Park/Turn Signal .................629
▫ Front Side Marker .....................630
▫ Front Fog Lamp ..................... .630
▫ Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................ .631
▫ Center High-Mounted Stop Lamp (CHMSL) . .631
 FLUID CAPACITIES ....................632

FLUIDS, LUBRICANTS AND GENUINE PARTS . .633
▫ Engine ............................ .633
▫ Chassis ............................ .634
578 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini Fuse Description
J5 25 Amp Clear –Passenger Door Node
J6 40 Amp Green –Anti-Lock Brake System (ABS) Pump/
Stability Control System
J7 30 Amp Pink –Anti-Lock Brake System (ABS) Valve/
Stability Control System
J8 –– –
J9 40 Amp Green –PZEV Sec Motor/Flex Fuel
J10 30 Amp Pink –Headlamp Wash Relay/Manifold Tuning
Valve
J11 30 Amp Pink – Sway Bar
J12 30 Amp Pink –Rear Blower Motor/Radiator Fan
J13 60 Amp Yellow –Ignition Off Draw (IOD) – Main
J14 40 Amp Green –Rear Defroster
J15 40 Amp Green –Front Blower
J17 40 Amp Green –Starter Solenoid
7
MAINTAINING YOUR VEHICLE 621

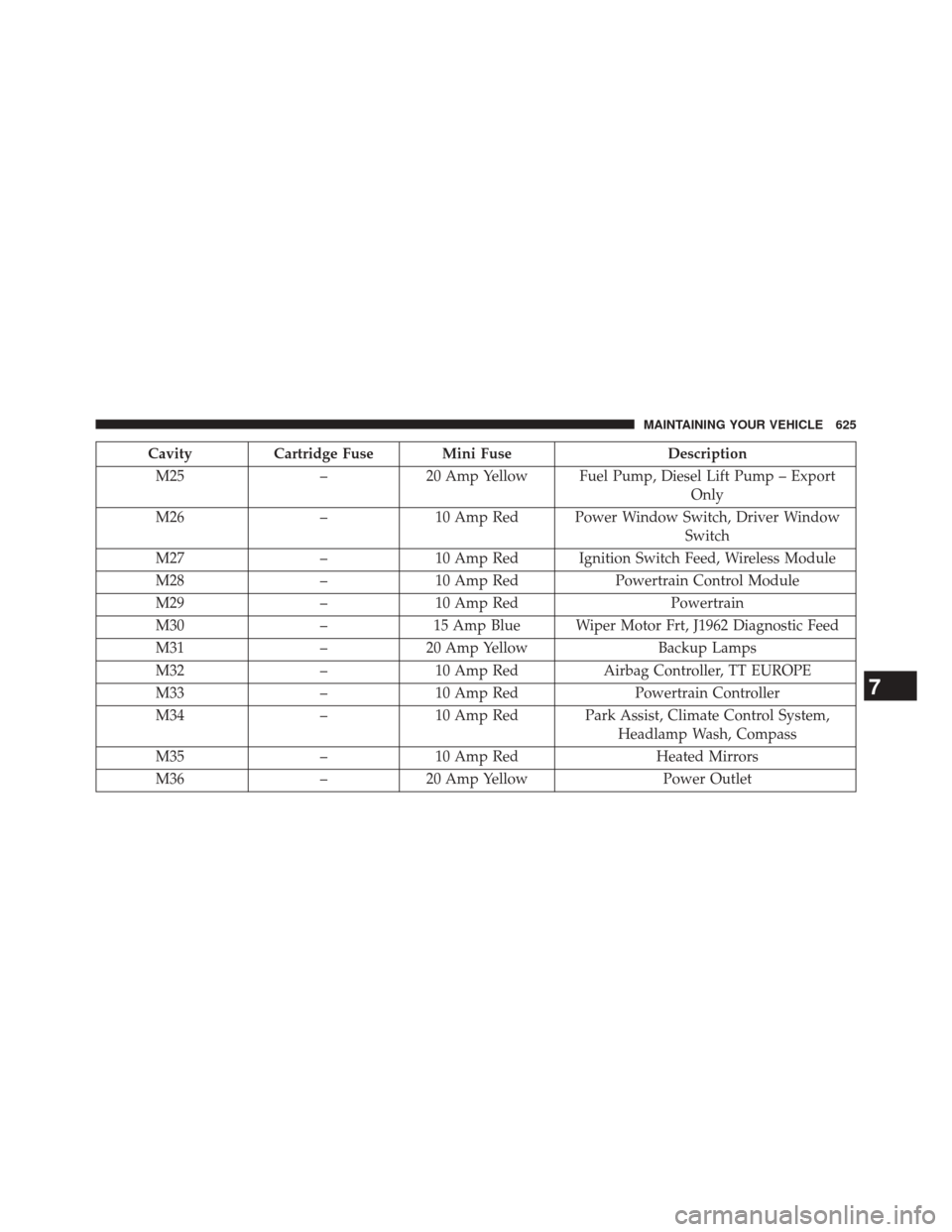

CavityCartridge Fuse Mini Fuse Description
M25 –20 Amp Yellow Fuel Pump, Diesel Lift Pump – Export
Only
M26 –10 Amp Red Power Window Switch, Driver Window
Switch
M27 –10 Amp Red Ignition Switch Feed, Wireless Module
M28 –10 Amp Red Powertrain Control Module
M29 –10 Amp Red Powertrain
M30 –15 Amp Blue Wiper Motor Frt, J1962 Diagnostic Feed
M31 –20 Amp Yellow Backup Lamps
M32 –10 Amp Red Airbag Controller, TT EUROPE
M33 –10 Amp Red Powertrain Controller
M34 –10 Amp Red Park Assist, Climate Control System,
Headlamp Wash, Compass
M35 –10 Amp Red Heated Mirrors
M36 –20 Amp Yellow Power Outlet
7
MAINTAINING YOUR VEHICLE 625

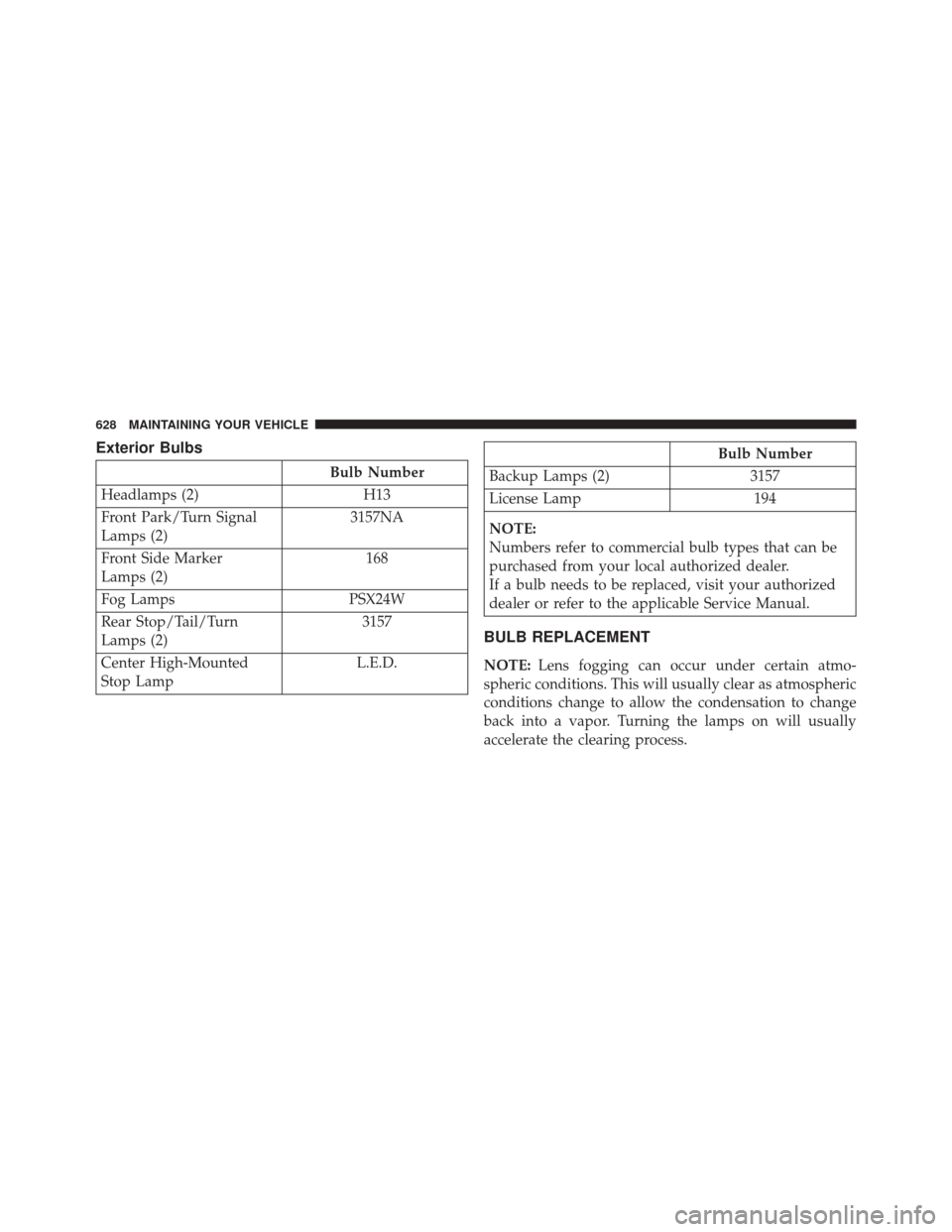

Exterior Bulbs
Bulb Number
Headlamps (2) H13
Front Park/Turn Signal
Lamps (2) 3157NA
Front Side Marker
Lamps (2) 168
Fog Lamps PSX24W
Rear Stop/Tail/Turn
Lamps (2) 3157
Center High-Mounted
Stop Lamp L.E.D.
Bulb Number
Backup Lamps (2) 3157
License Lamp 194
NOTE:
Numbers refer to commercial bulb types that can be
purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
628 MAINTAINING YOUR VEHICLE

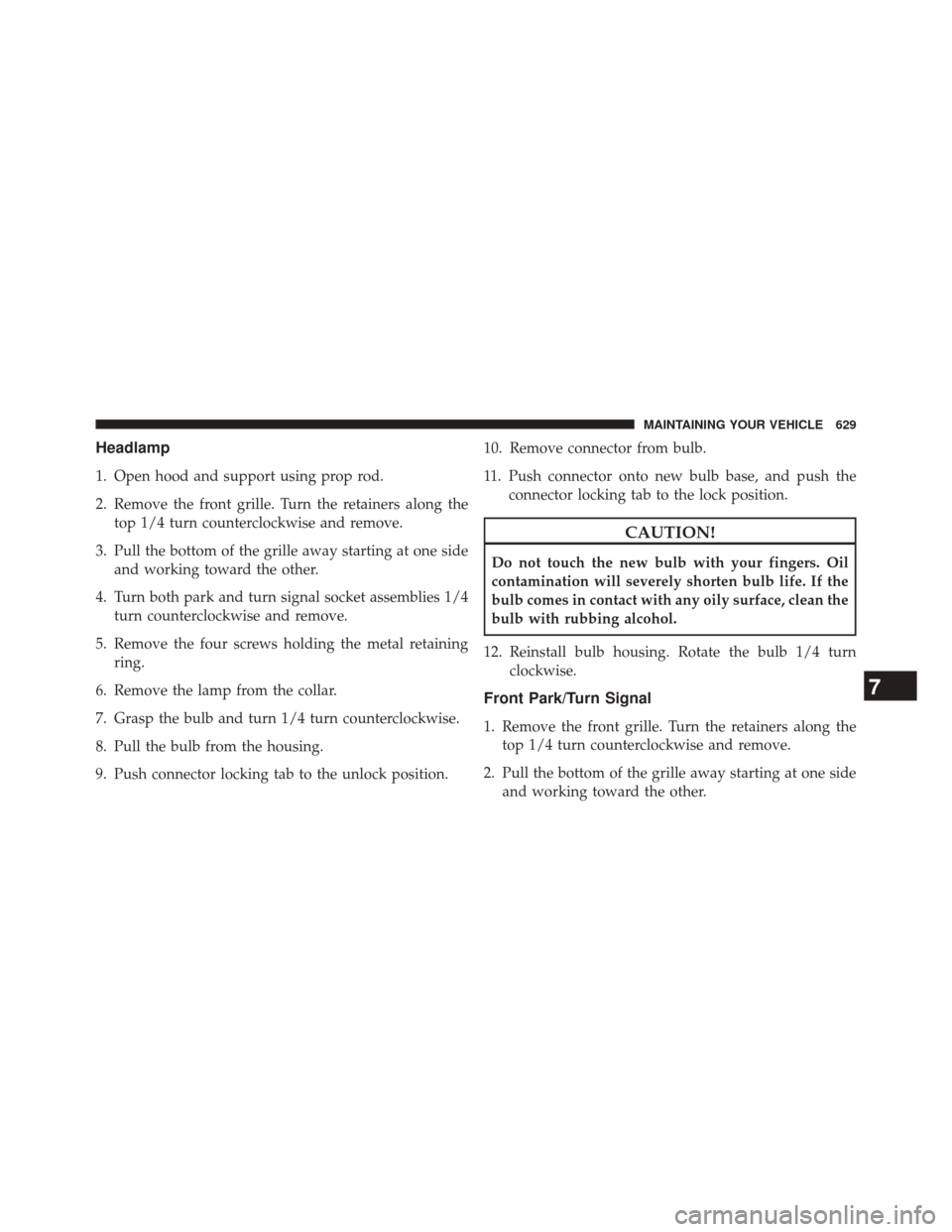

Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along thetop 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4 turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining ring.
6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position. 10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn clockwise.
Front Park/Turn Signal
1. Remove the front grille. Turn the retainers along thetop 1/4 turn counterclockwise and remove.
2. Pull the bottom of the grille away starting at one side and working toward the other.
7
