headlights JEEP WRANGLER 2015 JK / 3.G User Guide

RKE Unlock
WhenDriver Door 1st Pressis selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice to unlock the passen-
ger’s doors. WhenAll Doors 1st Pressis selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the SELECT button until “Driver Door
1st Press” or “All Doors 1st Press” appears.
Sound Horn With Lock
When on is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lamp with
Lock feature. To make your selection, press and release
the SELECT button until “On” or “Off” appears.
Flash Lamp with Lock
When on is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the Sound Horn with Lock feature selected. To
make your selection, press and release the SELECT
button until “On” or “Off” appears.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
and release the SELECT button until “0,” “30,” “60,” or
“90” appears.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 339

Headlamps with Wipers (Available with Auto
Headlights Only)
When on is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. If the
headlights were turned on by this feature they will also
turn off when the wipers are turned off. To make your
selection, press and release the SELECT button until
“ON” or “OFF” appears.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”
Key Off Power Delay
When this feature is selected, the power window
switches, radio, hands–free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK position.
Opening either front vehicle door will cancel this feature.
To make your selection, press and release the SELECT
button until “Off,” “45 sec.,” “5 min.,” or “10 min.”
appears.
Illumin. Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, press and hold the SELECT button until “Off,” “30
sec,” “60 sec,” or “90 sec” appears.
Hill Start Assist (HSA) — If Equipped
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, push and release the
SELECT button until “On” or “Off” appears.
340 UNDERSTANDING YOUR INSTRUMENT PANEL

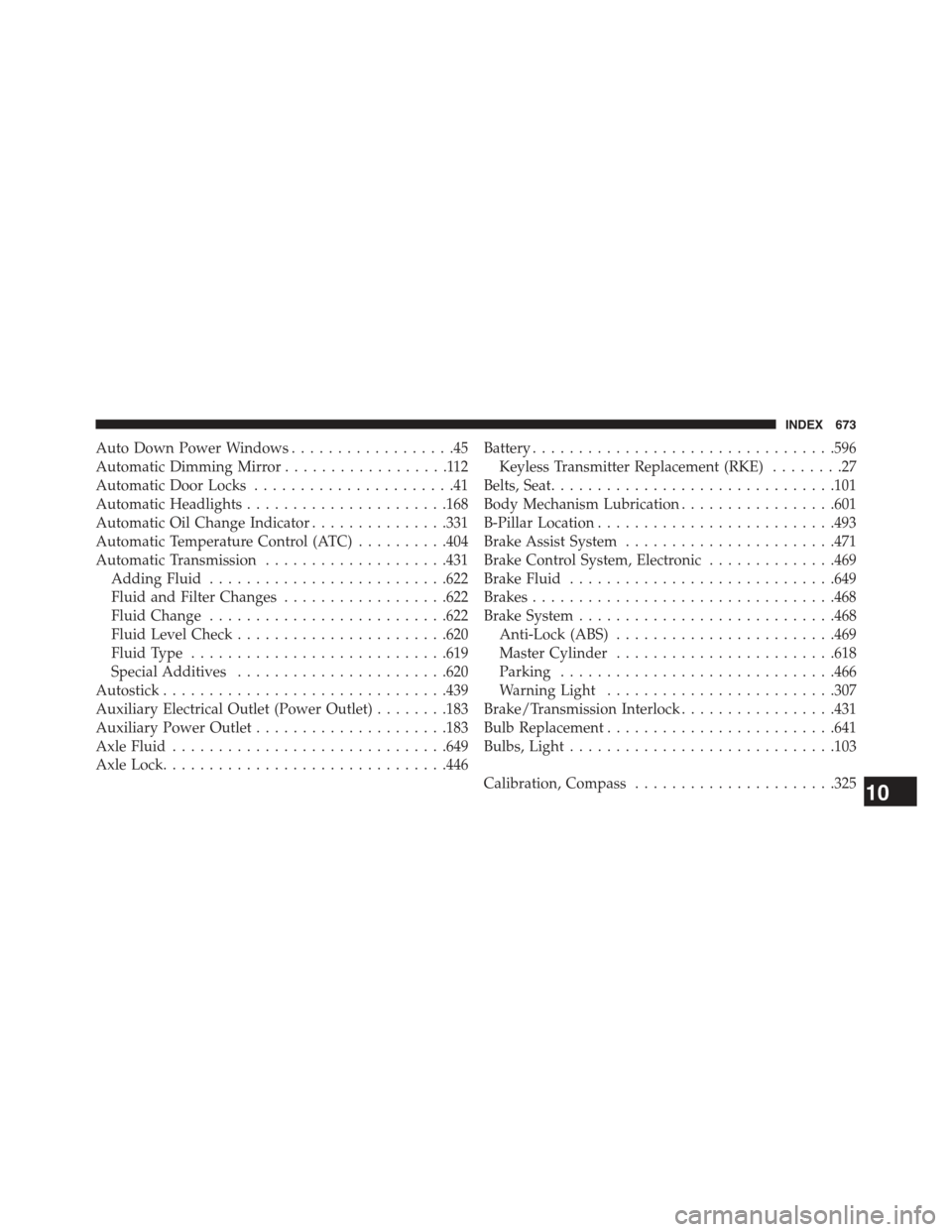

Auto Down Power Windows..................45
Automatic Dimming Mirror..................112
Automatic Door Locks......................41
Automatic Headlights......................168
Automatic Oil Change Indicator...............331
Automatic Temperature Control (ATC)..........404
Automatic Transmission....................431
Adding Fluid..........................622
Fluid and Filter Changes..................622
Fluid Change..........................622
Fluid Level Check.......................620
Fluid Type............................619
Special Additives.......................620
Autostick...............................439
Auxiliary Electrical Outlet (Power Outlet)........183
Auxiliary Power Outlet.....................183
Axle Fluid..............................649
Axle Lock...............................446
Battery.................................596
Keyless Transmitter Replacement (RKE)........27
Belts, Seat...............................101
Body Mechanism Lubrication.................601
B-Pillar Location..........................493
Brake Assist System.......................471
Brake Control System, Electronic..............469
Brake Fluid.............................649
Brakes.................................468
Brake System............................468
Anti-Lock (ABS)........................469
Master Cylinder........................618
Parking..............................466
Warning Light.........................307
Brake/Transmission Interlock.................431
Bulb Replacement.........................641
Bulbs, Light.............................103
Calibration, Compass......................32510
INDEX 673

Fuses..................................633
Gas Cap (Fuel Filler Cap)...................530
Gasoline, Clean Air........................526
Gasoline (Fuel)...........................525
Gasoline, Reformulated.....................526
Gauges
Coolant Temperature.....................312
Fuel.................................306
Odometer.............................314
Speedometer..........................306
Tachometer............................310
Gear Ranges.............................426
Gear Select Lever Override..................576
General Information.......................145
Glass Cleaning...........................629
Gross Axle Weight Rating...................535
Gross Vehicle Weight Rating..................534
GVWR.................................532
Hands-Free Phone (Uconnect®)...............115
Hard Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..203
Hard Top, Modular........................203
Hard Top Removal........................212
Hazard Warning Flasher....................560
Headlights
Automatic............................168
Bulb Replacement.......................642
High Beam............................170
High Beam/Low Beam Select Switch.........170
Passing..............................170
Replacing.............................642
Switch...............................167
Head Restraints..........................159
Heated Mirrors...........................114
Heated Seats.............................158
Heater.................................40010
INDEX 679

Key, Sentry (Immobilizer)....................16
Lane Change and Turn Signals................307
Lane Change Assist........................169
Lap/Shoulder Belts.........................51
Latches................................103
Lead Free Gasoline........................525
Leaks, Fluid.............................103
Life of Tires.............................508
Light Bulbs..............................103
Lights.................................103
Airbag................................72
Alarm...............................312
Anti-Lock.............................309
Anti-Lock Warning......................309
Automatic Headlights....................168
Back-Up..............................644
Brake Assist Warning....................483
Brake Warning.........................307
Bulb Replacement.......................642
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..173
Center Mounted Stop....................645
Check Engine (Malfunction Indicator).........310
Cruise...............................318
Daytime Running.......................171
Electronic Throttle Control Warning..........321
Exterior..............................103
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..170
Hazard Warning Flasher..................560
Headlights............................167
Headlight Switch.......................167
High Beam............................309
High Beam Indicator.....................309
Hill Descent Control Indicator..............485
Illuminated Entry........................22
Instrument Cluster......................167
Interior..............................171
LightsOn Reminder.....................16910
INDEX 681
