5. Remove the four screws holding the metal retaining
ring.
6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.
Front Park/Turn Signal
1. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
2. Pull the bottom of the grille away starting at one side
and working toward the other.
3. Turn the socket assembly 1/4 turn counterclockwise
and remove from housing. Pull the bulb straight from
the socket to replace.
Front Side Marker
1. Reach under the front fender flare and locate the front
side marker socket.
2. Turn the socket assembly counterclockwise 1/3 turn
and remove it from the housing. Pull the bulb straight
from the socket to replace.
7
MAINTAINING YOUR VEHICLE 643

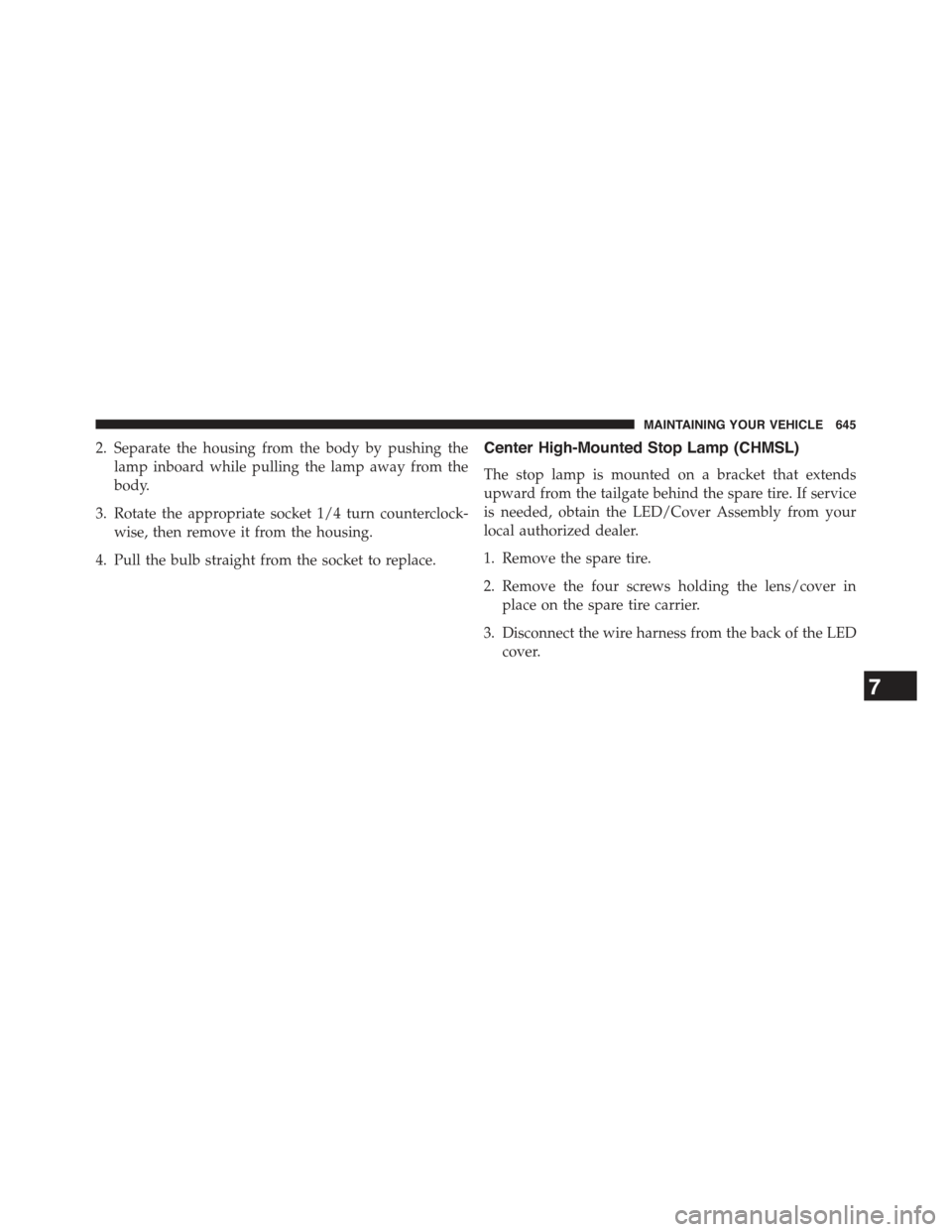

2. Separate the housing from the body by pushing the
lamp inboard while pulling the lamp away from the
body.
3. Rotate the appropriate socket 1/4 turn counterclock-
wise, then remove it from the housing.
4. Pull the bulb straight from the socket to replace.
Center High-Mounted Stop Lamp (CHMSL)
The stop lamp is mounted on a bracket that extends
upward from the tailgate behind the spare tire. If service
is needed, obtain the LED/Cover Assembly from your
local authorized dealer.
1. Remove the spare tire.
2. Remove the four screws holding the lens/cover in
place on the spare tire carrier.
3. Disconnect the wire harness from the back of the LED
cover.
7
MAINTAINING YOUR VEHICLE 645

Capacities, Fluid..........................646
Caps, Filler
Fuel.................................530
Power Steering.........................465
Radiator (Coolant Pressure)................615
Carbon Monoxide Warning..................100
Cargo Light.............................173
Car Washes.............................626
Cellular Phone...........................115
Center High Mounted Stop Light..............645
Certification Label.........................532
Chains, Tire.............................510
Changing A Flat Tire.......................563
Chart, Tire Sizing.........................488
Check Engine Light (Malfunction Indicator Light) . .310
Checking Your Vehicle For Safety...............99
Checks, Safety............................99
Child Restraint............................76
Child Restraints
Booster Seats...........................81
Child Restraints.........................76
Child Seat Installation.....................95
How To Stow An Unused ALR Seat Belt........91
Infants And Child Restraints................79
Install A LATCH-compatible Child Restraint.....90
Installing Child Restraints Using The Vehicle Seat
Belt..................................92
Locating The LATCH Anchorages............87
Lower Anchors And Tethers For Children.......83
Older Children And Child Restraints..........79
Seating Positions........................82
Child Safety Locks.........................42
Clean Air Gasoline........................526
Cleaning
Wheels...............................627
Climate Control..........................400
Clock..................................344
Cold Weather Operation....................421
674 INDEX

Security Alarm............................20
Security System...........................20
Selection of Coolant (Antifreeze)...............647
SENTRY KEY®
FCC General Information..................19
Sentry Key (Immobilizer)....................16
Sentry Key Programming....................18
Sentry Key Replacement.....................17
Service Assistance.........................663
Service Contract..........................665
Service Manuals..........................668
Settings, Personal.........................338
Setting the Clock..........................344
Shifting................................429
Automatic Transmission..................429
Manual Transmission....................424
Transfer Case, Shifting into Transfer Case
Neutral (N)...........................555
Transfer Case, Shifting out of Transfer Case
Neutral (N)...........................556
Shift Lever Override.......................576
Shoulder Belts............................51
Side Window Demisters (Defrosters)............413
Signals, Turn............................103
Snow Chains (Tire Chains)...................510
Snow Tires..............................503
Soft Top................................223
Spare Tire...............................505
Spark Plugs.............................647
Specifications
Fuel (Gasoline).........................647
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..647
Speed Control (Cruise Control)................179
Speedometer.............................306
Starting.................................29
Automatic Transmission..................421
Cold Weather..........................42110
INDEX 687
