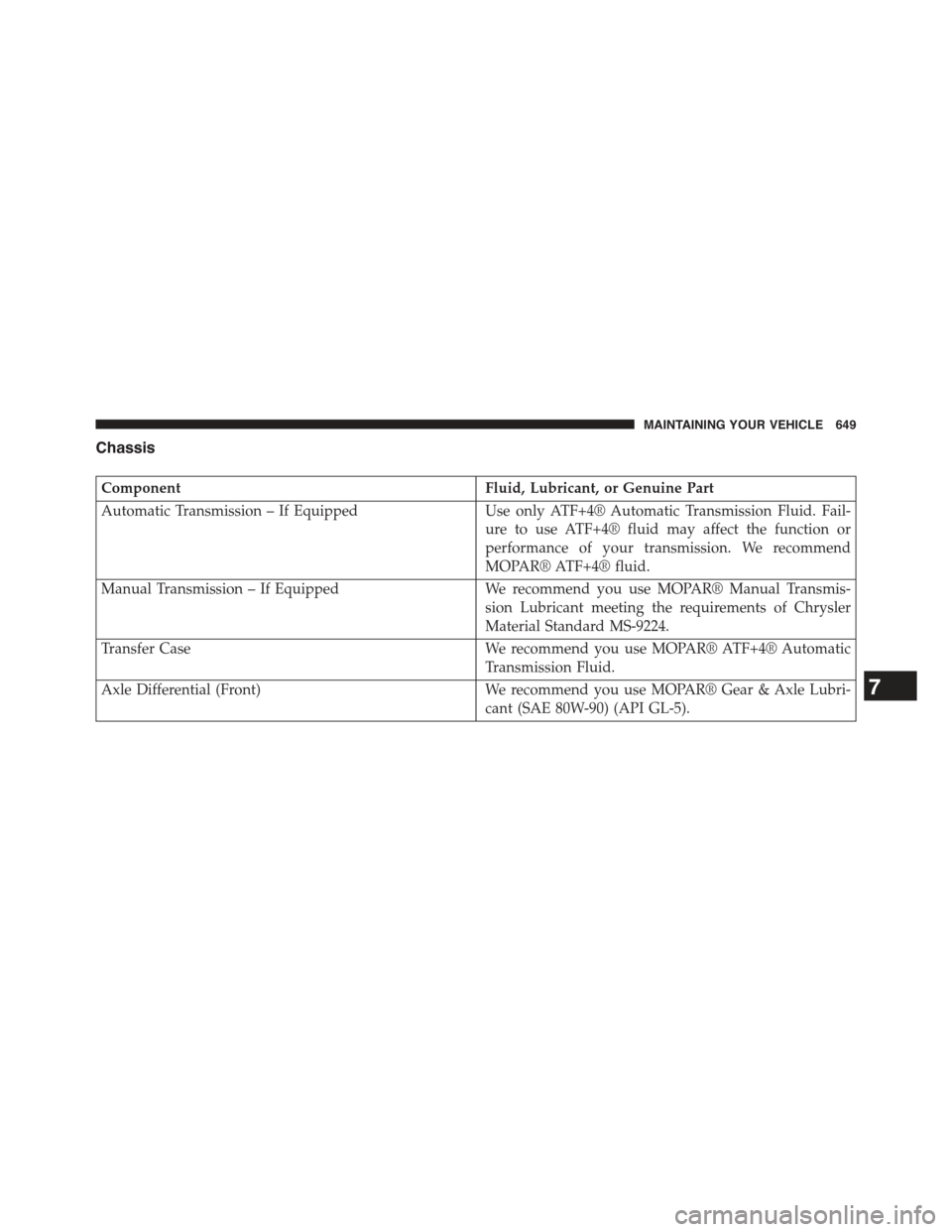

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission – If EquippedUse only ATF+4® Automatic Transmission Fluid. Fail-
ure to use ATF+4® fluid may affect the function or
performance of your transmission. We recommend
MOPAR® ATF+4® fluid.
Manual Transmission – If EquippedWe recommend you use MOPAR® Manual Transmis-
sion Lubricant meeting the requirements of Chrysler
Material Standard MS-9224.
Transfer CaseWe recommend you use MOPAR® ATF+4® Automatic
Transmission Fluid.
Axle Differential (Front)We recommend you use MOPAR® Gear & Axle Lubri-
cant (SAE 80W-90) (API GL-5).
7
MAINTAINING YOUR VEHICLE 649

ComponentFluid, Lubricant, or Genuine Part
Axle Differential (Rear)226 RBI (Model 44)– We recommend you use MOPAR®
Gear & Axle Lubricant (SAE 80W-90) (API GL-5) or
equivalent. For trailer towing, use MOPAR® Synthetic
Gear & Axle Lubricant (SAE 75W-140). Models
equipped with Trac-Lok™ require an additive.
Brake Master CylinderWe recommend you use MOPAR® DOT 3 Brake Fluid,
SAE J1703. If DOT 3, SAE J1703 brake fluid is not
available, then DOT 4 is acceptable.
Power Steering ReservoirWe recommend you use MOPAR® Power Steering Fluid
+4, MOPAR® ATF+4® Automatic Transmission Fluid.
650 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES
CONTENTS
!MAINTENANCE SCHEDULE.............652▫Maintenance Chart.....................654
8
MAINTENANCE
SCHEDULES

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures, and E85 fuel usage will influence
when the “Change Oil” or “Oil Change Required” message
is displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
On Electronic Vehicle Information Center (EVIC) equipped
vehicles, “Oil Change Required” will be displayed in the
EVIC and a single chime will sound, indicating that an oil
change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Instrument Clus-
ter Descriptions” or “Electronic Vehicle Information Cen-
ter (EVIC)” in “Understanding Your Instrument Panel”
for further information.
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty
8
MAINTENANCE
SCHEDULES
652 MAINTENANCE SCHEDULES

Once A Month Or Before A Long Trip:
•Check engine oil level
•Check windshield washer fluid level
•Check the tire inflation pressures and look for unusual
wear or damage
•Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and automatic trans-
mission, and fill as needed
•Check function of all interior and exterior lights
Required Maintenance Intervals.
Refer to the maintenance schedules on the following
page for the required maintenance intervals.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Change oil and filter
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Rotate the tires.Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
•Inspect battery and clean and tighten terminals as
required
•Inspect automatic transmission fluid if equipped
with dipstick
•Inspect brake pads, shoes, rotors, drums, hoses
and park brake
•Inspect engine cooling system protection and hoses
•Inspect exhaust system
•Inspect engine air cleaner if using in dusty or
off-road conditions
•Inspect all door latches for presence of grease,
reapply if necessary.
8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 653

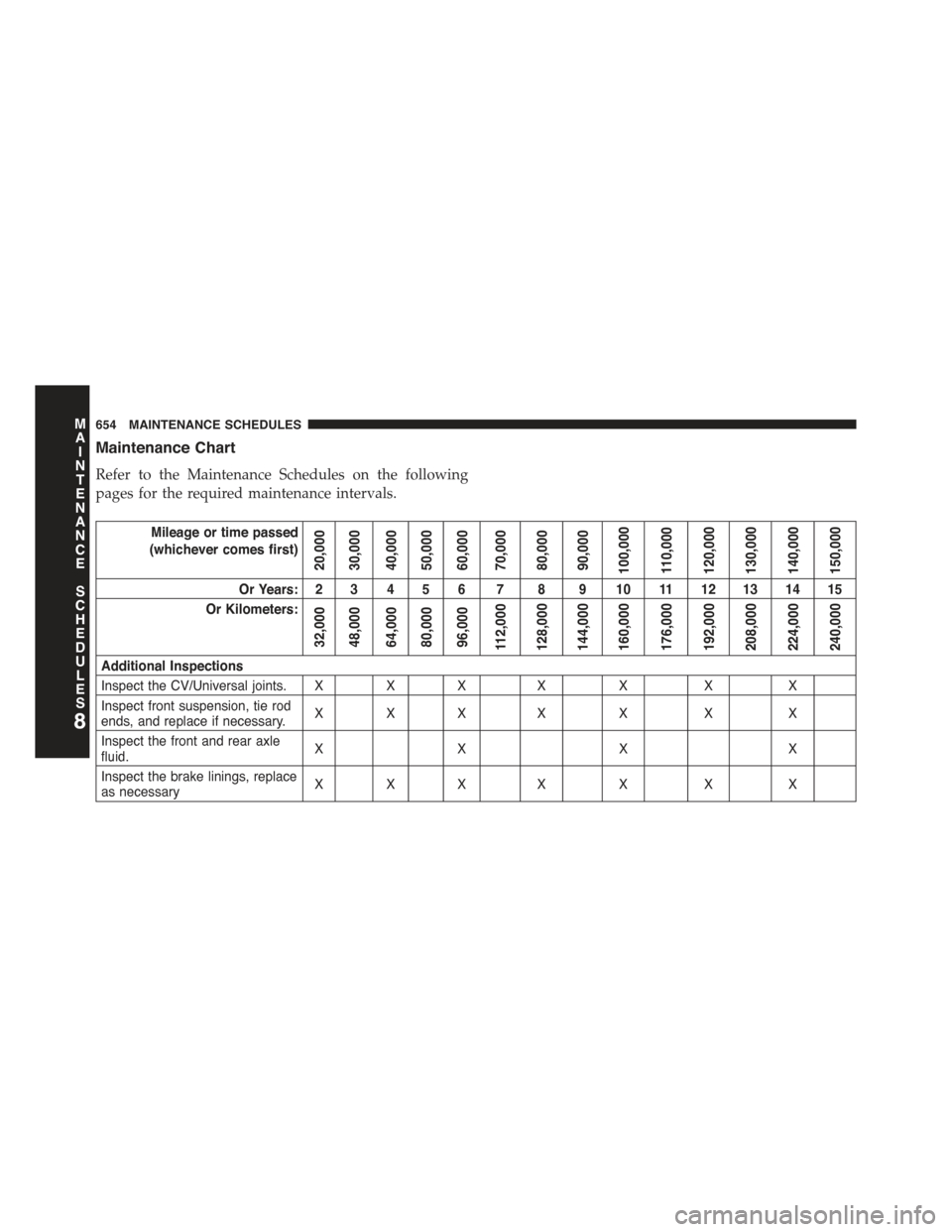

Maintenance Chart
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
Mileage or time passed
(whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Additional Inspections
Inspect the CV/Universal joints. X X XXXXX
Inspect front suspension, tie rodends, and replace if necessary.XXX X X X X
Inspect the front and rear axlefluid.XX X X
Inspect the brake linings, replaceas necessaryXXX X X X X
8
MAINTENANCE
SCHEDULES
654 MAINTENANCE SCHEDULES

Mileage or time passed
(whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Adjust parking brake on vehiclesequipped with four wheel discbrakes.XXX X X X X
Inspect transfer case fluid. X X X
Additional Maintenance
Replace engine air cleaner filter. X X X X X
Replace air conditioning/cabin airfilter.XXX X X X X
Replace spark plugs ** X8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 655

Mileage or time passed
(whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Flush and replace the enginecoolant at 10 years or 150,000miles (240,000 km) whichevercomes first.
XX
Change automatic transmissionfluid and filter if using your ve-hicle for any of the following: po-lice, taxi, fleet, or frequent trailertowing.
X
Change the automatic transmis-sion fluid and filter.X
8
MAINTENANCE
SCHEDULES
656 MAINTENANCE SCHEDULES

Mileage or time passed
(whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Change the manual transmissionfluid if using your vehicle for anyof the following: trailer towing,snow plowing, heavy loading,taxi, police, delivery service(commercial service), off-road,desert operation or more than50% of your driving is at sus-tained high speeds during hotweather, above 90°F (32°C).
XX X X X
Change transfer case fluid if us-ing your vehicle for any of thefollowing: police, taxi, fleet, orfrequent trailer towing.
XX
8
MAINTENANCE
SCHEDULES
MAINTENANCE SCHEDULES 657

Mileage or time passed
(whichever comes first)
20,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Inspect and replace PCV valve ifnecessary.X
Change front and rear axle fluidif using your vehicle for police,taxi, fleet, off-road or frequenttrailer towing.
XX X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.8
