JEEP WRANGLER 2016 JK / 3.G Owners Manual

Door Frame Removal
1. Unscrew and remove the door frame attachmentknobs (two per door).
WARNING!
Use both hands to remove the door frames. The door
frames will fold and could cause injury if both hands
are not used.
2. Place one hand on the upper rear and one hand on the front of the door frame.
3. Pull the frame toward you with your rearward hand to remove the frame from the vehicle.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219

4. Screw the knobs back into the door frame and fold forstorage. Store in a secure location.WARNING!
•Do not drive your vehicle on public roads with the
door frame(s) removed as you will lose the protec-
tion that they can provide. This procedure is fur-
nished for use during off-road operation only.
(Continued)
220 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
•Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for
use during off-road operation only.
Door Frame Installation — Two-Door Models — If
Equipped
1. Unfold door frame and unscrew thumbscrews.
2. Set the door frame pin into the hole on top of the body side, behind the door opening. 3. After the door frame pin has been set into the body
side hole, carefully set the front of the door frame into
the rubber seal at the top of the windshield.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221

4. Starting with the front of the door frame, clip it overthe metal side bar and then clip the rear, making sure
that the material for the side bar covers is not pinched
by the door frame. 5. Starting with the front knob, screw in and tighten both
knobs. Repeat on the other side.
222 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Door Frame Installation — Four-Door Models — If
Equipped
1. Install the rear door frame first.
2. Set the door frame pin into the hole on top of the bodyside, just behind the rear door opening. 3. Position the top of the door frame against the metal
sport bar and push onto the side bar making sure not
to pinch the material of the sports bar covers and to
ensure it is properly positioned on the seal above the
front of the rear door.
4. Loosely install the rear knob (long knob) to hold the door rail in position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 223

5. Carefully set the front of the front door frame in therubber seal at the top of the windshield.
6. Clip the front of the door rail over the side bar making sure that the material for the side bar cover is not
pinched by the door frame. 7. Position the rear of the front door frame to lay on top
of the front of the rear door frame. Ensure the seals are
installed correctly to avoid water leaks.
8. Loosely install both knobs beginning with the front knob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and
screw into the top of the B-pillar.
224 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

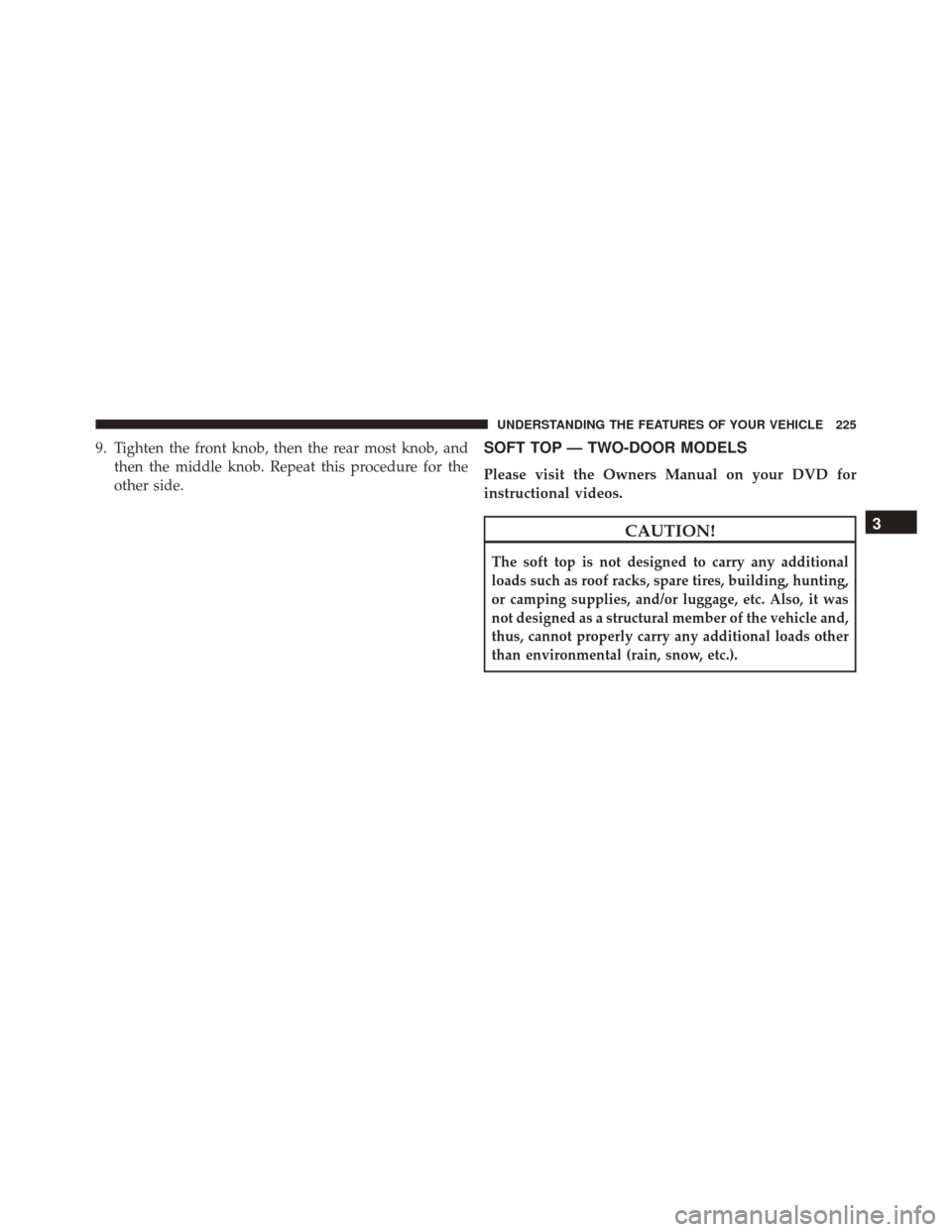

9. Tighten the front knob, then the rear most knob, andthen the middle knob. Repeat this procedure for the
other side.SOFT TOP — TWO-DOOR MODELS
Please visit the Owners Manual on your DVD for
instructional videos.
CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunting,
or camping supplies, and/or luggage, etc. Also, it was
not designed as a structural member of the vehicle and,
thus, cannot properly carry any additional loads other
than environmental (rain, snow, etc.).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 225

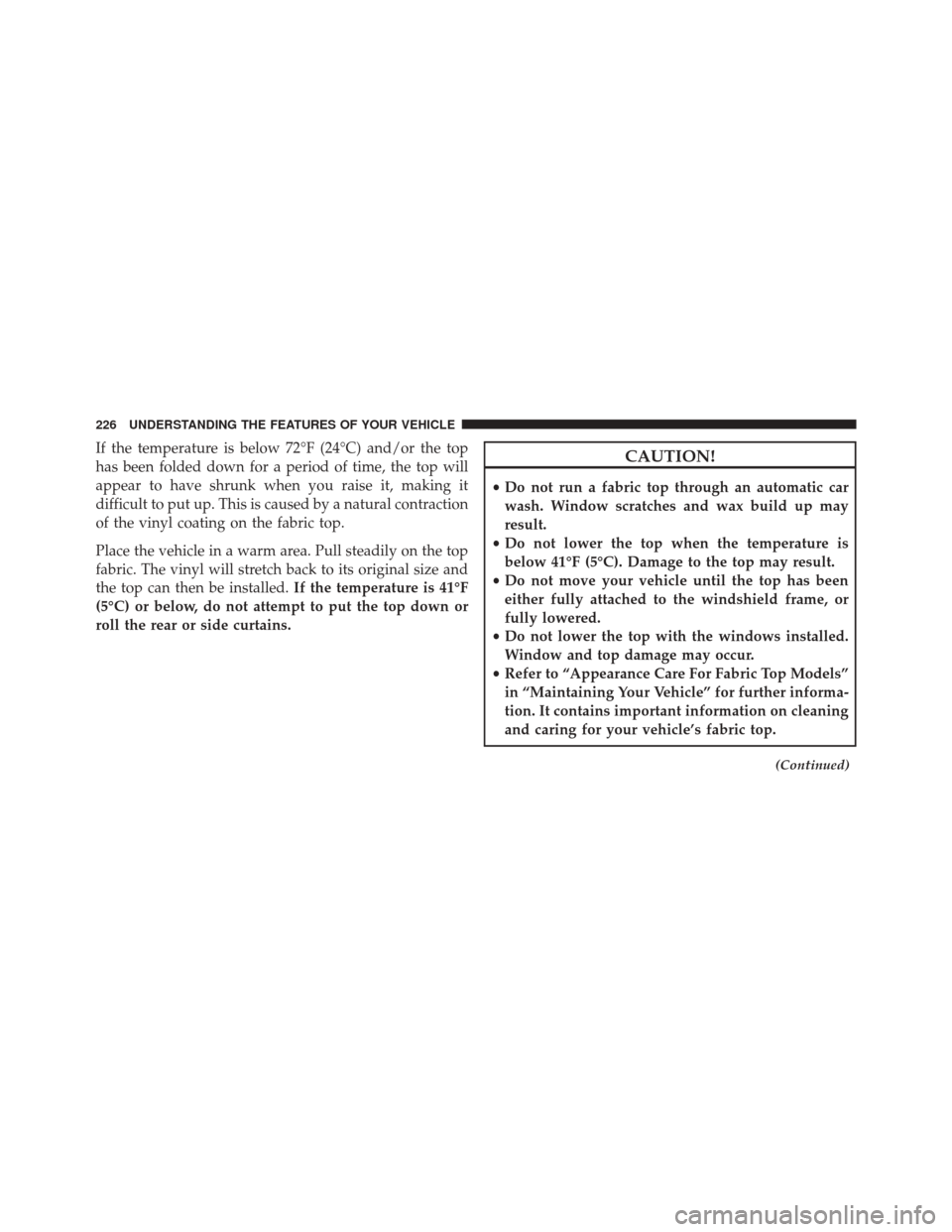

If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top.
Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and
the top can then be installed.If the temperature is 41°F
(5°C) or below, do not attempt to put the top down or
roll the rear or side curtains.CAUTION!
• Do not run a fabric top through an automatic car
wash. Window scratches and wax build up may
result.
• Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
• Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
• Do not lower the top with the windows installed.
Window and top damage may occur.
• Refer to “Appearance Care For Fabric Top Models”
in “Maintaining Your Vehicle” for further informa-
tion. It contains important information on cleaning
and caring for your vehicle’s fabric top.
(Continued)
226 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

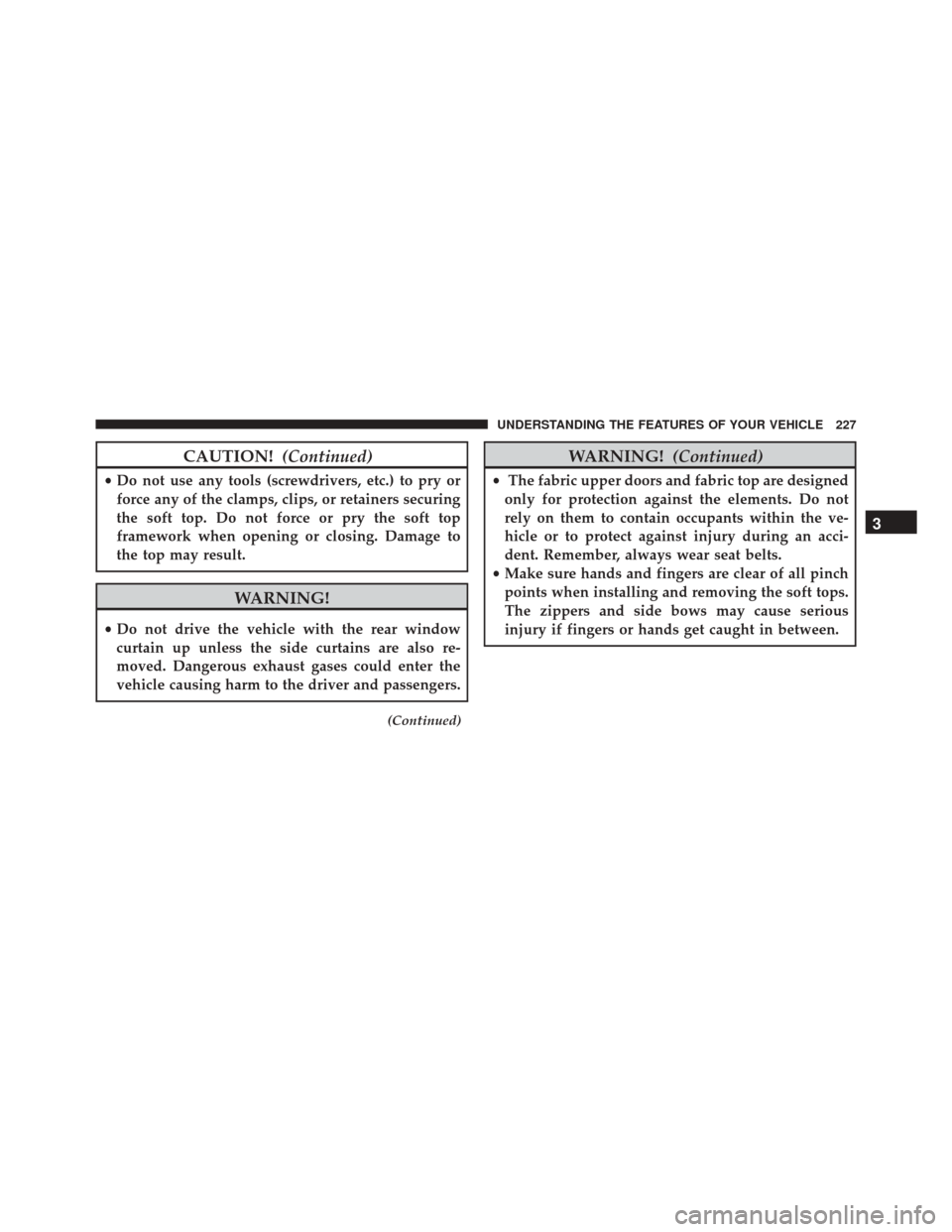

CAUTION!(Continued)
•Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.
WARNING!
• Do not drive the vehicle with the rear window
curtain up unless the side curtains are also re-
moved. Dangerous exhaust gases could enter the
vehicle causing harm to the driver and passengers.
(Continued)
WARNING! (Continued)
•The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the ve-
hicle or to protect against injury during an acci-
dent. Remember, always wear seat belts.
• Make sure hands and fingers are clear of all pinch
points when installing and removing the soft tops.
The zippers and side bows may cause serious
injury if fingers or hands get caught in between.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227

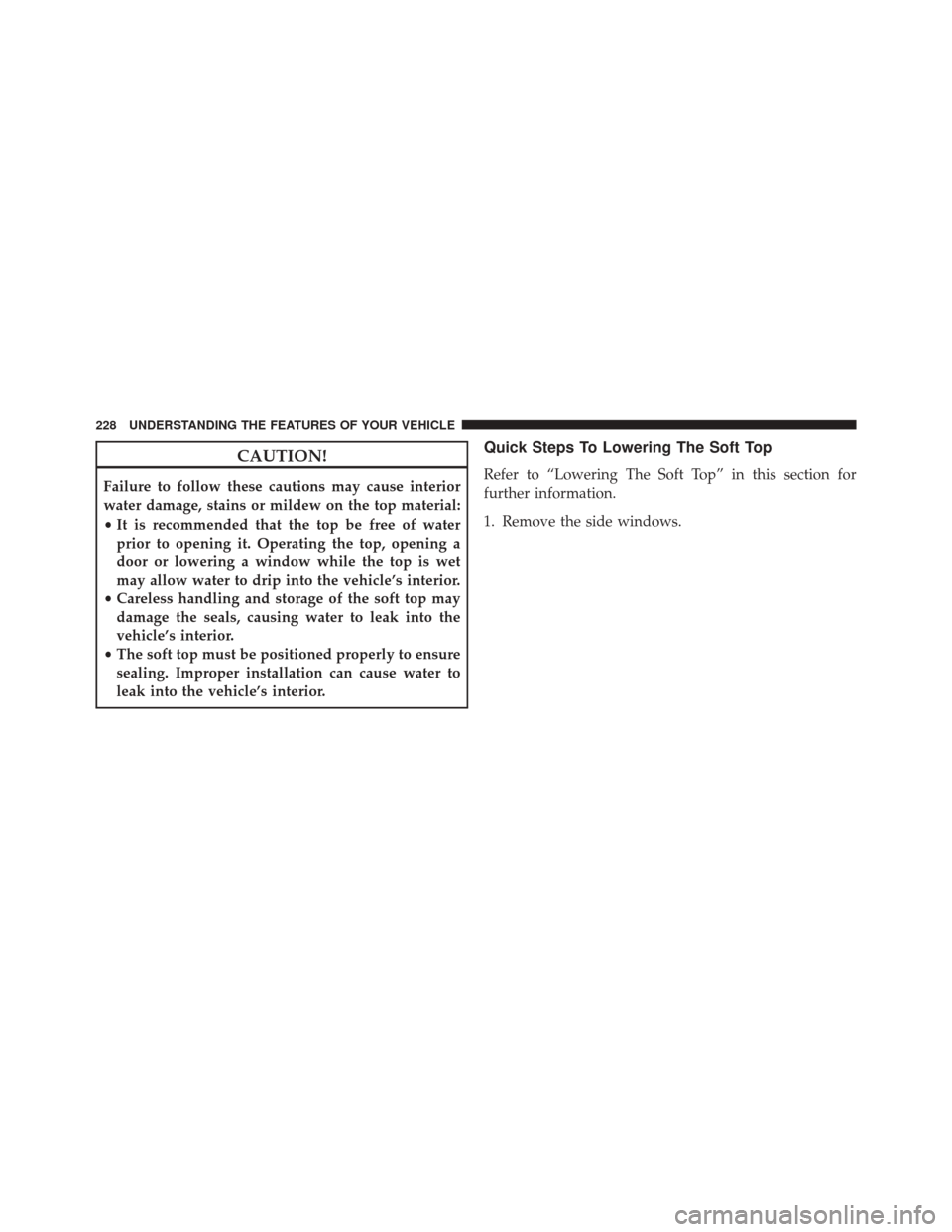

CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.
• Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
• The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.
Quick Steps To Lowering The Soft Top
Refer to “Lowering The Soft Top” in this section for
further information.
1. Remove the side windows.
