TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service. If the trans-
mission and drivetrain are operable, disabled vehiclesmay also be towed as described under “Recreational
Towing” in the “Starting And Operating” section.
Towing Condition Wheels OFF the Ground
4WD MODELS
Flat Tow NONESee instructions under “Recreational Towing”
•Automatic Transmission in PARK
• Manual Transmission in gear ( NOTin Neutral)
• Transfer Case in NEUTRAL
• To w i n forward direction
Wheel Lift or Dolly Tow FrontNOT ALLOWED
Rear NOT ALLOWED
Flatbed ALL BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
6
WHAT TO DO IN EMERGENCIES 589

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the vehicle’s battery is discharged, refer to “Gear
Selector Override” in this section for instructions on
shifting the automatic transmission out of PARK for
towing.
CAUTION!
•Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. The only ap-
proved method of towing without the ignition key is
with a flatbed truck. Proper towing equipment is neces-
sary to prevent damage to the vehicle.
Four–Wheel Drive Models
The manufacturer recommends towing with all wheels
OFF the ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of the vehicle raised
and the opposite end on a towing dolly.
590 WHAT TO DO IN EMERGENCIES

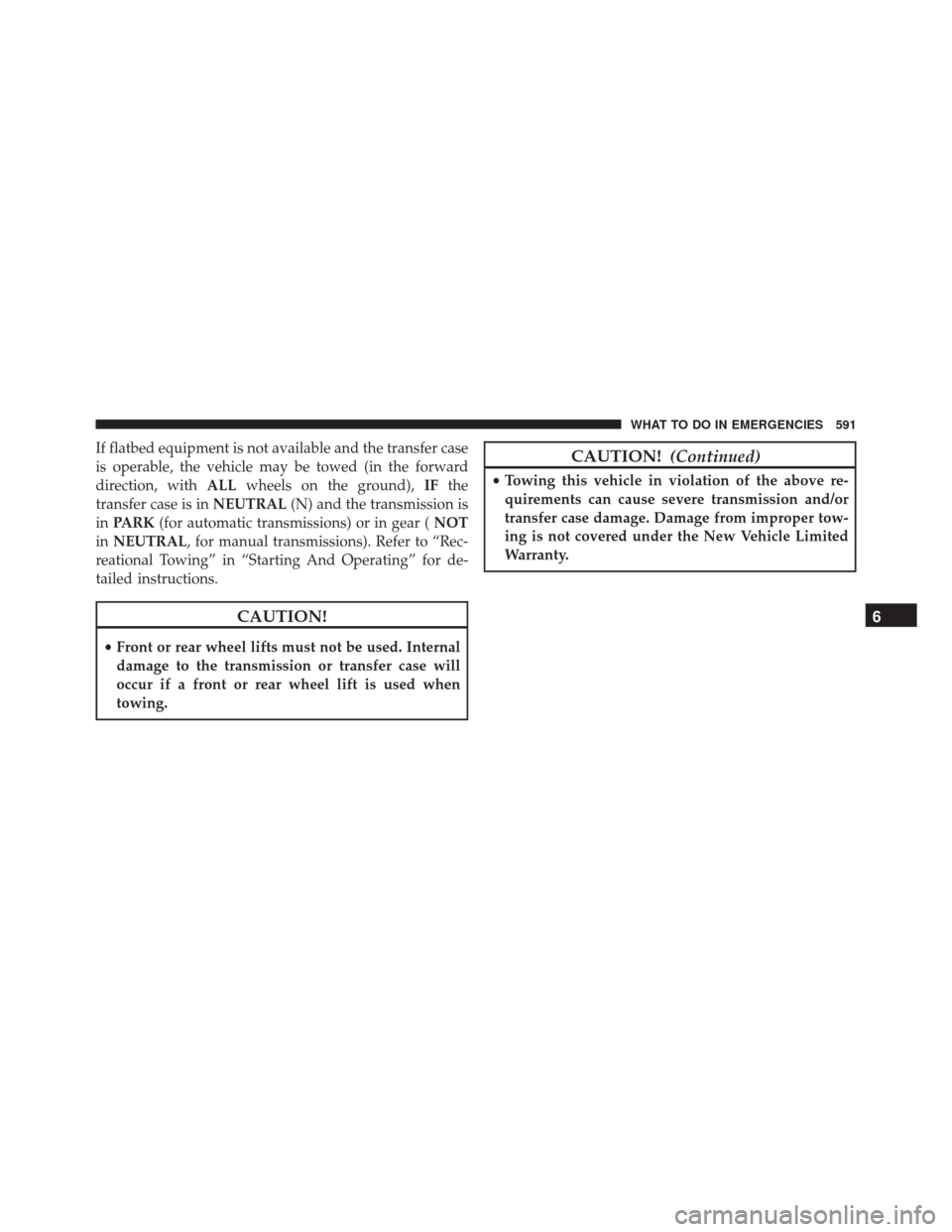

If flatbed equipment is not available and the transfer case
is operable, the vehicle may be towed (in the forward
direction, withALLwheels on the ground), IFthe
transfer case is in NEUTRAL(N) and the transmission is
in PARK (for automatic transmissions) or in gear ( NOT
in NEUTRAL, for manual transmissions). Refer to “Rec-
reational Towing” in “Starting And Operating” for de-
tailed instructions.
CAUTION!
• Front or rear wheel lifts must not be used. Internal
damage to the transmission or transfer case will
occur if a front or rear wheel lift is used when
towing.
CAUTION! (Continued)
•Towing this vehicle in violation of the above re-
quirements can cause severe transmission and/or
transfer case damage. Damage from improper tow-
ing is not covered under the New Vehicle Limited
Warranty.
6
WHAT TO DO IN EMERGENCIES 591

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........595
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .596
▫ Loose Fuel Filler Cap Message ............596
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS .............597
 REPLACEMENT PARTS ..................598
 DEALER SERVICE ..................... .599
 MAINTENANCE PROCEDURES ...........599
▫ Engine Oil ......................... .600
▫ Engine Oil Filter ..................... .603▫
Engine Air Cleaner Filter ................603
▫ Accessory Drive Belt Inspection ...........607
▫ Maintenance-Free Battery ...............609
▫ Air Conditioner Maintenance .............610
▫ Body Lubrication .....................614
▫ Windshield Wiper Blades ...............615
▫ Adding Washer Fluid ..................621
▫ Exhaust System ..................... .622
▫ Cooling System ..................... .624
▫ Brake System ....................... .630
7

▫Automatic Transmission — If Equipped .....632
▫ Clutch Hydraulic System
(Manual Transmission) — If Equipped .......635
▫ Manual Transmission — If Equipped .......636
▫ Transfer Case ....................... .637
▫ Front/Rear Axle Fluid ..................638
▫ Appearance Care And Protection From
Corrosion .......................... .638
 FUSES ............................. .647
▫ Totally Integrated Power Module ..........648
 VEHICLE STORAGE ....................654
 REPLACEMENT BULBS .................654
 BULB REPLACEMENT ..................656 ▫
Headlamp ......................... .656
▫ Front Park/Turn Signal .................657
▫ Front Side Marker .....................657
▫ Front Fog Lamp ..................... .657
▫ Rear Tail, Stop, Turn Signal, And
Backup Lamp ....................... .658
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... .658
 FLUID CAPACITIES ....................659
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .660
▫ Engine ............................ .660
▫ Chassis ........................... .662
594 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 3.6L
1 — Integrated Power Module (Fuses)7 — Washer Fluid Reservoir
2 — Battery 8 — Engine Coolant Reservoir
3 — Engine Oil Dipstick 9 — Air Cleaner Filter
4 — Automatic Transmission Dipstick (Under Engine Cover) 10 — Coolant Pressure Cap
5 — Engine Oil Fill 11 — Power Steering Fluid Reservoir
6 — Brake Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 595

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
• If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose, improp-
erly installed, or damaged. A “gASCAP” message will be
displayed in the odometer. Tighten the gas cap until a
clicking sound is heard. This is an indication that the
gas cap is properly tightened. Press the odometer reset
button to turn the message off. If the problem persists,
596 MAINTAINING YOUR VEHICLE

the message will appear the next time the vehicle is
started. This might indicate a damaged cap. If the prob-
lem is detected twice in a row, the system will turn on the
MIL. Resolving the problem will turn the MIL off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition actuated test, which
you can use prior to going to the test station. To check if
your vehicle’s OBD II system is ready, you must do the
following:
1. Cycle the ignition switch to the ON position, but do
not crank or start the engine.
NOTE: If you crank or start the engine, you will have to
start this test over.
2. As soon as you cycle the ignition switch to the ON position, you will see the “Malfunction Indicator Light
(MIL)” symbol come on as part of a normal bulb
check.
7
MAINTAINING YOUR VEHICLE 597

3. Approximately 15 seconds later, one of two things willhappen:
• The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
• The MIL will not flash at all and will remain fully
illuminated until you place the ignition in the off
position or start the engine. This means that your
vehicle’s OBD II system is readyand you can proceed
to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II system to update. A recheck with the above test routine
may then indicate that the system is
now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the New Vehicle
Limited Warranty.
