Page 357 of 705

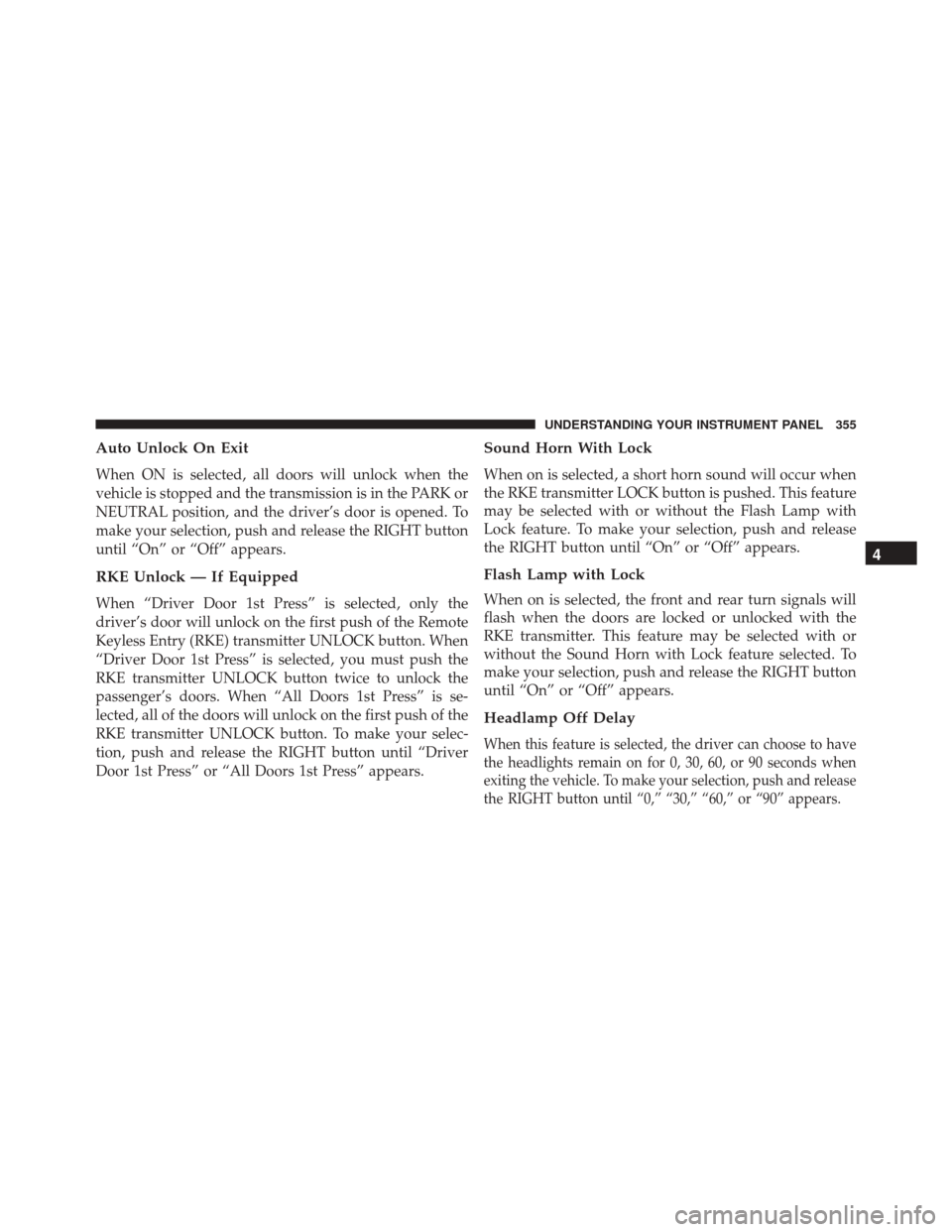

Auto Unlock On Exit
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position, and the driver’s door is opened. To
make your selection, push and release the RIGHT button
until “On” or “Off” appears.
RKE Unlock — If Equipped
When “Driver Door 1st Press” is selected, only the
driver’s door will unlock on the first push of the Remote
Keyless Entry (RKE) transmitter UNLOCK button. When
“Driver Door 1st Press” is selected, you must push the
RKE transmitter UNLOCK button twice to unlock the
passenger’s doors. When “All Doors 1st Press” is se-
lected, all of the doors will unlock on the first push of the
RKE transmitter UNLOCK button. To make your selec-
tion, push and release the RIGHT button until “Driver
Door 1st Press” or “All Doors 1st Press” appears.
Sound Horn With Lock
When on is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pushed. This feature
may be selected with or without the Flash Lamp with
Lock feature. To make your selection, push and release
the RIGHT button until “On” or “Off” appears.
Flash Lamp with Lock
When on is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the Sound Horn with Lock feature selected. To
make your selection, push and release the RIGHT button
until “On” or “Off” appears.
Headlamp Off Delay
When this feature is selected, the driver can choose to have
the headlights remain on for 0, 30, 60, or 90 seconds when
exiting the vehicle. To make your selection, push and release
the RIGHT button until “0,” “30,” “60,” or “90” appears.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 355
Page 358 of 705

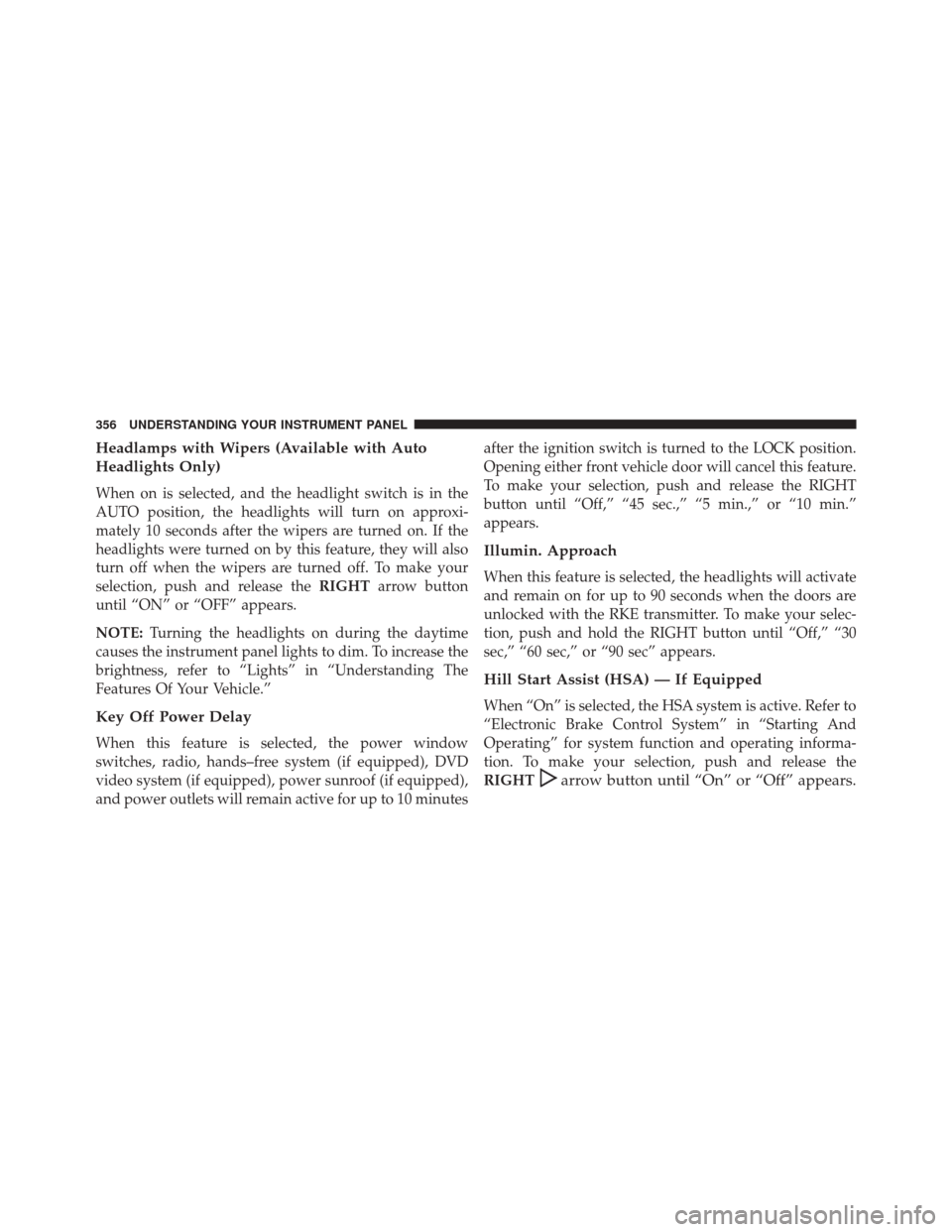

Headlamps with Wipers (Available with Auto
Headlights Only)
When on is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. If the
headlights were turned on by this feature, they will also
turn off when the wipers are turned off. To make your
selection, push and release theRIGHTarrow button
until “ON” or “OFF” appears.
NOTE: Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”
Key Off Power Delay
When this feature is selected, the power window
switches, radio, hands–free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes after the ignition switch is turned to the LOCK position.
Opening either front vehicle door will cancel this feature.
To make your selection, push and release the RIGHT
button until “Off,” “45 sec.,” “5 min.,” or “10 min.”
appears.
Illumin. Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, push and hold the RIGHT button until “Off,” “30
sec,” “60 sec,” or “90 sec” appears.
Hill Start Assist (HSA) — If Equipped
When “On” is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, push and release the
RIGHT
arrow button until “On” or “Off” appears.
356 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 596 of 705

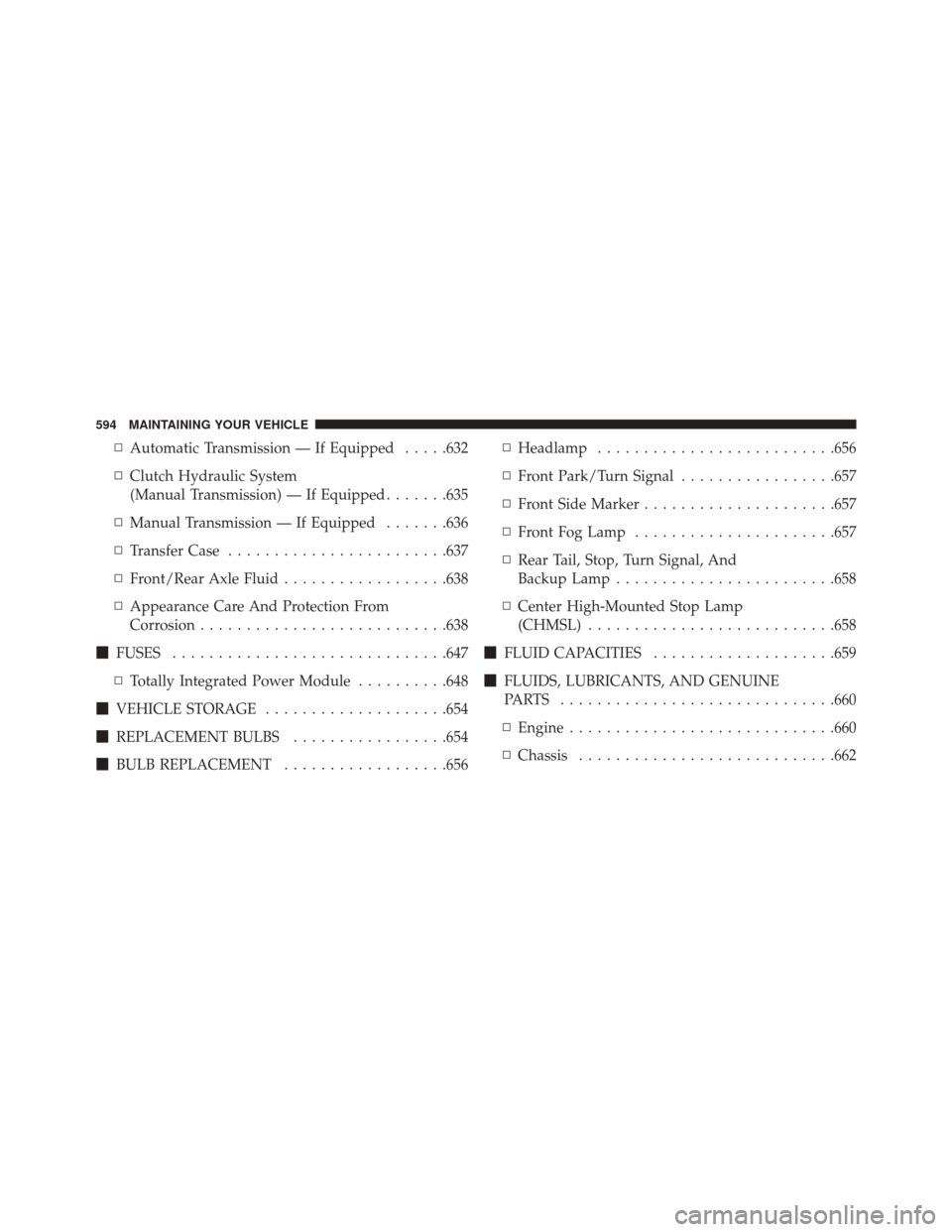

▫Automatic Transmission — If Equipped .....632
▫ Clutch Hydraulic System
(Manual Transmission) — If Equipped .......635
▫ Manual Transmission — If Equipped .......636
▫ Transfer Case ....................... .637
▫ Front/Rear Axle Fluid ..................638
▫ Appearance Care And Protection From
Corrosion .......................... .638
FUSES ............................. .647
▫ Totally Integrated Power Module ..........648
VEHICLE STORAGE ....................654
REPLACEMENT BULBS .................654
BULB REPLACEMENT ..................656 ▫
Headlamp ......................... .656
▫ Front Park/Turn Signal .................657
▫ Front Side Marker .....................657
▫ Front Fog Lamp ..................... .657
▫ Rear Tail, Stop, Turn Signal, And
Backup Lamp ....................... .658
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... .658
FLUID CAPACITIES ....................659
FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .660
▫ Engine ............................ .660
▫ Chassis ........................... .662
594 MAINTAINING YOUR VEHICLE
Page 651 of 705
Cavity Cartridge Fuse Mini FuseDescription
J1 – – –
J2 30 Amp Pink –Transfer Case Module
J3 – – –
J4 25 Amp Clear –Driver Door Node
J5 25 Amp Clear –Passenger Door Node
J6 40 Amp Green –
Anti-Lock Brake System (ABS) Pump/Stability Control System
J7 30 Amp Pink– Anti-Lock Brake System (ABS) Valve/Stability Control System
J8 – – –
J9 40 Amp Green –PZEV Sec Motor/Flex Fuel – If Equipped
J10 30 Amp Pink –Headlamp Wash Relay/Manifold Tuning Valve
J11 30 Amp Pink – Sway Bar
J12 30 Amp Pink –Rear Blower Motor/Radiator Fan
J13 60 Amp Yellow –Ignition Off Draw (IOD) – Main
J14 40 Amp Green –Rear Defroster
J15 40 Amp Green – Front Blower
7
MAINTAINING YOUR VEHICLE 649
Page 655 of 705
Cavity Cartridge Fuse Mini FuseDescription
M34 –10 Amp Red
Park Assist, Climate Control System, Headlamp Wash, Compass
M35 –10 Amp Red Heated Mirrors
M36 –20 Amp Yellow Power Outlet
M37 –10 Amp Red Anti-Lock Brake System, Electronic Stability Control, Stop
Lamp Switch, Fuel Pump Relay
M38 –25 Amp Clear Lock/Unlock Motors
CAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the Integrated Power Mod-
ule, and possibly result in an electrical system
failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.7
MAINTAINING YOUR VEHICLE 653
Page 657 of 705

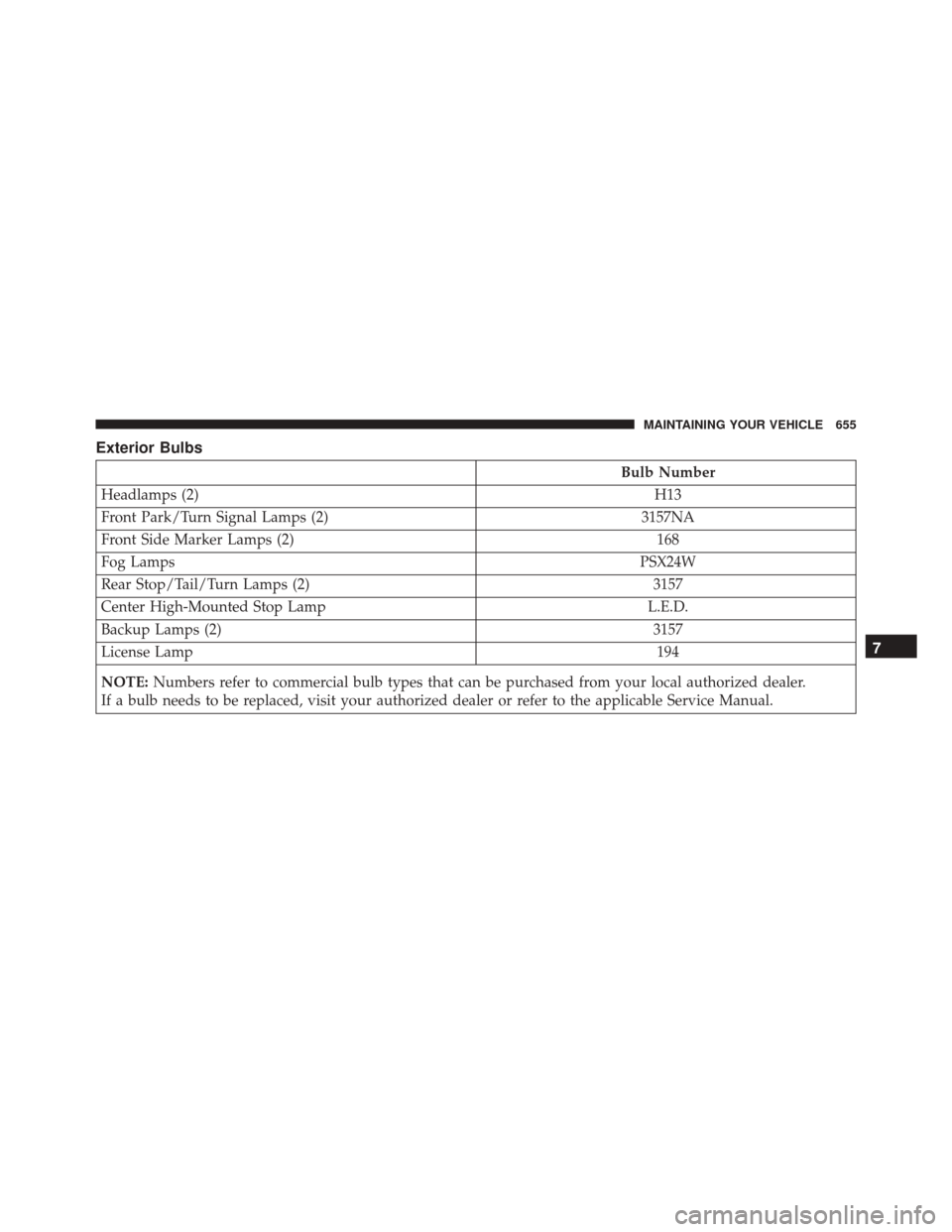

Exterior Bulbs
Bulb Number
Headlamps (2) H13
Front Park/Turn Signal Lamps (2) 3157NA
Front Side Marker Lamps (2) 168
Fog Lamps PSX24W
Rear Stop/Tail/Turn Lamps (2) 3157
Center High-Mounted Stop Lamp L.E.D.
Backup Lamps (2) 3157
License Lamp 194
NOTE: Numbers refer to commercial bulb types that can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.
7
MAINTAINING YOUR VEHICLE 655
Page 658 of 705
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4 turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn clockwise.
656 MAINTAINING YOUR VEHICLE
