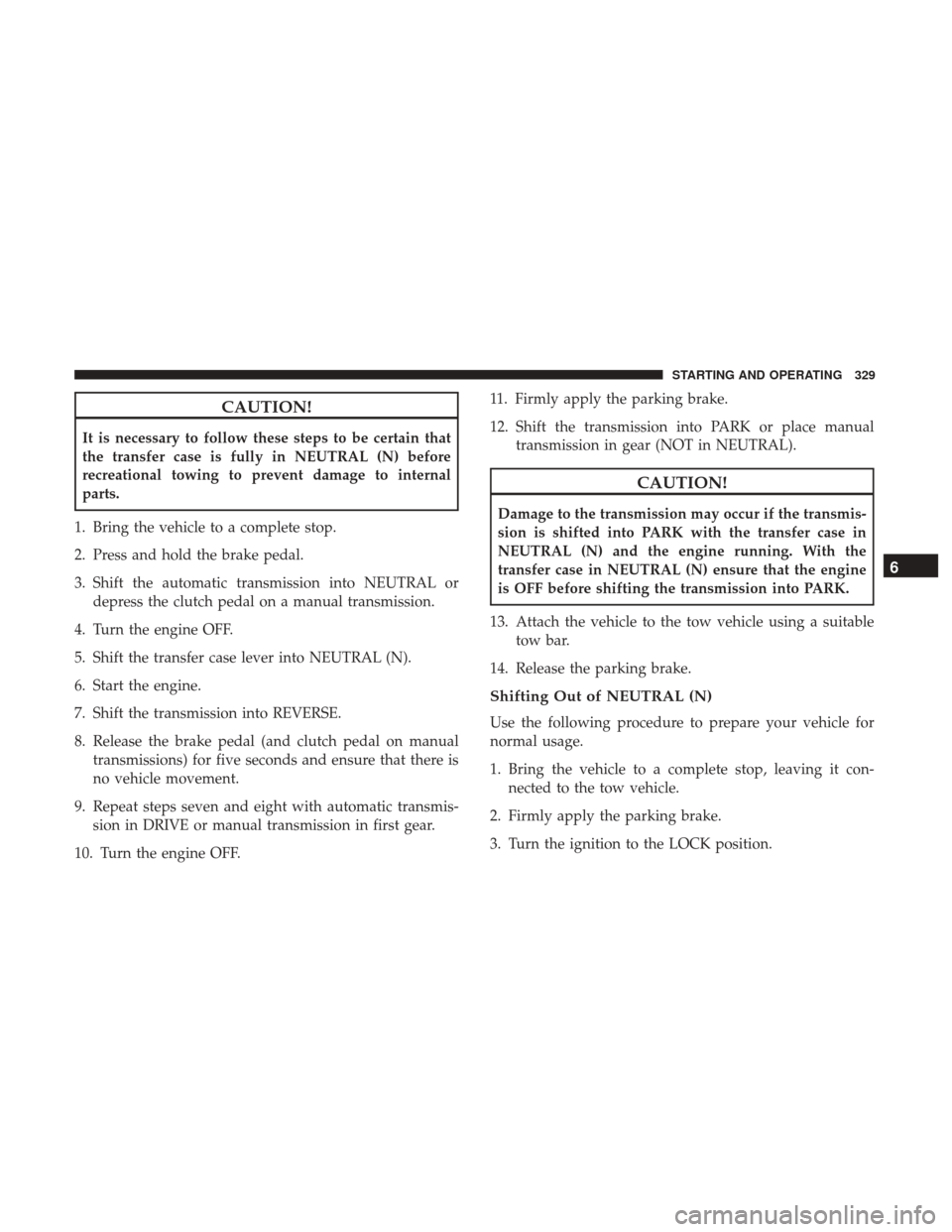

CAUTION!
It is necessary to follow these steps to be certain that
the transfer case is fully in NEUTRAL (N) before
recreational towing to prevent damage to internal
parts.
1. Bring the vehicle to a complete stop.
2. Press and hold the brake pedal.
3. Shift the automatic transmission into NEUTRAL or depress the clutch pedal on a manual transmission.
4. Turn the engine OFF.
5. Shift the transfer case lever into NEUTRAL (N).
6. Start the engine.
7. Shift the transmission into REVERSE.
8. Release the brake pedal (and clutch pedal on manual transmissions) for five seconds and ensure that there is
no vehicle movement.
9. Repeat steps seven and eight with automatic transmis- sion in DRIVE or manual transmission in first gear.
10. Turn the engine OFF. 11. Firmly apply the parking brake.
12. Shift the transmission into PARK or place manual
transmission in gear (NOT in NEUTRAL).
CAUTION!
Damage to the transmission may occur if the transmis-
sion is shifted into PARK with the transfer case in
NEUTRAL (N) and the engine running. With the
transfer case in NEUTRAL (N) ensure that the engine
is OFF before shifting the transmission into PARK.
13. Attach the vehicle to the tow vehicle using a suitable tow bar.
14. Release the parking brake.
Shifting Out of NEUTRAL (N)
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring the vehicle to a complete stop, leaving it con- nected to the tow vehicle.
2. Firmly apply the parking brake.
3. Turn the ignition to the LOCK position.
6
STARTING AND OPERATING 329

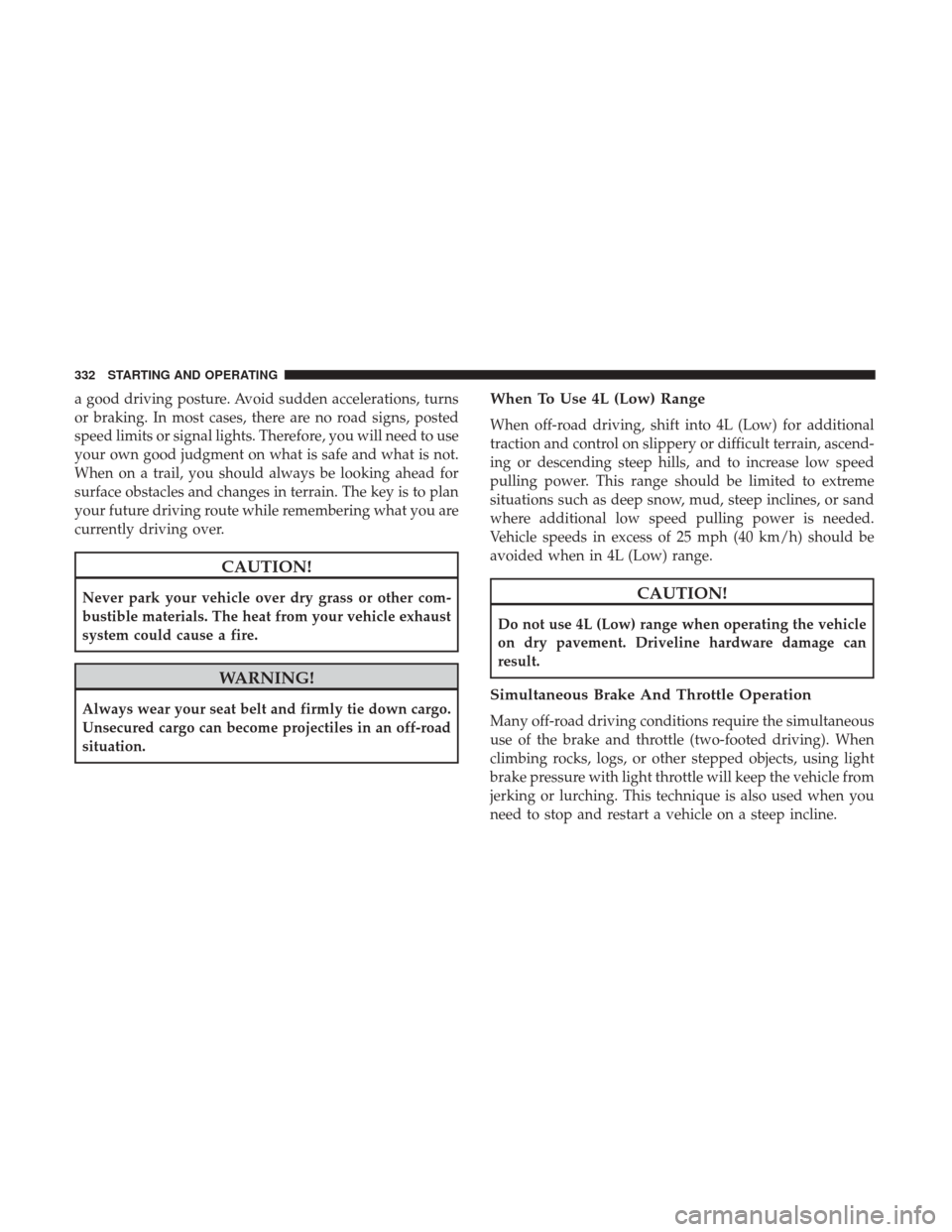

a good driving posture. Avoid sudden accelerations, turns
or braking. In most cases, there are no road signs, posted
speed limits or signal lights. Therefore, you will need to use
your own good judgment on what is safe and what is not.
When on a trail, you should always be looking ahead for
surface obstacles and changes in terrain. The key is to plan
your future driving route while remembering what you are
currently driving over.
CAUTION!
Never park your vehicle over dry grass or other com-
bustible materials. The heat from your vehicle exhaust
system could cause a fire.
WARNING!
Always wear your seat belt and firmly tie down cargo.
Unsecured cargo can become projectiles in an off-road
situation.
When To Use 4L (Low) Range
When off-road driving, shift into 4L (Low) for additional
traction and control on slippery or difficult terrain, ascend-
ing or descending steep hills, and to increase low speed
pulling power. This range should be limited to extreme
situations such as deep snow, mud, steep inclines, or sand
where additional low speed pulling power is needed.
Vehicle speeds in excess of 25 mph (40 km/h) should be
avoided when in 4L (Low) range.
CAUTION!
Do not use 4L (Low) range when operating the vehicle
on dry pavement. Driveline hardware damage can
result.
Simultaneous Brake And Throttle Operation
Many off-road driving conditions require the simultaneous
use of the brake and throttle (two-footed driving). When
climbing rocks, logs, or other stepped objects, using light
brake pressure with light throttle will keep the vehicle from
jerking or lurching. This technique is also used when you
need to stop and restart a vehicle on a steep incline.
332 STARTING AND OPERATING

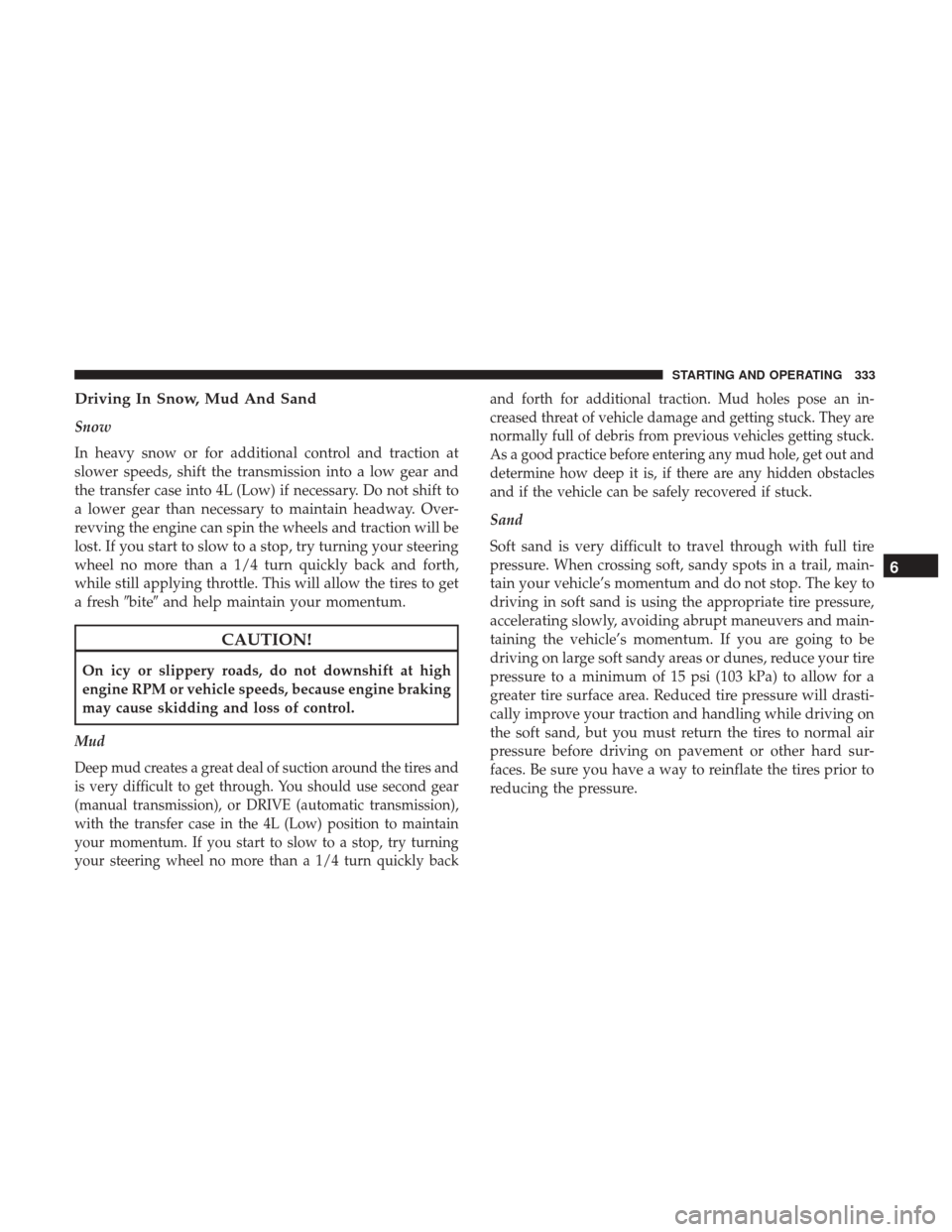

Driving In Snow, Mud And Sand
Snow
In heavy snow or for additional control and traction at
slower speeds, shift the transmission into a low gear and
the transfer case into 4L (Low) if necessary. Do not shift to
a lower gear than necessary to maintain headway. Over-
revving the engine can spin the wheels and traction will be
lost. If you start to slow to a stop, try turning your steering
wheel no more than a 1/4 turn quickly back and forth,
while still applying throttle. This will allow the tires to get
a freshbiteand help maintain your momentum.
CAUTION!
On icy or slippery roads, do not downshift at high
engine RPM or vehicle speeds, because engine braking
may cause skidding and loss of control.
Mud
Deep mud creates a great deal of suction around the tires and
is very difficult to get through. You should use second gear
(manual transmission), or DRIVE (automatic transmission),
with the transfer case in the 4L (Low) position to maintain
your momentum. If you start to slow to a stop, try turning
your steering wheel no more than a 1/4 turn quickly back and forth for additional traction. Mud holes pose an in-
creased threat of vehicle damage and getting stuck. They are
normally full of debris from previous vehicles getting stuck.
As a good practice before entering any mud hole, get out and
determine how deep it is, if there are any hidden obstacles
and if the vehicle can be safely recovered if stuck.
Sand
Soft sand is very difficult to travel through with full tire
pressure. When crossing soft, sandy spots in a trail, main-
tain your vehicle’s momentum and do not stop. The key to
driving in soft sand is using the appropriate tire pressure,
accelerating slowly, avoiding abrupt maneuvers and main-
taining the vehicle’s momentum. If you are going to be
driving on large soft sandy areas or dunes, reduce your tire
pressure to a minimum of 15 psi (103 kPa) to allow for a
greater tire surface area. Reduced tire pressure will drasti-
cally improve your traction and handling while driving on
the soft sand, but you must return the tires to normal air
pressure before driving on pavement or other hard sur-
faces. Be sure you have a way to reinflate the tires prior to
reducing the pressure.
6
STARTING AND OPERATING 333

CAUTION!

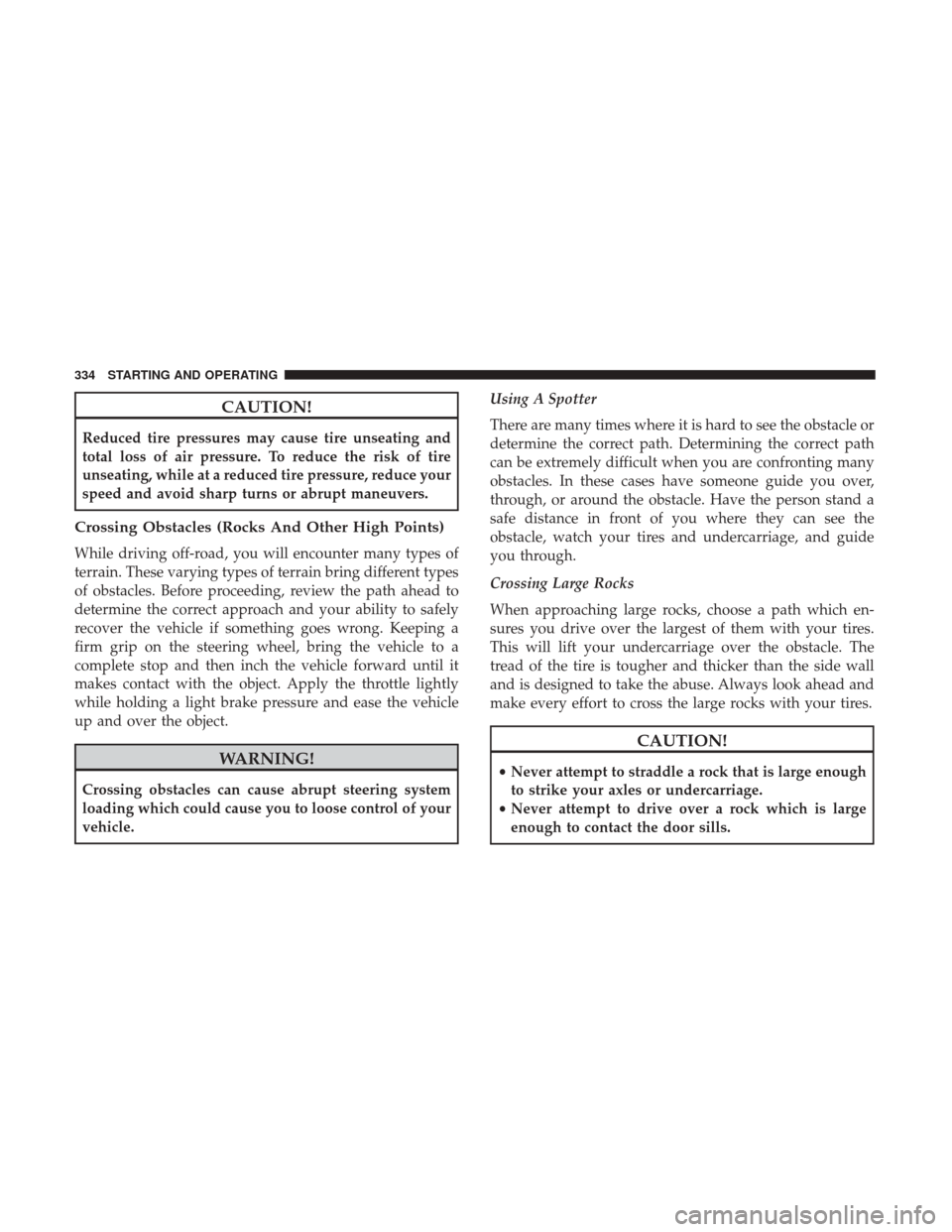

Reduced tire pressures may cause tire unseating and
total loss of air pressure. To reduce the risk of tire
unseating, while at a reduced tire pressure, reduce your
speed and avoid sharp turns or abrupt maneuvers.
Crossing Obstacles (Rocks And Other High Points)
While driving off-road, you will encounter many types of
terrain. These varying types of terrain bring different types
of obstacles. Before proceeding, review the path ahead to
determine the correct approach and your ability to safely
recover the vehicle if something goes wrong. Keeping a
firm grip on the steering wheel, bring the vehicle to a
complete stop and then inch the vehicle forward until it
makes contact with the object. Apply the throttle lightly
while holding a light brake pressure and ease the vehicle
up and over the object.
WARNING!
Crossing obstacles can cause abrupt steering system
loading which could cause you to loose control of your
vehicle.Using A Spotter
There are many times where it is hard to see the obstacle or
determine the correct path. Determining the correct path
can be extremely difficult when you are confronting many
obstacles. In these cases have someone guide you over,
through, or around the obstacle. Have the person stand a
safe distance in front of you where they can see the
obstacle, watch your tires and undercarriage, and guide
you through.
Crossing Large Rocks
When approaching large rocks, choose a path which en-
sures you drive over the largest of them with your tires.
This will lift your undercarriage over the obstacle. The
tread of the tire is tougher and thicker than the side wall
and is designed to take the abuse. Always look ahead and
make every effort to cross the large rocks with your tires.
CAUTION!
•
Never attempt to straddle a rock that is large enough
to strike your axles or undercarriage.
• Never attempt to drive over a rock which is large
enough to contact the door sills.
334 STARTING AND OPERATING

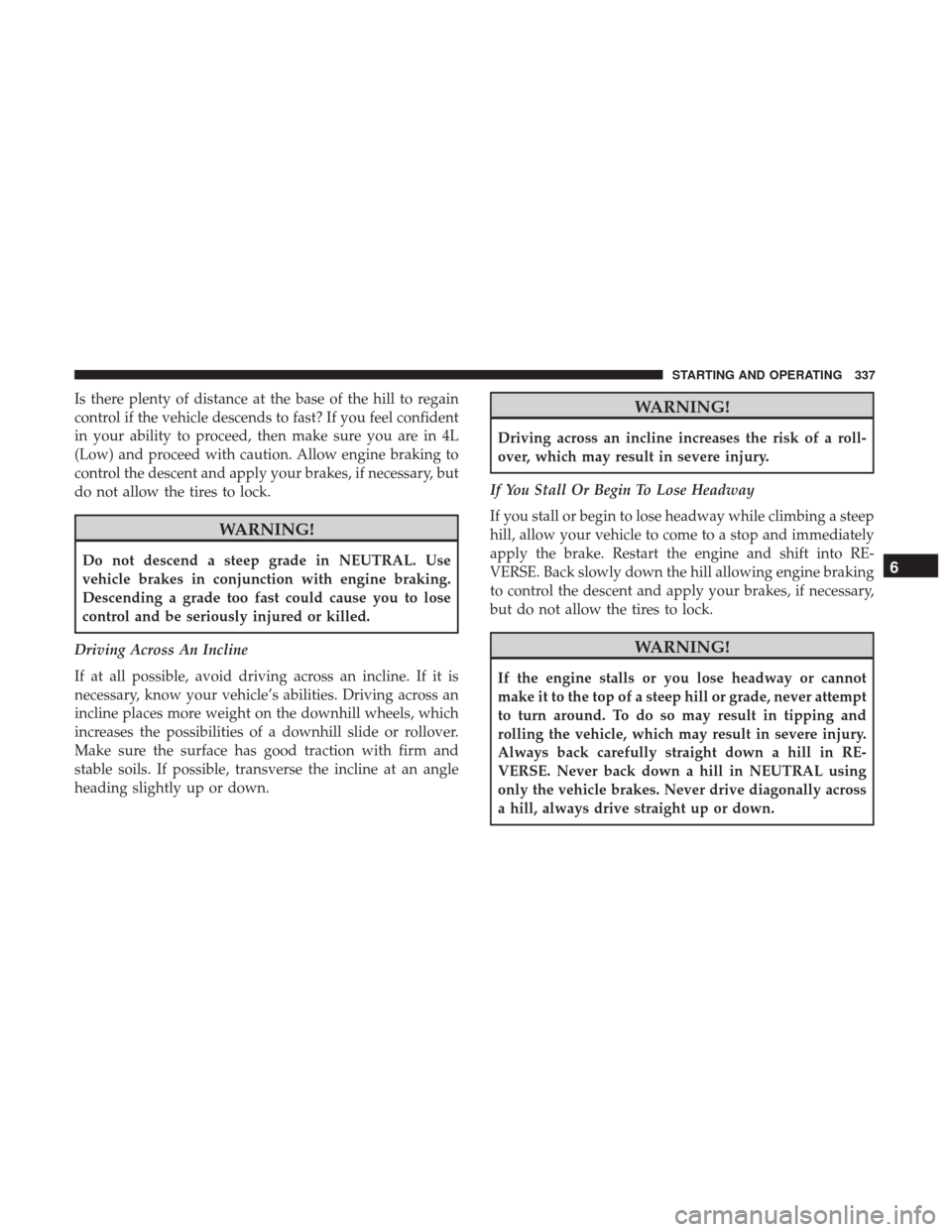

Is there plenty of distance at the base of the hill to regain
control if the vehicle descends to fast? If you feel confident
in your ability to proceed, then make sure you are in 4L
(Low) and proceed with caution. Allow engine braking to
control the descent and apply your brakes, if necessary, but
do not allow the tires to lock.
WARNING!
Do not descend a steep grade in NEUTRAL. Use
vehicle brakes in conjunction with engine braking.
Descending a grade too fast could cause you to lose
control and be seriously injured or killed.
Driving Across An Incline
If at all possible, avoid driving across an incline. If it is
necessary, know your vehicle’s abilities. Driving across an
incline places more weight on the downhill wheels, which
increases the possibilities of a downhill slide or rollover.
Make sure the surface has good traction with firm and
stable soils. If possible, transverse the incline at an angle
heading slightly up or down.
WARNING!
Driving across an incline increases the risk of a roll-
over, which may result in severe injury.
If You Stall Or Begin To Lose Headway
If you stall or begin to lose headway while climbing a steep
hill, allow your vehicle to come to a stop and immediately
apply the brake. Restart the engine and shift into RE-
VERSE. Back slowly down the hill allowing engine braking
to control the descent and apply your brakes, if necessary,
but do not allow the tires to lock.
WARNING!
If the engine stalls or you lose headway or cannot
make it to the top of a steep hill or grade, never attempt
to turn around. To do so may result in tipping and
rolling the vehicle, which may result in severe injury.
Always back carefully straight down a hill in RE-
VERSE. Never back down a hill in NEUTRAL using
only the vehicle brakes. Never drive diagonally across
a hill, always drive straight up or down.
6
STARTING AND OPERATING 337

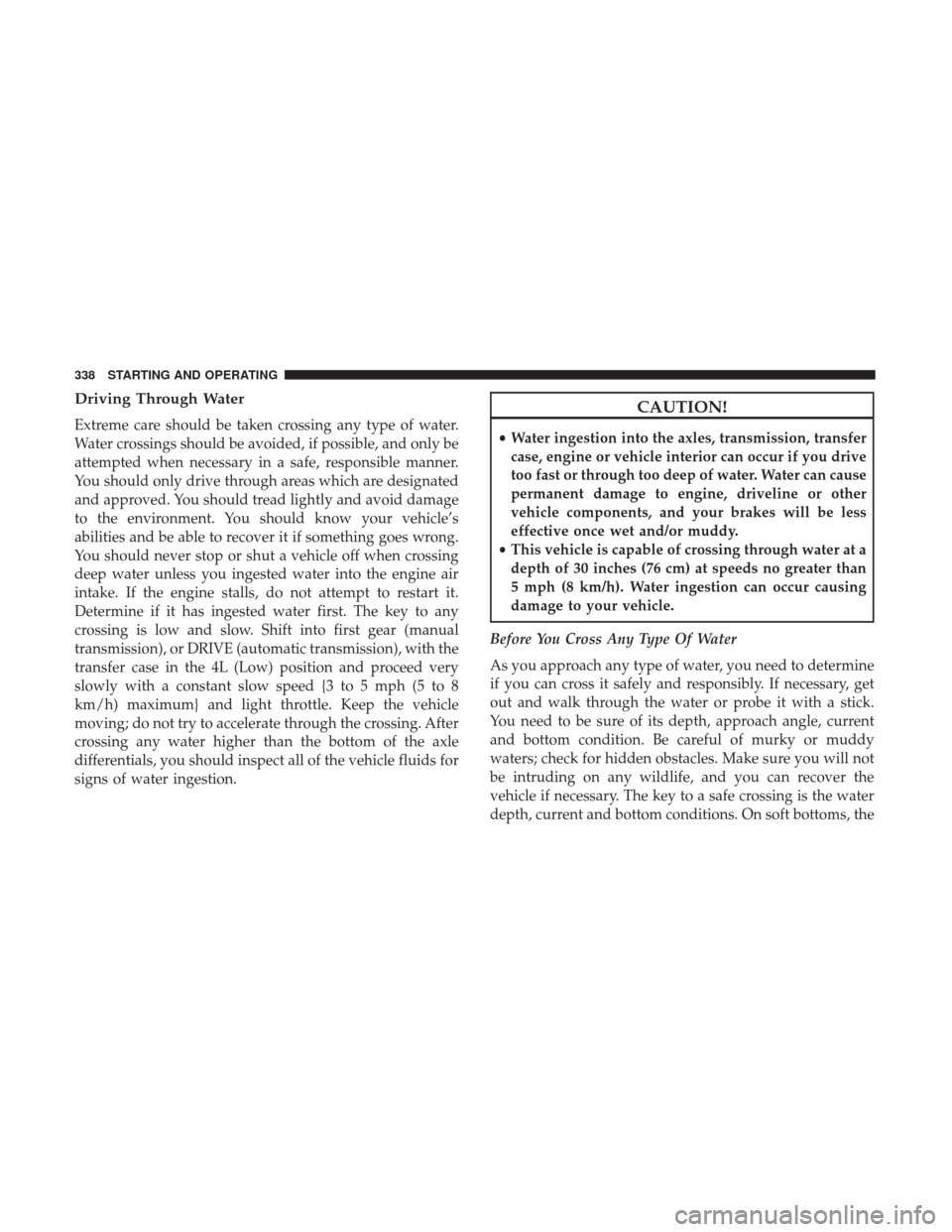

Driving Through Water
Extreme care should be taken crossing any type of water.
Water crossings should be avoided, if possible, and only be
attempted when necessary in a safe, responsible manner.
You should only drive through areas which are designated
and approved. You should tread lightly and avoid damage
to the environment. You should know your vehicle’s
abilities and be able to recover it if something goes wrong.
You should never stop or shut a vehicle off when crossing
deep water unless you ingested water into the engine air
intake. If the engine stalls, do not attempt to restart it.
Determine if it has ingested water first. The key to any
crossing is low and slow. Shift into first gear (manual
transmission), or DRIVE (automatic transmission), with the
transfer case in the 4L (Low) position and proceed very
slowly with a constant slow speed {3 to 5 mph (5 to 8
km/h) maximum} and light throttle. Keep the vehicle
moving; do not try to accelerate through the crossing. After
crossing any water higher than the bottom of the axle
differentials, you should inspect all of the vehicle fluids for
signs of water ingestion.
CAUTION!
•Water ingestion into the axles, transmission, transfer
case, engine or vehicle interior can occur if you drive
too fast or through too deep of water. Water can cause
permanent damage to engine, driveline or other
vehicle components, and your brakes will be less
effective once wet and/or muddy.
• This vehicle is capable of crossing through water at a
depth of 30 inches (76 cm) at speeds no greater than
5 mph (8 km/h). Water ingestion can occur causing
damage to your vehicle.
Before You Cross Any Type Of Water
As you approach any type of water, you need to determine
if you can cross it safely and responsibly. If necessary, get
out and walk through the water or probe it with a stick.
You need to be sure of its depth, approach angle, current
and bottom condition. Be careful of murky or muddy
waters; check for hidden obstacles. Make sure you will not
be intruding on any wildlife, and you can recover the
vehicle if necessary. The key to a safe crossing is the water
depth, current and bottom conditions. On soft bottoms, the
338 STARTING AND OPERATING

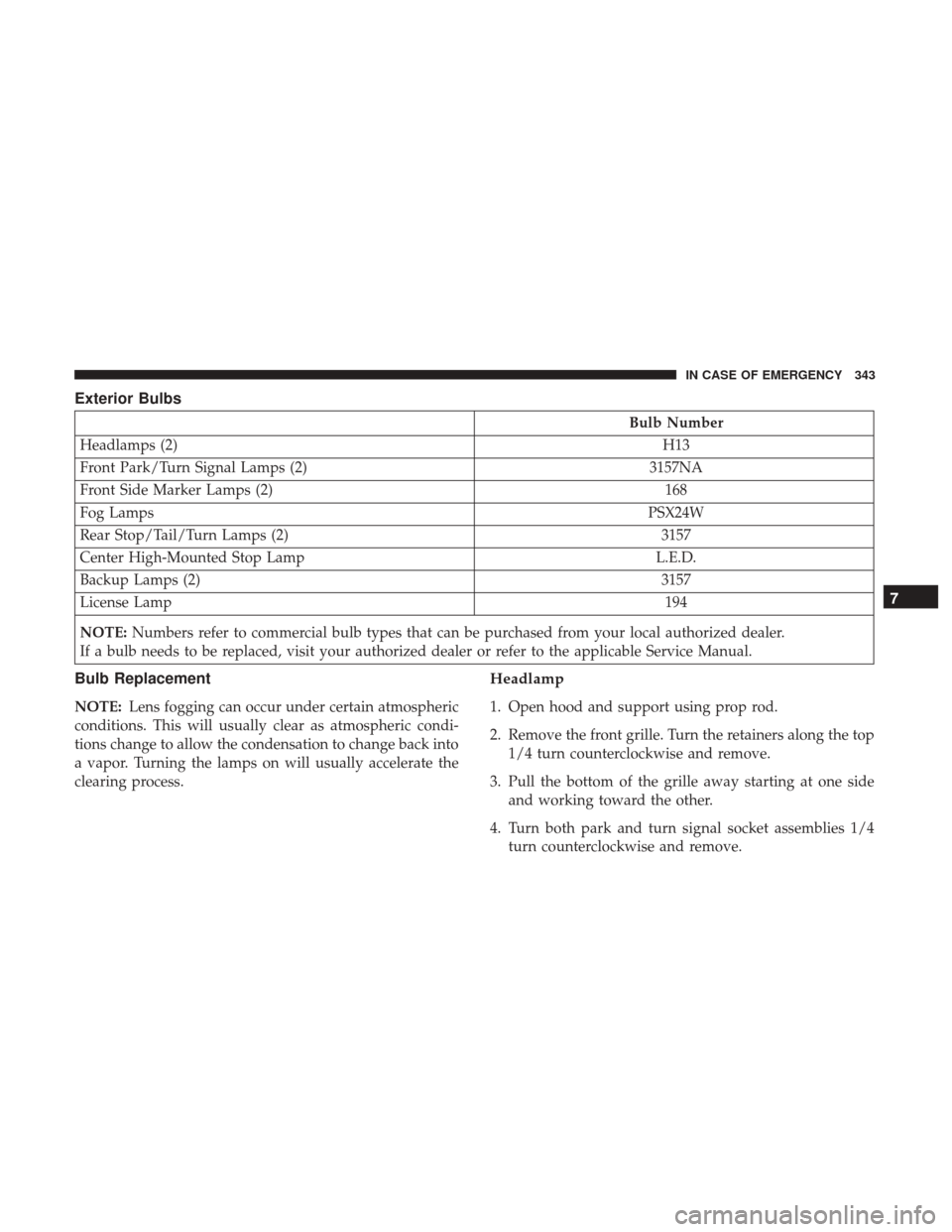

Exterior Bulbs
Bulb Number
Headlamps (2) H13
Front Park/Turn Signal Lamps (2) 3157NA
Front Side Marker Lamps (2) 168
Fog Lamps PSX24W
Rear Stop/Tail/Turn Lamps (2) 3157
Center High-Mounted Stop Lamp L.E.D.
Backup Lamps (2) 3157
License Lamp 194
NOTE: Numbers refer to commercial bulb types that can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.
Bulb Replacement
NOTE: Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric condi-
tions change to allow the condensation to change back into
a vapor. Turning the lamps on will usually accelerate the
clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side and working toward the other.
4. Turn both park and turn signal socket assemblies 1/4 turn counterclockwise and remove.
7
IN CASE OF EMERGENCY 343

CavityCartridge Fuse Mini Fuse Description
J9 40 Amp Green –PZEV Sec Motor/Flex Fuel – If Equipped
J10 30 Amp Pink –Headlamp Wash Relay/Manifold Tuning
Valve
J11 30 Amp Pink – Sway Bar
J12 –– –
J13 60 Amp Yellow –Ignition Off Draw (IOD) – Main
J14 40 Amp Green –Rear Defroster
J15 40 Amp Green –Front Blower
J17 40 Amp Green –Starter Solenoid
J18 20 Amp Blue –Powertrain Control Module (PCM) Trans
Range
J19 60 Amp Yellow –Radiator Fan
J20 30 Amp Pink –Front Wiper LO/HI
J21 20 Amp Blue –Front/Rear Washer
J22 –– Spare
M1 –15 Amp Blue Center High-Mounted Stop Light (CHMSL)/
Switch Stop Lamp Feed
M2 –20 Amp Yellow Relay Trailer Lighting (Stop lamp)
M3 –20 Amp Yellow Front/Rear Axle Locker Relay
M4 –2 Amp Grey Clock Spring
7
IN CASE OF EMERGENCY 349

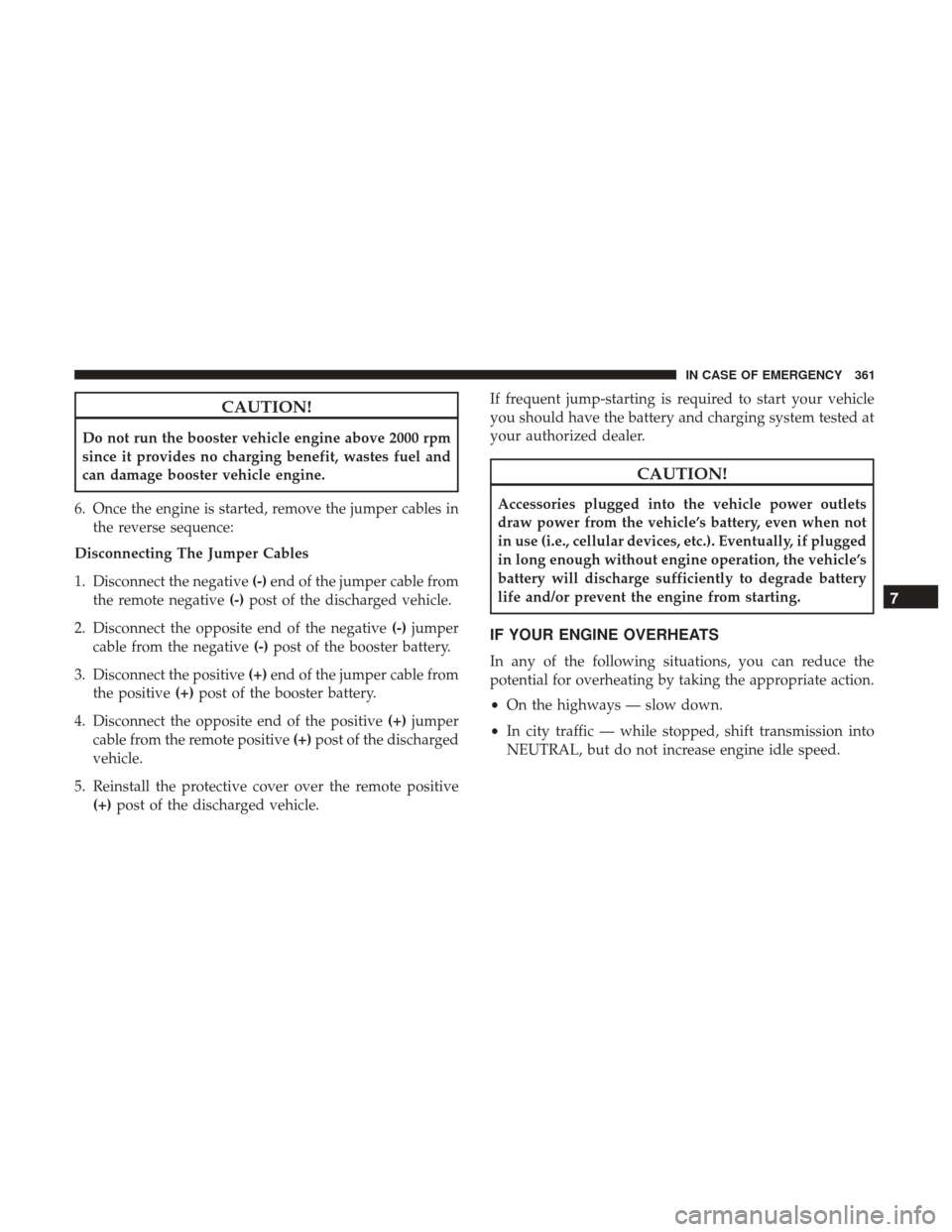

CAUTION!
Do not run the booster vehicle engine above 2000 rpm
since it provides no charging benefit, wastes fuel and
can damage booster vehicle engine.
6. Once the engine is started, remove the jumper cables in the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)end of the jumper cable from
the remote negative (-)post of the discharged vehicle.
2. Disconnect the opposite end of the negative (-)jumper
cable from the negative (-)post of the booster battery.
3. Disconnect the positive (+)end of the jumper cable from
the positive (+)post of the booster battery.
4. Disconnect the opposite end of the positive (+)jumper
cable from the remote positive (+)post of the discharged
vehicle.
5. Reinstall the protective cover over the remote positive (+) post of the discharged vehicle. If frequent jump-starting is required to start your vehicle
you should have the battery and charging system tested at
your authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
•
On the highways — slow down.
• In city traffic — while stopped, shift transmission into
NEUTRAL, but do not increase engine idle speed.
7
IN CASE OF EMERGENCY 361

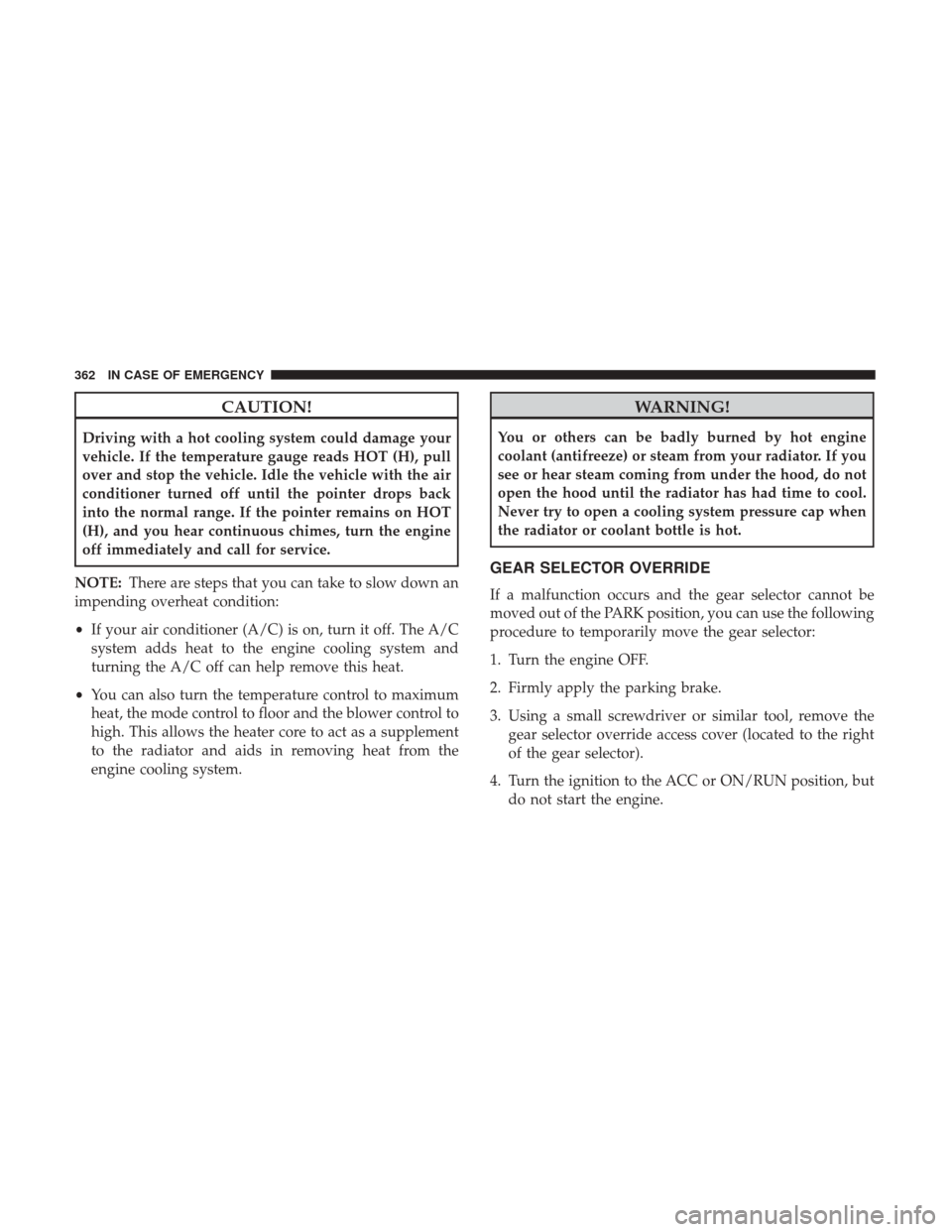

CAUTION!
Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads HOT (H), pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on HOT
(H), and you hear continuous chimes, turn the engine
off immediately and call for service.
NOTE: There are steps that you can take to slow down an
impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
• You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.
GEAR SELECTOR OVERRIDE
If a malfunction occurs and the gear selector cannot be
moved out of the PARK position, you can use the following
procedure to temporarily move the gear selector:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
3. Using a small screwdriver or similar tool, remove the gear selector override access cover (located to the right
of the gear selector).
4. Turn the ignition to the ACC or ON/RUN position, but do not start the engine.
362 IN CASE OF EMERGENCY
