CAUTION!
It is necessary to follow these steps to be certain that
the transfer case is fully in NEUTRAL (N) before
recreational towing to prevent damage to internal
parts.
1. Bring the vehicle to a complete stop.
2. Press and hold the brake pedal.
3. Shift the automatic transmission into NEUTRAL or depress the clutch pedal on a manual transmission.
4. Turn the engine OFF.
5. Shift the transfer case lever into NEUTRAL (N).
6. Start the engine.
7. Shift the transmission into REVERSE.
8. Release the brake pedal (and clutch pedal on manual transmissions) for five seconds and ensure that there is
no vehicle movement.
9. Repeat steps seven and eight with automatic transmis- sion in DRIVE or manual transmission in first gear.
10. Turn the engine OFF. 11. Firmly apply the parking brake.
12. Shift the transmission into PARK or place manual
transmission in gear (NOT in NEUTRAL).
CAUTION!
Damage to the transmission may occur if the transmis-
sion is shifted into PARK with the transfer case in
NEUTRAL (N) and the engine running. With the
transfer case in NEUTRAL (N) ensure that the engine
is OFF before shifting the transmission into PARK.
13. Attach the vehicle to the tow vehicle using a suitable tow bar.
14. Release the parking brake.
Shifting Out of NEUTRAL (N)
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring the vehicle to a complete stop, leaving it con- nected to the tow vehicle.
2. Firmly apply the parking brake.
3. Turn the ignition to the LOCK position.
6
STARTING AND OPERATING 329

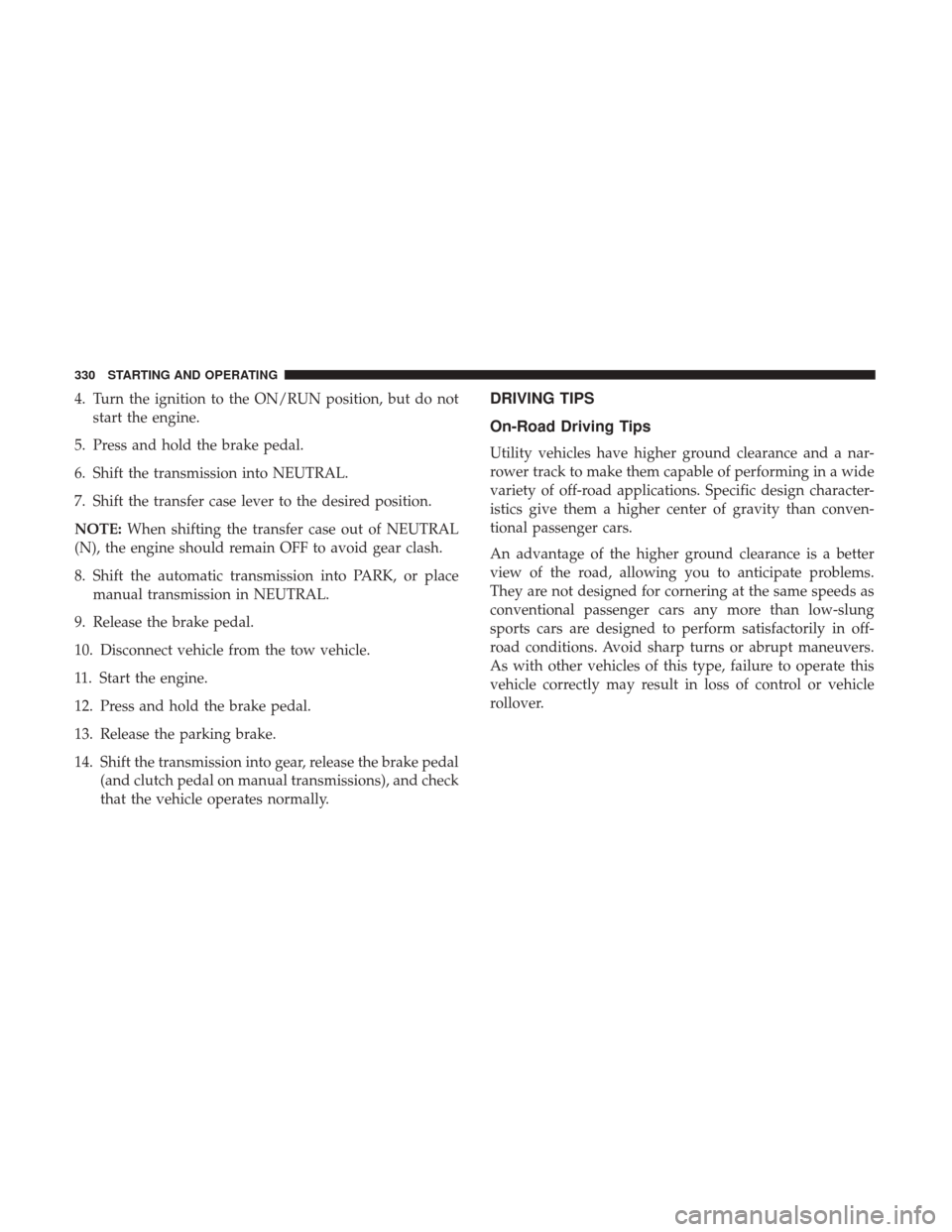

4. Turn the ignition to the ON/RUN position, but do notstart the engine.
5. Press and hold the brake pedal.
6. Shift the transmission into NEUTRAL.
7. Shift the transfer case lever to the desired position.
NOTE: When shifting the transfer case out of NEUTRAL
(N), the engine should remain OFF to avoid gear clash.
8. Shift the automatic transmission into PARK, or place manual transmission in NEUTRAL.
9. Release the brake pedal.
10. Disconnect vehicle from the tow vehicle.
11. Start the engine.
12. Press and hold the brake pedal.
13. Release the parking brake.
14. Shift the transmission into gear, release the brake pedal (and clutch pedal on manual transmissions), and check
that the vehicle operates normally.DRIVING TIPS
On-Road Driving Tips
Utility vehicles have higher ground clearance and a nar-
rower track to make them capable of performing in a wide
variety of off-road applications. Specific design character-
istics give them a higher center of gravity than conven-
tional passenger cars.
An advantage of the higher ground clearance is a better
view of the road, allowing you to anticipate problems.
They are not designed for cornering at the same speeds as
conventional passenger cars any more than low-slung
sports cars are designed to perform satisfactorily in off-
road conditions. Avoid sharp turns or abrupt maneuvers.
As with other vehicles of this type, failure to operate this
vehicle correctly may result in loss of control or vehicle
rollover.
330 STARTING AND OPERATING

Off Road Driving Tips
Side Step Removal — If Equipped
NOTE:Prior to off-road usage, the side steps should be
removed to prevent damage if so equipped.
1. Remove the two nuts from the bodyside. 2. Remove one bolt from the underside of the vehicle.
3. Remove the side step assembly.
The Basics Of Off-Road Driving
You will encounter many types of terrain driving off-road.
You should be familiar with the terrain and area before
proceeding. There are many types of surface conditions:
hard-packed dirt, gravel, rocks, grass, sand, mud, snow
and ice. Every surface has a different effect on your
vehicle’s steering, handling and traction. Controlling your
vehicle is one of the keys to successful off-road driving, so
always keep a firm grip on the steering wheel and maintain
Bodyside Nut
Underside Bolt
6
STARTING AND OPERATING 331

a good driving posture. Avoid sudden accelerations, turns
or braking. In most cases, there are no road signs, posted
speed limits or signal lights. Therefore, you will need to use
your own good judgment on what is safe and what is not.
When on a trail, you should always be looking ahead for
surface obstacles and changes in terrain. The key is to plan
your future driving route while remembering what you are
currently driving over.
CAUTION!
Never park your vehicle over dry grass or other com-
bustible materials. The heat from your vehicle exhaust
system could cause a fire.
WARNING!
Always wear your seat belt and firmly tie down cargo.
Unsecured cargo can become projectiles in an off-road
situation.
When To Use 4L (Low) Range
When off-road driving, shift into 4L (Low) for additional
traction and control on slippery or difficult terrain, ascend-
ing or descending steep hills, and to increase low speed
pulling power. This range should be limited to extreme
situations such as deep snow, mud, steep inclines, or sand
where additional low speed pulling power is needed.
Vehicle speeds in excess of 25 mph (40 km/h) should be
avoided when in 4L (Low) range.
CAUTION!
Do not use 4L (Low) range when operating the vehicle
on dry pavement. Driveline hardware damage can
result.
Simultaneous Brake And Throttle Operation
Many off-road driving conditions require the simultaneous
use of the brake and throttle (two-footed driving). When
climbing rocks, logs, or other stepped objects, using light
brake pressure with light throttle will keep the vehicle from
jerking or lurching. This technique is also used when you
need to stop and restart a vehicle on a steep incline.
332 STARTING AND OPERATING

Driving In Snow, Mud And Sand
Snow
In heavy snow or for additional control and traction at
slower speeds, shift the transmission into a low gear and
the transfer case into 4L (Low) if necessary. Do not shift to
a lower gear than necessary to maintain headway. Over-
revving the engine can spin the wheels and traction will be
lost. If you start to slow to a stop, try turning your steering
wheel no more than a 1/4 turn quickly back and forth,
while still applying throttle. This will allow the tires to get
a freshbiteand help maintain your momentum.
CAUTION!
On icy or slippery roads, do not downshift at high
engine RPM or vehicle speeds, because engine braking
may cause skidding and loss of control.
Mud
Deep mud creates a great deal of suction around the tires and
is very difficult to get through. You should use second gear
(manual transmission), or DRIVE (automatic transmission),
with the transfer case in the 4L (Low) position to maintain
your momentum. If you start to slow to a stop, try turning
your steering wheel no more than a 1/4 turn quickly back and forth for additional traction. Mud holes pose an in-
creased threat of vehicle damage and getting stuck. They are
normally full of debris from previous vehicles getting stuck.
As a good practice before entering any mud hole, get out and
determine how deep it is, if there are any hidden obstacles
and if the vehicle can be safely recovered if stuck.
Sand
Soft sand is very difficult to travel through with full tire
pressure. When crossing soft, sandy spots in a trail, main-
tain your vehicle’s momentum and do not stop. The key to
driving in soft sand is using the appropriate tire pressure,
accelerating slowly, avoiding abrupt maneuvers and main-
taining the vehicle’s momentum. If you are going to be
driving on large soft sandy areas or dunes, reduce your tire
pressure to a minimum of 15 psi (103 kPa) to allow for a
greater tire surface area. Reduced tire pressure will drasti-
cally improve your traction and handling while driving on
the soft sand, but you must return the tires to normal air
pressure before driving on pavement or other hard sur-
faces. Be sure you have a way to reinflate the tires prior to
reducing the pressure.
6
STARTING AND OPERATING 333

CAUTION!
Reduced tire pressures may cause tire unseating and
total loss of air pressure. To reduce the risk of tire
unseating, while at a reduced tire pressure, reduce your
speed and avoid sharp turns or abrupt maneuvers.
Crossing Obstacles (Rocks And Other High Points)
While driving off-road, you will encounter many types of
terrain. These varying types of terrain bring different types
of obstacles. Before proceeding, review the path ahead to
determine the correct approach and your ability to safely
recover the vehicle if something goes wrong. Keeping a
firm grip on the steering wheel, bring the vehicle to a
complete stop and then inch the vehicle forward until it
makes contact with the object. Apply the throttle lightly
while holding a light brake pressure and ease the vehicle
up and over the object.
WARNING!
Crossing obstacles can cause abrupt steering system
loading which could cause you to loose control of your
vehicle.Using A Spotter
There are many times where it is hard to see the obstacle or
determine the correct path. Determining the correct path
can be extremely difficult when you are confronting many
obstacles. In these cases have someone guide you over,
through, or around the obstacle. Have the person stand a
safe distance in front of you where they can see the
obstacle, watch your tires and undercarriage, and guide
you through.
Crossing Large Rocks
When approaching large rocks, choose a path which en-
sures you drive over the largest of them with your tires.
This will lift your undercarriage over the obstacle. The
tread of the tire is tougher and thicker than the side wall
and is designed to take the abuse. Always look ahead and
make every effort to cross the large rocks with your tires.
CAUTION!
•
Never attempt to straddle a rock that is large enough
to strike your axles or undercarriage.
• Never attempt to drive over a rock which is large
enough to contact the door sills.
334 STARTING AND OPERATING

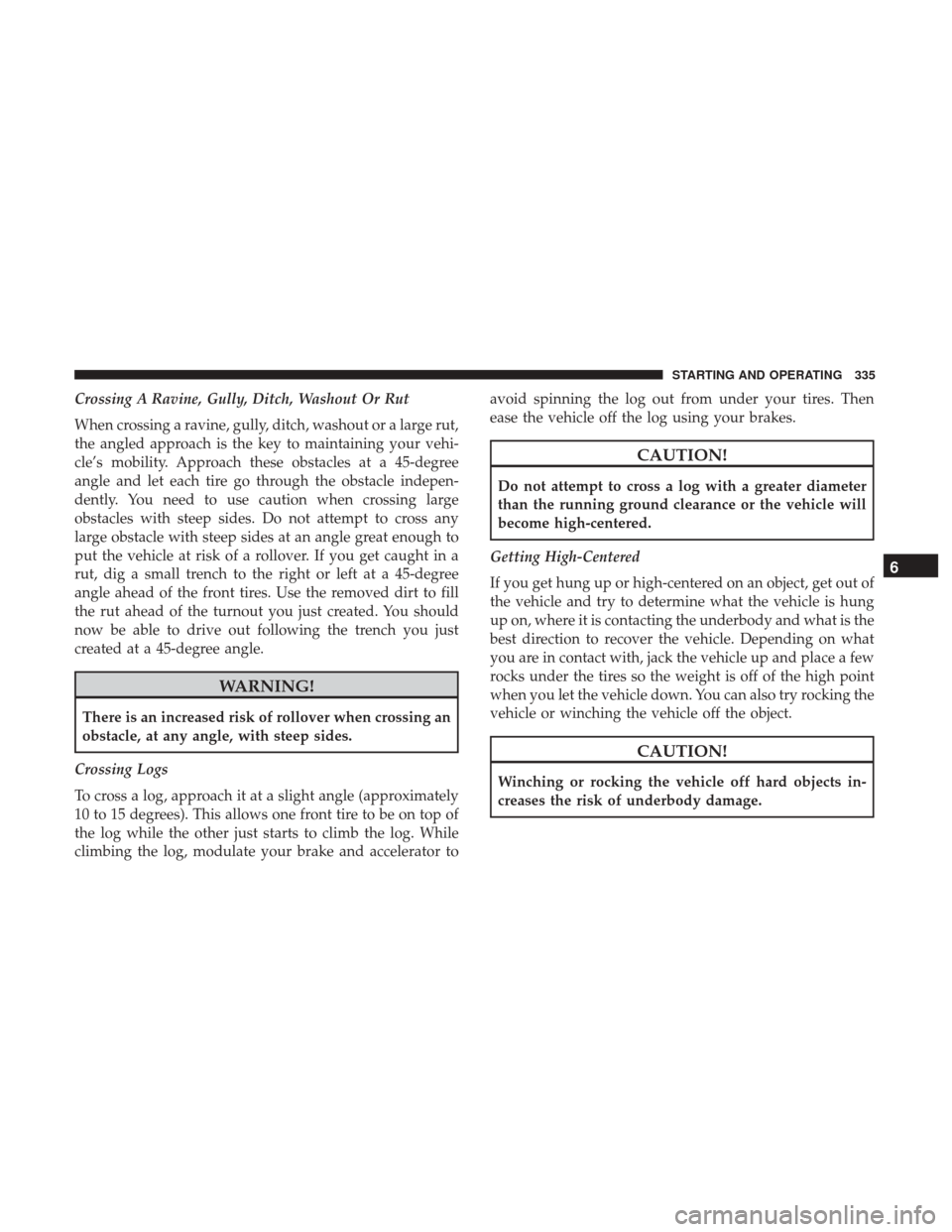

Crossing A Ravine, Gully, Ditch, Washout Or Rut
When crossing a ravine, gully, ditch, washout or a large rut,
the angled approach is the key to maintaining your vehi-
cle’s mobility. Approach these obstacles at a 45-degree
angle and let each tire go through the obstacle indepen-
dently. You need to use caution when crossing large
obstacles with steep sides. Do not attempt to cross any
large obstacle with steep sides at an angle great enough to
put the vehicle at risk of a rollover. If you get caught in a
rut, dig a small trench to the right or left at a 45-degree
angle ahead of the front tires. Use the removed dirt to fill
the rut ahead of the turnout you just created. You should
now be able to drive out following the trench you just
created at a 45-degree angle.
WARNING!
There is an increased risk of rollover when crossing an
obstacle, at any angle, with steep sides.
Crossing Logs
To cross a log, approach it at a slight angle (approximately
10 to 15 degrees). This allows one front tire to be on top of
the log while the other just starts to climb the log. While
climbing the log, modulate your brake and accelerator to avoid spinning the log out from under your tires. Then
ease the vehicle off the log using your brakes.
CAUTION!
Do not attempt to cross a log with a greater diameter
than the running ground clearance or the vehicle will
become high-centered.
Getting High-Centered
If you get hung up or high-centered on an object, get out of
the vehicle and try to determine what the vehicle is hung
up on, where it is contacting the underbody and what is the
best direction to recover the vehicle. Depending on what
you are in contact with, jack the vehicle up and place a few
rocks under the tires so the weight is off of the high point
when you let the vehicle down. You can also try rocking the
vehicle or winching the vehicle off the object.
CAUTION!
Winching or rocking the vehicle off hard objects in-
creases the risk of underbody damage.
6
STARTING AND OPERATING 335

Hill Climbing
Hill climbing requires good judgment and a good under-
standing of your abilities and your vehicle’s limitations.
Hills can cause serious problems. Some are just too steep to
climb and should not be attempted. You should always feel
confident with the vehicle and your abilities. You should
always climb hills straight up and down. Never attempt to
climb a hill on an angle.
Before Climbing A Steep Hill
As you approach a hill, consider its grade or steepness.
Determine if it is too steep. Look to see what the traction is
on the hill side trail. Is the trail straight up and down?
What is on top and the other side? Are there ruts, rocks,
branches or other obstacles on the path? Can you safely
recover the vehicle if something goes wrong? If everything
looks good and you feel confident, shift the transmission
into a lower gear with 4L (Low) engaged, and proceed with
caution, maintaining your momentum as you climb the
hill.
Driving Up Hill
Once you have determined your ability to proceed and
have shifted into the appropriate gear, line your vehicle up
for the straightest possible run. Accelerate with an easyconstant throttle and apply more power as you start up the
hill. Do not race forward into a steep grade; the abrupt
change of grade could cause you to lose control. If the front
end begins to bounce, ease off the throttle slightly to bring
all four tires back on the ground. As you approach the crest
of the hill, ease off the throttle and slowly proceed over the
top. If the wheels start to slip as you approach the crest of
a hill, ease off the accelerator and maintain headway by
turning the steering wheel no more than a 1/4 turn quickly
back and forth. This will provide a fresh
biteinto the
surface and will usually provide enough traction to com-
plete the climb. If you do not make it to the top, place the
vehicle in REVERSE and back straight down the grade
using engine resistance along with the vehicle brakes.
WARNING!
Never attempt to climb a hill at an angle or turn around
on a steep grade. Driving across an incline increases
the risk of a rollover, which may result in severe injury.
Driving Downhill
Before driving down a steep hill, you need to determine if
it is too steep for a safe descent. What is the surface
traction? Is the grade too steep to maintain a slow, con-
trolled descent? Are there obstacles? Is it a straight descent?
336 STARTING AND OPERATING

Is there plenty of distance at the base of the hill to regain
control if the vehicle descends to fast? If you feel confident
in your ability to proceed, then make sure you are in 4L
(Low) and proceed with caution. Allow engine braking to
control the descent and apply your brakes, if necessary, but
do not allow the tires to lock.
WARNING!
Do not descend a steep grade in NEUTRAL. Use
vehicle brakes in conjunction with engine braking.
Descending a grade too fast could cause you to lose
control and be seriously injured or killed.
Driving Across An Incline
If at all possible, avoid driving across an incline. If it is
necessary, know your vehicle’s abilities. Driving across an
incline places more weight on the downhill wheels, which
increases the possibilities of a downhill slide or rollover.
Make sure the surface has good traction with firm and
stable soils. If possible, transverse the incline at an angle
heading slightly up or down.
WARNING!
Driving across an incline increases the risk of a roll-
over, which may result in severe injury.
If You Stall Or Begin To Lose Headway
If you stall or begin to lose headway while climbing a steep
hill, allow your vehicle to come to a stop and immediately
apply the brake. Restart the engine and shift into RE-
VERSE. Back slowly down the hill allowing engine braking
to control the descent and apply your brakes, if necessary,
but do not allow the tires to lock.
WARNING!
If the engine stalls or you lose headway or cannot
make it to the top of a steep hill or grade, never attempt
to turn around. To do so may result in tipping and
rolling the vehicle, which may result in severe injury.
Always back carefully straight down a hill in RE-
VERSE. Never back down a hill in NEUTRAL using
only the vehicle brakes. Never drive diagonally across
a hill, always drive straight up or down.
6
STARTING AND OPERATING 337

Driving Through Water
Extreme care should be taken crossing any type of water.
Water crossings should be avoided, if possible, and only be
attempted when necessary in a safe, responsible manner.
You should only drive through areas which are designated
and approved. You should tread lightly and avoid damage
to the environment. You should know your vehicle’s
abilities and be able to recover it if something goes wrong.
You should never stop or shut a vehicle off when crossing
deep water unless you ingested water into the engine air
intake. If the engine stalls, do not attempt to restart it.
Determine if it has ingested water first. The key to any
crossing is low and slow. Shift into first gear (manual
transmission), or DRIVE (automatic transmission), with the
transfer case in the 4L (Low) position and proceed very
slowly with a constant slow speed {3 to 5 mph (5 to 8
km/h) maximum} and light throttle. Keep the vehicle
moving; do not try to accelerate through the crossing. After
crossing any water higher than the bottom of the axle
differentials, you should inspect all of the vehicle fluids for
signs of water ingestion.
CAUTION!
•Water ingestion into the axles, transmission, transfer
case, engine or vehicle interior can occur if you drive
too fast or through too deep of water. Water can cause
permanent damage to engine, driveline or other
vehicle components, and your brakes will be less
effective once wet and/or muddy.
• This vehicle is capable of crossing through water at a
depth of 30 inches (76 cm) at speeds no greater than
5 mph (8 km/h). Water ingestion can occur causing
damage to your vehicle.
Before You Cross Any Type Of Water
As you approach any type of water, you need to determine
if you can cross it safely and responsibly. If necessary, get
out and walk through the water or probe it with a stick.
You need to be sure of its depth, approach angle, current
and bottom condition. Be careful of murky or muddy
waters; check for hidden obstacles. Make sure you will not
be intruding on any wildlife, and you can recover the
vehicle if necessary. The key to a safe crossing is the water
depth, current and bottom conditions. On soft bottoms, the
338 STARTING AND OPERATING
