Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced immedi-
ately with another Run Flat tire of identical size and service
description (Load Index and Speed Symbol).
Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as the
Run Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa). Once a
Run Flat tire reaches the run flat mode it has limited
driving capabilities and needs to be replaced immediately.
A Run Flat tire is not repairable.
It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the run flat
mode.
See the tire pressure monitoring section for more informa-
tion.
Tire Spinning
When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 30 mph (48 km/h) or for
longer than 30 seconds continuously without stopping.
Refer to “Freeing A Stuck Vehicle” in “In Case Of Emer-
gency” for further information.
WARNING!
Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause tire damage or
failure. A tire could explode and injure someone. Do
not spin your vehicle’s wheels faster than 30 mph
(48 km/h) for more than 30 seconds continuously when
you are stuck, and do not let anyone near a spinning
wheel, no matter what the speed.
Tread Wear Indicators
Tread wear indicators are in the original equipment tires to
help you in determining when your tires should be re-
placed.
416 SERVICING AND MAINTENANCE

Care Of Fabric Top Windows
Your vehicle’s fabrictop has pliable plastic windows which
can be scratched unless specialcare is taken by following
these directions:
1. Never use a dry cloth to remove dust. Instead,use a
microfiber towel or soft cotton cloth moistened with
cold or warm, clean water, and wipe across the win-
dow, not up and down. MOPAR Jeep Soft Glass Win-
dow Cleaner or equivalent will safely clean all plastic
windows without scratching. It removes fine scratches
to improve visibility and provides UV protection to help
prevent yellowing.
2. When washing, never use hot water or anything stron-
ger than a mild soap. Never use solvents such as alcohol
or harsh cleaning agents.
3. Always rinse thoroughly with cold water, then wipe with a soft and slightly moist, clean cloth.
4. When removing frost, snow or ice, never use a scraper
or de-icing chemicals. Use warm water only if you must
clean the window quickly. 5. Debris (sand, mud/dirt, dust, or salt) from off-road
driving will have a major impact on zipper operation.
Even normal on-road driving and vehicle washing will
eventually impact window zipper operation. To main-
tain ease of use of the window zippers, each window
zipper should be cleaned and lubricated regularly. Use
MOPAR Soft Top Zipper Cleaner and Lubricant or
equivalent to ease zipper operation. Before applying,
make sure the zipper teeth are clear of sand, mud, and
other materials. Clean both sides of the zipper, not just
one side. Rinse both zipper halves with fresh water and
allow to dry. Aggressively work the MOPAR Soft Top
Zipper Cleaner and Lubricant or equivalent into the
zipper teeth. If a stuck zipper slide is experienced, work
the MOPAR Soft Top Zipper Cleaner and Lubricant or
equivalent into the zipper slide. Several applications
may be required before the zipper comes free.
6. Never paste stickers, gummed labels or any tape to the windows. Adhesives are hard to remove and may
damage the windows.
8
SERVICING AND MAINTENANCE 431

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft cloth. A mild soap solution may beused, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
cloth.
2. Dry with a soft cloth.
Leather Parts
MOPAR Total Clean is specifically recommended for
leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt can
act as an abrasive and damage the leather upholstery and
should be removed promptly with a damp cloth. Stubborn
soils can be removed easily with a soft cloth and MOPAR
Total Clean. Care should be taken to avoid soaking your
leather upholstery with any liquid. Please do not use
polishes, oils, cleaning fluids, solvents, detergents, or
ammonia-based cleaners to clean your leather upholstery.
Application of a leather conditioner is not required to
maintain the original condition. NOTE:
If equipped with light colored leather, it tends to
show any foreign material, dirt, and fabric dye transfer
more so than darker colors. The leather is designed to for
easy cleaning, and FCA recommends MOPAR total care
leather cleaner applied on a cloth to clean the leather seats
as needed.
CAUTION!
Do not use Alcohol and Alcohol-based and/or Keton
based cleaning products to clean leather seats, as
damage to the seat may result.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis with
MOPAR Glass Cleaner, or any commercial household-type
glass cleaner. Never use an abrasive type cleaner. Use
caution when cleaning the inside rear window equipped
with electric defrosters or windows equipped with radio
antennas. Do not use scrapers or other sharp instrument
that may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or cloth that you are using. Do not spray cleaner
directly on the mirror.
8
SERVICING AND MAINTENANCE 433

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission – If Equipped Use only ATF+4 Automatic Transmission Fluid. Failure to
use ATF+4 fluid may affect the function or performance of
your transmission. We recommend MOPAR ATF+4 fluid.
Manual Transmission – If Equipped We recommend you use MOPAR Manual Transmission
Lubricant meeting the requirements of FCA Material Stan-
dard MS-9224.
Transfer Case We recommend you use MOPAR ATF+4 Automatic Trans-
mission Fluid.
Axle Differential (Front) We recommend you use MOPAR Gear & Axle Lubricant
(SAE 80W-90) (API GL-5).
Axle Differential (Rear) 226 RBI (Model 44)– We recommend you use MOPAR
Gear & Axle Lubricant (SAE 80W-90) (API GL-5) or equiva-
lent. For trailer towing, use MOPAR Synthetic Gear & Axle
Lubricant (SAE 75W-140). Models equipped with Trac-Lok
require an additive.
Brake Master Cylinder We recommend you use MOPAR DOT 3 Brake Fluid, SAE
J1703. If DOT 3, SAE J1703 brake fluid is not available, then
DOT 4 is acceptable.
Power Steering Reservoir We recommend you use MOPAR Power Steering Fluid +4,
MOPAR ATF+4 Automatic Transmission Fluid.
9
TECHNICAL SPECIFICATIONS 445

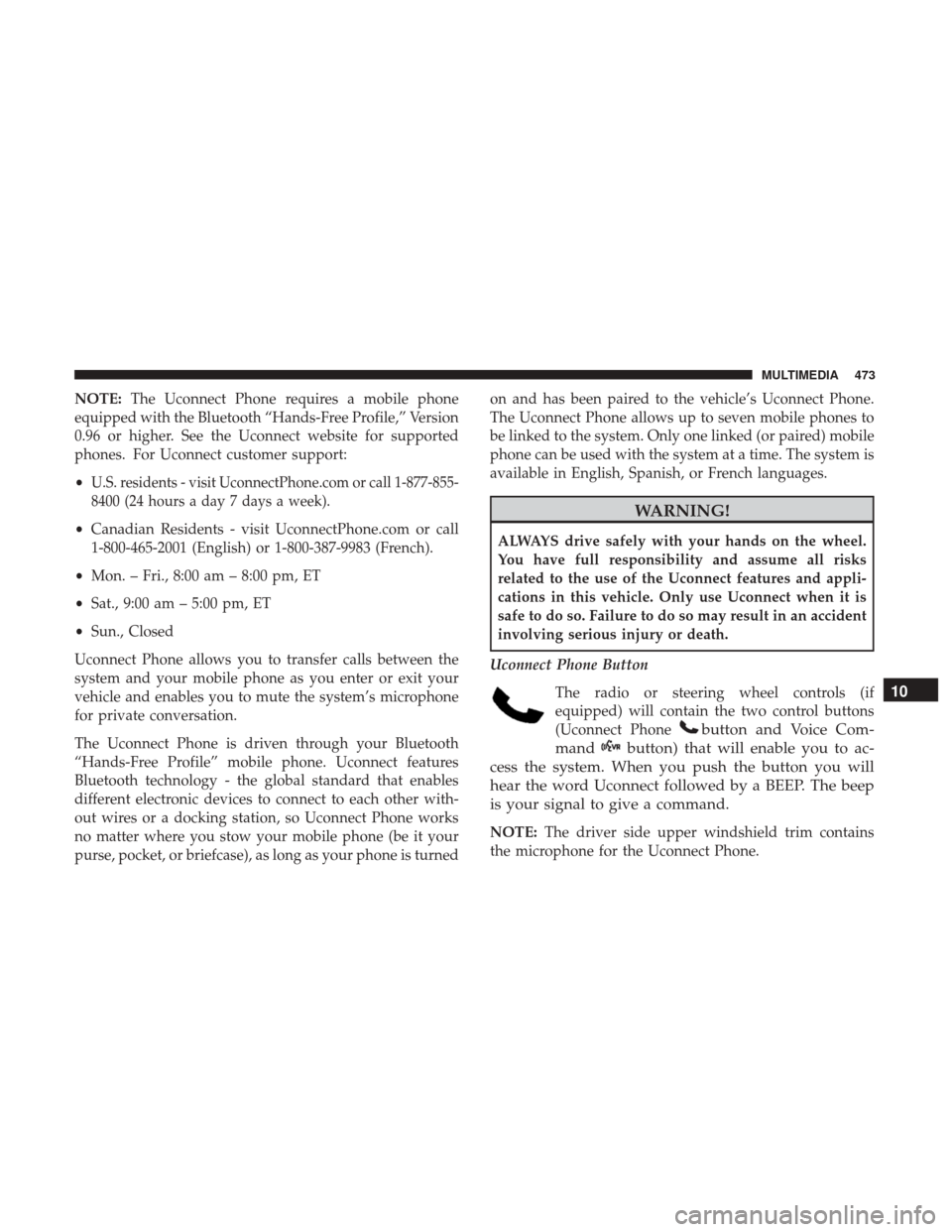

NOTE:The Uconnect Phone requires a mobile phone
equipped with the Bluetooth “Hands-Free Profile,” Version
0.96 or higher. See the Uconnect website for supported
phones. For Uconnect customer support:
•
U.S. residents - visit UconnectPhone.com or call 1-877-855-
8400 (24 hours a day 7 days a week).
• Canadian Residents - visit UconnectPhone.com or call
1-800-465-2001 (English) or 1-800-387-9983 (French).
• Mon. – Fri., 8:00 am – 8:00 pm, ET
• Sat., 9:00 am – 5:00 pm, ET
• Sun., Closed
Uconnect Phone allows you to transfer calls between the
system and your mobile phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
The Uconnect Phone is driven through your Bluetooth
“Hands-Free Profile” mobile phone. Uconnect features
Bluetooth technology - the global standard that enables
different electronic devices to connect to each other with-
out wires or a docking station, so Uconnect Phone works
no matter where you stow your mobile phone (be it your
purse, pocket, or briefcase), as long as your phone is turned on and has been paired to the vehicle’s Uconnect Phone.
The Uconnect Phone allows up to seven mobile phones to
be linked to the system. Only one linked (or paired) mobile
phone can be used with the system at a time. The system is
available in English, Spanish, or French languages.
WARNING!
ALWAYS drive safely with your hands on the wheel.
You have full responsibility and assume all risks
related to the use of the Uconnect features and appli-
cations in this vehicle. Only use Uconnect when it is
safe to do so. Failure to do so may result in an accident
involving serious injury or death.
Uconnect Phone Button The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect Phone
button and Voice Com-
mand
button) that will enable you to ac-
cess the system. When you push the button you will
hear the word Uconnect followed by a BEEP. The beep
is your signal to give a command.
NOTE: The driver side upper windshield trim contains
the microphone for the Uconnect Phone.
10
MULTIMEDIA 473

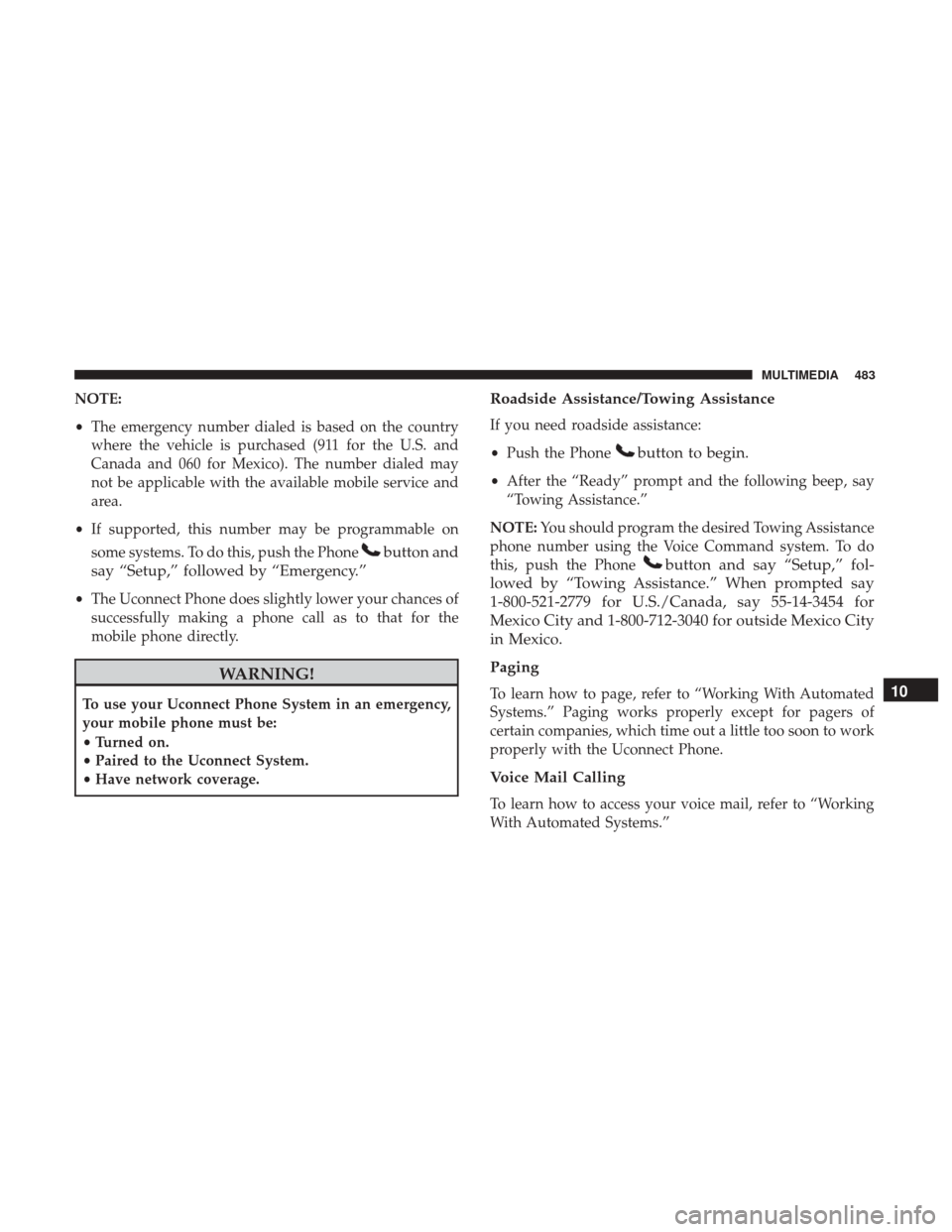

NOTE:
•The emergency number dialed is based on the country
where the vehicle is purchased (911 for the U.S. and
Canada and 060 for Mexico). The number dialed may
not be applicable with the available mobile service and
area.
• If supported, this number may be programmable on
some systems. To do this, push the Phone
button and
say “Setup,” followed by “Emergency.”
• The Uconnect Phone does slightly lower your chances of
successfully making a phone call as to that for the
mobile phone directly.
WARNING!
To use your Uconnect Phone System in an emergency,
your mobile phone must be:
• Turned on.
• Paired to the Uconnect System.
• Have network coverage.
Roadside Assistance/Towing Assistance
If you need roadside assistance:
• Push the Phone
button to begin.
•After the “Ready” prompt and the following beep, say
“Towing Assistance.”
NOTE: You should program the desired Towing Assistance
phone number using the Voice Command system. To do
this, push the Phone
button and say “Setup,” fol-
lowed by “Towing Assistance.” When prompted say
1-800-521-2779 for U.S./Canada, say 55-14-3454 for
Mexico City and 1-800-712-3040 for outside Mexico City
in Mexico.
Paging
To learn how to page, refer to “Working With Automated
Systems.” Paging works properly except for pagers of
certain companies, which time out a little too soon to work
properly with the Uconnect Phone.
Voice Mail Calling
To learn how to access your voice mail, refer to “Working
With Automated Systems.”
10
MULTIMEDIA 483

PrimaryAlternate (s)
pair a phone
phone pairing pairing
phonebook phone book
previous
record again
redial
return to main menu return or main menu
select phone select
send
set up phone settings or phone
set up
towing assistance
transfer call
Uconnect Tutorial
voice training
work
yesGeneral Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle: This
device complies with Part 15 of the FCC Rules and with
Industry Canada license-exempt RSS standard(s). Opera-
tion is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VOICE COMMAND — IF EQUIPPED
Voice Command System Operation
The Uconnect Voice Command system allows
you to control your AM, FM radio, disk player,
USB mass storage class device, iPod family of
devices, Bluetooth Streaming Audio Device, sat-
ellite radio, and a memo recorder.
10
MULTIMEDIA 495

About Your Brakes........................ .436
Adding Engine Coolant (Antifreeze) .............397
Adding Fuel ............................. .312
Additives, Fuel ........................... .438
AirBag ................................ .250
Advance Front Air Bag ....................250
Air Bag Operation ....................... .252
Enhanced Accident Response .............256, 368
Event Data Recorder (EDR) .................368
FrontAirBag .......................... .250
If A Deployment Occurs ....................255
Knee Impact Bolsters ..................... .252
Maintaining Your Air Bag System .............257
Transporting Pets ....................... .278
Air Bag Light ......................... .196, 280
Air Bag Maintenance ....................... .257
Air Cleaner, Engine (Engine Air Cleaner Filter) ......381
Air Conditioner Maintenance ..................385
Air Conditioning Filter ....................69, 387
Air Conditioning, Operating Tips ................68
Air Conditioning Refrigerant ...............385, 386
Air Conditioning System .....................385
Air Filter ............................... .381
Air Pressure, Tires ......................... .414
Alarm (Security Alarm) ....................26, 201 Alterations/Modifications, Vehicle
................7
Antenna, Satellite Radio ..................... .465
Antifreeze (Engine Coolant) ................396, 442
Disposal .............................. .398
Anti-Lock Brake System (ABS) .................214
Anti-Lock Warning Light .....................202
Arming System (Security Alarm) ................27
Assistance Towing ......................... .483
Assist, Hill Start .......................... .216
Automatic Dimming Mirror ....................50
Automatic Headlights ........................53
Automatic Oil Change Indicator ................195
Automatic
Transmission ..................295, 405
Adding Fluid .......................... .405
Fluid And Filter Changes ...................405
Fluid Change .......................... .405
Fluid Level Check .....................402, 403
Fluid Type ......................... .402, 445
Special Additives ........................ .403
Autostick ............................... .300
Auxiliary Electrical Outlet (Power Outlet) .........176
Auxiliary Power Outlet ..................... .176
Axle Fluid .............................. .445
Axle Lock ............................... .305
510 INDEX

Battery.............................. .199, 378
Charging System Light ....................199
Keyless Key Fob Replacement ................20
Belts, Seat ............................... .280
Body Mechanism Lubrication ..................389
B-Pillar Location .......................... .409
Brake Assist System ........................ .216
Brake Control System, Electronic ................215
Brake Fluid .......................... .400, 445
Brake System ......................... .400, 436
Anti-Lock (ABS) ........................ .436
Fluid Check ........................... .400
Master Cylinder ........................ .400
Parking .............................. .288
Warning Light .......................... .197
Brake/Transmission Interlock ..................295
Bulb Replacement ...................... .342, 343
Bulbs, Light .......................... .282, 342
Calibration, Compass ....................... .188
Capacities, Fluid .......................... .442
Caps, Filler Fuel ................................. .312
Oil (Engine) ........................... .377
Power Steering ......................... .308Radiator (Coolant Pressure)
.................398
Carbon Monoxide Warning ................279, 441
Cargo Light ...............................56
Car Washes .............................. .428
Cellular Phone ........................ .471, 472
Center High Mounted Stop Light ...............346
Certification Label ......................... .313
Chains, Tire ............................. .423
Changing A Flat Tire .....................353, 405
Check Engine Light (Malfunction Indicator Light) . . . .211
Checking Your Vehicle For Safety ...............279
Checks, Safety ............................ .279
Child

Restraint ........................... .259
Child Restraints Booster Seats ........................... .262
Child Restraints ........................ .259
Child Seat Installation .....................275
How To Stow An Unused ALR Seat Belt ........272
Infants And Child Restraints ................261
LATCH Positions ........................ .266
Locating The LATCH Anchorages .............269
Lower Anchors And Tethers For Children .......265
Older Children And Child Restraints ...........261
Seating Positions ........................ .264
Child Safety Locks ..........................31
12
INDEX 511

Clean Air Gasoline........................ .438
Cleaning Wheels ............................... .422
Climate Control ............................60
Manual ................................60
Clock ............................... .449, 457
Cold Weather Operation ..................... .286
Compact Disc (CD) Maintenance ................472
Compact Spare Tire ........................ .421
Compass ................................ .187
Compass Calibration ....................... .188
Compass Variance ......................... .189
Connector UCI ................................. .470
Universal Consumer Interface (UCI) ...........470
Console ................................ .173
Console, Floor ............................ .173
Contract, Service .......................... .504
Coolant Pressure Cap (Radiator Cap) .............398
Cooling System ........................... .395
Adding Coolant (Antifreeze) .................397
Coolant Capacity ........................ .442
Coolant Level .......................... .399
Disposal Of Used Coolant ..................398
Drain, Flush, And Refill ....................396 Inspection
......................... .396, 399
Points To Remember ..................... .399
Pressure Cap ........................... .398
Radiator Cap .......................... .398
Selection Of Coolant (Antifreeze) .......396, 442, 443
Corrosion Protection ....................... .427
Customer Assistance ....................... .502
Daytime Running Lights ......................52
Dealer Service ............................ .379
Defroster, Windshield ....................... .280
Delay (Intermittent) Wipers ....................58
Diagnostic System, Onboard ...................210
Dimmer

Switch, Headlight .....................53
Dipsticks Oil (Engine) ........................... .378
Power Steering ......................... .308
Disabled Vehicle Towing .....................365
Disarming, Security System ....................27
Disposal Antifreeze (Engine Coolant) .................398
Door Locks ................................28
Child-Protection Door Lock — Rear Doors .......31
Doors ....................................28
Driver’s Seat Back Tilt ........................38
512 INDEX
