WARNING!
•Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into FIRST gear or REVERSE, apply the parking brake,
turn the engine OFF, remove the key fob from the
vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children. A child could oper-
ate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation for thieves. Al-
ways remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the key fob to start the engine conve-
niently from outside the vehicle while still maintaining
security. The system has a range of approximately 300 ft (91
m).
NOTE:
• The vehicle must be equipped with an automatic trans-
mission to be equipped with Remote Start.
• Obstructions between the vehicle and key fob may
reduce this range.
Remote Start Abort Message
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Open
22 GETTING TO KNOW YOUR VEHICLE

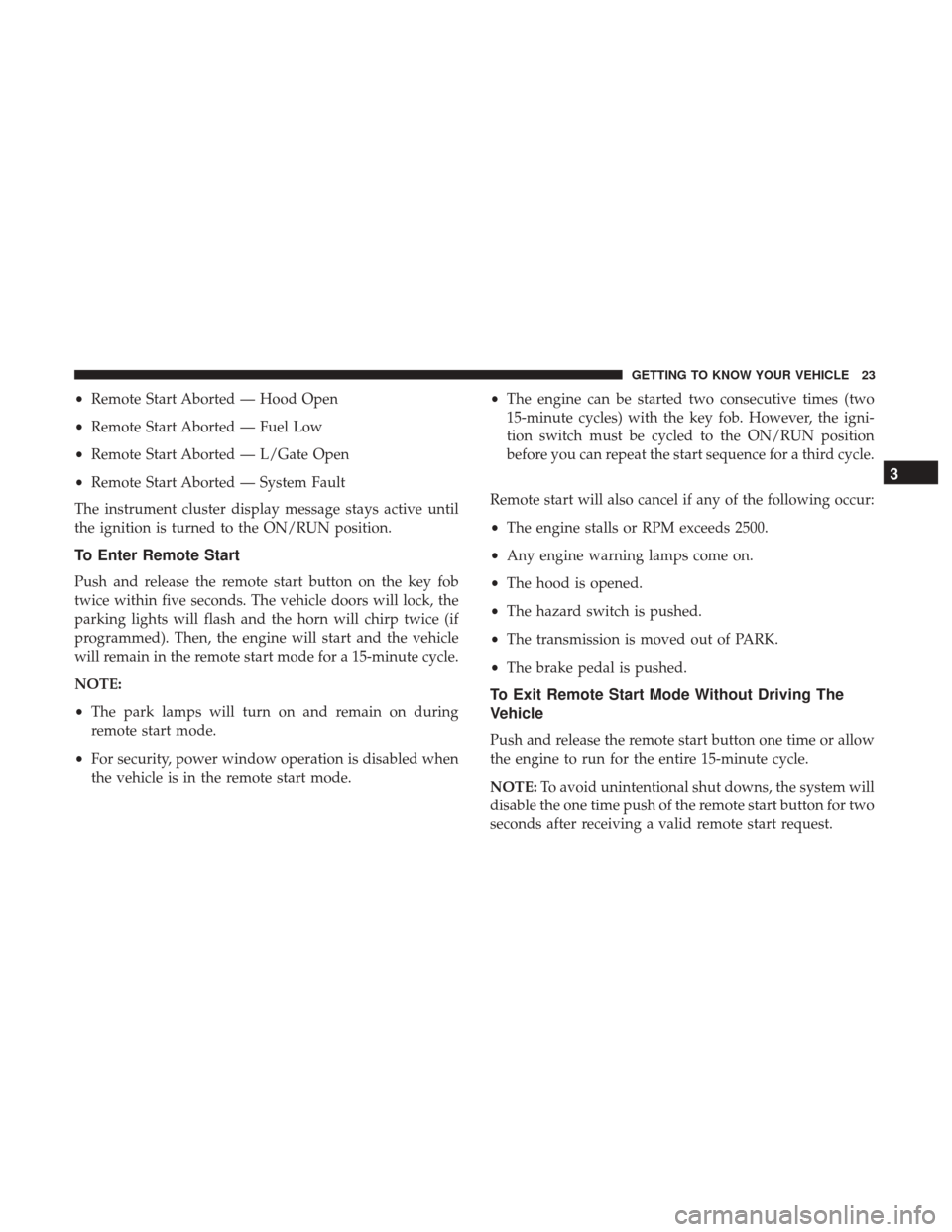

•Remote Start Aborted — Hood Open
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Open
• Remote Start Aborted — System Fault
The instrument cluster display message stays active until
the ignition is turned to the ON/RUN position.
To Enter Remote Start
Push and release the remote start button on the key fob
twice within five seconds. The vehicle doors will lock, the
parking lights will flash and the horn will chirp twice (if
programmed). Then, the engine will start and the vehicle
will remain in the remote start mode for a 15-minute cycle.
NOTE:
• The park lamps will turn on and remain on during
remote start mode.
• For security, power window operation is disabled when
the vehicle is in the remote start mode. •
The engine can be started two consecutive times (two
15-minute cycles) with the key fob. However, the igni-
tion switch must be cycled to the ON/RUN position
before you can repeat the start sequence for a third cycle.
Remote start will also cancel if any of the following occur:
• The engine stalls or RPM exceeds 2500.
• Any engine warning lamps come on.
• The hood is opened.
• The hazard switch is pushed.
• The transmission is moved out of PARK.
• The brake pedal is pushed.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the remote start button one time or allow
the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shut downs, the system will
disable the one time push of the remote start button for two
seconds after receiving a valid remote start request.
3
GETTING TO KNOW YOUR VEHICLE 23

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear win-
dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the win-
dow.
• Keep all objects a safe distance from the window.
Manual Operation Override
This system offers a full complement of manual override
features. The AUTO symbol in the front ATC display will
be turned off when the system is being used in the manual
mode.
NOTE: The system will not automatically sense the pres-
ence of fog, mist or ice on the windshield. Defrost mode
must be manually selected to clear the windshield and side
glass.
Operating Tips
NOTE: Refer to the chart at the end of this section for
suggested control settings for various weather conditions.
Summer Operation
The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corrosion
protection and to protect against engine overheating. OAT
coolant (conforming to MS.90032) is recommended.
Winter Operation
To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is functioning
properly and the proper amount, type, and concentration
of coolant is used. Use of the air Recirculation mode during
Winter months is not recommended, because it may cause
window fogging.
Vacation/Storage
Before you store your vehicle, or keep it out of service (i.e.,
vacation) for two weeks or more, run the air conditioning
system at idle for about five minutes, in fresh air with the
blower setting on high. This will ensure adequate system
lubrication to minimize the possibility of compressor dam-
age when the system is started again.
68 GETTING TO KNOW YOUR VEHICLE

POWER WINDOWS — IF EQUIPPED
The power window switches are located on the instrument
panel below the radio. Push the switch downward to open
the window and upward to close the window.
The top left switch controls the left front window and the
top right switch controls the right front window.
WARNING!
Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not
leave the key fob in or near the vehicle, or in a location
accessible to children. Occupants, particularly unat-
tended children, can become entrapped by the win-
dows while operating the power window switches.
Such entrapment may result in serious injury or death.NOTE:
•
For vehicles not equipped with the instrument cluster
display, the power window switches will remain active
for 45 seconds after the ignition switch is turned to the
LOCK position. Opening either front door will cancel
this feature.
• For vehicles equipped with the instrument cluster dis-
play, the power window switches will remain active for
up to 10 minutes after the ignition switch is turned to the
LOCK position. Opening either front door will cancel
this feature.
Power Window Switches
3
GETTING TO KNOW YOUR VEHICLE 71

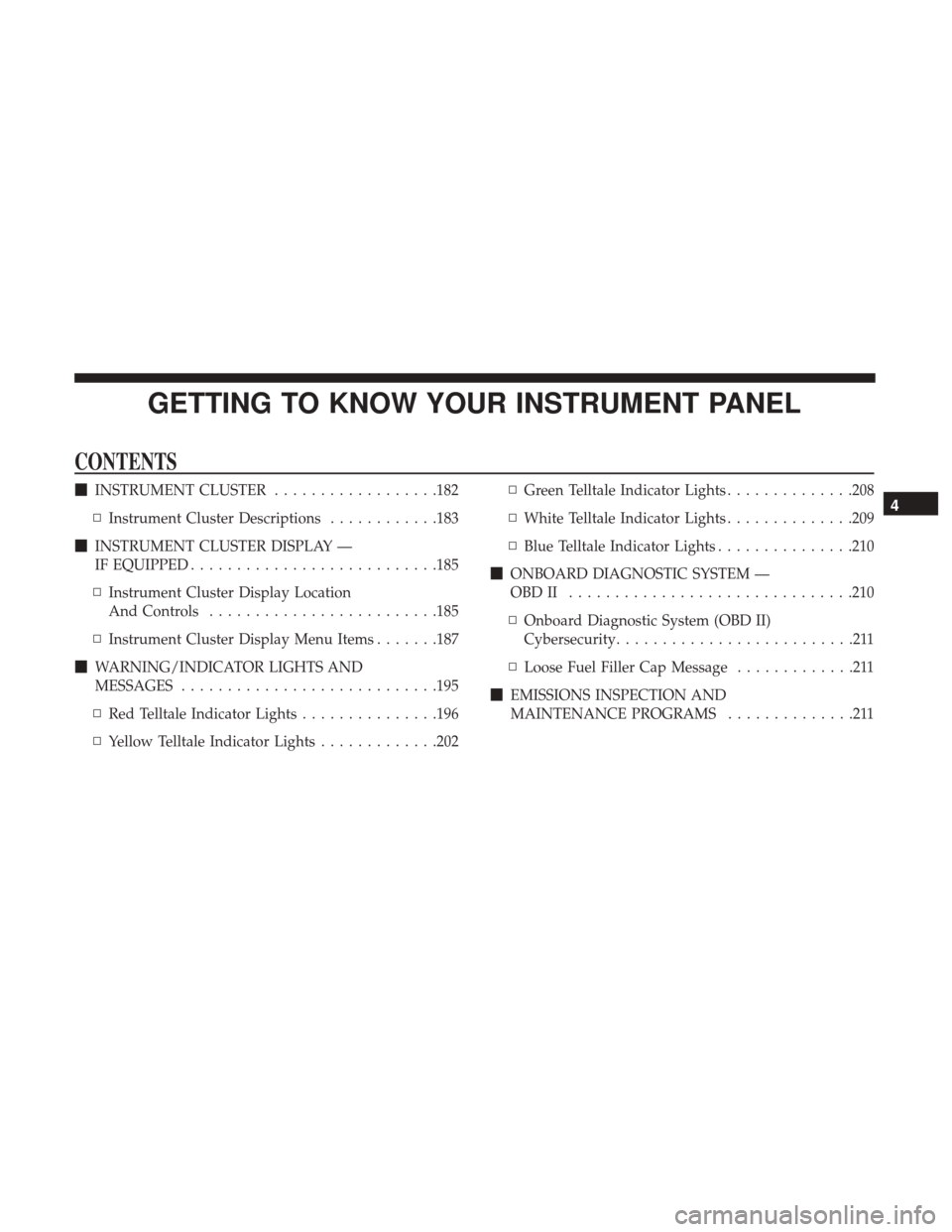

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ..................182
▫ Instrument Cluster Descriptions ............183
 INSTRUMENT CLUSTER DISPLAY —
IF EQUIPPED .......................... .185
▫ Instrument Cluster Display Location
And Controls ........................ .185
▫ Instrument Cluster Display Menu Items .......187
 WARNING/INDICATOR LIGHTS AND
MESSAGES ........................... .195
▫ Red Telltale Indicator Lights ...............196
▫ Yellow Telltale Indicator Lights .............202▫
Green Telltale Indicator Lights ..............208
▫ White Telltale Indicator Lights ..............209
▫ Blue Telltale Indicator Lights ...............210
 ONBOARD DIAGNOSTIC SYSTEM —
OBDII .............................. .210
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ..........................211
▫ Loose Fuel Filler Cap Message .............211
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS ..............2114

5.Odometer / Trip Odometer Display Area
• The odometer display shows the total distance the
vehicle has been driven. The trip odometer shows
individual trip mileage. Refer to “Odometer/Trip
Odometer/ECO (Fuel Saver Indicator) Button” for
further information.
• U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser
the correct mileage that the vehicle has been driven. If
your odometer needs to be repaired or serviced, the
repair technician should leave the odometer reading
the same as it was before the repair or service. If they
cannot do so, then the odometer must be set at zero,
and a sticker must be placed in the door jamb stating
what the mileage was before the repair or service. It is
a good idea for you to make a record of the odometer
reading before the repair/service, so that you can be
sure that it is properly reset, or that the door jamb
sticker is accurate if the odometer must be reset at zero.
Vehicle Odometer Messages
All messages will display in the instrument cluster display,
if equipped. Refer to “Instrument Cluster Display— If
Equipped” in this section for further information. When the appropriate conditions exist, the following
odometer messages will display:
•ECO — Fuel Saver Indicator
• door — Door Open
• gATE — Swing Gate Open
• LoW tirE — Low Tire Pressure
• HOTOIL — Oil Temperature Above Normal Limits
• gASCAP — Fuel Cap Fault
• noFUSE — Fuse Fault
• CHAngE OIL — Oil Change Required
6. Software Telltales
• Hard and Soft Telltales (Symbols) appear based on
specific behaviors.
7.
Instrument Cluster Display / Compass Mini-Trip Com-
puter Display — If Equipped
• When the appropriate conditions exist, this display
shows the instrument cluster display messages. Refer
to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
•
When the appropriate conditions exist, this display
shows the Mini-Trip Computer messages. Refer to “Mini-
Trip Computer” in “Getting To Know Your Instrument
Panel” for further information.
184 GETTING TO KNOW YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DISPLAY — IF EQUIPPED
Your vehicle may be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the STOP/OFF position, opening/closing of
a door will activate the display for viewing, and display
the total miles, or kilometers, in the odometer. Your instru-
ment cluster display is designed to display important
information about your vehicle’s systems and features.
Using a driver interactive display located on the instru-
ment panel, your instrument cluster display can show you
how systems are working and give you warnings when
they aren’t. The steering wheel mounted controls allow
you to scroll through and enter the main menus and
submenus. You can access the specific information you
want and make selections and adjustments.
Instrument Cluster Display Location And Controls
The instrument cluster display features a driver-interactive
display that is located in the instrument cluster.
Instrument Cluster Display
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 185

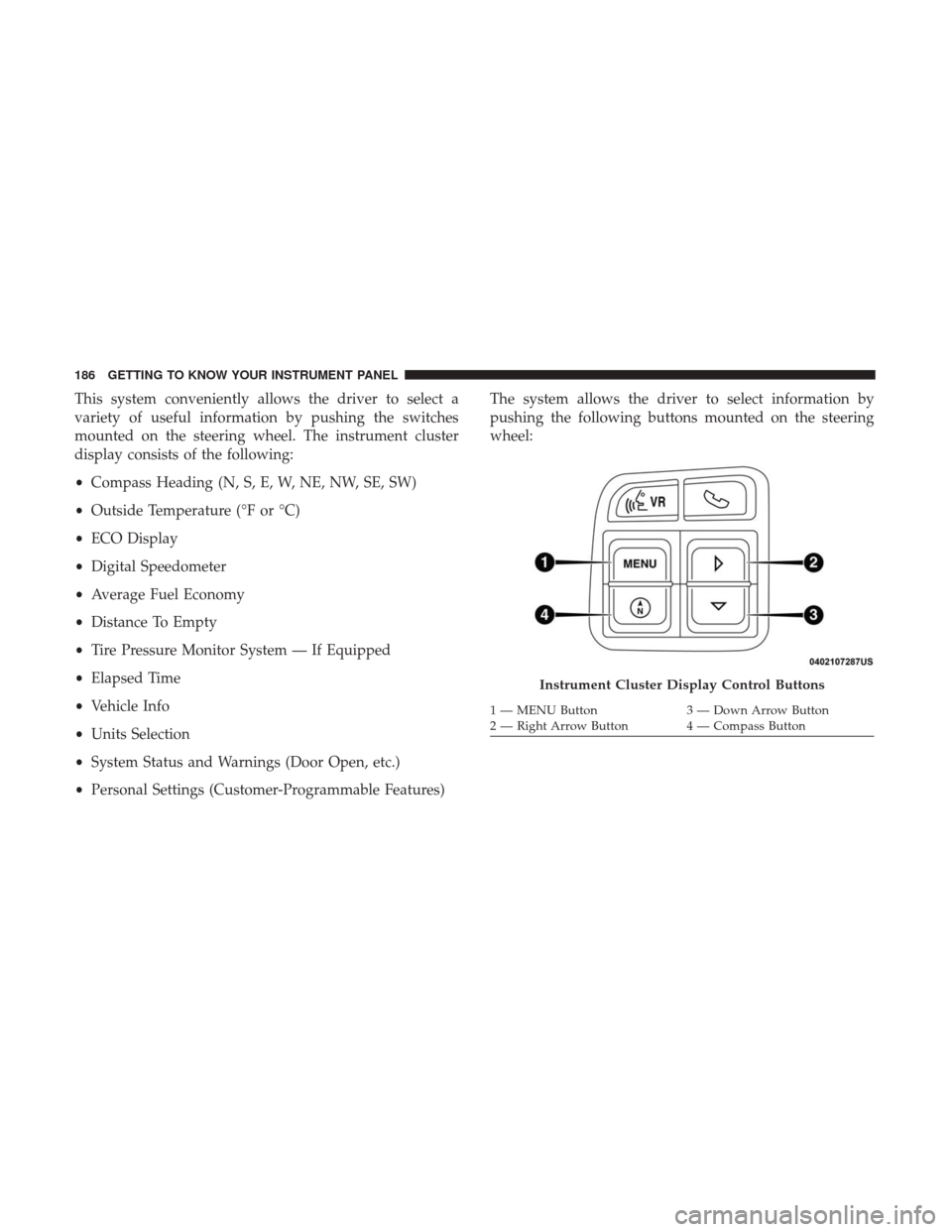

This system conveniently allows the driver to select a
variety of useful information by pushing the switches
mounted on the steering wheel. The instrument cluster
display consists of the following:
•Compass Heading (N, S, E, W, NE, NW, SE, SW)
• Outside Temperature (°F or °C)
• ECO Display
• Digital Speedometer
• Average Fuel Economy
• Distance To Empty
• Tire Pressure Monitor System — If Equipped
• Elapsed Time
• Vehicle Info
• Units Selection
• System Status and Warnings (Door Open, etc.)
• Personal Settings (Customer-Programmable Features) The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:
Instrument Cluster Display Control Buttons
1 — MENU Button
3 — Down Arrow Button
2 — Right Arrow Button 4 — Compass Button
186 GETTING TO KNOW YOUR INSTRUMENT PANEL

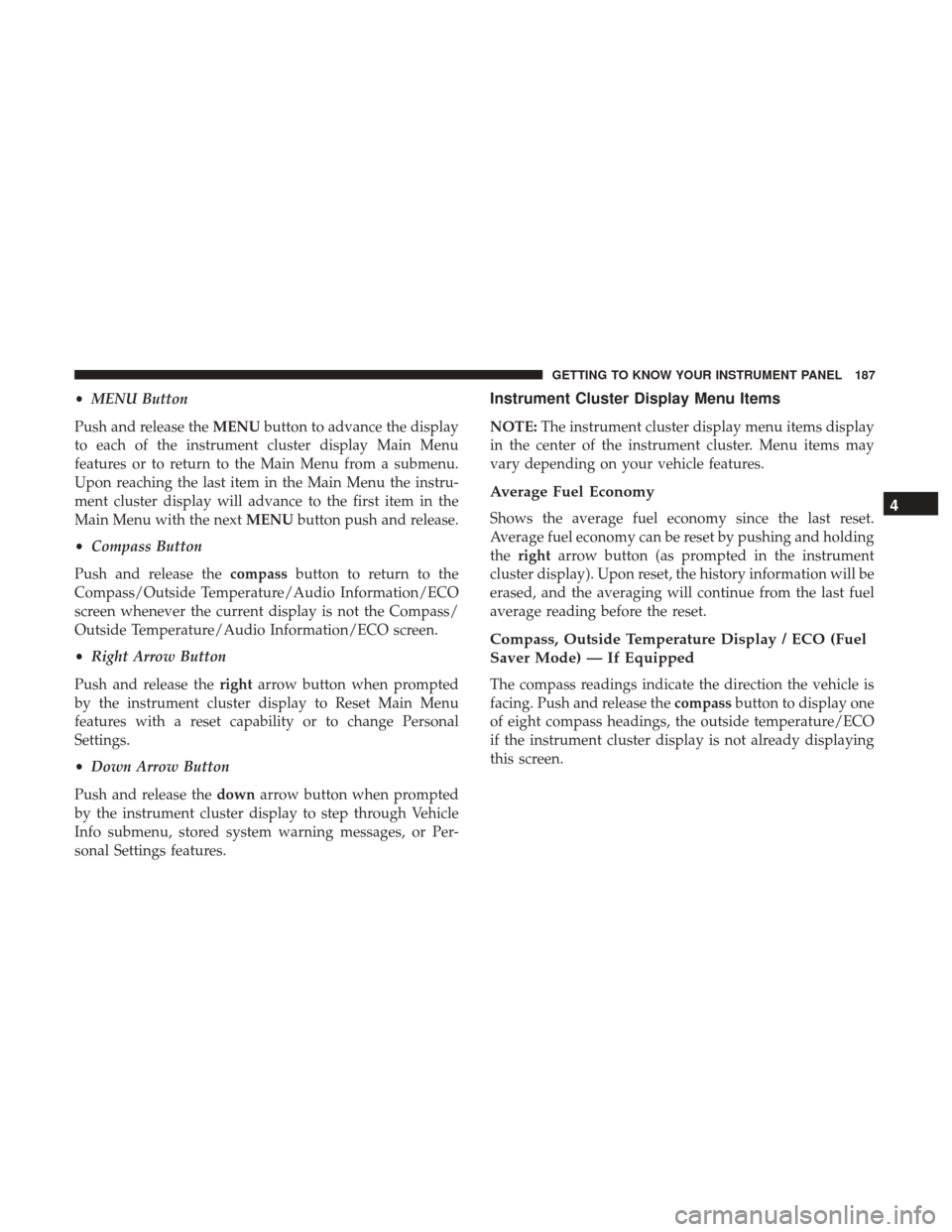

•MENU Button
Push and release the MENUbutton to advance the display
to each of the instrument cluster display Main Menu
features or to return to the Main Menu from a submenu.
Upon reaching the last item in the Main Menu the instru-
ment cluster display will advance to the first item in the
Main Menu with the next MENUbutton push and release.
• Compass Button
Push and release the compassbutton to return to the
Compass/Outside Temperature/Audio Information/ECO
screen whenever the current display is not the Compass/
Outside Temperature/Audio Information/ECO screen.
• Right Arrow Button
Push and release the rightarrow button when prompted
by the instrument cluster display to Reset Main Menu
features with a reset capability or to change Personal
Settings.
• Down Arrow Button
Push and release the downarrow button when prompted
by the instrument cluster display to step through Vehicle
Info submenu, stored system warning messages, or Per-
sonal Settings features.Instrument Cluster Display Menu Items
NOTE: The instrument cluster display menu items display
in the center of the instrument cluster. Menu items may
vary depending on your vehicle features.
Average Fuel Economy
Shows the average fuel economy since the last reset.
Average fuel economy can be reset by pushing and holding
the right arrow button (as prompted in the instrument
cluster display). Upon reset, the history information will be
erased, and the averaging will continue from the last fuel
average reading before the reset.
Compass, Outside Temperature Display / ECO (Fuel
Saver Mode) — If Equipped
The compass readings indicate the direction the vehicle is
facing. Push and release the compassbutton to display one
of eight compass headings, the outside temperature/ECO
if the instrument cluster display is not already displaying
this screen.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 187

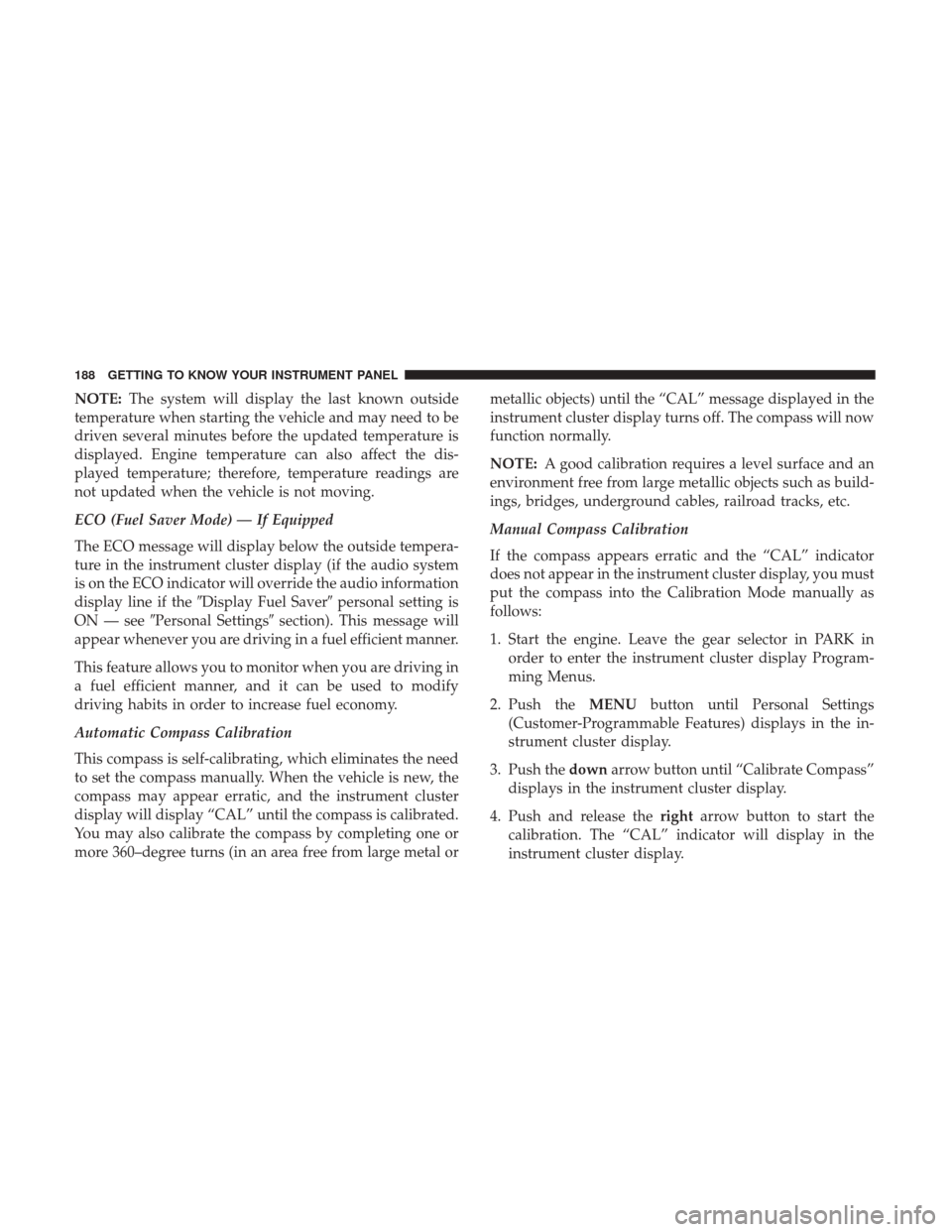

NOTE:The system will display the last known outside
temperature when starting the vehicle and may need to be
driven several minutes before the updated temperature is
displayed. Engine temperature can also affect the dis-
played temperature; therefore, temperature readings are
not updated when the vehicle is not moving.
ECO (Fuel Saver Mode) — If Equipped
The ECO message will display below the outside tempera-
ture in the instrument cluster display (if the audio system
is on the ECO indicator will override the audio information
display line if the Display Fuel Saver personal setting is
ON — see Personal Settings section). This message will
appear whenever you are driving in a fuel efficient manner.
This feature allows you to monitor when you are driving in
a fuel efficient manner, and it can be used to modify
driving habits in order to increase fuel economy.
Automatic Compass Calibration
This compass is self-calibrating, which eliminates the need
to set the compass manually. When the vehicle is new, the
compass may appear erratic, and the instrument cluster
display will display “CAL” until the compass is calibrated.
You may also calibrate the compass by completing one or
more 360–degree turns (in an area free from large metal or metallic objects) until the “CAL” message displayed in the
instrument cluster display turns off. The compass will now
function normally.
NOTE:
A good calibration requires a level surface and an
environment free from large metallic objects such as build-
ings, bridges, underground cables, railroad tracks, etc.
Manual Compass Calibration
If the compass appears erratic and the “CAL” indicator
does not appear in the instrument cluster display, you must
put the compass into the Calibration Mode manually as
follows:
1. Start the engine. Leave the gear selector in PARK in order to enter the instrument cluster display Program-
ming Menus.
2. Push the MENUbutton until Personal Settings
(Customer-Programmable Features) displays in the in-
strument cluster display.
3. Push the downarrow button until “Calibrate Compass”
displays in the instrument cluster display.
4. Push and release the rightarrow button to start the
calibration. The “CAL” indicator will display in the
instrument cluster display.
188 GETTING TO KNOW YOUR INSTRUMENT PANEL
