FRONT VIEW
Front View
1 — Hood/Engine Compartment
2 — Headlights
3 — Windshield4 — Wheels/Tires
5 — Exterior Mirrors
6 — Doors
10 GRAPHICAL TABLE OF CONTENTS
Page 14 of 527
INSTRUMENT PANEL
Instrument Panel
1 — Air Outlet7 — Climate Controls
2 — Instrument Cluster 8 — Power Outlet
3 — Radio 9 — Lower Switch Bank
4 — Assist Handle 10 — Power Mirror Switch — If Equipped
5 — Glove Compartment 11 — Horn
6 — Power Window Switches 12 GRAPHICAL TABLE OF CONTENTS
Page 18 of 527

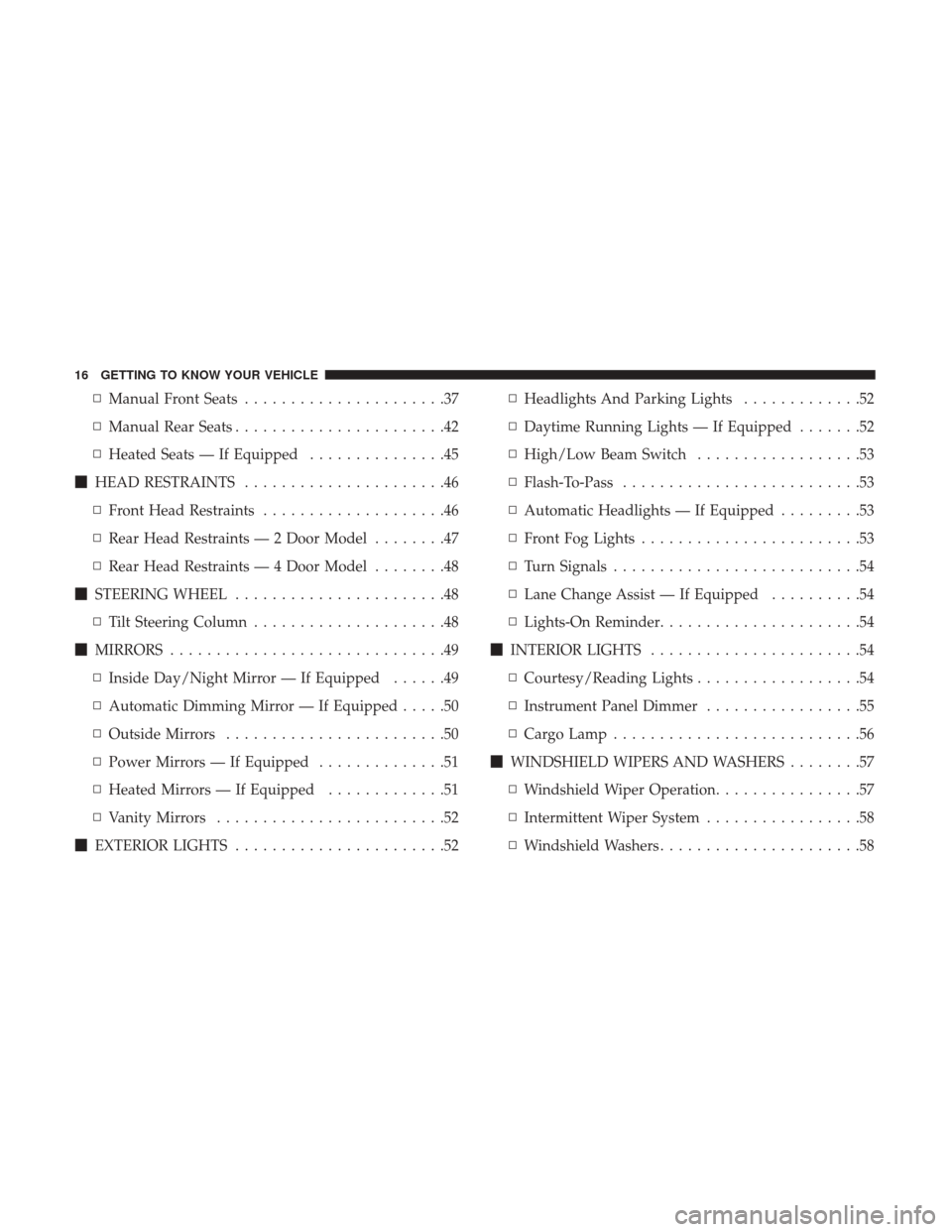

▫Manual Front Seats ......................37
▫ Manual Rear Seats .......................42
▫ Heated Seats — If Equipped ...............45
HEAD RESTRAINTS ......................46
▫ Front Head Restraints ....................46
▫ Rear Head Restraints — 2 Door Model ........47
▫ Rear Head Restraints — 4 Door Model ........48
STEERING WHEEL .......................48
▫ Tilt Steering Column .....................48
MIRRORS ..............................49
▫ Inside Day/Night Mirror — If Equipped ......49
▫ Automatic Dimming Mirror — If Equipped .....50
▫ Outside Mirrors ........................50
▫ Power Mirrors — If Equipped ..............51
▫ Heated Mirrors — If Equipped .............51
▫ Vanity Mirrors .........................52
EXTERIOR LIGHTS .......................52 ▫
Headlights And Parking Lights .............52
▫ Daytime Running Lights — If Equipped .......52
▫ High/Low Beam Switch ..................53
▫ Flash-To-Pass ..........................53
▫ Automatic Headlights — If Equipped .........53
▫ Front Fog Lights ........................53
▫ Turn Signals ...........................54
▫ Lane Change Assist — If Equipped ..........54
▫ Lights-On Reminder ......................54
INTERIOR LIGHTS .......................54
▫ Courtesy/Reading Lights ..................54
▫ Instrument Panel Dimmer .................55
▫ Cargo Lamp ...........................56
WINDSHIELD WIPERS AND WASHERS ........57
▫ Windshield Wiper Operation ................57
▫ Intermittent Wiper System .................58
▫ Windshield Washers ......................58
16 GETTING TO KNOW YOUR VEHICLE
Page 35 of 527
1. Roll down the glass window to prevent any damage.
2. Remove the hinge pin screws from the upper and loweroutside hinges (using a #T50 Torx head driver).
NOTE: The hinge pin screws and nuts can be stowed in
the rear cargo tray located under the rear loadfloor.
3. Unplug the wiring harness connector under the instru- ment panel by pushing the tab at the base of the
connector and pulling down to disconnect. 4. Unhook the door strap from the body hook. Be careful
not to allow the door to swing fully open as the mirror
may damage the paint.
5. With the door open, lift the door to clear the hinge pins from their hinges and remove the door.
Hinge Pin Screw
Door Strap/Harness Location
1 — Wiring Harness (follow the harness up and under the instru-
ment panel to the connector)
2 — Body Hook
3 — Door/Harness Strap
3
GETTING TO KNOW YOUR VEHICLE 33
Page 51 of 527
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.
MIRRORS
Inside Day/Night Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror should
be adjusted while set in the day position (toward the
windshield).
Tilt Steering Column Lever
Adjusting Rearview Mirror
3
GETTING TO KNOW YOUR VEHICLE 49
Page 52 of 527
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare from
vehicles behind you. You can turn the feature on or off by
pushing the button at the base of the mirror. A light to the
left of the button will illuminate to indicate when the
dimming feature is activated. The sensor to the right of the
button does not illuminate.
NOTE:This feature is disabled when the vehicle is mov-
ing in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s) to
center on the adjacent lane of traffic with a slight overlap of
the view obtained on the inside mirror.
Automatic Dimming MirrorOutside Rearview Mirror
50 GETTING TO KNOW YOUR VEHICLE
Page 53 of 527
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away than
they really are. Relying too much on your passenger
side mirror could cause you to collide with another
vehicle or other object. Use your inside mirror when
judging the size or distance of a vehicle seen in the
passenger side mirror.
Power Mirrors — If Equipped
The power mirror switch is located on the center of the
instrument panel, below the climate controls. A rotary knob
selects the left mirror, right mirror or off position.After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Climate
Controls” for further information.
Power Mirror Switch
3
GETTING TO KNOW YOUR VEHICLE 51
Page 54 of 527
Vanity Mirrors
Vanity mirrors are located on the sun visors. To use the
mirrors, rotate the sun visor down and swing the mirror
cover upward.
EXTERIOR LIGHTS
Headlights And Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation.
Daytime Running Lights — If Equipped
The headlights come on at a low intensity level when
shifted into any position other than PARK (auto transmis-
sion) or when the vehicle begins to move (manual trans-
mission).
NOTE:The Daytime Running Light, on the same side of
the vehicle as the active turn signal, will turn off automati-
cally when a turn signal is in operation and turn on again
when the turn signal is not operating.
Vanity Mirror
Headlight Switch
52 GETTING TO KNOW YOUR VEHICLE
Page 56 of 527
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show proper
operation of the front and rear turn signal lights.
NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective. •
A tone will chime if the turn signals are left on for more
than 1 mile (2 km).
Lane Change Assist — If Equipped
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash three
times then automatically turn off.
Lights-On Reminder
If the headlights, parking lights or cargo lights are left on
after the ignition is turned OFF, a chime will sound when
the driver ’s door is opened.
INTERIOR LIGHTS
Courtesy/Reading Lights
Two courtesy/reading lights are located in the bottom of
the rearview mirror. You can turn these lights on and off
from the switches in the mirror or from the dimmer control
in the multifunction lever. These lights are also controlled
automatically by the Illuminated Entry System.
Turn Signal Operation
54 GETTING TO KNOW YOUR VEHICLE
Page 64 of 527
IconDescription
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after 10 minutes.
Temperature Control
Use this control to regulate the temperature of the air inside the passenger compartment. Rotat-
ing the knob counterclockwise, from top center into the blue area of the scale, indicates cooler
temperatures. Rotating the knob clockwise, into the red area, indicates warmer temperatures.
Blower Control
There are seven blower speeds. Use this control to regulate the amount of air forced through the
system in any mode you select. The blower speed increases as you move the control clockwise
from the off position.
NOTE:Depending on the configuration, your vehicle may be equipped with four blower
speeds.
Modes Control
Turn the knob to adjust airflow distribution. The airflow distribution mode can be adjusted so
air comes from the instrument panel outlets, floor outlets, defrost outlets and demist outlets.
62 GETTING TO KNOW YOUR VEHICLE
