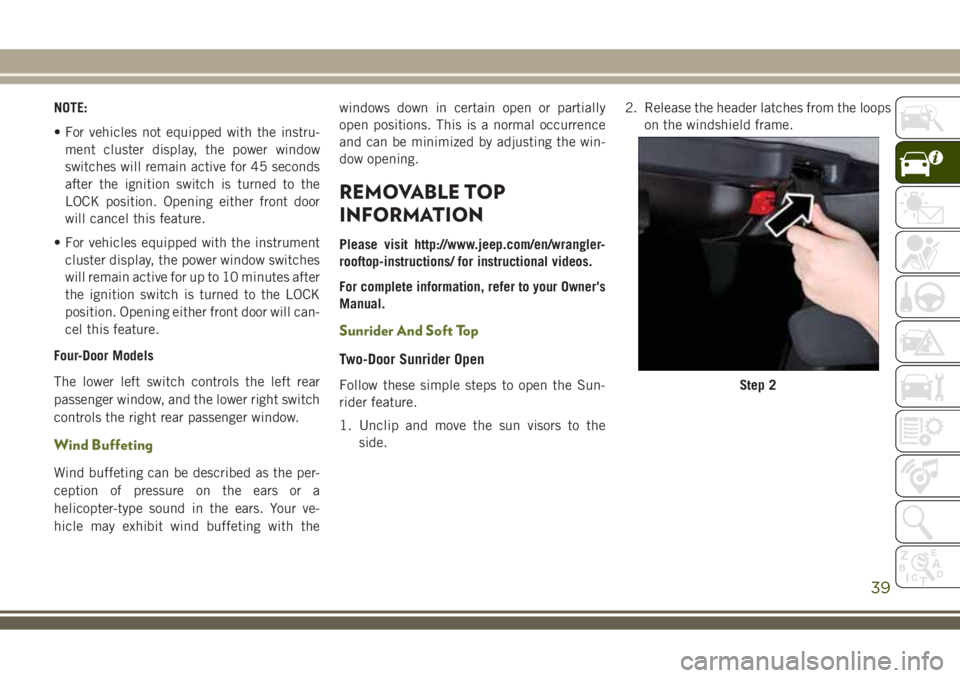

Page 41 of 276

NOTE:
• For vehicles not equipped with the instru-
ment cluster display, the power window
switches will remain active for 45 seconds
after the ignition switch is turned to the
LOCK position. Opening either front door
will cancel this feature.
• For vehicles equipped with the instrument
cluster display, the power window switches
will remain active for up to 10 minutes after
the ignition switch is turned to the LOCK
position. Opening either front door will can-
cel this feature.
Four-Door Models
The lower left switch controls the left rear
passenger window, and the lower right switch
controls the right rear passenger window.
Wind Buffeting
Wind buffeting can be described as the per-
ception of pressure on the ears or a
helicopter-type sound in the ears. Your ve-
hicle may exhibit wind buffeting with thewindows down in certain open or partially
open positions. This is a normal occurrence
and can be minimized by adjusting the win-
dow opening.
REMOVABLE TOP
INFORMATION
Please visit http://www.jeep.com/en/wrangler-
rooftop-instructions/ for instructional videos.
For complete information, refer to your Owner's
Manual.
Sunrider And Soft Top
Two-Door Sunrider Open
Follow these simple steps to open the Sun-
rider feature.
1. Unclip and move the sun visors to the
side.2. Release the header latches from the loops
on the windshield frame.Step 2
39

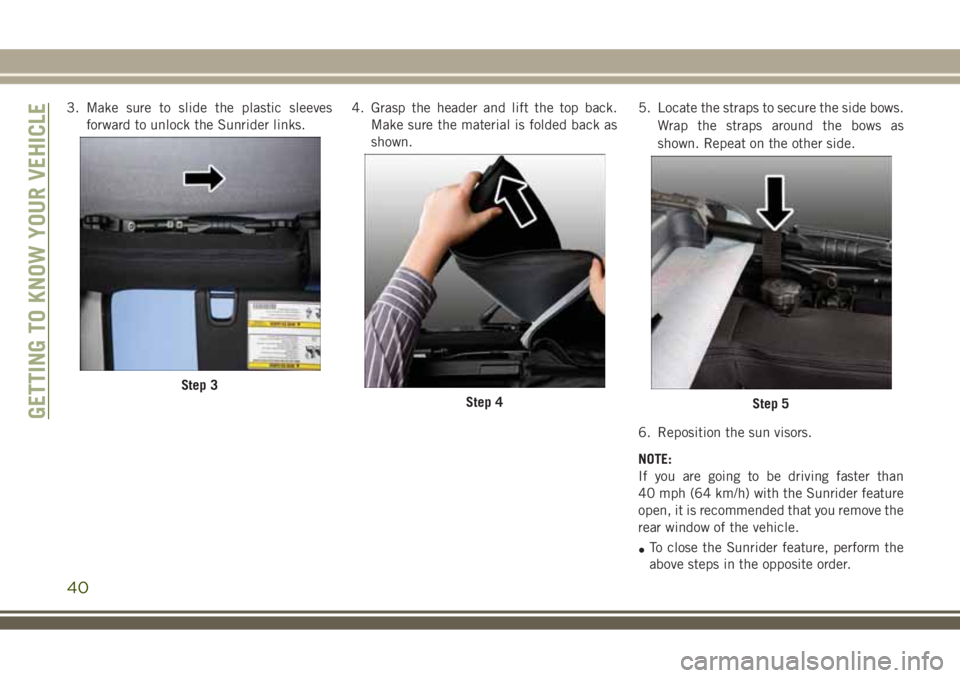

Page 42 of 276
3. Make sure to slide the plastic sleeves
forward to unlock the Sunrider links.4. Grasp the header and lift the top back.
Make sure the material is folded back as
shown.5. Locate the straps to secure the side bows.
Wrap the straps around the bows as
shown. Repeat on the other side.
6. Reposition the sun visors.
NOTE:
If you are going to be driving faster than
40 mph (64 km/h) with the Sunrider feature
open, it is recommended that you remove the
rear window of the vehicle.
•To close the Sunrider feature, perform the
above steps in the opposite order.
Step 3
Step 4Step 5GETTING TO KNOW YOUR VEHICLE
40
Page 43 of 276

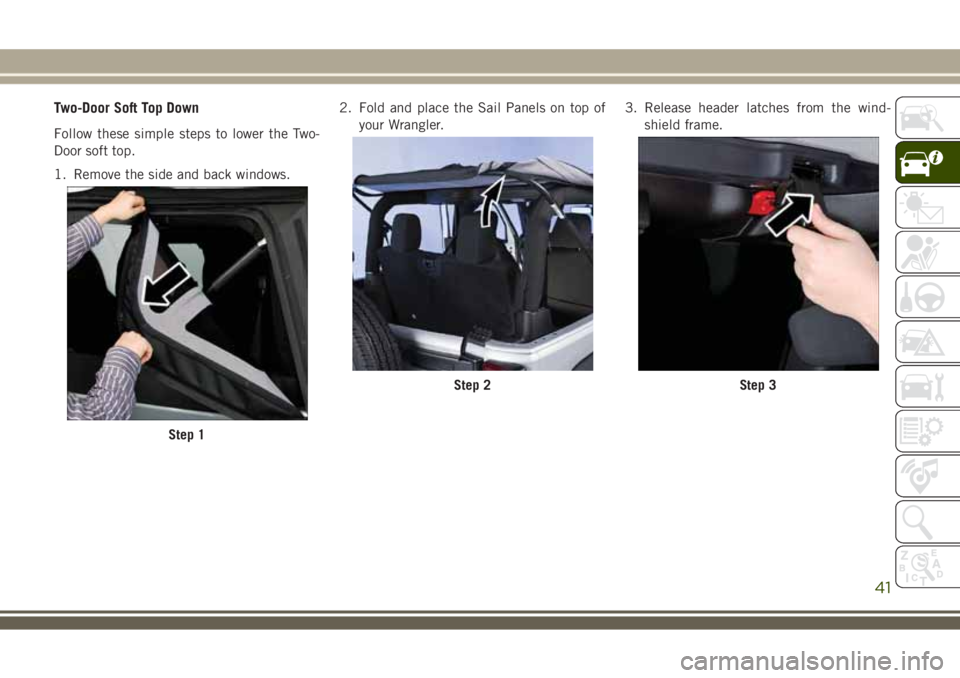

Two-Door Soft Top Down
Follow these simple steps to lower the Two-
Door soft top.
1. Remove the side and back windows.2. Fold and place the Sail Panels on top of
your Wrangler.3. Release header latches from the wind-
shield frame.
Step 1
Step 2Step 3
41

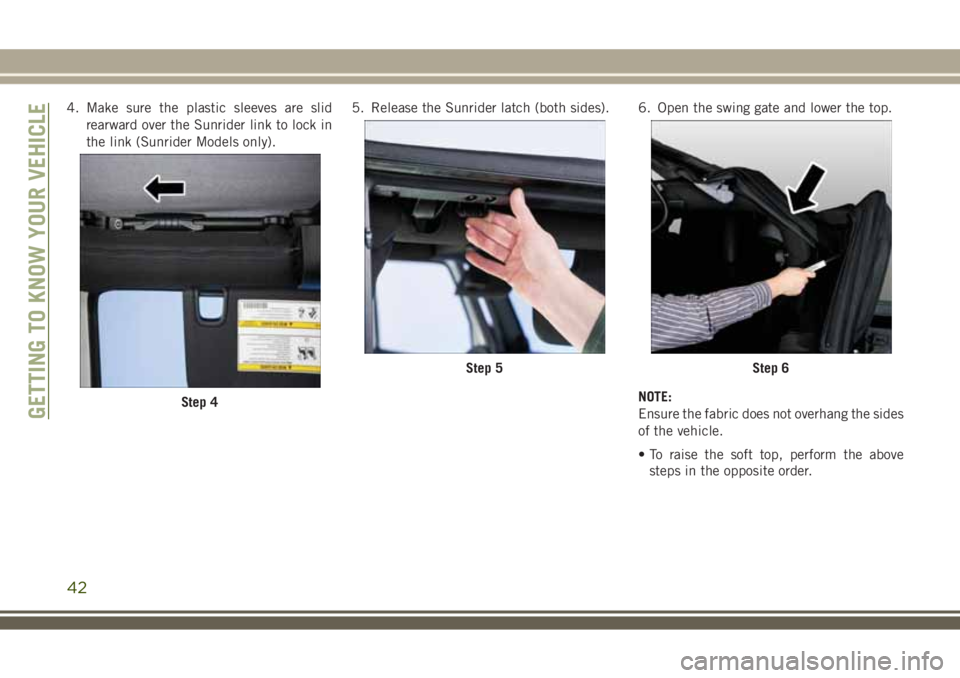

Page 44 of 276
4. Make sure the plastic sleeves are slid
rearward over the Sunrider link to lock in
the link (Sunrider Models only).5. Release the Sunrider latch (both sides). 6. Open the swing gate and lower the top.
NOTE:
Ensure the fabric does not overhang the sides
of the vehicle.
• To raise the soft top, perform the above
steps in the opposite order.
Step 4
Step 5Step 6
GETTING TO KNOW YOUR VEHICLE
42

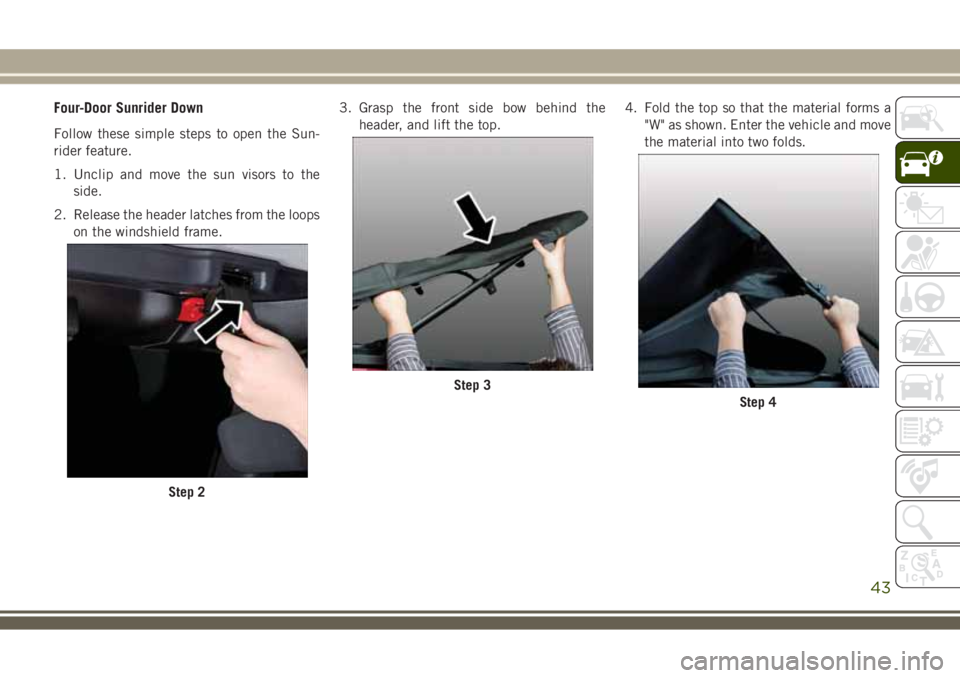

Page 45 of 276
Four-Door Sunrider Down
Follow these simple steps to open the Sun-
rider feature.
1. Unclip and move the sun visors to the
side.
2. Release the header latches from the loops
on the windshield frame.3. Grasp the front side bow behind the
header, and lift the top.4. Fold the top so that the material forms a
"W" as shown. Enter the vehicle and move
the material into two folds.
Step 2
Step 3
Step 4
43

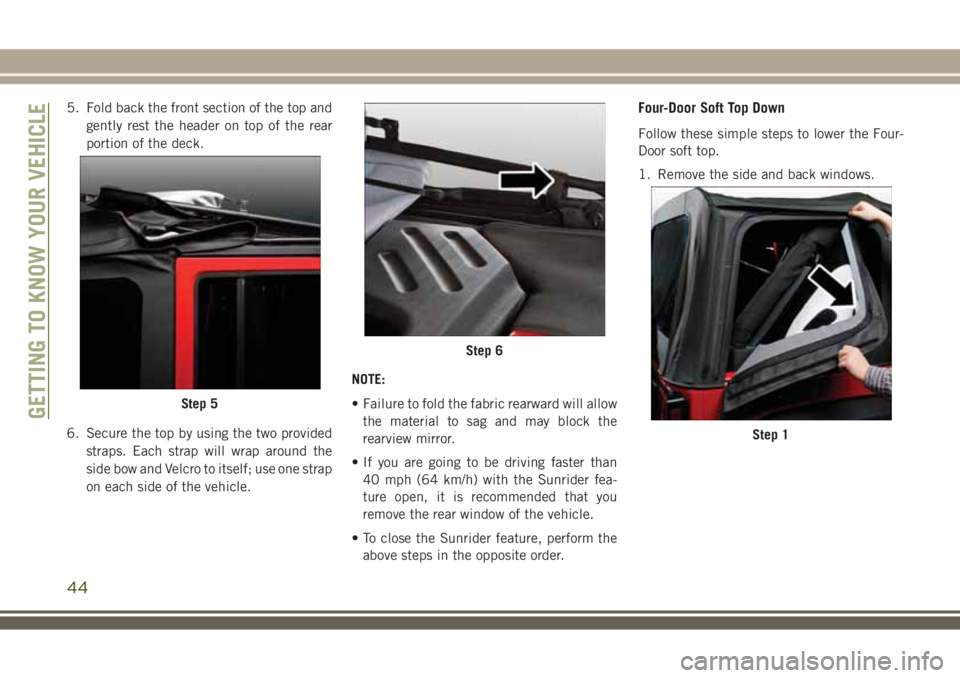

Page 46 of 276
5. Fold back the front section of the top and
gently rest the header on top of the rear
portion of the deck.
6. Secure the top by using the two provided
straps. Each strap will wrap around the
side bow and Velcro to itself; use one strap
on each side of the vehicle.NOTE:
• Failure to fold the fabric rearward will allow
the material to sag and may block the
rearview mirror.
• If you are going to be driving faster than
40 mph (64 km/h) with the Sunrider fea-
ture open, it is recommended that you
remove the rear window of the vehicle.
• To close the Sunrider feature, perform the
above steps in the opposite order.Four-Door Soft Top Down
Follow these simple steps to lower the Four-
Door soft top.
1. Remove the side and back windows.
Step 5
Step 6
Step 1
GETTING TO KNOW YOUR VEHICLE
44

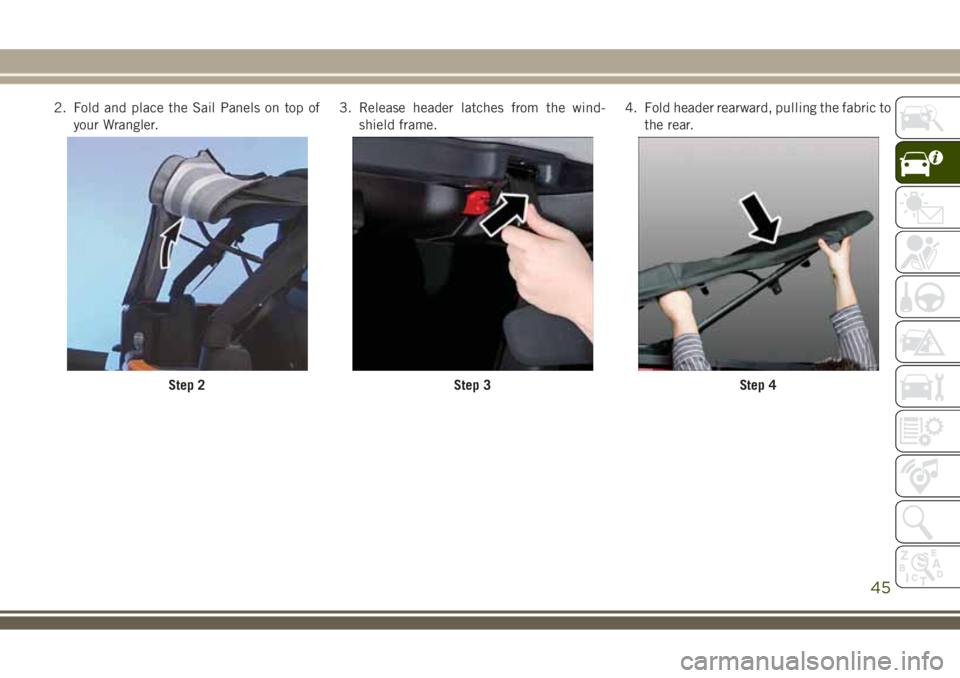

Page 47 of 276
2. Fold and place the Sail Panels on top of
your Wrangler.3. Release header latches from the wind-
shield frame.4. Fold header rearward, pulling the fabric to
the rear.
Step 2Step 3Step 4
45

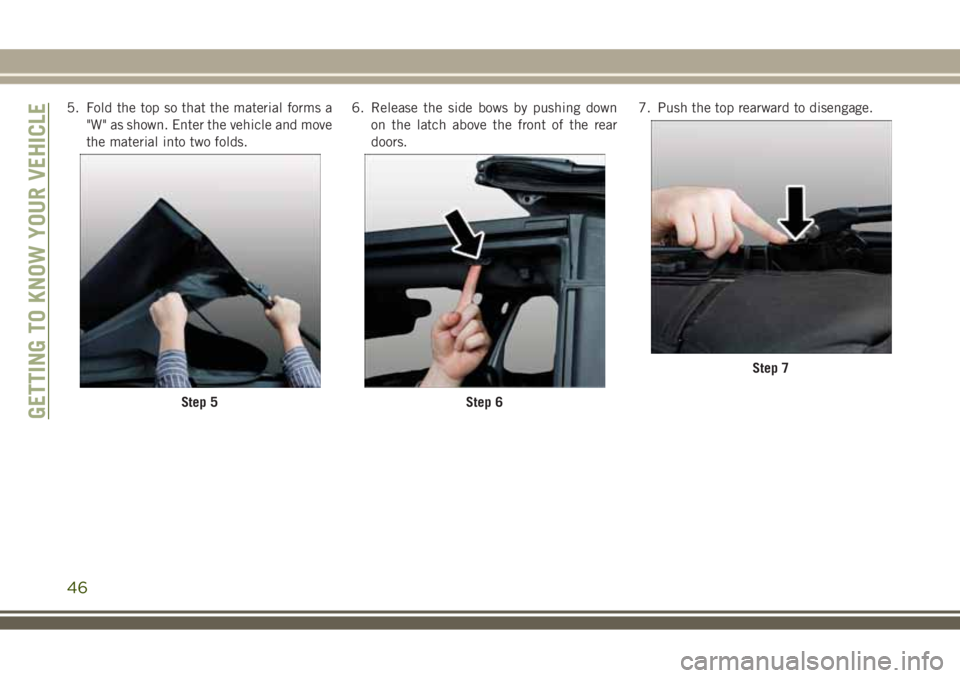

Page 48 of 276
5. Fold the top so that the material forms a
"W" as shown. Enter the vehicle and move
the material into two folds.6. Release the side bows by pushing down
on the latch above the front of the rear
doors.7. Push the top rearward to disengage.
Step 5Step 6
Step 7
GETTING TO KNOW YOUR VEHICLE
46

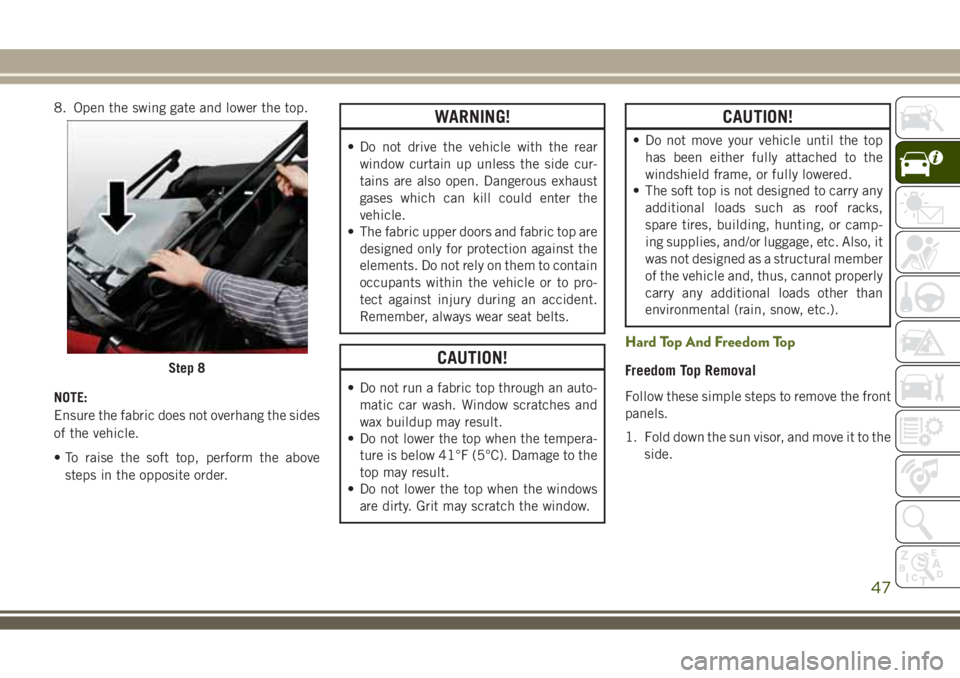

Page 49 of 276

8. Open the swing gate and lower the top.
NOTE:
Ensure the fabric does not overhang the sides
of the vehicle.
• To raise the soft top, perform the above
steps in the opposite order.WARNING!
• Do not drive the vehicle with the rear
window curtain up unless the side cur-
tains are also open. Dangerous exhaust
gases which can kill could enter the
vehicle.
• The fabric upper doors and fabric top are
designed only for protection against the
elements. Do not rely on them to contain
occupants within the vehicle or to pro-
tect against injury during an accident.
Remember, always wear seat belts.
CAUTION!
• Do not run a fabric top through an auto-
matic car wash. Window scratches and
wax buildup may result.
• Do not lower the top when the tempera-
ture is below 41°F (5°C). Damage to the
top may result.
• Do not lower the top when the windows
are dirty. Grit may scratch the window.
CAUTION!
• Do not move your vehicle until the top
has been either fully attached to the
windshield frame, or fully lowered.
• The soft top is not designed to carry any
additional loads such as roof racks,
spare tires, building, hunting, or camp-
ing supplies, and/or luggage, etc. Also, it
was not designed as a structural member
of the vehicle and, thus, cannot properly
carry any additional loads other than
environmental (rain, snow, etc.).
Hard Top And Freedom Top
Freedom Top Removal
Follow these simple steps to remove the front
panels.
1. Fold down the sun visor, and move it to the
side.
Step 8
47
Page 50 of 276
2. Turn the rear fasteners (located on the
overhead speaker bar assembly) counter-
clockwise until they can be removed.3. Turn the center L-shaped locks (two) from
the center of the roof panel.4. Turn the rear L-shaped lock (located
above the shoulder belt anchorage).
Step 2
Step 3Step 4
GETTING TO KNOW YOUR VEHICLE
48
