JEEP WRANGLER UNLIMITED 2013 User Guide

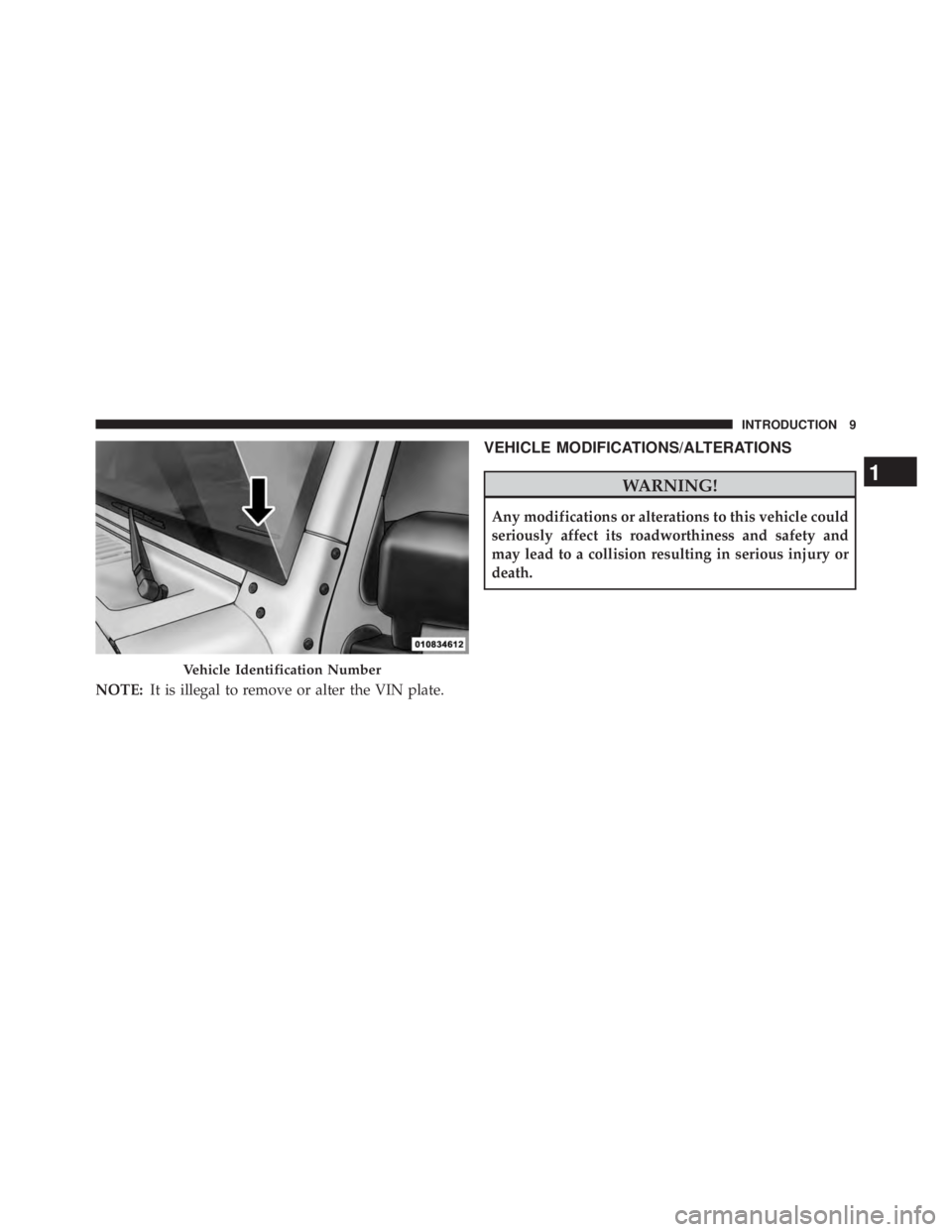

NOTE: It is illegal to remove or alter the VIN plate. VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.
Vehicle Identification Number
1 INTRODUCTION 9

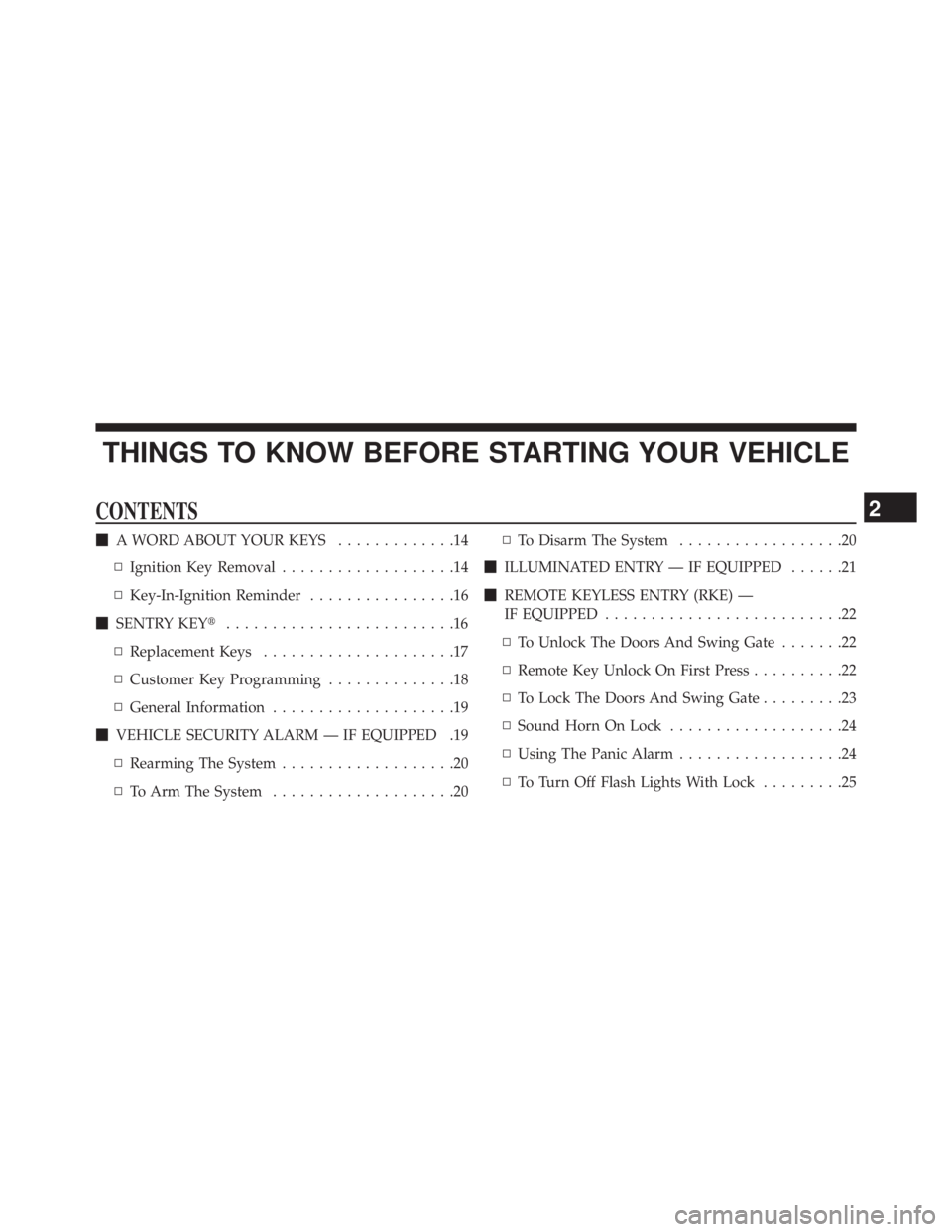

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS  A WORD ABOUT YOUR KEYS .............14
▫ Ignition Key Removal ...................14
▫ Key-In-Ignition Reminder ................16
 SENTRY KEY  .........................16
▫ Replacement Keys .....................17
▫ Customer Key Programming ..............18
▫ General Information ....................19
 VEHICLE SECURITY ALARM — IF EQUIPPED .19
▫ Rearming The System ...................20
▫ To Arm The System ....................20 ▫ To Disarm The System ..................20
 ILLUMINATED ENTRY — IF EQUIPPED ......21
 REMOTE KEYLESS ENTRY (RKE) —
IF EQUIPPED ..........................22
▫ To Unlock The Doors And Swing Gate .......22
▫ Remote Key Unlock On First Press ..........22
▫ To Lock The Doors And Swing Gate .........23
▫ Sound Horn On Lock ...................24
▫ Using The Panic Alarm ..................24
▫ To Turn Off Flash Lights With Lock .........252

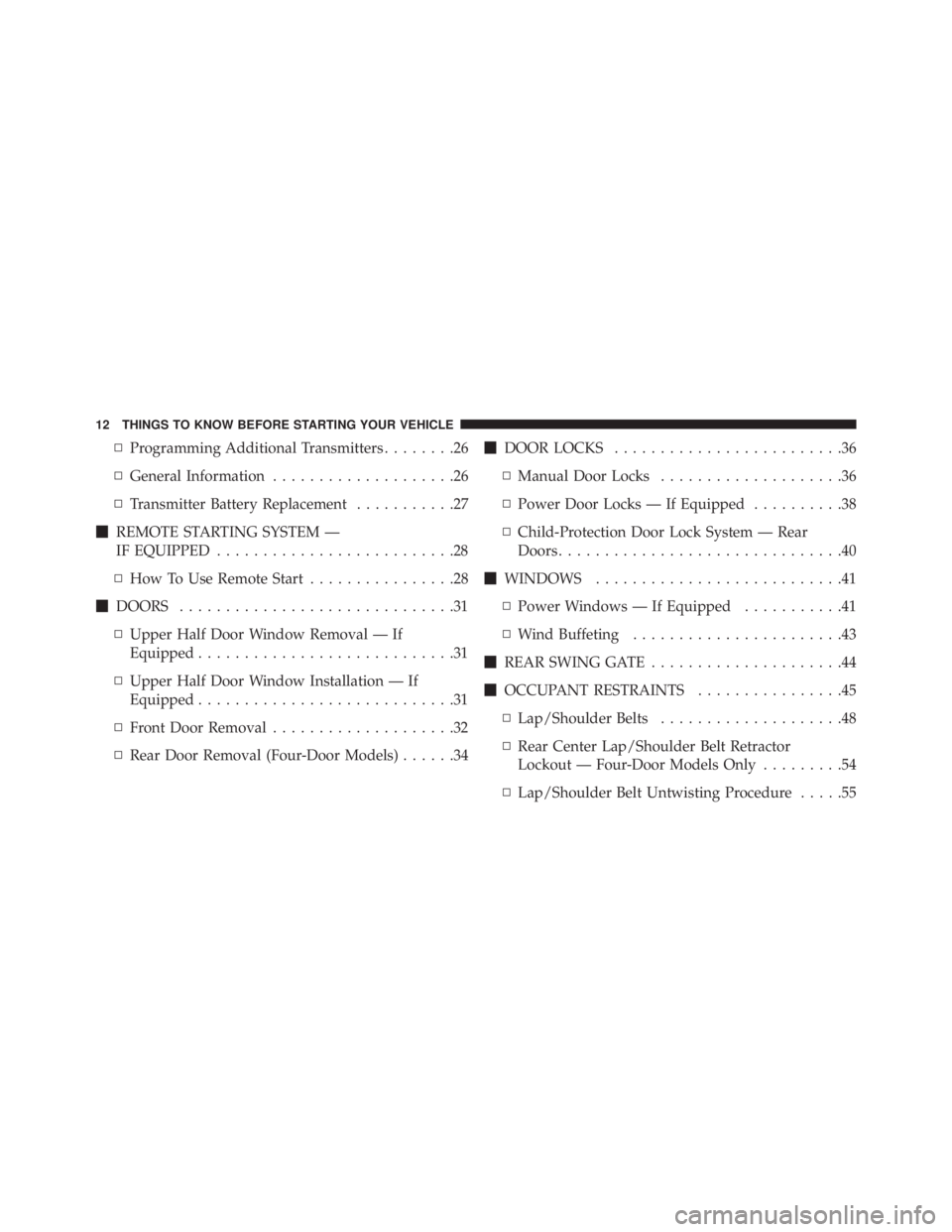

▫ Programming Additional Transmitters ........26
▫ General Information ....................26
▫ Transmitter Battery Replacement ...........27
 REMOTE STARTING SYSTEM —
IF EQUIPPED ..........................28
▫ How To Use Remote Start ................28
 DOORS ..............................31
▫ Upper Half Door Window Removal — If
Equipped ............................31
▫ Upper Half Door Window Installation — If
Equipped ............................31
▫ Front Door Removal ....................32
▫ Rear Door Removal (Four-Door Models) ......34  DOOR LOCKS .........................36
▫ Manual Door Locks ....................36
▫ Power Door Locks — If Equipped ..........38
▫ Child-Protection Door Lock System — Rear
Doors ...............................40
 WINDOWS ...........................41
▫ Power Windows — If Equipped ...........41
▫ Wind Buffeting .......................43
 REAR SWING GATE .....................44
 OCCUPANT RESTRAINTS ................45
▫ Lap/Shoulder Belts ....................48
▫ Rear Center Lap/Shoulder Belt Retractor
Lockout — Four-Door Models Only .........54
▫ Lap/Shoulder Belt Untwisting Procedure .....5512 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

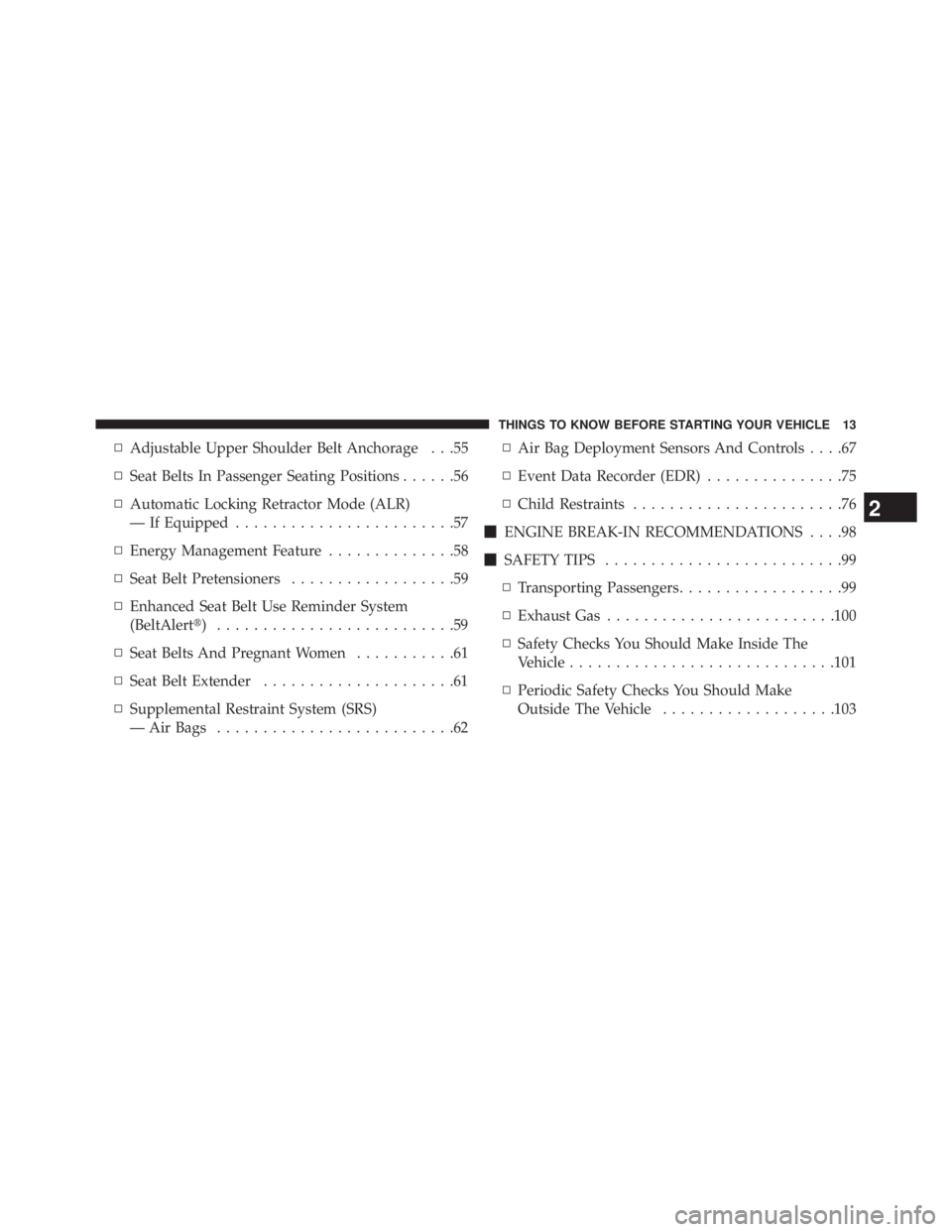

▫ Adjustable Upper Shoulder Belt Anchorage . . .55
▫ Seat Belts In Passenger Seating Positions ......56
▫ Automatic Locking Retractor Mode (ALR)
— If Equipped ........................57
▫ Energy Management Feature ..............58
▫ Seat Belt Pretensioners ..................59
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert  ) ..........................59
▫ Seat Belts And Pregnant Women ...........61
▫ Seat Belt Extender .....................61
▫ Supplemental Restraint System (SRS)
— Air Bags ..........................62 ▫ Air Bag Deployment Sensors And Controls ....67
▫ Event Data Recorder (EDR) ...............75
▫ Child Restraints .......................76
 ENGINE BREAK-IN RECOMMENDATIONS ....98
 SAFETY TIPS ..........................99
▫ Transporting Passengers ..................99
▫ Exhaust Gas ........................ .100
▫ Safety Checks You Should Make Inside The
Vehicle ............................ .101
▫ Periodic Safety Checks You Should Make
Outside The Vehicle .................. .103
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

A WORD ABOUT YOUR KEYS
The keys for your new vehicle are enclosed in a plastic
bag with the key code number on it. If you received your
keys without the bag, ask your authorized dealer to give
you the number. The key code can also be obtained by
your authorized dealer from your vehicle invoice.
Ignition Key Removal
1. Place the shift lever in PARK (if equipped with an
automatic transmission).
2. Turn the ignition switch to the ACC (ACCESSORY)
position. Ignition Switch Positions1 — LOCK 3 — ON/RUN
2 — ACC (ACCESSORY) 4 — START14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

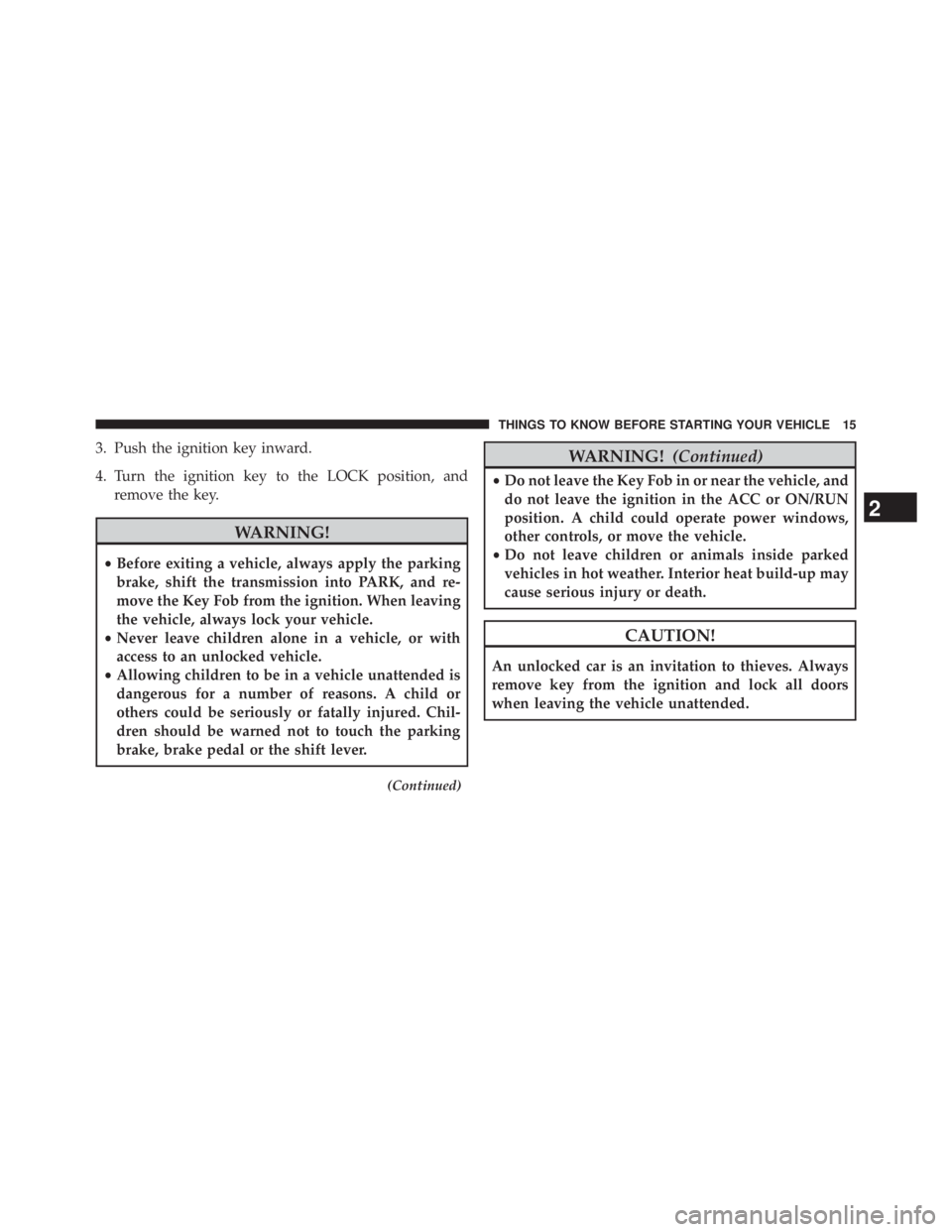

3. Push the ignition key inward.
4. Turn the ignition key to the LOCK position, and
remove the key.
WARNING!• Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and re-
move the Key Fob from the ignition. When leaving
the vehicle, always lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever. (Continued) WARNING! (Continued)• Do not leave the Key Fob in or near the vehicle, and
do not leave the ignition in the ACC or ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

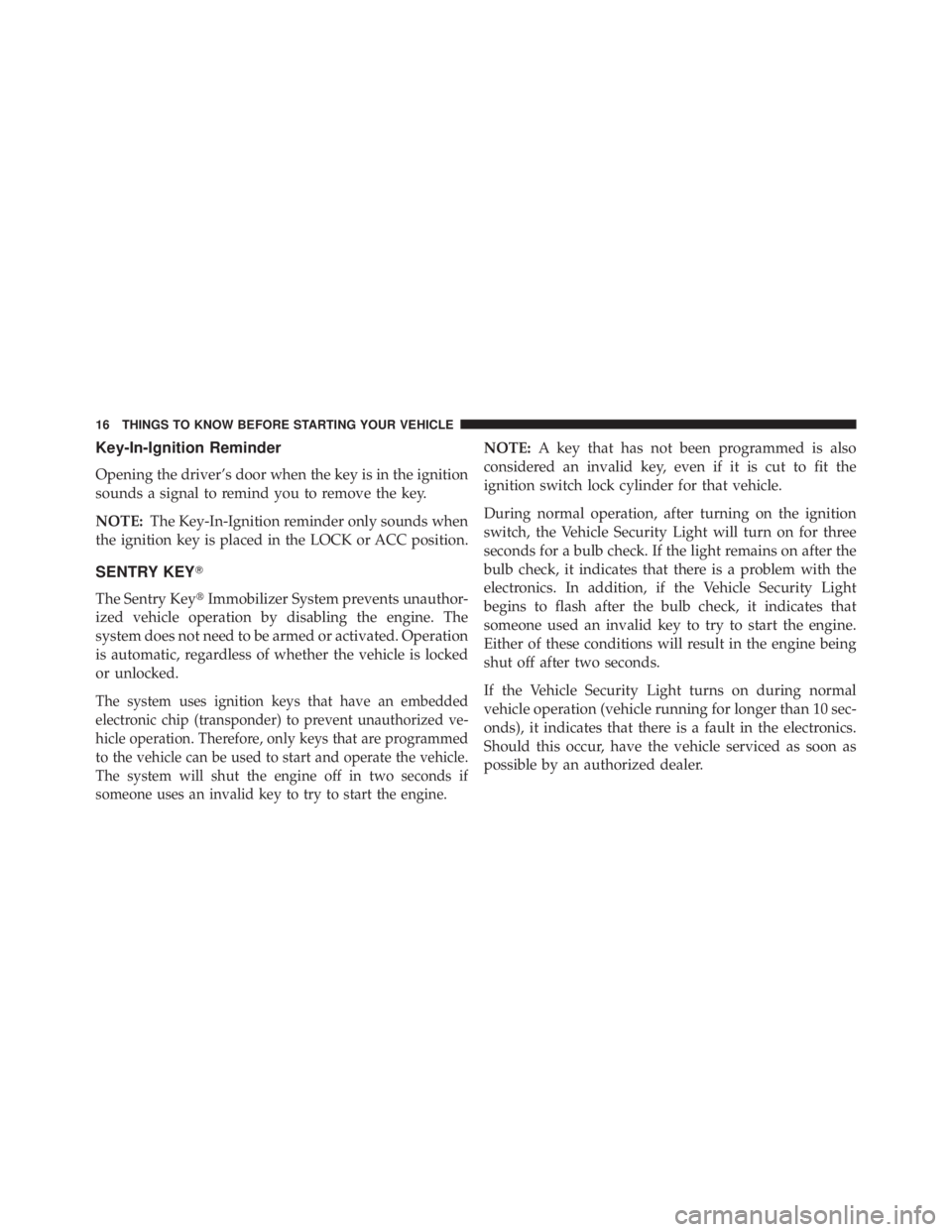

Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE: The Key-In-Ignition reminder only sounds when
the ignition key is placed in the LOCK or ACC position.
SENTRY KEY
The Sentry Key  Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized ve-
hicle operation. Therefore, only keys that are programmed
to the vehicle can be used to start and operate the vehicle.
The system will shut the engine off in two seconds if
someone uses an invalid key to try to start the engine. NOTE: A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

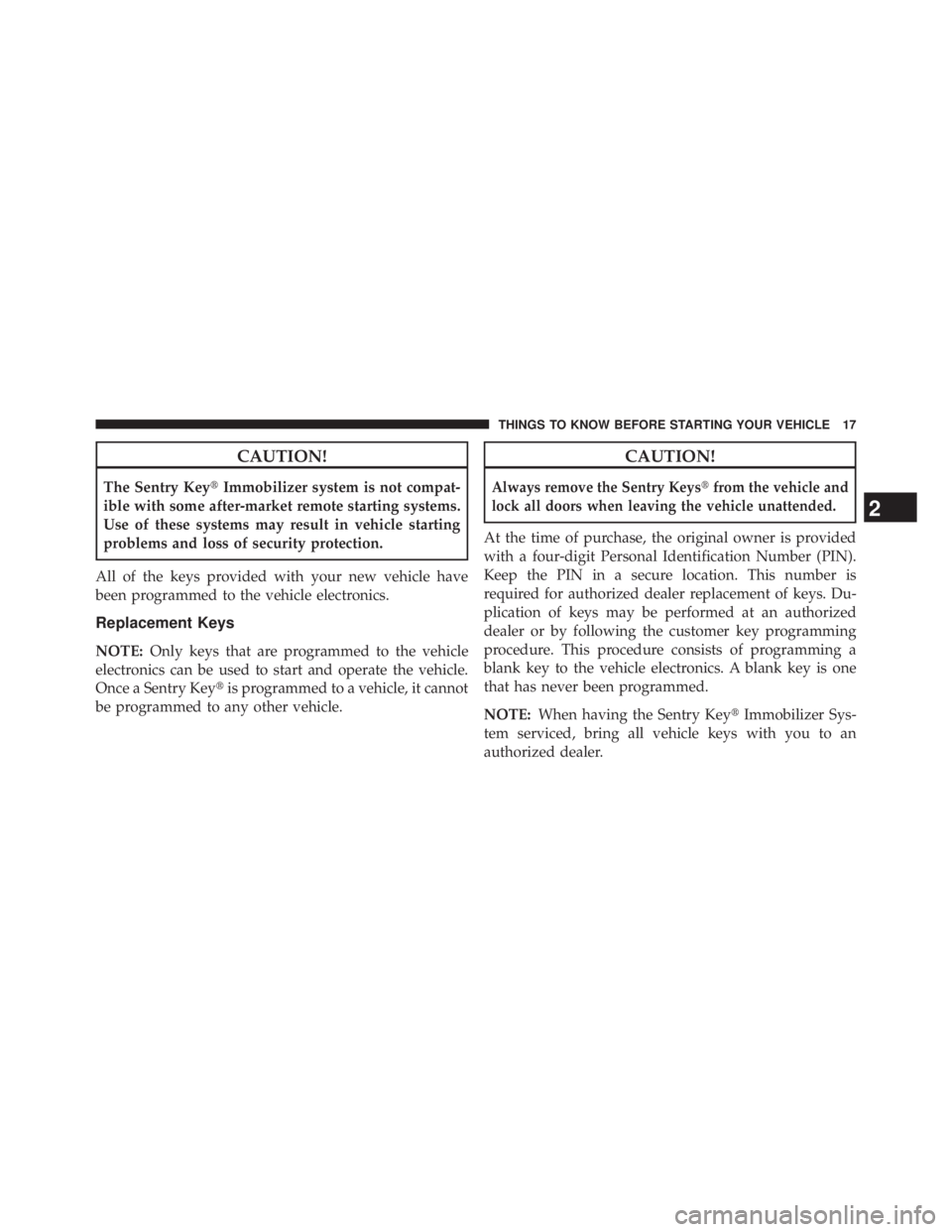

CAUTION!The Sentry Key  Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key  is programmed to a vehicle, it cannot
be programmed to any other vehicle. CAUTION!Always remove the Sentry Keys  from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE: When having the Sentry Key  Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

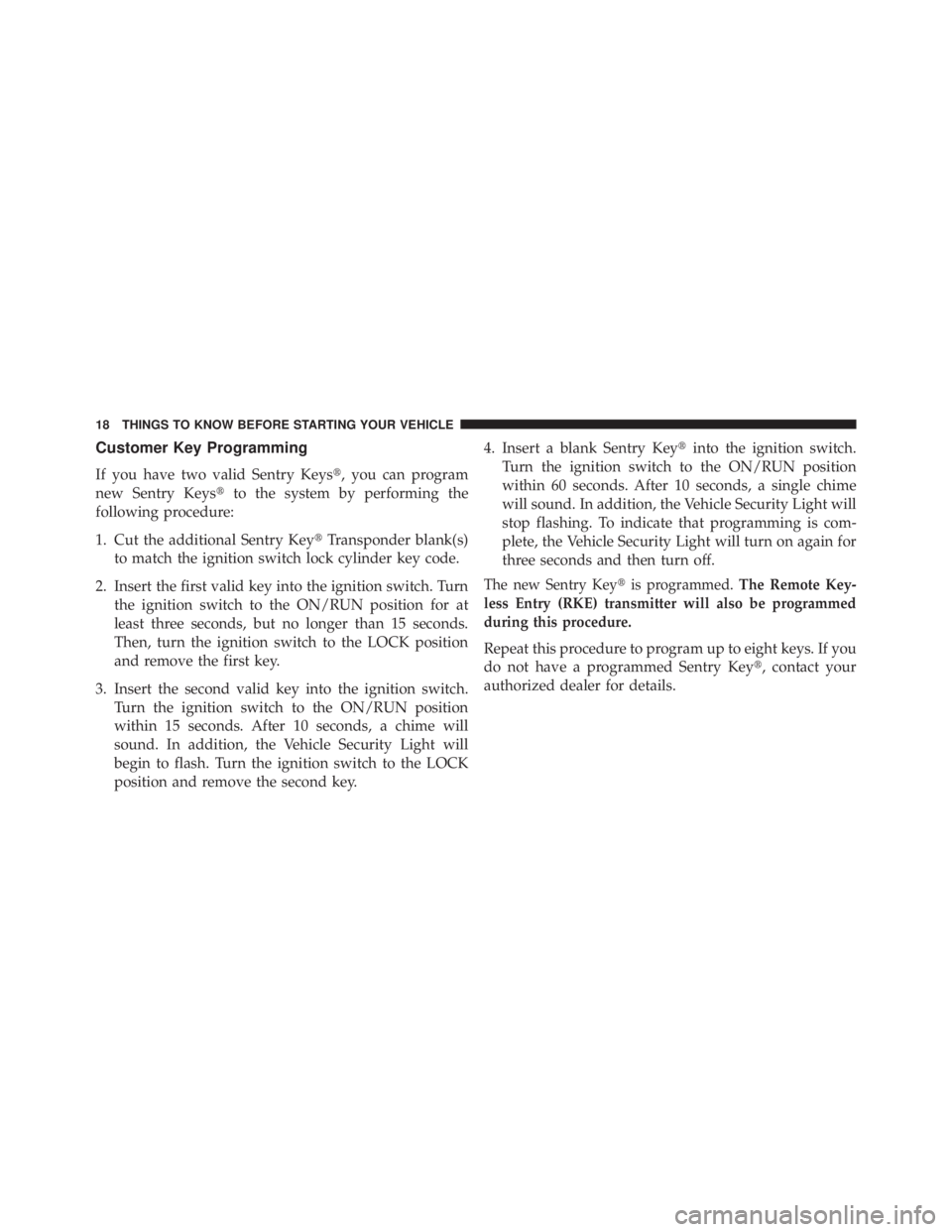

Customer Key Programming
If you have two valid Sentry Keys  , you can program
new Sentry Keys  to the system by performing the
following procedure:
1. Cut the additional Sentry Key  Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at
least three seconds, but no longer than 15 seconds.
Then, turn the ignition switch to the LOCK position
and remove the first key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position
within 15 seconds. After 10 seconds, a chime will
sound. In addition, the Vehicle Security Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key. 4. Insert a blank Sentry Key  into the ignition switch.
Turn the ignition switch to the ON/RUN position
within 60 seconds. After 10 seconds, a single chime
will sound. In addition, the Vehicle Security Light will
stop flashing. To indicate that programming is com-
plete, the Vehicle Security Light will turn on again for
three seconds and then turn off.
The new Sentry Key  is programmed. The Remote Key-
less Entry (RKE) transmitter will also be programmed
during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key  , contact your
authorized dealer for details.18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
