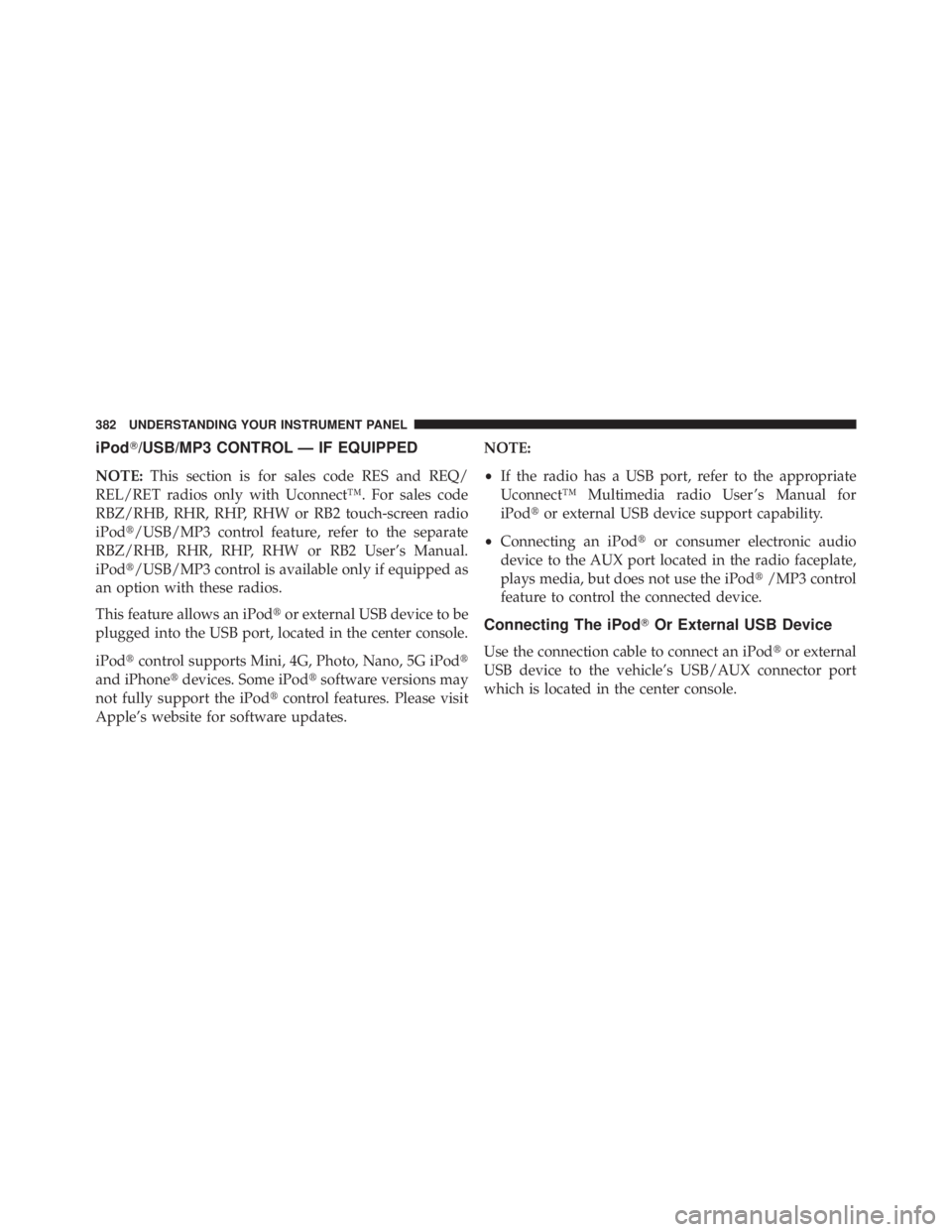

iPod  /USB/MP3 CONTROL — IF EQUIPPED
NOTE: This section is for sales code RES and REQ/
REL/RET radios only with Uconnect™. For sales code
RBZ/RHB, RHR, RHP, RHW or RB2 touch-screen radio
iPod  /USB/MP3 control feature, refer to the separate
RBZ/RHB, RHR, RHP, RHW or RB2 User’s Manual.
iPod  /USB/MP3 control is available only if equipped as
an option with these radios.
This feature allows an iPod  or external USB device to be
plugged into the USB port, located in the center console.
iPod  control supports Mini, 4G, Photo, Nano, 5G iPod
and iPhone  devices. Some iPod  software versions may
not fully support the iPod  control features. Please visit
Apple’s website for software updates. NOTE:
• If the radio has a USB port, refer to the appropriate
Uconnect™ Multimedia radio User ’s Manual for
iPod  or external USB device support capability.
• Connecting an iPod  or consumer electronic audio
device to the AUX port located in the radio faceplate,
plays media, but does not use the iPod  /MP3 control
feature to control the connected device.
Connecting The iPod  Or External USB Device
Use the connection cable to connect an iPod  or external
USB device to the vehicle’s USB/AUX connector port
which is located in the center console.382 UNDERSTANDING YOUR INSTRUMENT PANEL

Once the audio device is connected and synchronized to
the vehicle’s iPod  /USB/MP3 control system (iPod  or
external USB device may take a few minutes to connect),
the audio device starts charging and is ready for use by
pressing radio switches, as described below. NOTE: If the audio device battery is completely dis-
charged, it may not communicate with the iPod  /USB/
MP3 control system until a minimum charge is attained.
Leaving the audio device connected to the iPod  /USB/
MP3 control system may charge it to the required level.
Using This Feature
By using iPod cable or external USB device to connect to
USB port:
• The audio device can be played on the vehicle’s sound
system, providing metadata (artist, track title, album,
etc.) information on the radio display.
• The audio device can be controlled using the radio
buttons to Play, Browse, and List the iPod  contents.
• The audio device battery charges when plugged into
the USB/AUX connector (if supported by the specific
audio device)Center Console USB/AUX Connector Port
4 UNDERSTANDING YOUR INSTRUMENT PANEL 383

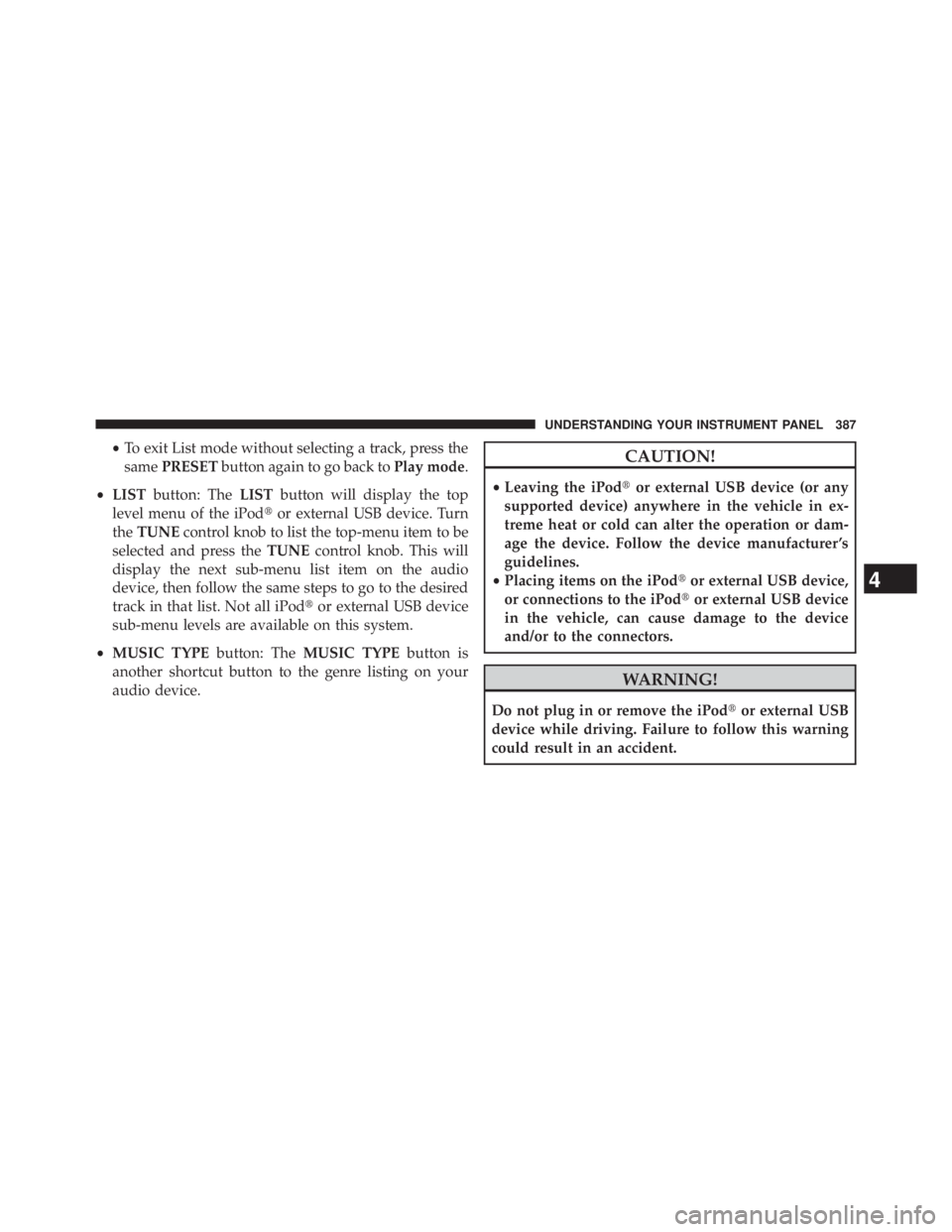

• To exit List mode without selecting a track, press the
same PRESET button again to go back to Play mode .
• LIST button: The LIST button will display the top
level menu of the iPod  or external USB device. Turn
the TUNE control knob to list the top-menu item to be
selected and press the TUNE control knob. This will
display the next sub-menu list item on the audio
device, then follow the same steps to go to the desired
track in that list. Not all iPod  or external USB device
sub-menu levels are available on this system.
• MUSIC TYPE button: The MUSIC TYPE button is
another shortcut button to the genre listing on your
audio device. CAUTION!• Leaving the iPod  or external USB device (or any
supported device) anywhere in the vehicle in ex-
treme heat or cold can alter the operation or dam-
age the device. Follow the device manufacturer ’s
guidelines.
• Placing items on the iPod  or external USB device,
or connections to the iPod  or external USB device
in the vehicle, can cause damage to the device
and/or to the connectors.
WARNING!Do not plug in or remove the iPod  or external USB
device while driving. Failure to follow this warning
could result in an accident.
