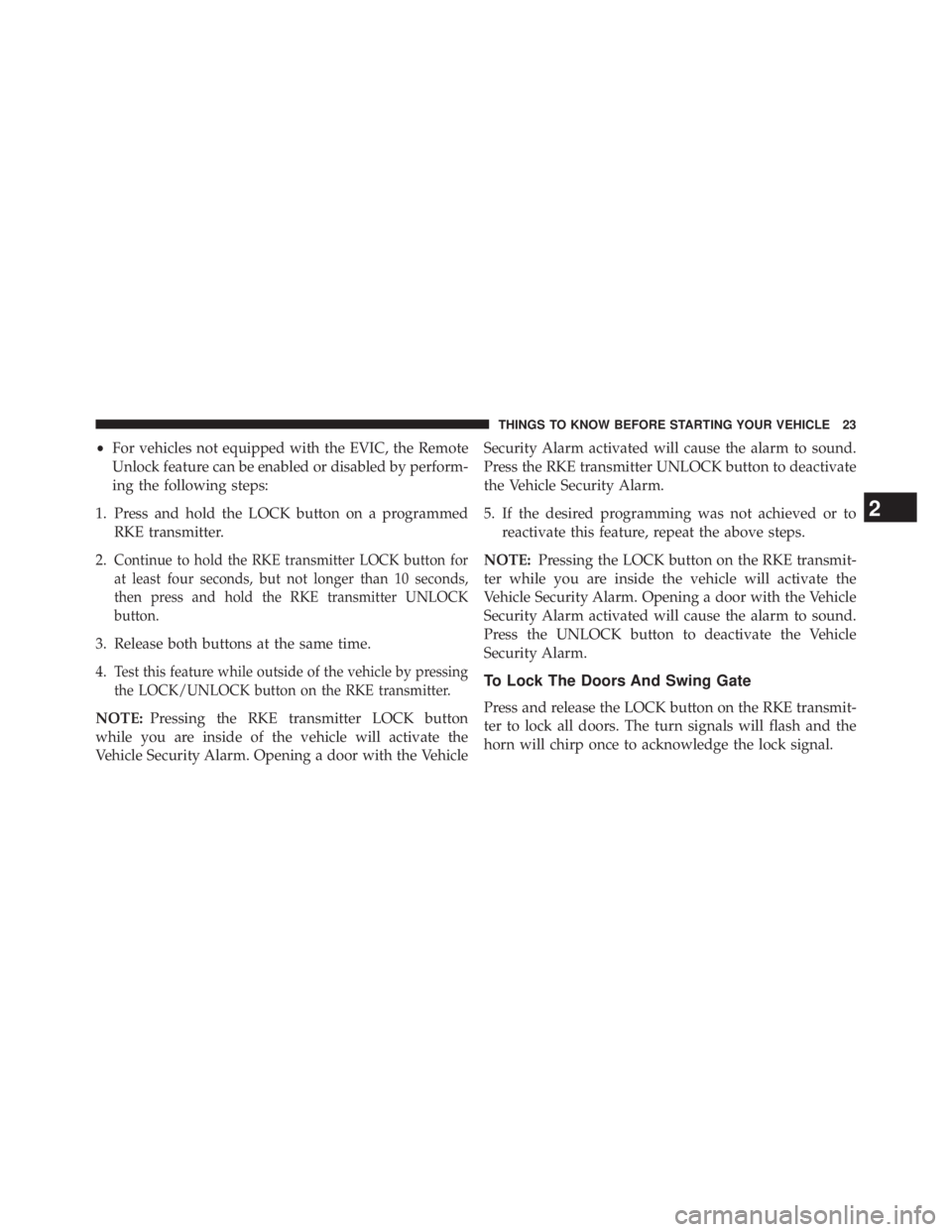

• For vehicles not equipped with the EVIC, the Remote
Unlock feature can be enabled or disabled by perform-
ing the following steps:
1. Press and hold the LOCK button on a programmed
RKE transmitter.
2. Continue to hold the RKE transmitter LOCK button for
at least four seconds, but not longer than 10 seconds,
then press and hold the RKE transmitter UNLOCK
button.
3. Release both buttons at the same time.
4. Test this feature while outside of the vehicle by pressing
the LOCK/UNLOCK button on the RKE transmitter.
NOTE: Pressing the RKE transmitter LOCK button
while you are inside of the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound.
Press the RKE transmitter UNLOCK button to deactivate
the Vehicle Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
NOTE: Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.
To Lock The Doors And Swing Gate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signals will flash and the
horn will chirp once to acknowledge the lock signal. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

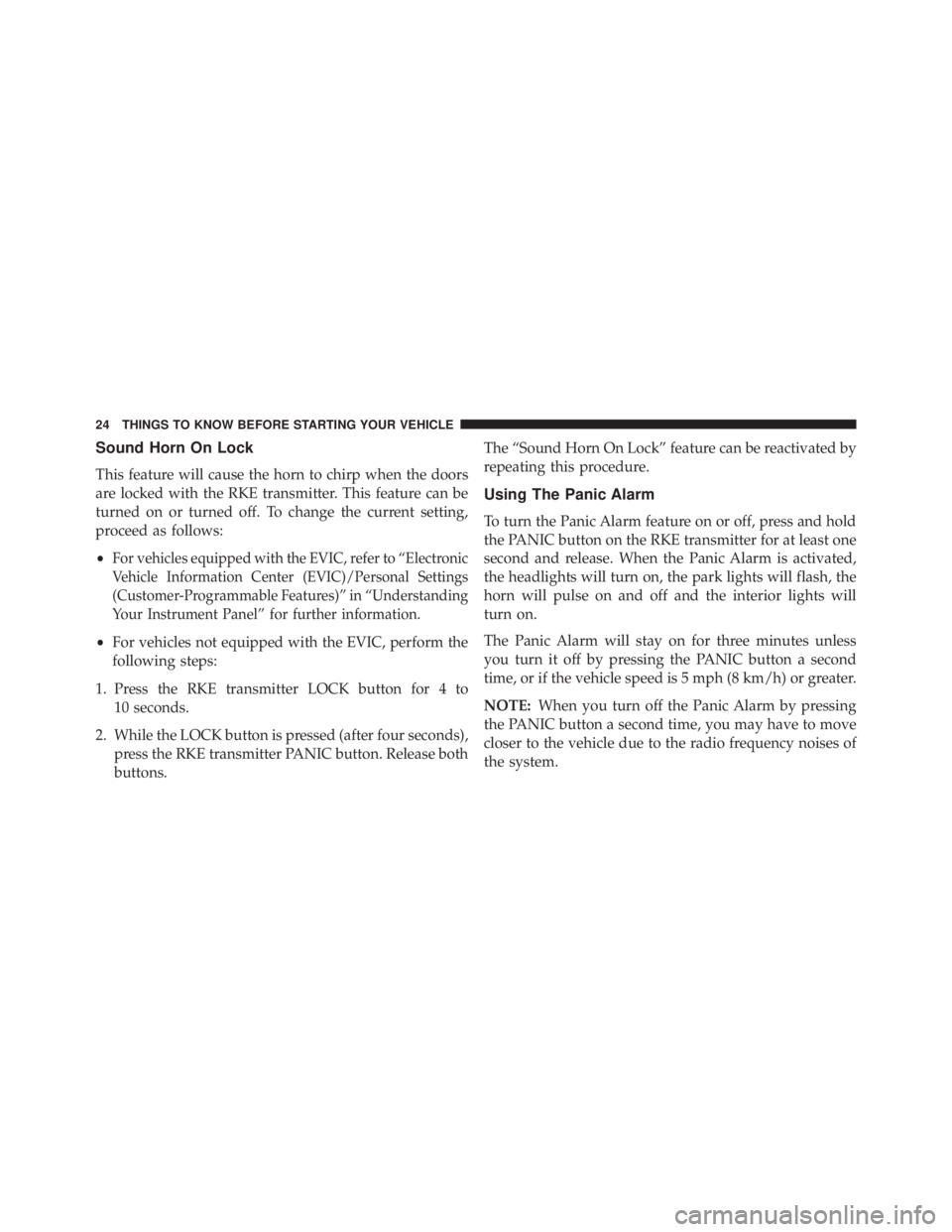

Sound Horn On Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
• For vehicles equipped with the EVIC, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
• For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the RKE transmitter LOCK button for 4 to
10 seconds.
2. While the LOCK button is pressed (after four seconds),
press the RKE transmitter PANIC button. Release both
buttons. The “Sound Horn On Lock” feature can be reactivated by
repeating this procedure.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is activated,
the headlights will turn on, the park lights will flash, the
horn will pulse on and off and the interior lights will
turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time, or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE: When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to move
closer to the vehicle due to the radio frequency noises of
the system.24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

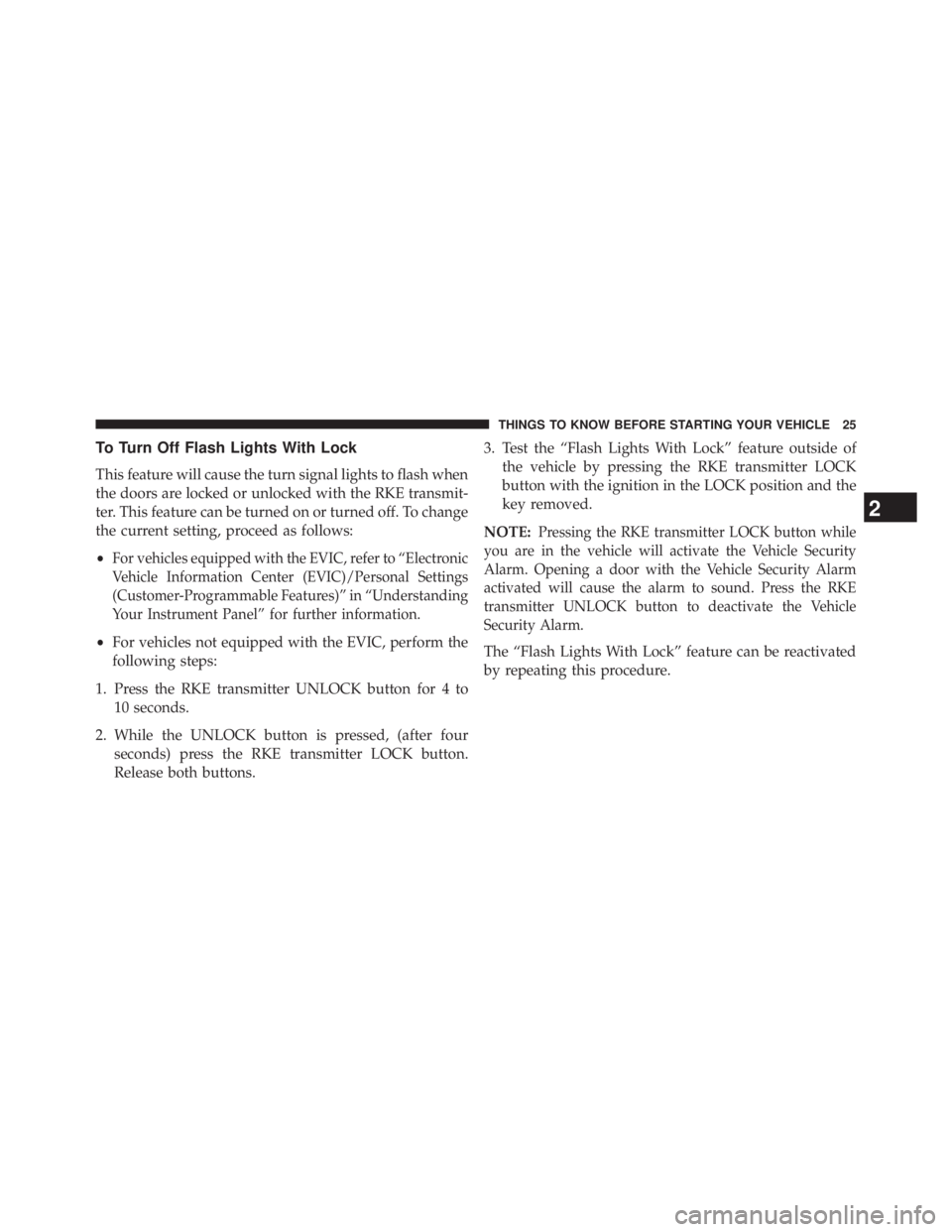

To Turn Off Flash Lights With Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
• For vehicles equipped with the EVIC, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understanding
Your Instrument Panel” for further information.
• For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the RKE transmitter UNLOCK button for 4 to
10 seconds.
2. While the UNLOCK button is pressed, (after four
seconds) press the RKE transmitter LOCK button.
Release both buttons. 3. Test the “Flash Lights With Lock” feature outside of
the vehicle by pressing the RKE transmitter LOCK
button with the ignition in the LOCK position and the
key removed.
NOTE: Pressing the RKE transmitter LOCK button while
you are in the vehicle will activate the Vehicle Security
Alarm. Opening a door with the Vehicle Security Alarm
activated will cause the alarm to sound. Press the RKE
transmitter UNLOCK button to deactivate the Vehicle
Security Alarm.
The “Flash Lights With Lock” feature can be reactivated
by repeating this procedure.
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

Transmitter Battery Replacement
The recommended replacement battery is CR2032.
NOTE: Perchlorate Material – special handling may ap-
ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. With the RKE transmitter buttons facing down, use a
flat blade screwdriver to pry the two halves of the RKE
transmitter apart. Use extreme care not to damage the
seal or internal components.
2. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it
with rubbing alcohol.
3. To reassemble the RKE transmitter case, snap the two
halves together. Separating RKE Transmitter Halves
2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

Uconnect™ Phone Button
The radio or steering wheel controls (if
equipped) will contain the two control buttons
(Uconnect™ Phone button and Voice
Command button) that will enable you to
access the system. When you press the button you will
hear the word Uconnect™ followed by a BEEP. The beep
is your signal to give a command.
NOTE: The driver side upper windshield trim contains
the microphone for the Uconnect™ Phone.
Voice Command Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section. The Uconnect™ Phone can be used with any Hands-Free
Profile certified Bluetooth  mobile phone. See the
Uconnect™ website for supported phones. Refer to your
mobile service provider or the phone manufacturer for
details.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the Uconnect™ Phone such as “CELL” or caller ID on
certain radios.116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING! (Continued)the driver to lose control of the vehicle. Be sure the
steering column is locked before driving your ve-
hicle. Failure to follow this warning may result in
serious injury or death.
ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, the Electronic Speed Control takes over
accelerator operations at speeds greater than 25 mph
(40 km/h).
The Electronic Speed Control buttons are located on the
right side of the steering wheel. Electronic Speed Control Buttons1 — ON/OFF 2 — RES +
4 — CANCEL 3 — SET -178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

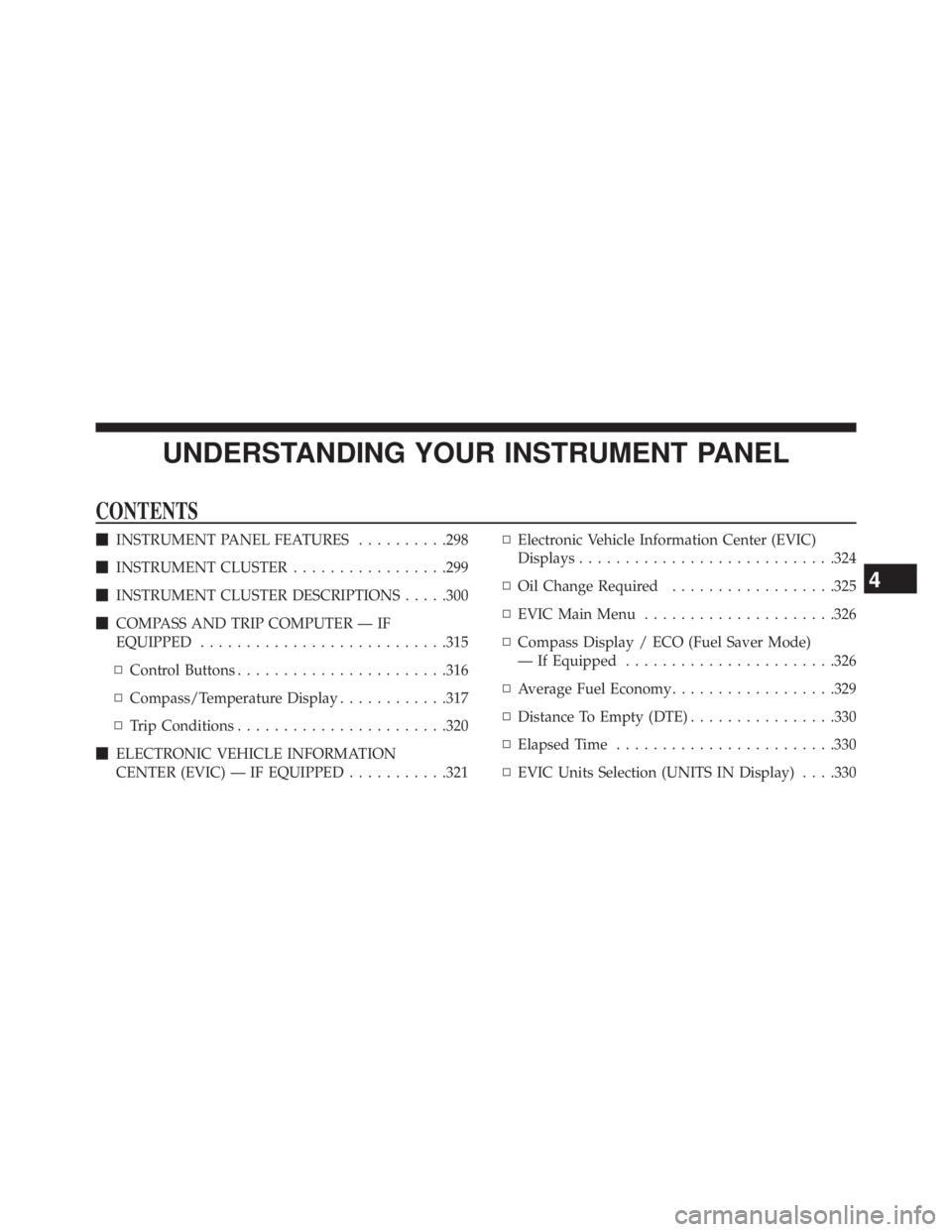

UNDERSTANDING YOUR INSTRUMENT PANELCONTENTS  INSTRUMENT PANEL FEATURES ......... .298
 INSTRUMENT CLUSTER ................ .299
 INSTRUMENT CLUSTER DESCRIPTIONS .... .300
 COMPASS AND TRIP COMPUTER — IF
EQUIPPED .......................... .315
▫ Control Buttons ...................... .316
▫ Compass/Temperature Display ........... .317
▫ Trip Conditions ...................... .320
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) — IF EQUIPPED .......... .321 ▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... .324
▫ Oil Change Required ................. .325
▫ EVIC Main Menu .................... .326
▫ Compass Display / ECO (Fuel Saver Mode)
— If Equipped ...................... .326
▫ Average Fuel Economy ................. .329
▫ Distance To Empty (DTE) ............... .330
▫ Elapsed Time ....................... .330
▫ EVIC Units Selection (UNITS IN Display) . . . .330 4

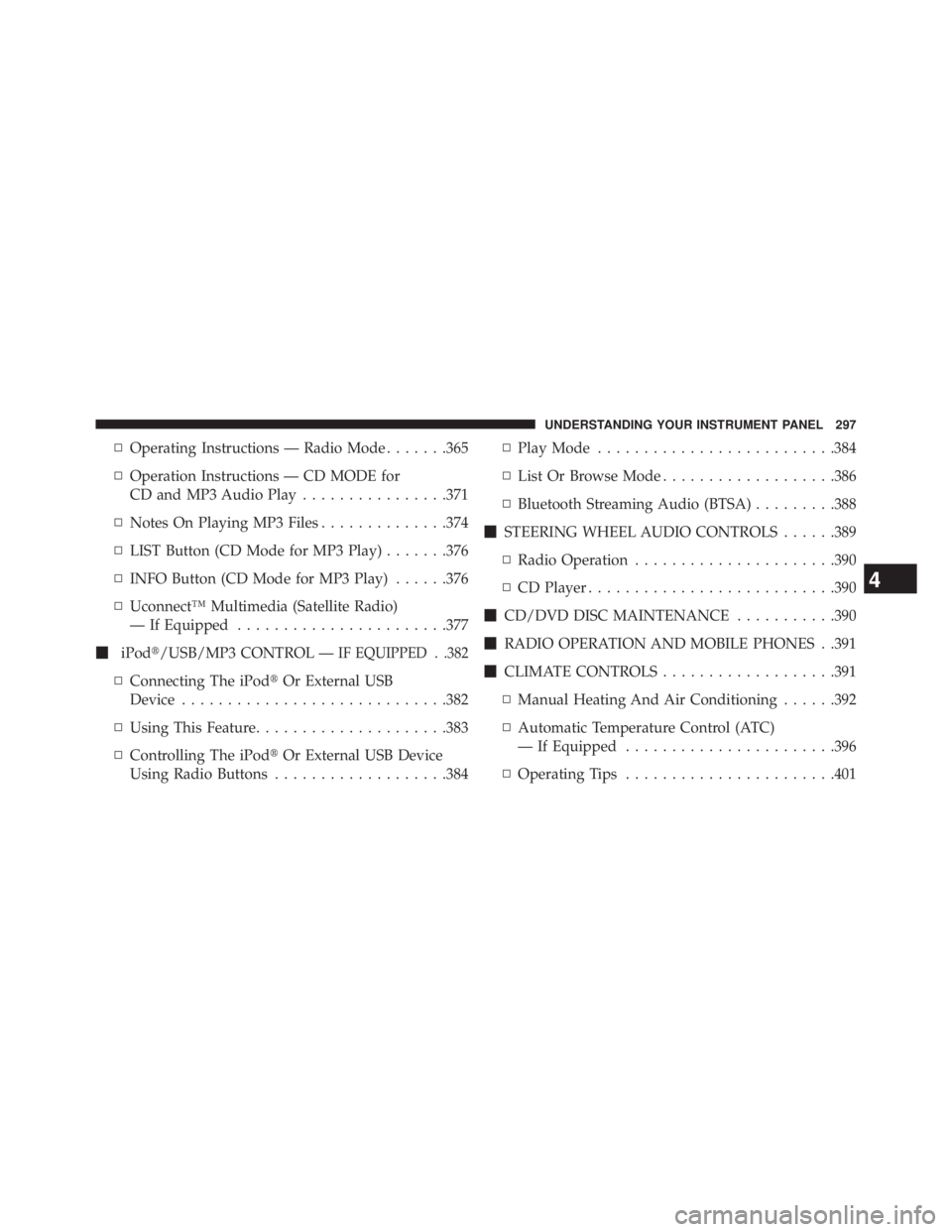

▫ Operating Instructions — Radio Mode ...... .365
▫ Operation Instructions — CD MODE for
CD and MP3 Audio Play ............... .371
▫ Notes On Playing MP3 Files ............. .374
▫ LIST Button (CD Mode for MP3 Play) ...... .376
▫ INFO Button (CD Mode for MP3 Play) ..... .376
▫ Uconnect™ Multimedia (Satellite Radio)
— If Equipped ...................... .377
 iPod  /USB/MP3 CONTROL — IF EQUIPPED . .382
▫ Connecting The iPod  Or External USB
Device ............................ .382
▫ Using This Feature .................... .383
▫ Controlling The iPod  Or External USB Device
Using Radio Buttons .................. .384 ▫ Play Mode ......................... .384
▫ List Or Browse Mode .................. .386
▫ Bluetooth Streaming Audio (BTSA) ........ .388
 STEERING WHEEL AUDIO CONTROLS ..... .389
▫ Radio Operation ..................... .390
▫ CD Player .......................... .390
 CD/DVD DISC MAINTENANCE .......... .390
 RADIO OPERATION AND MOBILE PHONES . .391
 CLIMATE CONTROLS .................. .391
▫ Manual Heating And Air Conditioning ..... .392
▫ Automatic Temperature Control (ATC)
— If Equipped ...................... .396
▫ Operating Tips ...................... .4014 UNDERSTANDING YOUR INSTRUMENT PANEL 297

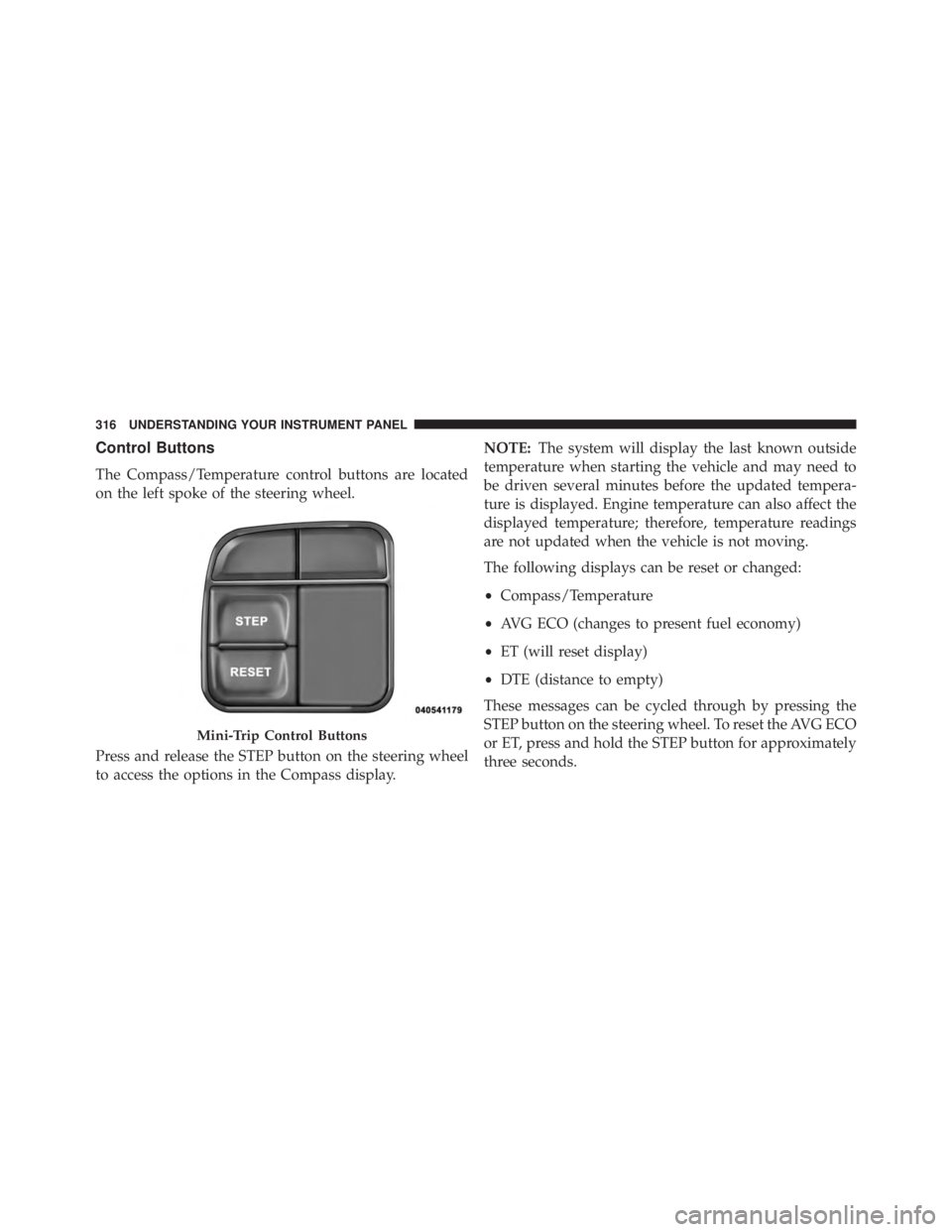

Control Buttons
The Compass/Temperature control buttons are located
on the left spoke of the steering wheel.
Press and release the STEP button on the steering wheel
to access the options in the Compass display. NOTE: The system will display the last known outside
temperature when starting the vehicle and may need to
be driven several minutes before the updated tempera-
ture is displayed. Engine temperature can also affect the
displayed temperature; therefore, temperature readings
are not updated when the vehicle is not moving.
The following displays can be reset or changed:
• Compass/Temperature
• AVG ECO (changes to present fuel economy)
• ET (will reset display)
• DTE (distance to empty)
These messages can be cycled through by pressing the
STEP button on the steering wheel. To reset the AVG ECO
or ET, press and hold the STEP button for approximately
three seconds.Mini-Trip Control Buttons316 UNDERSTANDING YOUR INSTRUMENT PANEL

This system conveniently allows the driver to select a
variety of useful information by pressing the switches
mounted on the steering wheel. The EVIC consists of the
following:
• Compass Heading (N, S, E, W, NE, NW, SE, SW)
• Outside Temperature (°F or °C)
• ECO Display
• Fuel Economy
• Miles/kilometers To Empty
• Timer
• Display Units Selection
• System Warnings (Door Ajar, etc.)
• Personal Settings (Customer-Programmable Features) The system allows the driver to select information by
pressing the following buttons mounted on the steering
wheel:
EVIC Steering Wheel Buttons322 UNDERSTANDING YOUR INSTRUMENT PANEL
