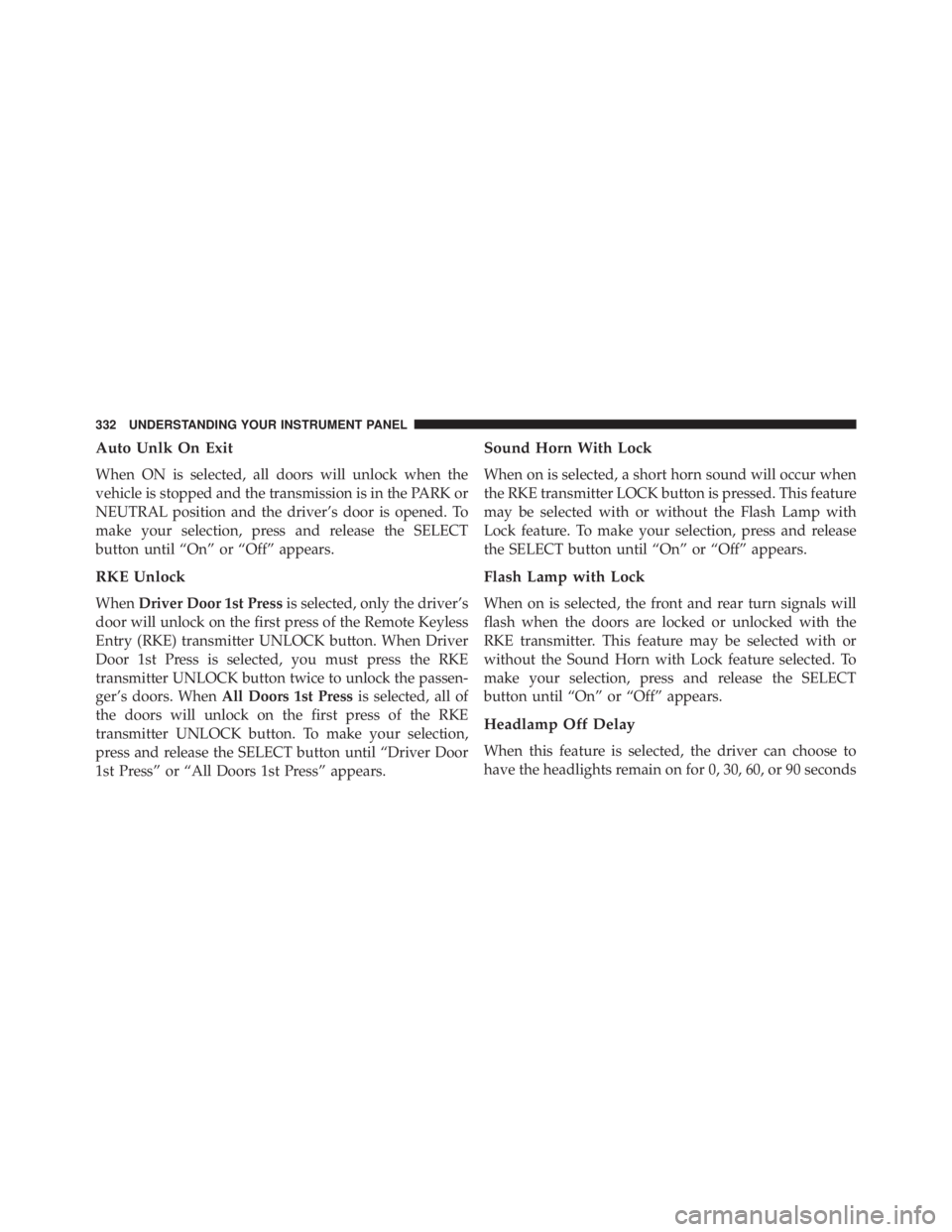

Page 334 of 655

Auto Unlk On Exit
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the SELECT
button until “On” or “Off” appears.
RKE Unlock
When Driver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice to unlock the passen-
ger’s doors. When All Doors 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the SELECT button until “Driver Door
1st Press” or “All Doors 1st Press” appears. Sound Horn With Lock
When on is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lamp with
Lock feature. To make your selection, press and release
the SELECT button until “On” or “Off” appears.
Flash Lamp with Lock
When on is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the Sound Horn with Lock feature selected. To
make your selection, press and release the SELECT
button until “On” or “Off” appears.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds332 UNDERSTANDING YOUR INSTRUMENT PANEL

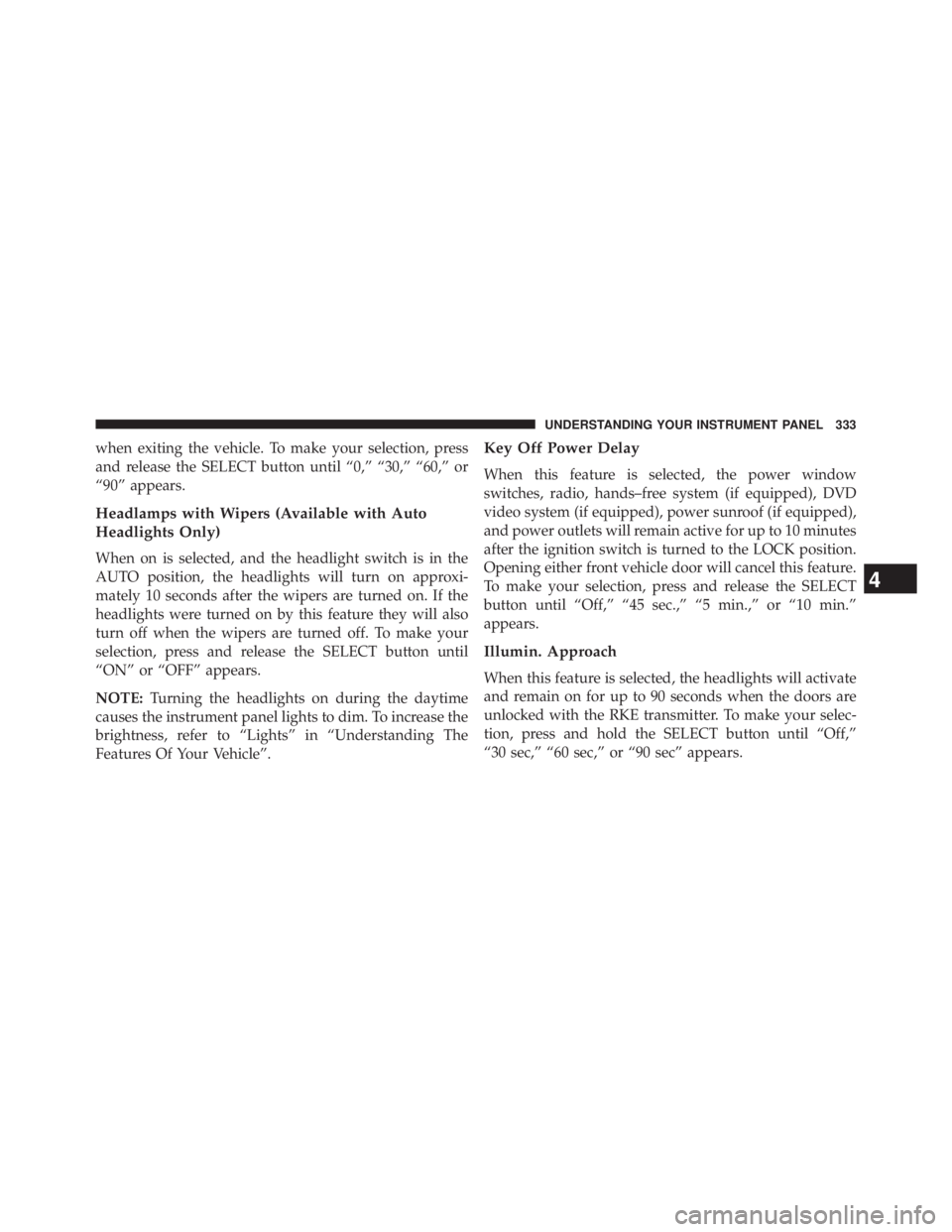

Page 335 of 655

when exiting the vehicle. To make your selection, press
and release the SELECT button until “0,” “30,” “60,” or
“90” appears.
Headlamps with Wipers (Available with Auto
Headlights Only)
When on is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. If the
headlights were turned on by this feature they will also
turn off when the wipers are turned off. To make your
selection, press and release the SELECT button until
“ON” or “OFF” appears.
NOTE: Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle”. Key Off Power Delay
When this feature is selected, the power window
switches, radio, hands–free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK position.
Opening either front vehicle door will cancel this feature.
To make your selection, press and release the SELECT
button until “Off,” “45 sec.,” “5 min.,” or “10 min.”
appears.
Illumin. Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, press and hold the SELECT button until “Off,”
“30 sec,” “60 sec,” or “90 sec” appears.
4 UNDERSTANDING YOUR INSTRUMENT PANEL 333

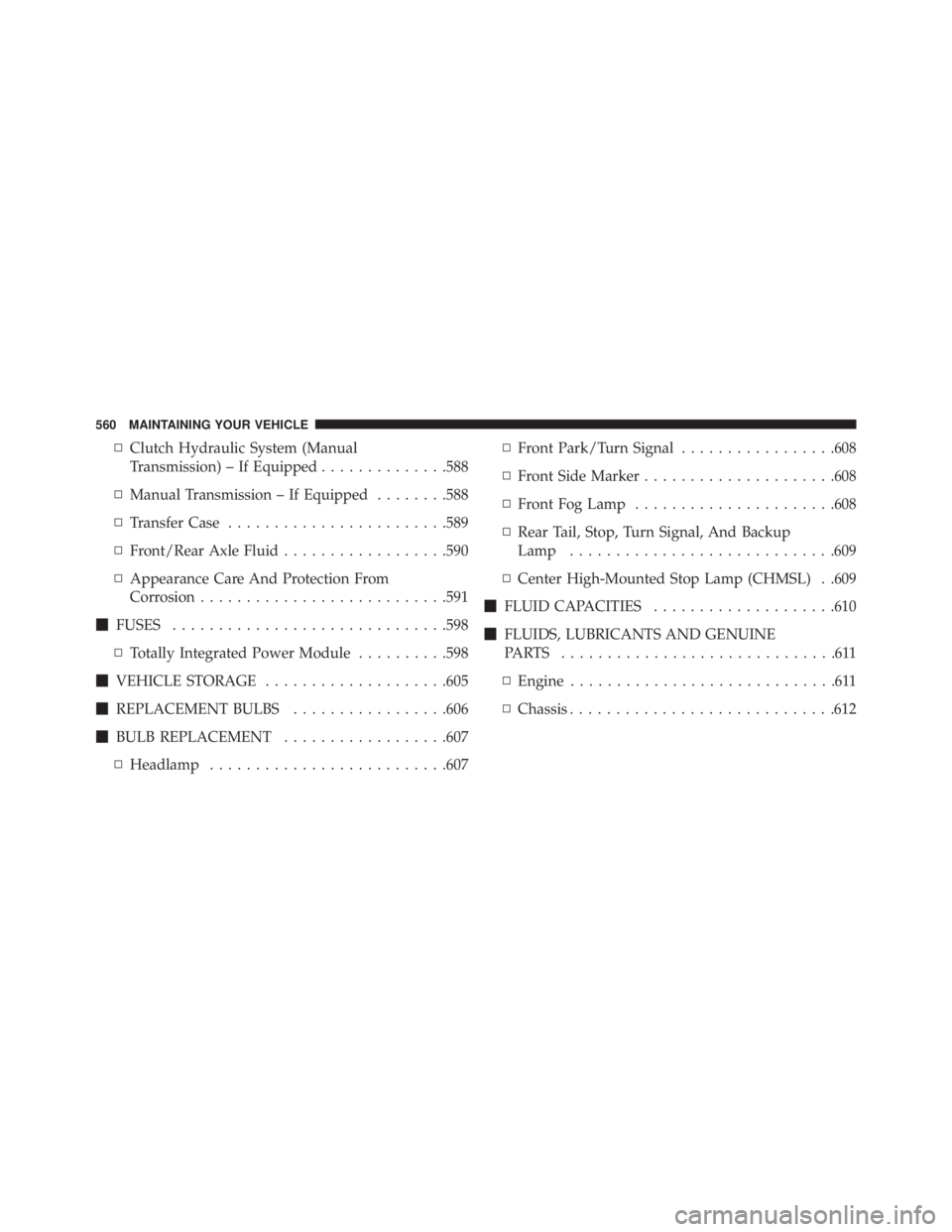

Page 562 of 655

â–« Clutch Hydraulic System (Manual
Transmission) – If Equipped ............. .588
▫ Manual Transmission – If Equipped ....... .588
â–« Transfer Case ....................... .589
â–« Front/Rear Axle Fluid ................. .590
â–« Appearance Care And Protection From
Corrosion .......................... .591
FUSES ............................. .598
â–« Totally Integrated Power Module ......... .598
VEHICLE STORAGE ................... .605
REPLACEMENT BULBS ................ .606
BULB REPLACEMENT ................. .607
â–« Headlamp ......................... .607 â–« Front Park/Turn Signal ................ .608
â–« Front Side Marker .................... .608
â–« Front Fog Lamp ..................... .608
â–« Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................ .609
â–« Center High-Mounted Stop Lamp (CHMSL) . .609
FLUID CAPACITIES ................... .610
FLUIDS, LUBRICANTS AND GENUINE
PARTS ..............................611
â–« Engine .............................611
â–« Chassis ............................ .612560 MAINTAINING YOUR VEHICLE

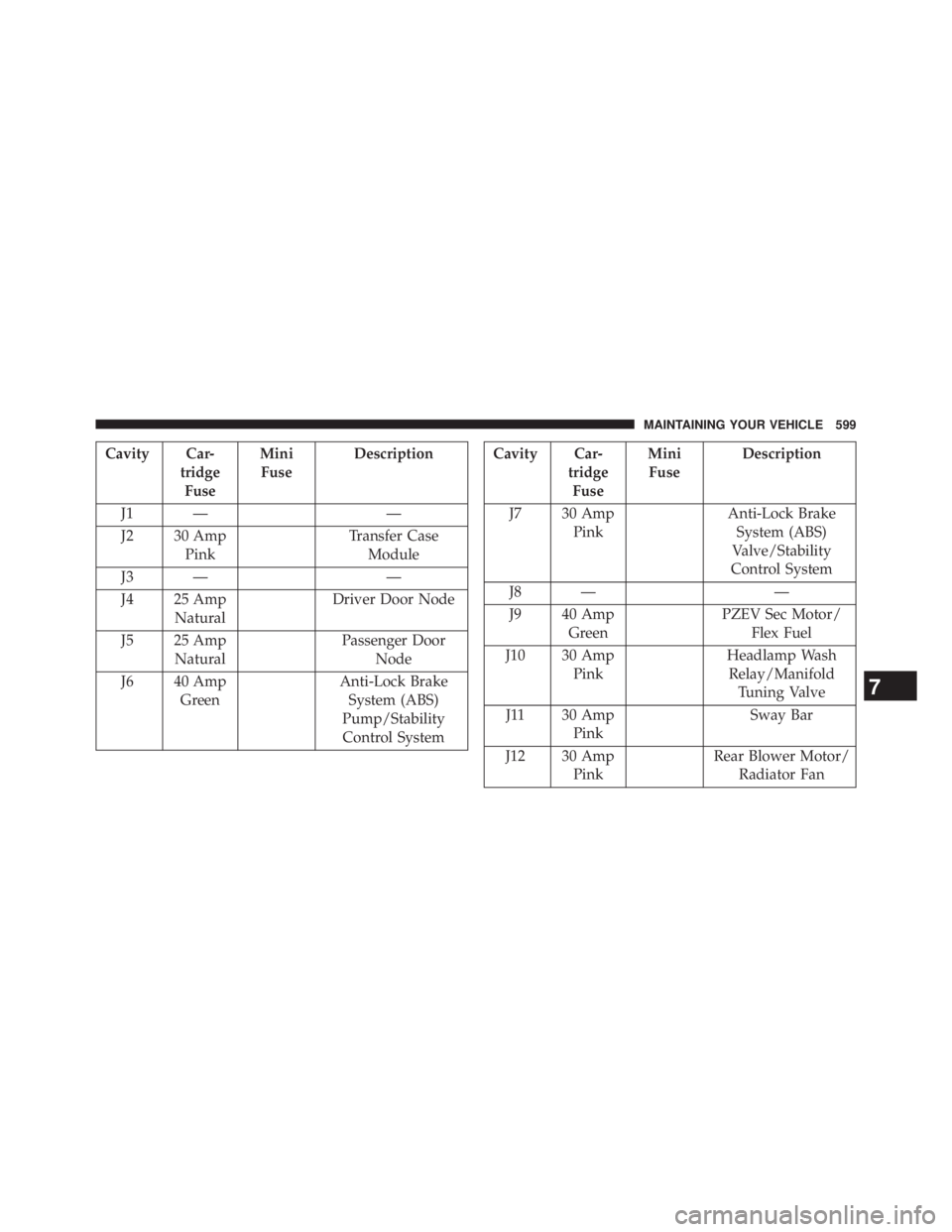

Page 601 of 655

Cavity Car-
tridge
Fuse Mini
Fuse Description
J1 — —
J2 30 Amp
Pink Transfer Case
Module
J3 — —
J4 25 Amp
Natural Driver Door Node
J5 25 Amp
Natural Passenger Door
Node
J6 40 Amp
Green Anti-Lock Brake
System (ABS)
Pump/Stability
Control System Cavity Car-
tridge
Fuse Mini
Fuse Description
J7 30 Amp
Pink Anti-Lock Brake
System (ABS)
Valve/Stability
Control System
J8 — —
J9 40 Amp
Green PZEV Sec Motor/
Flex Fuel
J10 30 Amp
Pink Headlamp Wash
Relay/Manifold
Tuning Valve
J11 30 Amp
Pink Sway Bar
J12 30 Amp
Pink Rear Blower Motor/
Radiator Fan
7 MAINTAINING YOUR VEHICLE 599

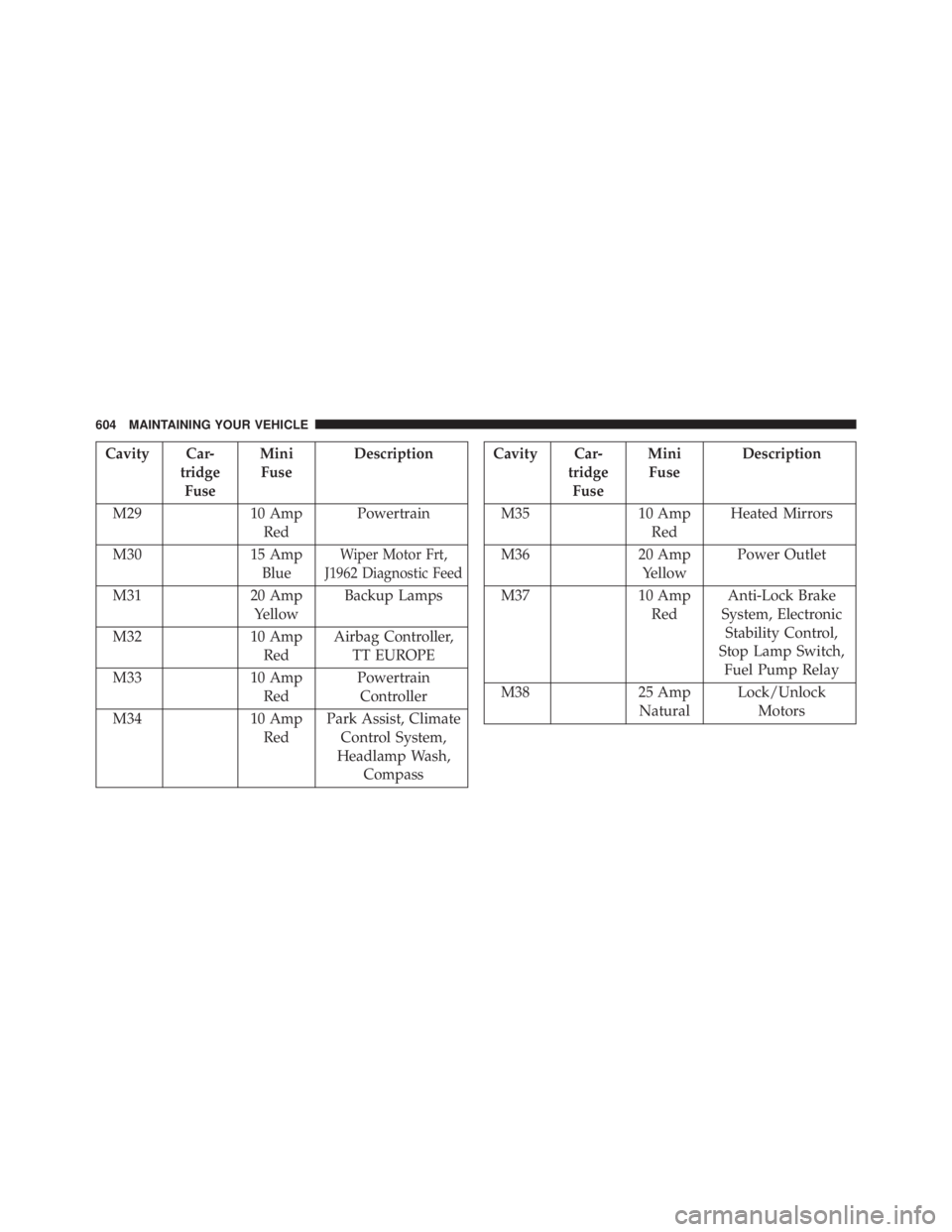

Page 606 of 655

Cavity Car-
tridge
Fuse Mini
Fuse Description
M29 10 Amp
Red Powertrain
M30 15 Amp
Blue Wiper Motor Frt,
J1962 Diagnostic Feed
M31 20 Amp
Yellow Backup Lamps
M32 10 Amp
Red Airbag Controller,
TT EUROPE
M33 10 Amp
Red Powertrain
Controller
M34 10 Amp
Red Park Assist, Climate
Control System,
Headlamp Wash,
Compass Cavity Car-
tridge
Fuse Mini
Fuse Description
M35 10 Amp
Red Heated Mirrors
M36 20 Amp
Yellow Power Outlet
M37 10 Amp
Red Anti-Lock Brake
System, Electronic
Stability Control,
Stop Lamp Switch,
Fuel Pump Relay
M38 25 Amp
Natural Lock/Unlock
Motors604 MAINTAINING YOUR VEHICLE

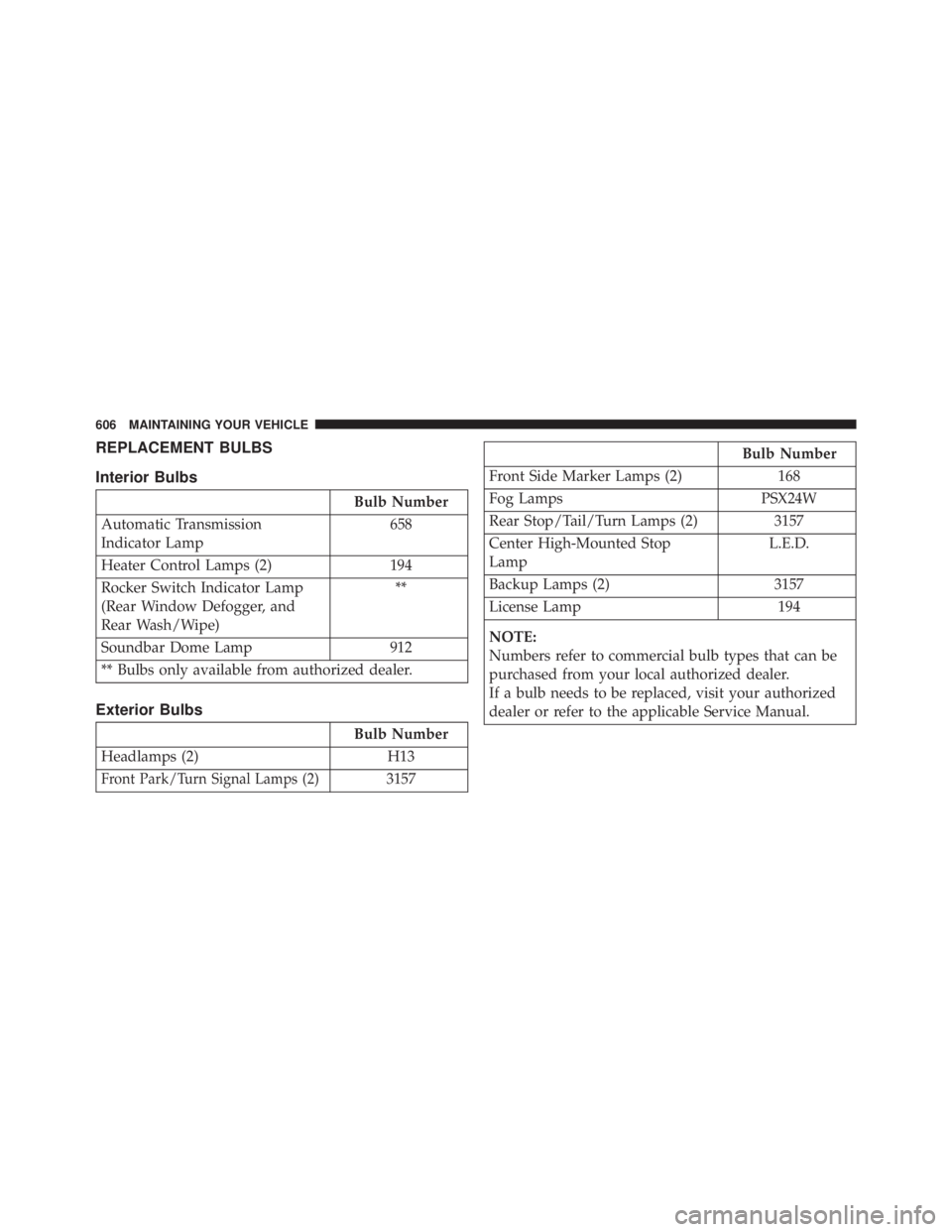

Page 608 of 655

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Automatic Transmission
Indicator Lamp 658
Heater Control Lamps (2) 194
Rocker Switch Indicator Lamp
(Rear Window Defogger, and
Rear Wash/Wipe) **
Soundbar Dome Lamp 912
** Bulbs only available from authorized dealer.
Exterior Bulbs
Bulb Number
Headlamps (2) H13
Front Park/Turn Signal Lamps (2) 3157 Bulb Number
Front Side Marker Lamps (2) 168
Fog Lamps PSX24W
Rear Stop/Tail/Turn Lamps (2) 3157
Center High-Mounted Stop
Lamp L.E.D.
Backup Lamps (2) 3157
License Lamp 194
NOTE:
Numbers refer to commercial bulb types that can be
purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.606 MAINTAINING YOUR VEHICLE

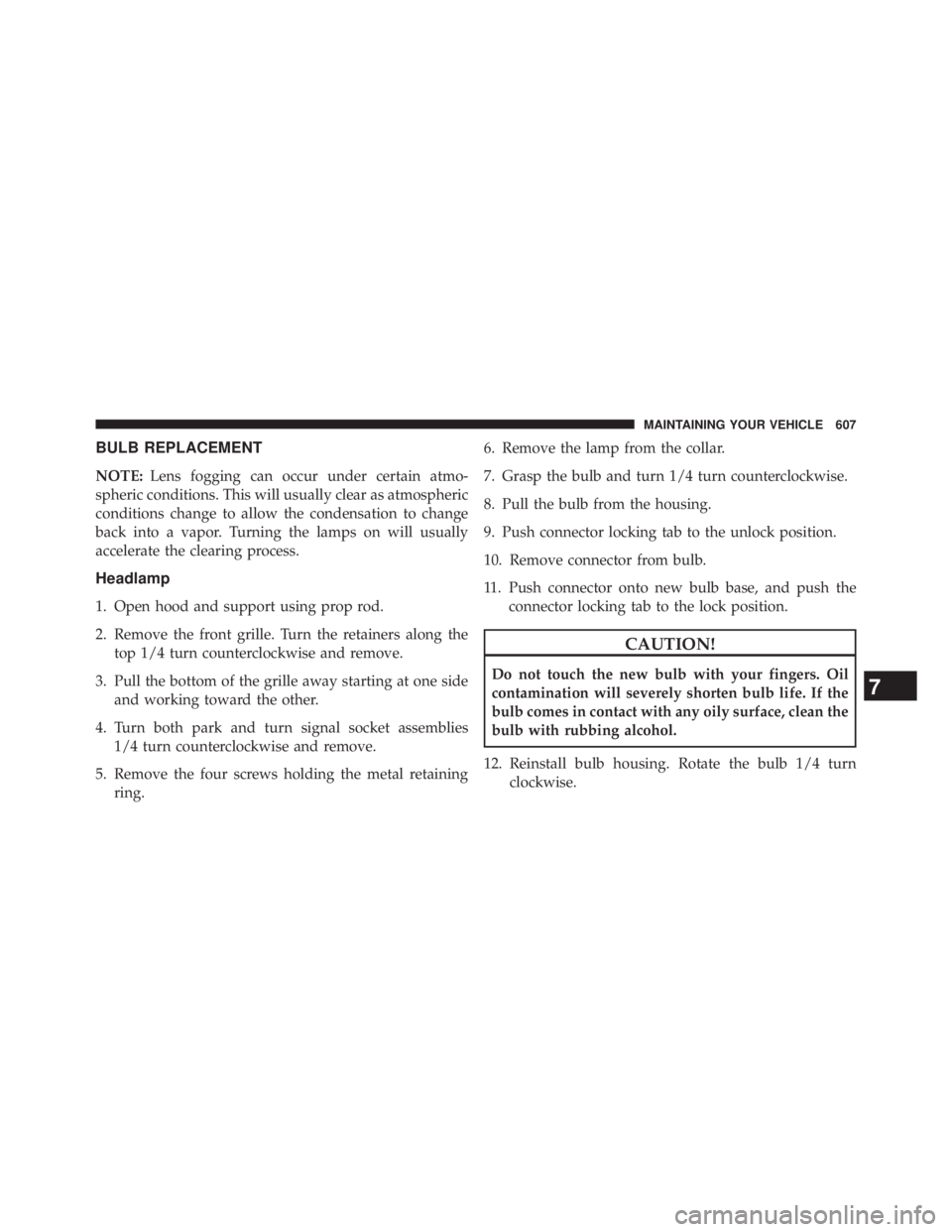

Page 609 of 655

BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
4. Turn both park and turn signal socket assemblies
1/4 turn counterclockwise and remove.
5. Remove the four screws holding the metal retaining
ring. 6. Remove the lamp from the collar.
7. Grasp the bulb and turn 1/4 turn counterclockwise.
8. Pull the bulb from the housing.
9. Push connector locking tab to the unlock position.
10. Remove connector from bulb.
11. Push connector onto new bulb base, and push the
connector locking tab to the lock position.
CAUTION!Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
12. Reinstall bulb housing. Rotate the bulb 1/4 turn
clockwise.
7 MAINTAINING YOUR VEHICLE 607
