Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
sounds a signal to remind you to remove the key.
NOTE: The Key-In-Ignition reminder only sounds when
the ignition key is placed in the LOCK or ACC position.
SENTRY KEY
The Sentry Key  Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized ve-
hicle operation. Therefore, only keys that are programmed
to the vehicle can be used to start and operate the vehicle.
The system will shut the engine off in two seconds if
someone uses an invalid key to try to start the engine. NOTE: A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CAUTION!The Sentry Key  Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key  is programmed to a vehicle, it cannot
be programmed to any other vehicle. CAUTION!Always remove the Sentry Keys  from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE: When having the Sentry Key  Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer. 2 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

Heated Seats ............................ .159
Heater ................................ .392
Heater, Engine Block ...................... .413
High Beam Indicator ...................... .301
Hill Descent Control ...................... .470
Hill Descent Control Indicator ............... .470
Hill Start Assist .......................... .458
Hitches
Trailer Towing ........................ .518
Hood Release ........................... .166
Ignition .................................14
Key .................................14
Ignition Key Removal .......................14
Illuminated Entry ..........................21
Immobilizer (Sentry Key) ....................16
Infant Restraint ...........................76
Inflation Pressure Tires .................... .483
Information Center, Vehicle ................. .321 Inside Rearview Mirror .....................111
Instrument Cluster ....................... .299
Instrument Panel and Controls ............... .298
Instrument Panel Lens Cleaning .............. .595
Integrated Power Module (Fuses) ............. .598
Interior Appearance Care ................... .594
Interior Lights .......................... .171
Intermittent Wipers (Delay Wipers) ............ .174
Introduction ..............................4
Inverter, Power .......................... .186
Jacking Instructions ....................... .543
Jack Location ........................... .541
Jack Operation .......................... .540
Jump Starting ........................... .548
Key-In Reminder ..........................16
Keyless Entry System .......................22
Key, Programming .........................18
10 INDEX 641

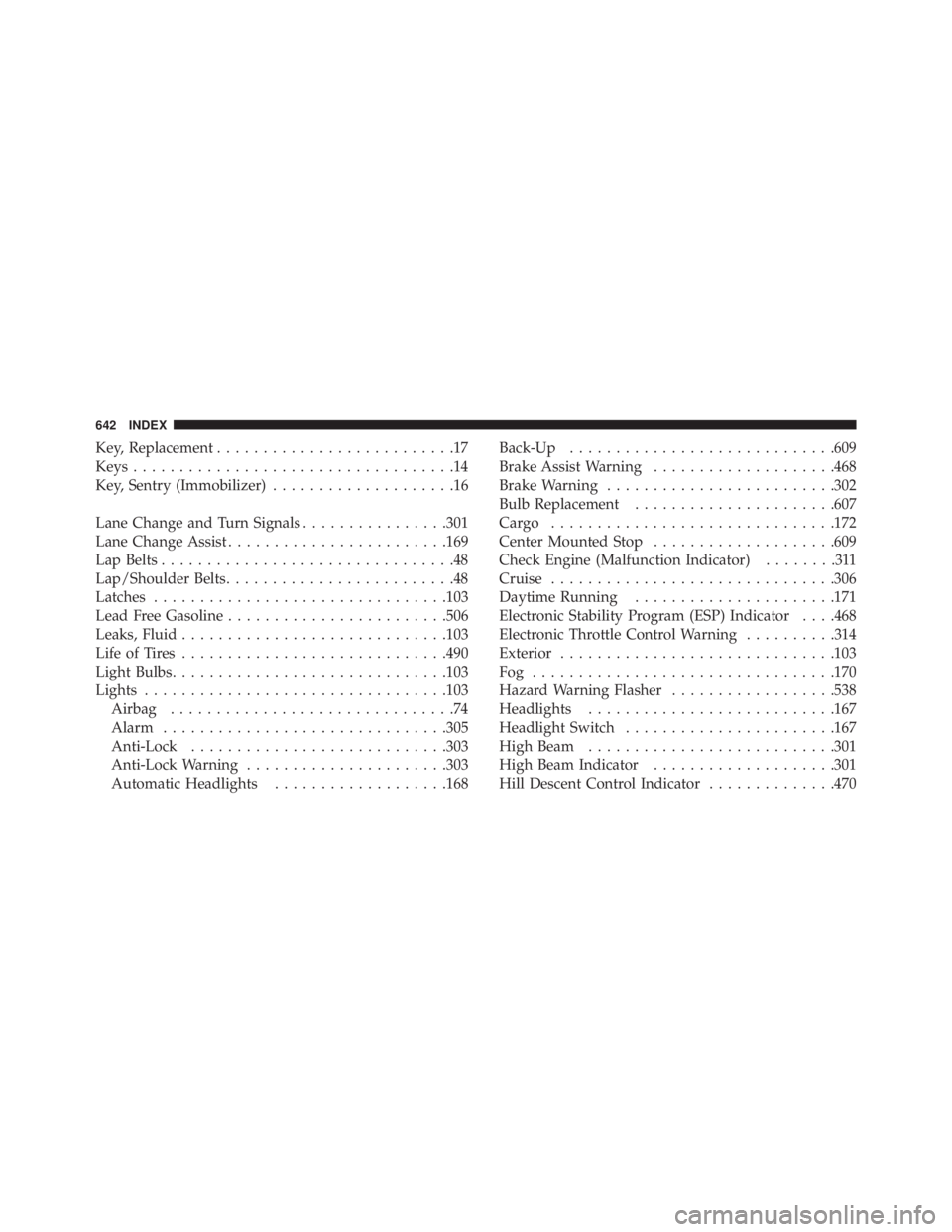

Key, Replacement ..........................17
Keys ...................................14
Key, Sentry (Immobilizer) ....................16
Lane Change and Turn Signals ............... .301
Lane Change Assist ....................... .169
Lap Belts ................................48
Lap/Shoulder Belts .........................48
Latches ............................... .103
Lead Free Gasoline ....................... .506
Leaks, Fluid ............................ .103
Life of Tires ............................ .490
Light Bulbs ............................. .103
Lights ................................ .103
Airbag ...............................74
Alarm .............................. .305
Anti-Lock ........................... .303
Anti-Lock Warning ..................... .303
Automatic Headlights .................. .168 Back-Up ............................ .609
Brake Assist Warning ................... .468
Brake Warning ........................ .302
Bulb Replacement ..................... .607
Cargo .............................. .172
Center Mounted Stop ................... .609
Check Engine (Malfunction Indicator) ........311
Cruise .............................. .306
Daytime Running ..................... .171
Electronic Stability Program (ESP) Indicator . . . .468
Electronic Throttle Control Warning ......... .314
Exterior ............................. .103
Fog ................................ .170
Hazard Warning Flasher ................. .538
Headlights .......................... .167
Headlight Switch ...................... .167
High Beam .......................... .301
High Beam Indicator ................... .301
Hill Descent Control Indicator ............. .470642 INDEX

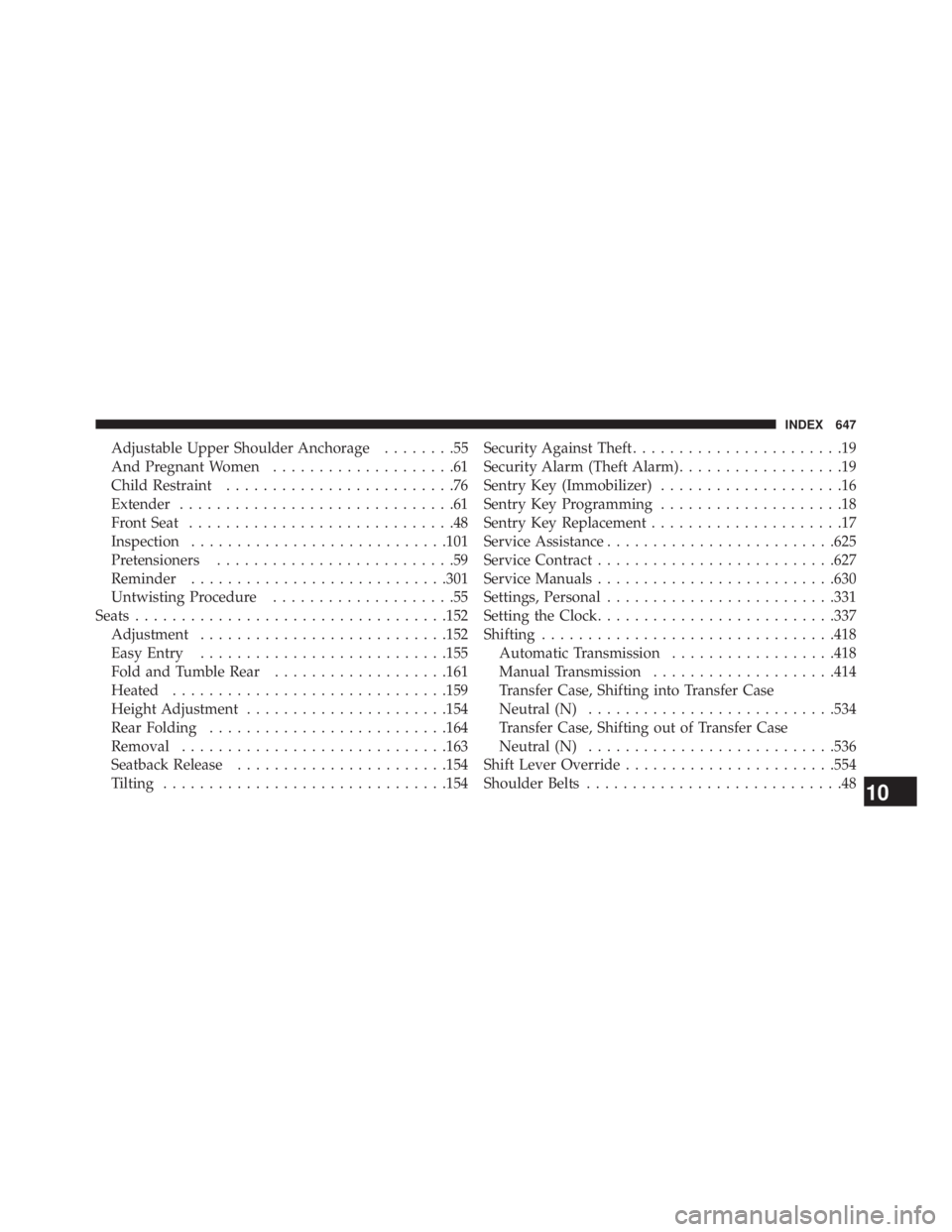

Adjustable Upper Shoulder Anchorage ........55
And Pregnant Women ....................61
Child Restraint .........................76
Extender ..............................61
Front Seat .............................48
Inspection ........................... .101
Pretensioners ..........................59
Reminder ........................... .301
Untwisting Procedure ....................55
Seats ................................. .152
Adjustment .......................... .152
Easy Entry .......................... .155
Fold and Tumble Rear .................. .161
Heated ............................. .159
Height Adjustment ..................... .154
Rear Folding ......................... .164
Removal ............................ .163
Seatback Release ...................... .154
Tilting .............................. .154 Security Against Theft .......................19
Security Alarm (Theft Alarm) ..................19
Sentry Key (Immobilizer) ....................16
Sentry Key Programming ....................18
Sentry Key Replacement .....................17
Service Assistance ........................ .625
Service Contract ......................... .627
Service Manuals ......................... .630
Settings, Personal ........................ .331
Setting the Clock ......................... .337
Shifting ............................... .418
Automatic Transmission ................. .418
Manual Transmission ................... .414
Transfer Case, Shifting into Transfer Case
Neutral (N) .......................... .534
Transfer Case, Shifting out of Transfer Case
Neutral (N) .......................... .536
Shift Lever Override ...................... .554
Shoulder Belts ............................48
10 INDEX 647
