19
NOTE:
All doors will unlock when the front
passenger door handle is grabbed regardless
of the driver’s door unlock preference setting
(“Unlock Driver Door 1st Press” or “Unlock
All Doors 1st Press”).
Preventing Inadvertent Locking Of Passive
Entry Key Fob In Vehicle (FOBIK-Safe)
To minimize the possibility of unintentionally
locking a Passive Entry key fob inside your
vehicle, the Passive Entry system is
equipped with an automatic door unlock
feature which will function only if the igni-
tion switch is in the OFF position.
FOBIK-Safe only executes in vehicles with
Passive Entry. There are three situations that
trigger a FOBIK-Safe search in any Passive
Entry vehicle:
A lock request is made by a valid Passive
Entry key fob while a door is open.
A lock request is made by the Passive
Entry door handle while a door is open.
A lock request is made by the door panel
switch while the door is open.
When any of these situations occur, after all
open doors are shut, the FOBIK-Safe search
will be executed. If it finds a Passive Entry key fob inside the car, the car will unlock and
alert the customer. If Passive Entry is
disabled using Uconnect System, the key
protection described in "Preventing Inadver
-
tent Locking of Passive Entry Key Fob in
Vehicle" remains active/functional.
NOTE:
The vehicle will only unlock the doors during
a FOBIK-Safe operation when a valid Passive
Entry key fob is detected inside the vehicle.
The vehicle will not unlock the doors when
any of the following conditions are true:
A second valid Passive Entry key fob is
detected outside of the vehicle (within 5ft
of a Passive Entry door handle).
The doors are manually locked using the
door lock knobs.
Three attempts are made to lock the doors
using the door panel switch and then close
the doors.
To Lock The Vehicle’s Doors And Swing Gate
With one of the vehicle’s Passive Entry key
fobs within 5 ft (1.5 m) of the driver or
passenger front door handles, pushing the
Passive Entry lock button will lock the
vehicle doors and the swing gate. Push The Door Handle Button To Lock
NOTE:
DO NOT grab the door handle, when pushing
the door handle lock button. This could
unlock the door(s).
DO NOT Grab The Door Handle When Locking
The vehicle doors can also be locked by
using the lock button located on the
vehicle’s interior door panel.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 19

GETTING TO KNOW YOUR VEHICLE

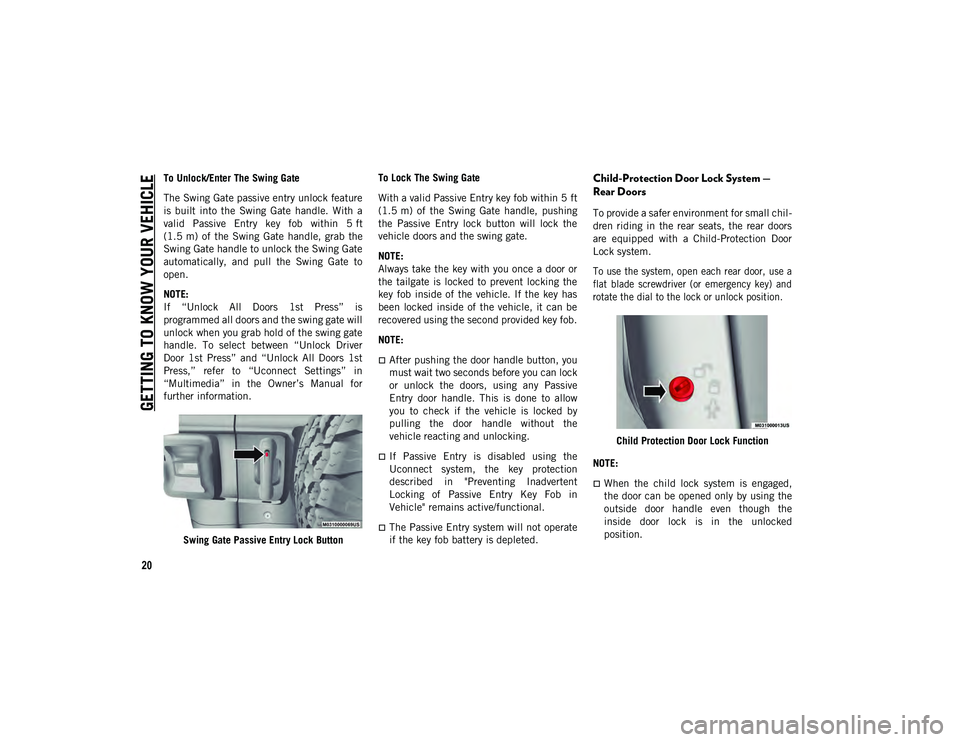

20
To Unlock/Enter The Swing Gate
The Swing Gate passive entry unlock feature
is built into the Swing Gate handle. With a
valid Passive Entry key fob within 5 ft
(1.5 m) of the Swing Gate handle, grab the
Swing Gate handle to unlock the Swing Gate
automatically, and pull the Swing Gate to
open.
NOTE:
If “Unlock All Doors 1st Press” is
programmed all doors and the swing gate will
unlock when you grab hold of the swing gate
handle. To select between “Unlock Driver
Door 1st Press” and “Unlock All Doors 1st
Press,” refer to “Uconnect Settings” in
“Multimedia” in the Owner’s Manual for
further information.Swing Gate Passive Entry Lock Button To Lock The Swing Gate
With a valid Passive Entry key fob within 5 ft
(1.5 m) of the Swing Gate handle, pushing
the Passive Entry lock button will lock the
vehicle doors and the swing gate.
NOTE:
Always take the key with you once a door or
the tailgate is locked to prevent locking the
key fob inside of the vehicle. If the key has
been locked inside of the vehicle, it can be
recovered using the second provided key fob.
NOTE:
After pushing the door handle button, you
must wait two seconds before you can lock
or unlock the doors, using any Passive
Entry door handle. This is done to allow
you to check if the vehicle is locked by
pulling the door handle without the
vehicle reacting and unlocking.
If Passive Entry is disabled using the
Uconnect system, the key protection
described in "Preventing Inadvertent
Locking of Passive Entry Key Fob in
Vehicle" remains active/functional.
The Passive Entry system will not operate
if the key fob battery is depleted.
Child-Protection Door Lock System —
Rear Doors
To provide a safer environment for small chil
-
dren riding in the rear seats, the rear doors
are equipped with a Child-Protection Door
Lock system.

To use the system, open each rear door, use a
flat blade screwdriver (or emergency key) and
rotate the dial to the lock or unlock position.

Child Protection Door Lock Function
NOTE:
When the child lock system is engaged,
the door can be opened only by using the
outside door handle even though the
inside door lock is in the unlocked
position.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 20

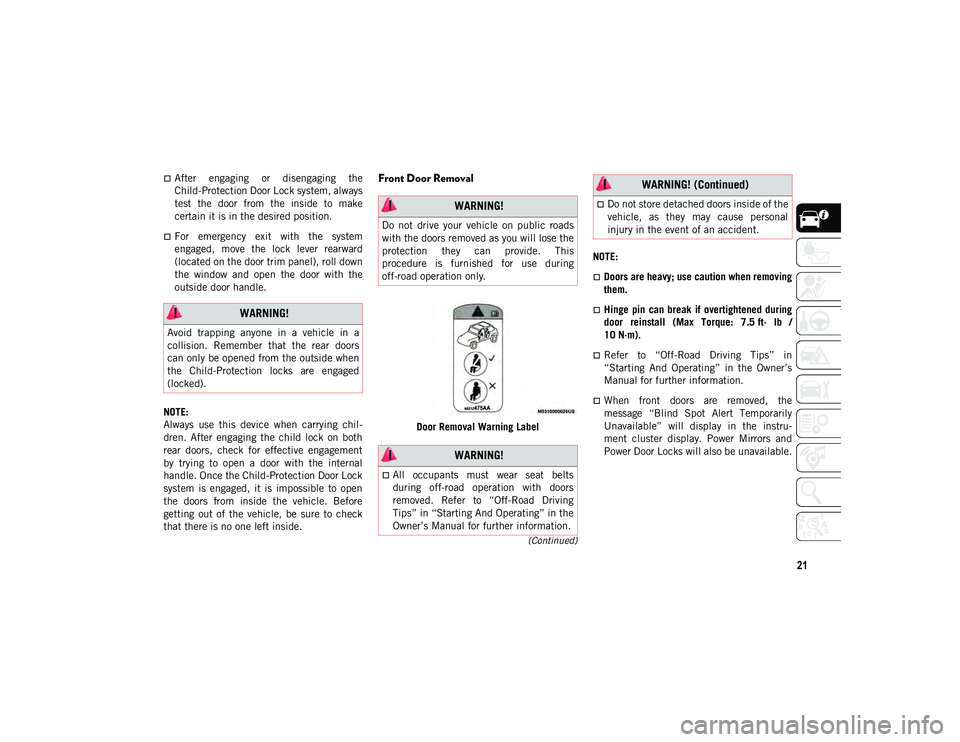

21
(Continued)
After engaging or disengaging the
Child-Protection Door Lock system, always
test the door from the inside to make
certain it is in the desired position.
For emergency exit with the system
engaged, move the lock lever rearward
(located on the door trim panel), roll down
the window and open the door with the
outside door handle.
NOTE:
Always use this device when carrying chil -
dren. After engaging the child lock on both
rear doors, check for effective engagement
by trying to open a door with the internal
handle. Once the Child-Protection Door Lock
system is engaged, it is impossible to open
the doors from inside the vehicle. Before
getting out of the vehicle, be sure to check
that there is no one left inside.
Front Door Removal
Door Removal Warning Label NOTE:
Doors are heavy; use caution when removing
them.
Hinge pin can break if overtightened during
door reinstall (Max Torque: 7.5 ft· lb /
10 N·m).
Refer to “Off-Road Driving Tips” in
“Starting And Operating” in the Owner’s
Manual for further information.
When front doors are removed, the
message “Blind Spot Alert Temporarily
Unavailable” will display in the instru
-
ment cluster display. Power Mirrors and
Power Door Locks will also be unavailable.
WARNING!
Avoid trapping anyone in a vehicle in a
collision. Remember that the rear doors
can only be opened from the outside when
the Child-Protection locks are engaged
(locked).
WARNING!
Do not drive your vehicle on public roads
with the doors removed as you will lose the
protection they can provide. This
procedure is furnished for use during
off-road operation only.
WARNING!
All occupants must wear seat belts
during off-road operation with doors
removed. Refer to “Off-Road Driving
Tips” in “Starting And Operating” in the
Owner’s Manual for further information.
Do not store detached doors inside of the
vehicle, as they may cause personal
injury in the event of an accident.
WARNING! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 21

GETTING TO KNOW YOUR VEHICLE
22

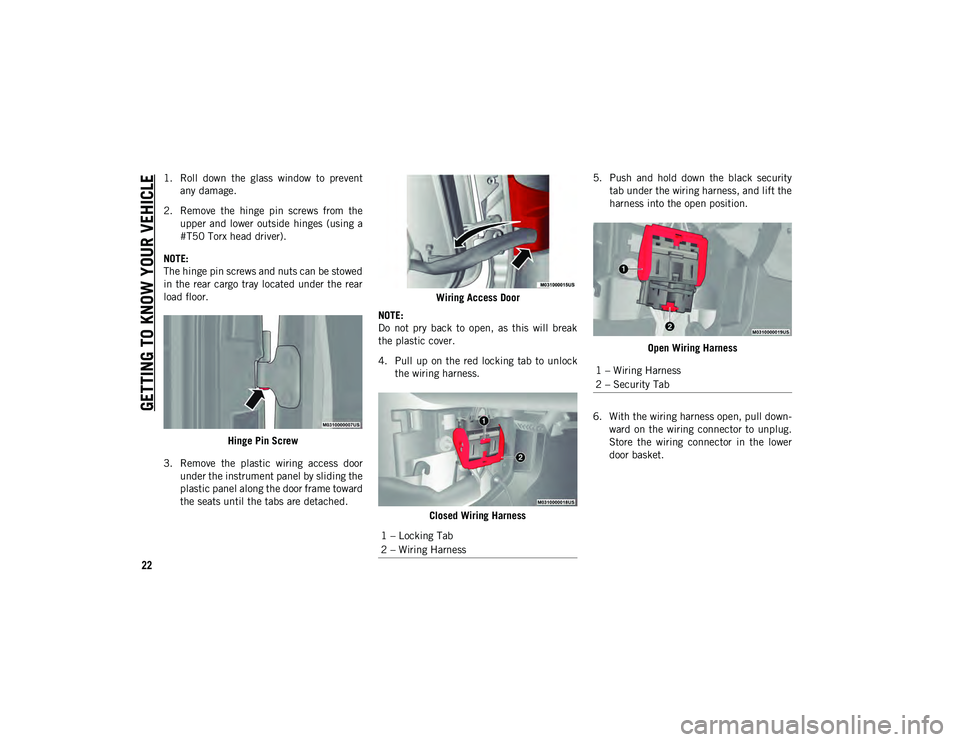

1. Roll down the glass window to preventany damage.
2. Remove the hinge pin screws from the upper and lower outside hinges (using a
#T50 Torx head driver).
NOTE:
The hinge pin screws and nuts can be stowed
in the rear cargo tray located under the rear
load floor.
Hinge Pin Screw
3. Remove the plastic wiring access door under the instrument panel by sliding the
plastic panel along the door frame toward
the seats until the tabs are detached. Wiring Access Door
NOTE:
Do not pry back to open, as this will break
the plastic cover.
4. Pull up on the red locking tab to unlock the wiring harness.
Closed Wiring Harness 5. Push and hold down the black security
tab under the wiring harness, and lift the
harness into the open position.
Open Wiring Harness
6. With the wiring harness open, pull down -
ward on the wiring connector to unplug.
Store the wiring connector in the lower
door basket.
1 – Locking Tab
2 – Wiring Harness
1 – Wiring Harness
2 – Security Tab
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 22

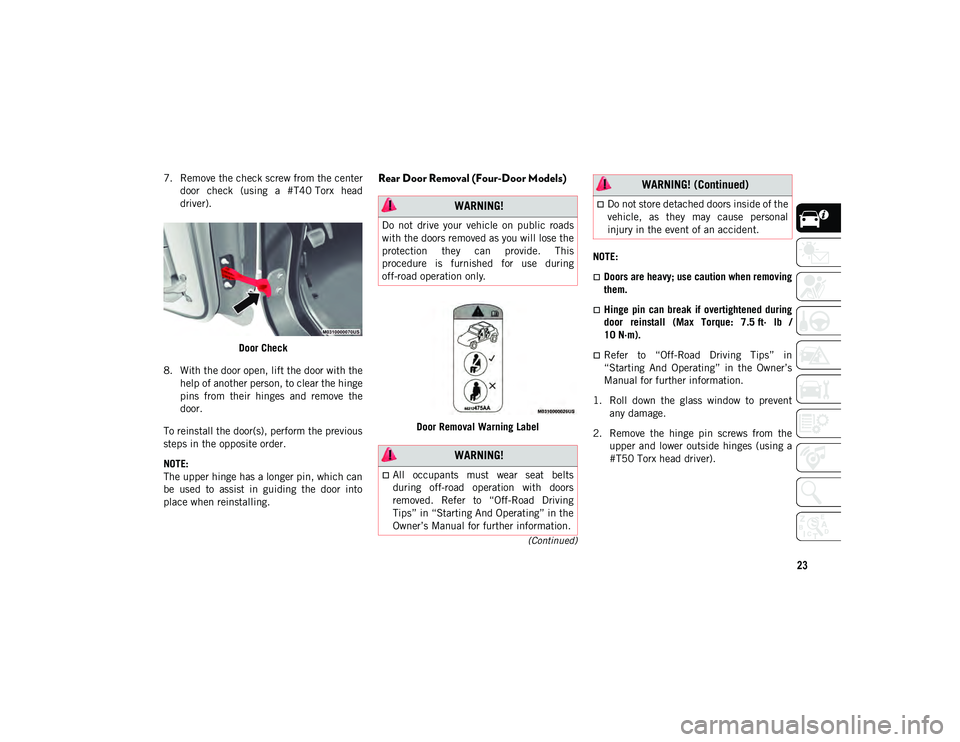

23
(Continued)
7. Remove the check screw from the centerdoor check (using a #T40 Torx head
driver).
Door Check
8. With the door open, lift the door with the help of another person, to clear the hinge
pins from their hinges and remove the
door.
To reinstall the door(s), perform the previous
steps in the opposite order.
NOTE:
The upper hinge has a longer pin, which can
be used to assist in guiding the door into
place when reinstalling.Rear Door Removal (Four-Door Models)
Door Removal Warning Label NOTE:
Doors are heavy; use caution when removing
them.
Hinge pin can break if overtightened during
door reinstall (Max Torque: 7.5 ft· lb /
10 N·m).
Refer to “Off-Road Driving Tips” in
“Starting And Operating” in the Owner’s
Manual for further information.
1. Roll down the glass window to prevent any damage.
2. Remove the hinge pin screws from the upper and lower outside hinges (using a
#T50 Torx head driver).
WARNING!
Do not drive your vehicle on public roads
with the doors removed as you will lose the
protection they can provide. This
procedure is furnished for use during
off-road operation only.
WARNING!
All occupants must wear seat belts
during off-road operation with doors
removed. Refer to “Off-Road Driving
Tips” in “Starting And Operating” in the
Owner’s Manual for further information.
Do not store detached doors inside of the
vehicle, as they may cause personal
injury in the event of an accident.
WARNING! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 23

GETTING TO KNOW YOUR VEHICLE

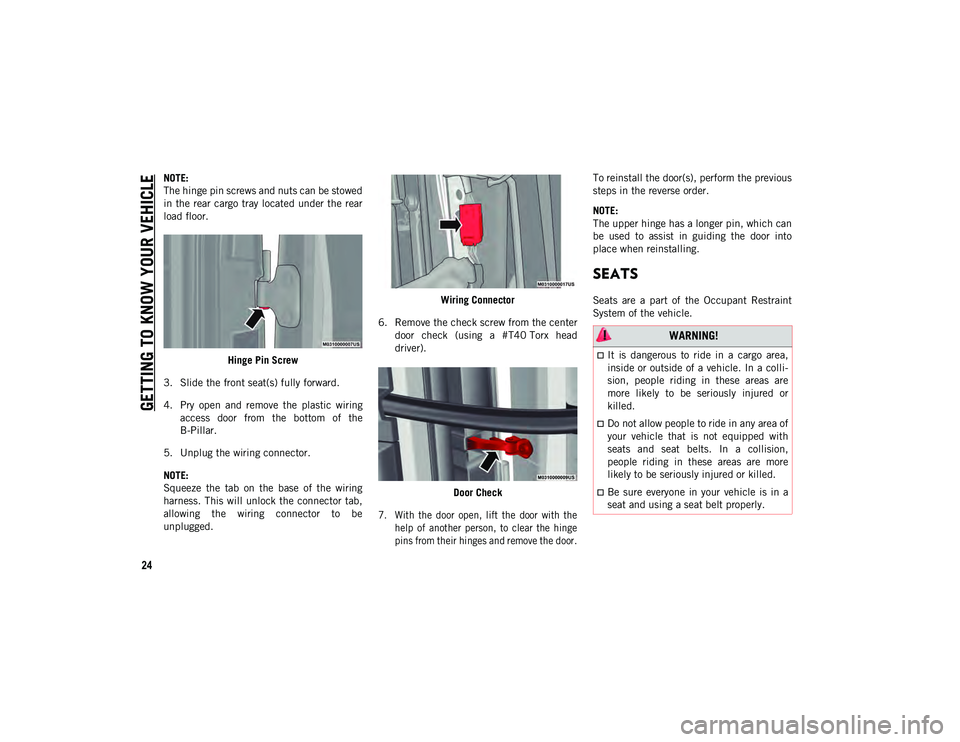

24
NOTE:
The hinge pin screws and nuts can be stowed
in the rear cargo tray located under the rear
load floor.Hinge Pin Screw
3. Slide the front seat(s) fully forward.
4. Pry open and remove the plastic wiring access door from the bottom of the
B-Pillar.
5. Unplug the wiring connector.
NOTE:
Squeeze the tab on the base of the wiring
harness. This will unlock the connector tab,
allowing the wiring connector to be
unplugged. Wiring Connector
6. Remove the check screw from the center door check (using a #T40 Torx head
driver).
Door Check

7. With the door open, lift the door with the help of another person, to clear the hinge
pins from their hinges and remove the door.
To reinstall the door(s), perform the previous
steps in the reverse order.
NOTE:
The upper hinge has a longer pin, which can
be used to assist in guiding the door into
place when reinstalling.
SEATS
Seats are a part of the Occupant Restraint
System of the vehicle.
WARNING!
It is dangerous to ride in a cargo area,
inside or outside of a vehicle. In a colli
-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. In a collision,
people riding in these areas are more
likely to be seriously injured or killed.
Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 24

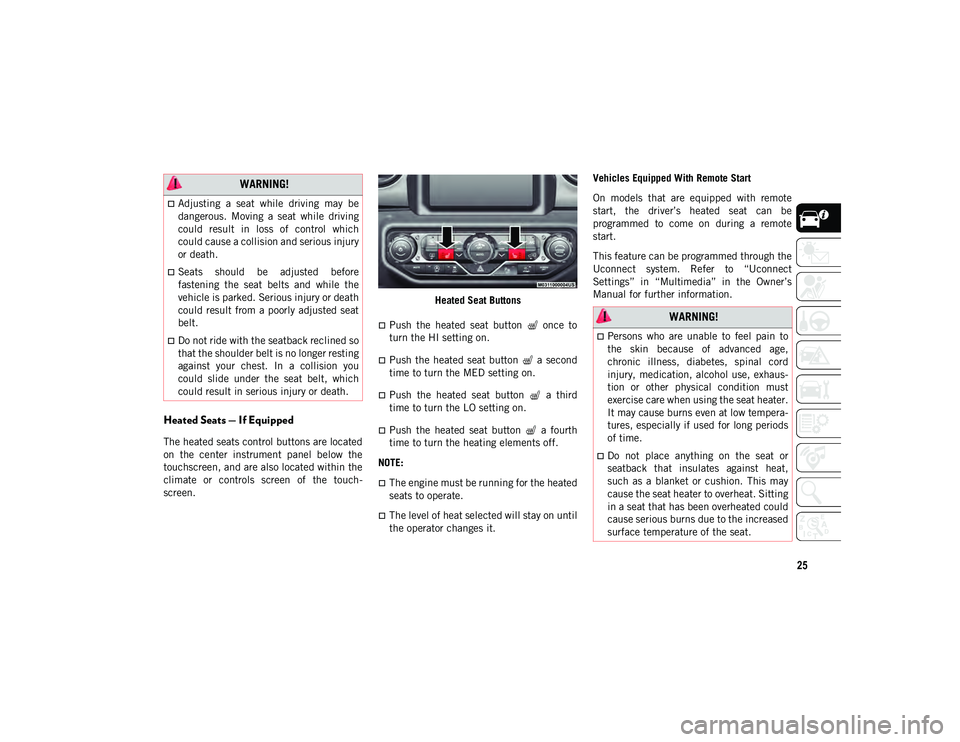

25
Heated Seats — If Equipped
The heated seats control buttons are located
on the center instrument panel below the
touchscreen, and are also located within the
climate or controls screen of the touch-
screen. Heated Seat Buttons
Push the heated seat button once to
turn the HI setting on.
Push the heated seat button a second
time to turn the MED setting on.
Push the heated seat button a third
time to turn the LO setting on.
Push the heated seat button a fourth
time to turn the heating elements off.
NOTE:
The engine must be running for the heated
seats to operate.
The level of heat selected will stay on until
the operator changes it. Vehicles Equipped With Remote Start
On models that are equipped with remote
start, the driver’s heated seat can be
programmed to come on during a remote
start.
This feature can be programmed through the
Uconnect system. Refer to “Uconnect
Settings” in “Multimedia” in the Owner’s
Manual for further information.
WARNING!
Adjusting a seat while driving may be
dangerous. Moving a seat while driving
could result in loss of control which
could cause a collision and serious injury
or death.
Seats should be adjusted before
fastening the seat belts and while the
vehicle is parked. Serious injury or death
could result from a poorly adjusted seat
belt.
Do not ride with the seatback reclined so
that the shoulder belt is no longer resting
against your chest. In a collision you
could slide under the seat belt, which
could result in serious injury or death.
WARNING!
Persons who are unable to feel pain to
the skin because of advanced age,
chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaus-
tion or other physical condition must
exercise care when using the seat heater.
It may cause burns even at low tempera-
tures, especially if used for long periods
of time.
Do not place anything on the seat or
seatback that insulates against heat,
such as a blanket or cushion. This may
cause the seat heater to overheat. Sitting
in a seat that has been overheated could
cause serious burns due to the increased
surface temperature of the seat.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 25

GETTING TO KNOW YOUR VEHICLE
26

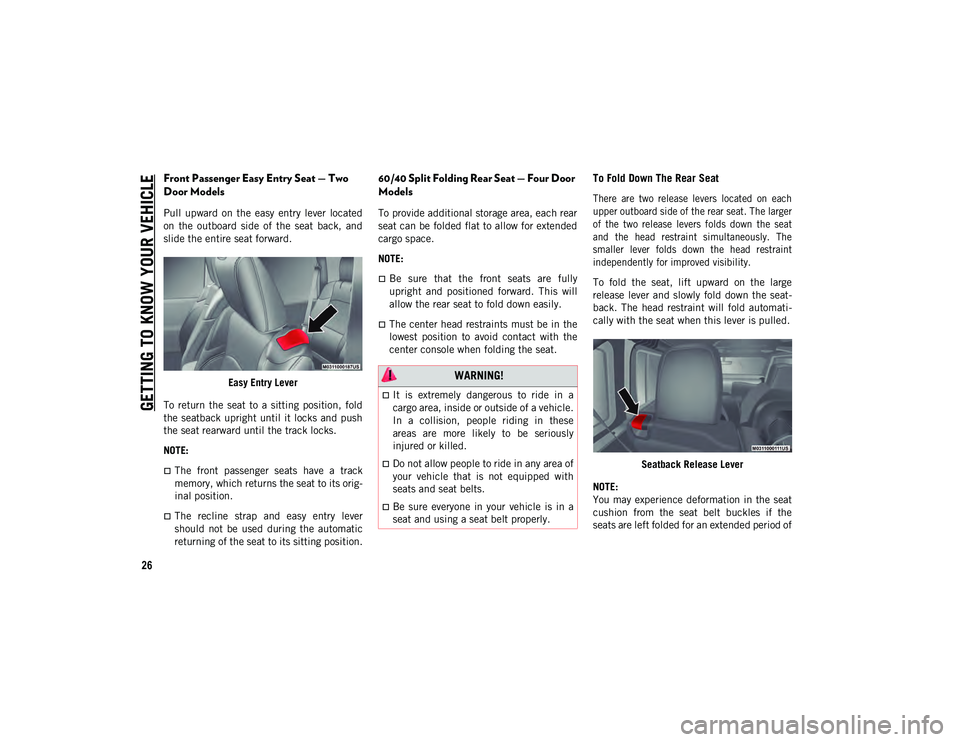

Front Passenger Easy Entry Seat — Two
Door Models
Pull upward on the easy entry lever located
on the outboard side of the seat back, and
slide the entire seat forward.Easy Entry Lever
To return the seat to a sitting position, fold
the seatback upright until it locks and push
the seat rearward until the track locks.
NOTE:
The front passenger seats have a track
memory, which returns the seat to its orig-
inal position.
The recline strap and easy entry lever
should not be used during the automatic
returning of the seat to its sitting position.
60/40 Split Folding Rear Seat — Four Door
Models
To provide additional storage area, each rear
seat can be folded flat to allow for extended
cargo space.
NOTE:
Be sure that the front seats are fully
upright and positioned forward. This will
allow the rear seat to fold down easily.
The center head restraints must be in the
lowest position to avoid contact with the
center console when folding the seat.
To Fold Down The Rear Seat

There are two release levers located on each
upper outboard side of the rear seat. The larger
of the two release levers folds down the seat
and the head restraint simultaneously. The
smaller lever folds down the head restraint
independently for improved visibility.

To fold the seat, lift upward on the large
release lever and slowly fold down the seat -
back. The head restraint will fold automati -
cally with the seat when this lever is pulled.
Seatback Release Lever
NOTE:
You may experience deformation in the seat
cushion from the seat belt buckles if the
seats are left folded for an extended period of
WARNING!
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these
areas are more likely to be seriously
injured or killed.
Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.
Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 26

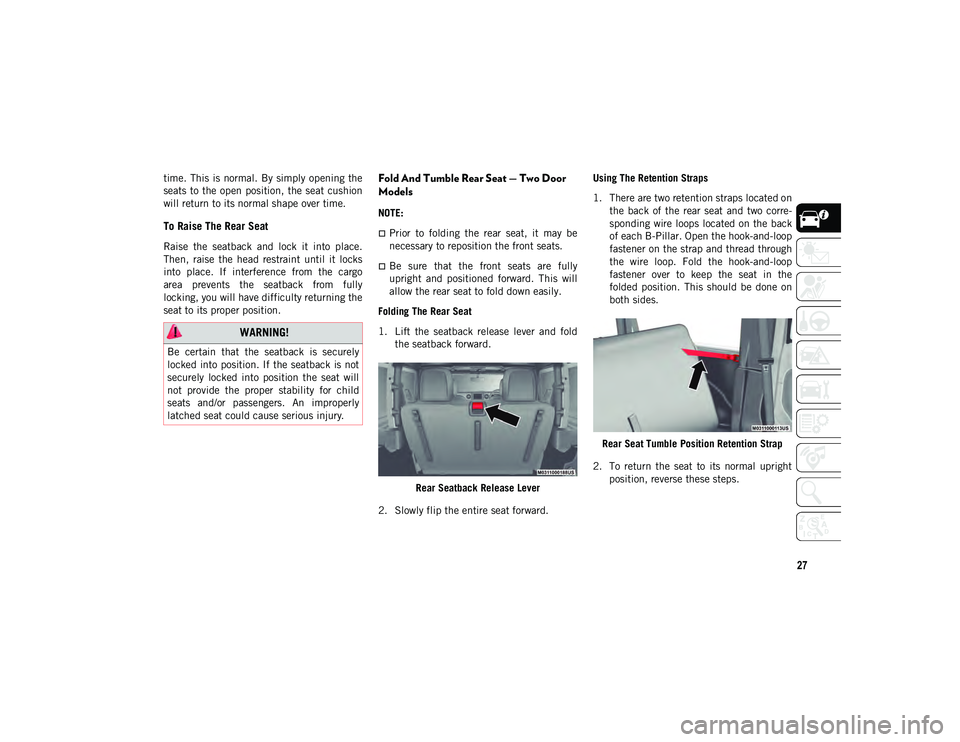

27
time. This is normal. By simply opening the
seats to the open position, the seat cushion
will return to its normal shape over time.
To Raise The Rear Seat
Raise the seatback and lock it into place.
Then, raise the head restraint until it locks
into place. If interference from the cargo
area prevents the seatback from fully
locking, you will have difficulty returning the
seat to its proper position.
Fold And Tumble Rear Seat — Two Door
Models
NOTE:
Prior to folding the rear seat, it may be
necessary to reposition the front seats.
Be sure that the front seats are fully
upright and positioned forward. This will
allow the rear seat to fold down easily.
Folding The Rear Seat
1. Lift the seatback release lever and fold the seatback forward.
Rear Seatback Release Lever
2. Slowly flip the entire seat forward. Using The Retention Straps
1. There are two retention straps located on
the back of the rear seat and two corre -
sponding wire loops located on the back
of each B-Pillar. Open the hook-and-loop
fastener on the strap and thread through
the wire loop. Fold the hook-and-loop
fastener over to keep the seat in the
folded position. This should be done on
both sides.
Rear Seat Tumble Position Retention Strap
2. To return the seat to its normal upright position, reverse these steps.
WARNING!
Be certain that the seatback is securely
locked into position. If the seatback is not
securely locked into position the seat will
not provide the proper stability for child
seats and/or passengers. An improperly
latched seat could cause serious injury.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 27

GETTING TO KNOW YOUR VEHICLE
28
(Continued)
(Continued)

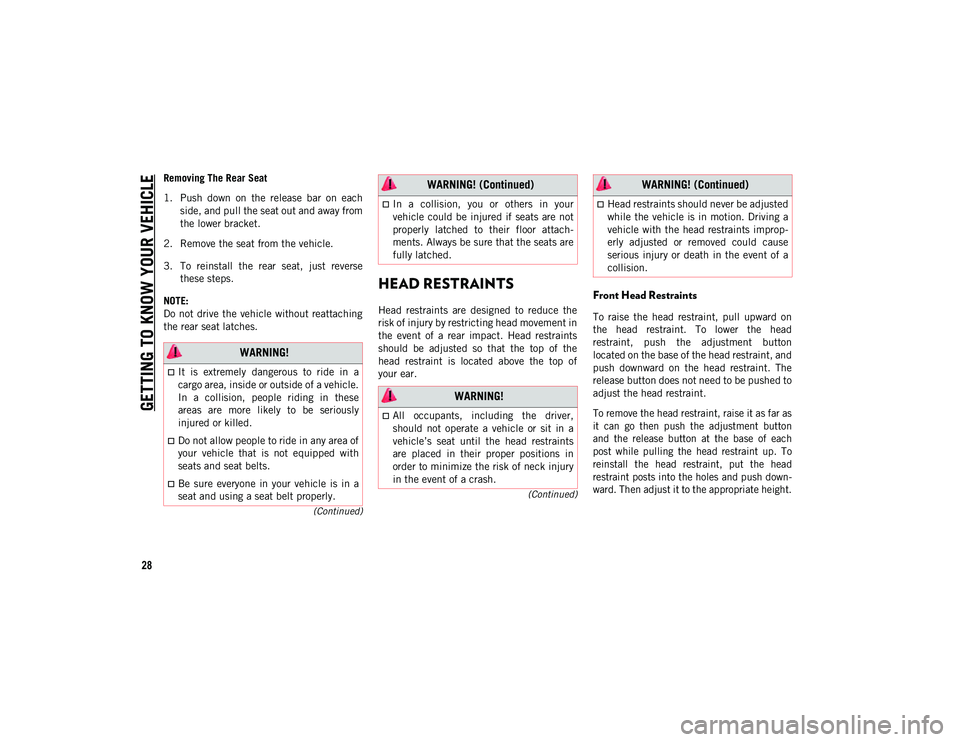

Removing The Rear Seat
1. Push down on the release bar on each side, and pull the seat out and away from
the lower bracket.
2. Remove the seat from the vehicle.
3. To reinstall the rear seat, just reverse these steps.
NOTE:
Do not drive the vehicle without reattaching
the rear seat latches.
HEAD RESTRAINTS
Head restraints are designed to reduce the
risk of injury by restricting head movement in
the event of a rear impact. Head restraints
should be adjusted so that the top of the
head restraint is located above the top of
your ear.
Front Head Restraints
To raise the head restraint, pull upward on
the head restraint. To lower the head
restraint, push the adjustment button
located on the base of the head restraint, and
push downward on the head restraint. The
release button does not need to be pushed to
adjust the head restraint.

To remove the head restraint, raise it as far as
it can go then push the adjustment button
and the release button at the base of each
post while pulling the head restraint up. To
reinstall the head restraint, put the head
restraint posts into the holes and push down -
ward. Then adjust it to the appropriate height.

WARNING!
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these
areas are more likely to be seriously
injured or killed.
Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.
Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
In a collision, you or others in your
vehicle could be injured if seats are not
properly latched to their floor attach -
ments. Always be sure that the seats are
fully latched.
WARNING!
All occupants, including the driver,
should not operate a vehicle or sit in a
vehicle’s seat until the head restraints
are placed in their proper positions in
order to minimize the risk of neck injury
in the event of a crash.
WARNING! (Continued)
Head restraints should never be adjusted
while the vehicle is in motion. Driving a
vehicle with the head restraints improp -
erly adjusted or removed could cause
serious injury or death in the event of a
collision.
WARNING! (Continued)
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 28
