JEEP WRANGLER UNLIMITED 2020 Owner handbook (in English)

39

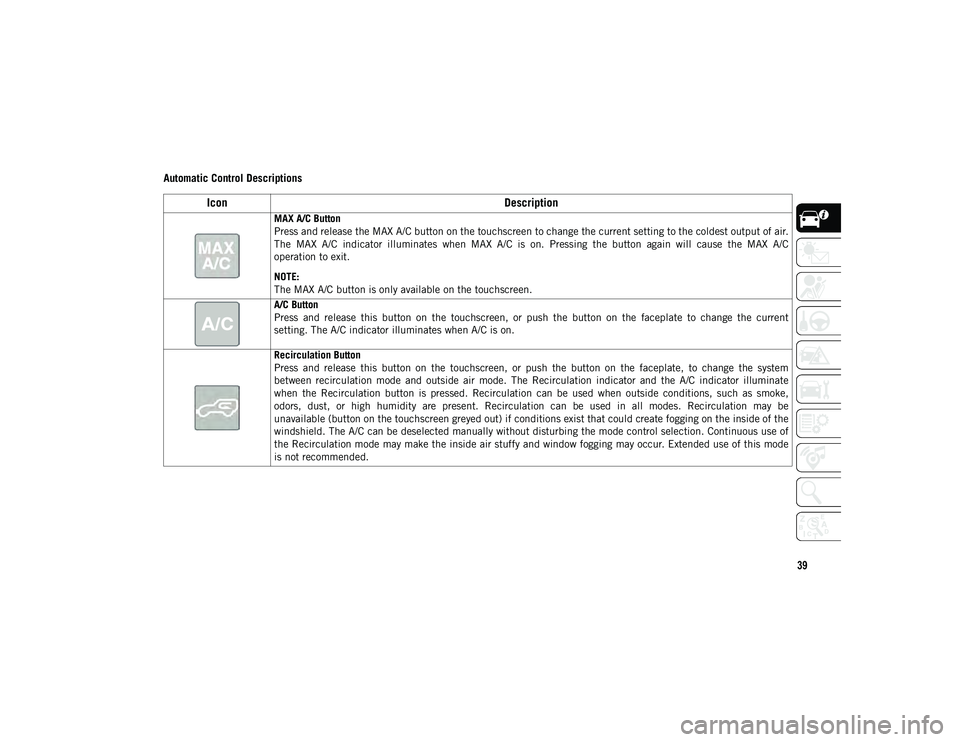

Automatic Control Descriptions
IconDescription
MAX A/C Button
Press and release the MAX A/C button on the touchscreen to change the current setting to the coldest output of air.
The MAX A/C indicator illuminates when MAX A/C is on. Pressing the button again will cause the MAX A/C
operation to exit.
NOTE:
The MAX A/C button is only available on the touchscreen.
A/C Button
Press and release this button on the touchscreen, or push the button on the faceplate to change the current
setting. The A/C indicator illuminates when A/C is on.
Recirculation Button
Press and release this button on the touchscreen, or push the button on the faceplate, to change the system
between recirculation mode and outside air mode. The Recirculation indicator and the A/C indicator illuminate
when the Recirculation button is pressed. Recirculation can be used when outside conditions, such as smoke,
odors, dust, or high humidity are present. Recirculation can be used in all modes. Recirculation may be
unavailable (button on the touchscreen greyed out) if conditions exist that could create fogging on the inside of the
windshield. The A/C can be deselected manually without disturbing the mode control selection. Continuous use of
the Recirculation mode may make the inside air stuffy and window fogging may occur. Extended use of this mode
is not recommended.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 39

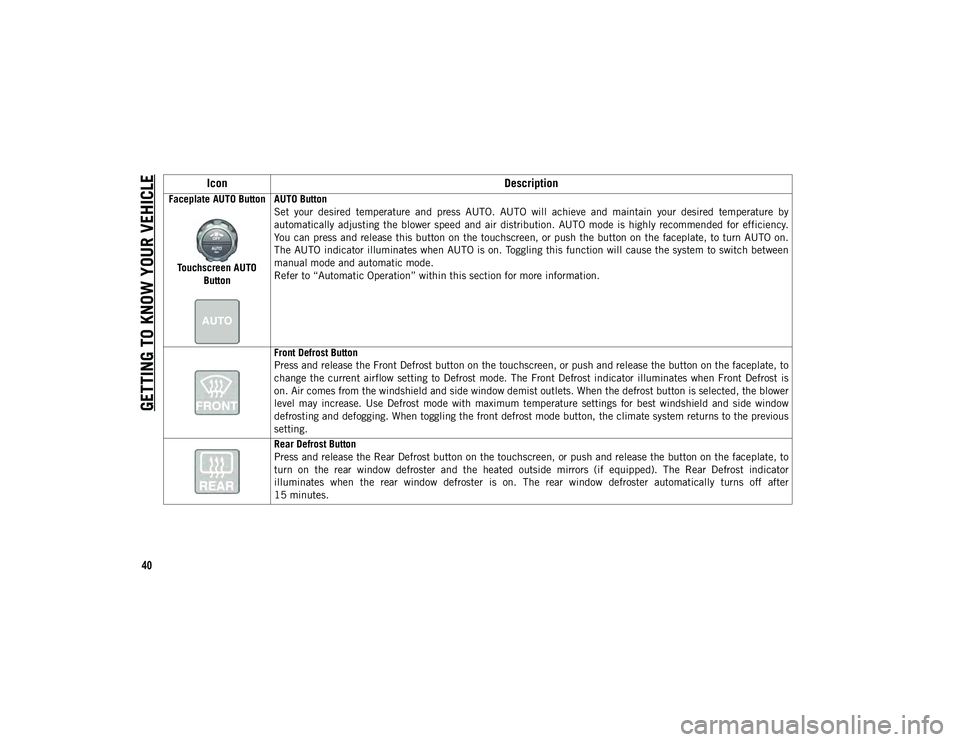

GETTING TO KNOW YOUR VEHICLE
40
Faceplate AUTO ButtonTouchscreen AUTO Button AUTO Button
Set your desired temperature and press AUTO. AUTO will achieve and maintain your desired temperature by
automatically adjusting the blower speed and air distribution. AUTO mode is highly recommended for efficiency.
You can press and release this button on the touchscreen, or push the button on the faceplate, to turn AUTO on.
The AUTO indicator illuminates when AUTO is on. Toggling this function will cause the system to switch between
manual mode and automatic mode.
Refer to “Automatic Operation” within this section for more information.
Front Defrost Button
Press and release the Front Defrost button on the touchscreen, or push and release the button on the faceplate, to
change the current airflow setting to Defrost mode. The Front Defrost indicator illuminates when Front Defrost is
on. Air comes from the windshield and side window demist outlets. When the defrost button is selected, the blower
level may increase. Use Defrost mode with maximum temperature settings for best windshield and side window
defrosting and defogging. When toggling the front defrost mode button, the climate system returns to the previous
setting.
Rear Defrost Button
Press and release the Rear Defrost button on the touchscreen, or push and release the button on the faceplate, to
turn on the rear window defroster and the heated outside mirrors (if equipped). The Rear Defrost indicator
illuminates when the rear window defroster is on. The rear window defroster automatically turns off after
15 minutes.
Icon
Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 40

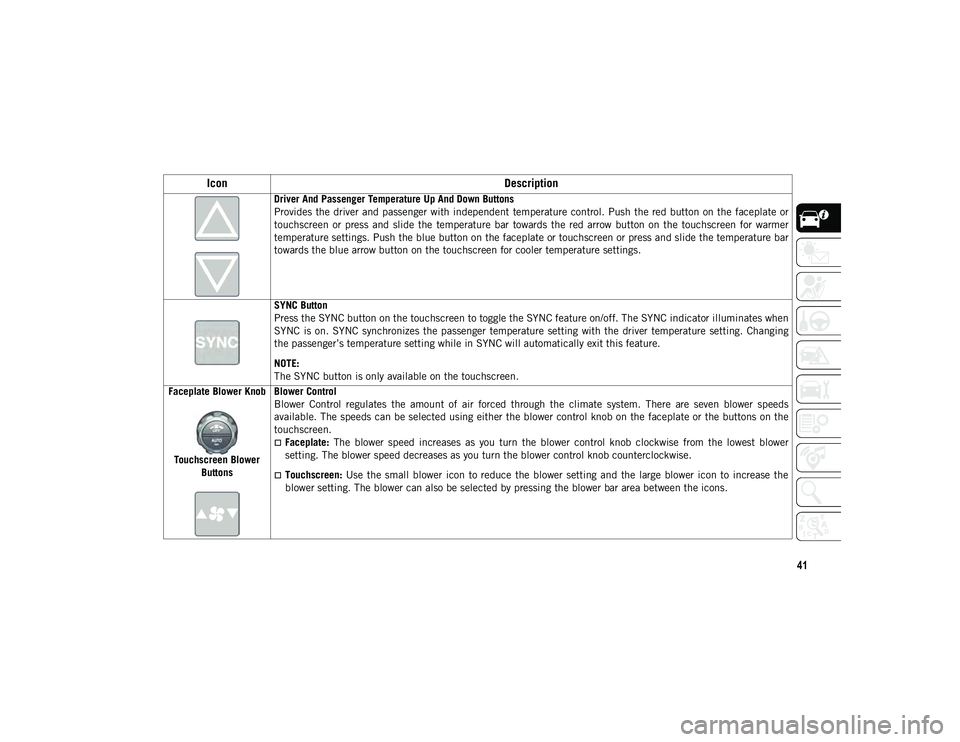

41
Driver And Passenger Temperature Up And Down Buttons
Provides the driver and passenger with independent temperature control. Push the red button on the faceplate or
touchscreen or press and slide the temperature bar towards the red arrow button on the touchscreen for warmer
temperature settings. Push the blue button on the faceplate or touchscreen or press and slide the temperature bar
towards the blue arrow button on the touchscreen for cooler temperature settings.
SYNC Button
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indicator illuminates when
SYNC is on. SYNC synchronizes the passenger temperature setting with the driver temperature setting. Changing
the passenger’s temperature setting while in SYNC will automatically exit this feature.
NOTE:
The SYNC button is only available on the touchscreen.
Faceplate Blower Knob
Touchscreen Blower Buttons Blower Control
Blower Control regulates the amount of air forced through the climate system. There are seven blower speeds
available. The speeds can be selected using either the blower control knob on the faceplate or the buttons on the
touchscreen.
Faceplate:
The blower speed increases as you turn the blower control knob clockwise from the lowest blower
setting. The blower speed decreases as you turn the blower control knob counterclockwise.
Touchscreen: Use the small blower icon to reduce the blower setting and the large blower icon to increase the
blower setting. The blower can also be selected by pressing the blower bar area between the icons.
Icon Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 41

GETTING TO KNOW YOUR VEHICLE
42

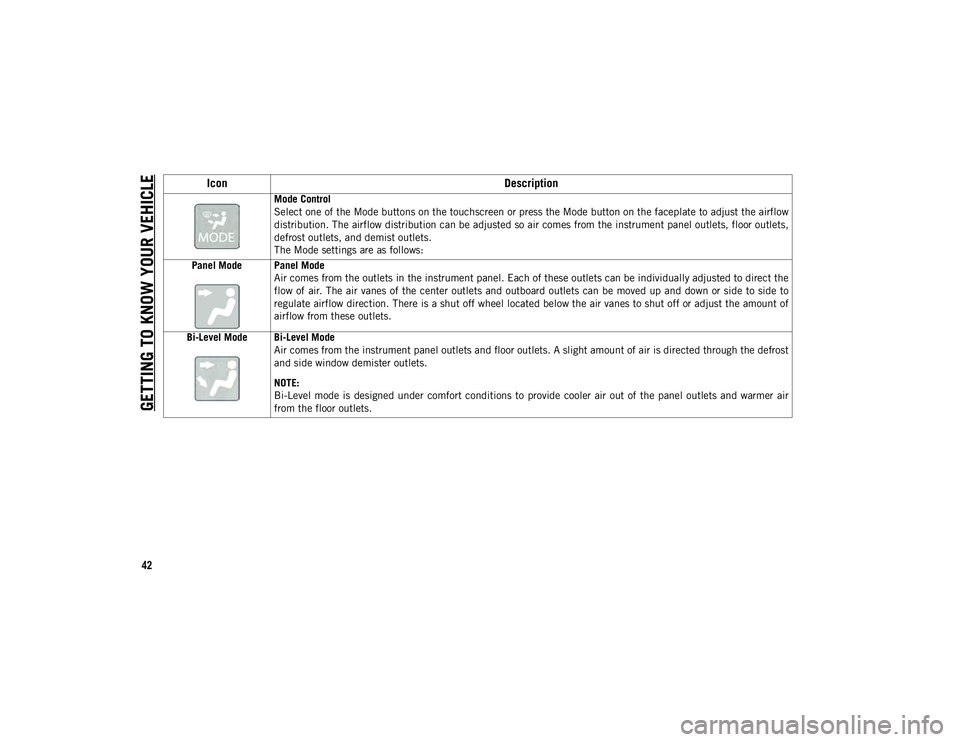

Mode Control
Select one of the Mode buttons on the touchscreen or press the Mode button on the faceplate to adjust the airflow
distribution. The airflow distribution can be adjusted so air comes from the instrument panel outlets, floor outlets,
defrost outlets, and demist outlets.
The Mode settings are as follows:
Panel Mode Panel Mode Air comes from the outlets in the instrument panel. Each of these outlets can be individually adjusted to direct the
flow of air. The air vanes of the center outlets and outboard outlets can be moved up and down or side to side to
regulate airflow direction. There is a shut off wheel located below the air vanes to shut off or adjust the amount of
airflow from these outlets.
Bi-Level Mode Bi-Level Mode Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed through the defrost
and side window demister outlets.
NOTE:
Bi-Level mode is designed under comfort conditions to provide cooler air out of the panel outlets and warmer air
from the floor outlets.
Icon Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 42

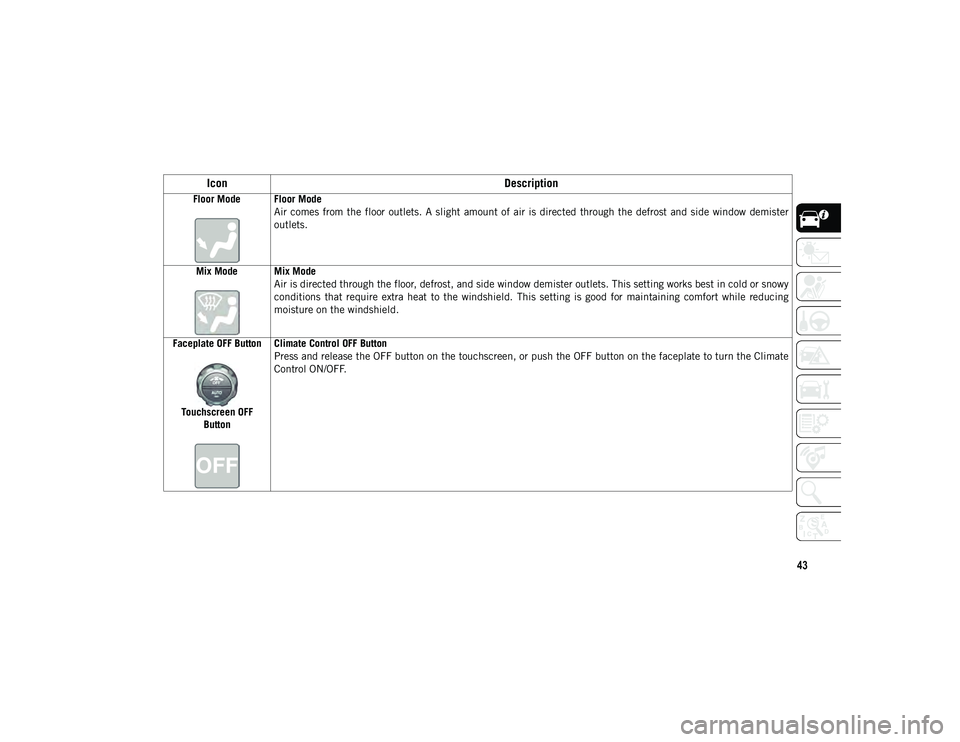

43
Floor Mode Floor ModeAir comes from the floor outlets. A slight amount of air is directed through the defrost and side window demister
outlets.
Mix Mode Mix Mode Air is directed through the floor, defrost, and side window demister outlets. This setting works best in cold or snowy
conditions that require extra heat to the windshield. This setting is good for maintaining comfort while reducing
moisture on the windshield.
Faceplate OFF Button
Touchscreen OFF Button Climate Control OFF Button
Press and release the OFF button on the touchscreen, or push the OFF button on the faceplate to turn the Climate
Control ON/OFF.
Icon
Description
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 43

GETTING TO KNOW YOUR VEHICLE
44

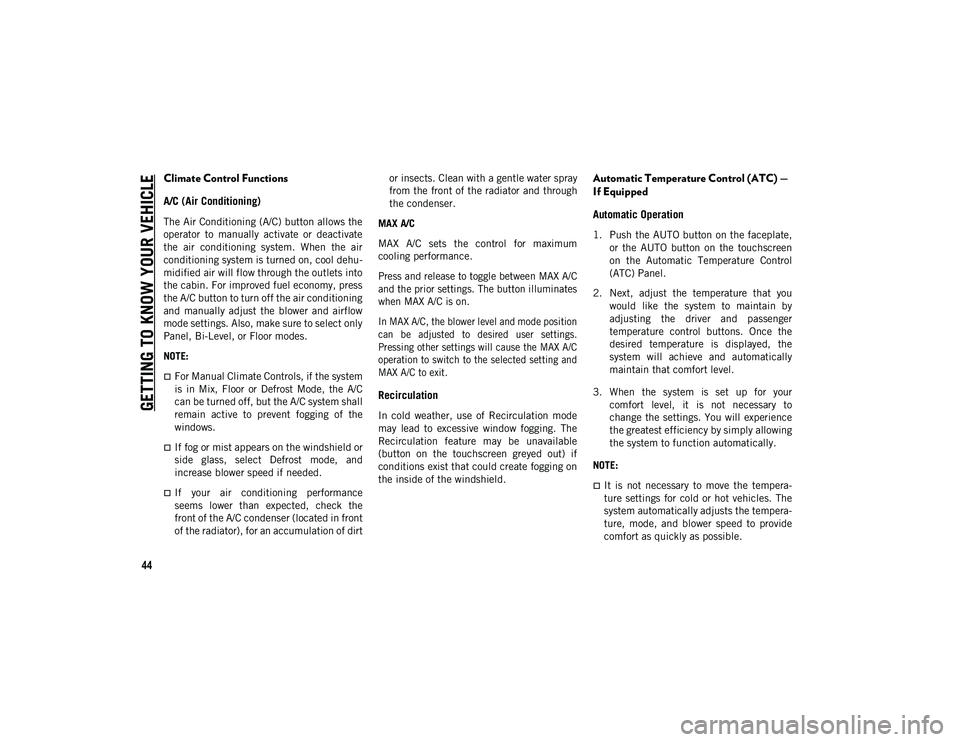

Climate Control Functions
A/C (Air Conditioning)
The Air Conditioning (A/C) button allows the
operator to manually activate or deactivate
the air conditioning system. When the air
conditioning system is turned on, cool dehu-
midified air will flow through the outlets into
the cabin. For improved fuel economy, press
the A/C button to turn off the air conditioning
and manually adjust the blower and airflow
mode settings. Also, make sure to select only
Panel, Bi-Level, or Floor modes.
NOTE:
For Manual Climate Controls, if the system
is in Mix, Floor or Defrost Mode, the A/C
can be turned off, but the A/C system shall
remain active to prevent fogging of the
windows.
If fog or mist appears on the windshield or
side glass, select Defrost mode, and
increase blower speed if needed.
If your air conditioning performance
seems lower than expected, check the
front of the A/C condenser (located in front
of the radiator), for an accumulation of dirt or insects. Clean with a gentle water spray
from the front of the radiator and through
the condenser.
MAX A/C
MAX A/C sets the control for maximum
cooling performance.

Press and release to toggle between MAX A/C
and the prior settings. The button illuminates
when MAX A/C is on.

In MAX A/C, the blower level and mode position
can be adjusted to desired user settings.
Pressing other settings will cause the MAX A/C
operation to switch to the selected setting and
MAX A/C to exit.

Recirculation
In cold weather, use of Recirculation mode
may lead to excessive window fogging. The
Recirculation feature may be unavailable
(button on the touchscreen greyed out) if
conditions exist that could create fogging on
the inside of the windshield.
Automatic Temperature Control (ATC) —
If Equipped
Automatic Operation
1. Push the AUTO button on the faceplate, or the AUTO button on the touchscreen
on the Automatic Temperature Control
(ATC) Panel.
2. Next, adjust the temperature that you would like the system to maintain by
adjusting the driver and passenger
temperature control buttons. Once the
desired temperature is displayed, the
system will achieve and automatically
maintain that comfort level.
3. When the system is set up for your comfort level, it is not necessary to
change the settings. You will experience
the greatest efficiency by simply allowing
the system to function automatically.
NOTE:
It is not necessary to move the tempera-
ture settings for cold or hot vehicles. The
system automatically adjusts the tempera-
ture, mode, and blower speed to provide
comfort as quickly as possible.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 44

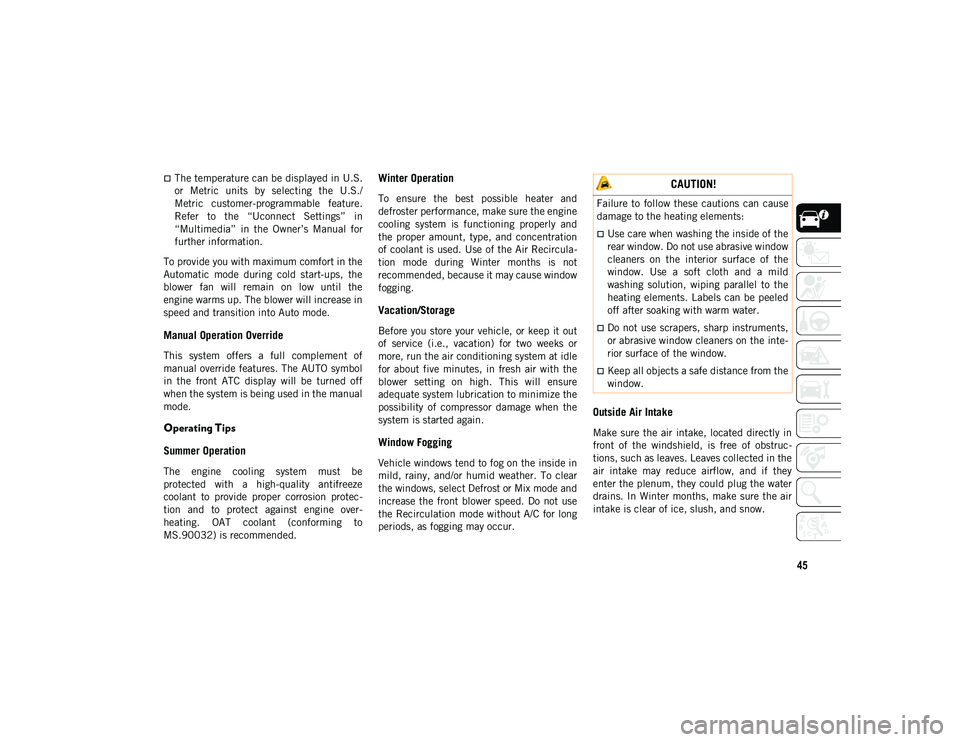

45
The temperature can be displayed in U.S.
or Metric units by selecting the U.S./
Metric customer-programmable feature.
Refer to the “Uconnect Settings” in
“Multimedia” in the Owner’s Manual for
further information.
To provide you with maximum comfort in the
Automatic mode during cold start-ups, the
blower fan will remain on low until the
engine warms up. The blower will increase in
speed and transition into Auto mode.
Manual Operation Override
This system offers a full complement of
manual override features. The AUTO symbol
in the front ATC display will be turned off
when the system is being used in the manual
mode.
Operating Tips
Summer Operation
The engine cooling system must be
protected with a high-quality antifreeze
coolant to provide proper corrosion protec -
tion and to protect against engine over -
heating. OAT coolant (conforming to
MS.90032) is recommended.
Winter Operation
To ensure the best possible heater and
defroster performance, make sure the engine
cooling system is functioning properly and
the proper amount, type, and concentration
of coolant is used. Use of the Air Recircula -
tion mode during Winter months is not
recommended, because it may cause window
fogging.
Vacation/Storage
Before you store your vehicle, or keep it out
of service (i.e., vacation) for two weeks or
more, run the air conditioning system at idle
for about five minutes, in fresh air with the
blower setting on high. This will ensure
adequate system lubrication to minimize the
possibility of compressor damage when the
system is started again.
Window Fogging
Vehicle windows tend to fog on the inside in
mild, rainy, and/or humid weather. To clear
the windows, select Defrost or Mix mode and
increase the front blower speed. Do not use
the Recirculation mode without A/C for long
periods, as fogging may occur.
Outside Air Intake
Make sure the air intake, located directly in
front of the windshield, is free of obstruc -
tions, such as leaves. Leaves collected in the
air intake may reduce airflow, and if they
enter the plenum, they could plug the water
drains. In Winter months, make sure the air
intake is clear of ice, slush, and snow.
CAUTION!
Failure to follow these cautions can cause
damage to the heating elements:
Use care when washing the inside of the
rear window. Do not use abrasive window
cleaners on the interior surface of the
window. Use a soft cloth and a mild
washing solution, wiping parallel to the
heating elements. Labels can be peeled
off after soaking with warm water.
Do not use scrapers, sharp instruments,
or abrasive window cleaners on the inte-
rior surface of the window.
Keep all objects a safe distance from the
window.
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 45

GETTING TO KNOW YOUR VEHICLE
46

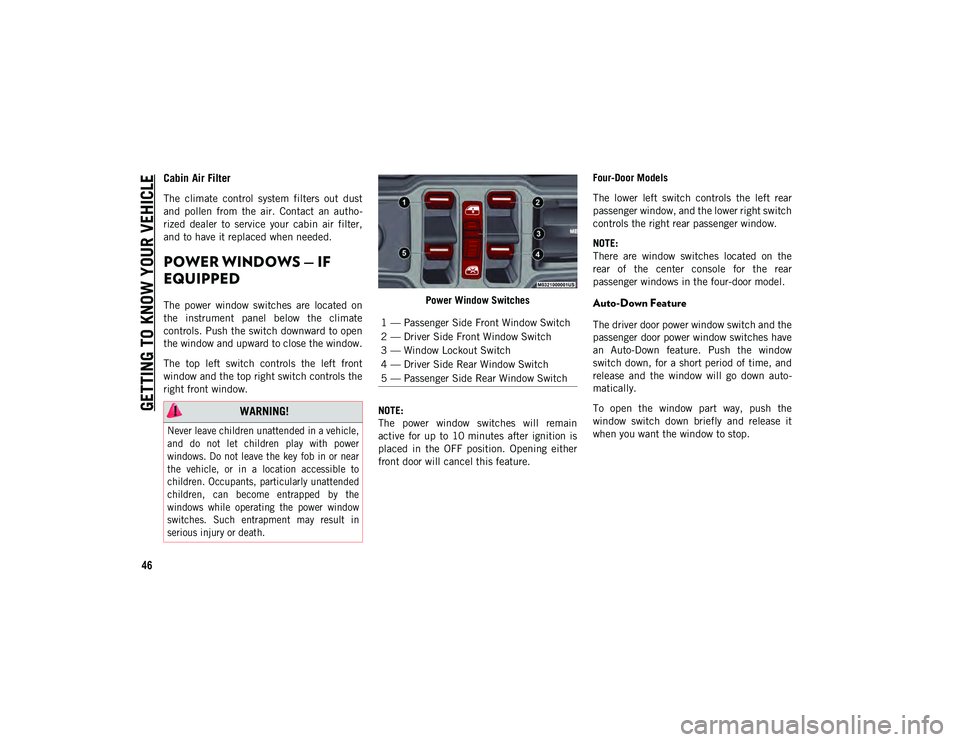

Cabin Air Filter
The climate control system filters out dust
and pollen from the air. Contact an autho-
rized dealer to service your cabin air filter,
and to have it replaced when needed.
POWER WINDOWS — IF
EQUIPPED
The power window switches are located on
the instrument panel below the climate
controls. Push the switch downward to open
the window and upward to close the window.
The top left switch controls the left front
window and the top right switch controls the
right front window. Power Window Switches
NOTE:
The power window switches will remain
active for up to 10 minutes after ignition is
placed in the OFF position. Opening either
front door will cancel this feature. Four-Door Models
The lower left switch controls the left rear
passenger window, and the lower right switch
controls the right rear passenger window.
NOTE:
There are window switches located on the
rear of the center console for the rear
passenger windows in the four-door model.Auto-Down Feature
The driver door power window switch and the
passenger door power window switches have
an Auto-Down feature. Push the window
switch down, for a short period of time, and
release and the window will go down auto
-
matically.
To open the window part way, push the
window switch down briefly and release it
when you want the window to stop.
WARNING!

Never leave children unattended in a vehicle,
and do not let children play with power
windows. Do not leave the key fob in or near
the vehicle, or in a location accessible to
children. Occupants, particularly unattended
children, can become entrapped by the
windows while operating the power window
switches. Such entrapment may result in
serious injury or death.

1 — Passenger Side Front Window Switch
2 — Driver Side Front Window Switch
3 — Window Lockout Switch
4 — Driver Side Rear Window Switch
5 — Passenger Side Rear Window Switch
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 46

47
To stop the window from going all the way
down during the Auto-Down operation, pull
up on the switch briefly.
Wind Buffeting
Wind buffeting can be described as the
perception of pressure on the ears or a heli-
copter-type sound in the ears. Your vehicle
may exhibit wind buffeting with the windows
down in certain open or partially open posi -
tions. This is a normal occurrence and can be
minimized by adjusting the window opening.
REMOVABLE TOP
INFORMATION
For your convenience, a tool kit is provided
with your vehicle located in the center
console. This kit includes the necessary tools
required for the operations described in the
following sections. All pieces fit into the
ratchet for easy use.
Provided Tools
For complete owner information, refer to the
Owner's Manual for further details.
Soft Top — Two And Four Door Models
To Lower The Soft Top
Follow these simple steps to lower the soft
top:
1. With the swing gate open, remove the swing gate bar from the bottom of the
rear window from right to left. Store in a
safe location. Remove the rear window by
sliding it to the left keeping the window
level.
2. Push outward on the bottom of the rear window pillars to release them from their
retaining tabs.
3. Undo the hook-and-loop-fastener located at the upper front corner of each quarter
window.
Hook-And-Loop Fastener Location
WARNING!
There is no anti-pinch protection when the
window is almost closed. Be sure to clear
all objects from the window before closing.
1 — #50 Torx Head Driver
2 — #40 Torx Head Driver
3 — 15mm Socket
4 — Ratchet
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 47

GETTING TO KNOW YOUR VEHICLE
48

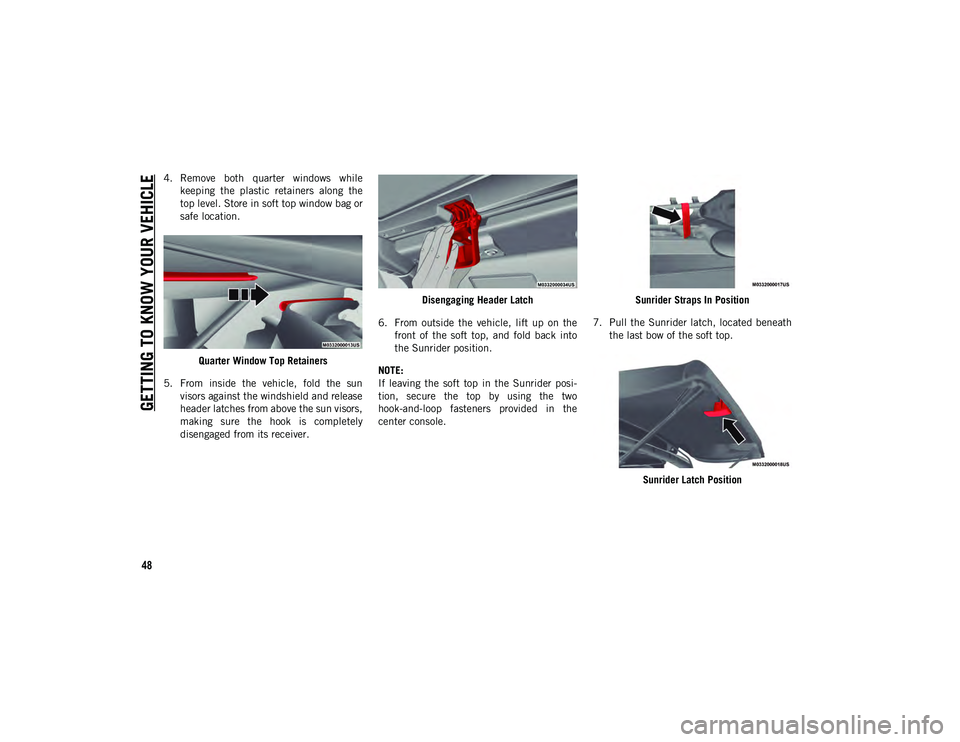

4. Remove both quarter windows whilekeeping the plastic retainers along the
top level. Store in soft top window bag or
safe location.
Quarter Window Top Retainers
5. From inside the vehicle, fold the sun visors against the windshield and release
header latches from above the sun visors,
making sure the hook is completely
disengaged from its receiver. Disengaging Header Latch
6. From outside the vehicle, lift up on the front of the soft top, and fold back into
the Sunrider position.
NOTE:
If leaving the soft top in the Sunrider posi -
tion, secure the top by using the two
hook-and-loop fasteners provided in the
center console. Sunrider Straps In Position
7. Pull the Sunrider latch, located beneath the last bow of the soft top.
Sunrider Latch Position
2020_JEEP_JL_WRANGLER_UG_RHD_UK.book Page 48
