JEEP WRANGLER UNLIMITED SPORT 2016 Owner's Guide

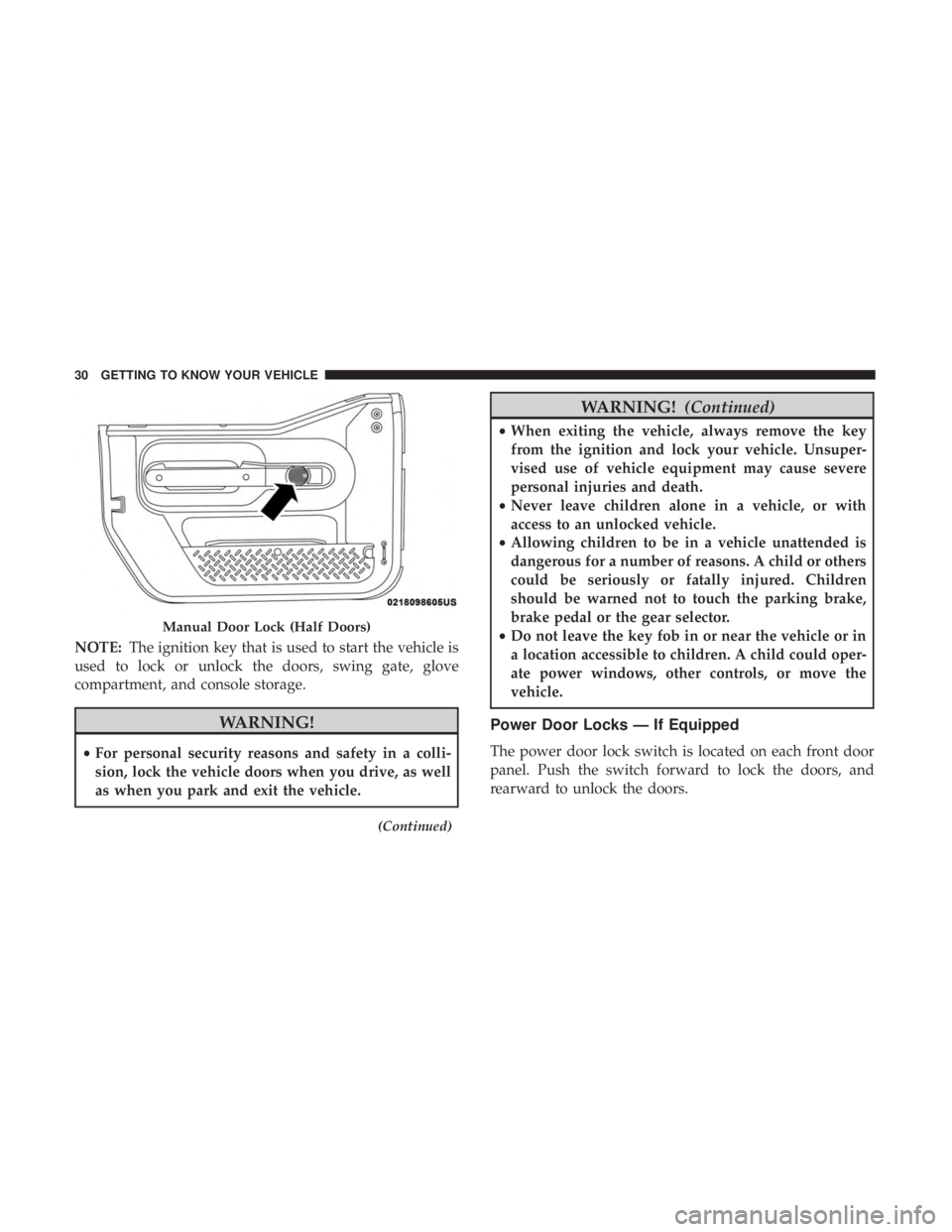

NOTE:The ignition key that is used to start the vehicle is
used to lock or unlock the doors, swing gate, glove
compartment, and console storage.

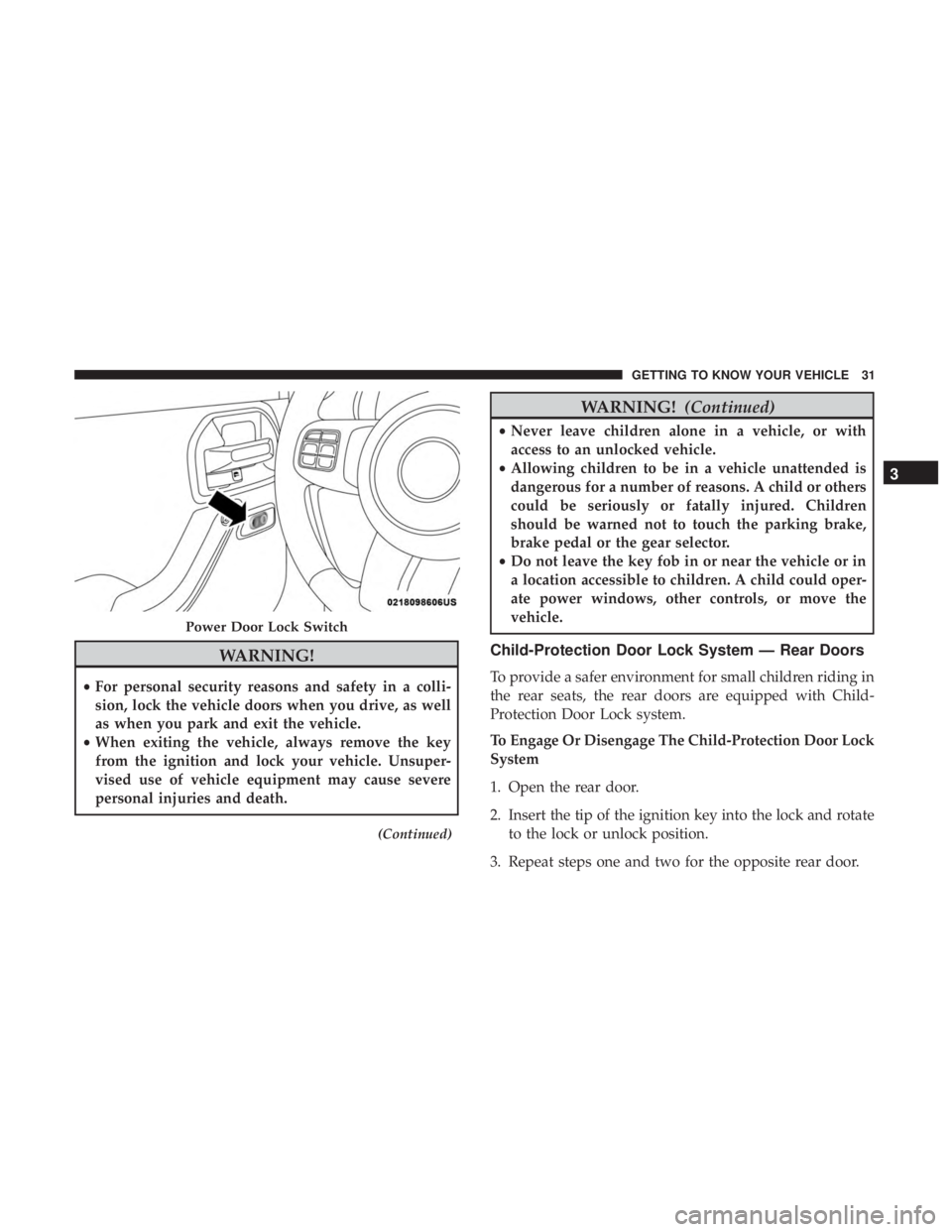

WARNING!
•For personal security reasons and safety in a colli-
sion, lock the vehicle doors when you drive, as well
as when you park and exit the vehicle.
• When exiting the vehicle, always remove the key
from the ignition and lock your vehicle. Unsuper-
vised use of vehicle equipment may cause severe
personal injuries and death.
(Continued)

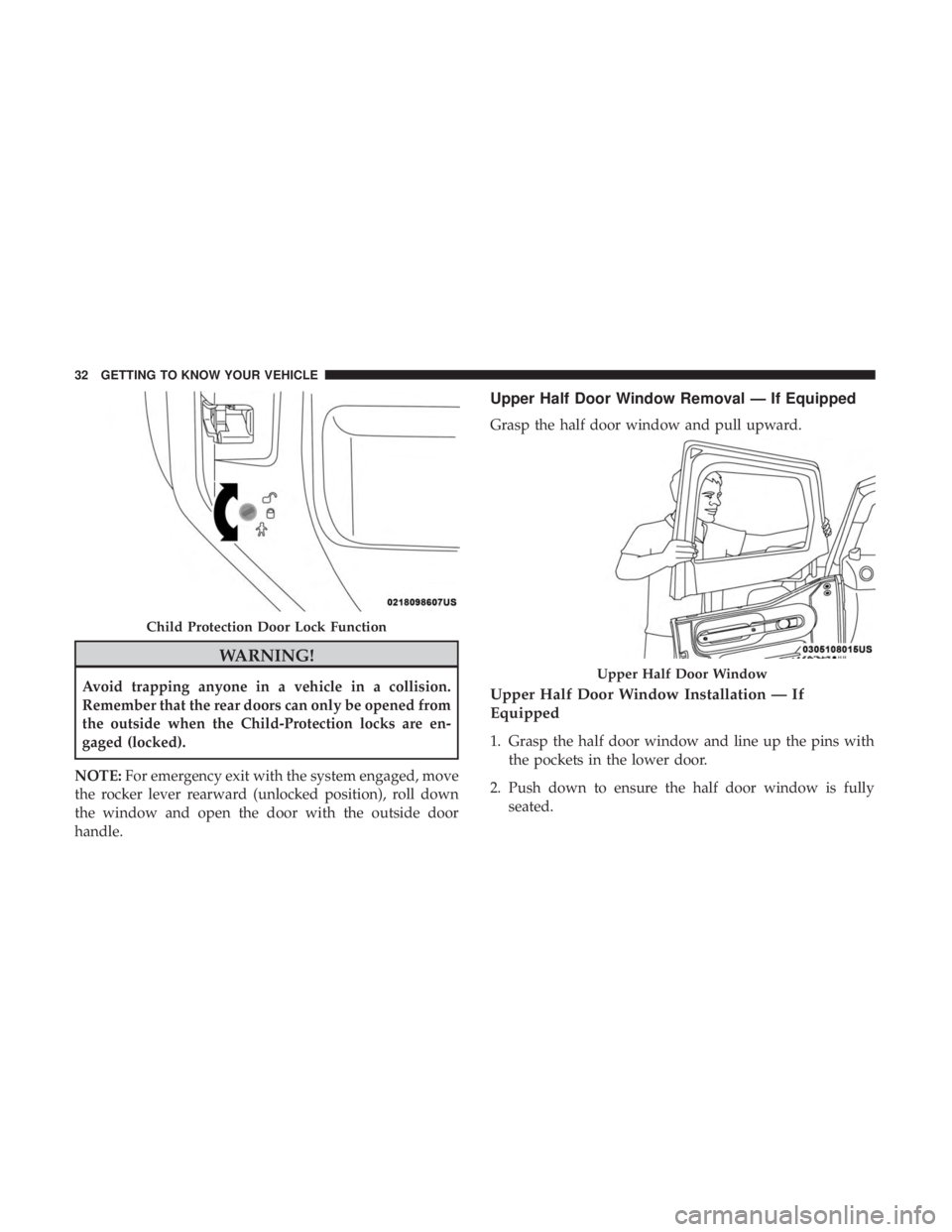

WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened from
the outside when the Child-Protection locks are en-
gaged (locked).
NOTE: For emergency exit with the system engaged, move
the rocker lever rearward (unlocked position), roll down
the window and open the door with the outside door
handle.
Upper Half Door Window Removal — If Equipped
Grasp the half door window and pull upward.
Upper Half Door Window Installation — If
Equipped
1. Grasp the half door window and line up the pins with the pockets in the lower door.
2. Push down to ensure the half door window is fully seated.

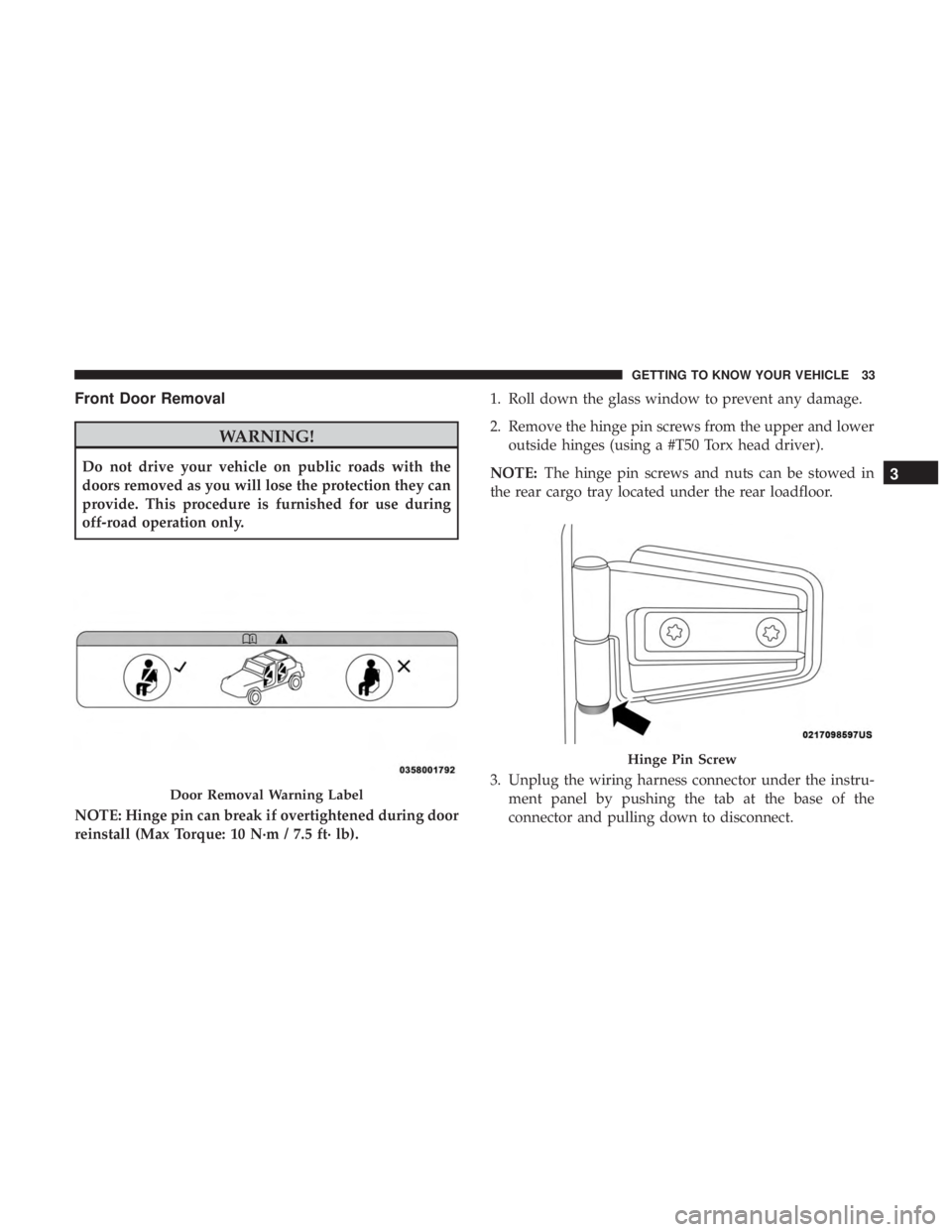

Front Door Removal

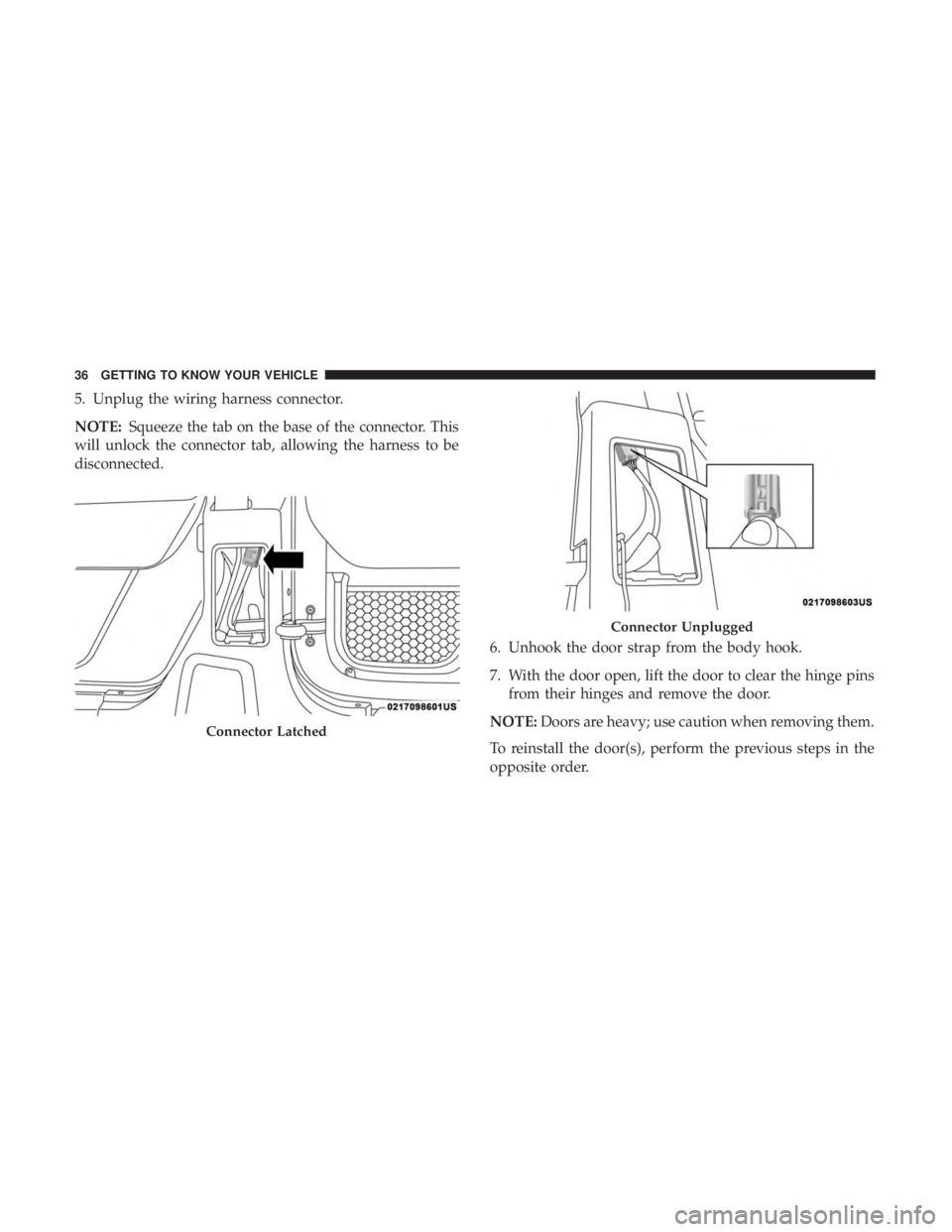

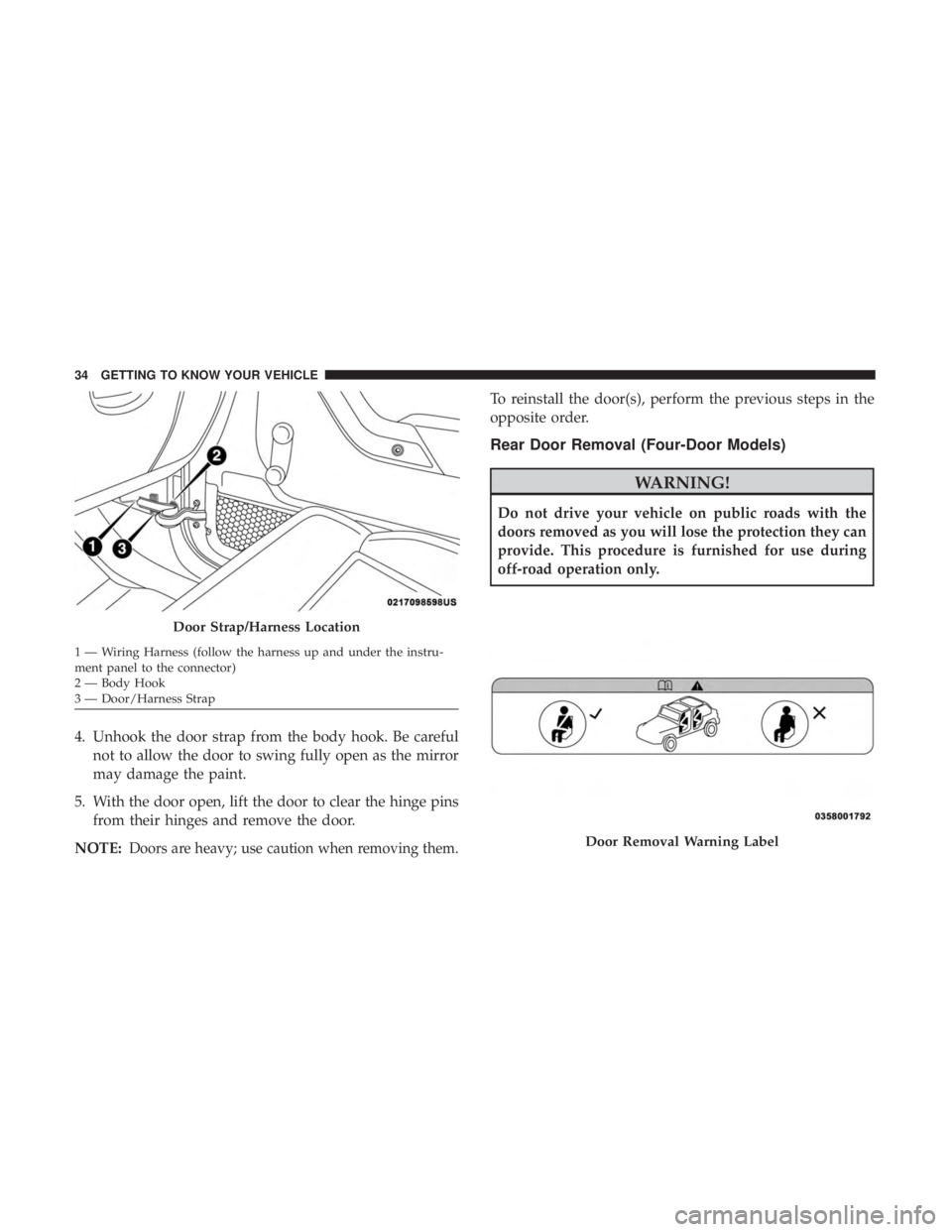

4. Unhook the door strap from the body hook. Be carefulnot to allow the door to swing fully open as the mirror
may damage the paint.
5. With the door open, lift the door to clear the hinge pins from their hinges and remove the door.
NOTE:
Doors are heavy; use caution when removing them.
To reinstall the door(s), perform the previous steps in the
opposite order.
Rear Door Removal (Four-Door Models)

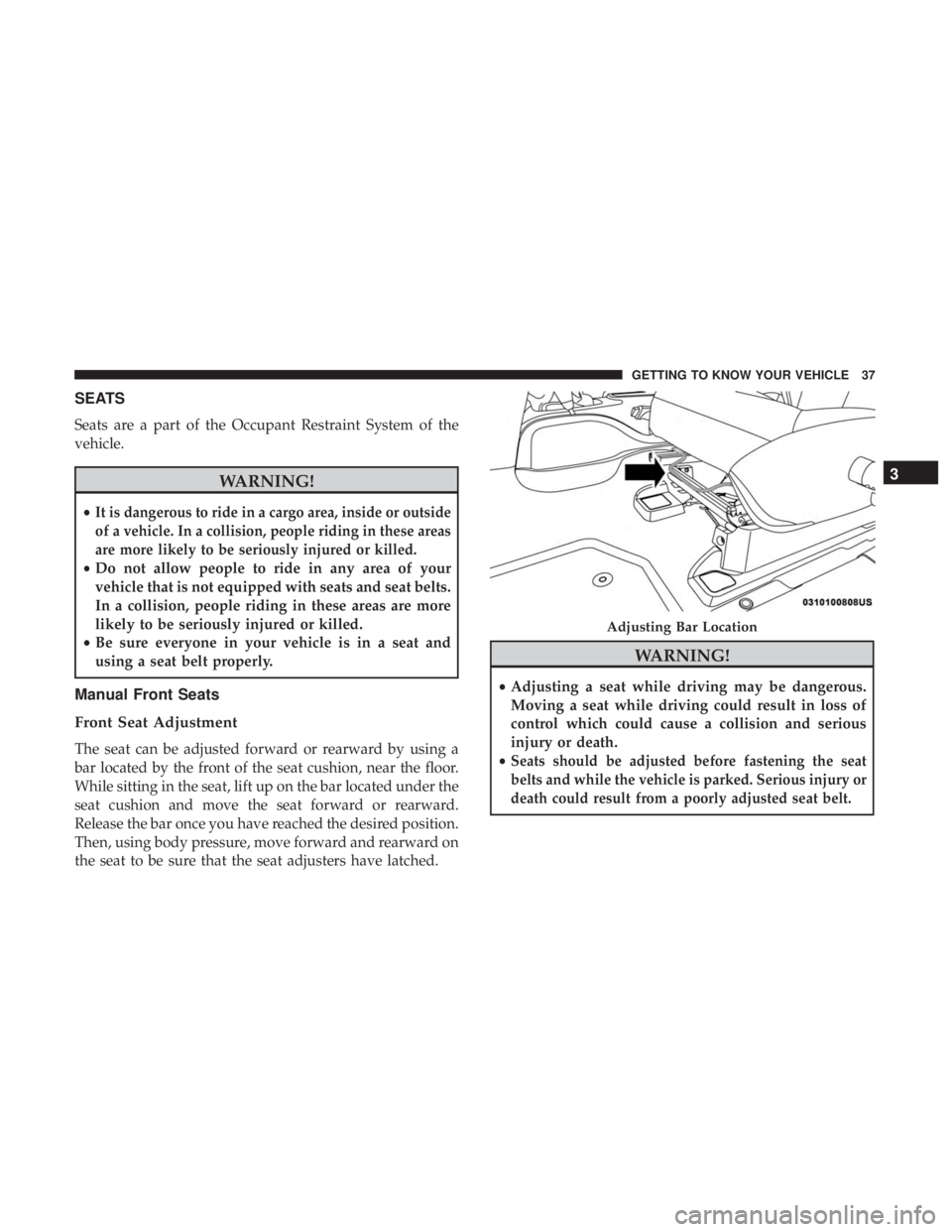

SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.

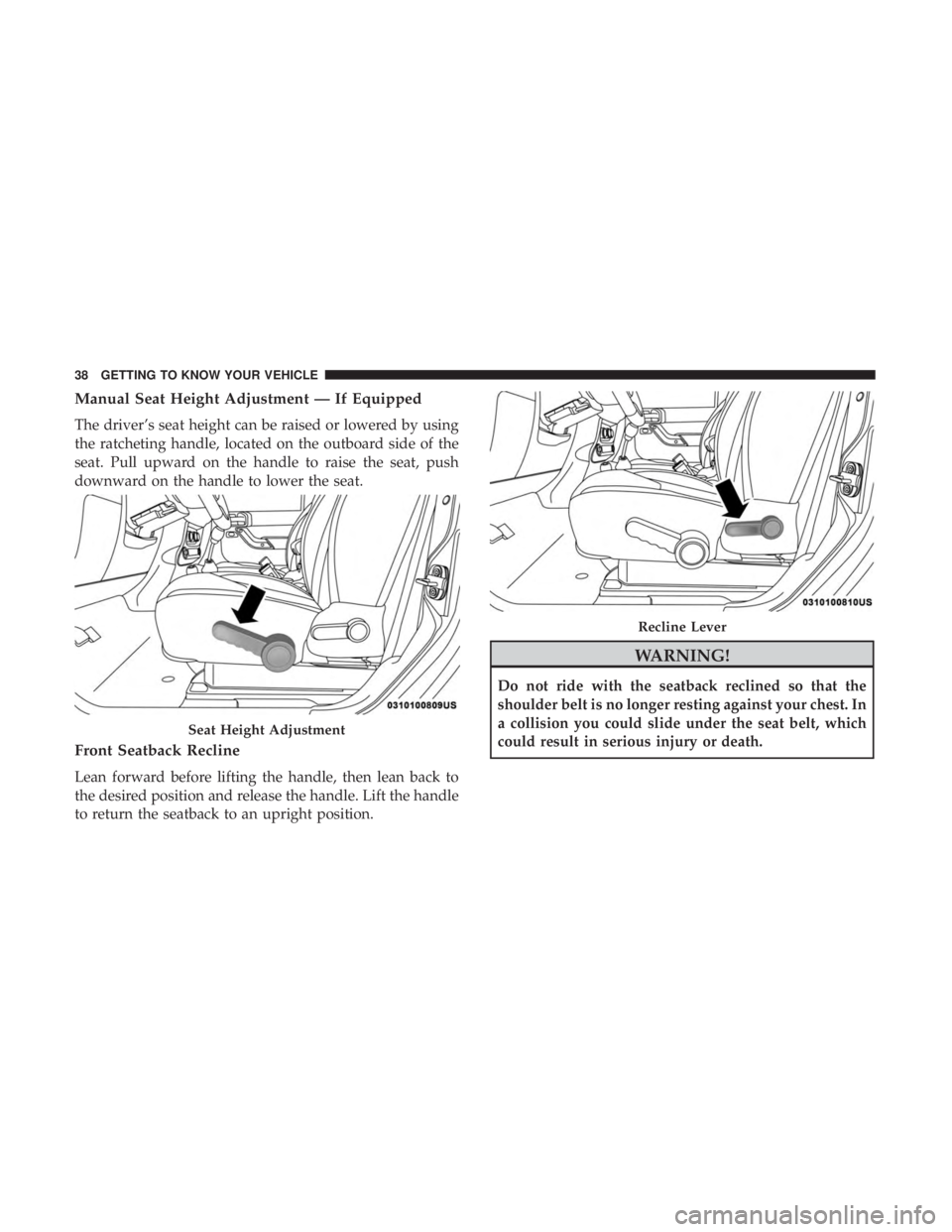

Manual Seat Height Adjustment — If Equipped
The driver’s seat height can be raised or lowered by using
the ratcheting handle, located on the outboard side of the
seat. Pull upward on the handle to raise the seat, push
downward on the handle to lower the seat.
Front Seatback Recline
Lean forward before lifting the handle, then lean back to
the desired position and release the handle. Lift the handle
to return the seatback to an upright position.
