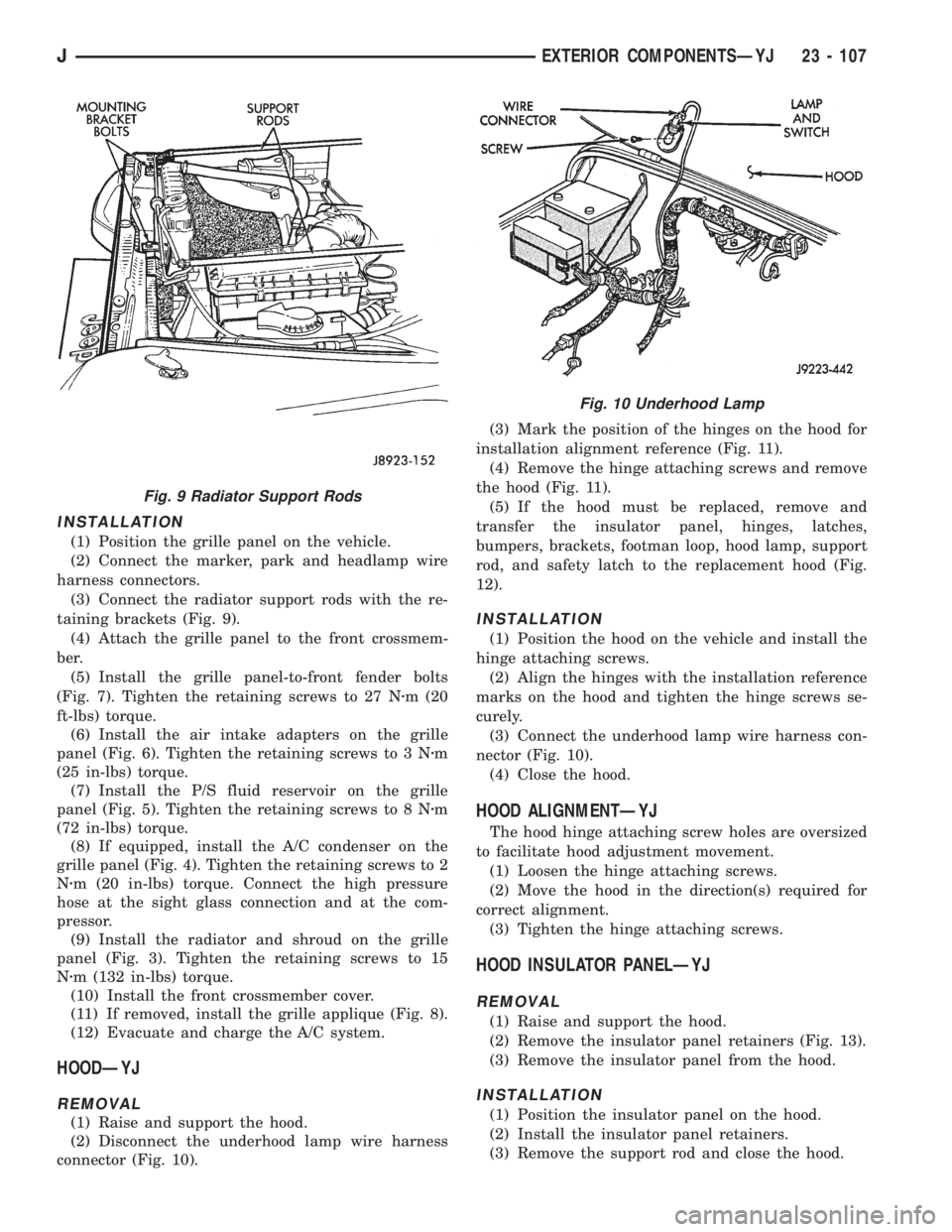

INSTALLATION
(1) Position the grille panel on the vehicle.
(2) Connect the marker, park and headlamp wire
harness connectors.
(3) Connect the radiator support rods with the re-
taining brackets (Fig. 9).
(4) Attach the grille panel to the front crossmem-
ber.
(5) Install the grille panel-to-front fender bolts
(Fig. 7). Tighten the retaining screws to 27 Nzm (20
ft-lbs) torque.
(6) Install the air intake adapters on the grille
panel (Fig. 6). Tighten the retaining screws to 3 Nzm
(25 in-lbs) torque.
(7) Install the P/S fluid reservoir on the grille
panel (Fig. 5). Tighten the retaining screws to 8 Nzm
(72 in-lbs) torque.
(8) If equipped, install the A/C condenser on the
grille panel (Fig. 4). Tighten the retaining screws to 2
Nzm (20 in-lbs) torque. Connect the high pressure
hose at the sight glass connection and at the com-
pressor.
(9) Install the radiator and shroud on the grille
panel (Fig. 3). Tighten the retaining screws to 15
Nzm (132 in-lbs) torque.
(10) Install the front crossmember cover.
(11) If removed, install the grille applique (Fig. 8).
(12) Evacuate and charge the A/C system.
HOODÐYJ
REMOVAL
(1) Raise and support the hood.
(2) Disconnect the underhood lamp wire harness
connector (Fig. 10).(3) Mark the position of the hinges on the hood for
installation alignment reference (Fig. 11).
(4) Remove the hinge attaching screws and remove
the hood (Fig. 11).
(5) If the hood must be replaced, remove and
transfer the insulator panel, hinges, latches,
bumpers, brackets, footman loop, hood lamp, support
rod, and safety latch to the replacement hood (Fig.
12).
INSTALLATION
(1) Position the hood on the vehicle and install the
hinge attaching screws.
(2) Align the hinges with the installation reference
marks on the hood and tighten the hinge screws se-
curely.
(3) Connect the underhood lamp wire harness con-
nector (Fig. 10).
(4) Close the hood.
HOOD ALIGNMENTÐYJ
The hood hinge attaching screw holes are oversized
to facilitate hood adjustment movement.
(1) Loosen the hinge attaching screws.
(2) Move the hood in the direction(s) required for
correct alignment.
(3) Tighten the hinge attaching screws.
HOOD INSULATOR PANELÐYJ
REMOVAL
(1) Raise and support the hood.
(2) Remove the insulator panel retainers (Fig. 13).
(3) Remove the insulator panel from the hood.
INSTALLATION
(1) Position the insulator panel on the hood.
(2) Install the insulator panel retainers.
(3) Remove the support rod and close the hood.
Fig. 9 Radiator Support Rods
Fig. 10 Underhood Lamp
JEXTERIOR COMPONENTSÐYJ 23 - 107

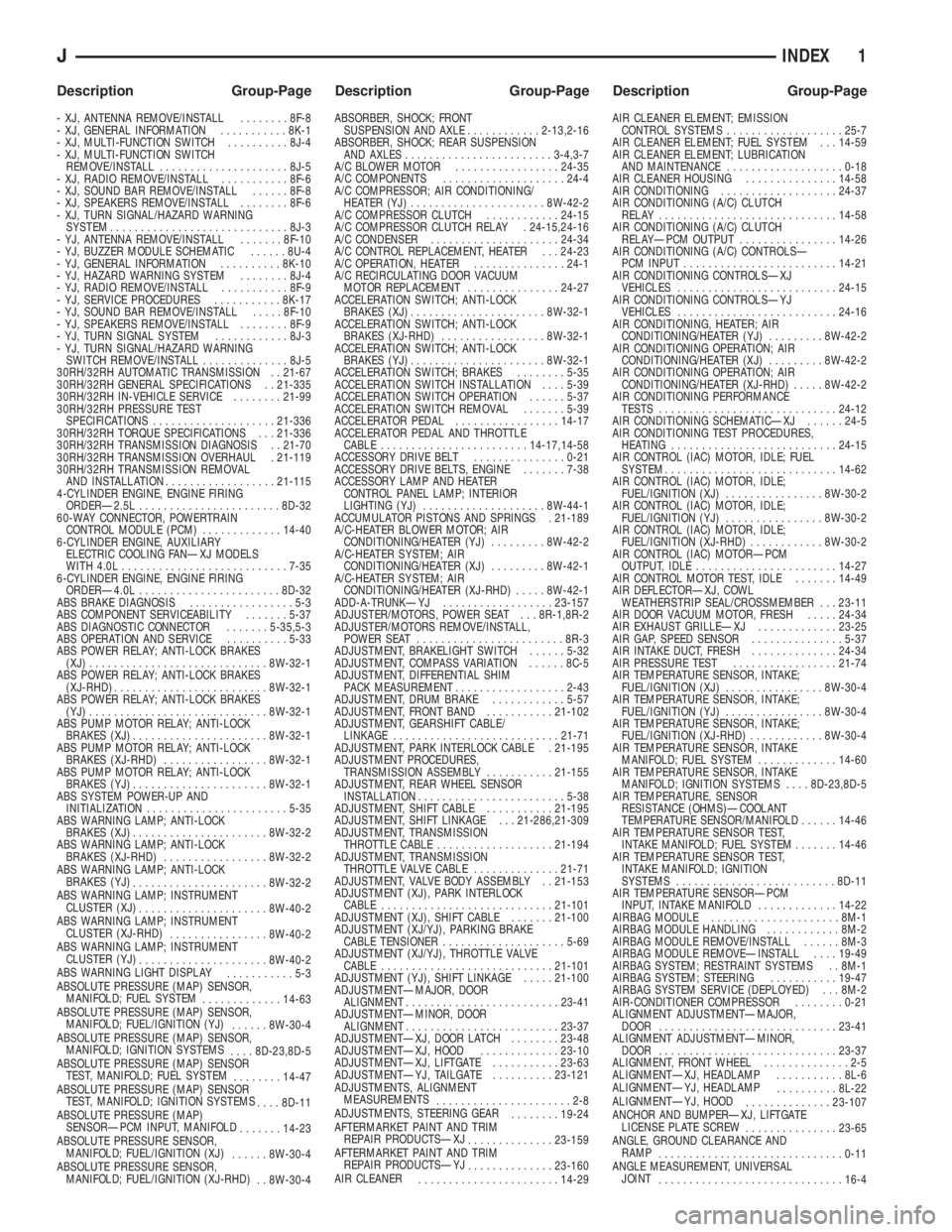

- XJ, ANTENNA REMOVE/INSTALL........8F-8
- XJ, GENERAL INFORMATION...........8K-1
- XJ, MULTI-FUNCTION SWITCH..........8J-4
- XJ, MULTI-FUNCTION SWITCH
REMOVE/INSTALL.....................8J-5
- XJ, RADIO REMOVE/INSTALL...........8F-6
- XJ, SOUND BAR REMOVE/INSTALL......8F-8
- XJ, SPEAKERS REMOVE/INSTALL........8F-6
- XJ, TURN SIGNAL/HAZARD WARNING
SYSTEM.............................8J-3
- YJ, ANTENNA REMOVE/INSTALL.......8F-10
- YJ, BUZZER MODULE SCHEMATIC......8U-4
- YJ, GENERAL INFORMATION..........8K-10
- YJ, HAZARD WARNING SYSTEM........8J-4
- YJ, RADIO REMOVE/INSTALL...........8F-9
- YJ, SERVICE PROCEDURES...........8K-17
- YJ, SOUND BAR REMOVE/INSTALL.....8F-10
- YJ, SPEAKERS REMOVE/INSTALL........8F-9
- YJ, TURN SIGNAL SYSTEM............8J-3
- YJ, TURN SIGNAL/HAZARD WARNING
SWITCH REMOVE/INSTALL..............8J-5
30RH/32RH AUTOMATIC TRANSMISSION . . 21-67
30RH/32RH GENERAL SPECIFICATIONS . . 21-335
30RH/32RH IN-VEHICLE SERVICE........21-99
30RH/32RH PRESSURE TEST
SPECIFICATIONS....................21-336
30RH/32RH TORQUE SPECIFICATIONS . . . 21-336
30RH/32RH TRANSMISSION DIAGNOSIS . . 21-70
30RH/32RH TRANSMISSION OVERHAUL . 21-119
30RH/32RH TRANSMISSION REMOVAL
AND INSTALLATION..................21-115
4-CYLINDER ENGINE, ENGINE FIRING
ORDERÐ2.5L.......................8D-32
60-WAY CONNECTOR, POWERTRAIN
CONTROL MODULE (PCM).............14-40
6-CYLINDER ENGINE, AUXILIARY
ELECTRIC COOLING FANÐXJ MODELS
WITH 4.0L...........................7-35
6-CYLINDER ENGINE, ENGINE FIRING
ORDERÐ4.0L.......................8D-32
ABS BRAKE DIAGNOSIS.................5-3
ABS COMPONENT SERVICEABILITY.......5-37
ABS DIAGNOSTIC CONNECTOR.......5-35,5-3
ABS OPERATION AND SERVICE..........5-33
ABS POWER RELAY; ANTI-LOCK BRAKES
(XJ).............................8W-32-1
ABS POWER RELAY; ANTI-LOCK BRAKES
(XJ-RHD).........................8W-32-1
ABS POWER RELAY; ANTI-LOCK BRAKES
(YJ).............................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
ABS SYSTEM POWER-UP AND
INITIALIZATION.......................5-35
ABS WARNING LAMP; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
ABS WARNING LAMP; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
ABS WARNING LAMP; ANTI-LOCK
BRAKES (YJ)
......................8W-32-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (XJ-RHD)
................8W-40-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (YJ)
.....................8W-40-2
ABS WARNING LIGHT DISPLAY
...........5-3
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; FUEL SYSTEM
.............14-63
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; FUEL/IGNITION (YJ)
......8W-30-4
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; IGNITION SYSTEMS
....8D-23,8D-5
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; FUEL SYSTEM
........14-47
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; IGNITION SYSTEMS
....8D-11
ABSOLUTE PRESSURE (MAP)
SENSORÐPCM INPUT, MANIFOLD
.......14-23
ABSOLUTE PRESSURE SENSOR,
MANIFOLD; FUEL/IGNITION (XJ)
......8W-30-4
ABSOLUTE PRESSURE SENSOR,
MANIFOLD; FUEL/IGNITION (XJ-RHD)
. . 8W-30-4ABSORBER, SHOCK; FRONT
SUSPENSION AND AXLE............2-13,2-16
ABSORBER, SHOCK; REAR SUSPENSION
AND AXLES........................3-4,3-7
A/C BLOWER MOTOR.................24-35
A/C COMPONENTS....................24-4
A/C COMPRESSOR; AIR CONDITIONING/
HEATER (YJ)......................8W-42-2
A/C COMPRESSOR CLUTCH............24-15
A/C COMPRESSOR CLUTCH RELAY . 24-15,24-16
A/C CONDENSER.....................24-34
A/C CONTROL REPLACEMENT, HEATER . . . 24-23
A/C OPERATION, HEATER...............24-1
A/C RECIRCULATING DOOR VACUUM
MOTOR REPLACEMENT...............24-27
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
ACCELERATION SWITCH; BRAKES........5-35
ACCELERATION SWITCH INSTALLATION....5-39
ACCELERATION SWITCH OPERATION......5-37
ACCELERATION SWITCH REMOVAL.......5-39
ACCELERATOR PEDAL.................14-17
ACCELERATOR PEDAL AND THROTTLE
CABLE........................14-17,14-58
ACCESSORY DRIVE BELT...............0-21
ACCESSORY DRIVE BELTS, ENGINE.......7-38
ACCESSORY LAMP AND HEATER
CONTROL PANEL LAMP; INTERIOR
LIGHTING (YJ)....................8W-44-1
ACCUMULATOR PISTONS AND SPRINGS . 21-189
A/C-HEATER BLOWER MOTOR; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
A/C-HEATER SYSTEM; AIR
CONDITIONING/HEATER (XJ).........8W-42-1
A/C-HEATER SYSTEM; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-1
ADD-A-TRUNKÐYJ..................23-157
ADJUSTER/MOTORS, POWER SEAT . . . 8R-1,8R-2
ADJUSTER/MOTORS REMOVE/INSTALL,
POWER SEAT........................8R-3
ADJUSTMENT, BRAKELIGHT SWITCH......5-32
ADJUSTMENT, COMPASS VARIATION......8C-5
ADJUSTMENT, DIFFERENTIAL SHIM
PACK MEASUREMENT..................2-43
ADJUSTMENT, DRUM BRAKE............5-57
ADJUSTMENT, FRONT BAND...........21-102
ADJUSTMENT, GEARSHIFT CABLE/
LINKAGE...........................21-71
ADJUSTMENT, PARK INTERLOCK CABLE . 21-195
ADJUSTMENT PROCEDURES,
TRANSMISSION ASSEMBLY...........21-155
ADJUSTMENT, REAR WHEEL SENSOR
INSTALLATION........................5-38
ADJUSTMENT, SHIFT CABLE...........21-195
ADJUSTMENT, SHIFT LINKAGE . . . 21-286,21-309
ADJUSTMENT, TRANSMISSION
THROTTLE CABLE...................21-194
ADJUSTMENT, TRANSMISSION
THROTTLE VALVE CABLE..............21-71
ADJUSTMENT, VALVE BODY ASSEMBLY . . 21-153
ADJUSTMENT (XJ), PARK INTERLOCK
CABLE............................21-101
ADJUSTMENT (XJ), SHIFT CABLE.......21-100
ADJUSTMENT (XJ/YJ), PARKING BRAKE
CABLE TENSIONER....................5-69
ADJUSTMENT (XJ/YJ), THROTTLE VALVE
CABLE............................21-101
ADJUSTMENT (YJ), SHIFT LINKAGE.....21-100
ADJUSTMENTÐMAJOR, DOOR
ALIGNMENT.........................23-41
ADJUSTMENTÐMINOR, DOOR
ALIGNMENT.........................23-37
ADJUSTMENTÐXJ, DOOR LATCH........23-48
ADJUSTMENTÐXJ, HOOD.............23-10
ADJUSTMENTÐXJ, LIFTGATE...........23-63
ADJUSTMENTÐYJ, TAILGATE..........23-121
ADJUSTMENTS, ALIGNMENT
MEASUREMENTS
......................2-8
ADJUSTMENTS, STEERING GEAR
........19-24
AFTERMARKET PAINT AND TRIM
REPAIR PRODUCTSÐXJ
..............23-159
AFTERMARKET PAINT AND TRIM
REPAIR PRODUCTSÐYJ
..............23-160
AIR CLEANER
.......................14-29AIR CLEANER ELEMENT; EMISSION
CONTROL SYSTEMS...................25-7
AIR CLEANER ELEMENT; FUEL SYSTEM . . . 14-59
AIR CLEANER ELEMENT; LUBRICATION
AND MAINTENANCE...................0-18
AIR CLEANER HOUSING...............14-58
AIR CONDITIONING...................24-37
AIR CONDITIONING (A/C) CLUTCH
RELAY.............................14-58
AIR CONDITIONING (A/C) CLUTCH
RELAYÐPCM OUTPUT................14-26
AIR CONDITIONING (A/C) CONTROLSÐ
PCM INPUT.........................14-21
AIR CONDITIONING CONTROLSÐXJ
VEHICLES..........................24-15
AIR CONDITIONING CONTROLSÐYJ
VEHICLES..........................24-16
AIR CONDITIONING, HEATER; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
AIR CONDITIONING OPERATION; AIR
CONDITIONING/HEATER (XJ).........8W-42-2
AIR CONDITIONING OPERATION; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-2
AIR CONDITIONING PERFORMANCE
TESTS.............................24-12
AIR CONDITIONING SCHEMATICÐXJ......24-5
AIR CONDITIONING TEST PROCEDURES,
HEATING...........................24-15
AIR CONTROL (IAC) MOTOR, IDLE; FUEL
SYSTEM............................14-62
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (XJ)................8W-30-2
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (YJ)................8W-30-2
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (XJ-RHD)............8W-30-2
AIR CONTROL (IAC) MOTORÐPCM
OUTPUT, IDLE.......................14-27
AIR CONTROL MOTOR TEST, IDLE.......14-49
AIR DEFLECTORÐXJ, COWL
WEATHERSTRIP SEAL/CROSSMEMBER . . . 23-11
AIR DOOR VACUUM MOTOR, FRESH.....24-34
AIR EXHAUST GRILLEÐXJ.............23-25
AIR GAP, SPEED SENSOR...............5-37
AIR INTAKE DUCT, FRESH..............24-34
AIR PRESSURE TEST.................21-74
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (XJ)................8W-30-4
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (YJ)................8W-30-4
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (XJ-RHD)............8W-30-4
AIR TEMPERATURE SENSOR, INTAKE
MANIFOLD; FUEL SYSTEM.............14-60
AIR TEMPERATURE SENSOR, INTAKE
MANIFOLD; IGNITION SYSTEMS....8D-23,8D-5
AIR TEMPERATURE, SENSOR
RESISTANCE (OHMS)ÐCOOLANT
TEMPERATURE SENSOR/MANIFOLD......14-46
AIR TEMPERATURE SENSOR TEST,
INTAKE MANIFOLD; FUEL SYSTEM.......14-46
AIR TEMPERATURE SENSOR TEST,
INTAKE MANIFOLD; IGNITION
SYSTEMS..........................8D-11
AIR TEMPERATURE SENSORÐPCM
INPUT, INTAKE MANIFOLD.............14-22
AIRBAG MODULE.....................8M-1
AIRBAG MODULE HANDLING............8M-2
AIRBAG MODULE REMOVE/INSTALL......8M-3
AIRBAG MODULE REMOVEÐINSTALL....19-49
AIRBAG SYSTEM; RESTRAINT SYSTEMS . . 8M-1
AIRBAG SYSTEM; STEERING...........19-47
AIRBAG SYSTEM SERVICE (DEPLOYED) . . . 8M-2
AIR-CONDITIONER COMPRESSOR........0-21
ALIGNMENT ADJUSTMENTÐMAJOR,
DOOR.............................23-41
ALIGNMENT ADJUSTMENTÐMINOR,
DOOR.............................23-37
ALIGNMENT, FRONT WHEEL..............2-5
ALIGNMENTÐXJ, HEADLAMP...........8L-6
ALIGNMENTÐYJ, HEADLAMP
..........8L-22
ALIGNMENTÐYJ, HOOD
..............23-107
ANCHOR AND BUMPERÐXJ, LIFTGATE
LICENSE PLATE SCREW
...............23-65
ANGLE, GROUND CLEARANCE AND
RAMP
..............................0-11
ANGLE MEASUREMENT, UNIVERSAL
JOINT
..............................16-4
JINDEX 1
Description Group-Page Description Group-Page Description Group-Page

BELT TENSIONERÐXJ MODELS WITH
RIGHT HAND DRIVE, AUTOMATIC........7-42
BELT TENSIONÐEXCEPT RIGHT HAND
DRIVE (RHD).........................7-38
BELT TENSIONÐEXCEPT RIGHT HAND
DRIVE (RHD) MODELS.................7-45
BELT TENSIONÐRIGHT HAND DRIVE
(RHD)..............................7-38
BELT/BUCKLEÐXJ, FRONT SHOULDER . . . 23-90
BELT/BUCKLEÐXJ, REAR SHOULDER/
LAP ...............................23-91
BELTLINE SEALÐYJ.................23-142
BELTS, ENGINE ACCESSORY DRIVE.......7-38
BELTSÐYJ, FRONT SHOULDER........23-154
BELTSÐYJ, REAR SHOULDER.........23-154
BENCH BLEEDING, MASTER CYLINDER....5-21
BENCH, GEAR ADJUSTMENTS ON.......19-44
BENCH SEATÐYJ, REAR..............23-153
BEZELÐXJ, INSTRUMENT CLUSTER.....23-80
BEZELÐYJ, INSTRUMENT CLUSTER....23-151
BIN REMOVE/INSTALL, SUNGLASSES
STORAGE...........................8C-7
BLADE REMOVE/INSTALL, WINDSHIELD
WIPER.............................8K-17
BLEEDING, MASTER CYLINDER BENCH....5-21
BLEEDING RECOMMENDATIONS, BRAKE . . . 5-10
BLEEDING (WITH ABS BRAKES), BRAKE . . . 5-11
BLEEDING (WITH STANDARD BRAKES),
BRAKE..............................5-11
BLEEDINGÐBRAKELINES AND HOSES,
BRAKE FLUIDÐBRAKE.................5-10
BLOCK, CYLINDER................9-49,9-91
BLOCK HEATER, ENGINE................7-44
BLOCKSÐTWO-DOOR VEHICLES, FRONT
DOOR SPACER......................23-53
BLOWER MOTOR; AIR CONDITIONING/
HEATER (XJ)......................8W-42-1
BLOWER MOTOR; AIR CONDITIONING/
HEATER (XJ-RHD)..................8W-42-1
BLOWER MOTOR; HEATING AND AIR
CONDITIONING......................24-17
BLOWER MOTOR, A/C.................24-35
BLOWER MOTOR, A/C-HEATER; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
BLOWER MOTOR (HEATING)...........24-33
BLOWER MOTOR RESISTORS
REPLACEMENT......................24-31
BLOWER MOTOR SWITCH.............24-16
BLOWER MOTOR/AIR DOOR MOTOR
SWITCH REPLACEMENT...............24-32
BLOWER MOTOR/FAN REPLACEMENT....24-24
BODY ASSEMBLY AND ADJUSTMENT,
VALVE ............................21-153
BODY CHECK BALL DIMENSIONS, AW-4
VALVE ............................21-341
BODY CODE LETTERS, JEEP..............5-2
BODY LUBRICANT SPECIFICATIONS.......0-33
BODY OVERHAUL, TRANSMISSION
VALVE ............................21-250
BODY REMOVAL, TRANSMISSION VALVE . 21-186
BODY REMOVAL, VALVE..............21-104
BODY SERVICE INFORMATION, GENERAL . . 23-1
BODY SERVICE, VALVE...............21-104
BODY SIDE MOLDING/CLADDINGÐXJ....23-20
BODY SIDE STEP MOLDINGÐYJ.......23-115
BODY SOLENOIDS, TRANSMISSION
VALVE ............................21-184
BODY STRIPES/DECALSÐXJ...........23-21
BODY STRIPES/DECALSÐYJ..........23-116
BODY, THROTTLE...............14-33,14-64
BOLT IDENTIFICATION..............Intro.-14
BOLT STRENGTH..................Intro.-15
BOOSTER CHECK VALVE TEST, POWER.....5-9
BOOSTER INSTALLATION (XJ WITH
ABS), POWER BRAKE..................5-27
BOOSTER INSTALLATION (XJ WITHOUT
ABS), POWER BRAKE..................5-30
BOOSTER INSTALLATION (YJ), POWER
BRAKE..............................5-30
BOOSTER, MASTER CYLINDER/POWER
BRAKE
..............................5-34
BOOSTER OPERATION, POWER BRAKE
....5-23
BOOSTER REMOVAL (XJ WITH ABS),
POWER BRAKE
.......................5-24
BOOSTER REMOVAL (XJ WITHOUT ABS),
POWER BRAKE
.......................5-29
BOOSTER REMOVAL (YJ), POWER
BRAKE
..............................5-30BOOSTER TEST, MASTER CYLINDER/
POWER..............................5-8
BOOSTER VACUUM TEST, POWER.........5-9
BOOSTERÐBRAKE PEDALÐ
BRAKELIGHT SWITCH, POWER BRAKE....5-22
BORES, HONING CYLINDER..............9-2
BOX LAMP, GLOVE; INTERIOR LIGHTING
(XJ).............................8W-44-1
BOX LAMP, GLOVE; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-1
BOXÐYJ, GLOVE...................23-152
BRACKET REPLACEMENTÐXJ, INTERIOR
REARVIEW MIRROR SUPPORT..........23-68
BRACKETÐYJ, REARVIEW MIRROR
RETAINING........................23-144
BRACKETSÐXJ, SPARE TIRE/WHEEL
HOLDDOWN AND FLOOR..............23-98
BRAKE ADJUSTMENT, DRUM............5-57
BRAKE BLEEDING RECOMMENDATIONS....5-10
BRAKE BLEEDING (WITH ABS BRAKES)....5-11
BRAKE BLEEDING (WITH STANDARD
BRAKES)............................5-11
BRAKE BOOSTER INSTALLATION (XJ
WITH ABS), POWER...................5-27
BRAKE BOOSTER INSTALLATION (XJ
WITHOUT ABS), POWER................5-30
BRAKE BOOSTER INSTALLATION (YJ),
POWER.............................5-30
BRAKE BOOSTER, MASTER CYLINDER/
POWER.............................5-34
BRAKE BOOSTER OPERATION, POWER....5-23
BRAKE BOOSTER REMOVAL (XJ WITH
ABS), POWER........................5-24
BRAKE BOOSTER REMOVAL (XJ
WITHOUT ABS), POWER................5-29
BRAKE BOOSTER REMOVAL (YJ),
POWER.............................5-30
BRAKE BOOSTERÐBRAKE PEDALÐ
BRAKELIGHT SWITCH, POWER...........5-22
BRAKE CABLE TENSIONER ADJUSTMENT
(XJ/YJ), PARKING.....................5-69
BRAKE CABLE TENSIONER
REPLACEMENT (XJ), PARKING...........5-66
BRAKE CHECK, PRELIMINARY............5-4
BRAKE COMPONENTS...................5-1
BRAKE DIAGNOSIS, ABS.................5-3
BRAKE DIAGNOSIS, SERVICE.............5-4
BRAKE DRUM REFINISHING.............5-58
BRAKE FLUID CONTAMINATION.......5-10,5-7
BRAKE FLUID LEVEL...................5-10
BRAKE FLUID, RECOMMENDED..........5-10
BRAKE FLUID/LUBRICANTS/CLEANING
SOLVENTS............................5-2
BRAKE FLUIDÐBRAKE BLEEDINGÐ
BRAKELINES AND HOSES...............5-10
BRAKE FRONT CABLE REPLACEMENT
(YJ), PARKING........................5-67
BRAKE HANDLE COVERÐXJ, PARKING . . . 23-94
BRAKE LEVER INSTALLATION (XJ WITH
FULL CONSOLE), PARKING..............5-64
BRAKE LEVER INSTALLATION (XJ WITH
MINI CONSOLE), PARKING..............5-63
BRAKE LEVER INSTALLATION (XJ
WITHOUT CONSOLE), PARKING..........5-65
BRAKE LEVER REMOVAL (XJ WITH FULL
CONSOLE), PARKING..................5-63
BRAKE LEVER REMOVAL (XJ WITH MINI
CONSOLE), PARKING..................5-62
BRAKE LEVER REMOVAL (XJ WITHOUT
CONSOLE), PARKING
..................5-64
BRAKE MALFUNCTIONS, DIAGNOSING
PARKING
.............................5-8
BRAKE NOISE
.........................5-7
BRAKE OPERATION, PARKING
...........5-60
BRAKE OVERHAUL, SECOND
..........21-241
BRAKE PACK REQUIREMENTS, AW-4
CLUTCH
...........................21-341
BRAKE PEDAL BUSHINGS, CLUTCH
.......0-22
BRAKE PEDAL INSTALLATION
............5-31
BRAKE PEDAL INSTALLATION (YJ),
PARKING
............................5-66
BRAKE PEDAL REMOVAL
...............5-31
BRAKE PEDAL REMOVAL (YJ), PARKING
. . . 5-66
BRAKE PEDAL TRAVEL SENSOR;
ANTI-LOCK BRAKES (YJ)
............8W-32-1
BRAKE PISTON AND TRANSMISSION
CASE OVERHAUL, FIRST-REVERSE
......21-247BRAKE REAR CABLE REPLACEMENT
(XJ), PARKING........................5-67
BRAKE REAR CABLE REPLACEMENT
(YJ), PARKING........................5-68
BRAKE ROTOR REFINISHING, DISC.......5-53
BRAKE ROTOR RUNOUT, DISC...........5-52
BRAKE ROTOR THICKNESS, DISC........5-52
BRAKE SAFETY PRECAUTIONS............5-2
BRAKE SWITCH......................14-59
BRAKE SWITCH INPUT; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
BRAKE SWITCH INPUT; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
BRAKE SWITCH INPUT; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
BRAKE SWITCH INPUT; FUEL/IGNITION
(XJ).............................8W-30-5
BRAKE SWITCH INPUT; FUEL/IGNITION
(YJ).............................8W-30-5
BRAKE SWITCH INPUT; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
BRAKE SWITCH, PARKING..............5-68
BRAKE SWITCHÐPCM INPUT..........14-22
BRAKE SYSTEM, POWER...............0-30
BRAKE TORQUE SPECIFICATIONS.........5-70
BRAKE WARNING LAMP; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
BRAKE WARNING LAMP; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
BRAKE WARNING LAMP; INSTRUMENT
CLUSTER (YJ)......................8W-40-2
BRAKE WARNING LIGHTS................5-1
BRAKELIGHT SWITCH ADJUSTMENT......5-32
BRAKELIGHT SWITCH INSTALLATION......5-32
BRAKELIGHT SWITCH REMOVAL.........5-32
BRAKELINE CHARTS...................5-12
BRAKELINES AND HOSES...............5-12
BRAKELINING, CONTAMINATED...........5-7
BRAKELINING MATERIAL................5-1
BRAKES (ABS), ANTILOCK...............5-1
BRAKES, DISC........................5-45
BRAKES DO NOT HOLD AFTER DRIVING
THROUGH DEEP WATER PUDDLES........5-7
BRAKES, DRUM......................5-55
BRAKES, PARKING....................5-60
BRAKESHOE INSTALLATION, DISC........5-47
BRAKESHOE INSTALLATION, DRUM.......5-55
BRAKESHOE REMOVAL, DISC............5-46
BRAKESHOE REMOVAL, DRUM...........5-55
BRAKING MODE, ABS OPERATION IN
ANTILOCK...........................5-36
BRAKING MODE, ABS OPERATION IN
NORMAL............................5-35
BREAK-IN, ENGINE....................0-15
BRUSH GUARDÐXJ...................23-3
BUCKET SEAT CUSHION AND COVERÐ
XJ ................................23-81
BUCKET SEAT PLATFORMÐXJ..........23-82
BUCKET SEATBACK COVER AND
FRAMEÐXJ.........................23-81
BUCKET SEATSÐXJ, FRONT............23-81
BUCKET SEATSÐYJ.................23-153
BULB APPLICATIONÐXJ VEHICLES......8L-18
BULB APPLICATIONÐYJ VEHICLES......8L-32
BULB REMOVE/INSTALL, READING/
COURTESY LAMP.....................8C-8
BULB REPLACEMENTÐXJ, BACK-UP/
REAR TURN SIGNAL/TAIL LAMP.........8L-12
BULB REPLACEMENTÐXJ, FRONT
PARK/TURN SIGNAL LAMP..............8L-9
BULB REPLACEMENTÐXJ, HEADLAMP....8L-7
BULB REPLACEMENTÐXJ, SIDE
MARKER LAMP......................8L-10
BULB REPLACEMENTÐXJ, UNDERHOOD
LAMP..............................8L-13
BULB REPLACEMENTÐYJ, BACK-UP/
REAR TURN SIGNAL/TAIL LAMP.........8L-28
BULB REPLACEMENTÐYJ, FRONT
PARK/TURN SIGNAL LAMP.............8L-25
BULB REPLACEMENTÐYJ, HEADLAMP . . . 8L-23
BULB REPLACEMENTÐYJ, SIDE
MARKER LAMP
......................8L-25
BULB REPLACEMENTÐYJ, UNDERHOOD
LAMP
..............................8L-29
BULB REPLACEMENTÐYJ VEHICLES,
HARDTOP DOME/CARGO LAMP
.........8L-31
BUMPER, FRONT
.................13-16,13-5
BUMPER, REAR
..................13-16,13-8
JINDEX 3
Description Group-Page Description Group-Page Description Group-Page

CYLINDER COMBUSTION PRESSURE
LEAKAGE TEST DIAGNOSIS..............9-7
CYLINDER COMPRESSION PRESSURE
TEST................................9-5
CYLINDER DISPOSALÐXJ, LIFTGATE
SUPPORT ROD......................23-63
CYLINDER ENGINE, VACUUM ROUTING
SCHEMATICÐ2.5L 4...................25-3
CYLINDER ENGINE, VACUUM ROUTING
SCHEMATICÐ4.0L 6...................25-3
CYLINDER HEAD COVER, ENGINE....9-22,9-64
CYLINDER HEAD, ENGINE...........9-25,9-67
CYLINDER HEAD GASKET FAILURE
DIAGNOSIS, ENGINE....................9-5
CYLINDER INSTALLATION (NON-ABS),
MASTER............................5-16
CYLINDER INSTALLATION, WHEEL........5-58
CYLINDER OVERHAUL (4-CYLINDER
MODELS), MASTER....................5-16
CYLINDER OVERHAUL, WHEEL...........5-57
CYLINDER REMOVAL (NON-ABS),
MASTER............................5-15
CYLINDER REMOVAL, WHEEL...........5-57
CYLINDER SERVICE, IGNITION SWITCH
AND KEY...........................8D-26
CYLINDERÐCOMBINATION VALVE,
MASTER............................5-15
CYLINDERÐXJ, DOOR KEY LOCK.......23-47
CYLINDERÐXJ, LIFTGATE SUPPORT
ROD...............................23-62
CYLINDERÐYJ, FULL-METAL DOOR KEY
LOCK..............................23-139
CYLINDERÐYJ, TAILGATE LOCK.......23-122
CYLINDER/POWER BOOSTER TEST,
MASTER.............................5-8
CYLINDER/POWER BRAKE BOOSTER,
MASTER............................5-34
CYLINDER/STRIKERÐXJ, LIFTGATE
LATCH/KEY LOCK....................23-61
DAMAGED OR WORN THREADS, REPAIR....9-4
DAMPER, ENGINE.....................9-17
DAMPER, STEERING.............19-17,19-20
DAMPER, VIBRATION..............9-30,9-72
DASH PANEL INSULATOR PANELÐXJ....23-12
DATA LINK CONNECTOR; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
DATA LINK CONNECTOR; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
DATA LINK CONNECTOR; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
DATA LINK CONNECTOR; FUEL/IGNITION
(XJ).............................8W-30-5
DATA LINK CONNECTOR; FUEL/IGNITION
(YJ).............................8W-30-5
DATA LINK CONNECTOR;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
DATA LINK CONNECTOR; FUEL/IGNITION
(XJ-RHD).........................8W-30-4
DATA LINK CONNECTORÐPCM INPUT....14-22
DATA LINK CONNECTORÐPCM OUTPUT . . 14-27
DATA, VEHICLE DIMENSION.....Intro.-5,Intro.-6
DATA, VEHICLE LOAD................Intro.-5
DATAÐXJ, VEHICLE LOAD............Intro.-7
DATAÐYJ, VEHICLE LOAD............Intro.-8
DAYTIME RUNNING LAMP (DRL)
MODULE; FRONT LIGHTING (XJ)......8W-50-2
DAYTIME RUNNING LAMP (DRL)
MODULEÐCANADIAN VEHICLES ONLY;
FRONT LIGHTING (YJ)
..............8W-50-2
DAYTIME RUNNING LIGHTS (CANADA
ONLY)ÐXJ
.........................8L-15
DAYTIME RUNNING LIGHTS (CANADA
ONLY)ÐYJ
.........................8L-30
DECODING, VEHICLE CODE
...........Intro.-5
DECODING, VEHICLE IDENTIFICATION
NUMBER (VIN)
.....................Intro.-4
DEFLECTORÐXJ, COWL WEATHERSTRIP
SEAL/CROSSMEMBER AIR
.............23-11
DEFOGGER RELAY
....................8N-3
DEFOGGER RELAY/TIMER
...............8N-1
DEFOGGER RELAY/TIMER REMOVE/
INSTALL
............................8N-4
DEFOGGER SWITCH
...............8N-1,8N-3
DEFOGGER SWITCH REMOVE/INSTALL
....8N-4
DEFROSTER NOZZLE AND DUCT
........24-33
DELAY FUNCTION TROUBLE
DIAGNOSISÐXJ, HEADLAMP
...........8L-14DELAY MODULE, HEADLAMP; FRONT
LIGHTING (XJ)....................8W-50-2
DELAY MODULE, HEADLAMP; FRONT
LIGHTING (XJ-RHD)................8W-50-1
DELAY MODULE REPLACEMENTÐXJ,
HEADLAMP.........................8L-14
DELAY MODULEÐXJ, SENTINEL
HEADLAMP.........................8L-14
DELIVERY SYSTEM, FUEL...............14-3
DEMAGNETIZING, COMPASS............8C-5
DEPTH INFORMATION, PINION GEAR;
FRONT SUSPENSION AND AXLE..........2-39
DEPTH INFORMATION, PINION GEAR;
REAR SUSPENSION AND AXLES..........3-21
DEPTH VARIANCE, PINION GEAR; FRONT
SUSPENSION AND AXLE................2-40
DEPTH VARIANCE, PINION GEAR; REAR
SUSPENSION AND AXLES...........3-22,3-39
DESCRIPTION; HEATING AND AIR
CONDITIONING............24-19,24-23,24-32
DESCRIPTION; TRANSMISSION AND
TRANSFER CASE....................21-165
DESCRIPTION/SYSTEM OPERATION,
MULTI-PORT FUEL INJECTION
(MFI)ÐCOMPONENT..................14-19
DESIGNATIONS, LABELS/PLATES, CODES
AND DIMENSIONS..................Intro.-1
DESIGNATIONS, VEHICLE.............Intro.-1
DESIGNATIONS, VEHICLE CODE........Intro.-1
DETECTION AND REPAIRÐXJ,
STATIONARY GLASS WATER LEAK.......23-76
DETECTION AND REPAIRÐYJ,
STATIONARY GLASS WATER LEAK.......23-150
DEVICES, ELECTROSTATIC DISCHARGE
(ESD) SENSITIVE; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-2
DIAGNOSING PARKING BRAKE
MALFUNCTIONS.......................5-8
DIAGNOSIS; AUDIO SYSTEMS...........8F-2
DIAGNOSIS; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS.....8A-10,
8A-11,8A-17,8A-3
DIAGNOSIS; CHIME/BUZZER WARNING
SYSTEMS...........................8U-2
DIAGNOSIS; COOLING SYSTEM...........7-4
DIAGNOSIS; HORNS...................8G-2
DIAGNOSIS; INSTRUMENT PANEL AND
GAUGESÐXJ....................8E-27,8E-5
DIAGNOSIS; OVERHEAD CONSOLE........8C-2
DIAGNOSIS; POWER LOCKS.............8P-2
DIAGNOSIS; POWER MIRRORS..........8T-1
DIAGNOSIS; POWER SEATS.............8R-2
DIAGNOSIS; POWER WINDOWS..........8S-1
DIAGNOSIS; REAR WINDOW DEFOGGER . . . 8N-1
DIAGNOSIS; RESTRAINT SYSTEMS.......8M-2
DIAGNOSIS; STEERING................19-37
DIAGNOSIS; TURN SIGNAL AND HAZARD
WARNING SYSTEMS...................8J-3
DIAGNOSIS; VEHICLE SPEED CONTROL
SYSTEM............................8H-2
DIAGNOSIS, 2.5L STARTER NOISE.......8A-16
DIAGNOSIS, 30RH/32RH TRANSMISSION . 21-70
DIAGNOSIS, ABS BRAKE.................5-3
DIAGNOSIS, ANTILOCK ECU AND HCU......5-3
DIAGNOSIS, AW-4 TRANSMISSION.....21-176
DIAGNOSIS, AXLE NOISE/VIBRATION;
FRONT SUSPENSION AND AXLE..........2-18
DIAGNOSIS, AXLE NOISE/VIBRATION;
REAR SUSPENSION AND AXLES..........3-9
DIAGNOSIS, BATTERY..................8A-4
DIAGNOSIS, BELT.....................7-38
DIAGNOSIS, CHARGING SYSTEM........8A-19
DIAGNOSIS, CLUTCH...................6-3
DIAGNOSIS, COMPASS/THERMOMETER....8C-4
DIAGNOSIS (CONT.), COOLING SYSTEM . . . 7-10,
7-11,7-12,7-7,7-8,7-9
DIAGNOSIS (CONT.), SERPENTINE DRIVE
BELT ...............................7-40
DIAGNOSIS (CONT'D), DISCONNECT
AXLE/SHIFT MOTOR
...................2-30
DIAGNOSIS (CONT'D), SERVICE; FRONT
SUSPENSION AND AXLE
................2-21
DIAGNOSIS (CONT'D), SERVICE; REAR
SUSPENSION AND AXLES
...............3-12
DIAGNOSIS, CONVERTER HOUSING
LEAK
..............................21-75
DIAGNOSIS, COOLING SYSTEM
...........7-6DIAGNOSIS, CYLINDER COMBUSTION
PRESSURE LEAKAGE TEST...............9-7
DIAGNOSIS, DISCONNECT AXLE/SHIFT
MOTOR.............................2-29
DIAGNOSIS, ENGINE....................9-5
DIAGNOSIS, ENGINE CYLINDER HEAD
GASKET FAILURE......................9-5
DIAGNOSIS, EXHAUST SYSTEM..........11-2
DIAGNOSIS, FOG LAMP...........8L-21,8L-3
DIAGNOSIS, GEAR LEAKAGE............19-10
DIAGNOSIS, HEADLAMP...........8L-20,8L-2
DIAGNOSIS, HEATER..................24-17
DIAGNOSIS, HEATING SYSTEM..........24-18
DIAGNOSIS, IGNITION SECONDARY
CIRCUIT...........................8D-10
DIAGNOSIS INFORMATION, GENERAL;
CLUTCH..............................6-3
DIAGNOSIS INFORMATION, GENERAL;
TRANSMISSION AND TRANSFER CASE . . 21-176
DIAGNOSIS, INTAKE MANIFOLD
LEAKAGE.............................9-5
DIAGNOSIS, MANUAL STEERING
SYSTEM............................19-38
DIAGNOSIS, MULTI-PORT FUEL
INJECTION (MFI)ÐGENERAL...........14-35
DIAGNOSIS, NP231 SERVICE..........21-285
DIAGNOSIS, NP242 SERVICE..........21-308
DIAGNOSIS, PERFORMANCE............24-14
DIAGNOSIS, POWER STEERING SYSTEM . . 19-3,
19-4,19-5,19-6,19-7,19-8,19-9
DIAGNOSIS, PUMP LEAKAGE...........19-10
DIAGNOSIS, RADIO....................8F-3
DIAGNOSIS, SERPENTINE DRIVE BELT.....7-39
DIAGNOSIS, SERVICE; FRONT
SUSPENSION AND AXLE................2-20
DIAGNOSIS, SERVICE; PROPELLER
SHAFTS.............................16-3
DIAGNOSIS, SERVICE; REAR
SUSPENSION AND AXLES...............3-11
DIAGNOSIS, SERVICE; TRANSMISSION
AND TRANSFER CASE . 21-180,21-181,21-34,21-2
DIAGNOSIS, SERVICE BRAKE.............5-4
DIAGNOSIS, SPRING AND SHOCK;
FRONT SUSPENSION AND AXLE......2-13,2-15
DIAGNOSIS, SPRING AND SHOCK; REAR
SUSPENSION AND AXLES.............3-3,3-6
DIAGNOSIS, SPRING AND SHOCK
ABSORBER........................3-3,3-6
DIAGNOSIS, STARTER NOISE...........8A-16
DIAGNOSIS, STARTING SYSTEM........8A-12
DIAGNOSIS, SUSPENSION AND
STEERING SYSTEM.....................2-7
DIAGNOSIS, THERMOMETER............8C-2
DIAGNOSIS, TORQUE CONVERTER . 21-86,21-87,
21-88
DIAGNOSIS, TRANSMISSION . 21-78,21-79,21-80,
21-81,21-82,21-83,21-84,21-85
DIAGNOSIS, VIBRATION..........22-10,22-11
DIAGNOSISÐLUBRICATION SERVICE......9-12
DIAGNOSISÐXJ, DOME/COURTESY
LAMP TROUBLE.....................8L-16
DIAGNOSISÐXJ, HEADLAMP DELAY
FUNCTION TROUBLE..................8L-14
DIAGNOSISÐXJ, LIGHTED VANITY
MIRROR TROUBLE...................8L-16
DIAGNOSISÐYJ, DOME/COURTESY
LAMP TROUBLE.....................8L-31
DIAGNOSTIC CONNECTOR, ABS.......5-35,5-3
DIAGNOSTIC PROCEDURESÐXJ.........8L-1
DIAGNOSTIC PROCEDURESÐYJ........8L-19
DIAGNOSTIC SYSTEM, USING
ON-BOARD; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS.....8A-22
DIAGNOSTIC SYSTEM, USING
ON-BOARD; VEHICLE SPEED CONTROL
SYSTEM............................8H-5
DIAGNOSTIC TROUBLE CODE (DTC)......14-54
DIAGNOSTIC TROUBLE CODE,
GENERATOR........................8A-22
DIAGNOSTIC TROUBLE CODE, SPEED
CONTROL
...........................8H-5
DIAGNOSTICS (OBD), ON-BOARD;
COOLING SYSTEM
.....................7-4
DIAGNOSTICS (OBD), ON-BOARD; FUEL
SYSTEM
............................14-51
DIAGNOSTICS, ON-BOARD
.............8D-15
DIAGRAM INDEX; AIR CONDITIONING/
HEATER (XJ)
......................8W-42-2
JINDEX 7
Description Group-Page Description Group-Page Description Group-Page

DIAGRAM INDEX; AIR CONDITIONING/
HEATER (XJ-RHD)..................8W-42-2
DIAGRAM INDEX; AIR CONDITIONING/
HEATER (YJ)...............8W-42-1,8W-42-2
DIAGRAM INDEX; ANTI-LOCK BRAKES
(XJ).............................8W-32-3
DIAGRAM INDEX; ANTI-LOCK BRAKES
(XJ-RHD).........................8W-32-3
DIAGRAM INDEX; ANTI-LOCK BRAKES
(YJ).............................8W-32-2
DIAGRAM INDEX; CHARGING SYSTEM
(XJ).............................8W-20-1
DIAGRAM INDEX; CHARGING SYSTEM
(XJ-RHD).........................8W-20-1
DIAGRAM INDEX; CHARGING SYSTEM
(YJ).............................8W-20-1
DIAGRAM INDEX; FRONT LIGHTING (XJ) . 8W-50-2
DIAGRAM INDEX; FRONT LIGHTING
(XJ-RHD).........................8W-50-3
DIAGRAM INDEX; FRONT LIGHTING (YJ) . 8W-50-2
DIAGRAM INDEX; FUEL/IGNITION (YJ) . . 8W-30-5
DIAGRAM INDEX; FUSE/FUSE BLOCK
(XJ).............................8W-10-1
DIAGRAM INDEX; FUSE/FUSE BLOCK
(XJ-RHD).........................8W-10-1
DIAGRAM INDEX; FUSE/FUSE BLOCK
(YJ).............................8W-10-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (XJ)................8W-15-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
DIAGRAM INDEX; GROUND
DISTRIBUTION (YJ)..................8W-15-1
DIAGRAM INDEX; HEATED REAR
WINDOW (XJ).....................8W-48-1
DIAGRAM INDEX; HEATED REAR
WINDOW (XJ-RHD).................8W-48-1
DIAGRAM INDEX; HEATED REAR
WINDOW (YJ).....................8W-48-1
DIAGRAM INDEX; HORN/CIGAR LIGHTER . . . 8E-1
DIAGRAM INDEX; HORN/CIGAR LIGHTER
(YJ).............................8W-41-1
DIAGRAM INDEX; INSTRUMENT
CLUSTER (XJ).............8W-40-1,8W-40-3
DIAGRAM INDEX; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-3
DIAGRAM INDEX; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
DIAGRAM INDEX; INTERIOR LIGHTING
(XJ).............................8W-44-2
DIAGRAM INDEX; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-2
DIAGRAM INDEX; INTERIOR LIGHTING
(YJ).............................8W-44-2
DIAGRAM INDEX; OVERHEAD CONSOLE
(XJ).............................8W-49-1
DIAGRAM INDEX; OVERHEAD CONSOLE
(XJ-RHD).........................8W-49-1
DIAGRAM INDEX; POWER DISTRIBUTION
(XJ).............................8W-11-1
DIAGRAM INDEX; POWER DISTRIBUTION
(XJ-RHD).........................8W-11-1
DIAGRAM INDEX; POWER DISTRIBUTION
(YJ).............................8W-11-1
DIAGRAM INDEX; POWER DOOR LOCKS
(XJ)
.............................8W-61-1
DIAGRAM INDEX; POWER DOOR LOCKS
(XJ-RHD)
.........................8W-61-1
DIAGRAM INDEX; POWER MIRRORS
(XJ)
.............................8W-62-1
DIAGRAM INDEX; POWER MIRRORS
(XJ-RHD)
.........................8W-62-1
DIAGRAM INDEX; POWER SEAT (XJ)
. . . 8W-63-1
DIAGRAM INDEX; POWER SEAT
(XJ-RHD)
.........................8W-63-1
DIAGRAM INDEX; POWER WINDOWS
(XJ)
.............................8W-60-2
DIAGRAM INDEX; POWER WINDOWS
(XJ-RHD)
.........................8W-60-2
DIAGRAM INDEX; REAR LIGHTING (XJ)
. 8W-51-1
DIAGRAM INDEX; REAR LIGHTING
(XJ-RHD)
.........................8W-51-1
DIAGRAM INDEX; REAR LIGHTING (YJ)
. 8W-51-1
DIAGRAM INDEX; STARTING SYSTEM
(XJ)
.............................8W-21-1
DIAGRAM INDEX; STARTING SYSTEM
(XJ-RHD)
.........................8W-21-1DIAGRAM INDEX; STARTING SYSTEM
(YJ).............................8W-21-1
DIAGRAM INDEX; TRAILER TOW (XJ) . . 8W-54-1
DIAGRAM INDEX; TRAILER TOW
(XJ-RHD).........................8W-54-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (XJ)...................8W-31-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (XJ-RHD)...............8W-31-1
DIAGRAM INDEX; TRANSMISSION
CONTROLS (YJ)...................8W-31-1
DIAGRAM INDEX; TURN SIGNALS (XJ) . 8W-52-1
DIAGRAM INDEX; TURN SIGNALS
(XJ-RHD).........................8W-52-1
DIAGRAM INDEX; TURN SIGNALS (YJ) . 8W-52-1
DIAGRAM INDEX; VEHICLE SPEED
CONTROL (XJ)....................8W-33-1
DIAGRAM INDEX; VEHICLE SPEED
CONTROL (XJ-RHD)................8W-33-1
DIAGRAM INDEX; WIPERS (XJ).......8W-53-2
DIAGRAM INDEX; WIPERS (XJ-RHD) . . . 8W-53-2
DIAGRAM INDEX; WIPERS (YJ).......8W-53-2
DIAGRAM INDEX; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
DIAGRAM INDEXÐ2.5L ENGINE;
FUEL/IGNITION (XJ)................8W-30-6
DIAGRAM INDEXÐ4.0L ENGINE;
FUEL/IGNITION (XJ)................8W-30-6
DIFFERENTIAL AND PINION
MEASUREMENT.......................2-40
DIFFERENTIAL ASSEMBLY; FRONT
SUSPENSION AND AXLE.................2-38
DIFFERENTIAL ASSEMBLY; REAR
SUSPENSION AND AXLES...............3-21
DIFFERENTIAL DISASSEMBLY; FRONT
SUSPENSION AND AXLE................2-35
DIFFERENTIAL DISASSEMBLY; REAR
SUSPENSION AND AXLES...............3-18
DIFFERENTIAL INSTALLATION............2-44
DIFFERENTIAL, LIMITED SLIP............3-10
DIFFERENTIAL MEASUREMENT AND
INSTALLATION........................3-25
DIFFERENTIAL OVERHAUL..............3-46
DIFFERENTIAL REMOVAL; FRONT
SUSPENSION AND AXLE................2-34
DIFFERENTIAL REMOVAL; REAR
SUSPENSION AND AXLES...............3-18
DIFFERENTIAL SERVICE................3-34
DIFFERENTIAL SHIM PACK
MEASUREMENT AND ADJUSTMENT.......2-43
DIFFERENTIAL, TRAC-LOK..............3-45
DIMENSION DATA, VEHICLE.....Intro.-5,Intro.-6
DIMENSIONS, AW-4 VALVE BODY CHECK
BALL.............................21-341
DIMENSIONS, DESIGNATIONS,
LABELS/PLATES, CODES..............Intro.-1
DIMENSIONS, FRAME.............13-13,13-1
DIMMER SWITCH REMOVE/INSTALL,
HEADLAMP OR PANEL................8E-42
DIMMER SWITCH REPLACEMENTÐYJ,
HEADLAMP.........................8L-26
DIMMING MODULE; FRONT LIGHTING
(XJ-RHD).........................8W-50-1
DIODE REPLACEMENT; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-8
DIRECT CLUTCH OVERHAUL...........21-228
DISASSEMBLY AND INSPECTION, VALVE
BODY.............................21-147
DISASSEMBLY AND OVERHAUL,
TRANSFER CASE..............21-289,21-310
DISASSEMBLY AND OVERHAUL,
TRANSMISSION.................21-37,21-5
DISASSEMBLY, CALIPER................5-48
DISASSEMBLY, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE................2-35
DISASSEMBLY, DIFFERENTIAL; REAR
SUSPENSION AND AXLES...............3-18
DISASSEMBLY, TRANSMISSION . . 21-119,21-201
DISASSEMBLYÐCOLUMN OR CONSOLE
SHIFT..............................19-60
DISC AND PLATE THICKNESS, AW-4
CLUTCH...........................21-338
DISC BRAKE ROTOR REFINISHING
........5-53
DISC BRAKE ROTOR RUNOUT
...........5-52
DISC BRAKE ROTOR THICKNESS
.........5-52
DISC BRAKES
........................5-45
DISC BRAKESHOE INSTALLATION
.........5-47DISC BRAKESHOE REMOVAL............5-46
DISC INSTALLATION, CLUTCH COVER.....6-10
DISC REMOVAL, CLUTCH COVER.........6-10
DISC RUNOUT, CLUTCH COVER...........6-3
DISCHARGE (ESD) SENSITIVE DEVICES,
ELECTROSTATIC; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-2
DISCONNECT AXLEÐYJ VEHICLES,
VACUUM............................2-27
DISCONNECT AXLE/SHIFT MOTOR
DIAGNOSIS..........................2-29
DISCONNECT AXLE/SHIFT MOTOR
DIAGNOSIS (CONT'D)..................2-30
DISPLAY, ABS WARNING LIGHT...........5-3
DISPLAY SYMBOLS, INTERNATIONAL
VEHICLE CONTROL..................Intro.-5
DISPLAY SYMBOLS, VEHICLE CONTROL . Intro.-10
DISPOSALÐXJ, LIFTGATE SUPPORT
ROD CYLINDER......................23-63
DISTRIBUTOR.......................8D-19
DISTRIBUTOR CAP....................8D-7
DISTRIBUTOR CAP AND ROTOR,
IGNITION CABLES.....................0-20
DISTRIBUTOR ROTOR.................8D-8
DISTRIBUTORS.......................8D-4
DOME LAMP, CARGO LAMP; INTERIOR
LIGHTING (XJ-RHD)................8W-44-1
DOME LAMP, CARGO LAMP, COURTESY
LAMPS; INTERIOR LIGHTING (XJ).....8W-44-1
DOME LAMP REPLACEMENTÐXJ.........8L-17
DOME LAMPÐXJ....................23-93
DOME LAMPS, COURTESY LAMPS;
INTERIOR LIGHTING (YJ)............8W-44-1
DOME/CARGO LAMP BULB
REPLACEMENTÐYJ VEHICLES,
HARDTOP..........................8L-31
DOME/COURTESY LAMP SERVICE
INFORMATIONÐXJ...................8L-16
DOME/COURTESY LAMP SERVICE
INFORMATIONÐYJ...................8L-31
DOME/COURTESY LAMP TROUBLE
DIAGNOSISÐXJ.....................8L-16
DOME/COURTESY LAMP TROUBLE
DIAGNOSISÐYJ.....................8L-31
DOOR ALIGNMENT ADJUSTMENTÐ
MAJOR............................23-41
DOOR ALIGNMENT ADJUSTMENTÐ
MINOR.............................23-37
DOOR ASSIST HANDLEÐYJ, FULL-
METAL............................23-136
DOOR BUMPERSÐXJ, FUEL FILLER.....23-27
DOOR CONTROL CABLES, VENT.........24-32
DOOR EDGE GUARD/EDGE PROTECTOR
STRIPÐXJ.........................23-54
DOOR EXTERNAL HANDLEÐXJ.........23-48
DOOR FRAME GLASS CHANNEL
REPLACEMENTÐYJ.................23-142
DOOR HINGE/HINGE PIN
REPLACEMENTÐXJ..................23-52
DOOR HINGESÐYJ, FULL-METAL.......23-140
DOOR INSIDE LATCH RELEASE AND
LOCK RODSÐXJ.....................23-50
DOOR JAMB SWITCH, DRIVER'S.....8U-1,8U-2
DOOR KEY LOCK CYLINDERÐXJ........23-47
DOOR KEY LOCK CYLINDERÐYJ,
FULL-METAL.......................23-139
DOOR LATCH ADJUSTMENTÐXJ........23-48
DOOR LATCH EXTERNAL RELEASE
HANDLEÐYJ, FULL-METAL............23-140
DOOR LATCH INSIDE RELEASE AND
LOCK HANDLEÐYJ, FULL-METAL.......23-137
DOOR LATCH STRIKERÐYJ, HALF-
METAL............................23-135
DOOR LATCHÐXJ....................23-49
DOOR LATCHÐYJ, FULL-METAL........23-140
DOOR LOCKS, POWER; POWER DOOR
LOCKS (XJ).......................8W-61-1
DOOR LOCKS, POWER; POWER DOOR
LOCKS (XJ-RHD)
..................8W-61-1
DOOR MIRROR (EXTERNAL)ÐYJ, HALF
METAL
............................23-121
DOOR MOTOR SWITCH REPLACEMENT,
BLOWER MOTOR/AIR
.................24-32
DOOR OPENER STORAGE, REMOTE
GARAGE
............................8C-1
DOOR OPENING WEATHERSTRIP
SEALSÐXJ, DOOR WINDOW GLASS
.....23-55
8 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

FUEL INJECTION (MFI)ÐCOMPONENT
DESCRIPTION/SYSTEM OPERATION,
MULTI-PORT........................14-19
FUEL INJECTION (MFI)ÐCOMPONENT
REMOVAL/INSTALLATION, MULTI-PORT . . . 14-58
FUEL INJECTION (MFI)ÐGENERAL
DIAGNOSIS, MULTI-PORT..............14-35
FUEL INJECTOR......................14-60
FUEL INJECTOR TEST.................14-51
FUEL INJECTORS; FUEL/IGNITION (XJ) . 8W-30-1
FUEL INJECTORS; FUEL/IGNITION (YJ) . 8W-30-2
FUEL INJECTORS; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
FUEL INJECTORSÐPCM OUTPUT........14-27
FUEL PRESSURE LEAK DOWN TEST......14-8
FUEL PRESSURE REGULATOR.....14-33,14-61
FUEL PRESSURE RELEASE PROCEDURE . . . 14-6
FUEL PUMP CAPACITY TEST............14-7
FUEL PUMP ELECTRICAL CONTROL.......14-5
FUEL PUMP MODULE; FUEL SYSTEM....14-61,
14-3
FUEL PUMP MODULE; FUEL/IGNITION
(XJ).............................8W-30-2
FUEL PUMP MODULE; FUEL/IGNITION
(YJ).............................8W-30-2
FUEL PUMP MODULE; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
FUEL PUMP RELAY; FUEL SYSTEM......14-61
FUEL PUMP RELAY; FUEL/IGNITION
(XJ).............................8W-30-2
FUEL PUMP RELAY; FUEL/IGNITION
(YJ).............................8W-30-2
FUEL PUMP RELAY; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
FUEL PUMP RELAY TESTING...........14-47
FUEL PUMP RELAYÐPCM OUTPUT......14-27
FUEL RAIL..........................14-33
FUEL RAIL ASSEMBLY................14-62
FUEL REQUIREMENTS...................0-1
FUEL SYSTEM.......................14-67
FUEL SYSTEM PRESSURE RELEASE
PROCEDURE........................14-62
FUEL SYSTEM PRESSURE TEST.....14-51,14-6
FUEL TANK.........................14-13
FUEL TANK CAPACITIES..........14-13,14-67
FUEL TANK FILLER TUBE CAP;
EMISSION CONTROL SYSTEMS......25-4,25-7
FUEL TANK FILLER TUBE CAP; FUEL
SYSTEM............................14-13
FUEL TANK FILLER TUBE, NO-LEAD......14-13
FUEL TANK PRESSURE RELIEF/
ROLLOVER VALVE...............14-16,14-62
FUEL TANK SKID PLATE...........13-15,13-3
FUEL TANK SUPPORT STRAP............13-4
FUEL TANKS...................14-13,14-62
FUEL TUBES/LINES/HOSES AND CLAMPS . 14-62,
14-9
FUEL USAGE STATEMENT...............14-1
FUEL USAGE STATEMENTÐGAS
ENGINES............................0-19
FUEL WARNING LAMP, LOW;
INSTRUMENT CLUSTER (XJ).........8W-40-1
FULL FLOOR CONSOLEÐXJ............23-95
FULL-METAL DOOR ASSIST HANDLEÐ
YJ ...............................23-136
FULL-METAL DOOR HINGESÐYJ.......23-140
FULL-METAL DOOR KEY LOCK
CYLINDERÐYJ.....................23-139
FULL-METAL DOOR LATCH EXTERNAL
RELEASE HANDLEÐYJ...............23-140
FULL-METAL DOOR LATCH INSIDE
RELEASE AND LOCK HANDLEÐYJ......23-137
FULL-METAL DOOR LATCHÐYJ........23-140
FULL-METAL DOOR SERVICEÐYJ......23-142
FULL-METAL DOOR TRIM PANELÐYJ . . . 23-137
FULL-METAL DOOR VENT WINDOW
GLASSÐYJ........................23-137
FULL-METAL DOOR WATERDAMÐYJ....23-137
FULL-METAL DOOR WEATHERSTRIP
SEALSÐYJ
........................23-141
FULL-METAL DOOR WINDOW GLASS
REGULATOR HANDLEÐYJ
............23-136
FULL-METAL DOOR WINDOW GLASS
REGULATORÐYJ
...................23-138
FULL-METAL DOOR WINDOW
GLASSÐYJ
........................23-139
FUNCTION TROUBLE DIAGNOSISÐXJ,
HEADLAMP DELAY
...................8L-14FUSE, IGNITION-OFF DRAW.............8F-1
FUSE, IN-LINE........................8F-1
GAP, SPEED SENSOR AIR...............5-37
GARAGE DOOR OPENER STORAGE,
REMOTE............................8C-1
GAS RECIRCULATION (EGR) SYSTEM,
EXHAUST............................25-1
GASKET FAILURE DIAGNOSIS, ENGINE
CYLINDER HEAD.......................9-5
GASKETS, FORM-IN-PLACE...............9-1
GAUGE CLUSTER, 9 X 3.5 ..............8E-23
GAUGE CLUSTER (LHD), HIGH-LINE.......8E-9
GAUGE CLUSTER, LOW-LINE............8E-8
GAUGE, ENGINE COOLANT
TEMPERATURE; INSTRUMENT
CLUSTER (XJ).....................8W-40-1
GAUGE, FUEL; INSTRUMENT CLUSTER
(XJ).............................8W-40-1
GAUGE, FUEL; INSTRUMENT CLUSTER
(XJ-RHD).........................8W-40-1
GAUGE HOUSINGSÐYJ, INSTRUMENT
CLUSTER..........................23-151
GAUGE, OIL PRESSURE; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
GAUGE PACKAGE CLUSTER.......8E-31,8E-43
GAUGE SENDING UNIT, FUEL...........14-16
GAUGE SET, MANIFOLD................24-7
GAUGES..............8E-24,8E-27,8E-2,8E-5
GAUGES, PRESSURE...................22-2
GAUGES REMOVE/INSTALL.........8E-17,8E-39
GAUGESÐYJ, INSTRUMENT PANEL......8E-24
GEAR ADJUSTMENTS IN VEHICLE.......19-39
GEAR ADJUSTMENTS ON BENCH........19-44
GEAR ADJUSTMENTS, STEERING........19-24
GEAR AND BEARING NOISE; FRONT
SUSPENSION AND AXLE................2-18
GEAR AND BEARING NOISE; REAR
SUSPENSION AND AXLES................3-9
GEAR AND CLUTCH OVERHAUL,
OVERDRIVE PLANETARY..............21-218
GEAR AND NO. 1 ONE-WAY CLUTCH
OVERHAUL, SUN....................21-238
GEAR ASSEMBLY....................19-43
GEAR ASSEMBLY/INSTALLATION, PINION . . 2-42
GEAR CLEANING AND INSPECTION......19-42
GEAR DEPTH INFORMATION, PINION;
FRONT SUSPENSION AND AXLE..........2-39
GEAR DEPTH INFORMATION, PINION;
REAR SUSPENSION AND AXLES..........3-21
GEAR DEPTH VARIANCE, PINION; FRONT
SUSPENSION AND AXLE................2-40
GEAR DEPTH VARIANCE, PINION; REAR
SUSPENSION AND AXLES...........3-22,3-39
GEAR DISASSEMBLY..................19-39
GEAR DISASSEMBLY INFORMATION......19-26
GEAR LEAKAGE DIAGNOSIS............19-10
GEAR, MANUAL STEERING;
LUBRICATION AND MAINTENANCE........0-30
GEAR, MANUAL STEERING; STEERING . . . 19-37,
19-78
GEAR OVERDRIVE COMPONENTS,
FOURTH...........................21-167
GEAR OVERHAUL, FRONT PLANETARY . . . 21-237
GEAR OVERHAUL, GOVERNOR AND
PARK .............................21-127
GEAR, POWER STEERING..............19-78
GEAR RATIOS........................21-2
GEAR RATIOS, TRANSMISSION.........21-34
GEAR, RECIRCULATING BALL POWER
STEERING..........................19-21
GEAR REPLACEMENT, STEERING . . . 19-23,19-45
GEAR SERVICE, GOVERNOR AND PARK . . 21-105
GEAR SPECIFICATIONS, MANUAL
STEERING..........................19-46
GEAR SPECIFICATIONS, POWER
STEERING..........................19-36
GEAR, SPEED SENSOR ROTORÐ
SPEEDOMETER DRIVE...............21-193
GEAR TRAIN OVERHAUL, PLANETARY . . . 21-141
GEARS, RECIRCULATING-BALL POWER
STEERING
..........................19-74
GEARSHIFT CABLE/LINKAGE
ADJUSTMENT
.......................21-71
GEARTRAIN OPERATION AND
APPLICATION CHARTS
...............21-169
GENERAL BODY SERVICE INFORMATION
. . . 23-1
GENERAL DIAGNOSIS INFORMATION;
CLUTCH
..............................6-3GENERAL DIAGNOSIS INFORMATION;
TRANSMISSION AND TRANSFER CASE . . 21-176
GENERAL INFORMATION; AIR
CONDITIONING/HEATER (XJ).........8W-42-1
GENERAL INFORMATION; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-1
GENERAL INFORMATION; AIR
CONDITIONING/HEATER (YJ) . . 8W-42-1,8W-42-2
GENERAL INFORMATION; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
GENERAL INFORMATION; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
GENERAL INFORMATION; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
GENERAL INFORMATION; AUDIO
SYSTEMS............................8F-1
GENERAL INFORMATION; BATTERY/
STARTER/GENERATOR SERVICE . 8B-1,8B-4,8B-6
GENERAL INFORMATION; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS . . . 8A-10,8A-11,8A-17,8A-22,8A-1,
8A-2
GENERAL INFORMATION; BRAKES . . . 5-22,5-45,
5-1,5-3,5-4
GENERAL INFORMATION; CHIME/BUZZER
WARNING SYSTEMS...................8U-1
GENERAL INFORMATION; CLUTCH.........6-1
GENERAL INFORMATION; CONNECTOR
LOCATIONS (XJ)...................8W-90-1
GENERAL INFORMATION; CONNECTOR
LOCATIONS (XJ-RHD)...............8W-90-1
GENERAL INFORMATION; CONNECTOR
LOCATIONS (YJ)...................8W-90-1
GENERAL INFORMATION; CONNECTOR
PIN OUTS (XJ)....................8W-80-1
GENERAL INFORMATION; CONNECTOR
PIN OUTS (XJ-RHD)................8W-80-1
GENERAL INFORMATION; CONNECTOR
PIN OUTS (YJ)....................8W-80-1
GENERAL INFORMATION; COOLING
SYSTEM.................7-38,7-44,7-45,7-1
GENERAL INFORMATION; EMISSION
CONTROL SYSTEMS...................25-1
GENERAL INFORMATION; ENGINES . . . 9-13,9-55,
9-5
GENERAL INFORMATION; EXHAUST
SYSTEM AND INTAKE MANIFOLD.........11-1
GENERAL INFORMATION; FRAME AND
BUMPERS......................13-10,13-1
GENERAL INFORMATION; FRONT
SUSPENSION AND AXLE..........2-18,2-1,2-5
GENERAL INFORMATION; FUEL SYSTEM . . 14-13,
14-17,14-19,14-35,14-67,14-1
GENERAL INFORMATION; FUSE/FUSE
BLOCK (XJ).......................8W-10-1
GENERAL INFORMATION; FUSE/FUSE
BLOCK (XJ-RHD)..................8W-10-1
GENERAL INFORMATION; GROUND
DISTRIBUTION (XJ)................8W-15-1
GENERAL INFORMATION; GROUND
DISTRIBUTION (XJ-RHD)............8W-15-1
GENERAL INFORMATION; GROUND
DISTRIBUTION (YJ)................8W-15-1
GENERAL INFORMATION; HEATING AND
AIR CONDITIONING....................24-1
GENERAL INFORMATION; HORNS........8G-1
GENERAL INFORMATION; IGNITION
SYSTEMS.......8D-17,8D-29,8D-32,8D-1,8D-6
GENERAL INFORMATION; INSTRUMENT
PANEL AND GAUGESÐXJ..........8E-24,8E-1
GENERAL INFORMATION; INTERIOR
LIGHTING (XJ)....................8W-44-1
GENERAL INFORMATION; INTERIOR
LIGHTING (XJ-RHD)................8W-44-1
GENERAL INFORMATION; INTERIOR
LIGHTING (YJ)....................8W-44-1
GENERAL INFORMATION; LAMPS . . 8L-18,8L-19,
8L-32,8L-1
GENERAL INFORMATION; LUBRICATION
AND MAINTENANCE
....................0-1
GENERAL INFORMATION; OVERHEAD
CONSOLE
...........................8C-1
GENERAL INFORMATION; POWER
DISTRIBUTION (XJ)
................8W-11-1
GENERAL INFORMATION; POWER
DISTRIBUTION (XJ-RHD)
............8W-11-1
GENERAL INFORMATION; POWER
DISTRIBUTION (YJ)
................8W-11-1
JINDEX 11
Description Group-Page Description Group-Page Description Group-Page

GENERAL INFORMATION; POWER LOCKS . . 8P-1
GENERAL INFORMATION; POWER
MIRRORS...........................8T-1
GENERAL INFORMATION; POWER SEATS . . 8R-1
GENERAL INFORMATION; POWER
WINDOWS...........................8S-1
GENERAL INFORMATION; PROPELLER
SHAFTS.............................16-1
GENERAL INFORMATION; REAR
SUSPENSION AND AXLES........3-13,3-1,3-9
GENERAL INFORMATION; REAR
WINDOW DEFOGGER..................8N-1
GENERAL INFORMATION; RESTRAINT
SYSTEMS...........................8M-1
GENERAL INFORMATION; SPLICE
INFORMATION (XJ).................8W-70-1
GENERAL INFORMATION; SPLICE
INFORMATION (XJ-RHD)............8W-70-1
GENERAL INFORMATION; SPLICE
INFORMATION (YJ).................8W-70-1
GENERAL INFORMATION; SPLICE
LOCATIONS (XJ)...................8W-95-1
GENERAL INFORMATION; SPLICE
LOCATIONS (XJ-RHD)...............8W-95-1
GENERAL INFORMATION; SPLICE
LOCATIONS (YJ)...................8W-95-1
GENERAL INFORMATION; STEERING . 19-48,19-1
GENERAL INFORMATION;
TRANSMISSION AND TRANSFER CASE . . 21-165,
21-283,21-307,21-33,21-67,21-70,21-1
GENERAL INFORMATION; TURN SIGNAL
AND HAZARD WARNING SYSTEMS.......8J-1
GENERAL INFORMATION; VEHICLE
SPEED CONTROL SYSTEM..............8H-1
GENERAL INFORMATION; WHEELS AND
TIRES..........................22-1,22-6
GENERAL INFORMATION - XJ............8K-1
GENERAL INFORMATION - YJ...........8K-10
GENERAL SERVICE INFORMATION; BODY
COMPONENTSÐXJ VEHICLES.........23-102
GENERAL SERVICE INFORMATION;
BRAKES.........................5-15,5-60
GENERAL SERVICEÐXJ, STEERING
COLUMN...........................19-47
GENERAL SPECIFICATIONS, 30RH/32RH . 21-335
GENERAL SPECIFICATIONS, AW-4......21-337
GENERATOR.........................8B-6
GENERATOR DIAGNOSTIC TROUBLE
CODE..............................8A-22
GENERATOR FIELDÐPCM OUTPUT......14-27
GENERATOR LAMPÐPCM OUTPUT......14-27
GENERATOR RATINGS................8A-23
GENERATOR REMOVE/INSTALLÐLEFT-
HAND DRIVE.........................8B-6
GENERATOR REMOVE/INSTALLÐRIGHT-
HAND DRIVE.........................8B-7
GENERATOR SPECIFICATIONS...........8B-8
GENERATOR SPLASH SHIELD...........13-13
GLASS AND DOOR OPENING
WEATHERSTRIP SEALSÐXJ, DOOR
WINDOW...........................23-55
GLASS CHANNEL REPLACEMENTÐYJ,
DOOR FRAME......................23-142
GLASS GRID, REAR WINDOW.......8N-1,8N-2
GLASS GRID REPAIRS, REAR WINDOW . . . 8N-3
GLASS REGULATOR HANDLEÐYJ,
FULL-METAL DOOR WINDOW..........23-136
GLASS REGULATORÐXJ, FRONT DOOR
WINDOW...........................23-42
GLASS REGULATORÐXJ, REAR DOOR
WINDOW...........................23-44
GLASS REGULATORÐYJ, FULL-METAL
DOOR WINDOW....................23-138
GLASS REPLACEMENTÐXJ,
WINDSHIELD........................23-69
GLASS, STATIONARY.................23-144
GLASS, STATIONARY WINDOW..........23-66
GLASS WATER LEAK DETECTION AND
REPAIRÐXJ, STATIONARY.............23-76
GLASS WATER LEAK DETECTION AND
REPAIRÐYJ, STATIONARY............23-150
GLASS WEATHERSTRIP SEAL
REPLACEMENTÐYJ, LIFTGATE
.........23-125
GLASSÐXJ, FRONT DOOR WINDOW
.....23-43
GLASSÐXJ, LIFTGATE WINDOW
........23-74
GLASSÐXJ, REAR DOOR STATIONARY
WINDOW
...........................23-46
GLASSÐXJ, REAR DOOR WINDOW
......23-45GLASSÐXJ, REAR QUARTER VENT
WINDOW...........................23-73
GLASSÐYJ, FULL-METAL DOOR VENT
WINDOW..........................23-137
GLASSÐYJ, FULL-METAL DOOR
WINDOW..........................23-139
GLASSÐYJ, HARD TOP LIFTGATE......23-124
GLASSÐYJ, HARD TOP QUARTER
WINDOW..........................23-149
GLASSÐYJ, WINDSHIELD............23-146
GLASS/REAR QUARTER PLASTIC
INSERTÐXJ, REAR QUARTER
WINDOW...........................23-73
GLOVE BOX LAMP; INTERIOR LIGHTING
(XJ).............................8W-44-1
GLOVE BOX LAMP; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-1
GLOVE BOXÐYJ....................23-152
(GOP)ÐXJ, GRILLE AND GRILLE
OPENING PANEL......................23-3
GOVERNOR AND PARK GEAR OVERHAUL . 21-127
GOVERNOR AND PARK GEAR SERVICE . . 21-105
GRAB, REAR BRAKE....................5-7
GRID, REAR WINDOW GLASS.......8N-1,8N-2
GRID REPAIRS, REAR WINDOW GLASS . . . 8N-3
GRILLE AND GRILLE OPENING PANEL
(GOP)ÐXJ...........................23-3
GRILLE AND SCREENÐXJ, COWL.......23-12
GRILLE AND SCREENÐYJ, COWL......23-109
GRILLE APPLIQUEÐYJ, RADIATOR.....23-104
GRILLE OPENING PANEL (GOP)ÐXJ,
GRILLE.............................23-3
GRILLEÐXJ, AIR EXHAUST............23-25
GROUND CLEARANCE AND RAMP
ANGLE..............................0-11
GROUND, CLUSTER; INSTRUMENT
CLUSTER (XJ).....................8W-40-3
GROUND, CLUSTER; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
GROUND, POWER....................14-24
GROUND, POWER (DEVICE); FUEL/
IGNITION (XJ).....................8W-30-5
GROUND, POWER (DEVICE); FUEL/
IGNITION (YJ).....................8W-30-5
GROUND, POWER (DEVICE); FUEL/
IGNITION (XJ-RHD)................8W-30-5
GROUP, HOW TO USE THIS; WIRING
DIAGRAMS (XJ)......................8W-1
GROUP, HOW TO USE THIS; WIRING
DIAGRAMS (XJ-RHD)..................8W-1
GROUP, HOW TO USE THIS; WIRING
DIAGRAMS (YJ)......................8W-1
GUARD/EDGE PROTECTOR STRIPÐXJ,
DOOR EDGE........................23-54
GUARDÐXJ, BRUSH...................23-3
GUIDES AND CHARTS, DIAGNOSIS......21-77
HALF METAL DOOR MIRROR
(EXTERNAL)ÐYJ....................23-121
HALF-METAL DOOR LATCH STRIKERÐ
YJ ...............................23-135
HALF-METAL SOFT TOP DOORÐYJ.....23-134
HAND DRIVE, AUTOMATIC BELT
TENSIONERÐXJ MODELS WITH
RIGHT..............................7-42
HAND DRIVE, BELT SERVICEÐEXCEPT
RIGHT..............................7-40
HAND DRIVE, BELT SERVICEÐXJ
MODELS WITH RIGHT..................7-42
HAND DRIVE (RHD), BELT TENSIONÐ
EXCEPT RIGHT.......................7-38
HAND DRIVE (RHD), BELT TENSIONÐ
RIGHT..............................7-38
HAND DRIVE (RHD) MODELS, BELT
TENSIONÐEXCEPT RIGHT..............7-45
HAND DRIVE VEHICLES, RIGHT..........23-1
HANDLE COVERÐXJ, PARKING BRAKE . . . 23-94
HANDLEÐXJ, ASSIST.................23-89
HANDLEÐXJ, DOOR EXTERNAL.........23-48
HANDLEÐYJ, FULL-METAL DOOR
ASSIST
...........................23-136
HANDLEÐYJ, FULL-METAL DOOR LATCH
EXTERNAL RELEASE
.................23-140
HANDLEÐYJ, FULL-METAL DOOR LATCH
INSIDE RELEASE AND LOCK
...........23-137
HANDLEÐYJ, FULL-METAL DOOR
WINDOW GLASS REGULATOR
.........23-136
HANDLEÐYJ, TAILGATE LATCH AND
RELEASE
..........................23-122HANDLING, AIRBAG MODULE...........8M-2
HARD PEDAL OR HIGH PEDAL EFFORT.....5-6
HARD TOP LIFTGATE GLASSÐYJ.......23-124
HARD TOP QUARTER WINDOW
GLASSÐYJ........................23-149
HARD TOP REPAIRÐYJ..............23-127
HARD TOP ROOF VENTÐYJ...........23-127
HARD TOPÐYJ.....................23-126
HARDTOP DOME/CARGO LAMP BULB
REPLACEMENTÐYJ VEHICLES..........8L-31
HAS A MISS, INJECTOR DIAGNOSISÐ
VEHICLE RUNS ROUGH AND/OR........14-52
HAZARD FLASHERS; TURN SIGNALS
(XJ).............................8W-52-1
HAZARD FLASHERS; TURN SIGNALS
(XJ-RHD).........................8W-52-1
HAZARD FLASHERS; TURN SIGNALS
(YJ).............................8W-52-1
HAZARD WARNING SYSTEM.............8J-1
HAZARD WARNING SYSTEM - YJ.........8J-4
HCU DIAGNOSIS, ANTILOCK ECU..........5-3
HCU INSTALLATION (XJ)................5-43
HCU INSTALLATION (YJ)................5-44
HCU OPERATION......................5-36
HCU REMOVAL (XJ)...................5-41
HCU REMOVAL (YJ)...................5-44
HEAD COVER, ENGINE CYLINDER....9-22,9-64
HEAD, ENGINE CYLINDER...........9-25,9-67
HEAD GASKET FAILURE DIAGNOSIS,
ENGINE CYLINDER.....................9-5
HEAD NOT REMOVED, VALVE
COMPONENT REPLACEÐCYLINDER . . . 9-23,9-65
HEADLAMP ALIGNMENT
PREPARATIONÐXJ....................8L-6
HEADLAMP ALIGNMENT
PREPARATIONÐYJ...................8L-22
HEADLAMP ALIGNMENTÐXJ............8L-6
HEADLAMP ALIGNMENTÐYJ...........8L-22
HEADLAMP BULB REPLACEMENTÐXJ.....8L-7
HEADLAMP BULB REPLACEMENTÐYJ....8L-23
HEADLAMP DELAY FUNCTION TROUBLE
DIAGNOSISÐXJ.....................8L-14
HEADLAMP DELAY MODULE; FRONT
LIGHTING (XJ)....................8W-50-2
HEADLAMP DELAY MODULE; FRONT
LIGHTING (XJ-RHD)................8W-50-1
HEADLAMP DELAY MODULE
REPLACEMENTÐXJ..................8L-14
HEADLAMP DELAY MODULEÐXJ,
SENTINEL..........................8L-14
HEADLAMP DIAGNOSIS...........8L-20,8L-2
HEADLAMP DIMMER SWITCH
REPLACEMENTÐYJ..................8L-26
HEADLAMP OR PANEL DIMMER SWITCH
REMOVE/INSTALL....................8E-42
HEADLAMP RELAY; FRONT LIGHTING
(XJ-RHD).........................8W-50-1
HEADLAMP SWITCH REMOVE/INSTALL . . . 8E-19
HEADLAMP SWITCH (XJ ONLY)......8U-1,8U-3
HEADLAMP SWITCHÐXJ..............8L-10
HEADLAMP SWITCHÐYJ..............8L-26
HEADLAMP/FOG LAMP ADJUSTMENT
USING ALIGNMENT SCREENÐXJ.........8L-7
HEADLAMP/FOG LAMP ADJUSTMENT
USING ALIGNMENT SCREENÐYJ........8L-23
HEADLAMPS; FRONT LIGHTING (XJ) . . . 8W-50-1
HEADLAMPS; FRONT LIGHTING
(XJ-RHD).........................8W-50-1
HEADLAMPS; FRONT LIGHTING (YJ) . . . 8W-50-1
HEADLAMPS; LUBRICATION AND
MAINTENANCE.......................0-33
HEADLINERÐXJ.....................23-92
HEAT SHIELDS......................14-13
HEAT SHIELDS, EXHAUST...............11-1
HEATED OXYGEN SENSOR; FUEL/
IGNITION (XJ).....................8W-30-3
HEATED OXYGEN SENSOR; FUEL/
IGNITION (YJ).....................8W-30-3
HEATED OXYGEN SENSOR; FUEL/
IGNITION (XJ-RHD)
................8W-30-3
HEATED REAR WINDOW; HEATED REAR
WINDOW (XJ)
.....................8W-48-1
HEATED REAR WINDOW; HEATED REAR
WINDOW (XJ-RHD)
.................8W-48-1
HEATED REAR WINDOW; HEATED REAR
WINDOW (YJ)
.....................8W-48-1
HEATER; AIR CONDITIONING/HEATER
(YJ)
.............................8W-42-1
12 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

INSTALLATION, DRUM BRAKESHOE.......5-55
INSTALLATION, FRONT WHEEL SENSOR . . . 5-38
INSTALLATION METHODS AND PARTS
USAGE...............................6-4
INSTALLATION (NON-ABS), MASTER
CYLINDER...........................5-16
INSTALLATION, ROTOR.................5-51
INSTALLATION, TRANSFER CASE . 21-288,21-309
INSTALLATION, TRANSMISSION.....21-36,21-5
INSTALLATION, TRANSMISSION AND
CONVERTER.......................21-117
INSTALLATION, TRANSMISSION AND
TORQUE CONVERTER................21-199
INSTALLATION, TRANSMISSION VALVE
BODY.............................21-187
INSTALLATION, VALVE BODY..........21-104
INSTALLATION, WHEEL.................22-6
INSTALLATION, WHEEL CYLINDER........5-58
INSTALLATION (WITH ABS), MASTER
CYLINDER AND COMBINATION VALVE.....5-20
INSTALLATION (XJ), HCU...............5-43
INSTALLATION (XJ MODELS), ECU........5-40
INSTALLATION (XJ), SHIFT LEVER......21-286,
21-309
INSTALLATION (XJ WITH ABS), POWER
BRAKE BOOSTER.....................5-27
INSTALLATION (XJ WITH FULL
CONSOLE), PARKING BRAKE LEVER.......5-64
INSTALLATION (XJ WITH MINI
CONSOLE), PARKING BRAKE LEVER.......5-63
INSTALLATION (XJ WITHOUT ABS),
POWER BRAKE BOOSTER...............5-30
INSTALLATION (XJ WITHOUT CONSOLE),
PARKING BRAKE LEVER................5-65
INSTALLATION (YJ), HCU...............5-44
INSTALLATION (YJ), PARKING BRAKE
PEDAL..............................5-66
INSTALLATION (YJ), POWER BRAKE
BOOSTER............................5-30
INSTALLATION (YJ), SHIFT LEVER......21-286
INSTRUMENT CLUSTER; INSTRUMENT
CLUSTER (XJ).....................8W-40-1
INSTRUMENT CLUSTER; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-1
INSTRUMENT CLUSTER; INSTRUMENT
CLUSTER (YJ).....................8W-40-1
INSTRUMENT CLUSTER AND GAUGE
HOUSINGSÐYJ.....................23-151
INSTRUMENT CLUSTER BEZELÐXJ......23-80
INSTRUMENT CLUSTER BEZELÐYJ.....23-151
INSTRUMENT CLUSTERS..........8E-24,8E-1
INSTRUMENT PANEL.............8E-24,8E-1
INSTRUMENT PANEL AND GAUGESÐYJ . . 8E-24
INSTRUMENT PANEL COMPONENTSÐYJ . 23-152
INSTRUMENT PANEL ILLUMINATION
LAMPS; INTERIOR LIGHTING (XJ).....8W-44-1
INSTRUMENT PANEL ILLUMINATION
LAMPS; INTERIOR LIGHTING (XJ-RHD) . 8W-44-1
INSTRUMENT PANEL REMOVE/INSTALL . . . 8E-20
INSTRUMENT PANELÐYJ.............23-151
INSULATOR PANELÐXJ, DASH PANEL....23-12
INSULATOR PANELÐYJ, HOOD........23-107
INTAKE AIR TEMPERATURE SENSOR;
FUEL/IGNITION (XJ)................8W-30-4
INTAKE AIR TEMPERATURE SENSOR;
FUEL/IGNITION (YJ)................8W-30-4
INTAKE AIR TEMPERATURE SENSOR;
FUEL/IGNITION (XJ-RHD)............8W-30-4
INTAKE DUCT, FRESH AIR..............24-34
INTAKE MANIFOLD...................14-63
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR; FUEL SYSTEM...............14-60
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR; IGNITION SYSTEMS......8D-23,8D-5
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR TEST; FUEL SYSTEM..........14-46
INTAKE MANIFOLD AIR TEMPERATURE
SENSOR TEST; IGNITION SYSTEMS......8D-11
INTAKE MANIFOLD AIR TEMPERATURE
SENSORÐPCM INPUT................14-22
INTAKE MANIFOLD LEAKAGE DIAGNOSIS . . . 9-5
INTAKE MANIFOLDÐ2.5L ENGINE........11-7
INTAKE MANIFOLDÐ4.0L ENGINE
........11-8
INTERCHANGEABILITY, TRANSMISSION
CHANGES AND PARTS
................21-67
INTERFERENCE, RADIO FREQUENCY
......8F-5
INTERIOR COMPONENTS
........23-151,23-80
INTERIOR LAMPS
...............8L-16,8L-31INTERIOR LAMPSÐXJ................8L-18
INTERIOR LAMPSÐYJ................8L-32
INTERIOR REARVIEW MIRROR
SUPPORT BRACKET REPLACEMENTÐ
XJ ................................23-68
INTERIOR REARVIEW MIRRORÐXJ......23-66
INTERIOR TRIM PANELS AND SCUFF
PLATESÐXJ........................23-84
INTERLOCK CABLE ADJUSTMENT, PARK . 21-195
INTERLOCK CABLE ADJUSTMENT (XJ),
PARK .............................21-101
INTERLOCK MECHANISM, AUTOMATIC
TRANSMISSION SHIFTER/IGNITION......19-55
INTERMEDIATE (COUPLER) SHAFT.......19-45
INTERMEDIATEÐCOUPLING SHAFT......19-23
INTERMITTENT AND POOR
CONNECTIONS; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-4
INTERMITTENT WIPE MODULE..........8K-4
INTERMITTENT WIPE SWITCH TESTING . . 8K-15
INTERMITTENT WIPERS; WIPERS
(XJ-RHD).........................8W-53-1
INTERNATIONAL SYMBOLS...............0-1
INTERNATIONAL VEHICLE CONTROL
AND DISPLAY SYMBOLS.............Intro.-5
INTRODUCTION; BODY COMPONENTSÐ
XJ VEHICLES.......................23-158
INTRODUCTION; LUBRICATION AND
MAINTENANCE.....................0-1,0-4
IN-VEHICLE SERVICE, 30RH/32RH.......21-99
IN-VEHICLE SERVICE, AW-4.............21-182
I/P ASH RECEIVER TRAY LAMPÐXJ.....23-80
JACK STORAGEÐXJ..................23-97
JAMB SWITCH, DRIVER'S DOOR.....8U-1,8U-2
JEEP BODY CODE LETTERS..............5-2
JOINT ANGLE MEASUREMENT,
UNIVERSAL..........................16-4
JOINT REPLACEMENT, UNIVERSAL.......16-10
JOINTS, UNIVERSAL...................16-2
JUMP STARTING PROCEDURE............0-9
JUMP STARTING, TOWING AND
HOISTING............................0-9
KEY CYLINDER SERVICE, IGNITION
SWITCH............................8D-26
KEY LOCK CYLINDERÐXJ, DOOR.......23-47
KEY LOCK CYLINDERÐYJ, FULL-METAL
DOOR............................23-139
KEY-IN SWITCH, IGNITION..........8U-1,8U-2
KEYLESS ENTRY MODULE..........8P-1,8P-7
KEYLESS ENTRY MODULE, REMOTE . . . 8W-61-1
KEYLESS ENTRY MODULE REMOVE/
INSTALL...........................8P-10
KEYLESS ENTRY RECEIVER.............8C-1
KEYLESS ENTRY RECEIVERÐXJ........23-93
KEYLESS ENTRY TRANSMITTER . 8P-1,8P-7,8P-8
KEYS ARE NOT AVAILABLE, TOWING
WHEN..............................0-13
KNOCK, LOW SPEED; FRONT
SUSPENSION AND AXLE................2-19
KNOCK, LOW SPEED; REAR
SUSPENSION AND AXLES...............3-10
KNUCKLE AND BALL STUDS, STEERING . . . 2-32
LABEL, VEHICLE EMISSION CONTROL
INFORMATION (VECI)..................25-1
LABEL, VEHICLE SAFETY CERTIFICATION . Intro.-4
LABELS AND PLATESÐXJ, VEHICLE....Intro.-2
LABELS AND PLATESÐYJ, VEHICLE....Intro.-3
LABELS/DECALS/PLATESÐXJ............23-1
LABELS/DECALS/PLATESÐYJ..........23-102
LABELS/PLATES, CODES AND
DIMENSIONS, DESIGNATIONS.........Intro.-1
LAG TEST, TIME....................21-178
LAMP, ABS WARNING; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
LAMP, ABS WARNING; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
LAMP, ABS WARNING; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
LAMP, ABS WARNING; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-2
LAMP, ABS WARNING; INSTRUMENT
CLUSTER (XJ-RHD)
................8W-40-2
LAMP, ABS WARNING; INSTRUMENT
CLUSTER (YJ)
.....................8W-40-2
LAMP, ACCESSORY LAMP AND HEATER
CONTROL PANEL
..................8W-44-1
LAMP ADJUSTMENT USING ALIGNMENT
SCREENÐXJ, HEADLAMP/FOG
...........8L-7LAMP ADJUSTMENT USING ALIGNMENT
SCREENÐYJ, HEADLAMP/FOG..........8L-23
LAMP AND DOME LAMP, CARGO......8W-44-1
LAMP AND HEATER CONTROL PANEL
LAMP, ACCESSORY.................8W-44-1
LAMP, BRAKE WARNING; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
LAMP, BRAKE WARNING; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
LAMP, BRAKE WARNING; INSTRUMENT
CLUSTER (YJ).....................8W-40-2
LAMP BULB REMOVE/INSTALL,
READING/COURTESY..................8C-8
LAMP BULB REPLACEMENTÐXJ,
BACK-UP/REAR TURN SIGNAL/TAIL......8L-12
LAMP BULB REPLACEMENTÐXJ, FRONT
PARK/TURN SIGNAL...................8L-9
LAMP BULB REPLACEMENTÐXJ, SIDE
MARKER...........................8L-10
LAMP BULB REPLACEMENTÐXJ,
UNDERHOOD........................8L-13
LAMP BULB REPLACEMENTÐYJ,
BACK-UP/REAR TURN SIGNAL/TAIL......8L-28
LAMP BULB REPLACEMENTÐYJ, FRONT
PARK/TURN SIGNAL..................8L-25
LAMP BULB REPLACEMENTÐYJ, SIDE
MARKER...........................8L-25
LAMP BULB REPLACEMENTÐYJ,
UNDERHOOD........................8L-29
LAMP BULB REPLACEMENTÐYJ
VEHICLES, HARDTOP DOME/CARGO.....8L-31
LAMP, CARGO LAMP AND DOME;
INTERIOR LIGHTING (XJ-RHD)........8W-44-1
LAMP, CARGO LAMP, COURTESY LAMPS
AND DOME; INTERIOR LIGHTING (XJ) . . 8W-44-1
LAMP, CHARGING SYSTEM INDICATOR;
INSTRUMENT CLUSTER (XJ).........8W-40-3
LAMP (CHMSL)ÐXJ, CENTER HIGH
MOUNTED STOP.....................8L-12
LAMP (CHMSL)ÐYJ, CENTER HIGH
MOUNTED STOP.....................8L-28
LAMP, COURTESY LAMPS AND DOME
LAMP, CARGO; INTERIOR LIGHTING
(XJ).............................8W-44-1
LAMP DIAGNOSIS, FOG...........8L-21,8L-3
LAMP (DRL) MODULE, DAYTIME
RUNNING; FRONT LIGHTING (XJ).....8W-50-2
LAMP (DRL) MODULEÐCANADIAN
VEHICLES ONLY, DAYTIME RUNNING;
FRONT LIGHTING (YJ)..............8W-50-2
LAMP, ENGINE COOLANT TEMPERATURE
WARNING; INSTRUMENT CLUSTER
(XJ).............................8W-40-1
LAMP, ENGINE COOLANT TEMPERATURE
WARNING; INSTRUMENT CLUSTER
(XJ-RHD).........................8W-40-1
LAMP, GLOVE BOX; INTERIOR LIGHTING
(XJ).............................8W-44-1
LAMP, GLOVE BOX; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-1
LAMP, HIGH-BEAM INDICATOR;
INSTRUMENT CLUSTER (XJ).........8W-40-2
LAMP, HIGH-BEAM INDICATOR;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
LAMP HOUSINGÐXJ, LIFTGATE LICENSE
PLATE .............................23-65
LAMP, IGNITION SWITCH; INTERIOR
LIGHTING (XJ)....................8W-44-1
LAMP, IGNITION SWITCH; INTERIOR
LIGHTING (XJ-RHD)................8W-44-1
LAMP, LOW FUEL WARNING;
INSTRUMENT CLUSTER (XJ).........8W-40-1
LAMP, LOW WASHER FLUID WARNING;
INSTRUMENT CLUSTER (XJ).........8W-40-2
LAMP, LOW WASHER FLUID WARNING;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
LAMP, MANUAL TRANSMISSION
UP-SHIFT; INSTRUMENT CLUSTER (XJ) . 8W-40-2
LAMP (MIL), MALFUNCTION INDICATOR;
FUEL/IGNITION (XJ)
................8W-30-5
LAMP (MIL), MALFUNCTION INDICATOR;
FUEL/IGNITION (YJ)
................8W-30-5
LAMP (MIL), MALFUNCTION INDICATOR;
INSTRUMENT CLUSTER (XJ)
.........8W-40-2
LAMP (MIL), MALFUNCTION INDICATOR;
INSTRUMENT CLUSTER (XJ-RHD)
.....8W-40-1
LAMP (MIL), MALFUNCTION INDICATOR;
FUEL/IGNITION (XJ-RHD)
............8W-30-4
JINDEX 15
Description Group-Page Description Group-Page Description Group-Page

MASTER CYLINDER, CLUTCH............0-22
MASTER CYLINDER INSTALLATION
(NON-ABS)..........................5-16
MASTER CYLINDER OVERHAUL
(4-CYLINDER MODELS)................5-16
MASTER CYLINDER REMOVAL
(NON-ABS)..........................5-15
MASTER CYLINDERÐCOMBINATION
VALVE ..............................5-15
MASTER CYLINDER/POWER BOOSTER
TEST................................5-8
MASTER CYLINDER/POWER BRAKE
BOOSTER............................5-34
MATCH MOUNTING....................22-7
MATERIAL, BRAKELINING................5-1
MATSÐXJ, CARPETS AND FLOOR.......23-99
MEASUREMENT AND ADJUSTMENT,
DIFFERENTIAL SHIM PACK..............2-43
MEASUREMENT AND ASSEMBLY, PINION . . 3-22
MEASUREMENT AND INSTALLATION,
DIFFERENTIAL........................3-25
MEASUREMENT AND TORQUE
SPECIFICATIONS...................Intro.-11
MEASUREMENT, DIFFERENTIAL AND
PINION.............................2-40
MEASUREMENT, UNIVERSAL JOINT
ANGLE..............................16-4
MEASUREMENTS AND ADJUSTMENTS,
ALIGNMENT...........................2-8
MEASURING WITH PLASTIGAGE..........9-3
MECHANISM, ARMING/DISARMING;
RESTRAINT SYSTEMS..................8M-2
MECHANISM, ARMING/DISARMING;
STEERING..........................19-48
MECHANISM, AUTOMATIC
TRANSMISSION SHIFTER/IGNITION
INTERLOCK.........................19-55
MECHANISM, SHIFT.................21-307
MEMORY, RADIO; RADIO (XJ)........8W-47-1
MEMORY, RADIO; RADIO (XJ-RHD)....8W-47-1
MEMORY, RADIO; RADIO (YJ)........8W-47-1
METAL DOOR MIRROR (EXTERNAL)Ð
YJ, HALF..........................23-121
METHODS AND PARTS USAGE,
INSTALLATION.........................6-4
METRIC AND ENGLISH/SAE
CONVERSION.....................Intro.-11
METRIC CONVERSION..............Intro.-16
METRIC, THREAD NOTATIONÐSAE....Intro.-13
(MFI)ÐCOMPONENT DESCRIPTION/
SYSTEM OPERATION, MULTI-PORT
FUEL INJECTION.....................14-19
(MFI)ÐCOMPONENT REMOVAL/
INSTALLATION, MULTI-PORT FUEL
INJECTION..........................14-58
(MFI)ÐGENERAL DIAGNOSIS,
MULTI-PORT FUEL INJECTION..........14-35
MINI-CONSOLE WITH FLOOR SHIFTÐXJ . . 23-94
MINI-FLOOR CONSOLEÐXJ............23-94
MIRROR (EXTERNAL)ÐYJ, HALF METAL
DOOR............................23-121
MIRROR LAMPS, VISOR VANITY;
INTERIOR LIGHTING (XJ)............8W-44-2
MIRROR LAMPS, VISOR VANITY;
INTERIOR LIGHTING (XJ-RHD)........8W-44-1
MIRROR, POWER.....................8T-1
MIRROR REMOVE/INSTALL, POWER
......8T-4
MIRROR RETAINING BRACKETÐYJ,
REARVIEW
.........................23-144
MIRROR SUPPORT BRACKET
REPLACEMENTÐXJ, INTERIOR
REARVIEW
..........................23-68
MIRROR SWITCH CONTINUITY (LEFT
POSITION), POWER
....................8T-3
MIRROR SWITCH CONTINUITY (RIGHT
POSITION), POWER
....................8T-3
MIRROR SWITCH, POWER
..........8T-1,8T-2
MIRROR SWITCH REMOVE/INSTALL,
POWER
.............................8T-4
MIRROR SYSTEM, POWER
..............8T-1
MIRROR TROUBLE DIAGNOSISÐXJ,
LIGHTED VANITY
.....................8L-16
MIRRORÐXJ, INTERIOR REARVIEW
.....23-66
MIRRORÐXJ, LIGHTED VANITY
.........8L-16
MIRRORÐYJ, REARVIEW
.............23-144
MIRRORS, POWER; POWER MIRRORS
(XJ)
.............................8W-62-1MIRRORS, POWER; POWER MIRRORS
(XJ-RHD).........................8W-62-1
MIRRORSÐXJ, EXTERNAL.............23-27
MISALIGNMENT, CLUTCH................6-3
MISALIGNMENT, CLUTCH HOUSING........6-4
MISS, INJECTOR DIAGNOSISÐVEHICLE
RUNS ROUGH AND/OR HAS A..........14-52
MODE, ABS OPERATION IN ANTILOCK
BRAKING............................5-36
MODE, ABS OPERATION IN NORMAL
BRAKING............................5-35
MODEL 30 AXLE......................2-49
MODEL 30 AXLE AND TUBE AXLE (2WD) . . 2-22
MODEL 30 FRONT AXLE................2-49
MODEL 35 AXLE..................3-13,3-51
MODELS, BELT TENSIONÐEXCEPT
RIGHT HAND DRIVE (RHD)..............7-45
MODELS, IGNITION SWITCHÐXJ........8D-26
MODELS, IGNITION SWITCHÐYJ........8D-29
MODELS WITH 4.0L 6-CYLINDER
ENGINE, AUXILIARY ELECTRIC
COOLING FANÐXJ....................7-35
MODELS WITH RIGHT HAND DRIVE,
AUTOMATIC BELT TENSIONERÐXJ.......7-42
MODELS WITH RIGHT HAND DRIVE,
BELT SERVICEÐXJ....................7-42
MODES OF OPERATION, OPEN
LOOP/CLOSED LOOP..................14-30
MODULE, AIRBAG....................8M-1
MODULE, BUZZER................8U-1,8U-2
MODULE, CHIME/BUZZER; INTERIOR
LIGHTING (XJ)....................8W-44-2
MODULE, CHIME/BUZZER; INTERIOR
LIGHTING (XJ-RHD)................8W-44-2
MODULE, DAYTIME RUNNING LAMP
(DRL); FRONT LIGHTING (XJ)........8W-50-2
MODULE, DIMMING; FRONT LIGHTING
(XJ-RHD).........................8W-50-1
MODULE, FUEL PUMP; FUEL SYSTEM....14-61,
14-3
MODULE, FUEL PUMP; FUEL/IGNITION
(XJ).............................8W-30-2
MODULE, FUEL PUMP; FUEL/IGNITION
(YJ).............................8W-30-2
MODULE, FUEL PUMP; FUEL/IGNITION
(XJ-RHD).........................8W-30-2
MODULE HANDLING, AIRBAG...........8M-2
MODULE, HEADLAMP DELAY; FRONT
LIGHTING (XJ)....................8W-50-2
MODULE, HEADLAMP DELAY; FRONT
LIGHTING (XJ-RHD)................8W-50-1
MODULE, INTERMITTENT WIPE..........8K-4
MODULE, KEYLESS ENTRY.........8P-1,8P-7
MODULE (PCM) 60-WAY CONNECTOR,
POWERTRAIN CONTROL...............14-40
MODULE (PCM), POWERTRAIN
CONTROL; EMISSION CONTROL
SYSTEMS...........................25-7
MODULE (PCM), POWERTRAIN
CONTROL; FUEL SYSTEM.........14-20,14-64
MODULE (PCM), POWERTRAIN
CONTROL; IGNITION SYSTEMS....8D-11,8D-23,
8D-5
MODULE, POWERTRAIN CONTROL . . . 8H-1,8H-7
MODULE, REMOTE KEYLESS ENTRY . . . 8W-61-1
MODULE REMOVE/INSTALL, AIRBAG.....8M-3
MODULE REMOVE/INSTALL, KEYLESS
ENTRY.............................8P-10
MODULE REMOVEÐINSTALL, AIRBAG....19-49
MODULE REPLACEMENTÐXJ, DRL......8L-15
MODULE REPLACEMENTÐXJ,
HEADLAMP DELAY...................8L-14
MODULE REPLACEMENTÐYJ, DRL......8L-30
MODULE SCHEMATIC - YJ, BUZZER......8U-4
MODULE (TCM) SERVICE,
TRANSMISSION CONTROL............21-183
MODULE, TRANSMISSION CONTROL;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
MODULEÐ4.0L ENGINE ONLY,
TRANSMISSION CONTROL;
TRANSMISSION CONTROLS (XJ)......8W-31-1
MODULEÐCANADIAN VEHICLES ONLY,
DAYTIME RUNNING LAMP (DRL)
......8W-50-2
MODULEÐXJ, SENTINEL HEADLAMP
DELAY
.............................8L-14
MOLDING/CLADDINGÐXJ, BODY SIDE
. . . 23-20
MOLDINGÐXJ, DRIP RAIL
.............23-25
MOLDINGÐXJ, WINDSHIELD REVEAL
....23-66MOLDINGÐXJ, WINDSHIELD SIDE......23-86
MOLDINGÐYJ, BODY SIDE STEP.......23-115
MOLDINGÐYJ, WINDSHIELD REVEAL . . . 23-144
MOLDINGSÐXJ, DOOR WINDOW
EXTERIOR..........................23-54
MOTOR, A/C BLOWER.................24-35
MOTOR, A/C-HEATER BLOWER; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
MOTOR, BLOWER; AIR CONDITIONING/
HEATER (XJ)......................8W-42-1
MOTOR, BLOWER; AIR CONDITIONING/
HEATER (XJ-RHD)..................8W-42-1
MOTOR, BLOWER; HEATING AND AIR
CONDITIONING......................24-17
MOTOR DIAGNOSIS (CONT'D),
DISCONNECT AXLE/SHIFT...............2-30
MOTOR DIAGNOSIS, DISCONNECT
AXLE/SHIFT..........................2-29
MOTOR, FRESH AIR DOOR VACUUM.....24-34
MOTOR (HEATING), BLOWER...........24-33
MOTOR, IDLE AIR CONTROL (IAC); FUEL
SYSTEM............................14-62
MOTOR, IDLE AIR CONTROL (IAC);
FUEL/IGNITION (XJ)................8W-30-2
MOTOR, IDLE AIR CONTROL (IAC);
FUEL/IGNITION (YJ)................8W-30-2
MOTOR, IDLE AIR CONTROL (IAC);
FUEL/IGNITION (XJ-RHD)............8W-30-2
MOTOR, POWER LOCK.............8P-1,8P-7
MOTOR, POWER WINDOW..........8S-1,8S-2
MOTOR, RADIATOR FAN RELAY; AIR
CONDITIONING/HEATER (XJ).........8W-42-2
MOTOR, RADIATOR FAN RELAY; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-2
MOTOR RELAY, ABS PUMP; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
MOTOR RELAY, ABS PUMP; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
MOTOR RELAY, ABS PUMP; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
MOTOR RELAY TEST, STARTER.........14-51
MOTOR REMOVE/INSTALL, LIFTGATE
WIPER.........................8K-20,8K-6
MOTOR REMOVE/INSTALL, POWER
LOCK...............................8P-8
MOTOR REMOVE/INSTALL, POWER
WINDOW............................8S-7
MOTOR REMOVE/INSTALL, WINDSHIELD
WIPER.........................8K-19,8K-6
MOTOR REPLACEMENT, A/C
RECIRCULATING DOOR VACUUM........24-27
MOTOR REPLACEMENT, HEATER/
DEFROSTER/INSTRUMENT PANEL
OUTLET VACUUM....................24-26
MOTOR RESISTORS REPLACEMENT,
BLOWER...........................24-31
MOTOR SPEED SENSOR, PUMP;
ANTI-LOCK BRAKES (XJ)............8W-32-2
MOTOR SPEED SENSOR, PUMP;
ANTI-LOCK BRAKES (XJ-RHD)........8W-32-2
MOTOR SPEED SENSOR, PUMP;
ANTI-LOCK BRAKES (YJ)............8W-32-1
MOTOR SWITCH, BLOWER.............24-16
MOTOR SWITCH REPLACEMENT,
BLOWER MOTOR/AIR DOOR............24-32
MOTOR TEST, IDLE AIR CONTROL.......14-49
MOTOR/AIR DOOR MOTOR SWITCH
REPLACEMENT, BLOWER
..............24-32
MOTOR/FAN REPLACEMENT, BLOWER
....24-24
MOTORÐPCM OUTPUT, IDLE AIR
CONTROL (IAC)
......................14-27
MOUNTED STOP LAMP (CHMSL)ÐXJ,
CENTER HIGH
.......................8L-12
MOUNTED STOP LAMP (CHMSL)ÐYJ,
CENTER HIGH
.......................8L-28
MOUNTING, MATCH
...................22-7
MOUNTÐREAR, ENGINE
...........9-16,9-57
MOUNTSÐFRONT, ENGINE
..........9-14,9-56
MUFFLER AND EXHAUST TAILPIPEÐXJ
VEHICLES
...........................11-5
MUFFLER AND EXHAUST TAILPIPEÐYJ
VEHICLES
...........................11-6
MULTI-FUNCTION SWITCH - XJ
..........8J-4
MULTI-FUNCTION SWITCH REMOVE/
INSTALL - XJ
.........................8J-5
MULTI-FUNCTION SWITCH SERVICE
PROCEDURESÐXJ
...................8L-11
18 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

MULTI-FUNCTION SWITCH TESTING
PROCEDURESÐXJ....................8L-4
MULTI-PORT FUEL INJECTION
(MFI)ÐCOMPONENT DESCRIPTION/
SYSTEM OPERATION..................14-19
MULTI-PORT FUEL INJECTION
(MFI)ÐCOMPONENT REMOVAL/
INSTALLATION.......................14-58
MULTI-PORT FUEL INJECTION
(MFI)ÐGENERAL DIAGNOSIS...........14-35
NAMEPLATES (ADHESIVE-BACKED)ÐYJ,
EXTERIOR.........................23-120
NAMEPLATESÐXJ, EXTERIOR..........23-26
NEUTRAL SWITCH, PARK..............14-63
NO LUBRICATION, COMPONENTS
REQUIRING...........................0-2
NOISE DIAGNOSIS, 2.5L STARTER.......8A-16
NOISE DIAGNOSIS, STARTER...........8A-16
NOISE, GEAR AND BEARING; FRONT
SUSPENSION AND AXLE................2-18
NOISE, GEAR AND BEARING; REAR
SUSPENSION AND AXLES................3-9
NOISE OR VIBRATION, TIRE.............22-4
NOISE SUPPRESSION, RADIO............8F-2
NOISE/VIBRATION DIAGNOSIS, AXLE;
FRONT SUSPENSION AND AXLE..........2-18
NOISE/VIBRATION DIAGNOSIS, AXLE;
REAR SUSPENSION AND AXLES..........3-9
NO-LEAD FUEL TANK FILLER TUBE......14-13
NON-INTERMITTENT WIPE SWITCH
TESTING...........................8K-14
NON-TILT STEERING COLUMN............19-60
NORMAL BRAKING MODE, ABS
OPERATION IN.......................5-35
NORMAL OPERATING CONDITIONS........5-3
NOTATIONÐSAE AND METRIC, THREAD . Intro.-13
NOTES, CAUTIONS, AND WARNINGS;
WIRING DIAGRAMSÐGENERAL
INFORMATION (XJ)...................8W-1
NOZZLE AND DUCT, DEFROSTER........24-33
NOZZLE REMOVE/INSTALL, LIFTGATE
WASHER...........................8K-24
NOZZLE/TUBEÐXJ, FUEL FILLER........23-26
NP231 SERVICE DIAGNOSIS...........21-285
NP231 TRANSFER CASE........21-283,21-305
NP231 TRANSFER CASE, LEGEND......21-306
NP231/NP242 TORQUE SPECIFICATIONS . 21-344
NP242 SERVICE DIAGNOSIS...........21-308
NP242 TRANSFER CASE........21-307,21-331
NP242 TRANSFER CASE, LEGEND......21-332
NUMBER (VIN) DECODING, VEHICLE
IDENTIFICATION....................Intro.-4
NUMBER (VIN) PLATE, VEHICLE
IDENTIFICATION....................Intro.-4
NUT TIGHTENING, WHEEL..........5-54,5-59
NUT, WHEEL LUG....................22-12
(OHMS)ÐCOOLANT TEMPERATURE
SENSOR/MANIFOLD AIR
TEMPERATURE, SENSOR RESISTANCE
....14-46
OIL CHANGE AND FILTER
REPLACEMENT, ENGINE
................0-16
OIL COOLERS, TRANSMISSION
..........7-36
OIL, ENGINE
.........................0-15
OIL FILTER, ENGINE
...................0-17
OIL FILTER REPLACEMENT
............21-103
OIL PAN
........................9-36,9-77
OIL PRESSURE, ENGINE
.................9-7
OIL PRESSURE GAUGE
..............8W-40-2
OIL PRESSURE WARNING LAMP;
INSTRUMENT CLUSTER (XJ)
.........8W-40-2
OIL PRESSURE WARNING LAMP;
INSTRUMENT CLUSTER (XJ-RHD)
.....8W-40-1
OIL PUMP
.......................9-39,9-81
OIL PUMP OVERHAUL
.........21-131,21-216
OIL PUMP SEAL REPLACEMENT
........21-199
OIL PUMP WEAR LIMITS, AW-4
........21-338
OIL, REFRIGERANT
...................24-12
OIL SEAL REPLACEMENT, INNER AXLE
SHAFT
..............................2-35
OIL SEAL REPLACEMENT, TIMING CASE
COVER
..........................9-30,9-73
OIL SEALS, REAR MAIN
............9-49,9-89
OIL SEALS, VALVE SPRINGS
.............9-23
ON-BOARD DIAGNOSTIC SYSTEM,
USING; BATTERY/STARTING/CHARGING
SYSTEMS DIAGNOSTICS
...............8A-22ON-BOARD DIAGNOSTIC SYSTEM,
USING; VEHICLE SPEED CONTROL
SYSTEM............................8H-5
ON-BOARD DIAGNOSTICS.............8D-15
ON-BOARD DIAGNOSTICS (OBD);
COOLING SYSTEM.....................7-4
ON-BOARD DIAGNOSTICS (OBD); FUEL
SYSTEM............................14-51
ONLY, DAYTIME RUNNING LAMP (DRL)
MODULEÐCANADIAN VEHICLES;
FRONT LIGHTING (YJ)..............8W-50-2
ONLY, POWER STEERING PRESSURE
SWITCHÐ2.5L ENGINE................14-63
ONLY, TORQUE CONVERTER CLUTCH
(TCC) SOLENOID AND RELAYÐ2.5L
ENGINE; TRANSMISSION CONTROLS
(XJ).............................8W-31-1
ONLY, TRANSMISSION CONTROL
MODULEÐ4.0L ENGINE;
TRANSMISSION CONTROLS (XJ)......8W-31-1
OPENING PANEL (GOP)ÐXJ, GRILLE
AND GRILLE.........................23-3
OPENING WEATHERSTRIP SEALÐXJ,
LIFTGATE...........................23-64
OPENING WEATHERSTRIP SEALSÐXJ,
DOOR WINDOW GLASS AND DOOR......23-55
OPERATING SPECIFICATIONS, PUMP......19-3
OPERATION, ACCELERATION SWITCH.....5-37
OPERATION, AIR CONDITIONING; AIR
CONDITIONING/HEATER (XJ).........8W-42-2
OPERATION, AIR CONDITIONING; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-2
OPERATION AND APPLICATION CHARTS,
GEARTRAIN........................21-169
OPERATION AND SERVICE, ABS..........5-33
OPERATION AND WEAR
COMPENSATION, CALIPER..............5-45
OPERATION, BRAKE WARNING LIGHT......5-5
OPERATION, CLUTCH...................6-2
OPERATION, COMPONENT
IDENTIFICATION/SYSTEM...............8D-1
OPERATION, ECU.....................5-37
OPERATION, HCU.....................5-36
OPERATION, HEATER AND A/C...........24-1
OPERATION IN ANTILOCK BRAKING
MODE, ABS..........................5-36
OPERATION IN NORMAL BRAKING
MODE, ABS..........................5-35
OPERATION, MULTI-PORT FUEL
INJECTION (MFI)ÐCOMPONENT
DESCRIPTION/SYSTEM................14-19
OPERATION, PARKING BRAKE...........5-60
OPERATION, POWER BRAKE BOOSTER....5-23
OPERATION, POWER STEERING
PUMPÐINITIAL......................19-15
OPERATION, WHEEL SPEED SENSOR......5-37
ORDERÐ2.5L 4-CYLINDER ENGINE,
ENGINE FIRING......................8D-32
ORDERÐ4.0L 6-CYLINDER ENGINE,
ENGINE FIRING......................8D-32
O-RING SEAL, FLOW CONTROL VALVE
FITTING............................19-14
ORNAMENTATION, WHEEL..............22-6
OUTER SCUFF PLATESÐXJ............23-89
OUTLET VACUUM MOTOR
REPLACEMENT, HEATER/DEFROSTER/
INSTRUMENT PANEL..................24-26
OUTPUT, AIR CONDITIONING (A/C)
CLUTCH RELAYÐPCM................14-26
OUTPUT, AUTO SHUTDOWN (ASD)
RELAYÐPCM.......................14-26
OUTPUT, DATA LINK CONNECTORÐPCM . . 14-27
OUTPUT, EMR LAMPÐPCM
............14-27
OUTPUT, FUEL INJECTORSÐPCM
.......14-27
OUTPUT, FUEL PUMP RELAYÐPCM
......14-27
OUTPUT, GENERATOR FIELDÐPCM
......14-27
OUTPUT, GENERATOR LAMPÐPCM
......14-27
OUTPUT, IDLE AIR CONTROL (IAC)
MOTORÐPCM
.......................14-27
OUTPUT, IGNITION COILÐPCM
.........14-28
OUTPUT, MALFUNCTION INDICATOR
LAMPÐPCM
........................14-28
OUTPUT, RADIATOR FAN RELAYÐPCM
. . . 14-28
OUTPUT, SCI TRANSMITÐPCM
.........14-29
OUTPUT, SHIFT INDICATORÐPCM
.......14-29
OUTPUT, SPEED CONTROLÐPCM
.......14-29
OUTPUT, TACHOMETERÐPCM
..........14-29OUTPUT, TORQUE CONVERTER CLUTCH
RELAYÐPCM.......................14-29
OUTPUT VOLTAGE SPECIFICATIONS......8A-23
OUTS, TAKE; WIRING DIAGRAMSÐ
GENERAL INFORMATION (XJ)...........8W-2
OVERDRIVE COMPONENTS, FOURTH
GEAR.............................21-167
OVERDRIVE PLANETARY GEAR AND
CLUTCH OVERHAUL.................21-218
OVERDRIVE SUPPORT OVERHAUL......21-226
OVERHAUL, 30RH/32RH TRANSMISSION . 21-119
OVERHAUL (4-CYLINDER MODELS),
MASTER CYLINDER...................5-16
OVERHAUL, ADAPTER/EXTENSION
HOUSING INSPECTION AND PARK
LOCK COMPONENT..................21-127
OVERHAUL, AW-4 TRANSMISSION......21-201
OVERHAUL, DIFFERENTIAL..............3-46
OVERHAUL, DIRECT CLUTCH..........21-228
OVERHAUL, FIRST-REVERSE BRAKE
PISTON AND TRANSMISSION CASE.....21-247
OVERHAUL, FORWARD CLUTCH........21-232
OVERHAUL, FRONT CLUTCH...........21-134
OVERHAUL, FRONT PLANETARY GEAR . . . 21-237
OVERHAUL, GOVERNOR AND PARK
GEAR.............................21-127
OVERHAUL, MANUAL VALVE SHAFT.....21-215
OVERHAUL, OIL PUMP.........21-131,21-216
OVERHAUL OR FLUID/FILTER CHANGE,
REFILLING AFTER.............21-100,21-182
OVERHAUL, OVERDRIVE PLANETARY
GEAR AND CLUTCH..................21-218
OVERHAUL, OVERDRIVE SUPPORT.....21-226
OVERHAUL, OVERRUNNING CLUTCHÐ
LOW-REVERSE DRUMÐREAR
SUPPORT.........................21-125
OVERHAUL, PLANETARY GEAR TRAIN . . . 21-141
OVERHAUL, REAR CLUTCH............21-138
OVERHAUL, REAR SERVO AND BAND . . . 21-146
OVERHAUL, TRANSFER CASE
DISASSEMBLY................21-289,21-310
OVERHAUL, TRANSMISSION
DISASSEMBLY...................21-37,21-5
OVERHAUL, TRANSMISSION VALVE
BODY.............................21-250
OVERHAUL, WHEEL CYLINDER...........5-57
OVERHEAD CONSOLE; OVERHEAD
CONSOLE (XJ)....................8W-49-1
OVERHEAD CONSOLE; OVERHEAD
CONSOLE (XJ-RHD)................8W-49-1
OVERHEAD CONSOLE REMOVE/INSTALL . . . 8C-6
OVERHEAD CONSOLEÐXJ; BODY
COMPONENTSÐXJ VEHICLES..........23-93
OVERHEAD CONSOLEÐXJ; LAMPS......8L-17
OXYGEN (O2S) SENSOR; EMISSION
CONTROL SYSTEMS...............25-6,25-7
OXYGEN (O2S) SENSOR; FUEL SYSTEM . . 14-63
OXYGEN (O2S) SENSOR; IGNITION
SYSTEMS......................8D-23,8D-5
OXYGEN (O2S) SENSOR TESTS.........8D-15
OXYGEN (O2S) SENSORÐPCM INPUT....14-24
OXYGEN SENSOR, HEATED; FUEL/
IGNITION (XJ).....................8W-30-3
OXYGEN SENSOR, HEATED; FUEL/
IGNITION (YJ).....................8W-30-3
OXYGEN SENSOR, HEATED; FUEL/
IGNITION (XJ-RHD)................8W-30-3
OXYGEN SENSOR (O2S) HEATING
ELEMENT TEST
......................14-48
PACK MEASUREMENT AND
ADJUSTMENT, DIFFERENTIAL SHIM
.......2-43
PACK REQUIREMENTS, AW-4 CLUTCH
AND BRAKE
........................21-341
PACKAGE CLUSTER, GAUGE
.......8E-31,8E-43
PAINT
............................23-158
PAINT AND TRIM REPAIR PRODUCTSÐ
XJ, AFTERMARKET
..................23-159
PAINT AND TRIM REPAIR PRODUCTSÐ
YJ, AFTERMARKET
..................23-160
PAINTED SURFACE TOUCH-UP
.........23-158
PAN, OIL
........................9-36,9-77
PANEL AND GAUGESÐYJ, INSTRUMENT
. . 8E-24
PANEL COMPONENTSÐYJ,
INSTRUMENT
......................23-152
PANEL DIMMER SWITCH REMOVE/
INSTALL, HEADLAMP OR
..............8E-42
PANEL EXTENSIONÐXJ, QUARTER TRIM
. 23-87
JINDEX 19
Description Group-Page Description Group-Page Description Group-Page
