Page 1441 of 2158

JEEP XJ 1995  Service And Repair Manual (18) Inspect engine ground strap connections at
dash panel and rear cylinder head bolt (Fig. 20). For
ground locations, refer to Group 8, Wiring.
(19) Verify that MAP sensor electrical connector is
fi

Page 1442 of 2158

JEEP XJ 1995  Service And Repair Manual plugged catalytic convertor.
(27) If equipped with automatic transmission, ver-
ify that electrical harness is firmly connected to park/
neutral safety switch. Refer to Automatic
Transmission section

Page 1443 of 2158

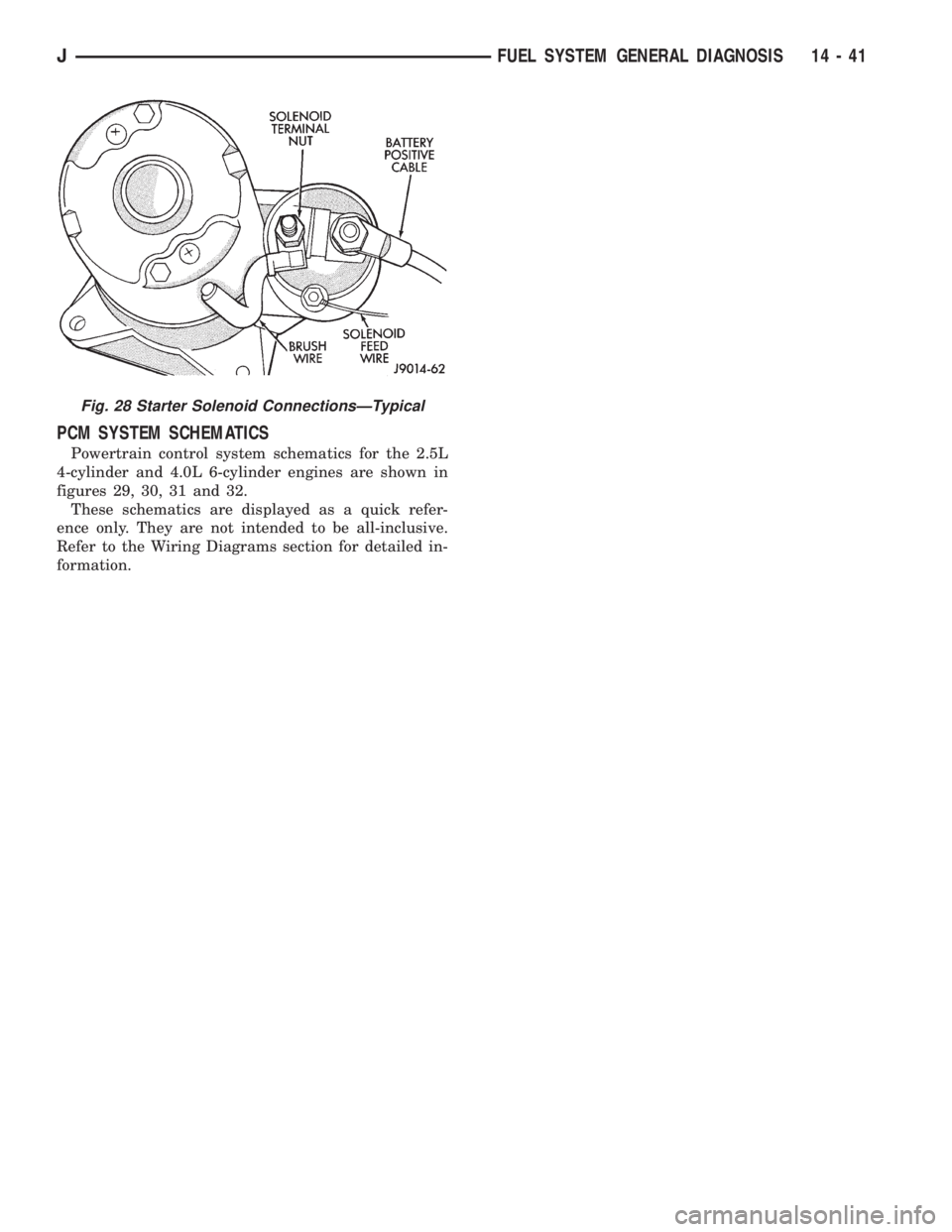

JEEP XJ 1995  Service And Repair Manual PCM SYSTEM SCHEMATICS
Powertrain control system schematics for the 2.5L
4-cylinder and 4.0L 6-cylinder engines are shown in
figures 29, 30, 31 and 32.
These schematics are displayed as a quick refer-

Page 1444 of 2158

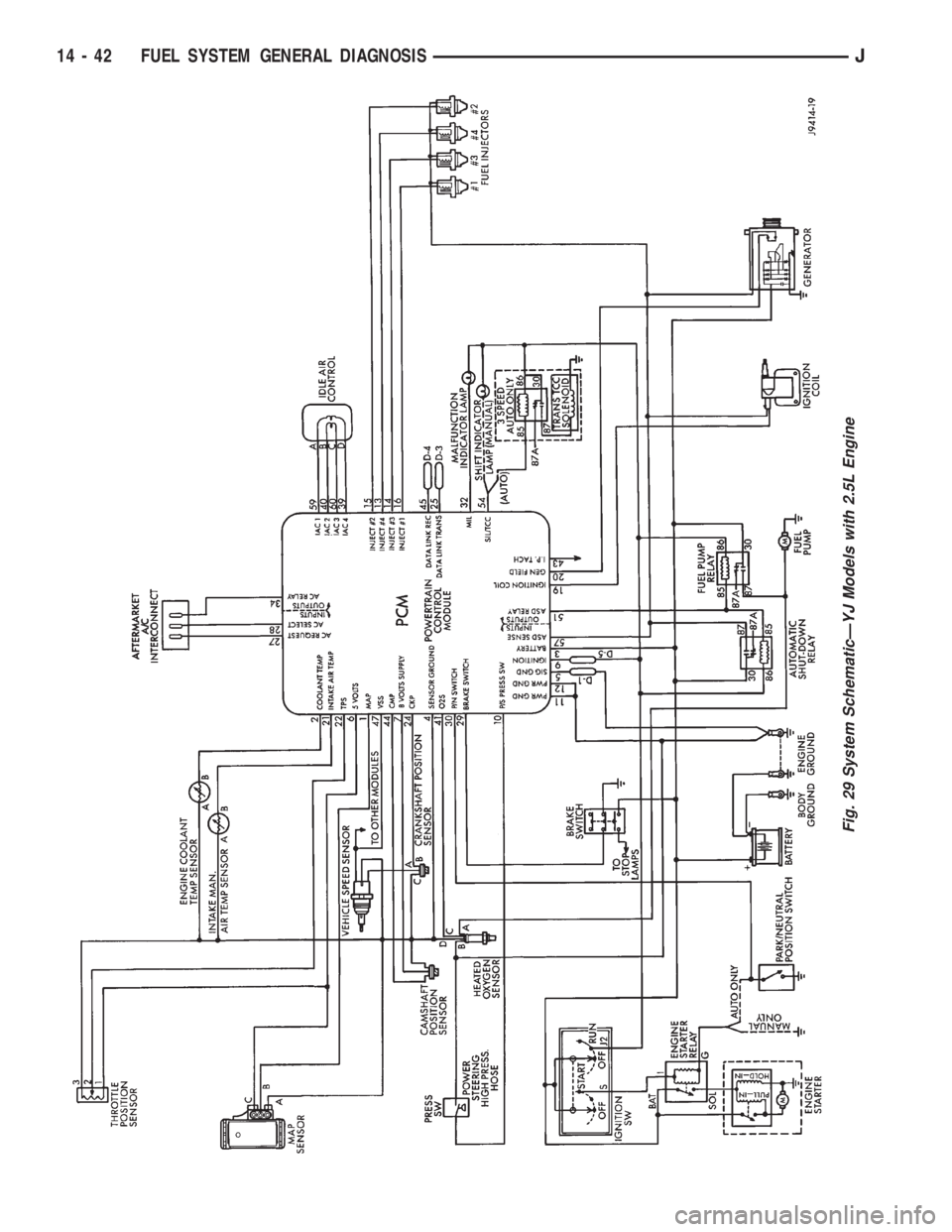

JEEP XJ 1995  Service And Repair Manual Fig. 29 System SchematicÐYJ Models with 2.5L Engine
14 - 42 FUEL SYSTEM GENERAL DIAGNOSISJ

Page 1445 of 2158

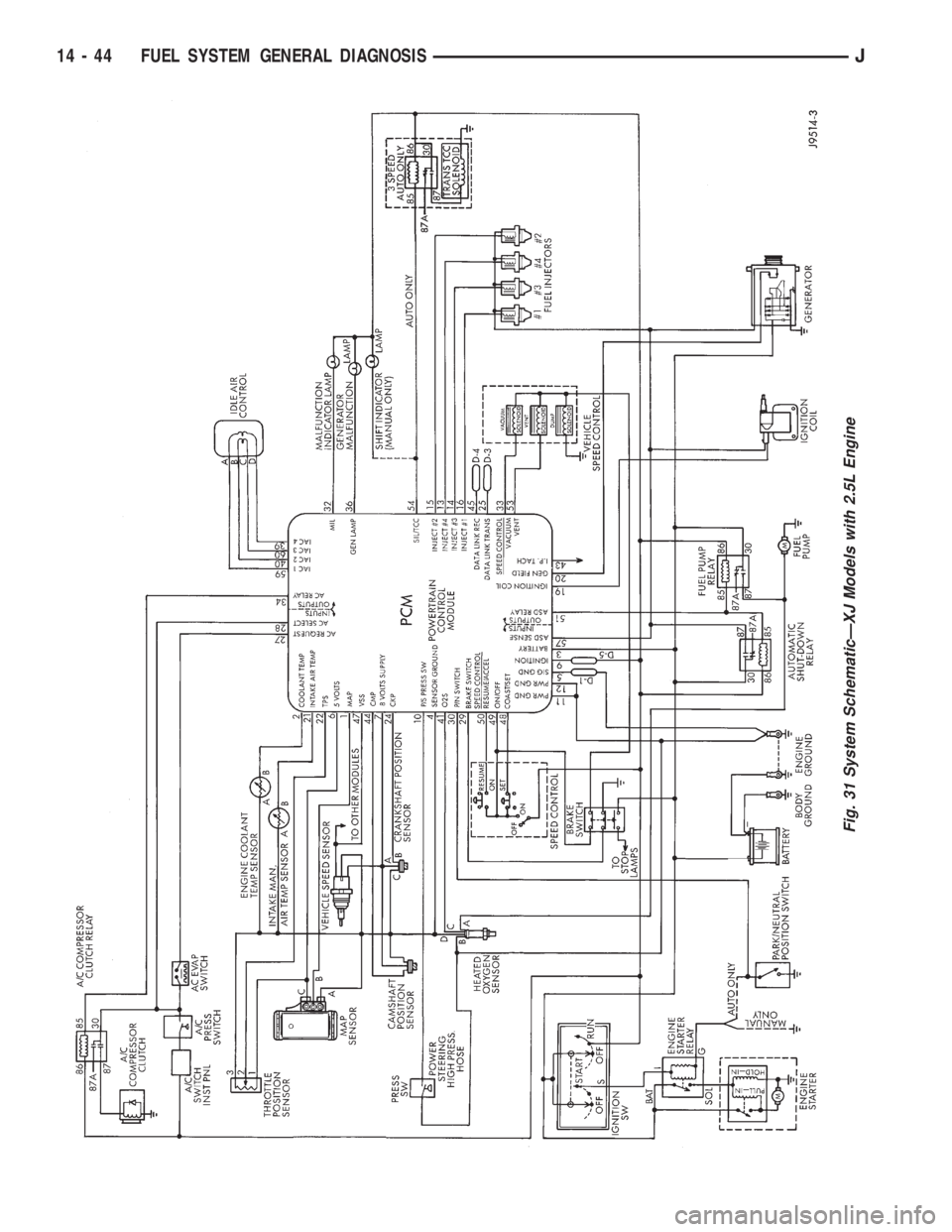

JEEP XJ 1995  Service And Repair Manual Fig. 30 System SchematicÐYJ Models with 4.0L Engine
JFUEL SYSTEM GENERAL DIAGNOSIS 14 - 43

Page 1446 of 2158

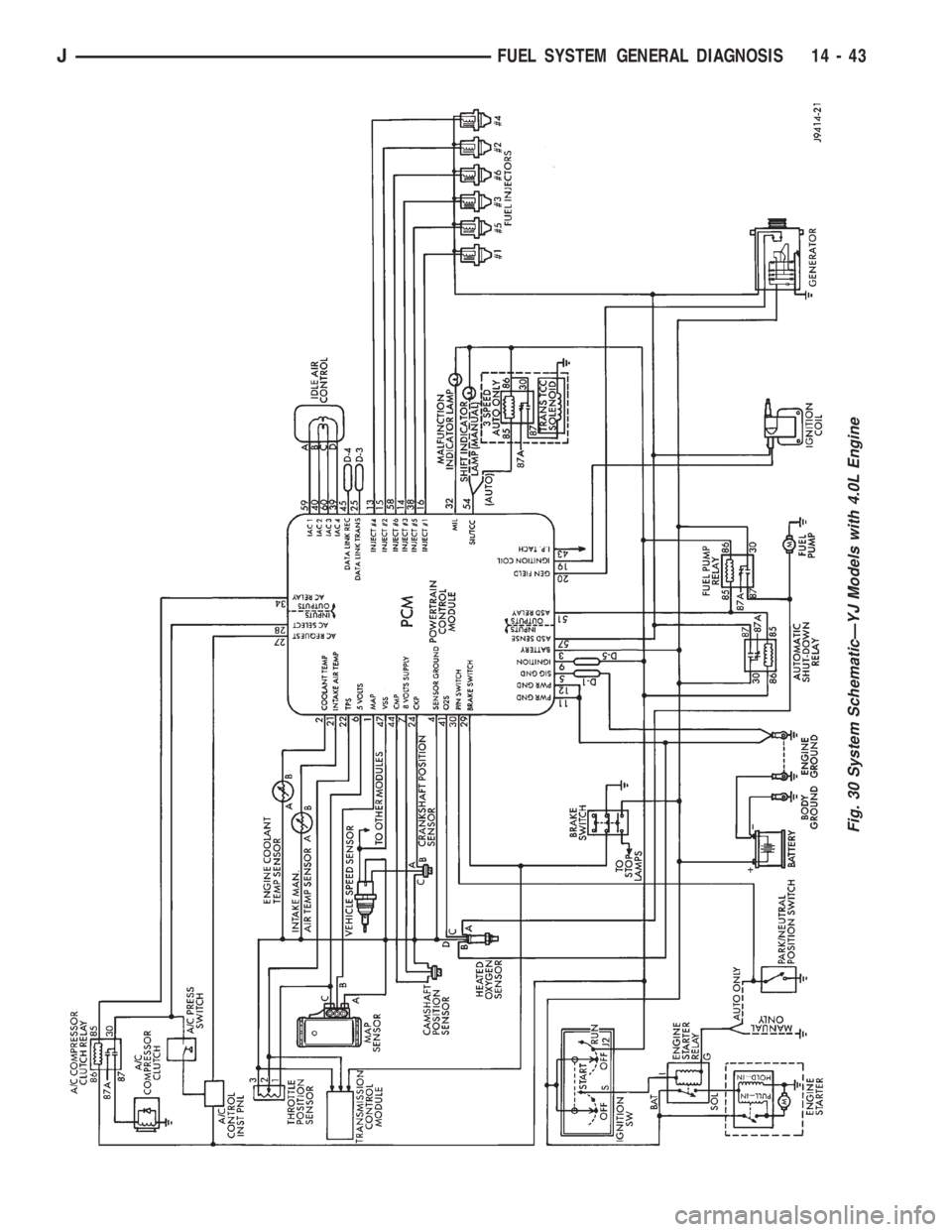

JEEP XJ 1995  Service And Repair Manual Fig. 31 System SchematicÐXJ Models with 2.5L Engine
14 - 44 FUEL SYSTEM GENERAL DIAGNOSISJ

Page 1447 of 2158

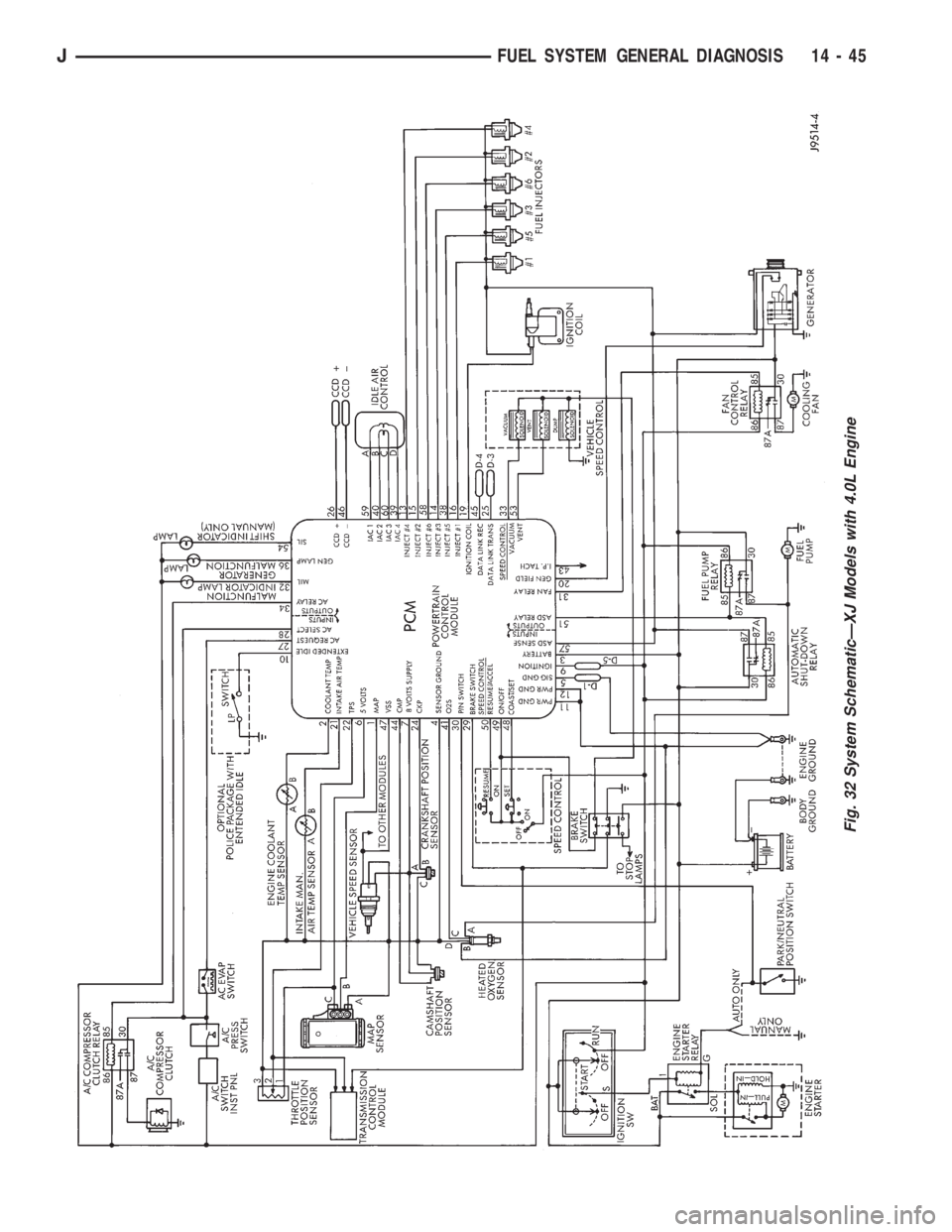

JEEP XJ 1995  Service And Repair Manual Fig. 32 System SchematicÐXJ Models with 4.0L Engine
JFUEL SYSTEM GENERAL DIAGNOSIS 14 - 45

Page 1448 of 2158

JEEP XJ 1995  Service And Repair Manual AUTOMATIC SHUTDOWN (ASD) RELAY TESTING
To perform a complete test of the ASD relay and its
circuitry, refer to the DRB scan tool and appropriate
Powertrain Diagnostics Procedures manual. To test
the r

Page 1449 of 2158

JEEP XJ 1995  Service And Repair Manual Test the resistance of the wire harness. Do this be-
tween the powertrain control module (PCM) wire
harness connector terminal-2 and the sensor connec-
tor terminal. Also test terminal-4 to the sensor

Page 1450 of 2158

JEEP XJ 1995  Service And Repair Manual EXTENDED IDLE SWITCH TEST
OPTIONAL POLICE PACKAGE ONLY
OPERATION
The extended idle switch is used to raise the en-
gine idle speed to approximately 1000 rpm when the
shifter is in either the Park or N
