Page 1481 of 2158

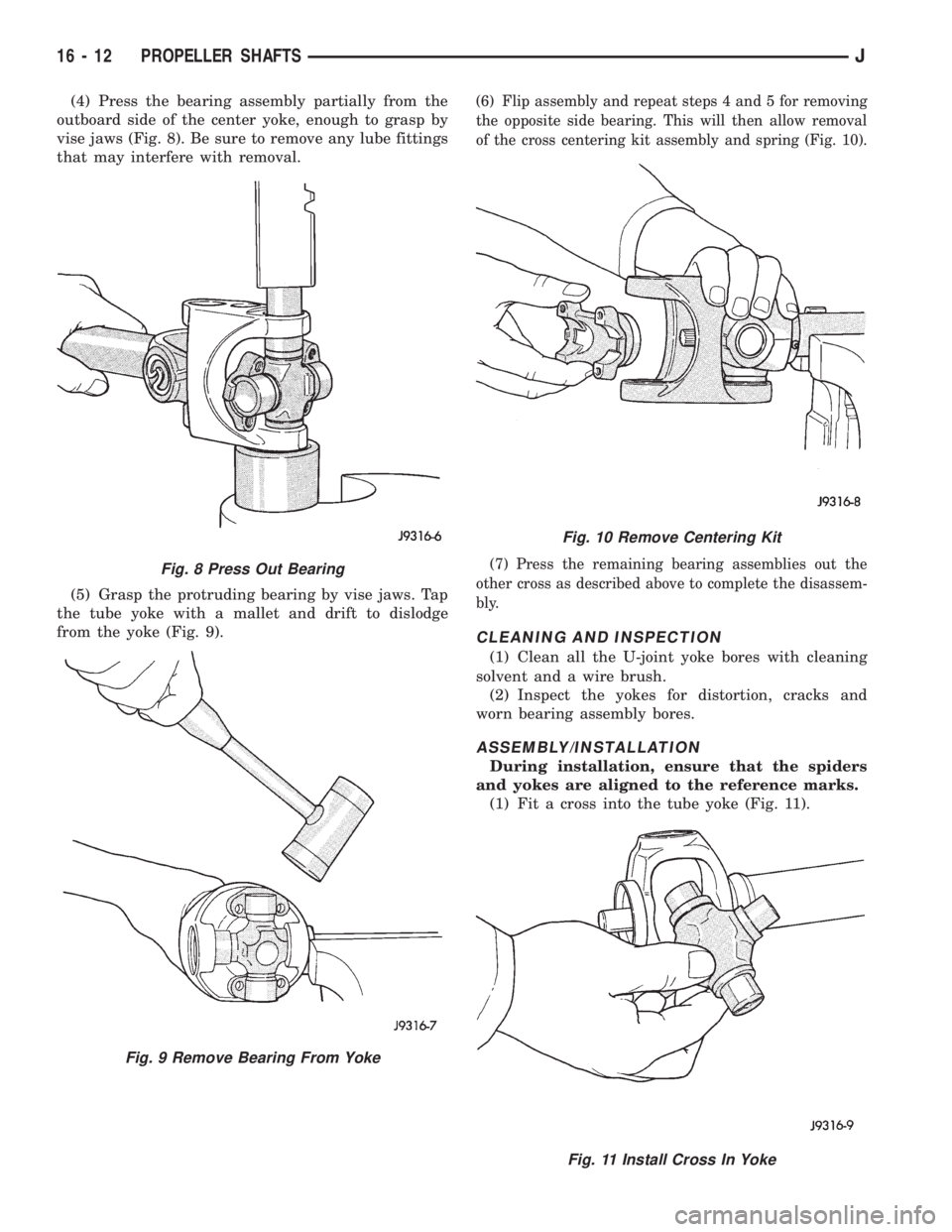

JEEP XJ 1995  Service And Repair Manual (4) Press the bearing assembly partially from the
outboard side of the center yoke, enough to grasp by
vise jaws (Fig. 8). Be sure to remove any lube fittings
that may interfere with removal.
(5) Gras

Page 1482 of 2158

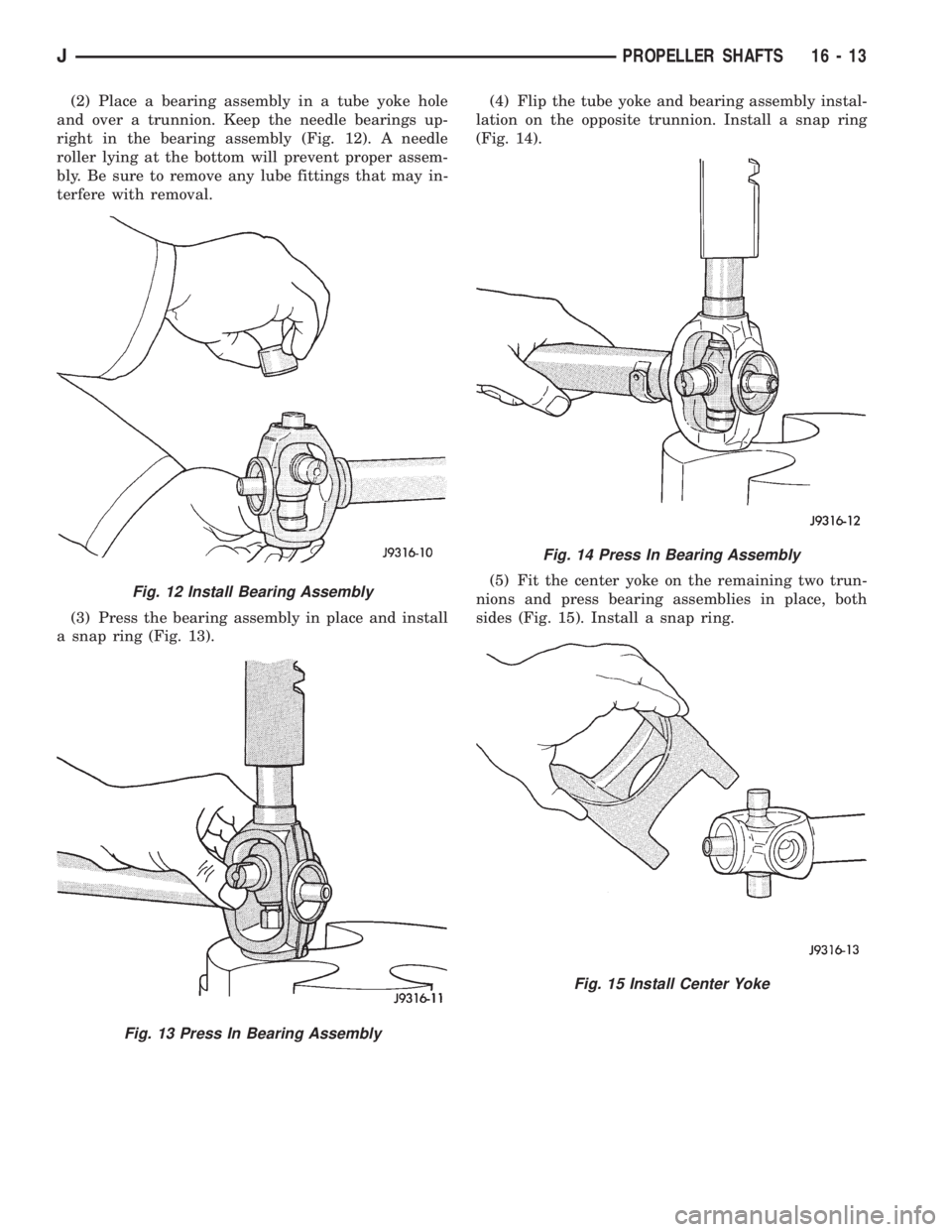

JEEP XJ 1995  Service And Repair Manual (2) Place a bearing assembly in a tube yoke hole
and over a trunnion. Keep the needle bearings up-
right in the bearing assembly (Fig. 12). A needle
roller lying at the bottom will prevent proper asse

Page 1483 of 2158

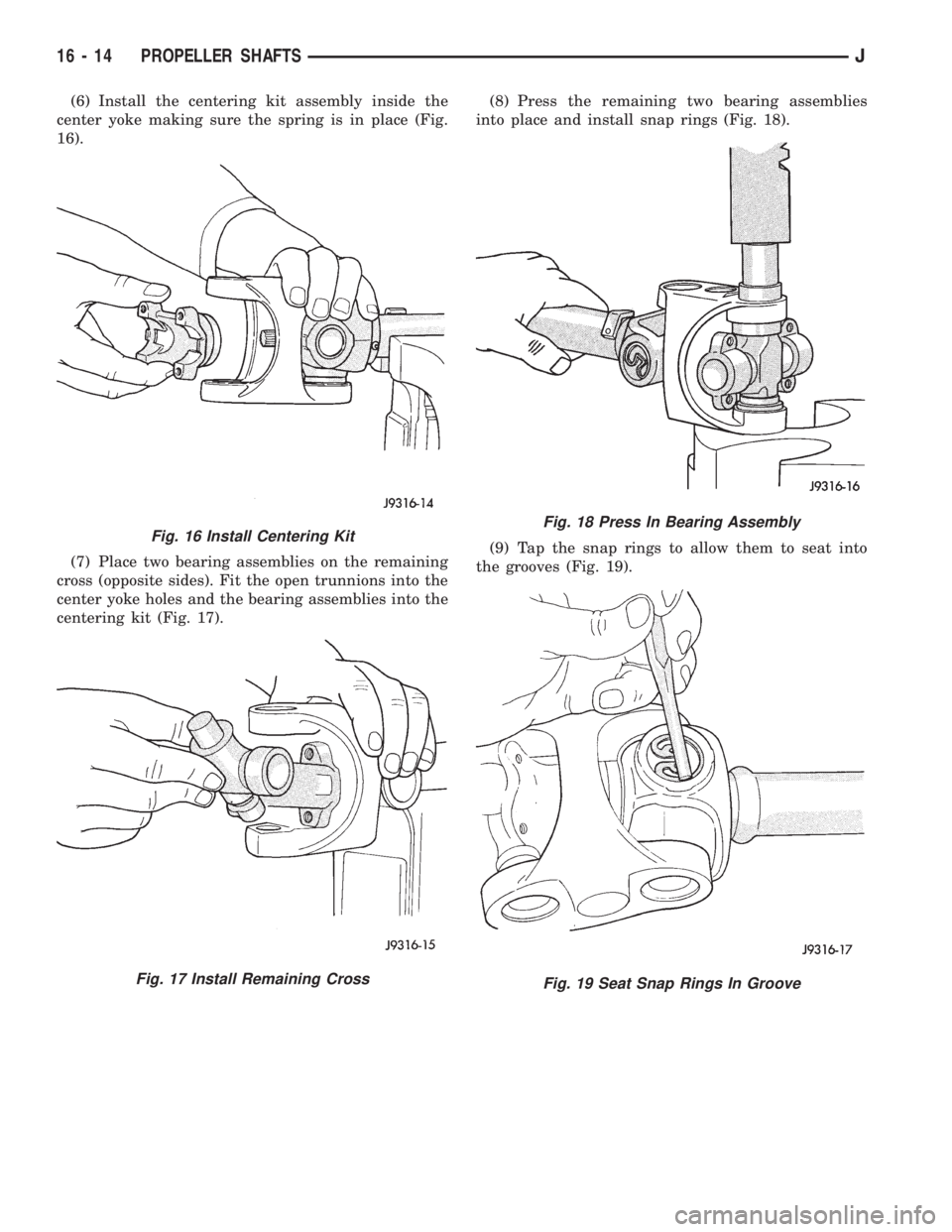

JEEP XJ 1995  Service And Repair Manual (6) Install the centering kit assembly inside the
center yoke making sure the spring is in place (Fig.
16).
(7) Place two bearing assemblies on the remaining
cross (opposite sides). Fit the open trunn

Page 1484 of 2158

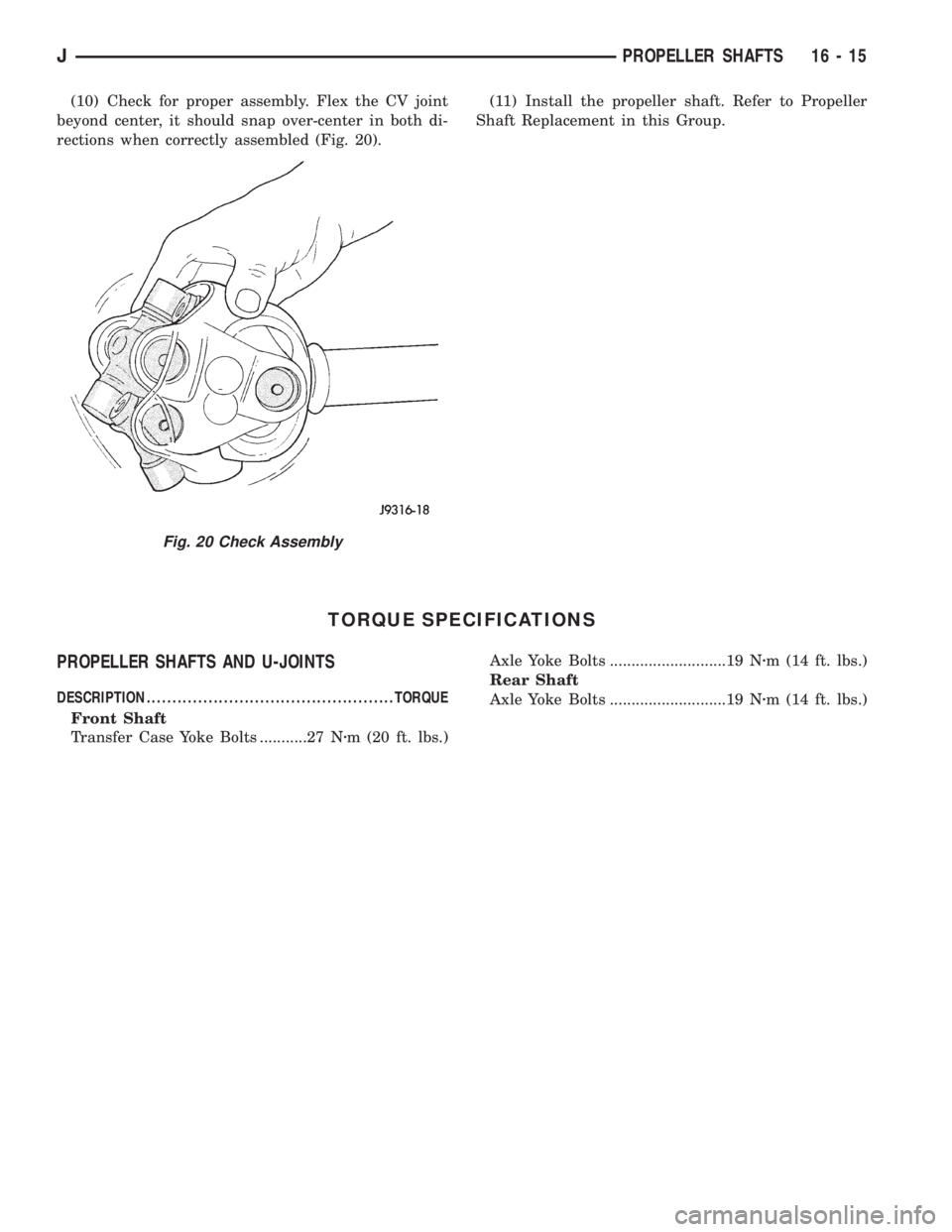

JEEP XJ 1995  Service And Repair Manual (10) Check for proper assembly. Flex the CV joint
beyond center, it should snap over-center in both di-
rections when correctly assembled (Fig. 20).(11) Install the propeller shaft. Refer to Propeller

Page 1485 of 2158

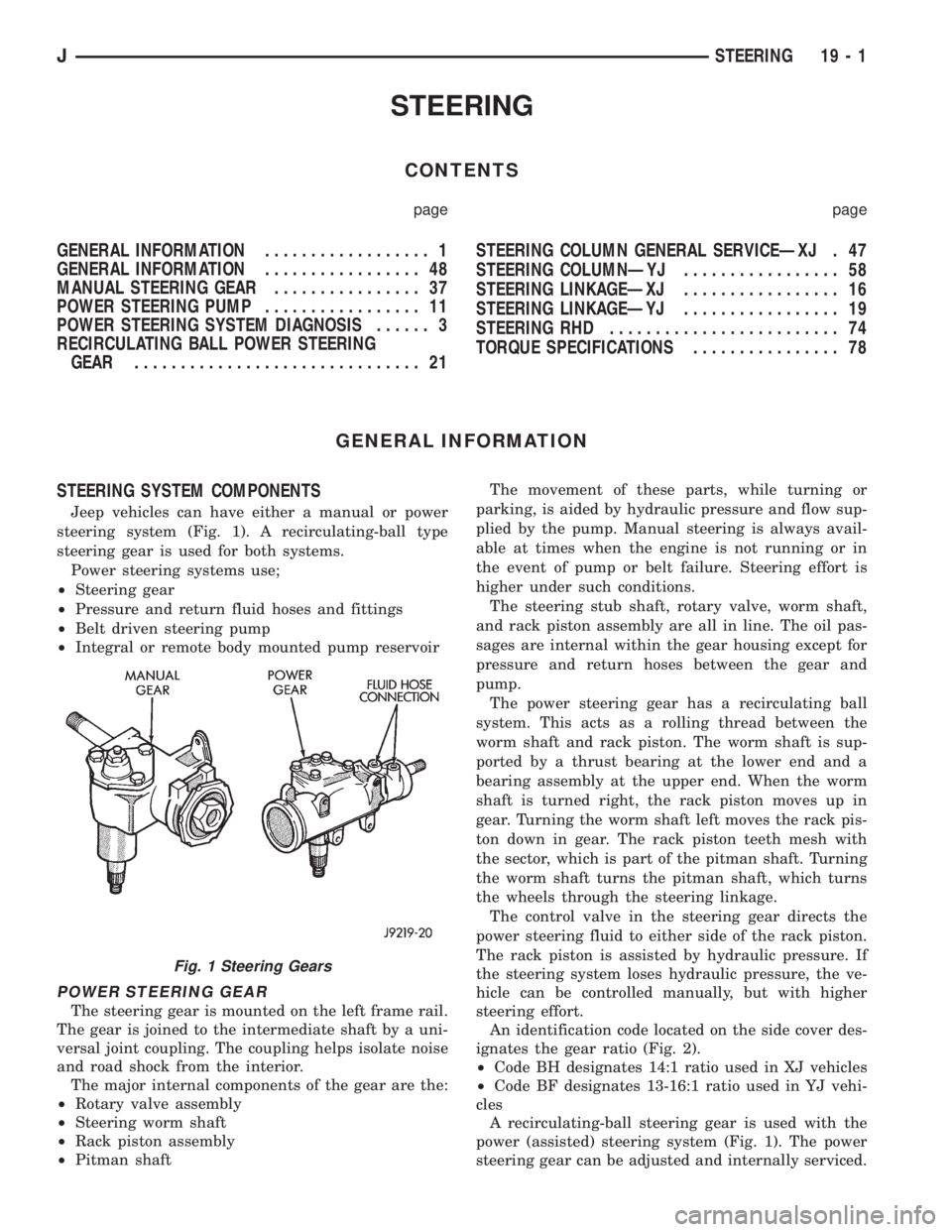

JEEP XJ 1995  Service And Repair Manual STEERING
CONTENTS
page page
GENERAL INFORMATION.................. 1
GENERAL INFORMATION................. 48
MANUAL STEERING GEAR................ 37
POWER STEERING PUMP................. 11
POWER STEERI

Page 1486 of 2158

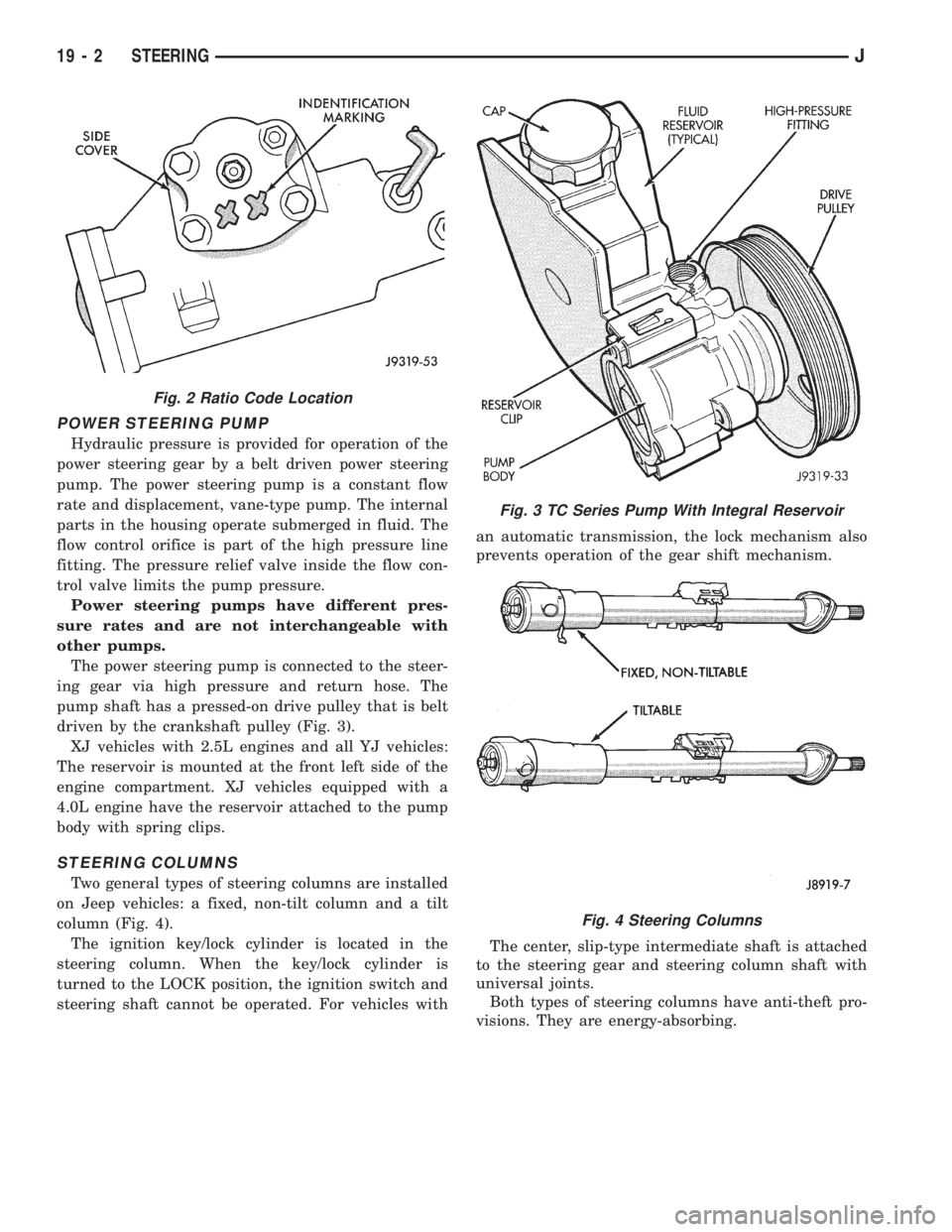

JEEP XJ 1995  Service And Repair Manual POWER STEERING PUMP
Hydraulic pressure is provided for operation of the
power steering gear by a belt driven power steering
pump. The power steering pump is a constant flow
rate and displacement, vane

Page 1487 of 2158

JEEP XJ 1995  Service And Repair Manual POWER STEERING SYSTEM DIAGNOSIS
PUMP PRESSURE TEST
(1) Check belt tension and adjust as necessary.
(2) Disconnect high pressure hose at gear or pump.
Use a container for dripping fluid.
(3) Connect Ga

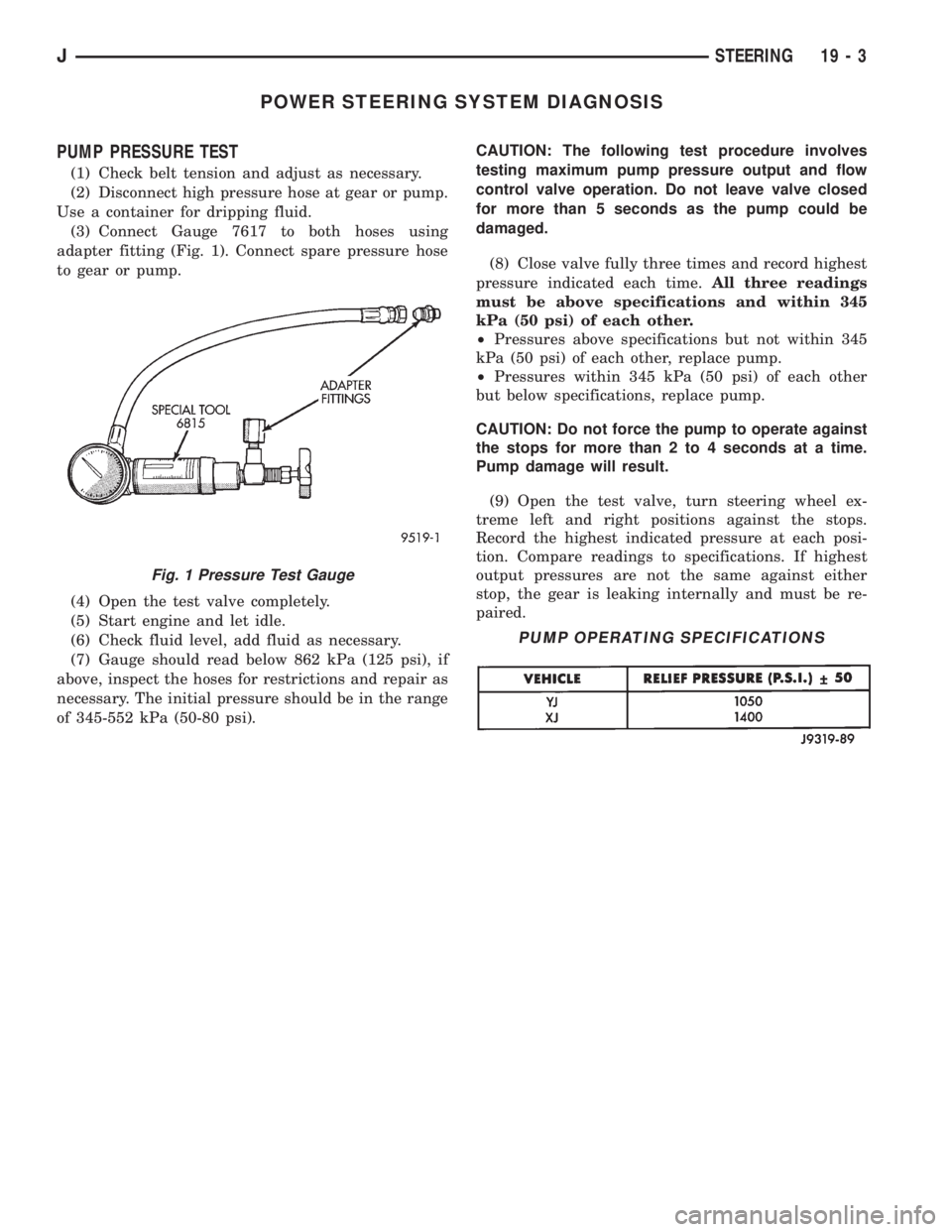

Page 1488 of 2158

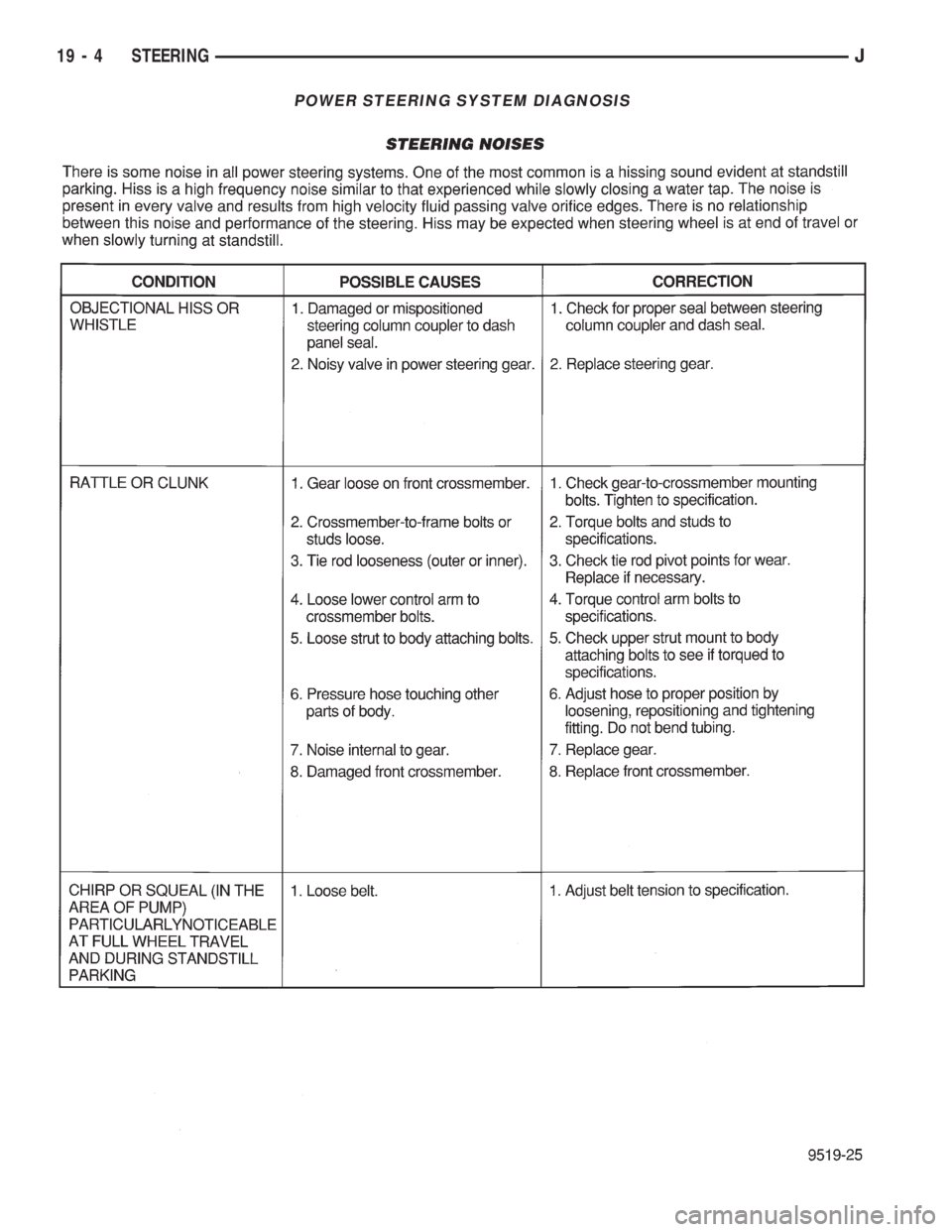

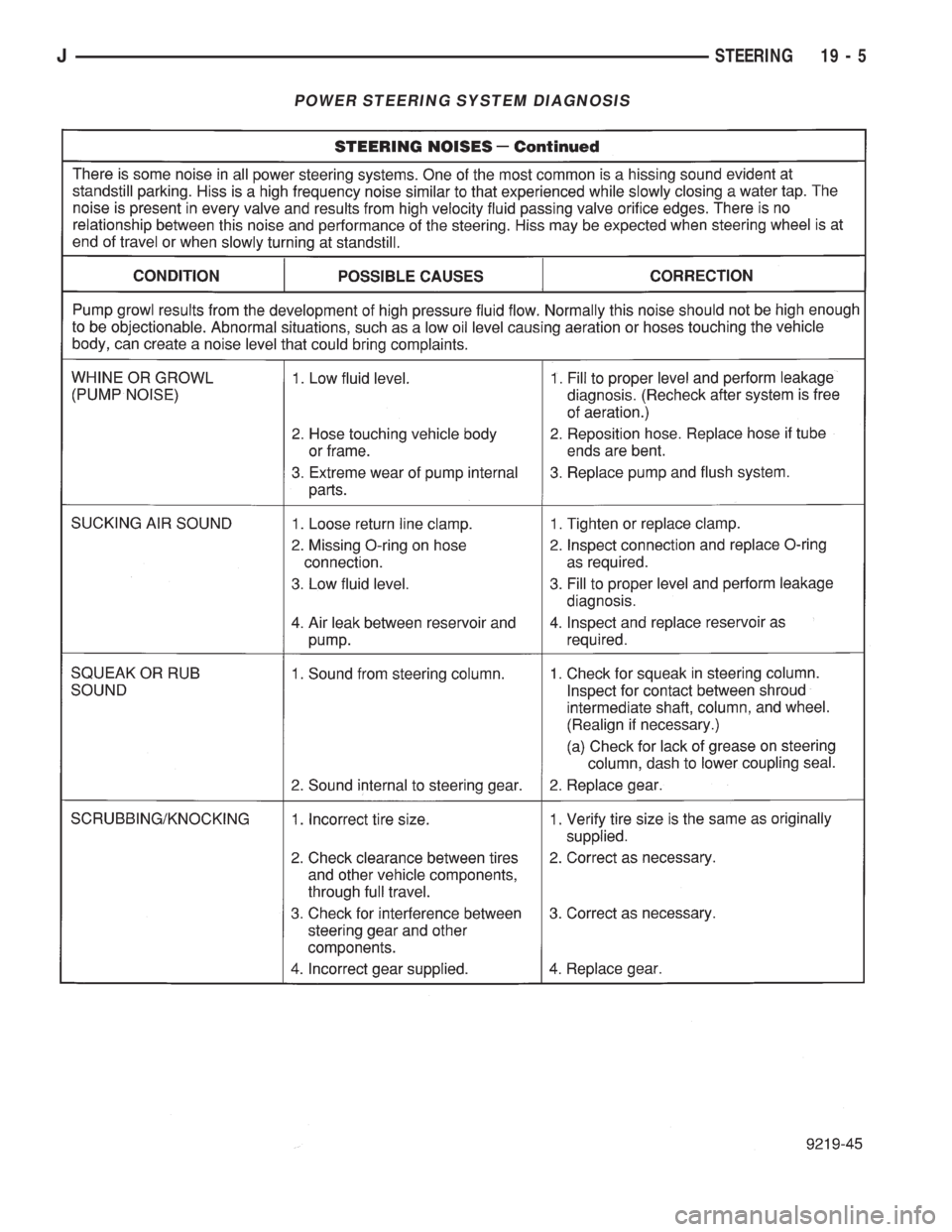

JEEP XJ 1995  Service And Repair Manual POWER STEERING SYSTEM DIAGNOSIS
19 - 4 STEERINGJ

Page 1489 of 2158

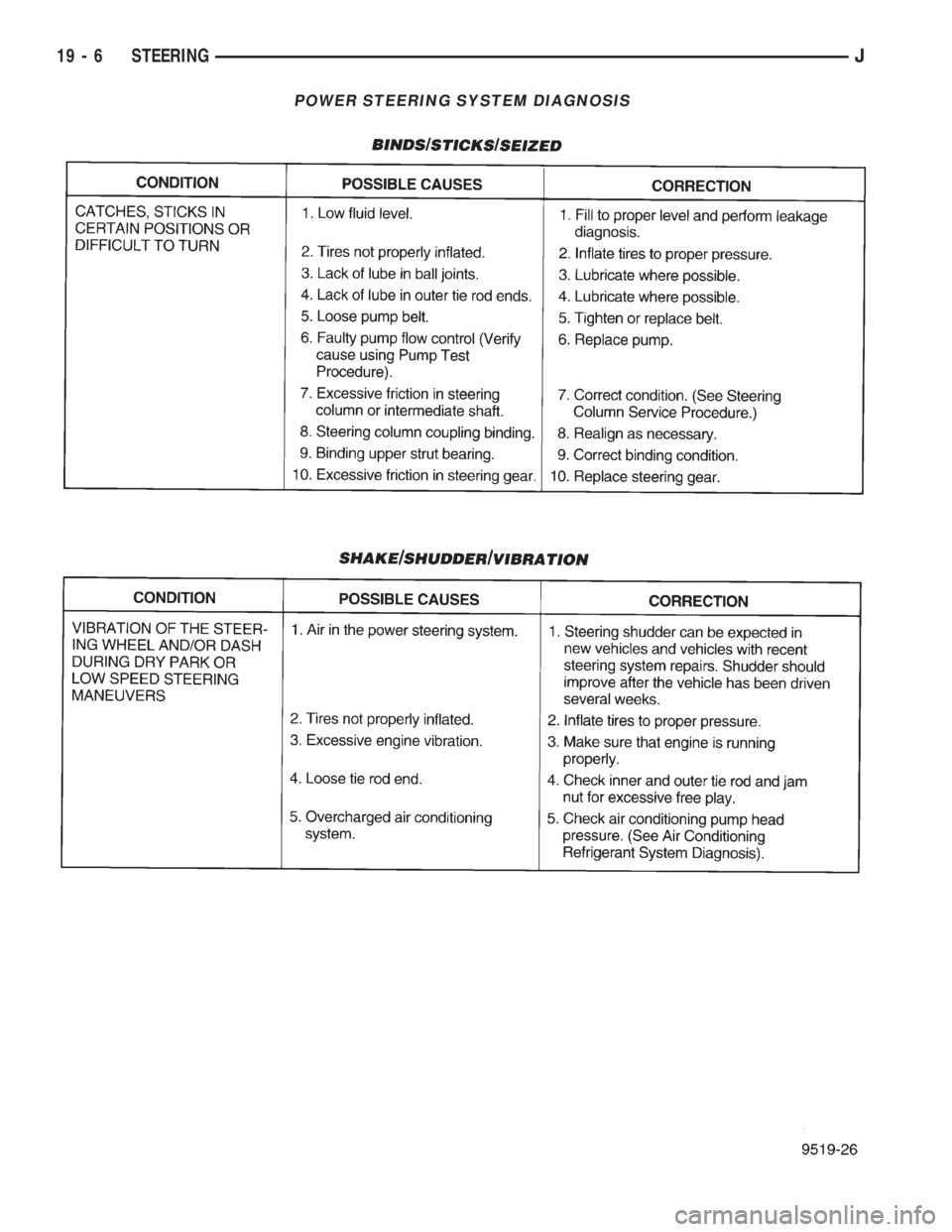

JEEP XJ 1995  Service And Repair Manual POWER STEERING SYSTEM DIAGNOSIS
JSTEERING 19 - 5

Page 1490 of 2158

JEEP XJ 1995  Service And Repair Manual POWER STEERING SYSTEM DIAGNOSIS
19 - 6 STEERINGJ
