JEEP XJ 1995  Service And Repair Manual Fig. 1 Coolant FlowÐXJ Models with 2.5L 4-Cylinder EngineÐTypical
Fig. 2 Coolant FlowÐYJ Models with 2.5L 4-Cylinder EngineÐTypical
7 - 2 COOLING SYSTEMJ

Page 242 of 2158

JEEP XJ 1995  Service And Repair Manual Fig. 3 Coolant FlowÐXJ Models with 4.0L 6-
Cylinder EngineÐTypicalFig. 4 Coolant FlowÐYJ Models with 4.0L 6-
Cylinder EngineÐTypical
JCOOLING SYSTEM 7 - 3

Page 243 of 2158

JEEP XJ 1995  Service And Repair Manual DIAGNOSIS
INDEX
page page
DRB Scan Tool............................ 5
On-Board Diagnostics (OBD).................. 4Preliminary Checks......................... 5
ON-BOARD DIAGNOSTICS (OBD)
FOR CERTAIN

Page 244 of 2158

JEEP XJ 1995  Service And Repair Manual EXAMPLES:
²If the lamp (Figs. 5 or 6) flashes 1 time, pauses
and flashes 2 more times, a flashing Diagnostic Trou-
ble Code (DTC) number 12 is indicated. If this code is
observed, it is indicating th

Page 245 of 2158

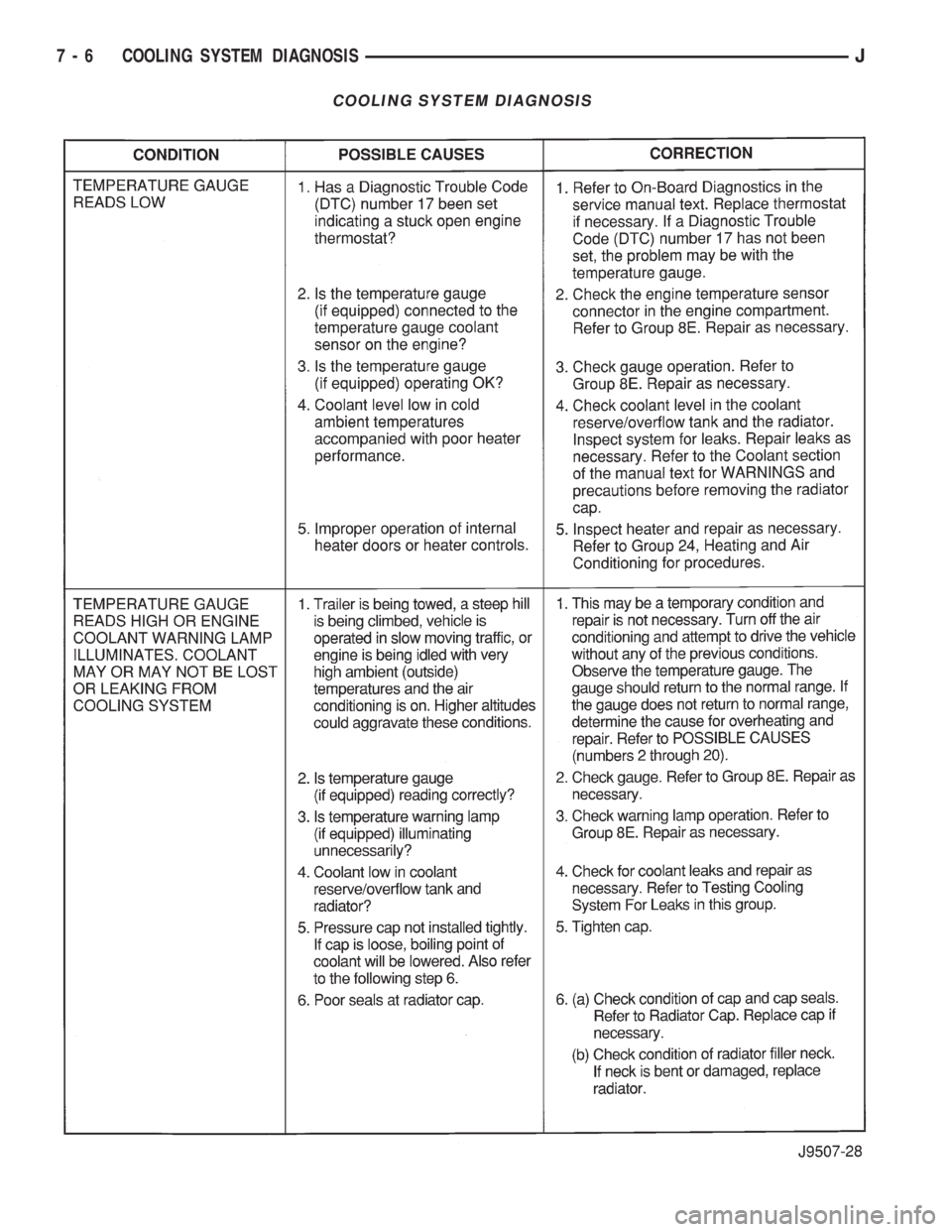

JEEP XJ 1995  Service And Repair Manual COOLING SYSTEM DIAGNOSIS
7 - 6 COOLING SYSTEM DIAGNOSISJ

Page 246 of 2158

JEEP XJ 1995  Service And Repair Manual COOLING SYSTEM DIAGNOSIS (CONT.)
JCOOLING SYSTEM DIAGNOSIS 7 - 7

Page 247 of 2158

JEEP XJ 1995  Service And Repair Manual COOLING SYSTEM DIAGNOSIS (CONT.)
7 - 8 COOLING SYSTEM DIAGNOSISJ

Page 248 of 2158

JEEP XJ 1995  Service And Repair Manual COOLING SYSTEM DIAGNOSIS (CONT.)
JCOOLING SYSTEM DIAGNOSIS 7 - 9

Page 249 of 2158

JEEP XJ 1995  Service And Repair Manual COOLING SYSTEM DIAGNOSIS (CONT.)
7 - 10 COOLING SYSTEM DIAGNOSISJ

Page 250 of 2158

JEEP XJ 1995  Service And Repair Manual COOLING SYSTEM DIAGNOSIS (CONT.)
JCOOLING SYSTEM DIAGNOSIS 7 - 11
