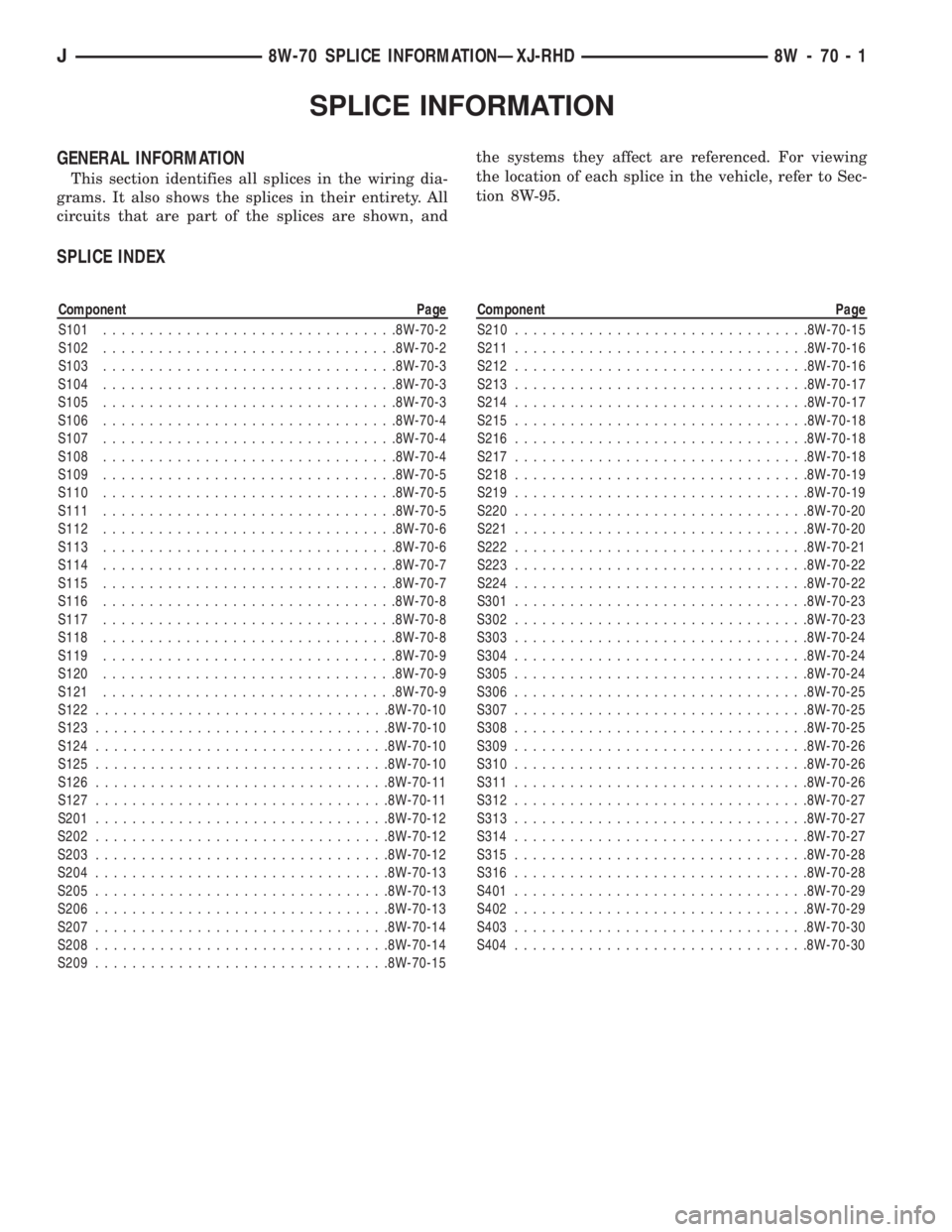

SPLICE INFORMATION
GENERAL INFORMATION
This section identifies all splices in the wiring dia-
grams. It also shows the splices in their entirety. All
circuits that are part of the splices are shown, andthe systems they affect are referenced. For viewing
the location of each splice in the vehicle, refer to Sec-
tion 8W-95.
SPLICE INDEX
Component Page

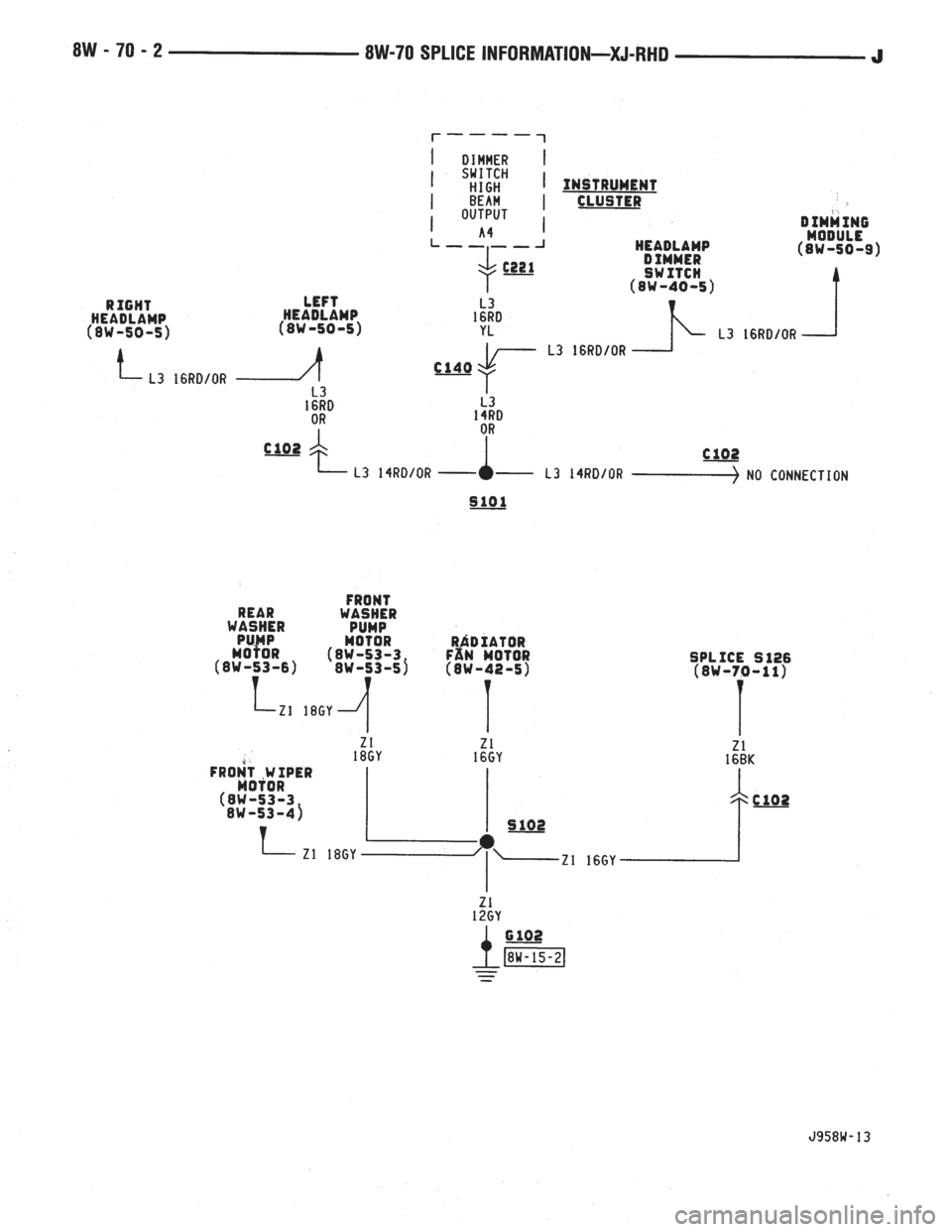

S101................................8W-70-2
S102................................8W-70-2

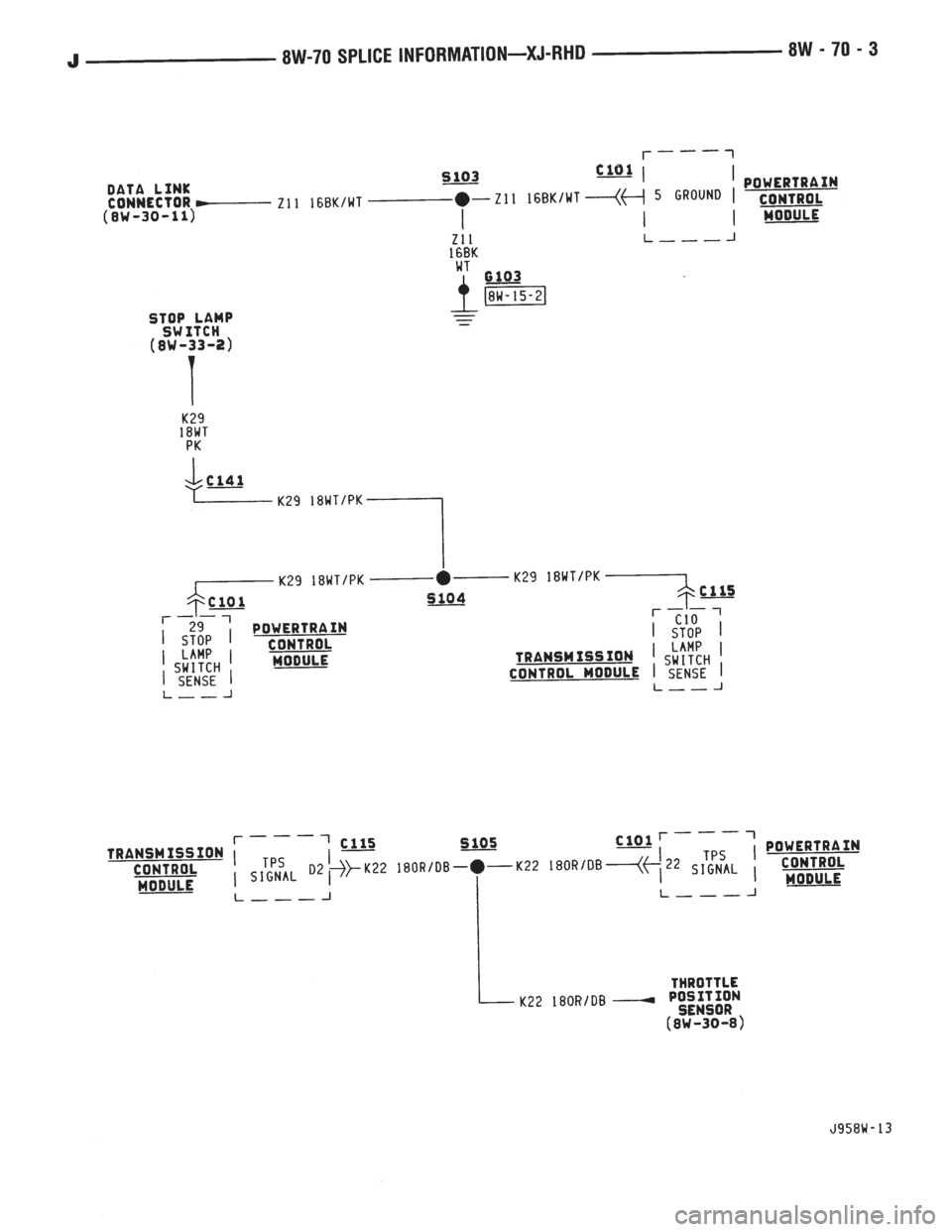

S103................................8W-70-3
S104................................8W-70-3
S105................................8W-70-3

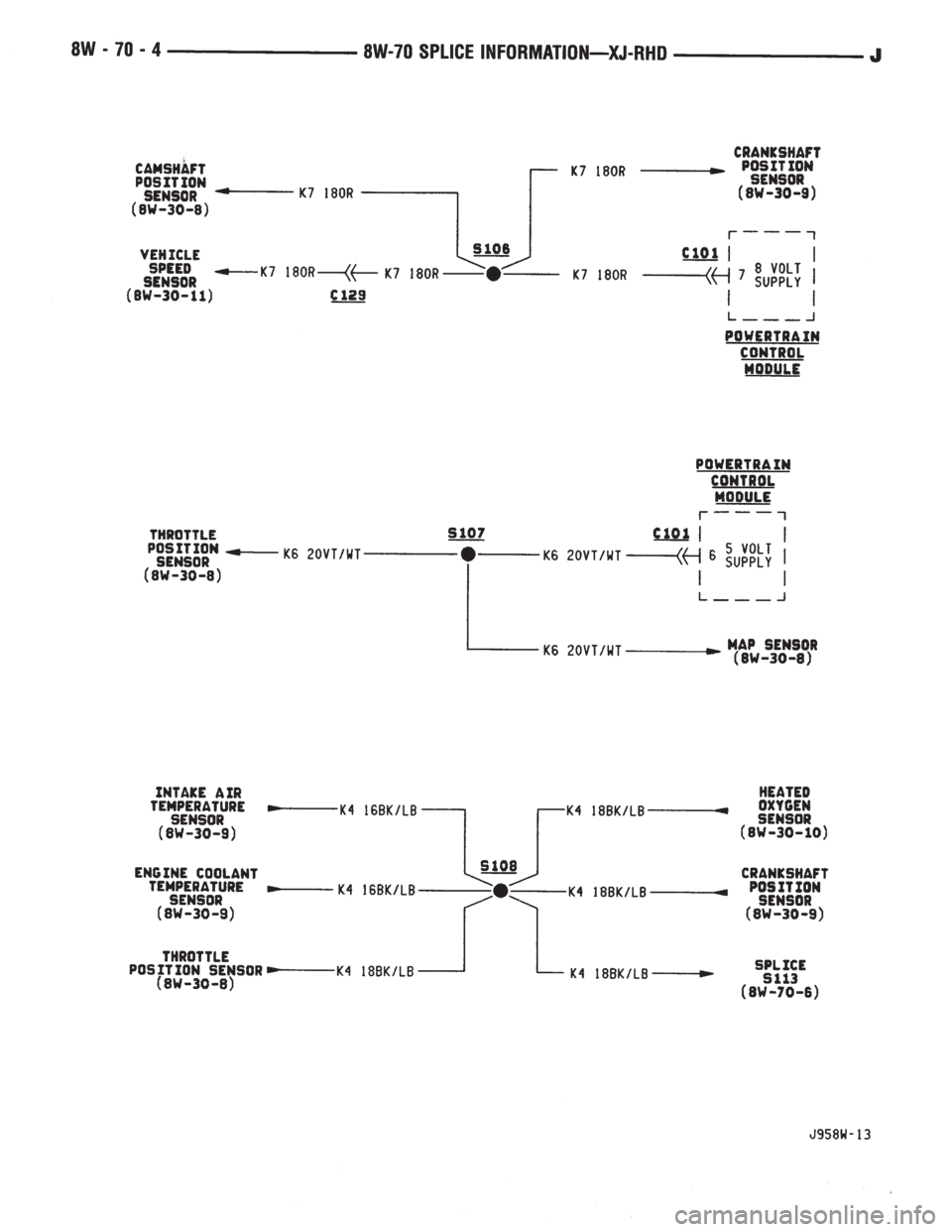

S106................................8W-70-4
S107................................8W-70-4
S108................................8W-70-4

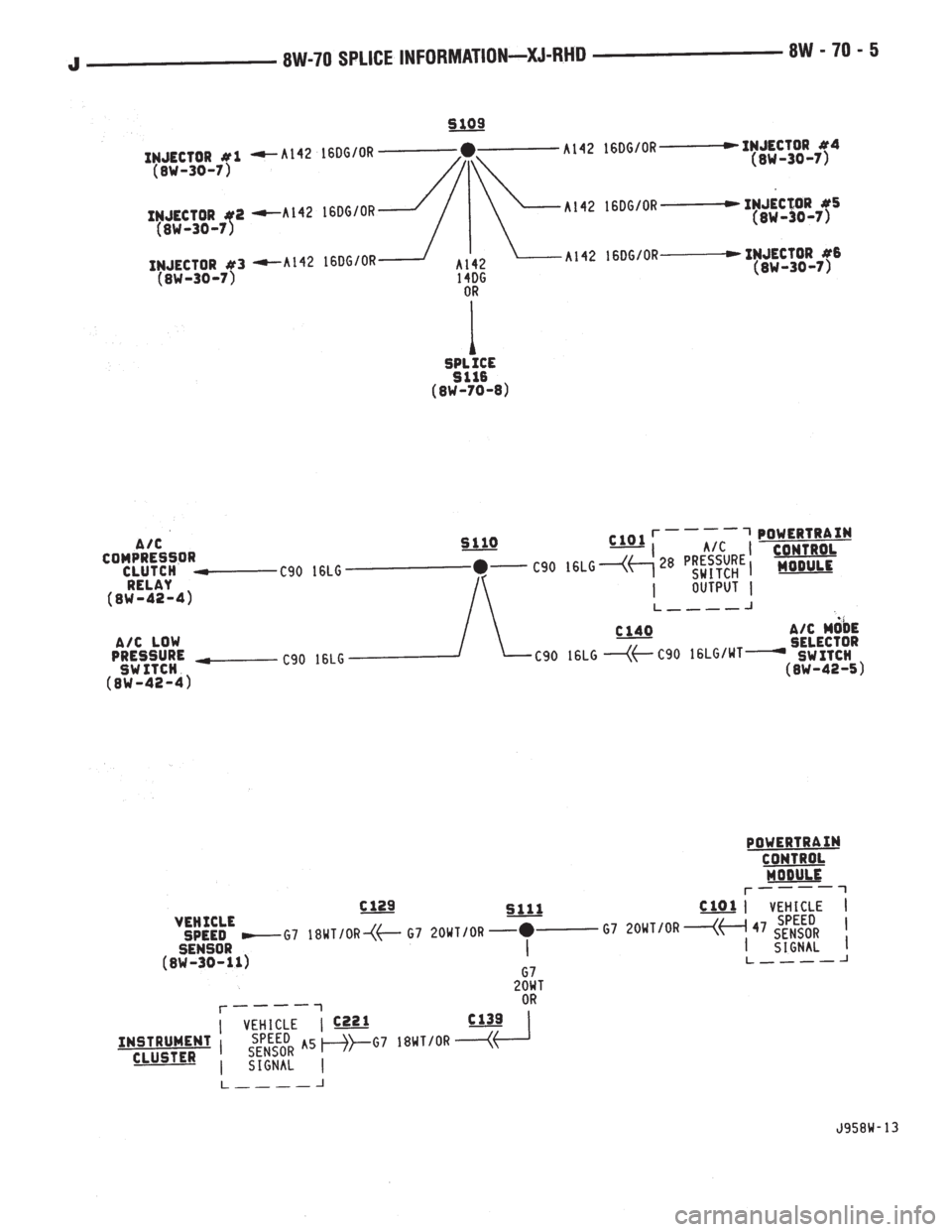

S109................................8W-70-5
S110................................8W-70-5
S111................................8W-70-5

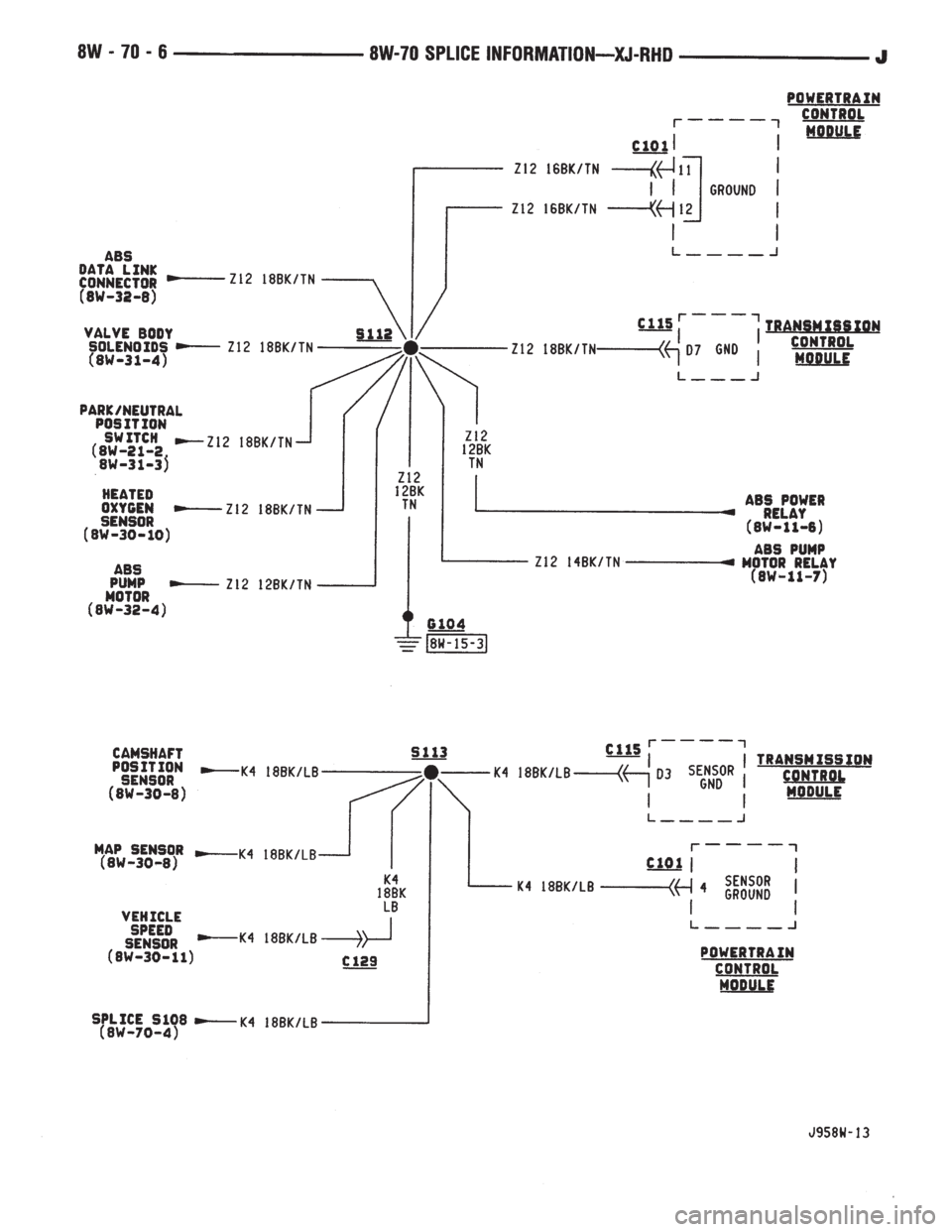

S112................................8W-70-6
S113................................8W-70-6

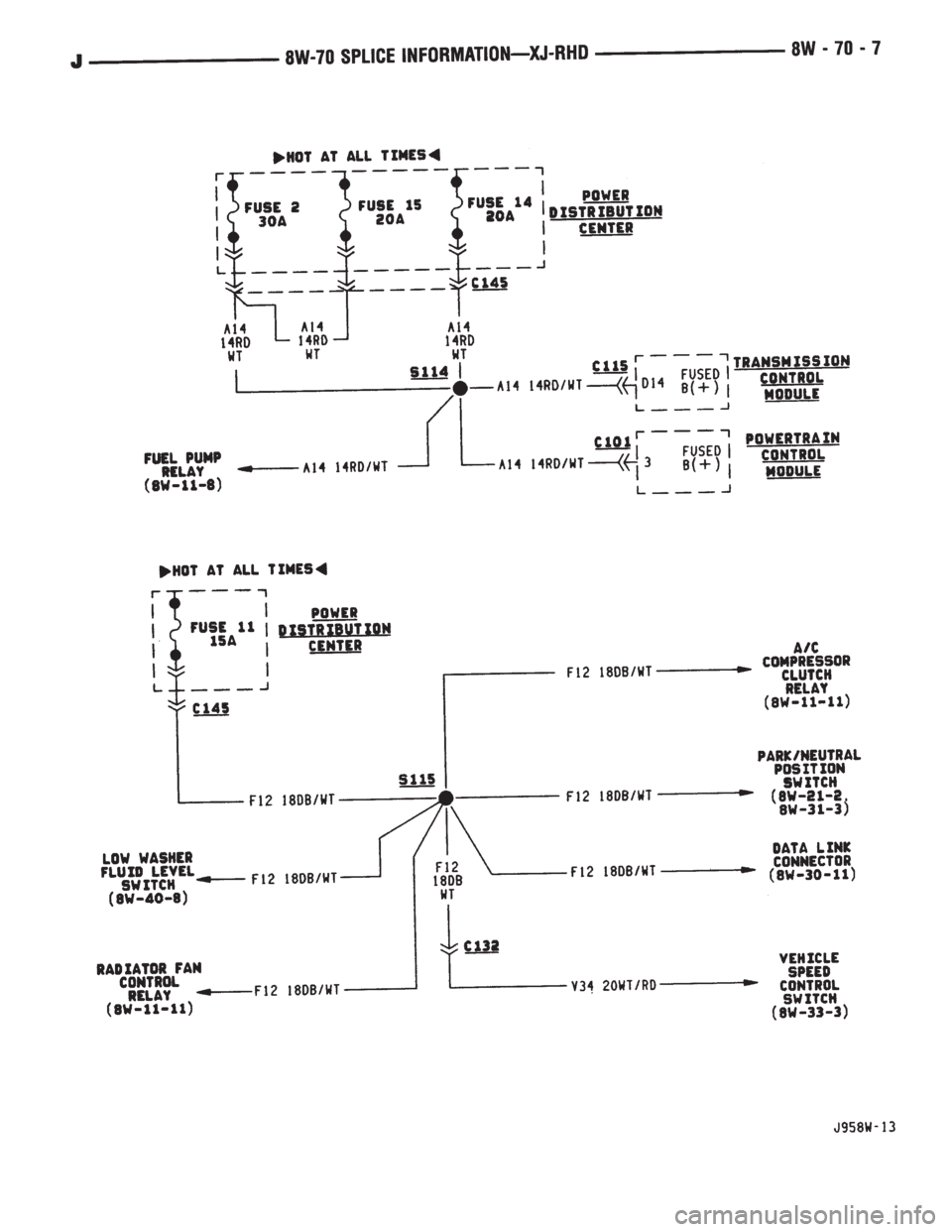

S114................................8W-70-7
S115................................8W-70-7

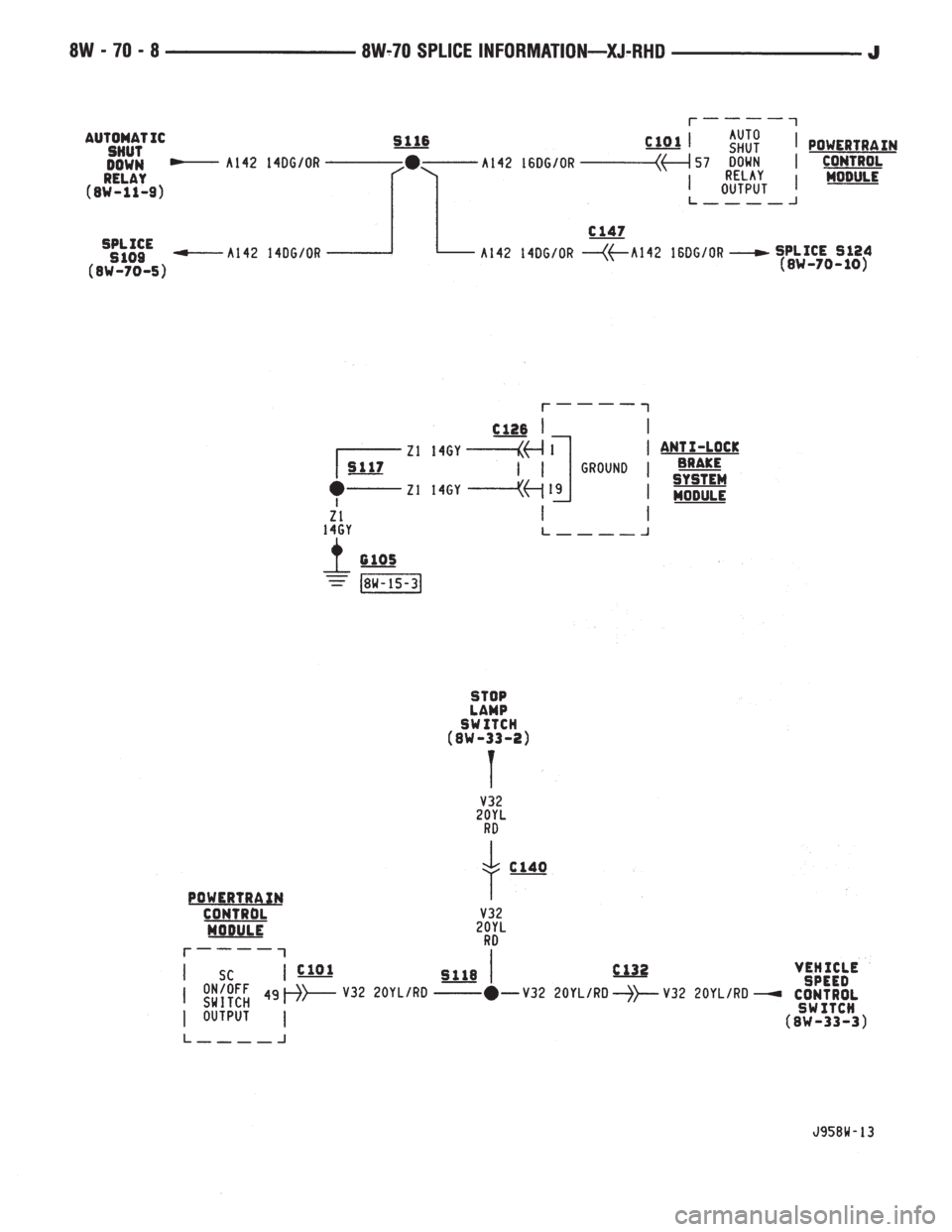

S116................................8W-70-8
S117................................8W-70-8
S118................................8W-70-8

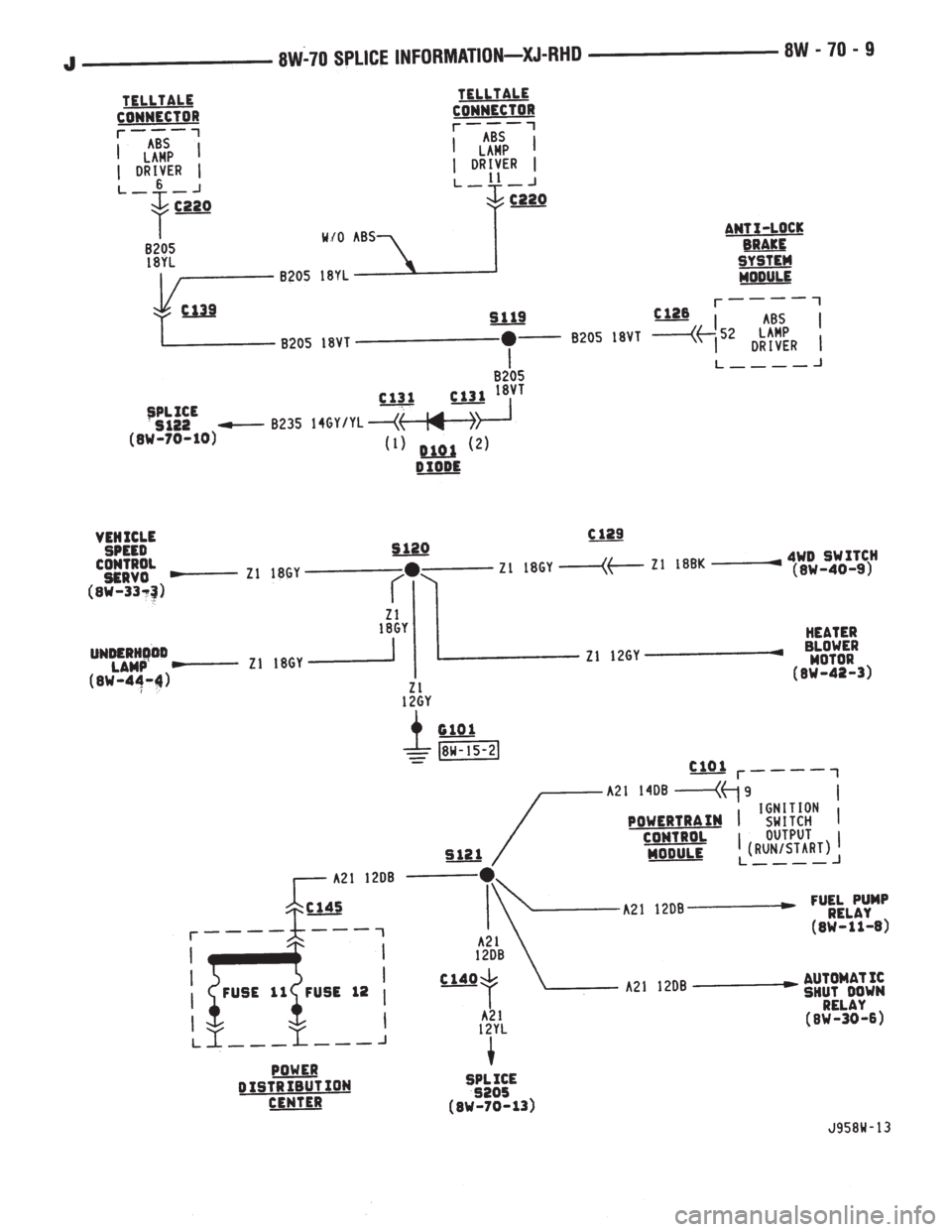

S119................................8W-70-9
S120................................8W-70-9
S121................................8W-70-9
S122................................8W-70-10
S123................................8W-70-10
S124................................8W-70-10
S125................................8W-70-10
S126................................8W-70-11
S127................................8W-70-11
S201................................8W-70-12
S202................................8W-70-12
S203................................8W-70-12
S204................................8W-70-13
S205................................8W-70-13
S206................................8W-70-13
S207................................8W-70-14
S208................................8W-70-14
S209................................8W-70-15Component Page
S210................................8W-70-15
S211................................8W-70-16
S212................................8W-70-16
S213................................8W-70-17
S214................................8W-70-17
S215................................8W-70-18
S216................................8W-70-18
S217................................8W-70-18
S218................................8W-70-19
S219................................8W-70-19
S220................................8W-70-20
S221................................8W-70-20
S222................................8W-70-21
S223................................8W-70-22
S224................................8W-70-22
S301................................8W-70-23
S302................................8W-70-23
S303................................8W-70-24
S304................................8W-70-24
S305................................8W-70-24
S306................................8W-70-25
S307................................8W-70-25
S308................................8W-70-25
S309................................8W-70-26
S310................................8W-70-26
S311................................8W-70-26
S312................................8W-70-27
S313................................8W-70-27
S314................................8W-70-27
S315................................8W-70-28
S316................................8W-70-28
S401................................8W-70-29
S402................................8W-70-29
S403................................8W-70-30
S404................................8W-70-30
J8W-70 SPLICE INFORMATIONÐXJ-RHD 8W - 70 - 1
