JEEP YJ 1995  Service And Repair Manual Fig. 4 Engine Compartment Wiring ConnectorsÐRight Side, 4.0L
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 7

Page 792 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 5 Battery and Generator Wiring
8W - 90 - 8 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 793 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 6 Engine Wiring ConnectorsÐ2.5L Engine
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 9

Page 794 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 7 Engine Wiring ConnectorsÐ4.0L Engine
8W - 90 - 10 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 795 of 2158

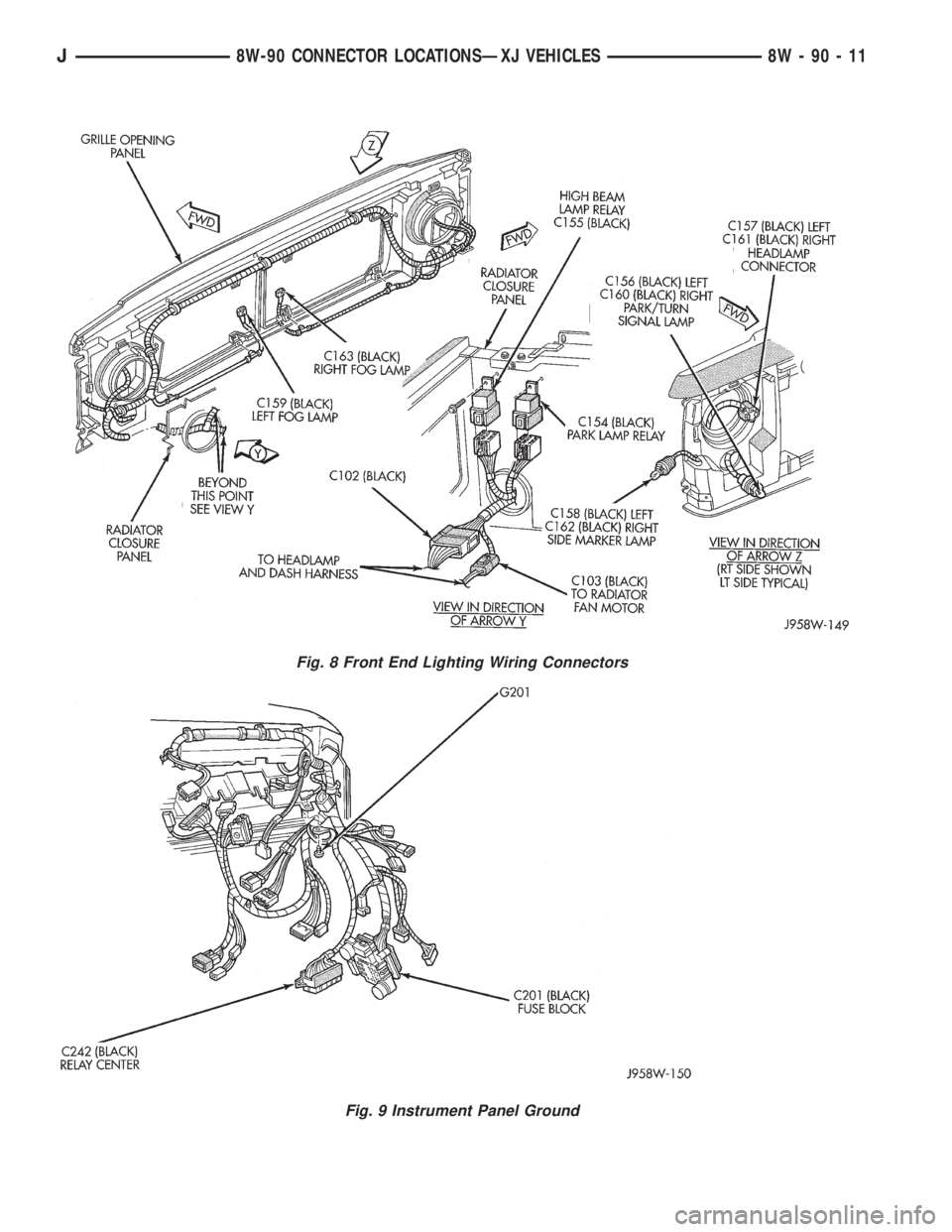

JEEP YJ 1995  Service And Repair Manual Fig. 8 Front End Lighting Wiring Connectors
Fig. 9 Instrument Panel Ground
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 11

Page 796 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 10 Instrument Panel Wiring ConnectorsÐLeft Side
8W - 90 - 12 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 797 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 11 Instrument Panel Wiring ConnectorsÐCenter
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 13

Page 798 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 12 Instrument Panel Wiring Connectors
8W - 90 - 14 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 799 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 13 Stop Lamp Switch, Blower Motor and ABS Control Module Wiring Connectors
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 15

Page 800 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 14 Steering Column, Fuse Panel and ABS Control Module Wiring Connectors
8W - 90 - 16 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ
