JEEP YJ 1995  Service And Repair Manual Fig. 15 Body Wiring Connectors
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 17

Page 802 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 16 Dome Lamp and Overhead Console Wiring Connectors
8W - 90 - 18 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 803 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 17 Front Door Wiring Connectors
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 19

Page 804 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 18 Rear Door Wiring Connectors
8W - 90 - 20 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 805 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 19 ABS Sensors Wiring Connections
Fig. 20 Rear Compartment Wiring Connectors
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 21

Page 806 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 21 Transmission Wiring Connectors
8W - 90 - 22 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 807 of 2158

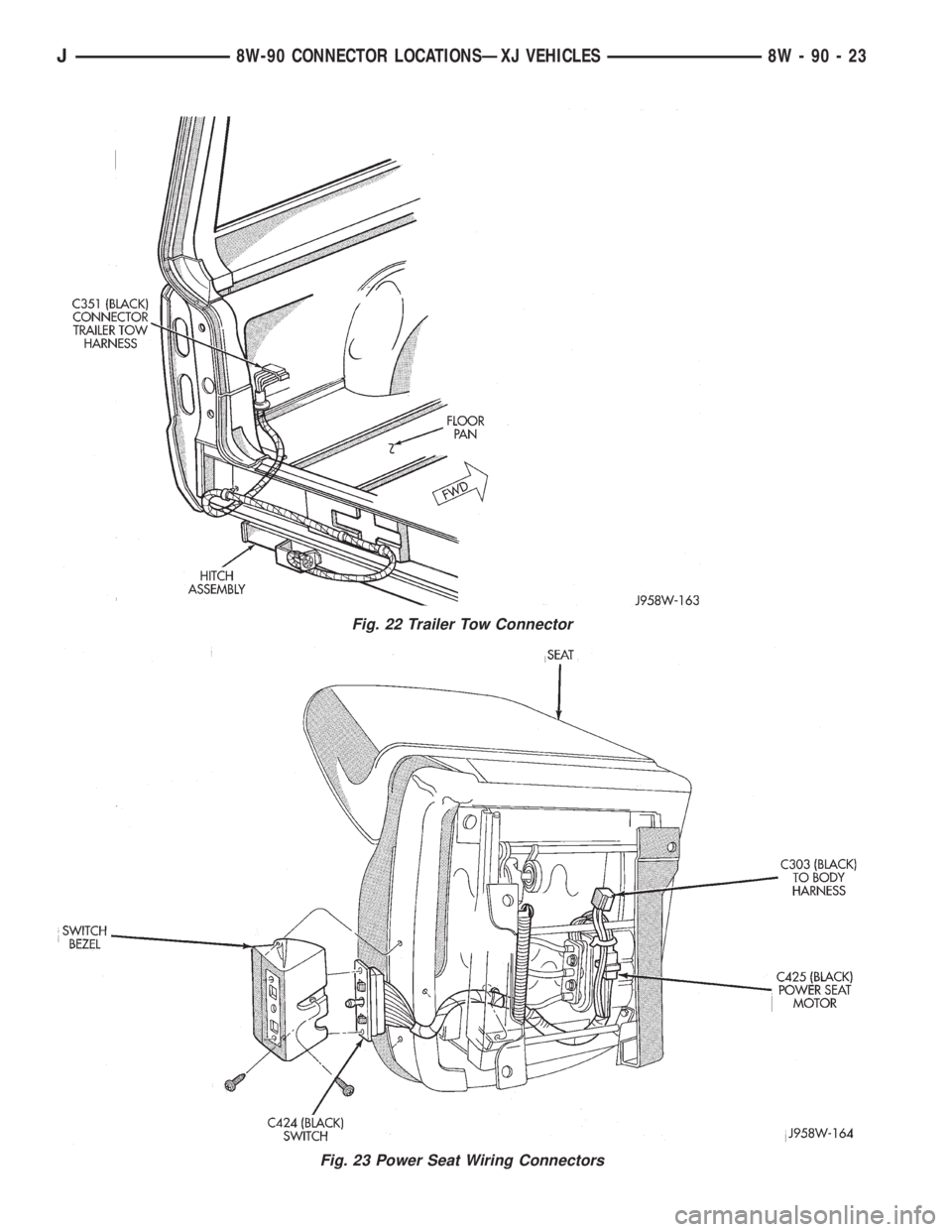

JEEP YJ 1995  Service And Repair Manual Fig. 22 Trailer Tow Connector
Fig. 23 Power Seat Wiring Connectors
J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 23

Page 808 of 2158

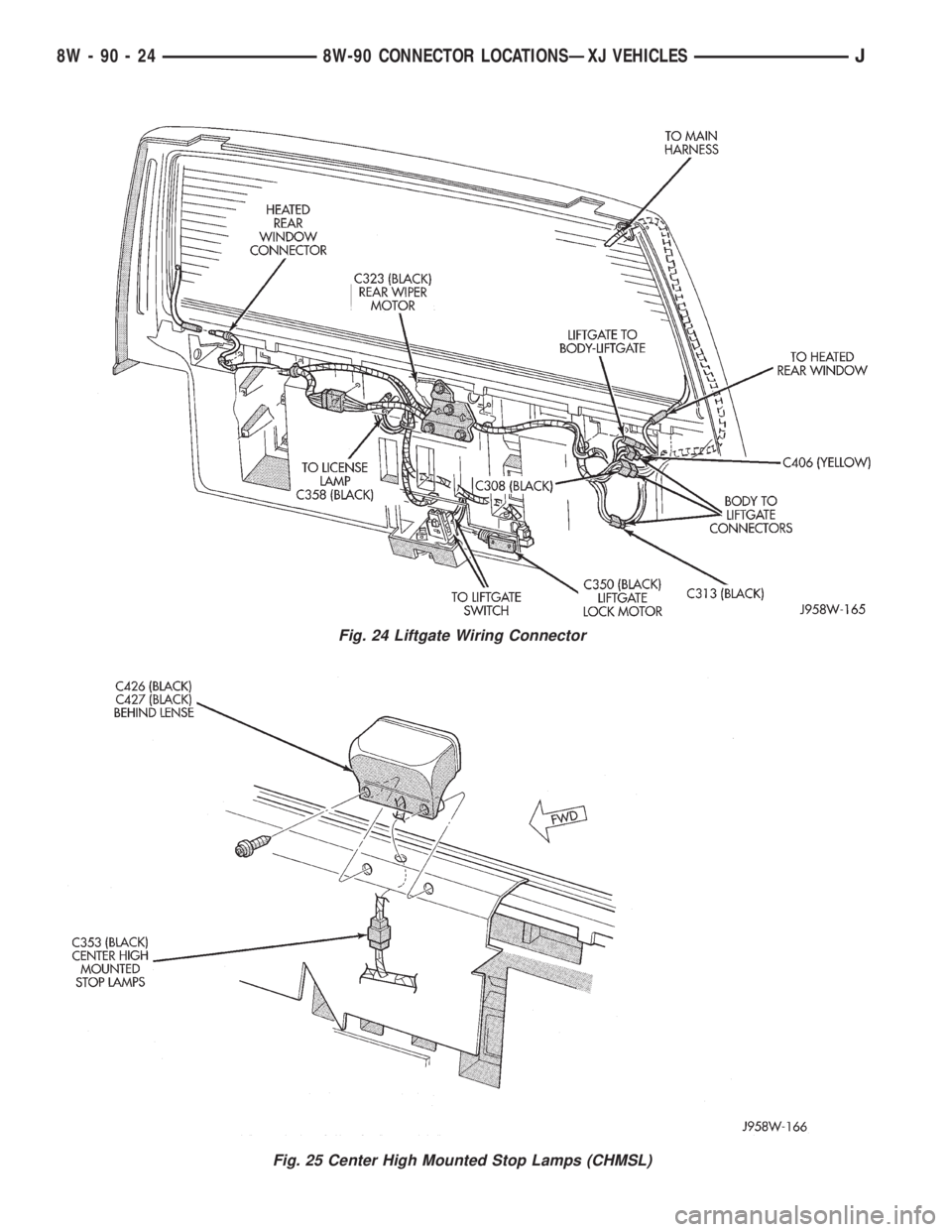

JEEP YJ 1995  Service And Repair Manual Fig. 24 Liftgate Wiring Connector
Fig. 25 Center High Mounted Stop Lamps (CHMSL)
8W - 90 - 24 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 809 of 2158

JEEP YJ 1995  Service And Repair Manual SPLICE LOCATIONS
GENERAL INFORMATION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
se

Page 810 of 2158

JEEP YJ 1995  Service And Repair Manual Fig. 1 Engine Compartment Splices XJ
8W - 95 - 2 8W-95 SPLICE LOCATIONSÐXJ VEHICLESJ
