Knowing your vehicle60
3
1
2
3
4
5
6
7
8
9
AIRBAG - SUPPLEMENTAL RESTRAINT SYSTEM
CRUISE
ON/OFFCANCE L
COAST
SETRES
ACCEL
C RU IS EON/O FF
CANC E
L
C OO
ASTSTTCO
ACO
AT S E TETET S
E SRESACC ELACC ELACC ELCC EL
➀Driver’ s airbag
➁Front passenger’ s
airbag
➃Curtain Airbag
➄Front impact
sensor
➆SRS control module
\bSide impact sensor
1GHA2123/2GHA2256/1GHA2257/1GHA2126/1GHA2128/1GHA2127/2GHA0005A/1GHA2124\
/2GHA2125
➂Side airbag
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 60

361
1
2
3
4
5
6
7
8
9
Knowing your vehicle
➀
Driver’s airbag
(see page 3- 63)
➁
Front passenger’ s airbag
(see page 3- 64)
➂
Side airbag (see page 3- 66)
➃
Curtain Airbag(see page 3- 66)
➄ Front impact sensor
(see page 3- 68)
\b
Side impact sensor(see page 3- 68)
➆
SRS Control Module(see page 3- 68)


Airbag inflation condition(see page 3- 69)


Airbag non-inflation condition(see page 3- 71)


Airbag warning light(see page 3- 76)


Airbag service(see page 3- 76)


Airbag warning label(see page 3- 78)
What your airbag system doesDriver’s airbag and front passenger’ s
airbag are designed to supplement
the protection offered by the safety
belt in certain frontal collisions.
Likewise, side airbag and curtain
airbags are designed to supplement
the protection offered by the safety
belt in side collisions. Safety belts
are designed to reduce the injury of
the driver or passengers in case of
light impact or collision. However, to
help reduce impact on driver or pas-
sengers in a serious collision, seat
belts must also be correctly worn.
What your airbag system does
not doThe air bag system is designed to
supplement the protection offered by
the safety belt system. IT IS NOT A
SUBSTITUTE FOR THE SAFETY
BELT.
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 61

Knowing your vehicle62
3
1
2
3
4
5
6
7
8
9
The importance of using
safety beltsThere are four very important rea-
sons to use safety belts even with an
airbag supplemental restraint sys-
tem. They:
 help keep you in the proper posi-
tion (away from the airbag) when it
inflates.
 reduce the risk of harm in rollover,
side impact (vehicles not equipped
with side and curtain airbags) or
rear impact collisions, because an
airbag is not designed to inflate in
such situations and even a side
curtain airbag is designed to inflate
only in certain side impact colli-
sions.
 reduce the risk of harm in frontal or
side collisions which are not
severe enough to actuate the
airbag supplemental restraint sys-
tem.
 reduce the risk of being thrown
from your vehicle.
WARNING
- Airbags &
safety belts
 Even in vehicles with air bags,
you and your passengers
must always wear the safety
belts provided in order to min-
imize the risk and severity of
injury in the event of a colli-
sion or rollover.
 Always wear your safety belt.
It can help keep you away
from the air bags during heavy
braking just before a collision.
 If occupants are not fastened
or correctly seated, they can-
not be protected, and thus
face serious injury or death.
(Continued)
(Continued)
Driver’ s and front passenger ’s
airbag are designed to inflate
only in certain frontal colli-
sion, and side and curtain
airbags are designed to inflate
in certain side impacts. They
will generally not provide pro-
tection in side impacts (vehi-
cles not equipped with side
and curtain airbags) or rear
impacts, rollovers, less severe
frontal collisions. They will not
provide protection from later
impacts in a multi-impact col-
lision.
(Continued)
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 62

363
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Airbag system components The main components of your SRS
are:
To indicate that your vehicle is
equipped with airbags, the corre-
sponding airbag covers are
marked with “SRS AIRBAG”.
- Driver’ s airbag (see page 3- 63)
- Passenger’ s airbag(see page 3- 64)
- Side airbag (see page 3- 66)
- Curtain airbag (see page 3- 66)
 A diagnostic system that continual-
ly monitors the system operation.
 An indicator light to warn you of a
possible problem with the system.
 Emergency power backup in case
your car’ s electrical system is dis-
connected in a crash.
Driver’ s airbagThe driver’ s airbag is stored in the
center of the steering wheel.
CRUISE
ON/OFFCAN CE
L
COAST
SETRES
ACCEL
HLZ206
(Continued)
 If your vehicle has been sub-
jected to flood conditions (e.g.
soaked carpeting/standing
water on the floor of the vehi-
cle, etc.) or if your vehicle has
become flood damaged in any
way, do not attempt to start
the vehicle or put the key in
the ignition before discon-
necting the battery. This may
cause airbag deployment,
which could result in serious
personal injury or death. If
flooded conditions are sub-
jected to your vehicle, before
starting the vehicle, have the
vehicle towed to an authorized
Kia dealer for inspection and
necessary repairs.
2GHA2256
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 63

Knowing your vehicle64
3
1
2
3
4
5
6
7
8
9

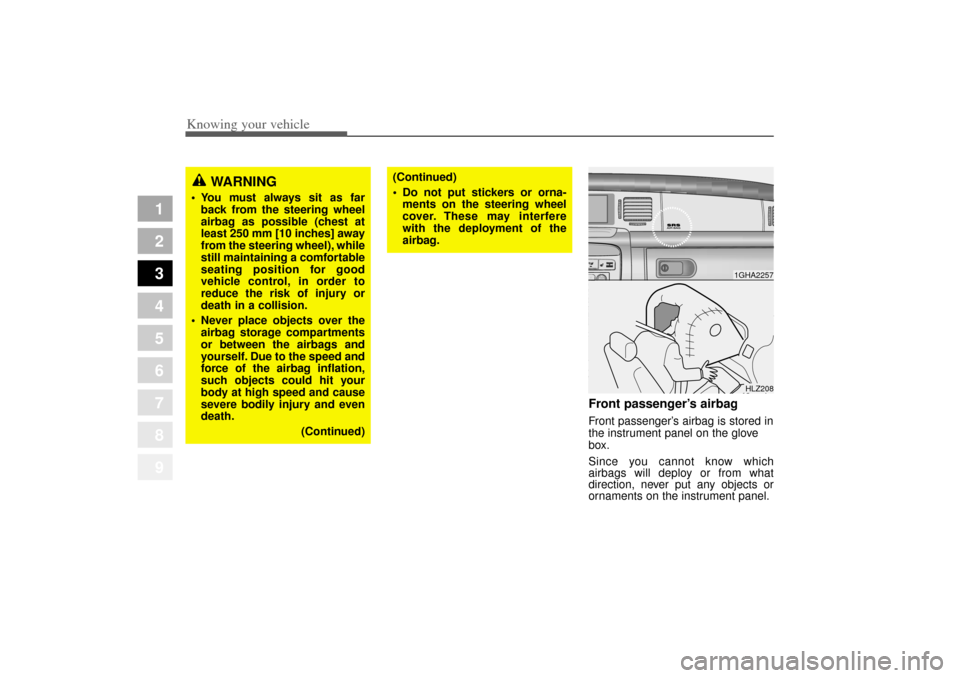

Front passenger’ s airbagFront passenger’s airbag is stored in
the instrument panel on the glove
box.
Since you cannot know which
airbags will deploy or from what
direction, never put any objects or
ornaments on the instrument panel.
1GHA2257HLZ208
WARNING
 You must always sit as far
back from the steering wheel
airbag as possible (chest at
least 250 mm [10 inches] away
from the steering wheel), while
still maintaining a comfortable
seating position for good
vehicle control, in order to
reduce the risk of injury or
death in a collision.
 Never place objects over the
airbag storage compartments
or between the airbags and
yourself. Due to the speed and
force of the airbag inflation,
such objects could hit your
body at high speed and cause
severe bodily injury and even
death.
(Continued)
(Continued)
Do not put stickers or orna-
ments on the steering wheel
cover. These may interfere
with the deployment of the
airbag.
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 64

365
1
2
3
4
5
6
7
8
9
Knowing your vehicle
(Continued)
If driver brakes the vehicle
heavily in an urgent situa-
tions, occupants will be
thrown forward. If front pas-
sengers are not wearing the
safety belts, they will be
directly in front of the storage
compartment when inflation
occurs. In that situation, seri-
ous injury or death is possi-
ble.
 Never allow front passenger
to put their hands or feet on
the instrument panel or put
their face close to the instru-
ment panel. The airbag will
impact the front passenger
when it inflates.
(Continued)
(Continued)
Never allow children/old
and feeble persons/pregnant
women to sit on the front pas-
senger’ s seat. Do not put child
restraint system on the front
passenger’ s seat either. They
may be seriously injured by
the airbag inflation when
airbag deploys.
 Do not put objects or stickers
on the instrument panel. Do
not apply any accessory on
the front windshield glass or
do not install aftermarket mir-
rors or accessories on the fac-
tory installed rearview mirror.
These may interfere with the
deployment of airbag inflation
or could hit your body at high
speed and cause severe bodi-
ly injury and even death.

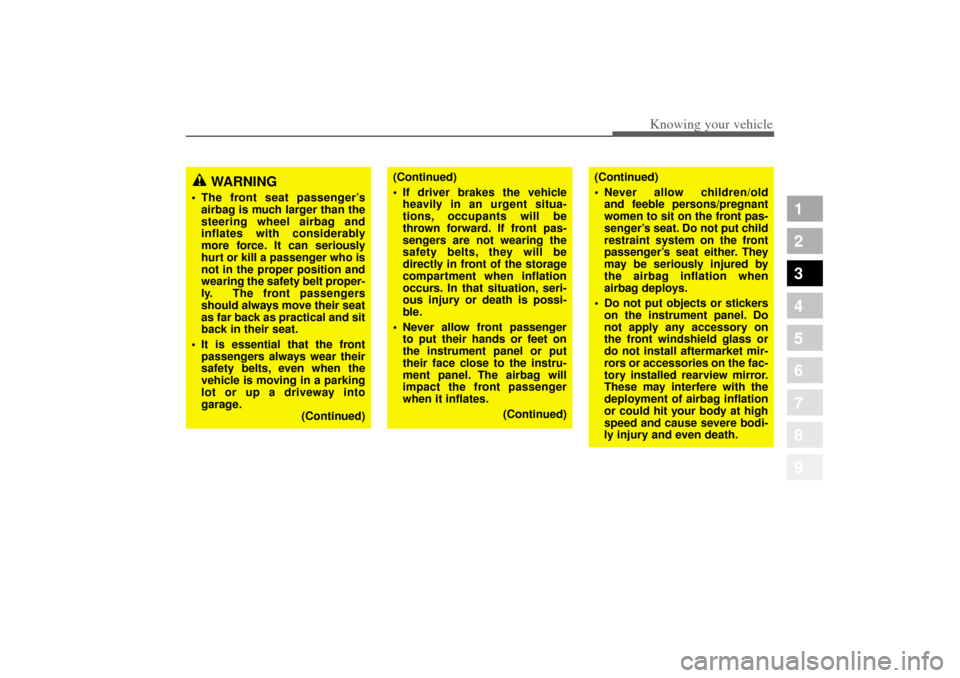

WARNING
The front seat passenger ’s
airbag is much larger than the
steering wheel airbag and
inflates with considerably
more force. It can seriously
hurt or kill a passenger who is
not in the proper position and
wearing the safety belt proper-
ly. The front passengers
should always move their seat
as far back as practical and sit
back in their seat.
 It is essential that the front
passengers always wear their
safety belts, even when the
vehicle is moving in a parking
lot or up a driveway into
garage.
(Continued)
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 65

Knowing your vehicle66
3
1
2
3
4
5
6
7
8
9

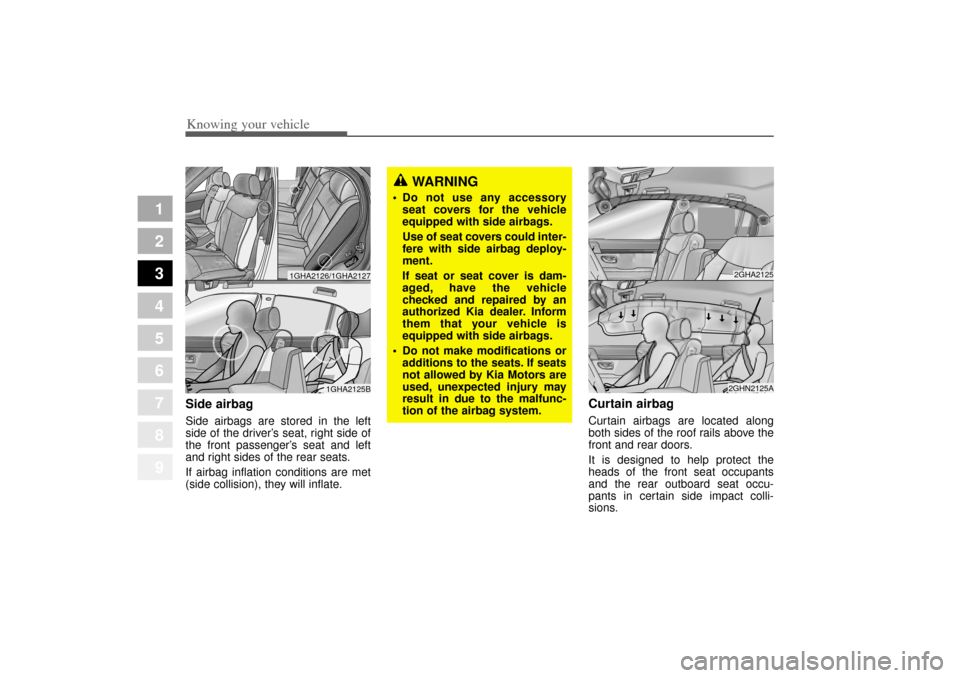

Side airbagSide airbags are stored in the left
side of the driver’ s seat, right side of
the front passenger’ s seat and left
and right sides of the rear seats.
If airbag inflation conditions are met
(side collision), they will inflate.
Curtain airbagCurtain airbags are located along
both sides of the roof rails above the
front and rear doors.
It is designed to help protect the
heads of the front seat occupants
and the rear outboard seat occu-
pants in certain side impact colli-
sions.
WARNING
 Do not use any accessory
seat covers for the vehicle
equipped with side airbags.
Use of seat covers could inter-
fere with side airbag deploy-
ment.
If seat or seat cover is dam-
aged, have the vehicle
checked and repaired by an
authorized Kia dealer. Inform
them that your vehicle is
equipped with side airbags.
 Do not make modifications or
additions to the seats. If seats
not allowed by Kia Motors are
used, unexpected injury may
result in due to the malfunc-
tion of the airbag system.
2GHA21252GHN2125A
1GHA2125B
1GHA2126/1GHA2127
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 66

367
1
2
3
4
5
6
7
8
9
Knowing your vehicle
If the curtain airbag deploys, it
remains inflated for approximately
3 seconds. The curtain airbag
deployment occurs only on the
side of the vehicle affected by the
impact.
 The side airbags (side and curtain
airbags) are not designed to
deploy during collisions from the
front or rear of the vehicle or in
most rollover situations.
 The curtain airbags are designed
to deploy only during certain side-
impact collisions, depending on the
crash severity, angle, speed and
impact. The curtain airbags are not
designed to deploy in all side
impact situations.

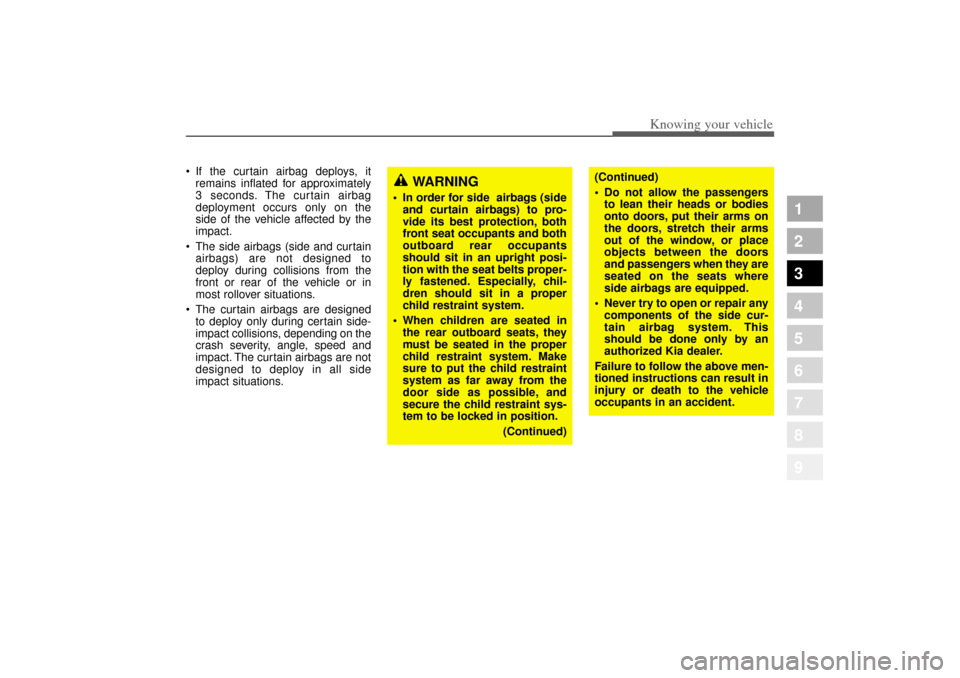

WARNING
In order for side airbags (side
and curtain airbags) to pro-
vide its best protection, both
front seat occupants and both
outboard rear occupants
should sit in an upright posi-
tion with the seat belts proper-
ly fastened. Especially, chil-
dren should sit in a proper
child restraint system.
 When children are seated in
the rear outboard seats, they
must be seated in the proper
child restraint system. Make
sure to put the child restraint
system as far away from the
door side as possible, and
secure the child restraint sys-
tem to be locked in position.
(Continued)
(Continued)
Do not allow the passengers
to lean their heads or bodies
onto doors, put their arms on
the doors, stretch their arms
out of the window, or place
objects between the doors
and passengers when they are
seated on the seats where
side airbags are equipped.
 Never try to open or repair any
components of the side cur-
tain airbag system. This
should be done only by an
authorized Kia dealer.
Failure to follow the above men-
tioned instructions can result in
injury or death to the vehicle
occupants in an accident.
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 67

Knowing your vehicle68
3
1
2
3
4
5
6
7
8
9
Why didn’t my airbag go off in
a collision? (Inflation and non-inflation condi-
tions of the airbag)There are many types of accidents in
which the airbag would not be
expected to provide additional pro-
tection.
These include rear impacts, second
or third collisions in multiple impact
accidents, as well as low speed
impacts. In other words, just because
your vehicle is damaged and even if
it is totally unusable, don’t be sur-
prised that the airbags did not inflate.
Airbag collision sensors➀
SRS control module
➁
Front impact sensor
➂
Side impact sensor
C RU IS EO N/O FFCANC EL
COO
ASTSTTCO
ACO
AT S
E TETET
S
E SR
ESAC
CELAC
CELAC
CELC
CEL
1GHA2123C/2GHA0005A/1GHA2124/1GHA2128
➀
➁
➂
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 68

369
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Airbag inflation conditionFront airbag
Front airbags (driver’s and front pas-
senger’ s airbags) are designed to
inflate when the impact is delivered
to front collision sensors depending
on the intensity, speed or angles of
impact of the front collision - general-
ly from an area a little to the left to a
little to the right of straight ahead.
WARNING
 Do not hit or allow any objects
to impact the locations where
airbag or sensors are installed.
This may cause unexpected
airbag deployment, which
could result in serious per-
sonal injury or death.
 If the installation location or
angle of the sensors is altered
in any way, the airbags may
deploy when they should not
or they may not deploy when
they should, causing severe
injury or death.
Therefore, do not try to per-
form maintenance on or
around the airbag sensors.
Have the vehicle checked and
repaired by the authorized Kia
dealer.
(Continued)
(Continued)
Problems may arise if the sen-
sor installation angles are
changed due to the deforma-
tion of front bumper, body or B
pillar where side collision sen-
sors are installed. Have the
vehicle checked and repaired
by the authorized Kia dealer.
 Your vehicle has been
designed to absorb impact
and deploy the airbag(s) in
certain collisions. Installing
aftermarket bumper guards or
replacing a bumper with non-
genuine parts may adversely
affect your vehicles collision
and airbag deployment per-
formance.
1GHA2271
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 69
