KIA AMANTI 2006 Owners Manual
Manufacturer: KIA, Model Year: 2006, Model line: AMANTI, Model: KIA AMANTI 2006Pages: 322, PDF Size: 44.16 MB
Page 91 of 322

Knowing your vehicle80
3
1
2
3
4
5
6
7
8
910
Noise and smokeWhen the air bags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal and is a result
of the ignition of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath-
ing due to the contact of your chest
to both the safety belt and the air
bag, as well as from breathing the
smoke and powder. We strongly
urge you to open your doors
and/or windows as soon as possi-
ble after impact in order to reduce
discomfort and prevent prolonged
exposure to the smoke and pow-
der.
Though smoke and powder are non-
toxic, it may cause irritation to the
skin (eyes, nose and throat etc). If
this is the case, wash and rinse with
the cold water immediately and con-
sult the doctor if the symptom per-
sists.
WARNING -
Seated
positioning
Driver should sit as far back
(at least 10 inches (250 mm)
away) from the steering wheel
air bag as possible to reduce
the risk of injury or death in a
collision. The front passenger
should always move their seat
as far back as possible and sit
back in their seat.
Air bag inflates instantly in an
event of collision, passengers
may be injured by the air bag
expansion force if they are not
in proper position.
Air bag inflation may cause
injuries which normally include
facial or bodily abrasions,
injuries by the broken glasses
or burns by the explosives.
WARNING
When the air bags deploy, the
air bag related parts in steering
wheel and/or instrument panel
and/or in both sides of the roof
rails above the front and rear
doors are very hot. To prevent
injury, do not touch the air bag
storage areas internal compo-
nents immediately after an air
bag has inflated.
Page 92 of 322

381
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Installing a child restraint on a
front passenger’s seat is for-
bidden.Never place a rear-facing child
restraint in the front passenger ’s
seat. If the air bag deploys, it would
impact the rear-facing child restraint,
causing serious or fatal injury.
In addition, do not place front-facing
child restraint in the front passen-
ger ‘s seat either. If the front passen-
ger air bag inflates, it would cause
serious or fatal injuries to the improp-
erly positioned or improperly
restrained child.
Airbag warning lightThe purpose of the airbag warning light
in your instrument panel is to alert
you of a potential problem with your
air bag - Supplemental Restraint
System (SRS).
When the ignition switch is turned
ON, the indicator light should blink or
illuminate for approximately 6 sec-
onds, then go off.
Have the system checked if:
The light does not turn on briefly
when you turn the ignition ON.
The light stays on after the engine
starts.
The light comes on while the vehi-
cle is in motion.

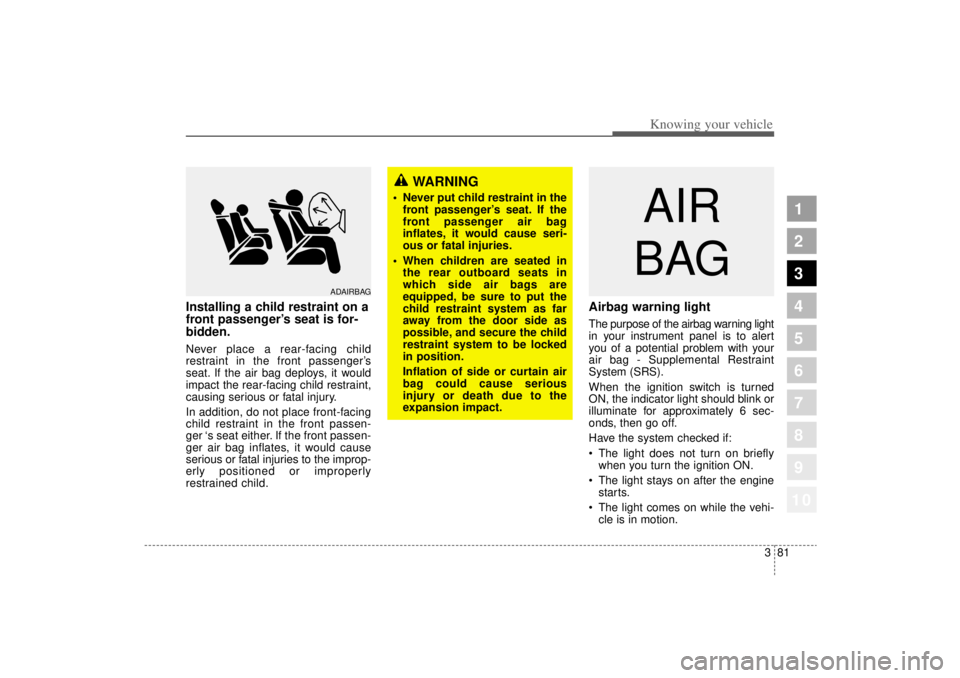

ADAIRBAG
AIR
BAG
WARNING
Never put child restraint in the
front passenger’ s seat. If the
front passenger air bag
inflates, it would cause seri-
ous or fatal injuries.
When children are seated in
the rear outboard seats in
which side air bags are
equipped, be sure to put the
child restraint system as far
away from the door side as
possible, and secure the child
restraint system to be locked
in position.
Inflation of side or curtain air
bag could cause serious
injury or death due to the
expansion impact.
Page 93 of 322

Knowing your vehicle82
3
1
2
3
4
5
6
7
8
910
Air bag (Supplemental
Restraint System) service Your Supplemental Restraint System
is virtually maintenance-free. There
are no parts which you can service.
You must have the system serviced
under the following circumstances:
If an air bag ever inflates, the air
bag must be replaced. Do not try to
remove or discard the air bag by
yourself. This must be done by an
authorized Kia dealer.
If the air bag warning indicator light
alerts you to a problem, have the
air bag system checked as soon as
possible. Otherwise, your air bag
system may be ineffective.
When repairing or scrapping the
vehicles Repairing steering wheel, instru-
ment panel, center console or
roofs, or installing car audio around
center console or painting front
metal sheet could disable the air
bag system. Have them checked
by an authorized Kia dealer.
When leaving the vehicle at an
authorized Kia dealer, inform the
facility that the vehicle is equipped
with air bag system, and leave the
owner’ s manual in the vehicle.
Since air bag system contains
explosive chemical substances,
contact an authorized Kia dealer
when scrapping the vehicle.
WARNING
- No mainte-
nance or repair
Do not modify your steering
wheel, seat or any other part
of the Supplemental Restraint
System. Modification could
make the system inoperable.
Do not work on the system ’s
components or wiring. This
could cause the air bags to
inflate inadvertently, possibly
seriously injuring someone.
Working on the system could
also disable the system so
that the air bags would not
deploy in a collision.
Any work on the SRS system,
such as removing, installing,
repairing, or any work on the
steering wheel must be per-
formed by a qualified Kia tech-
nician. Improper handling of
the air bag system may result
in serious personal injury or
death.
CAUTION
- No modifica-
tion
Do not modify any part of the airbag system. Modification couldmake the air bag system ineffec-tive or could cause unneces-sary deployment.
Page 94 of 322

383
1
2
3
4
5
6
7
8
910
Knowing your vehicle

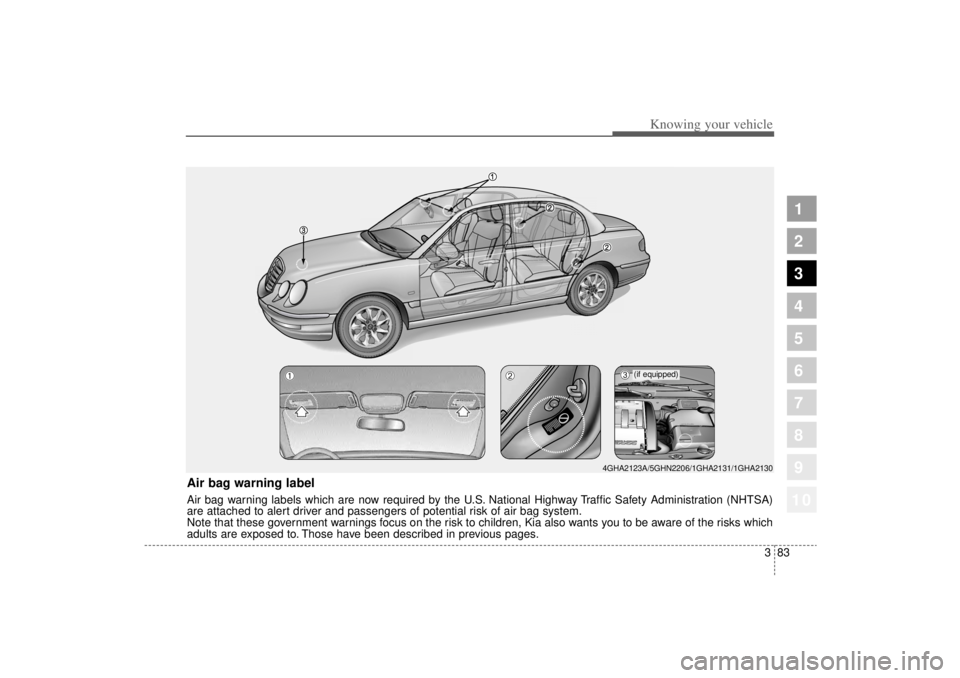

Air bag warning labelAir bag warning labels which are now required by the U.S. National Highway Traffic Safety Administration (NHTSA)
are attached to alert driver and passengers of potential risk of air bag system.
Note that these government warnings focus on the risk to children, Kia also wants you to be aware of the risks which
adults are exposed to. Those have been described in previous pages.
4GHA2123A/5GHN2206/1GHA2131/1GHA2130
➀
➁
➂
(if equipped)
Page 95 of 322

Knowing your vehicle84
3
1
2
3
4
5
6
7
8
910
Outside the vehicle To open the trunk, insert the key
into the lock (
➀) and turn it clock-
wise (
➁). If the trunk is opened
with the key while all the doors are
locked, trunk will be locked if
closed.
To open the trunk, pull up (
➃) the
trunk lid by pressing the button (➂)
of the trunk handle when the trunk
is unlocked. Trunk can be opened
by pressing the button (
➂) of the
handle and pulling up the lid while
any door is unlocked.
To close the trunk, use both hands
to push the trunk lid down. Check
to see if the trunk is completely
shut. If all the doors are locked
then trunk will be locked too.
If the trunk lid control button in the
glove box is in the ON position
(depressed), trunk can be opened
with transmitter.
If the trunk is opened with the
transmitter while all the doors are
locked, trunk will be locked when
closed.
Trunk can not be opened with the
sub key.
✽ ✽
NOTICEDo not try to open trunk with the
sub key. It may damage the key set.
TRUNK
1GHA2017
PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
Page 96 of 322

385
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Trunk room lampTrunk room lamp turns on when the
trunk is opened. It remains on until
the trunk is securely closed.
Inside the vehicleTo open the trunk from inside the
vehicle, make sure the trunk lid con-
trol button in the glove box is ON,
then pull trunk lid release switch (
➀)
on the drivers door panel.
If the trunk lid control button in the
glove box is OFF, the trunk can only
be opened with the vehicle master
key.
WARNING
- Exhaust
fumes
If you drive with the trunk lid
open, you will draw dangerous
exhaust fumes into your vehicle
causing serious injury or death
to vehicle occupants. Open
trunk lids can also dangerously
obscure rear view vision.
If you must drive with the trunk
lid open, keep the air vents open
so that additional outside air
comes into the vehicle.
1GHA2018
CAUTION
Make sure to close the trunk securely. If it remains openwhile engine is not running, itmay cause battery dischargebecause trunk room lampremains on.
1GHA2019
Page 97 of 322

Knowing your vehicle86
3
1
2
3
4
5
6
7
8
910
Emergency trunk safety
releaseYour vehicle is equipped with an
emergency trunk release cable locat-
ed inside the trunk. The lever glows
in the dark when the trunk lid is
closed. If someone is inadvertently
locked in the trunk, pulling this han-
dle will release the trunk latch mech-
anism and open the trunk.
2GHA2020
WARNING
No one should be allowed to
occupy the trunk of the vehicle
at any time. If the trunk is par-
tially or totally latched and the
person is unable to get out,
severe injury or death could
occur due to lack of ventilation,
exhaust fumes and rapid heat
build-up, or because of expo-
sure to cold weather conditions.
The trunk is also a highly dan-
gerous location in the event of a
crash because it is not a pro-
tected occupant space but
merely a part of the vehicle ’s
crush zone.
Pull to open the trunk
CAUTION
If a person is locked in the
trunk, they can pull the emer-gency release to open thetrunk lid.
We recommend that cars be
kept locked and keys be keptout of the reach of children,and that parents teach theirchildren about the dangers ofplaying in trunks.
Page 98 of 322

387
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Trunk lock systemThe trunk lid control button located in
the vehicle glove box is used to pre-
vent unauthorized access to the
trunk.
Trunk lockingTo activate the trunk lock system so
that the trunk can only be opened
with the master key, perform the fol-
lowing:
1. Open the glove box.
2. Set the trunk lid control button toOFF position (not depressed).
3. Close the glove box and lock the glove box with the master key.
When leaving the key with a parking
lot attendant or valet, perform steps
1 to 3 above and leave the sub key
with the attendent. Sub key can start
the engine and operate door locks
only.
Lock releaseTo release the trunk lock feature,
open the glove box with master key
and set the trunk lid control button to
ON position (depressed). In this
position the trunk will open with trunk
lid release switch or transmitter. The
trunk can never be opened with the
sub key.
1GHA2004
Page 99 of 322

Knowing your vehicle88
3
1
2
3
4
5
6
7
8
910
Opening the hood:1. Pull the release lever on the lower
left side of the instrument panel to
unlatch the hood. The hood
should pop open slightly. 2. Go to the front of the vehicle,
slightly raise the hood, pull (
➁) the
secondary latch (
➀) inside of the
hood center and lift the hood.
3. Raise the hood. It will raise com- pletely by itself after it has been
raised about halfway.
Closing the hood1. Before closing the hood, check thefollowing:
All filler caps in engine compart- ment must be correctly installed.
Gloves, rags or any other com- bustible material must be
removed from the engine com-
partment.
2. Lower the hood halfway and push down to securely lock in place.
Make sure the hood is properly
locked before driving.
HOOD
1GHA2023
2GHN3402
WARNING
Before closing the hood, make
sure that all engine parts and
tools have been removed from
the engine area and that no
one’ s hands are near the hood
opening.
Do not leave gloves, rags or
any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.
Page 100 of 322

389
1
2
3
4
5
6
7
8
910
Knowing your vehicle
1. Stop the engine.
2. To open the fuel filler lid, push therelease button located on the dri-
ver ’s lower door. 3. Pull the fuel filler lid out to open.
4. To remove the cap, turn the fuel
tank cap counter-clockwise.
5. Refuel as needed.
6. To install the cap, turn it clockwise until it “clicks”. This indicates that
the cap is securely tightened.
7. Close the fuel filler lid and push it lightly and make sure that it is
securely closed.FUEL FILLER LID
1GHA2021
MMSA3049
WARNING
To avoid injury from sharp
objects, it is recommended that
protective gloves be worn when
opening the fuel filler door man-
ually.
WARNING
- Refueling
If pressurized fuel sprays out, it
can cause serious injuries.
Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a
hissing sound, wait until the
condition stops before com-
pletely removing the cap.
