Knowing your vehicle40
3
1
2
3
4
5
6
7
8
910
The rear safety belts use a special
auto-lock feature designed to allow a
child restraint to be used in these
positions without an added locking
clip. They normally lock only under
extreme or emergency conditions
(emergency lock mode). However
they can be adjusted so that they
remain in fixed and locked when a
child restraint system is placed in
these positions. (Use this auto-lock
mode only to secure a child restraint,
never for passengers restrained by
the safety belts.) Page 3-53 gives
instructions on placing the safety belt
in the auto lock mode.
The drivers safety belt can only oper-
ate in the emergency lock mode. Safety belts provide the best restraint
when:
 The seatback is upright.
 The occupant is sitting upright (not
slouched).
 The lap belt is snug across the hips.
 The shoulder belt is snug across the chest.
 The knees are straight forward.
To help you remember to fasten your
safety belt, a warning light will come
on and a chime will sound. See
Safety Belt Warning Light and Chime
on page 3-42.
WARNING
- After a colli- sion
 Lap/shoulder belt assemblies
may be stretched or damaged
when subjected to the stress
and forces of a collision.
 The entire restraint system
should be inspected following
any collision. All belts, retrac-
tors, anchors and hardware
damaged by a collision should
be replaced before the vehicle
is operated again.

341
1
2
3
4
5
6
7
8
910
Knowing your vehicle

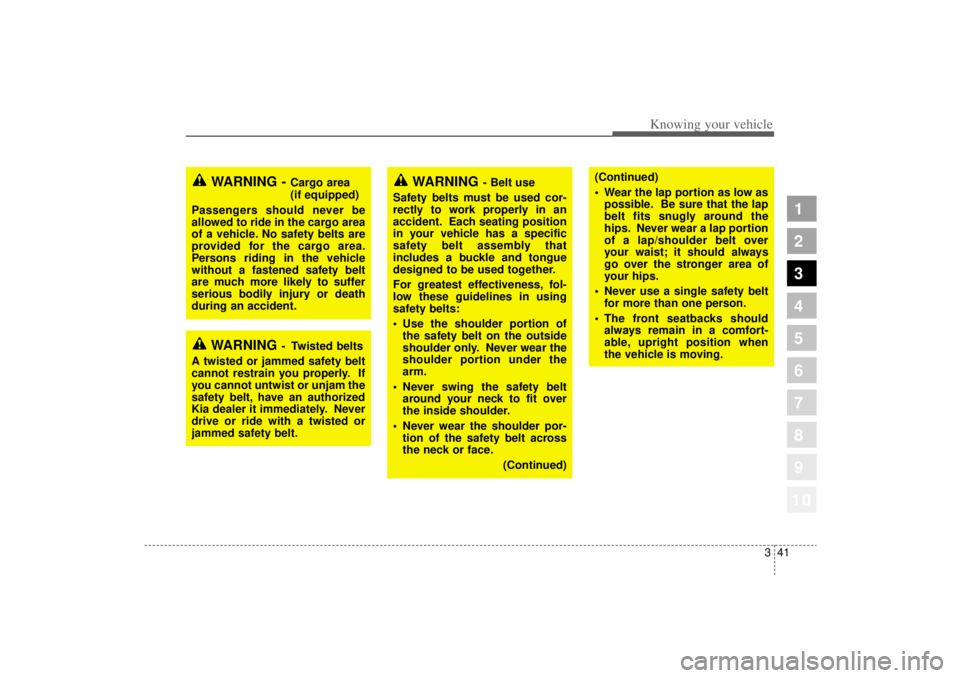

WARNING -
Cargo area
(if equipped)
Passengers should never be
allowed to ride in the cargo area
of a vehicle. No safety belts are
provided for the cargo area.
Persons riding in the vehicle
without a fastened safety belt
are much more likely to suffer
serious bodily injury or death
during an accident.
WARNING
- Twisted belts
A twisted or jammed safety belt
cannot restrain you properly. If
you cannot untwist or unjam the
safety belt, have an authorized
Kia dealer it immediately. Never
drive or ride with a twisted or
jammed safety belt.
WARNING
- Belt use
Safety belts must be used cor-
rectly to work properly in an
accident. Each seating position
in your vehicle has a specific
safety belt assembly that
includes a buckle and tongue
designed to be used together.
For greatest effectiveness, fol-
low these guidelines in using
safety belts:
 Use the shoulder portion of
the safety belt on the outside
shoulder only. Never wear the
shoulder portion under the
arm.
 Never swing the safety belt
around your neck to fit over
the inside shoulder.
 Never wear the shoulder por-
tion of the safety belt across
the neck or face.
(Continued)
(Continued)
Wear the lap portion as low as
possible. Be sure that the lap
belt fits snugly around the
hips. Never wear a lap portion
of a lap/shoulder belt over
your waist; it should always
go over the stronger area of
your hips.
 Never use a single safety belt
for more than one person.
 The front seatbacks should
always remain in a comfort-
able, upright position when
the vehicle is moving.

Knowing your vehicle42
3
1
2
3
4
5
6
7
8
910

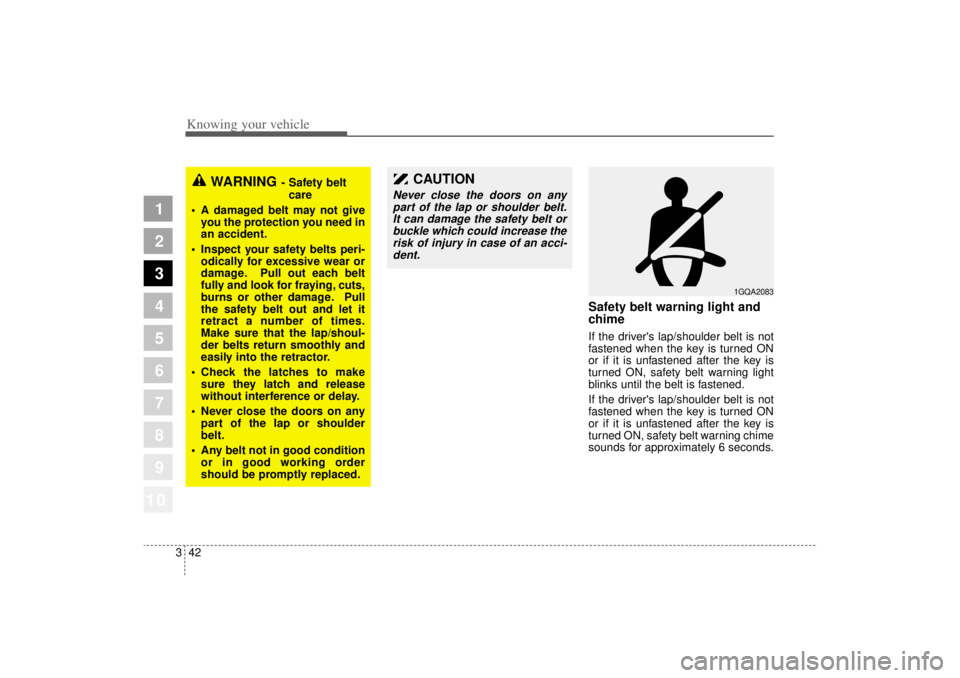

WARNING
- Safety belt
care
 A damaged belt may not give
you the protection you need in
an accident.
 Inspect your safety belts peri-
odically for excessive wear or
damage. Pull out each belt
fully and look for fraying, cuts,
burns or other damage. Pull
the safety belt out and let it
retract a number of times.
Make sure that the lap/shoul-
der belts return smoothly and
easily into the retractor.
 Check the latches to make
sure they latch and release
without interference or delay.
 Never close the doors on any
part of the lap or shoulder
belt.
 Any belt not in good condition
or in good working order
should be promptly replaced.
CAUTION
Never close the doors on any
part of the lap or shoulder belt.It can damage the safety belt orbuckle which could increase therisk of injury in case of an acci-dent.
Safety belt warning light and
chimeIf the driver's lap/shoulder belt is not
fastened when the key is turned ON
or if it is unfastened after the key is
turned ON, safety belt warning light
blinks until the belt is fastened.
If the driver's lap/shoulder belt is not
fastened when the key is turned ON
or if it is unfastened after the key is
turned ON, safety belt warning chime
sounds for approximately 6 seconds.
1GQA2083

343
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Lap/shoulder beltTo fasten the front lap/shoulderbelt:1. Grasp the buckle and tongue plate.
2. Slowly pull the lap/shoulder belt out from the retractor. 3. Insert the tongue plate (
➀) into the
open end of the buckle (➁) until an
audible “click” is heard, indicating
the belt is locked in the buckle. 4. Position the lap portion (
➀) of the
belt across your lap as LOW ON
THE HIPS as possible to reduce
the risk of sliding under it during
an accident. Adjust the belt to a
SNUG FIT by pulling up on the
shoulder portion (
➁) of the safety
belt. The belt retractor is designed
to take up excess webbing auto-
matically and to maintain tension
on the belt. For your safety, do not
put any excess slack into the safe-
ty belt at any location.
1GHA2262
1GHA2263
1GHA2264

Knowing your vehicle44
3
1
2
3
4
5
6
7
8
910
WARNING
 The seatbacks should always
remain in a comfortable,
upright position while the
vehicle is in motion. The safe-
ty belt system will provide the
most protection with the seat-
backs in an upright position.
 Never wear the shoulder por-
tion of the safety belt under
the outside arm or behind the
back.
 Never wear the shoulder por-
tion of the safety belt across
the neck or face.
 Wear the lap portion of the
safety belt as low on the hips
as possible. Be sure the lap
belt fits snugly around the
hips. Never wear the lap belt
over your waist.
(Continued)
5. Adjust the shoulder anchor posi-tion to your size. To raise the
anchor position, push the anchor
up (
➀). To lower the anchor posi-
tion, press the button (
➁) and slide
the anchor down (
➂). After adjust-
ment, make sure the anchor is
locked in position.
To unfasten the front lap/shoulder
belt:Press the release button on the
buckle and allow the belt to slowly
retract.
MMSA3026
MMSA30255GHN3900
Type AType B
➀
➀
➁
➁
➁➂
➂

345
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Rear lap/shoulder belt To fasten the rear lap/shoulderbelt:1. Grasp the buckle and tongue plate.
2. Slowly pull the lap/shoulder belt out.
3. Insert the tongue plate (
➀) into the
open end of the buckle (➁) until an
audible “click’’ is heard, indicating
the belt is locked in the buckle. 4. Position the lap portion (
➀) of the
belt across your lap as LOW ON
THE HIPS as possible to reduce
the risk of sliding under it during
an accident. Adjust the belt to a
SNUG FIT by pulling up on the
shoulder portion (
➁) of the safety
belt. The belt retractor is designed
to take up excess webbing auto-
matically and to maintain tension
on the belt. For your safety do not
put any excess slack into the safe-
ty belt.
(Continued)
 Never drive or ride with a
twisted or jammed safety belt.
If you cannot untwist or unjam
the safety belt, see the nearest
Kia dealer immediately.
 Never use a single belt to
restrain more than one person
at a time.
Failure to follow these warnings
will increase the risk and sever-
ity of injury in an accident.
1GHA2263
1GHA2264

Knowing your vehicle46
3
1
2
3
4
5
6
7
8
910
To unfasten:Press the release button on the
buckle and allow the belt to slowly
retract.
When using the rear center seat belt,
the buckle with the “CENTER” mark
must be used.
WARNING
Never wear the shoulder por-
tion of the safety belt under
the outside arm or behind the
back.
 Never wear the shoulder por-
tion of the safety belt across
the neck or face.
 Wear the lap portion of the
safety belt as low as possible.
Be sure the lap belt fits snug-
ly around the hips. Never wear
the lap belt over your waist.
(Continued)
(Continued)
Never drive or ride with a
twisted or jammed safety belt.
If you cannot untwist or unjam
the safety belt, see the nearest
Kia dealer immediately.
 Never use a single belt to
restrain more than one person
at a time.
Failure to follow these warnings
will increase the risk and sever-
ity of injury in an accident.
2GHA2122A

347
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Proper use and care of the
safety belt system To ensure that the safety belts pro-
vide the maximum protection, please
follow these instructions:
 Use the belts at all times - even onshort trips.
 If the safety belt is twisted, straight- en it prior to use.
 Keep sharp edges and damaging objects away from the belts.
 Periodically inspect belt webbing, anchors, buckles and all other
parts for signs of wear and dam-
age. Replace damaged, excessive-
ly worn or questionable parts
immediately.  To clean the belt webbing, use a
mild soap solution recommended
for cleaning upholstery or carpets.
Follow the instructions provided
with the soap.
Do not bleach or dye the webbing
because this may weaken the web-
bing fibers and allow them to fail
when loaded in a collision.
 Do not make modifications or addi- tions to the safety belt.
 After wearing a safety belt, make sure it fully retracts to the stowed
position. Do not allow the belt to
get caught in the door when you
close it.
Restraint of pregnant women Pregnant women should wear
lap/shoulder belt assemblies when-
ever possible according to specific
recommendations by their doctors.
The lap portion of the belt should be
worn AS SNUGLY AND LOW AS
POSSIBLE.
WARNING
- Pregnant
women
Pregnant women must never
place the lap portion of the safe-
ty belt over the area of the
abdomen where the fetus is
located or above the abdomen
where the belt could crush the
fetus during an impact.

Knowing your vehicle48
3
1
2
3
4
5
6
7
8
910
Restraint of infants and small
children To increase their safety, infants and
young children should always be
restrained by a restraint system
approved for their age and size.
Never allow a child to stand or kneel
on the seat of a moving vehicle.
Never allow a safety belt to be placed
around both a child and an adult or
around two children at the same
time.
It is best for children to be seated in
the rear seats. Many companies manufacture child
restraint systems (often called child
seats) for infants and small children.
An acceptable child restraint system
must always satisfy U.S. Federal
Motor Vehicle Sefety Standards.
Make sure that any child-restraint
system you use in your vehicle is
labelled as complying with those
safety standards.
The child-restraint system should be
chosen to fit both the size of the child
and the size of the vehicle seat. Be
sure to follow any instructions provid-
ed by the child-restraint system man-
ufacturer when installing the child-
restraint system.
WARNING
- Children on
laps
Never hold a child on your lap or
in your arms in a moving vehi-
cle.
Even a very strong person can-
not hold onto a child in the
event of even a minor collision.
WARNING
- Infants and
young children
 Infants and young children are
at much greater risk of serious
injury or death in an accident
or sudden stop if they are unre-
strained or restrained improp-
erly. Follow all instructions in
this section of your Kia manual
and the instructions that came
on and with an improved child
safety restraint system. The
child restraint must be correct-
ly installed in the vehicle, and
the child must be correctly
installed in the child restraint.
 All children under 12 are
safest in the back seat.
 Never install a child or infant
seat in the front passenger
position. The baby will be
injured or killed by the air bag
if it deploys in an accident.

Never allow a child to stand or
kneel on the seat of a moving
vehicle. Insist the child sit down
in an approved restraint system.

349
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Restraint of larger children As children grow, they may need to
use new child-restraint systems,
including larger child seats or boost-
er seats, which are appropriate for
their increased size.
A child who has outgrown available
child-restraint systems should use
the belts provided in the vehicle.
When seated in the rear outboard
seats, the child should be restrained
by the lap/shoulder belt.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the center
of the vehicle. If the shoulder belt still
touches their face or neck they may
need to be returned to a child
restraint system. In addition, after-
market devices are available from
independent manufacturers which
help pull the shoulder belt down and
away from the child’s face or neck.
Larger children should use one of
the seat belts provided.
WARNING
- Shoulder
belts on small children
 Never allow a shoulder belt to
be in contact with a child’ s
neck or face while the vehicle
is in motion.
 If safety belts are not properly
worn and adjusted, there is a
risk of death or serious injury
to such a child.
CAUTION
- Hot metal
parts
Safety belts and seats canbecome hot in a vehicle that hasbeen closed during warm/hotweather; they could burn achild. Check seat covers andbuckles before you place a childanywhere near them.
