KIA AMANTI 2006 Owners Manual

757
Maintenance
1
2
3
4
5
6
7
8
910
INTERIOR CARE Interior general precautions Prevent caustic solutions such as
perfume and cosmetic oil from con-
tacting the dashboard because they
may cause damage or discoloration.
If they do contact the dashboard,
wipe them off immediately. See the
instructions that follow for the proper
way to clean vinyl.Cleaning the upholstery and
interior trim Vinyl Remove dust and loose dirt from
vinyl with a whisk broom or vacuum
cleaner. Clean vinyl surfaces with a
vinyl cleaner.
Fabric Remove dust and loose dirt from fab-
ric with a whisk broom or vacuum
cleaner. Clean with a mild soap solu-
tion recommended for upholstery or
carpets. Remove fresh spots imme-
diately with a fabric spot cleaner. If
fresh spots do not receive immediate
attention, the fabric can be stained
and its color can be affected. Also, its
fire-resistant properties can be
reduced if the material is not proper-
ly maintained.
Cleaning the lap/shoulder belt
webbing Clean the belt webbing with any mild
soap solution recommended for
cleaning upholstery or carpet. Follow
the instructions provided with the
soap. Do not bleach or re-dye the
webbing because this may weaken
it.Cleaning the interior window
glass If the interior glass surfaces of the
vehicle become fogged (that is, cov-
ered with an oily, greasy or waxy
film), they should be cleaned with
glass cleaner. Follow the directions
on the glass cleaner container.✽ ✽NOTICEDo not scrape or scratch the inside
of the rear window. This may result
in damage to the rear window
defroster grid.
CAUTION
Using anything but recommend-
ed cleaners and proceduresmay affect the fabric ’s appear-
ance and fire-resistant proper- ties.

101
2
3
4
5
6
7
8
910
Specifications / 8-2
Specifications

10
Specifications28
1
2
3
4
5
6
7
8
9
DimensionsWeights
Itemin (mm)
Overall length 196.0 (4,979)
Overall width 72.8 (1,850)
Overall height 58.5 (1,486)
Front tread 61.8 (1,570)
Rear tread 61.4 (1,560)
Wheelbase 110.2 (2,800)
SPECIFICATIONSThe specifications given here are for general information only. Please check with an authorized Kia dealer for more
precise and more up-to-date information.
Refer to the label describing GVWR & GAWR weights
attached to your vehicle.
(see page 5-21, Label information)

83
1
2
3
4
5
6
7
8
910
Specifications

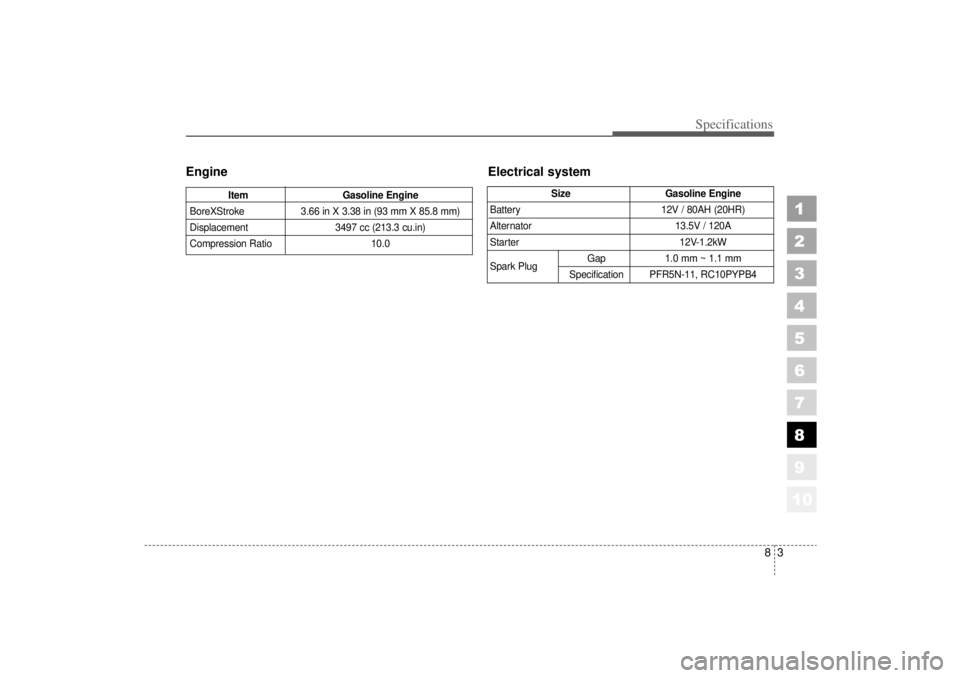

EngineElectrical system
ItemGasoline Engine
BoreXStroke 3.66 in X 3.38 in (93 mm X 85.8 mm)
Displacement 3497 cc (213.3 cu.in)
Compression Ratio 10.0
SizeGasoline Engine
Battery 12V / 80AH (20HR)
Alternator 13.5V / 120A
Starter 12V-1.2kW
Spark Plug Gap
1.0 mm ~ 1.1 mm
Specification PFR5N-11, RC10PYPB4

Specifications48
1
2
3
4
5
6
7
8
910

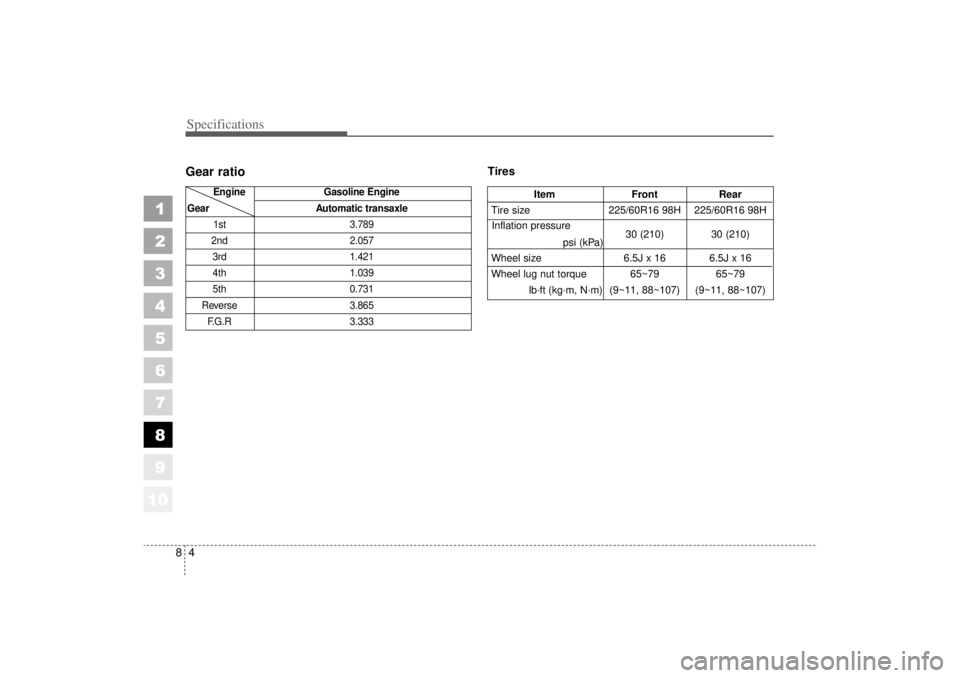

Gear ratio
Tires
ItemFrontRear
Tire size 225/60R16 98H 225/60R16 98H
30 (210) 30 (210)
Wheel size 6.5J x 16 6.5J x 16
Wheel lug nut torque 65~79 65~79
lb·ft (kg·m, N·m) (9~11, 88~107) (9~11, 88~107)
Inflation pressure
psi (kPa)
Engine Gasoline Engine
Gear Automatic transaxle
1st 3.789
2nd 2.057
3rd 1.421
4th 1.039
5th 0.731
Reverse 3.865
F.G.R 3.333

85
1
2
3
4
5
6
7
8
910
Specifications

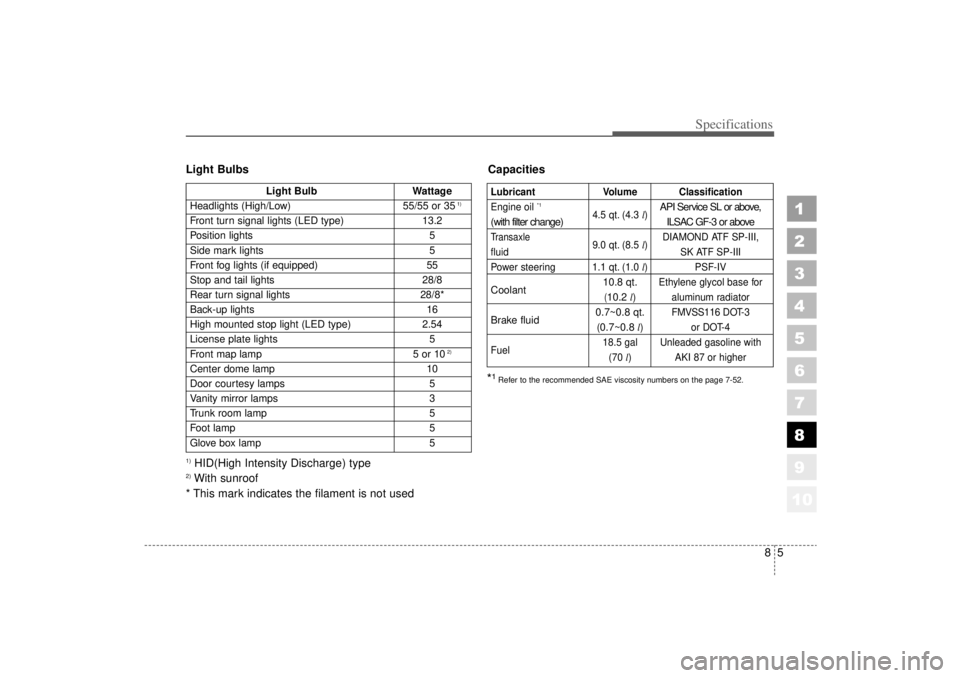

Light Bulbs1)HID(High Intensity Discharge) type2)With sunroof
* This mark indicates the filament is not used Capacities
Light Bulb
Wattage
Headlights (High/Low) 55/55 or 35
1)
Front turn signal lights (LED type) 13.2
Position lights 5
Side mark lights 5
Front fog lights (if equipped) 55
Stop and tail lights 28/8
Rear turn signal lights 28/8*
Back-up lights 16
High mounted stop light (LED type) 2.54
License plate lights 5
Front map lamp 5 or 10
2)
Center dome lamp 10
Door courtesy lamps 5
Vanity mirror lamps 3
Trunk room lamp 5
Foot lamp 5
Glove box lamp 5
LubricantVolume Classification
Engine oil
*1
4.5 qt. (4.3 l)
API Service SL or above,
(with filter change) ILSAC GF-3 or above
Transaxle
9.0 qt. (8.5 l)DIAMOND ATF SP-III,
fluid SK ATF SP-III
Power steering 1.1 qt. (1.0 l) PSF-IV
Coolant 10.8 qt.
Ethylene glycol base for
(10.2
l) aluminum radiator
Brake fluid0.7~0.8 qt.
FMVSS116 DOT-3
(
0.7~0.8
l) or DOT-4
Fuel 18.5 gal Unleaded gasoline with
(70 l) AKI 87 or higher
*¹Refer to the recommended SAE viscosity numbers on the page 7-52.

1
2
3
4
5
6
7
8
9101
2
3
4
5
6
7
8
910

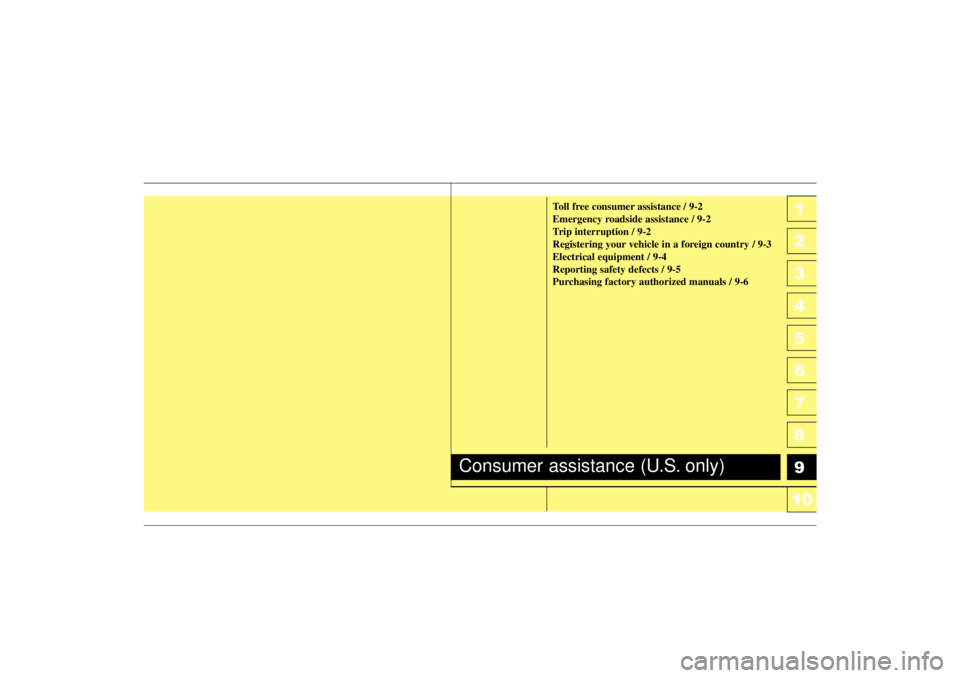

Toll free consumer assistance / 9-2
Emergency roadside assistance / 9-2
Trip interruption / 9-2
Registering your vehicle in a foreign country / 9-3
Electrical equipment / 9-4
Reporting safety defects / 9-5
Purchasing factory authorized manuals / 9-6
Consumer assistance (U.S. only)

Consumer assistance29Roadside Assistance is provided on all new 2006 model
Kia Vehicles from the date the vehicle is delivered to the
first retail buyer or otherwise put into use (in-service
date), whichever is earlier, for a period of 60
months/60000 miles.Toll Free Consumer AssistanceKia's toll-free Consumer Assistance hot line is staffed
from 5:00 AM to 6:00 PM PST, Monday through Friday
and is accessible by dialing 1-800-333-4Kia.
For more information regarding assistance available,
please refer to your Kia Warranty & Consumer
Information Manual.Emergency Roadside AssistanceKia's toll free Roadside Assistance hot line is staffed 24
hours a day, 365 days a year and is accessible by dialing
1-800-333-4Kia.
Kia has set up a network of over 17,000 roadside assis-
tance providers. Should you accidentally run out of fuel,
require a battery jump, or need help changing a tire, a Kia
Roadside Assistance Representative will dispatch (at no
charge to you) someone to deliver a small quantity of
gas, change a flat tire with your inflated spare, or arrange
a battery jump to allow you to proceed to your destina-
tion. Kia also has a network of over 10,000 locksmiths to
help you when you’re locked out of your Kia, also at no
charge.In the event that mechanical difficulty renders your vehi-
cle undriveable, Kia’s Roadside Assistance
Representative will arrange to transport your vehicle to
the nearest Kia dealer or to an alternative service loca-
tion.
Your vehicle must be accessible to our dispatch transport
vehicle, as determined by our driver, to receive this serv-
ice. In the event that Kia does not have a dealer or an
alternative service location available in a particular loca-
tion, Kia will work with a reputable local service facility to
ensure that you receive prompt service. Warranty repairs
are performed at no cost.
Trip InterruptionTrip interruption expense benefits are provided in the
event that a warranty-related disablement occurs more
than 150 miles from your home, and the repairs require
more than 24 hours to complete. Reasonable reimburse-
ment is included for meals, lodging, or rental car expens-
es. Trip interruption coverage is limited to $100 per day
subject to a three day maximum limit per incident, and
you are required to contact the Kia Roadside Assistance
Center to obtain pre-authorization of expenses. Once the
Kia Roadside Assistance Center gives authorization for
trip interruption benefits, they will assist you in making
the necessary arrangements. Insurance deductibles,
expenses, and claims paid by your insurance company or
other providers are not eligible for reimbursement.
1
2
3
4
5
6
7
8
910

93
Consumer assistance
Registering Your Vehicle in a Foreign CountryIf you plan to register your vehicle in a foreign country,
you should confirm that it conforms to the regulations in
that country. Even if you successfully register the vehicle
in a foreign country, you may experience the following
problems and should therefore consider the possibility of
having to deal with them:
1.The fuel specified for your vehicle may be unavailable.If other than the specified fuel is used, it could cause
damage to the engine, the fuel injection system, and
other fuel-related parts which may not be covered
under your New Vehicle Emissions Limited Warranty.
2.We must, therefore, clearly state that when you leave the country in which you purchased your Kia as a new
and register it in another country, problems arising from
the use of fuel other than the specified fuel are not sub-
ject to manufacturer’s warranty. Because vehicles like
yours may not be marketed in the new country of reg-
istration, parts, servicing techniques and tools neces-
sary to maintain and repair your vehicle may be
unavailable.
Even if vehicles like yours are sold there, mechanical
specifications required by the government may vary
enough from the country of purchase to cause addi-
tional problems. 3.There may not be an Authorized Kia Dealer in the area
in which you plan to register your vehicle. You may addi-
tionally experience difficulty in obtaining services in a
foreign country for any number of reasons.
Further, we cannot assume any responsibility for prob-
lems that result from unsatisfactory service or lack of
service outside of the United States.
1
2
3
4
5
6
7
8
910

Consumer assistance49ELECTRICAL EQUIPMENTThe electrical system of your vehicle is designed to per-
form under all reasonably expected operating conditions.
However, before any additional electrical equipment is
installed in your vehicle, consult an Authorized Kia
Dealer, in order to ensure that you do not void your war-
ranty.
Certain electrical equipment, or the way in which it is
installed, may adversely affect the operation of your vehi-
cle, including such systems as the engine control system,
the audio system and the electrical charging system and
thus potentially void all or part of your warranty.
We assume no responsibility for any expense you may
incur or for any malfunction of your vehicle or any of its
components or systems that may result from the installa-
tion of additional electrical equipment that is not supplied,
or recommended for installation by, Kia.
Installation of a Mobile Two-Way Radio SystemIf a mobile two-way radio system is installed improperly,
or if an excessively powerful type of system is used, other
electronic systems may be adversely affected. To avoid
damage to your vehicle, consult an Authorized Kia Dealer
concerning the proper equipment and installation.
