Knowing your vehicle
Lumbar support
The lumbar support can be adjusted by
pressing the lumbar support switch on
the side of the driver’s seat. Press the
front portion of the switch (
➀) to increase
support, or the rear portion of the switch
(
➁), to decrease support.
Move the support position up and down
by pressing the switch (
➂) or (➃).
Driver position memory system (if equipped)
A driver position memory system is pro-
vided to store and recall the seat and
outside mirror positions with a simple
button operation. By saving the desired
positions into the system memory, differ-
ent drivers can reposition the seat and
outside mirror based upon their driving
preference.
See page 3-28 for detail information.
Adjusting the front passenger
seat
Forward/backward position adjust-
ment
Push the control knob forward or back-
ward to move the seat to the desired
position. Release the knob and the seat
will lock in the selected position.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the control knob. If the seat moves,
it is not locked properly.
OGH026014
STOPSTOP
OGH036900N5GHA2248

Knowing your vehicle
223

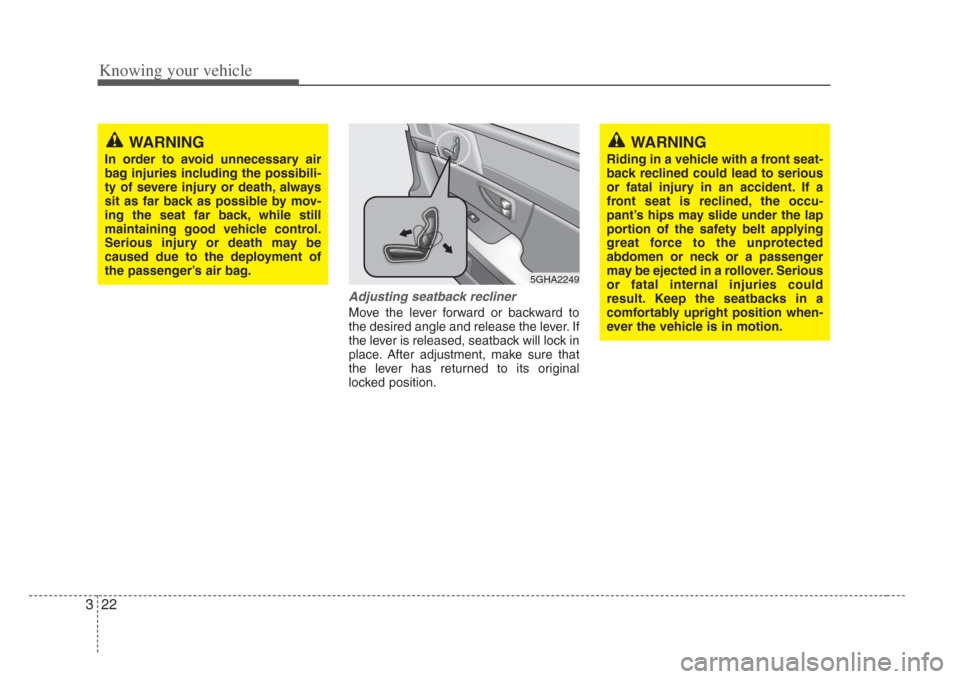

Adjusting seatback recliner
Move the lever forward or backward to
the desired angle and release the lever. If
the lever is released, seatback will lock in
place. After adjustment, make sure that
the lever has returned to its original
locked position.
WARNING
In order to avoid unnecessary air
bag injuries including the po ssibili-
ty of severe injury or death, alway s
sit as far back as possible by mov-
ing the seat far back, while still
maintaining good vehicle control.
Serious injury or death may be
caused due to the deployment of
the passenger’ s air bag.
5GHA2249
WARNING
Riding in a vehicle with a front seat-
back reclined could lead to serious
or fatal injury in an accident. If a
front seat is reclined, the occu-
pant’ s hips may slide under the lap
portion of the safety belt applying
great force to the unprotected
abdomen or neck or a passenger
may be ejected in a rollover. Serious
or fatal internal injuries could
res ult. Keep the s eatbacks in a
comfortably upright po sition when-
ever the vehicle i s in motion.

323
Knowing your vehicle
Warming and ventilating the front
seats (if equipped)
Warming the seats
The front seats can be electrically heated
individually when the ignition switch is
ON. When the switch is ON, a number
ranging from 1 to 5 is displayed on the
switch (5 = warmest setting).
To turn off the seat warmer, set the
switch to 0.
The seat warmer turns off automatically
when the seat temperature reaches the
selected range and will turn on again if
the temperature drops below the select-
ed range.
Ventilating the seats
The front seats are ventilated by the
small vent hole on the surface of the
seats and seatbacks, when the ignition
switch is ON and the control switch is dis-
played in the range of -1 to -3.
Do not spill liquid such as water or bev-
erages on the surface of the front seats
and seatbacks. For the air vent holes
may be blocked and prevent them from
working properly.
Do not place materials such as plastic
bags or newspapers under the seats. The
air vent may not work properly as the air
intake can be blocked.
When the air vent does not operate,
restart the vehicle. If there is no change,
have your vehicle inspected by an
authorized KIA dealer.
As you operate the control switch, you
will be able to notice the temperature
change after 3 to 5 minutes. For the tem-
perature is adjusted by the small air vent.
For more effective use, you may use it
with the air conditioner and heater.
OGH026017
CAUTION
• When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol and gasoline. Doing so may damage
the surface of the heater or seats.
• To prevent overheating the seat
warmer, do not place blanket s,
cushions or seat cover s on the
seats while the seat warmer is in operation.
• Do not place heavy or s harp
objects on seats equipped with seat warmer s. Damage to the
seat warming components could occur.

Knowing your vehicle
243

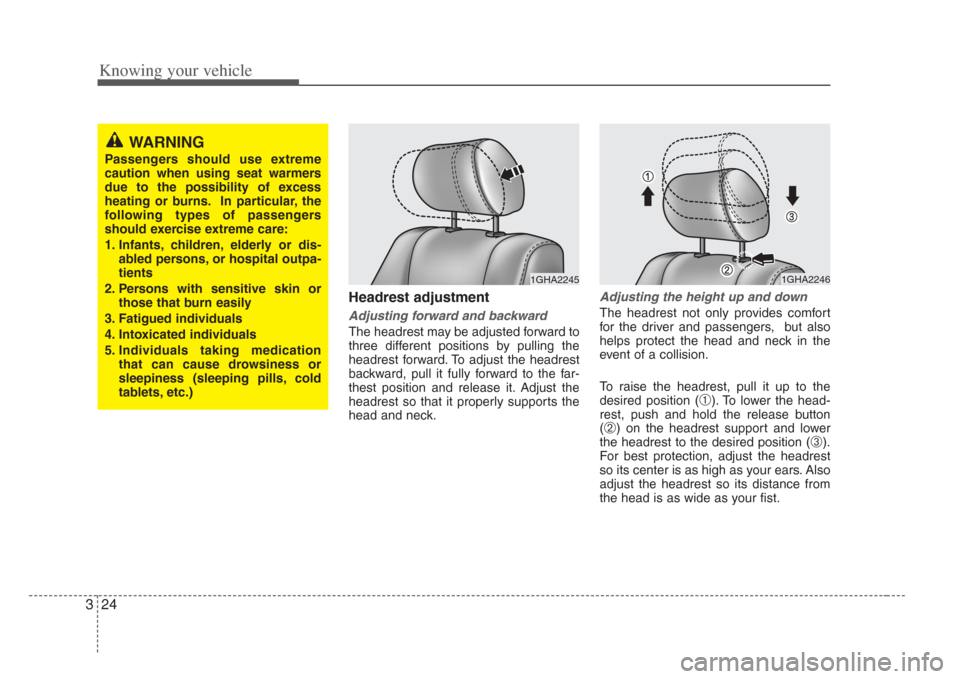

Headrest adjustment
Adjusting forward and backward
The headrest may be adjusted forward to
three different positions by pulling the
headrest forward. To adjust the headrest
backward, pull it fully forward to the far-
thest position and release it. Adjust the
headrest so that it properly supports the
head and neck.
Adjusting the height up and down
The headrest not only provides comfort
for the driver and passengers, but also
helps protect the head and neck in the
event of a collision.
To raise the headrest, pull it up to the
desired position (
➀). To lower the head-
rest, push and hold the release button
(
➁) on the headrest support and lower
the headrest to the desired position (
➂).
For best protection, adjust the headrest
so its center is as high as your ears. Also
adjust the headrest so its distance from
the head is as wide as your fist.
1GHA2245
WARNING
Pa ssenger s should us e extreme
caution when using seat warmers
due to the possibility of excess
heating or burn s. In particular, the
following types of passengers
should exercise extreme care:
1. Infants, children, elderly or di s-
abled per sons, or hospital outpa-
tients
2. Per sons with sensitive skin or
those that burn ea sily
3. Fatigued individual s
4. Intoxicated individual s
5. Individuals taking medication
that can caus e drowsiness or
sleepiness ( sleeping pills, cold
tablets, etc.)
1GHA2246

325
Knowing your vehicle
Removal
To remove the headrest, raise it as far as
it can go then press the release button
(
➀) while pulling upward (➁).
Rear seat
Armrest
The armrest is located in the center of
the rear seat. Pull the armrest down from
the seatback.
You will find a storage cover and cup
holders (if equipped).
Warming the rear passenger seats
(if equipped)
Rear seats can be electrically heated
when the ignition switch is ON.
1. Pull the armrest down using the strap provided on the armrest.
2. When the switch is ON, a number ranging from 1 to 5 is displayed on the
switch (5 = warmest setting).
To turn off the seat warmer, set the
switch to 0.
The seat warmer turns off automatically
when the seat temperature reaches the
selected range and will turn on again if
the temperature drops below the select-
ed range.
WARNING
To reduce the ri sk of head and neck
injuries, do not drive the vehicle
with the headres t removed or
improperly positioned.
Do not adju st the driver’ s headrest
while driving.
1GHA2247OGH026090NOGH036320N
left rear seat
right rear seat

Knowing your vehicle
263

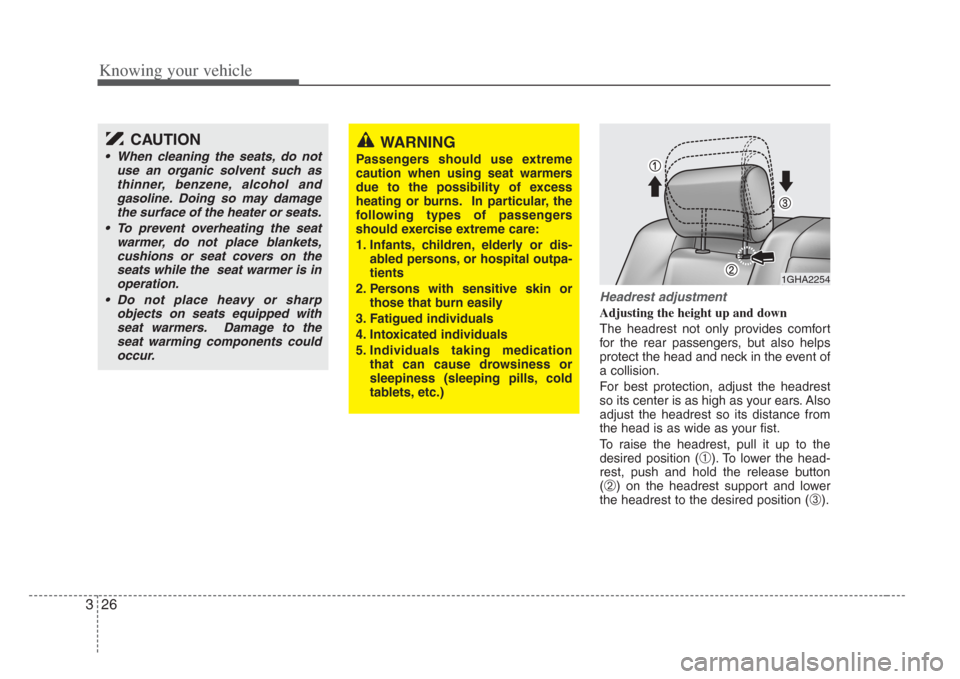

Headrest adjustment
Adjusting the height up and down
The headrest not only provides comfort
for the rear passengers, but also helps
protect the head and neck in the event of
a collision.
For best protection, adjust the headrest
so its center is as high as your ears. Also
adjust the headrest so its distance from
the head is as wide as your fist.
To raise the headrest, pull it up to the
desired position (
➀). To lower the head-
rest, push and hold the release button
(
➁) on the headrest support and lower
the headrest to the desired position (
➂).
WARNING
Pa ssenger s should us e extreme
caution when using seat warmers
due to the possibility of excess
heating or burn s. In particular, the
following types of passengers
should exercise extreme care:
1. Infants, children, elderly or di s-
abled per sons, or hospital outpa-
tients
2. Per sons with sensitive skin or
those that burn ea sily
3. Fatigued individual s
4. Intoxicated individual s
5. Individuals taking medication
that can caus e drowsiness or
sleepiness ( sleeping pills, cold
tablets, etc.)
1GHA2254
CAUTION
• When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol and gasoline. Doing so may damage
the surface of the heater or seats.
• To prevent overheating the seat
warmer, do not place blanket s,
cushions or seat cover s on the
seats while the seat warmer is in operation.
• Do not place heavy or s harp
objects on seats equipped with seat warmer s. Damage to the
seat warming components could occur.

327
Knowing your vehicle

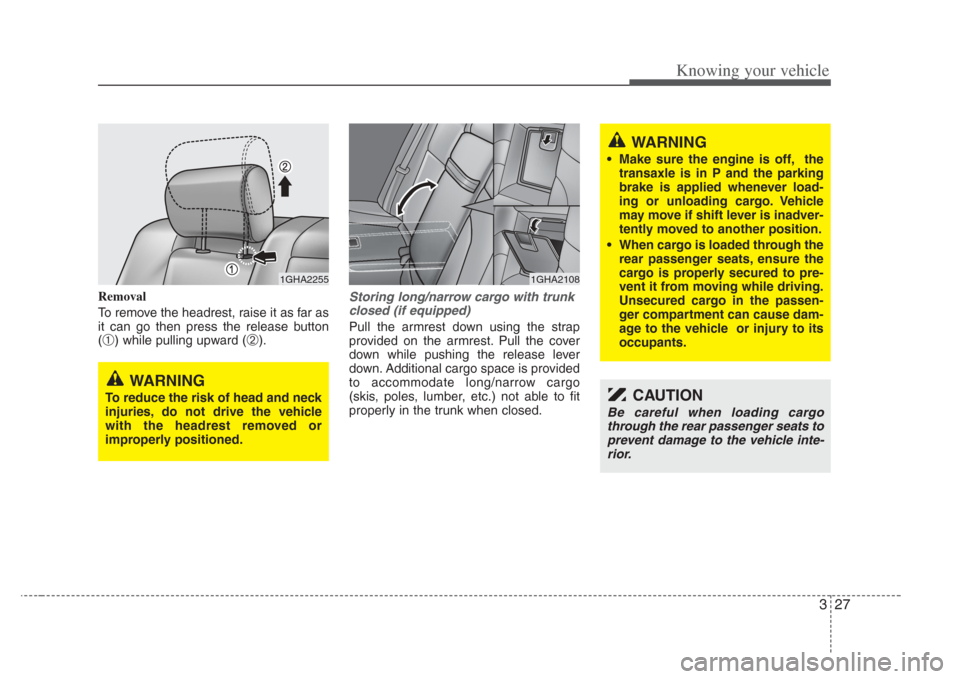

Removal
To remove the headrest, raise it as far as
it can go then press the release button
(
➀) while pulling upward (➁).
Storing long/narrow cargo with trunkclo sed (if equipped)
Pull the armrest down using the strap
provided on the armrest. Pull the cover
down while pushing the release lever
down. Additional cargo space is provided
to accommodate long/narrow cargo
(skis, poles, lumber, etc.) not able to fit
properly in the trunk when closed.
1GHA2255
WARNING
To reduce the ri sk of head and neck
injuries, do not drive the vehicle
with the headres t removed or
improperly positioned.
1GHA2108
CAUTION
Be careful when loading cargo through the rear passenger seats to
prevent damage to the vehicle inte- rior.
WARNING
• Make sure the engine i s off, the
transaxle is in P and the parking
brake is applied whenever load-
ing or unloading cargo. Vehicle
may move if shift lever is inadver-
tently moved to another po sition.
• When cargo is loaded through the rear passenger seats,ensure the
cargo is properly secured to pre-
vent it from moving while driving.
Unsecured cargo in the passen-
ger compartment can cause dam-
age to the vehicle or injury to it s
occupants.

Knowing your vehicle
283

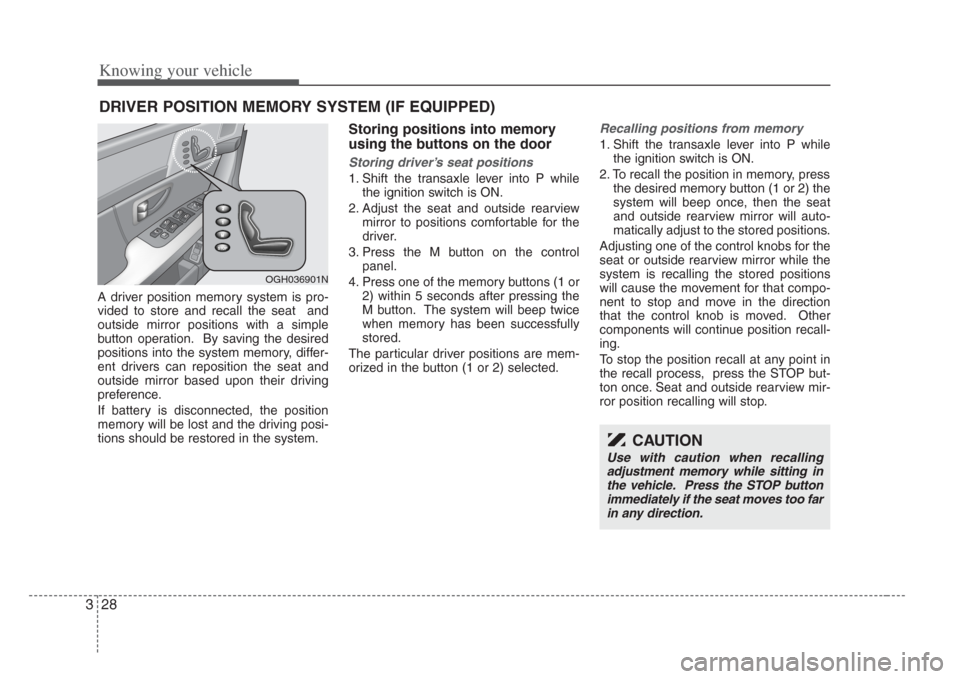

A driver position memory system is pro-
vided to store and recall the seat and
outside mirror positions with a simple
button operation. By saving the desired
positions into the system memory, differ-
ent drivers can reposition the seat and
outside mirror based upon their driving
preference.
If battery is disconnected, the position
memory will be lost and the driving posi-
tions should be restored in the system.
Storing positions into memory
using the buttons on the door
Storing driver’ s seat positions
1. Shift the transaxle lever into P while
the ignition switch is ON.
2. Adjust the seat and outside rearview mirror to positions comfortable for the
driver.
3. Press the M button on the control panel.
4. Press one of the memory buttons (1 or 2) within 5 seconds after pressing the
M button. The system will beep twice
when memory has been successfully
stored.
The particular driver positions are mem-
orized in the button (1 or 2) selected.
Recalling positions from memory
1. Shift the transaxle lever into P while the ignition switch is ON.
2. To recall the position in memory, press the desired memory button (1 or 2) the
system will beep once, then the seat
and outside rearview mirror will auto-
matically adjust to the stored positions.
Adjusting one of the control knobs for the
seat or outside rearview mirror while the
system is recalling the stored positions
will cause the movement for that compo-
nent to stop and move in the direction
that the control knob is moved. Other
components will continue position recall-
ing.
To stop the position recall at any point in
the recall process, press the STOP but-
ton once. Seat and outside rearview mir-
ror position recalling will stop.
DRIVER POSITION MEMORY SYSTEM (IF EQUIPPED)
STOP
OGH036901N
CAUTION
U se with caution when recalling
adjus tment memory while s itting in
the vehicle. Press the STOP button immediately if the s eat moves too far
in any direction.

329
Knowing your vehicle
Storing and recalling with trans-
mitter
Storing with the transmitter
Turn the ignition switch to LOCK from ON
and lock all the doors using the transmit-
ter. The seat and outside rearview mirror
positions will be stored in the system
memory.
Driver’s position recalling with trans-
mitter
Unlock the door with the transmitter,
positions stored in the system memory
will be recalled automatically.
If using two transmitters, recalling times
may vary because stored positions in
each transmitter may be different.
Example) If doors are locked with trans-
mitter A and unlocked with transmitter B,
the positions memorized when unlocked
with transmitter B will be recalled and
may take slightly longer than if unlocked
with transmitter A.

Knowing your vehicle
303
Pre-tensioner seat belt
Your vehicle is equipped with driver’s and
front passenger’s pre-tensioner seat
belts. The purpose of the pre-tensioner is
to make sure that the seat belts fit tightly
against the occupant’s body in certain
frontal collisions. The pre-tensioner seat
belts can be activated alone or, together
with the air bags, where the frontal colli-
sion is severe enough.
✽
NOTICE
The pre-tensioner seat belt is installed at
the front seats, and the sensor is
equipped inside the buckle, where pres-
ence of passenger is sensed by the fas-
tening of the seat belts. Therefore, pre-
tensioner will not activate if the passen-
ger is not fastened with the seat belts.
Likewise, it will activate if buckled even
without a passenger in the seat. Pre-ten-
sioner seat belt is designed to activate
when the seatbelt is in use. To ensure
the pretensioner seatbelts activate in
event of a possible seatbelt buckle
switch malfunction, the system is
designed to activate regardless of
whether a seat belt is in use or if no seat
belt use is detected within 6 seconds of
turning the ignition switch ON.
The seat belt pre-tensioner system con-
sists mainly of the following components.
Their locations are shown in the illustra-
tion.
➀ SRS air bag warning light
➁ Seatbelt pre-tensioner assembly
➂ SRS air bag control module
SAFETY BELTS
2GHB3002
WARNING
To obtain maximum benefit from a
pre-tensioner seat belt:
• The seat belt must be worn cor-
rectly.
• The seat belt must be adjusted to
the correct po sition.
1KMB3311A
➀
➁
➂
