KIA BORREGO 2015 Owners Manual

751
Maintenance
Description Fuse ratingProtected component
FRT CIGAR 15A Cigarette Lighter
START 7.5A Burglar Alarm Relay, Start Relay
AIR BAG IND. 7.5A Instrument Cluster(Air Bag IND.)
ABS 7.5A ABS Control Module, ESP Control Module, DBC Relay, Steering Angle Sensor, Crash Pad Switch LH
IGN 1 7.5A PDM, Rheostat, Instrument Cluster(MICOM), Smart Key Control Module, Multifunction Switch(Cruise Remocon), Smart Key Control Module, Generator,
Air Suspension Control Module, Rear Parking Assist Control Module, Rear Parking Assist Buzzer
ENG 7.5A Multipurpose Check Connector, ECM, TCM, Front Wiper Motor, 4WD ECM, Stop Lamp Switch
AIR BAG 15A SRS Control Module
DDM 30A Driver Door Module, Driver Safety Power Window Motor
ADM 30A Assistant Door Module, Passenger Safety Power Window Motor

Maintenance
52
7
Inner fuse panel (Luggage compartment)
FUSE Fuse rating Circuit Protected
RR DEFOG 25A RR Defog Relay, Rear Defogger (+)
T/G POWER LATCH 30A Tail Gate Control Module
RR WIPER 15A Rear Wiper Motor Relay (+), Rear Wiper Motor
DOOR LOCK 15A Rear Door Lock Actuator LH/RH, Rear Door Lock/Unlock Relay
CTR P/OUT 15A Console Power Outlet
RR P/OUT 15A Rear Power Outlet
FUEL DR 15A Fuel Door Relay, Fuel Filler Door Actuator
RR P/WIN-LH 20A Rear Power Window Relay LH(UP/DH), Rear Power Window Motor LH
RR P/WIN-RH 20A Rear Power Window Relay RH(UP/DH), Rear Power Window Motor RH
LUGGAGE 7.5A Luggage Lamp
AMP 30A AMP

753
Maintenance

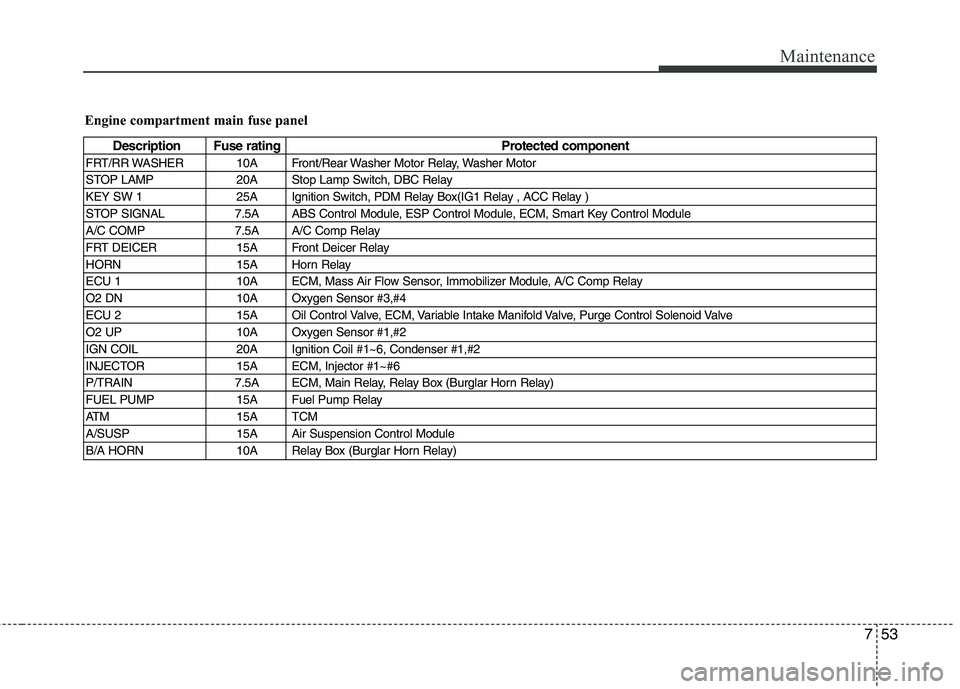

Engine compartment main fuse panel
Description Fuse ratingProtected component
FRT/RR WASHER 10A Front/Rear Washer Motor Relay, Washer Motor
STOP LAMP 20A Stop Lamp Switch, DBC Relay
KEY SW 1 25A Ignition Switch, PDM Relay Box(IG1 Relay , ACC Relay )
STOP SIGNAL 7.5A ABS Control Module, ESP Control Module, ECM, Smart Key Control Module
A/C COMP 7.5A A/C Comp Relay
FRT DEICER 15A Front Deicer Relay
HORN 15A Horn Relay
ECU 1 10A ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay
O2 DN 10A Oxygen Sensor #3,#4
ECU 2 15A Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve
O2 UP 10A Oxygen Sensor #1,#2
IGN COIL 20A Ignition Coil #1~6, Condenser #1,#2
INJECTOR 15A ECM, Injector #1~#6
P/TRAIN 7.5A ECM, Main Relay, Relay Box (Burglar Horn Relay)
FUEL PUMP 15A Fuel Pump Relay
ATM 15A TCM
A/SUSP 15A Air Suspension Control Module
B/A HORN 10A Relay Box (Burglar Horn Relay)

Maintenance
54
7
Description Fuse rating Protected component
ABS 2 40A ABS Control Module, ESP Control Module
ABS 1 40A ABS Control Module, ESP Control Module
PDM 20A PDM
FRT WIPER 30A Front Wiper ON Relay, Front Wiper HI/LO Relay
KEY SW 2 30A Start Relay #1, Ignition Switch, PDM Relay Box(IG2 Relay)
RAM 1 50A RAM(CTR P/OUT FUSE 15A, RR P/OUT FUSE 15A, FUEL DR FUSE 15A, RR P/WIN-LH FUSE 20A, RR P/WIN-RH FUSE 20A, LUGGAGE FUSE 7.5A)
RAM 2 50A RAM(RR DEFOG FUSE 25A, T/G POWER LATCH FUSIBLE LINK 30A, DOOR LOCK FUSE 15A, RR WIPER FUSE 15A)
RAM 3 50A RAM(AMP FUSIBLE LIMK 30A)
IPM 1 50A IPM(ILLUMI FUSE 7.5A, DDM FUSIBLE LINK 30A, FRT S/WARMER FUSE 20A, OBD-II FUSE 7.5A, SUNROOF FUSE 25A, KEY LOCK FUSE 7.5A)
IPM 2 50A IPM(ADM FUSIBLE LINK 30A, F/PWR OUTLET FUSE 15A, PEDAL FUSE 15A, S/TILT & TELE FUSE 20A)
IPM 3 50A IPM(MEMORY FUSE 7.5A, DRIVER P/SEAT FUSE 30A, PASS P/SEAT FUSE 20A, RR S/WARMER FUSE 20A, ROOM FUSE 7.5A, AUDIO FUSE 15A)
4WD 30A 4WD ECM
Engine compartment sub fuse panel
FUSIBLE LINK Fuse rating Circuit Protected
C/FAN LOW 30A C/Fan Low Relay
E/BRAKE 30A (Not Used)
FRONT BLOWER 40A Front Blower Relay
REAR BLOWER 30A Rear Blower Relay
C/FAN HI 60A C/Fan Hi Relay
AIR SUSPENSION 40A Air Suspension Relay

755
Maintenance
LIGHT BULBS
G220000AHM
Use only the bulbs of the specified wattage.
✽✽ NOTICE
After driving in heavy rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized Kia dealer.
G220100AHM-EE
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Front turn signal light
(4) Position light
(5) Front fog light (if equipped)
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattage
rating. Otherwise, it may cause damage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized Kia dealer. Inmany cases, it is difficult to replacevehicle light bulbs because other parts of the vehicle must be
removed before you can get to thebulb. This is especially true if youhave to remove the headlight
assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.OHM078030

Maintenance
56
7
G220101BUN
Headlight bulb1. Open the hood.
2. Remove the headlight bulb cover by
turning it counterclockwise.
3. Disconnect the headlight bulb socket- connector.
4. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward.
5. Remove the bulb from the headlight assembly.
6. Install a new headlight bulb and snap the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlight bulb socket- connector.
8. Install the headlight bulb cover by turn- ing it clockwise.
(Continued)
If a bulb becomes damaged orcracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
OHD076046OEN076051
WARNING - Halogen bulbs
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touchthe glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated onlywhen installed in a headlight.
(Continued)

757
Maintenance
✽✽NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized Kia
dealer.
G220102BHM
Headlight (HID type), position, turn signal, and front fog light bulbreplacement
If the light bulb does not operate, have
the vehicle checked by an authorized Kia
dealer.
✽✽ NOTICE
HID lamps have superior performance
vs. halogen bulbs. HID lamps are esti-
mated by the manufacturer to last twice
as long or longer than halogen bulbs
depending on their frequency of use.
They will probably require replacement
at some point in the life of the vehicle.
Cycling the headlamps on and off more
than typical use will shorten HID lamps
life. HID lamps do not fail in the same
manner as halogen incandescent lamps.
If a headlamp goes out after a period of
operation but will immediately relight
when the headlamp switch is cycled it is
likely the HID lamp needs to be
replaced. HID lighting components are
more complex than conventional halo-
gen bulbs thus have higher replacement
cost.
G220200AHM
Side repeater light bulb replace- ment
If the light bulb does not operate, have
the vehicle checked by an authorized Kia
dealer.
OHM078032
WARNING - HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized Kia Dealer

Maintenance
58
7
G220300AHM-EE
Rear combination light bulb replacement (1) Stop and tail light
(2) Tail light
(3) Back-up light
(4) Rear turn signal lightOutside light
Type A
1. Open the tailgate.
2. Loosen the light assembly retaining
screws with a philips head screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
OHM078033
OHM078065
■Type A
■ Type BOHM078044N
OHM078045N
OHM078046N
OHM078047N

759
Maintenance
6. Insert a new bulb by inserting it intothe socket and rotating it until it locks
into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Reinstall the light assembly to the body of the vehicle.
Type B
If the light bulb does not operate, have
the vehicle checked by an authorized Kia
dealer.
Inside light
1. Open the tailgate.
2. Remove the service cover using a flat- blade screwdriver.
3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket. 5. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
7. Install the service cover by putting it into the service hole.
OHM078048OHM078049

Maintenance
60
7
G220400AHM High mounted stop light and rear
fog light bulb replacement
If the light does not operate, have the
vehicle checked by an authorized Kia
dealer. G220500AEN
License plate light bulb replace- ment
1. Loosen the lens retaining screws with
a philips head screwdriver.
2. Remove the lens.
3. Remove the bulb by pulling it straight out.
4. Install a new bulb.
5. Reinstall the lens securely with the lens retaining screws. G220900AHM
Door courtesy lamp bulb replace- ment
If the light does not operate, have the
vehicle checked by an authorized Kia
dealer.
OHM078050OHM078058
OHM078041
OHM078066L
■
Higt mounted stop light
■
■ Rear fog light
