Safety features of your vehicle
44
3

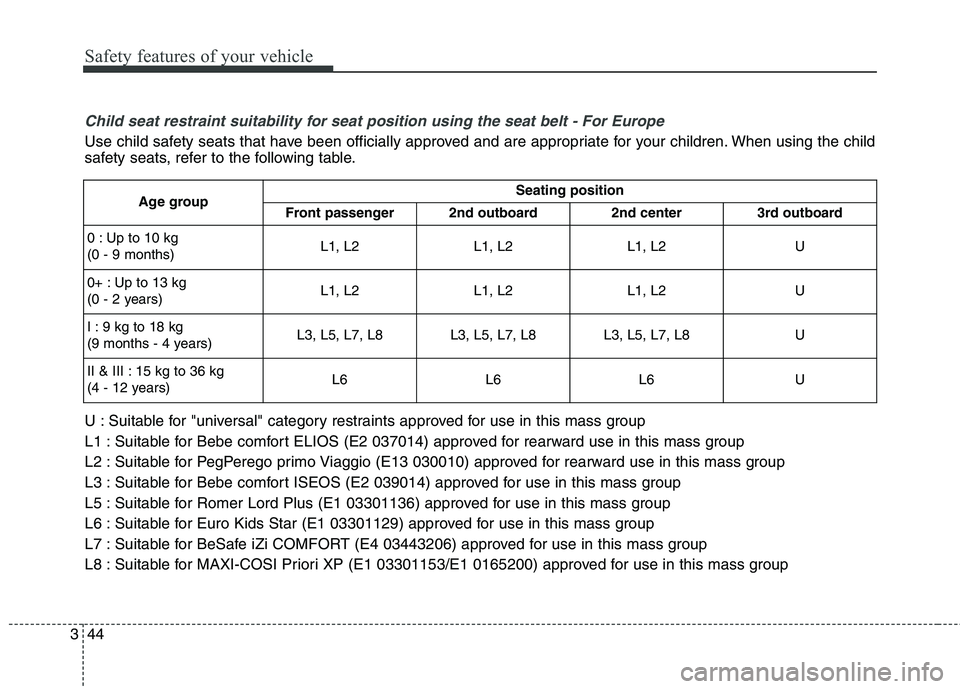

Child seat restraint suitability for seat position using the seat belt - For Europe
Use child safety seats that have been officially approved and are appropriate for your children. When using the child
safety seats, refer to the following table.
U : Suitable for "universal" category restraints approved for use in this mass group
L1 : Suitable for Bebe comfort ELIOS (E2 037014) approved for rearward use in this mass group
L2 : Suitable for PegPerego primo Viaggio (E13 030010) approved for rearward use in this mass group
L3 : Suitable for Bebe comfort ISEOS (E2 039014) approved for use in this mass group
L5 : Suitable for Romer Lord Plus (E1 03301136) approved for use in this mass group
L6 : Suitable for Euro Kids Star (E1 03301129) approved for use in this mass group
L7 : Suitable for BeSafe iZi COMFORT (E4 03443206) approved for use in this mass group
L8 : Suitable for MAXI-COSI Priori XP (E1 03301153/E1 0165200) approved for use in this mass group
Age groupSeating position
Front passenger2nd outboard2nd center3rd outboard
0 : Up to 10 kg (0 - 9 months)L1, L2L1, L2L1, L2U
0+ : Up to 13 kg
(0 - 2 years)L1, L2L1, L2L1, L2U
I : 9 kg to 18 kg
(9 months - 4 years)L3, L5, L7, L8L3, L5, L7, L8L3, L5, L7, L8U
II & III : 15 kg to 36 kg
(4 - 12 years)L6L6L6U

345
Safety features of your vehicle

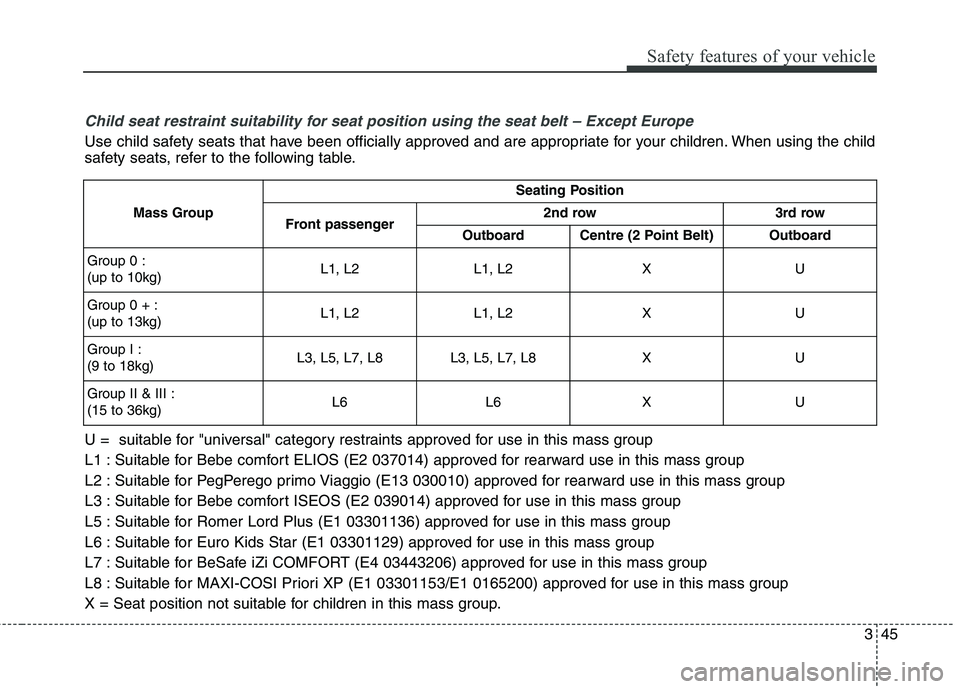

Child seat restraint suitability for seat position using the seat belt – Except Europe
Use child safety seats that have been officially approved and are appropriate for your children. When using the child
safety seats, refer to the following table.
U = suitable for "universal" category restraints approved for use in this mass group
L1 : Suitable for Bebe comfort ELIOS (E2 037014) approved for rearward use in this mass group
L2 : Suitable for PegPerego primo Viaggio (E13 030010) approved for rearward use in this mass group
L3 : Suitable for Bebe comfort ISEOS (E2 039014) approved for use in this mass group
L5 : Suitable for Romer Lord Plus (E1 03301136) approved for use in this mass group
L6 : Suitable for Euro Kids Star (E1 03301129) approved for use in this mass group
L7 : Suitable for BeSafe iZi COMFORT (E4 03443206) approved for use in this mass group
L8 : Suitable for MAXI-COSI Priori XP (E1 03301153/E1 0165200) approved for use in this mass group
X = Seat position not suitable for children in this mass group.
Mass Group
Seating Position
Front passenger2nd row3rd row
OutboardCentre (2 Point Belt)Outboard
Group 0 : (up to 10kg)L1, L2L1, L2XU
Group 0 + : (up to 13kg)L1, L2L1, L2XU
Group I : (9 to 18kg)L3, L5, L7, L8L3, L5, L7, L8XU
Group II & III : (15 to 36kg)L6L6XU

Safety features of your vehicle
46
3

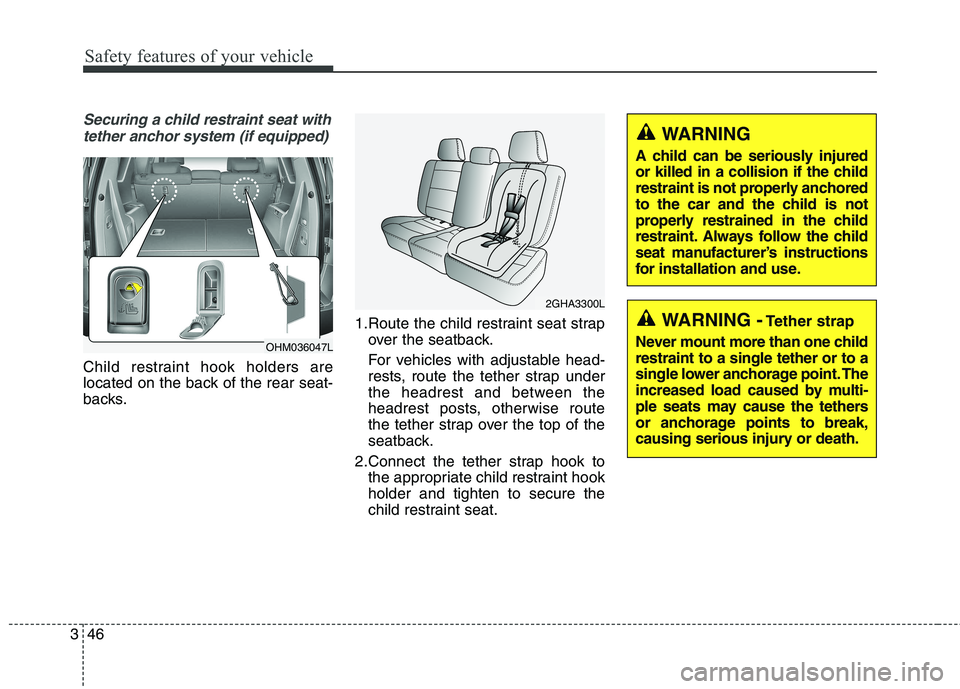

Securing a child restraint seat with
tether anchor system (if equipped)
Child restraint hook holders are
located on the back of the rear seat-
backs. 1.Route the child restraint seat strap
over the seatback.
For vehicles with adjustable head-
rests, route the tether strap under
the headrest and between the
headrest posts, otherwise route
the tether strap over the top of the
seatback.
2.Connect the tether strap hook to the appropriate child restraint hookholder and tighten to secure the
child restraint seat.
OHM036047L
2GHA3300L
WARNING
A child can be seriously injured
or killed in a collision if the child
restraint is not properly anchored
to the car and the child is not
properly restrained in the child
restraint. Always follow the child
seat manufacturer’s instructions
for installation and use.
WARNING - Tether strap
Never mount more than one child restraint to a single tether or to a
single lower anchorage point. The
increased load caused by multi-
ple seats may cause the tethers
or anchorage points to break,
causing serious injury or death.

347
Safety features of your vehicle

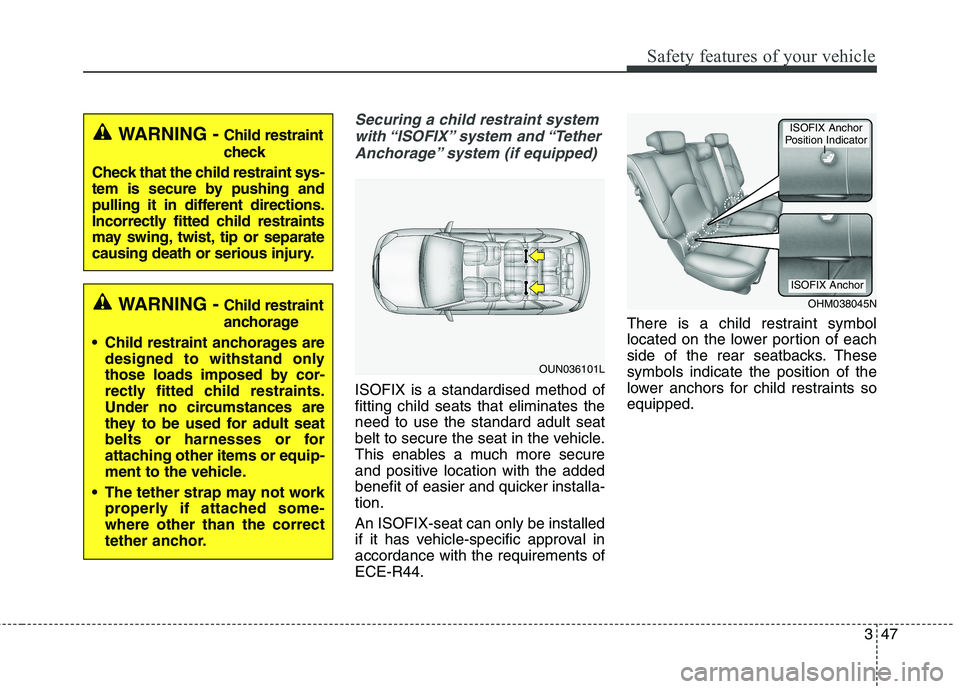

Securing a child restraint systemwith “ISOFIX” system and “Tether Anchorage” system (if equipped)
ISOFIX is a standardised method of fitting child seats that eliminates theneed to use the standard adult seat
belt to secure the seat in the vehicle.
This enables a much more secure
and positive location with the added
benefit of easier and quicker installa-tion. An ISOFIX-seat can only be installed
if it has vehicle-specific approval inaccordance with the requirements ofECE-R44. There is a child restraint symbol
located on the lower portion of each
side of the rear seatbacks. Thesesymbols indicate the position of the
lower anchors for child restraints soequipped.
WARNING -
Child restraint
check
Check that the child restraint sys-
tem is secure by pushing and
pulling it in different directions.
Incorrectly fitted child restraints
may swing, twist, tip or separate
causing death or serious injury.
WARNING - Child restraint
anchorage
Child restraint anchorages are designed to withstand only
those loads imposed by cor-
rectly fitted child restraints.
Under no circumstances are
they to be used for adult seat
belts or harnesses or for
attaching other items or equip-
ment to the vehicle.
The tether strap may not work properly if attached some-where other than the correct
tether anchor.
OUN036101L
OHM038045N
ISOFIX Anchor
Position Indicator
ISOFIX Anchor

Safety features of your vehicle
48
3

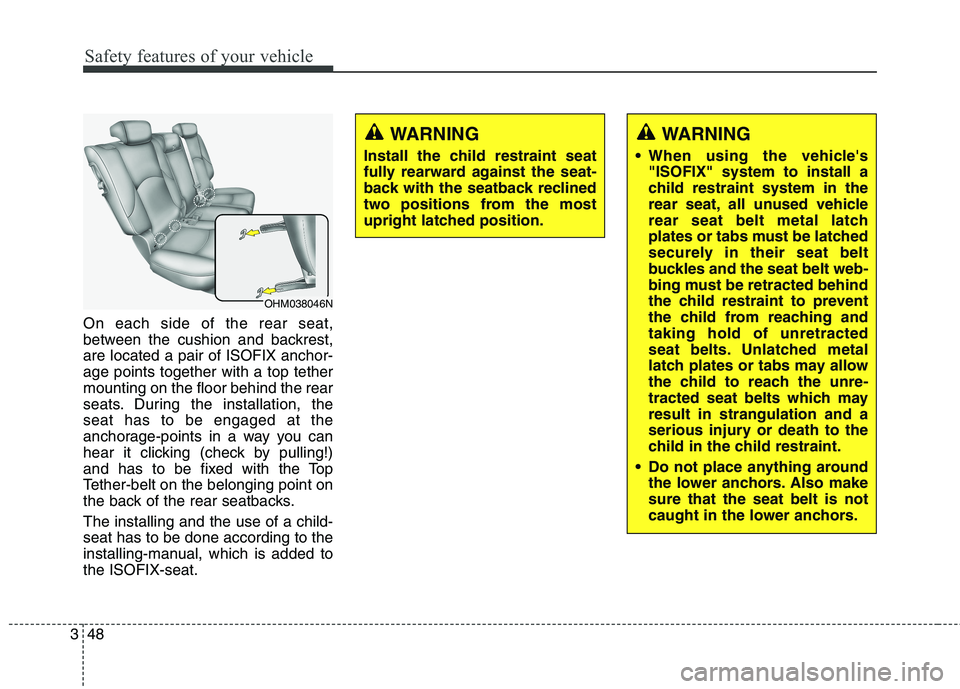

On each side of the rear seat,
between the cushion and backrest,are located a pair of ISOFIX anchor-age points together with a top tethermounting on the floor behind the rear
seats. During the installation, theseat has to be engaged at the
anchorage-points in a way you can
hear it clicking (check by pulling!)
and has to be fixed with the Top
Tether-belt on the belonging point on
the back of the rear seatbacks. The installing and the use of a child- seat has to be done according to the
installing-manual, which is added tothe ISOFIX-seat.
WARNING
Install the child restraint seat
fully rearward against the seat-
back with the seatback reclined
two positions from the most
upright latched position.WARNING
When using the vehicle's "ISOFIX" system to install a
child restraint system in the
rear seat, all unused vehicle
rear seat belt metal latch
plates or tabs must be latched
securely in their seat belt
buckles and the seat belt web-
bing must be retracted behind
the child restraint to prevent
the child from reaching andtaking hold of unretracted
seat belts. Unlatched metal
latch plates or tabs may allow
the child to reach the unre-
tracted seat belts which mayresult in strangulation and a
serious injury or death to the
child in the child restraint.
Do not place anything around the lower anchors. Also makesure that the seat belt is not
caught in the lower anchors.
OHM038046N

349
Safety features of your vehicle

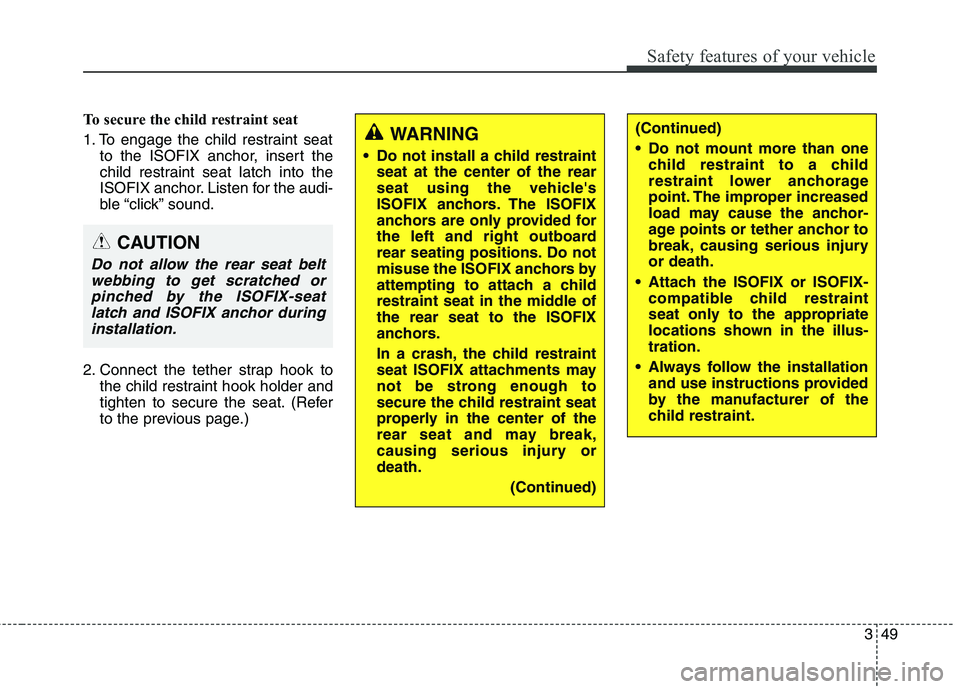

To secure the child restraint seat
1. To engage the child restraint seatto the ISOFIX anchor, insert the
child restraint seat latch into the
ISOFIX anchor. Listen for the audi-
ble “click” sound.
2. Connect the tether strap hook to the child restraint hook holder and
tighten to secure the seat. (Refer
to the previous page.)
CAUTION
Do not allow the rear seat belt
webbing to get scratched orpinched by the ISOFIX-seat latch and ISOFIX anchor duringinstallation.
WARNING
Do not install a child restraint seat at the center of the rear
seat using the vehicle's
ISOFIX anchors. The ISOFIX
anchors are only provided for
the left and right outboard
rear seating positions. Do not
misuse the ISOFIX anchors by
attempting to attach a child
restraint seat in the middle ofthe rear seat to the ISOFIX
anchors.
In a crash, the child restraint
seat ISOFIX attachments may
not be strong enough to
secure the child restraint seat
properly in the center of the
rear seat and may break,
causing serious injury ordeath.
(Continued)(Continued)
Do not mount more than onechild restraint to a child
restraint lower anchorage
point. The improper increased
load may cause the anchor-
age points or tether anchor to
break, causing serious injuryor death.
Attach the ISOFIX or ISOFIX- compatible child restraint
seat only to the appropriate
locations shown in the illus-tration.
Always follow the installation and use instructions provided
by the manufacturer of the
child restraint.

Safety features of your vehicle
50
3

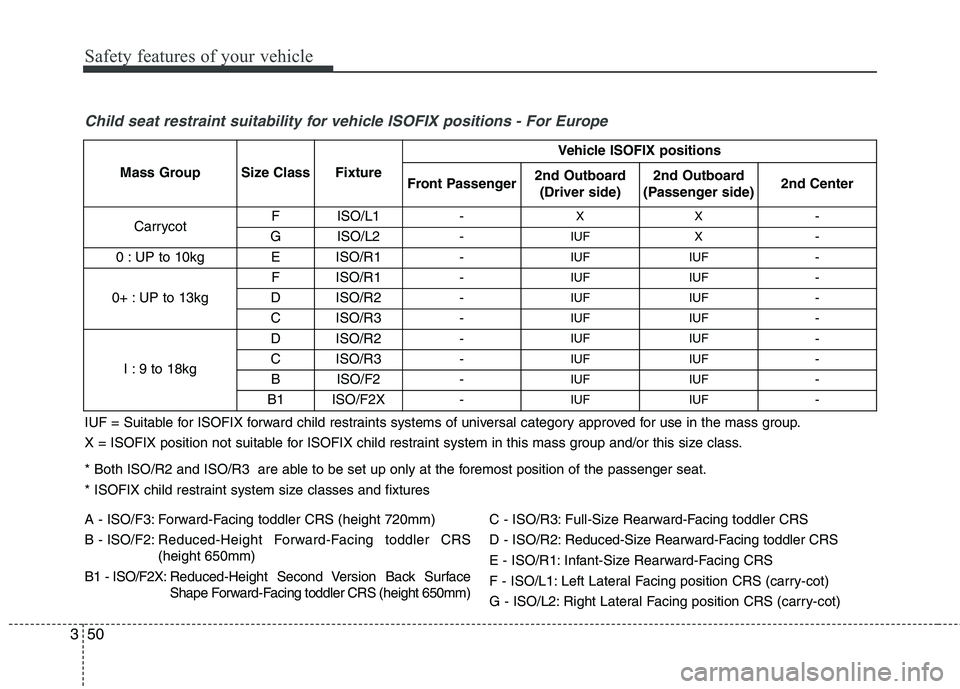

Child seat restraint suitability for vehicle ISOFIX positions - For Europe
IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
X = ISOFIX position not suitable for ISOFIX child restraint system in this mass group and/or this size class.
* Both ISO/R2 and ISO/R3 are able to be set up only at the foremost position of the passenger seat.
* ISOFIX child restraint system size classes and fixtures
A - ISO/F3: Forward-Facing toddler CRS (height 720mm)
B - ISO/F2: Reduced-Height Forward-Facing toddler CRS
(height 650mm)
B1 - ISO/F2X: Reduced-Height Second Version Back Surface
Shape Forward-Facing toddler CRS (height 650mm) C - ISO/R3: Full-Size Rearward-Facing toddler CRS
D - ISO/R2: Reduced-Size Rearward-Facing toddler CRS
E - ISO/R1: Infant-Size Rearward-Facing CRS
F - ISO/L1: Left Lateral Facing position CRS (carry-cot)
G - ISO/L2: Right Lateral Facing position CRS (carry-cot)
Mass GroupSize ClassFixture
Vehicle ISOFIX positions
Front Passenger2nd Outboard
(Driver side)2nd Outboard
(Passenger side)2nd Center
CarrycotFISO/L1-XX-
GISO/L2-IUFX-
0 : UP to 10kgEISO/R1-IUFIUF-
0+ : UP to 13kg
FISO/R1-IUFIUF-
DISO/R2-IUFIUF-
CISO/R3-IUFIUF-
I : 9 to 18kg
DISO/R2-IUFIUF-
CISO/R3-IUFIUF-
BISO/F2-IUFIUF-
B1ISO/F2X-IUFIUF-

351
Safety features of your vehicle

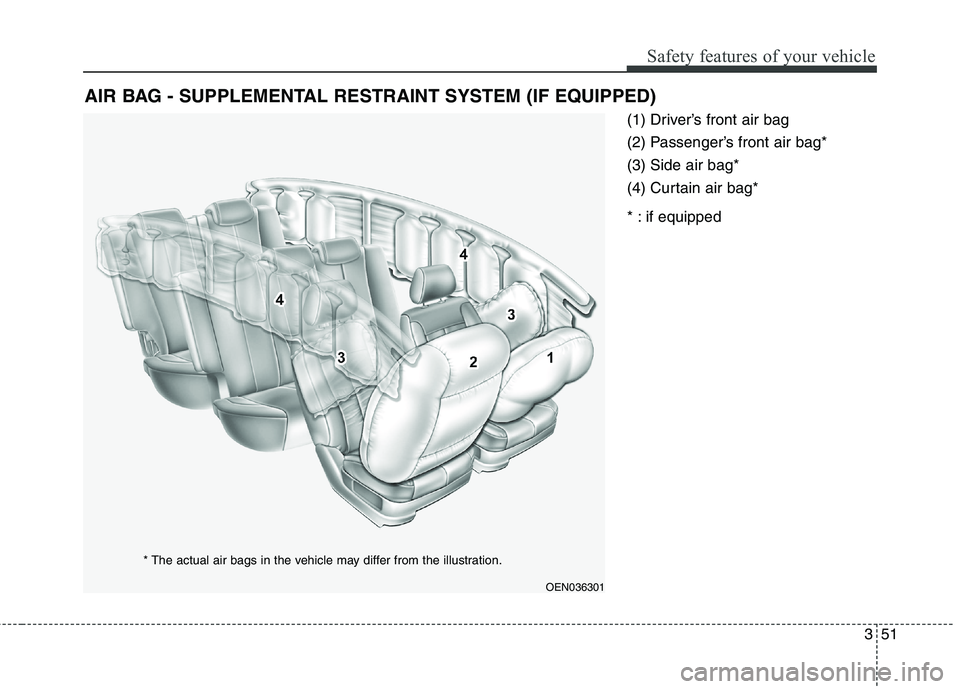

(1) Driver’s front air bag
(2) Passenger’s front air bag*(3) Side air bag*
(4) Curtain air bag*
* : if equipped
AIR BAG - SUPPLEMENTAL RESTRAINT SYSTEM (IF EQUIPPED)
OEN036301
* The actual air bags in the vehicle may differ from the illustration.

Safety features of your vehicle
52
3
How does the air bag system operate
Air bags are activated (able to
inflate if necessary) only when the
ignition switch is turned to the ON
or START position.
Air bags inflate instantly in the event of a serious frontal collisionor side collision (if equipped with a
side air bag or curtain air bag) inorder to help protect the occupants
from serious physical injury.
✽✽ NOTICE - For Europe
Also, the air bags inflate instantly in
the event of a rollover (if equipped
with a side air bag or curtain air bag)
in order to help protect the occu-
pants from serious physical injury.
There is no single speed at which the air bags will inflate.
Generally, air bags are designed to
inflate based upon the severity of a
collision and its direction. These
two factors determine whether thesensors produce an electronic
deployment/ inflation signal.
Air bag deployment depends on a number of factors including vehiclespeed, angles of impact and the
density and stiffness of the vehi-
cles or objects which your vehicle
hits in the collision. The determin-
ing factors are not limited to those
mentioned above.
The front air bags will completely inflate and deflate in an instant.
It is virtually impossible for you to
see the air bags inflate during anaccident.
It is much more likely that you will simply see the deflated air bags
hanging out of their storage com-
partments after the collision.
WARNING
Even in vehicles with air bags, you and your passengers
must always wear the safety
belts provided in order to min-
imize the risk and severity of
injury in the event of a colli-
sion or rollover.
SRS and pretensioners con- tain explosive chemicals.
If scraping a vehicle without
removing SRS and preten-
sioners from a vehicle, it may
cause fire. Before scraping a
vehicle, we recommend that
you contact an authorized Kia
dealer.
Keep the SRS parts and wirings away from water or any
liquid. If the SRS components
are inoperative due to expo-
sure to water or liquids, it may
cause fire or severe injury.

353
Safety features of your vehicle
In order to help provide protectionin a severe collision, the air bags
must inflate rapidly. The speed ofthe air bag inflation is a conse-
quence of extremely short time inwhich a collision occurs and the
need to inflate the air bag between
the occupant and the vehicle struc-
tures before the occupant impacts
those structures. This speed of inflation reduces the
risk of serious or life-threatening
injuries in a severe collision and is
thus a necessary part of the airbag design.
However, air bag inflation can also
cause injuries which can include
facial abrasions, bruises and bro-
ken bones because the inflationspeed also causes the air bags to
expand with a great deal of force.
There are even circumstances under which contact with the
steering wheel air bag can cause
fatal injuries, especially if the
occupant is positioned exces-
sively close to the steeringwheel.Noise and smoke
When the air bags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal and is a result
of the ignition of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath-
ing due to the contact of your chestwith both the seat belt and the air
bag, as well as from breathing the
smoke and powder. Open your
doors and/or windows as soon as
possible after the impact in order
to reduce discomfort and prevent
prolonged exposure to smoke and
powder.
Though the smoke and powder are
non-toxic, they may cause irritation
to the skin (eyes, nose and throat,
etc). If this is the case, wash and
rinse with cold water immediatelyand consult a doctor if the symptom
persists.WARNING
To avoid severe personal injury or death caused by
deploying air bags in a colli-
sion, the driver should sit as
far back from the steering
wheel air bag as possible (at
least 250 mm (10 inches)
away). The front passengers
should always move their
seats as far back as possible
and sit back in their seat.
Air bags inflate instantly in the event of a collision, and pas-
sengers may be injured by the
air bag expansion force if they
are not in a proper position.
Air bag inflation may cause injuries including facial or
bodily abrasions, injuries
from broken glasses or burns.
