KIA BORREGO 2017 Owner's Manual

Safety features of your vehicle
4
3
WARNING - Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control, and an accident
causing death, serious injury,
or property damage.
Do not allow anything to inter- fere with the normal position of
the seatback. Storing items
against a seatback or in any
other way interfering with prop-
er locking of a seatback could
result in serious or fatal injury
in a sudden stop or collision.
Always drive and ride with your seatback upright and the lap
portion of the seat belt snug
and low across the hips. This is
the best position to protect youin case of an accident.
(Continued)(Continued)
In order to avoid unnecessaryand perhaps severe air bag
injuries, always sit as far back
as possible from the steeringwheel while maintaining com-
fortable control of the vehicle.
We recommend that your chest
be at least 25 cm (10 inches)
away from the steering wheel.WARNING - Rear
seatbacks
The rear seatback must be securely latched. If not, passen-
gers and objects could be
thrown forward resulting in seri-
ous injury or death in the event
of a sudden stop or collision.
Luggage and other cargo should be laid flat in the cargo
area. If objects are large,
heavy, or must be piled, they
must be secured.
Under no circumstances
should cargo be piled higher
than the seatbacks. Failure to
follow these warnings could
result in serious injury or
death in the event of a sudden
stop, collision or rollover.
(Continued)

35
Safety features of your vehicle
(Continued)
No passenger should ride inthe cargo area or sit or lie on
folded seatbacks while the
vehicle is moving. All passen-
gers must be properly seated
in seats and restrained prop-
erly while riding.
When resetting the seatback to the upright position, make
sure it is securely latched by
pushing it forward and back-
wards.
To avoid the possibility of burns, do not remove the car-
pet in the cargo area.
Emission control devices
beneath this floor generatehigh temperatures.WARNING
After adjusting the seat, always
check that it is securely locked
into place by attempting to
move the seat forward or back-
ward without using the lock
release lever. Sudden or unex-
pected movement of the dri-
ver's seat could cause you to
lose control of the vehicleresulting in an accident.WARNING
Do not adjust the seat while wearing seat belts. Moving
the seat cushion forward may
cause strong pressure on theabdomen.
Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
while the seat is moving.
Do not put a cigarette lighter on the floor or seat. When you
operate the seat, gas maygush out of the lighter and
cause fire.
If there are occupants in the rear seats, be careful while
adjusting the front seat posi-tion.
Use extreme caution when picking small objects trappedunder the seats or betweenthe seat and the center con-
sole. Your hands might be cut
or injured by the sharp edges
of the seat mechanism.

Safety features of your vehicle
6
3
Front seat adjustment
- manual
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment
lever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The
lever MUST return to its original
position for the seatback to lock.)
Seat height (for driver’s seat)
To change the height of the seat, push
the lever upwards or downwards.
To lower the seat cushion, push thelever down several times.
To raise the seat cushion, pull the lever up several times.
OHM038002
OHM038003OHM038004

37
Safety features of your vehicle
Lumbar support (for driver’s seat)
The lumbar support can be adjusted
by moving the lever. Pivoting the
lever increases or decreases lumbar
support.Front seat adjustment - power (if equipped)
The front seat can be adjusted by
using the control switches located onthe outside of the seat cushion.
Before driving, adjust the seat to the
proper position so you can easily con-
trol the steering wheel, pedals and
switches on the instrument panel.
OHM038008
WARNING
The power seat is operable with
the ignition OFF.
Therefore, children should never
be left unattended in the vehicle.
CAUTION
The power seat is driven by an electric motor. Stop operatingonce the adjustment is com- pleted. Excessive operationmay damage the electricalequipment.
When in operation, the power seat consumes a large amountof electrical power. To preventunnecessary charging systemdrain, don’t adjust the power seat longer than necessarywhile the engine is not running.
Do not operate two or more power seat control switches atthe same time. Doing so may result in power seat motor orelectrical component malfunc-tion.

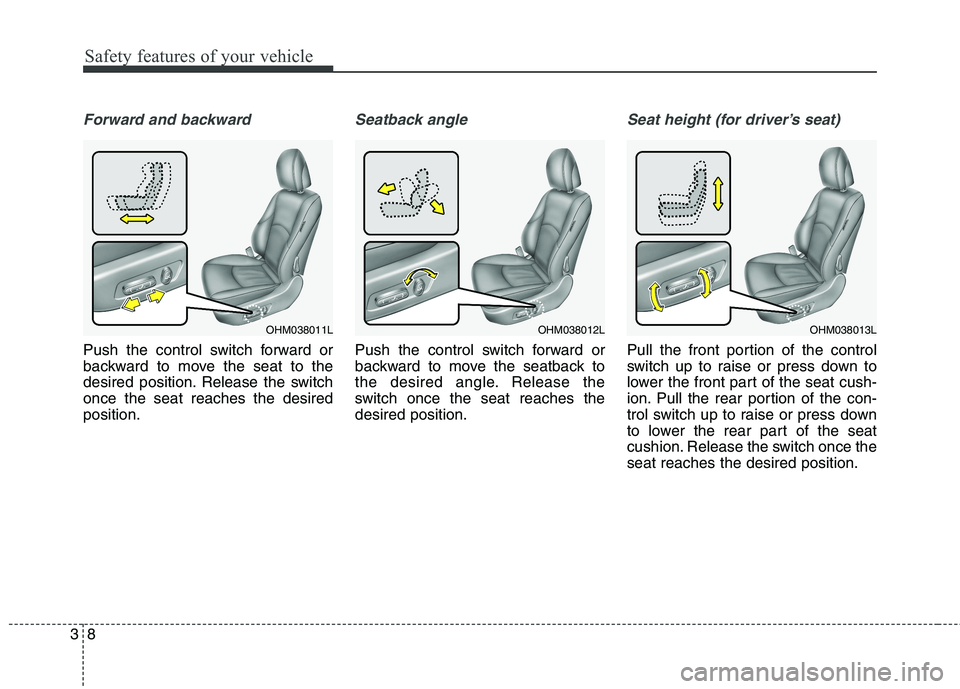

Safety features of your vehicle
8
3
Forward and backward
Push the control switch forward or
backward to move the seat to the
desired position. Release the switchonce the seat reaches the desiredposition.
Seatback angle
Push the control switch forward or
backward to move the seatback to
the desired angle. Release the
switch once the seat reaches thedesired position.
Seat height (for driver’s seat)
Pull the front portion of the control
switch up to raise or press down to
lower the front part of the seat cush-
ion. Pull the rear portion of the con-
trol switch up to raise or press down
to lower the rear part of the seat
cushion. Release the switch once theseat reaches the desired position.
OHM038011LOHM038012LOHM038013L

39
Safety features of your vehicle
Walk-in Seat (for front passengerseat, if equipped)
The switch is located on the left side
of the front passenger’s seatback.
To adjust the position of front pas-
senger’s seat ;
Press the control switch forward (1)
or rearward (2)to move the seat tothe desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the front passenger seat is occupied.
Lumbar support (for driver’s seat)
The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the seat.
1. Press the front portion of the switch to increase support, or the
rear portion of the switch, to
decrease support.
2. Release the switch once it reach- es the desired position. Driver position memory system
(if equipped, for power seat)
A driver position memory system is
provided to store and recall the driv-
er seat and outside rearview mirror
and steering wheel position with a
simple button operation. By savingthe desired position into the system
memory, different drivers can reposi-
tion the driver seat based upon their
driving preference.
If the battery is disconnected, the
position memory will be erased and
the driving position should berestored in the system.OHM036051L
OHM038014
OHM048031

Safety features of your vehicle
10
3
Storing positions into memory
using the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P (Park) while the engine start/stop button
is ON or ignition switch ON.
2. Adjust the driver’s seat and out- side rearview mirror and steering
wheel to position comfortable for
the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 4 seconds after
pressing the SET button. The sys-
tem will beep twice when memoryhas been successfully stored. Recalling positions from memory
1. Shift the transmission shift lever
into P (Park).
2. To recall the position in memory, press the desired memory button
(1 or 2). The system will beep
once, then the driver seat, outside
rearview mirror and steeringwheel will automatically adjust to
the stored positions.
Adjusting one of the control switches
for the driver seat, outside rearview
mirror and steering wheel while thesystem is recalling the stored posi-
tions will cause the movement for
that component to stop and move in
the direction that the control switch is
moved. Other components will con-
tinue to the recalled position.
WARNING
Never attempt to operate the
driver position memory system
while the vehicle is moving. This could result in loss of con-
trol, and an accident causing
death, serious injury, or property
damage.

311
Safety features of your vehicle
Easy access function (if equipped)
With the shift lever in P (Park) posi-
tion, the system will move the driver’s
seat and the steering wheel forward
or rearward automatically so you can
comfortably enter and exit the vehicle.
Without smart key system- The steering wheel will moveaway from the driver and the seat
will move rearward, when the
ignition key is removed.
- The steering wheel will move toward the driver and the seat will
move forward, when the ignition
key is inserted.
With smart key system
- For driver's comfort when gettingon and off the vehicle, turn off the
engine when the shift lever is in P
(Park). Then, the driver seat will
move rearward when the driver'sdoor is opened.
- The steering wheel will move away from the driver and the seat
will move rearward, when the
ENGINE START/ STOP button isin the OFF position. - The steering wheel will move
toward the driver and the seat will
move forward, when the ENGINE
START/ STOP button is in the
ACC position.
The amount of distance the driver
seat can move rearward can be setthrough the user settings on LCD
mode of instrument cluster.
For more details, please refer to
‘User settings mode’ in chapter 4.WARNING
Use caution when recalling the
adjustment memory while sit-
ting in the vehicle. Push the seat
position control switch to the
desired position immediately if
the seat moves too far in anydirection.

Safety features of your vehicle
12
3
Headrest (for front seat)
The driver's and front passenger's seats are equipped with a headrest
for the occupant's safety and comfort.
The headrest not only provides com-
fort for the driver and front passen-
ger, but also helps protect the head
and neck in the event of a collision.Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower theheadrest, push and hold the release
button (2) and lower the headrest tothe desired position (3).
OHM038048N
WARNING
For maximum effectiveness in case of an accident, the head- rest should be adjusted so the
middle of the headrest is at thesame height of the center of
gravity of an occupant's head.
Generally, the center of gravityof most people's head is simi-lar with the height of the top of
their eyes. Also, adjust the
headrest as close to your head
as possible. For this reason,the use of a cushion that holds
the body away from the seat-
back is not recommended.
Do not operate the vehicle with the headrests removed. Severe
injury to the occupants may
occur in the event of an acci-
dent. Headrests may provide
protection against neck injuries
when properly adjusted.
Do not adjust the headrest position of the driver’s seat
while the vehicle is in motion.
OHM038006

313
Safety features of your vehicle
Forward and backward adjustment(if equipped)
The headrest may be adjusted for-
ward to 3 different positions by
pulling the headrest forward to thedesired detent.
To adjust the headrest to it’s furthest
backwards position, pull the headrest
fully forward to the farthest positionand release it. Adjust the headrest so that it proper-
ly supports the head and neck. Removal/Reinstall
To remove the headrest:
1. Recline the seatback (2) with the
recline lever or switch (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button
(3) while pulling the headrest up (4).
OHM038005CAUTION
If you recline the seatback
towards the front with the head-rest and seat cushion raised, the headrest may come in con-tact with the sunvisor or otherparts of the vehicle.
OYFH034205
OHM033202
OHM033200
■
Type B
■Type A
