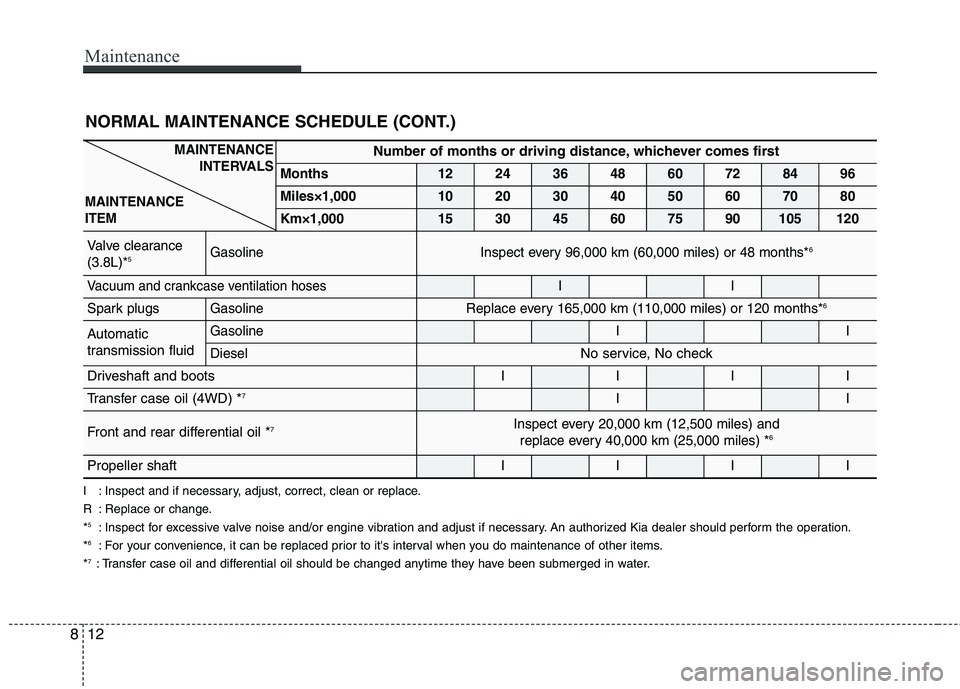

Page 448 of 548
Maintenance
12
8
NORMAL MAINTENANCE SCHEDULE (CONT.)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.* 5
: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. An authorized Kia dealer should perform the operation.
* 6
: For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.
* 7
: Transfer case oil and differential oil should be changed anytime they have been submerged in water.
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles×1,0001020304050607080
Km×1,000153045607590105120
Valve clearance (3.8L)* 5GasolineInspect every 96,000 km (60,000 miles) or 48 months* 6
Vacuum and crankcase ventilation hosesII
Spark plugsGasolineReplace every 165,000 km (110,000 miles) or 120 months* 6
Automatic
transmission fluidGasolineII
DieselNo service, No check
Driveshaft and bootsIIII
Transfer case oil (4WD) *7II
Front and rear differential oil * 7Inspect every 20,000 km (12,500 miles) and
replace every 40,000 km (25,000 miles) * 6
Propeller shaftIIII
MAINTENANCE
INTERVALS
MAINTENANCE ITEM

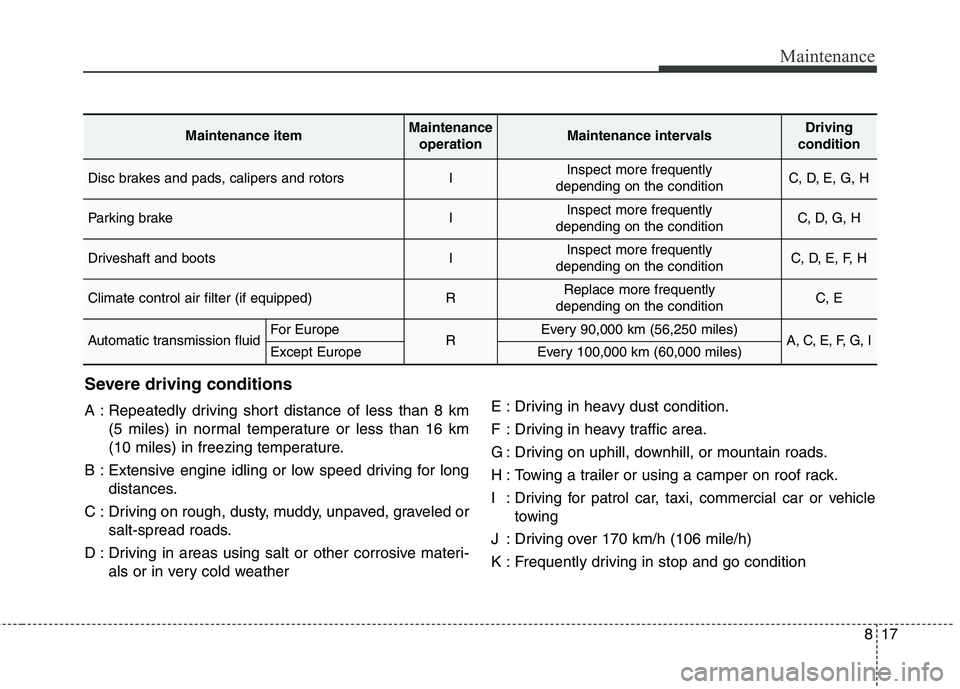

Page 453 of 548
817
Maintenance
Severe driving conditions
A : Repeatedly driving short distance of less than 8 km(5 miles) in normal temperature or less than 16 km
(10 miles) in freezing temperature.
B : Extensive engine idling or low speed driving for long distances.
C : Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads.
D : Driving in areas using salt or other corrosive materi- als or in very cold weather E : Driving in heavy dust condition.
F : Driving in heavy traffic area.
G : Driving on uphill, downhill, or mountain roads.
H : Towing a trailer or using a camper on roof rack.I:
Driving for patrol car, taxi, commercial car or vehicle
towing
J : Driving over 170 km/h (106 mile/h)
K : Frequently driving in stop and go condition
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Disc brakes and pads, calipers and rotorsIInspect more frequently
depending on the conditionC, D, E, G, H
Parking brakeIInspect more frequently
depending on the conditionC, D, G, H
Driveshaft and bootsIInspect more frequently
depending on the conditionC, D, E, F, H
Climate control air filter (if equipped)RReplace more frequently
depending on the conditionC, E
Automatic transmission fluidFor EuropeREvery 90,000 km (56,250 miles)A, C, E, F, G, IExcept EuropeEvery 100,000 km (60,000 miles)

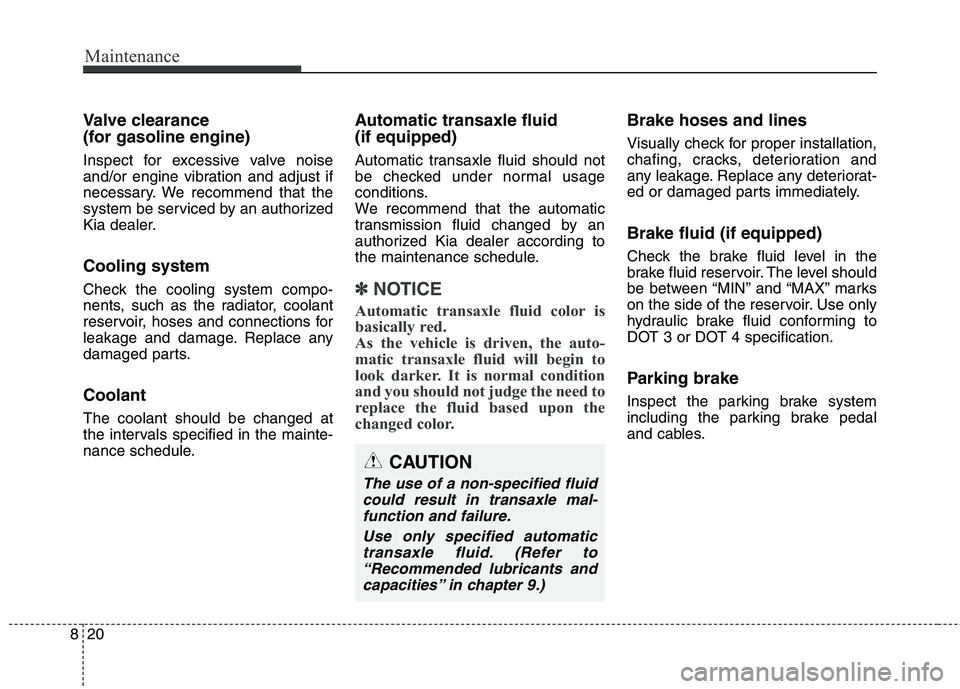

Page 456 of 548
Maintenance
20
8
Valve clearance
(for gasoline engine)
Inspect for excessive valve noise
and/or engine vibration and adjust if
necessary. We recommend that the
system be serviced by an authorized
Kia dealer. Cooling system
Check the cooling system compo-
nents, such as the radiator, coolant
reservoir, hoses and connections for
leakage and damage. Replace any
damaged parts. Coolant The coolant should be changed at
the intervals specified in the mainte-
nance schedule. Automatic transaxle fluid (if equipped)
Automatic transaxle fluid should not
be checked under normal usage
conditions.
We recommend that the automatic
transmission fluid changed by an
authorized Kia dealer according to
the maintenance schedule.
✽✽
NOTICE
Automatic transaxle fluid color is
basically red.
As the vehicle is driven, the auto-
matic transaxle fluid will begin to
look darker. It is normal condition
and you should not judge the need to
replace the fluid based upon the
changed color.
Brake hoses and lines
Visually check for proper installation,
chafing, cracks, deterioration and
any leakage. Replace any deteriorat-
ed or damaged parts immediately. Brake fluid (if equipped)
Check the brake fluid level in the
brake fluid reservoir. The level should
be between “MIN” and “MAX” marks
on the side of the reservoir. Use only
hydraulic brake fluid conforming to
DOT 3 or DOT 4 specification.
Parking brake
Inspect the parking brake system
including the parking brake pedal
and cables.
CAUTION
The use of a non-specified fluid could result in transaxle mal-function and failure.
Use only specified automatictransaxle fluid. (Refer to “Recommended lubricants andcapacities” in chapter 9.)

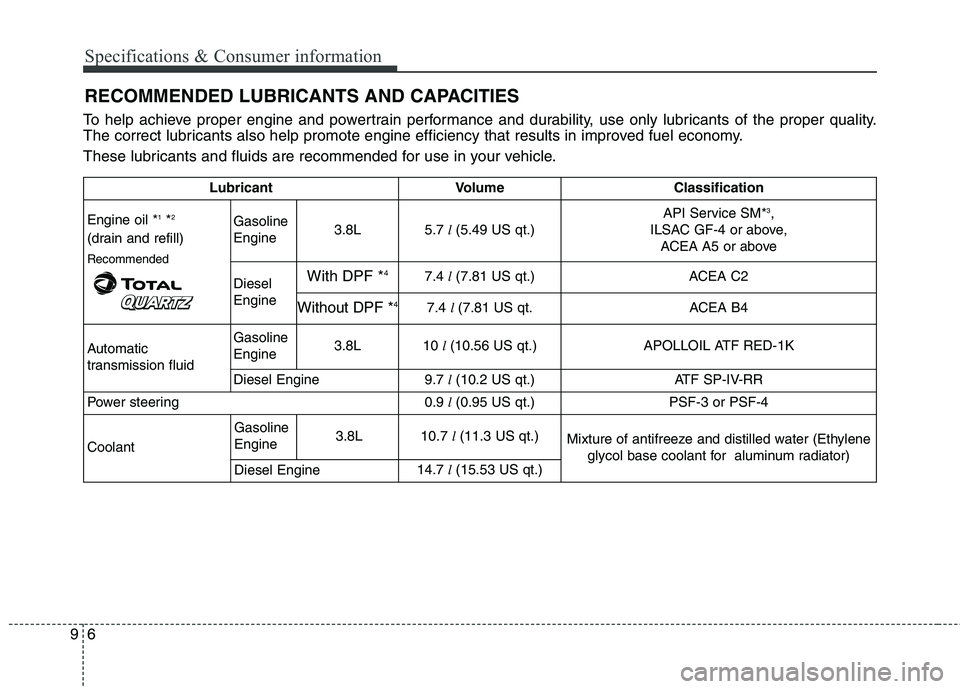

Page 530 of 548
Specifications & Consumer information
6
9
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil * 1
*2
(drain and refill) Recommended Gasoline Engine
3.8L
5.7
l (5.49 US qt.) API Service SM*
3
,
ILSAC GF-4 or above, ACEA A5 or above
Diesel EngineWith DPF * 47.4
l (7.81 US qt.)ACEA C2
Without DPF * 47.4
l (7.81 US qt.ACEA B4
Automatic
transmission fluid GasolineEngine
3.8L
10
l (10.56 US qt.)
APOLLOIL ATF RED-1K
Diesel Engine 9.7
l (10.2 US qt.)
ATF SP-IV-RR
Power steering 0.9
l (0.95 US qt.)
PSF-3 or PSF-4
Coolant Gasoline Engine
3.8L
10.7
l (11.3 US qt.)
Mixture of antifreeze and distilled water (Ethylene
glycol base coolant for aluminum radiator)
Diesel Engine 14.7
l (15.53 US qt.)
