steering KIA CADENZA 2015 Features and Functions Guide

VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . 02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . . 05
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 05
LCD Instrument Cluster Modes . . . . . . . . . . . . . . 06
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . . 07
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . 07
DRIVER’S PANEL
Electronic Stability Control (ESC) . . . . . . . . . . . . . . 08
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . 08
Blind Spot Detection (BSD) System* . . . . . . . . . . . . 09
Lane Departure Warning System (LDWS)* . . . . . . . . . 10
Instrument Panel Dimmer . . . . . . . . . . . . . . . . . 10
Power Windows, Window Lock & Central Door Lock . . . . 11
Power Folding Outside Mirrors . . . . . . . . . . . . . . . 11
Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . 11
Automatic Door Lock /Unlock . . . . . . . . . . . . . . . 11

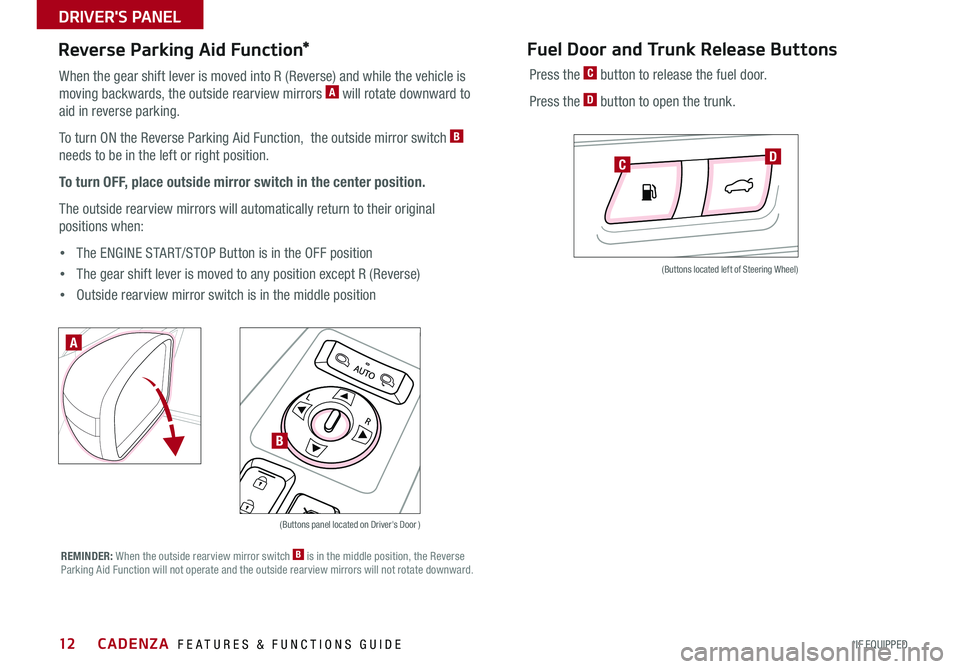

Reverse Parking Aid Function* . . . . . . . . . . . . . . . 12
Fuel Door and Trunk Release Buttons . . . . . . . . . . . 12
Engine Start/Stop Button . . . . . . . . . . . . . . . . . . 13
STEERING WHEEL CONTROLS

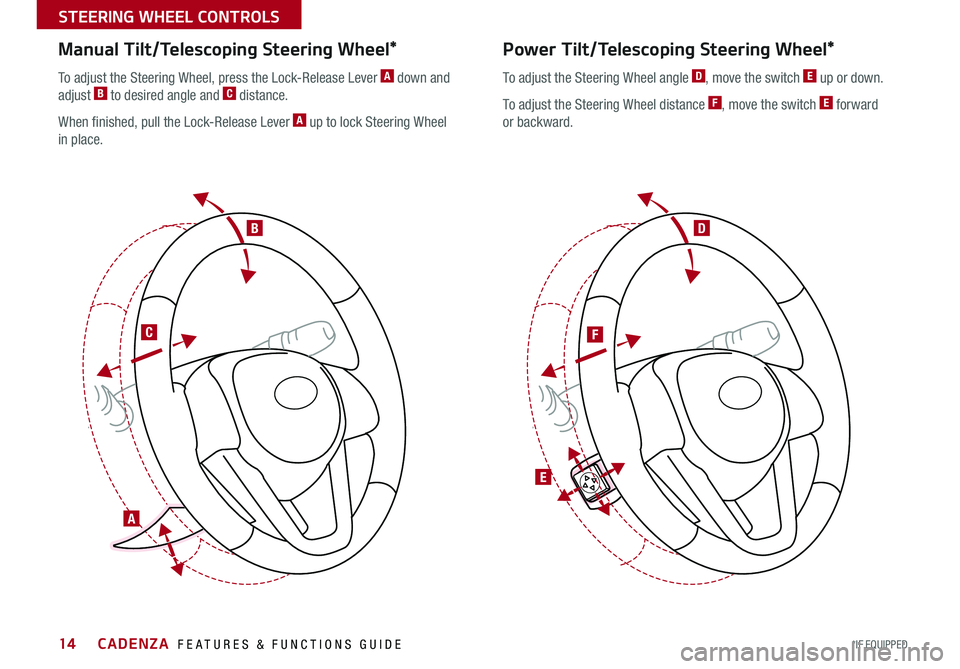

Manual Tilt/ Telescoping Steering Wheel* . . . . . . . . . 14
Power Tilt/ Telescoping Steering Wheel* . . . . . . . . . . 14
Headlights & High Beams . . . . . . . . . . . . . . . . . . 15
Turn Signals & Fog Lights . . . . . . . . . . . . . . . . . 16
Windshield Wipers & Washers . . . . . . . . . . . . . . . 17
Bluetooth® Wireless Technology . . . . . . . . . . . . . . 18
Advanced Smart Cruise Control (ASCC)* . . . . . . . . . . 20
Audio Controls . . . . . . . . . . . . . . . . . . . . . . . 21
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . 21
CENTER PANEL
Navigation System . . . . . . . . . . . . . . . . . . . . . 22
Surround View Monitor (SVM)* . . . . . . . . . . . . . . . 23
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Aux/USB/iPod® Port & Power Outlets . . . . . . . . . . . 24
Automatic Climate Control . . . . . . . . . . . . . . . . . 25
Automatic Gear Shift / Sportmatic® Shifting . . . . . . . . 26
Electric Parking Brake* . . . . . . . . . . . . . . . . . . . 27
Auto Hold* . . . . . . . . . . . . . . . . . . . . . . . . . 27
Heated Steering Wheel* . . . . . . . . . . . . . . . . . . 28
Power Rear Sunshade* . . . . . . . . . . . . . . . . . . . 28
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 29
S E AT I N G
Power Adjustable Driver’s Seat . . . . . . . . . . . . . . . 30
Front Seat Headrest Adjustment . . . . . . . . . . . . . . 31
Driver Position Memory System* . . . . . . . . . . . . . . 31
OTHER KEY FEATURES
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . 32
HomeLink® with Auto-Dimming Rearview Mirror . . . . . . 33
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 34
Panoramic Sunroof Operation* . . . . . . . . . . . . . . . 35
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Rear-Camera Display . . . . . . . . . . . . . . . . . . . . 36
Back-Up Warning System (Rear Parking Assist System)* . 36
Trunk Release Button . . . . . . . . . . . . . . . . . . . . 37
Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 37
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . 37
Hood Release Lever and Latch . . . . . . . . . . . . . . . 38
SAFETY FEATURES
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 39
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Seat Belt Retractor Inertial Locks . . . . . . . . . . . . . 40
LEGAL DISCLAIMERS (See Back Inside Cover Page) MAINTENANCE (See Back Cover)
ESSENTIAL FEATURES
CADENZA FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control . . . . . . 25
Audio System – Navigation System . . . . . . . . . . . 22
Aux/USB/iPod®* Port* & Power Outlets* . . . . . . . . . 24
Bluetooth® Wireless Technology . . . . . . . . . . . . .18
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . 21
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 39
Service Mode . . . . . . . . . . . . . . . . . . . . . . . 07
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . 32
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . 07
Windshield Wipers & Washers . . . . . . . . . . . . . .17
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.

4
Indicators & Warning Lights
REMINDER: Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . See your Owner’s Manual for more details .
Electronic Power Steering Warning Light
Charging System Warning Light
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Engine Oil Pressure Warning Light
Malfunction Indicator
Airbag Warning Light
Adaptive Front Lighting System Warning Light*
Lane Departure Warning Light
Advanced Smart Cruise Control Radar Warning Light*
Advanced Smart Cruise Control Warning Indicator*
Master Warning Light
Seat Belt Warning Light
High Beam Indicator
Light on Indicator
Front Fog Light Indicator
Door Ajar Warning Light
Trunk Open Warning Light
Immobilizer Indicator*
025
50
: NextHold : Reset
AVGRANGE
444
44.4
mi.
MPG
ODO1 2 3
4 5
6 mi.-32
°FEF
C
H
AUTO
HOLD
EPBx 1000 rpm
MPH
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual .
QUICK TIP
Auto Hold Indicator
Cruise Indicator
Cruise SET Indicator
Parking Brake & Brake Fluid Warning Light
Electric Parking Brake
Electronic Stability Control (ESC) Warning Indicator
Electronic Stability Control (ESC) OFF Indicator
Anti-Lock Braking System (ABS) Warning Light
Low Fuel Level Warning Light
(Type B Cluster)
SET27MPH
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

6
Trip Computer / Tripmeter
The Trip Computer is a driver information
system that displays information related
to driving on the display when the ENGINE
START/STOP button is in the ON position .
To cycle through the LCD Instrument
Cluster modes, press the Mode/Select
button A .
When in the Trip Computer mode ,
press the Move/Reset button B to cycle
through the screens . When displaying
TRIP A or TRIP B screens, press and hold
the Move/Reset button B to reset the
Tripmeter to zero .
(Type B Cluster)
025
50: NextHold : Reset
AVGRANGE
444
44.4
mi.
MPG
ODO1 2 3
4 5
6 mi. -32 °F
FUEL ECONOMY
 R ANGE  Average MPG  Instant MPG
TRIP A
 Tripmeter A  Average MPH  Elapsed Time (E / T )
TRIP B
 Tripmeter B  Average MPH  Elapsed Time (E / T )
REMINDERS:
• Appearance of Tripmeter display may differ as equipped
• All stored driving information (except Odometer and Range) is reset if the battery is disconnected
LCD Instrument Cluster Modes*
Press Mode/Select button A to scroll through different LCD Instrument
Cluster Modes:
(Buttons located on Steering Wheel)
Ty p e ATy p e B
Trip Computer Mode: Displays driving information
for tripmeter, fuel economy, etc .
A/V Mode: Displays the state of the A / V System
Turn-by-Turn Mode*: Displays the state of the
Navigation system
Information Modes: Informs on service intervals
and pressure status of each tire
User Settings Mode: Change settings of the doors,
lamps and other features
Advanced Smart Cruise Control (ASCC) / Lane
Departure Warning System (LDWS)*: Displays the
state of the ASCC and LDWS
Your vehicle’s steering wheel buttons may differ from those in the illustrations.
A
B
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

7
Service Interval Setting
To set the service interval when
in User Settings mode:
• Press the Move/Reset button B and scroll to Service
Interval . Press the Mode/
Select button A to enter
• Press the Move/Reset button B and toggle to ON, then
press the Move/Select button A . Then press the Move/
Reset button B to scroll and
select the desired miles or
months for your next service
• Press the Mode/Select button A to enter
To enter the User Settings
mode in the LCD Instrument
Cluster Modes, press the
Mode/Select button A when
the vehicle is at a standstill
and with the ENGINE START/
STOP button in the ON
position and select User
Settings .
You can navigate the selections on the display by pressing the
Move/Reset button B, and then selecting the item by pressing
the Mode/Select button A .
Door:
• Auto Door Lock
& Unlock
• Two Press Unlock
• Lock /Unlock Sound
• Horn Feedback

Lamp:
• One-Touch Turn
Lamp
• Headlamp Delay
• Welcome Light*
User Settings
Settings:
• Language
• Temperature Unit
• Speed Unit ( Type B Cluster)*
• Speedometer Size ( Type
B Cluster)*
• AVG Fuel Economy Reset
• Easy Seat Access*
• Welcome Sound
• Steering Position
Service Interval:
• ON/OFF
• Set mileage/months
To enter Service Mode, press the Mode/Select
button A, scroll to Service Mode by pressing Move/
Reset button B . Then press the Mode/Select button A to
enter . System will display number of miles remaining until
next service is due, and type of service .
When service is required, the following will be displayed:
Service Required .
To reset the Service Mode system, press and hold the
Move/Reset button B for more than 1 second .
To turn Service In OFF, go to User Settings .
Service Mode
ODO 123456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123456 mi
Service in
OFF
ODO 123456 miHold : Reset
Service required
or 0 mi.
0 days
ODO 123456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123456 mi
Service in
OFF
ODO 123456 miHold : Reset
Service required
or 0 mi.
0 days
ODO 123456 miHold : Reset
Service in
or 15000 mi.
90 days
ODO 123456 mi
Service in
OFF
ODO 123456 miHold : Reset
Service required
or 0 mi.
0 days
To view a video on your mobile device, snap these QR Codes or visit the listed website .
Refer to page 2 for more information .
LCD Display: Maintenance Video
LCD Display Video
QR CODES
www. KuTechVideo s.c om/vg13/2015
www. KuTechVideo s.c om/vg13/2015
(Type B cluster)
(Buttons located on right side of steering wheel)
A
B
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
INSTRUMENT CLUSTER

8
The ESC system is designed to help stabilize the vehicle during cornering
maneuvers . It is a good idea to keep the ESC turned on for daily driving
whenever possible .
Press ESC button A to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and hold for
more than 3 seconds . Press again to turn ON .
(Button panel located left of Steering Wheel)
HAC helps prevent the vehicle from rolling backwards when accelerating
from a stop while on a steep incline . The HAC automatically activates
whether the ESC is OFF or ON but does NOT activate when the ESC has
malfunctioned .
REMINDERS:
•ESC is active by default at vehicle start-up
• The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
Electronic Stability Control (ESC)Hill-Start Assist Control (HAC)
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator .
QUICK TIP
A
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL

10
Lane Departure Warning System Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www. KuTechVideo s.c om/vg13/2015
Lane Departure Warning System (LDWS)*
With the ENGINE START/STOP button in the ON position, press
the LDWS button C to turn system ON . The instrument cluster
indicator will illuminate green .
If the LDWS detects that you are veering outside of your lane,
the system may issue a warning on the LCD screen and an alert
may sound, under these conditions:
•The vehicle exceeds approximately 43 mph
•The LDWS system recognizes the lane the vehicle is
traveling in
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWS
ODO 123456 mi
LDWSLDWSLDWS
Instrument Panel Dimmer
With parking lights/headlights ON, press button D (+) or (-)
to adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Panel Dimmer does not adjust brightness on the Navigation System screen, use Navigation setup to adjust brightness on the Navigation System .
REMINDER: LDWS will not issue a warning if the turn signal is activated .
(Button panel located left of Steering Wheel)
D
C
When the LDWS sensor detects the lane traveling inWhen the LDWS sensor does not detect the lane traveling in
The Lane Departure Warning System (LDWS) is not a substitute for safe and proper driving. Always drive safely and use caution. LDWS may not always alert the driver if the vehicle is driven outside of it’s lane. When the LDWS sensor detects the vehicle veering outside of the lane traveling in, a yellow indicator will illuminate
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL

12
Press the C button to release the fuel door .
Press the D button to open the trunk .
Fuel Door and Trunk Release ButtonsReverse Parking Aid Function*
When the gear shift lever is moved into R (Reverse) and while the vehicle is
moving backwards, the outside rearview mirrors A will rotate downward to
aid in reverse parking .
To turn ON the Reverse Parking Aid Function, the outside mirror switch B
needs to be in the left or right position .
To turn OFF, place outside mirror switch in the center position.
The outside rearview mirrors will automatically return to their original
positions when:
• The ENGINE START/STOP Button is in the OFF position
• The gear shift lever is moved to any position except R (Reverse)
• Outside rearview mirror switch is in the middle position
REMINDER: When the outside rearview mirror switch B is in the middle position, the Reverse Parking Aid Function will not operate and the outside rearview mirrors will not rotate downward .
(Buttons panel located on Driver's Door )
(Buttons located left of Steering Wheel)
A
B
CD
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL

14
Manual Tilt/Telescoping Steering Wheel*
To adjust the Steering Wheel, press the Lock-Release Lever A down and
adjust B to desired angle and C distance .
When finished, pull the Lock-Release Lever A up to lock Steering Wheel
in place .
To adjust the Steering Wheel angle D, move the switch E up or down .
To adjust the Steering Wheel distance F, move the switch E forward
or backward .
Power Tilt/Telescoping Steering Wheel*
A
C
BD
F
E
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
STEERING WHEEL CONTROLS

15
Headlights & High Beams
AUTO Light function — When the light switch is in the
AUTO Light position, the tail lights and headlights will turn
ON/OFF automatically depending on the amount of light
outside the vehicle .
To o p e r a t e :
• Rotate lever to change the Headlight function
• Push lever to turn High Beams ON
• Pull lever to flash Headlights/High Beams
Headlight position
Parking light position
AUTOAutomatic Headlights position
OFFOFF position
Adaptive Front Lighting System (AFLS)*
The Adaptive Front Lighting System helps improve visibility during nighttime
driving by aiming the low beam headlights in the direction the vehicle is moving .
AFLS controls the aiming direction based on steering angle and speed .
When the light switch is in the AUTO Light position, the AFLS will activate .
REMINDER: When the AFLS indicator illuminates on the Instrument Cluster, the AFLS is not working properly . See authorized Kia dealer for service .
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
STEERING WHEEL CONTROLS

16
Turn Signals & Fog Lights*
To o p e r a t e :
• Turn Signals - Move lever Up/Down for Right /Left Turn Signal
• Fog Lights - Push toggle switch to turn Fog Lights ON/OFF
REMINDER: Headlights must be ON for Fog Light operation .
For more information on the User Settings Mode, please refer to your Owner’s Manual.
One-Touch Lane Change Signal is activated by moving the Turn
Signal Lever slightly for less than 1 second and then releasing . The
lane change signal will blink 3 times .
To change how many times (3/5/7) the Lane Change Signal blinks,
go to User Settings Mode in the LCD Instrument Cluster modes .
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
STEERING WHEEL CONTROLS
