relay KIA Cadenza 2016 1.G Owner's Manual

437
Features of your vehicle
STEERING WHEEL
Electric power steering (EPS)
Power steering uses the motor to
assist you in steering the vehicle. If
the engine is off or if the power steer-
ing system becomes inoperative, the
vehicle may still be steered, but it will
require increased steering effort.
The motor driven power steering is
controlled by the power steering con-
trol unit which senses the steering
wheel torque and vehicle speed to
command the motor.
The steering wheel becomes heavier
as the vehicle’s speed increases and
becomes lighter as the vehicle’s
speed decreases for better control of
the steering wheel.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the power
steering checked by an authorized
Kia Premium dealer.
✽ ✽NOTICE
The following symptoms may occur
during normal vehicle operation:
• The steering effort is increased
immediately after turning the igni-
tion switch on. This happens as the
system performs the EPS system
diagnostics. When the diagnostics
are completed, the steering wheel
will return to its normal condition
• A click noise may be heard from the EPS relay after the ignition
switch is turned to the ON or
LOCK position.
• Motor noise may be heard when the vehicle is at a stop or at a low
driving speed.
• The steering effort increases if the steering wheel is rotated continu-
ously when the vehicle is not in
motion. However, after a few min-
utes, it will return to its normal
conditions.
• When you operate the steering wheel in low temperature, abnor-
mal noise could occur. If tempera-
ture rises, the noise will disappear.
This is a normal condition.
If the Electric Power Steering System
does not operate normally, the warn-
ing light will illuminate on the instru-
ment cluster. The steering wheel may
become difficult to control or operate
abnormally. Take your vehicle to an
authorized Kia Premium dealer and
have the vehicle checked as soon as
possible.
WARNING
If the steering wheel becomes
too warm, turn the system off.
The heated steering wheel may
cause burns even at low tem-
peratures, especially if used for
long periods of time.

761
Maintenance
✽

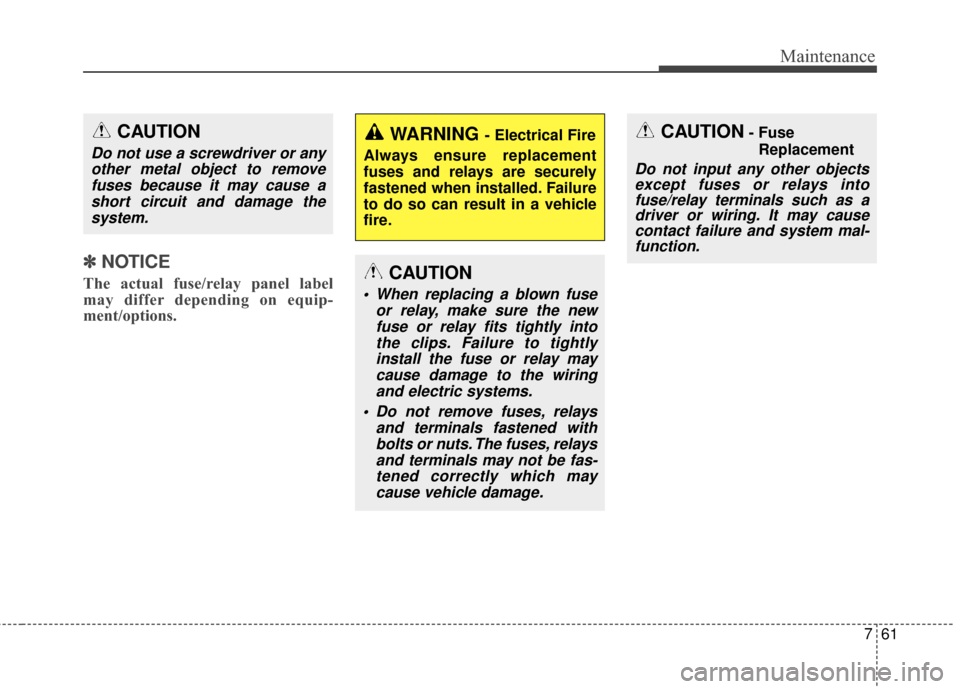

✽NOTICE
The actual fuse/relay panel label
may differ depending on equip-
ment/options.
CAUTION
Do not use a screwdriver or any
other metal object to removefuses because it may cause ashort circuit and damage thesystem.
CAUTION- Fuse
Replacement
Do not input any other objectsexcept fuses or relays intofuse/relay terminals such as adriver or wiring. It may causecontact failure and system mal-function.
WARNING - Electrical Fire
Always ensure replacement
fuses and relays are securely
fastened when installed. Failure
to do so can result in a vehicle
fire.
CAUTION
When replacing a blown fuse or relay, make sure the newfuse or relay fits tightly intothe clips. Failure to tightlyinstall the fuse or relay maycause damage to the wiringand electric systems.
Do not remove fuses, relays and terminals fastened withbolts or nuts. The fuses, relaysand terminals may not be fas-tened correctly which maycause vehicle damage.

765
Maintenance

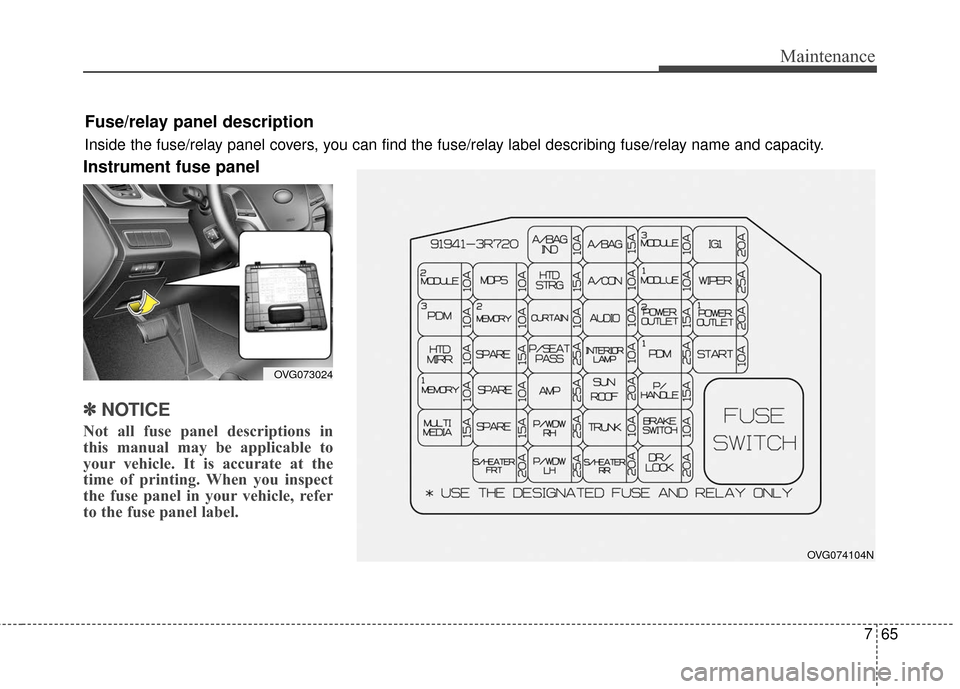

Instrument fuse panel
✽
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OVG073024
Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
OVG074104N

769
Maintenance

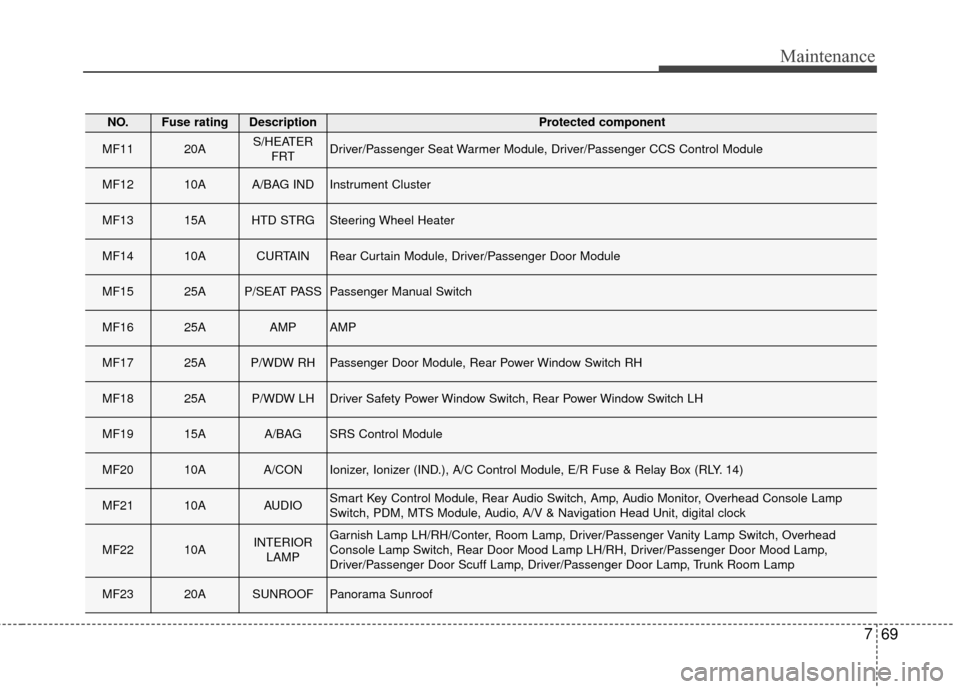

NO.Fuse ratingDescriptionProtected component
MF1120AS/HEATERFRTDriver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module
MF1210AA/BAG INDInstrument Cluster
MF1315AHTD STRGSteering Wheel Heater
MF1410ACURTAINRear Curtain Module, Driver/Passenger Door Module
MF1525AP/SEAT PASSPassenger Manual Switch
MF1625AAMPAMP
MF1725AP/WDW RHPassenger Door Module, Rear Power Window Switch RH
MF1825AP/WDW LHDriver Safety Power Window Switch, Rear Power Window Switch LH
MF1915AA/BAGSRS Control Module
MF2010AA/CONIonizer, Ionizer (IND.), A/C Control Module, E/R Fuse & Relay Box (RLY. 14)
MF2110AAUDIOSmart Key Control Module, Rear Audio Switch, Amp, Audio Monitor, Overhead Console Lamp
Switch, PDM, MTS Module, Audio, A/V & Navigation Head Unit, digital clock
MF2210AINTERIORLAMPGarnish Lamp LH/RH/Conter, Room Lamp, Driver/Passenger Vanity Lamp Switch, Overhead
Console Lamp Switch, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp,
Driver/Passenger Door Scuff Lamp, Driver/Passenger Door Lamp, Trunk Room Lamp
MF2320ASUNROOFPanorama Sunroof

Maintenance
70
7

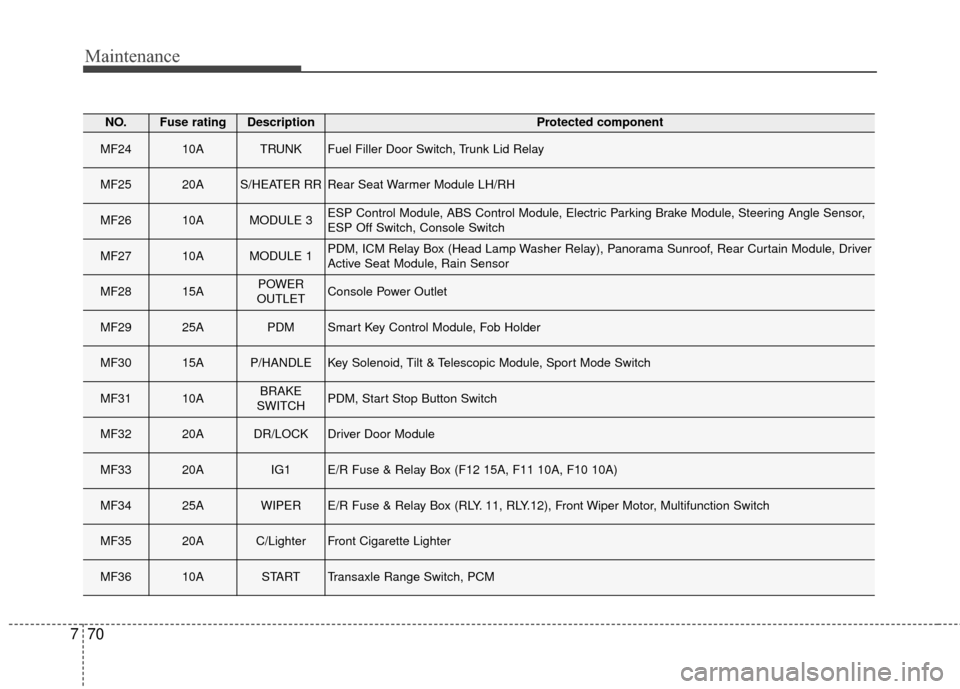

NO.Fuse ratingDescriptionProtected component
MF2410ATRUNKFuel Filler Door Switch, Trunk Lid Relay
MF2520AS/HEATER RRRear Seat Warmer Module LH/RH
MF2610AMODULE 3ESP Control Module, ABS Control Module, Electric Parking Brake Module, Steering Angle Sensor,
ESP Off Switch, Console Switch
MF2710AMODULE 1PDM, ICM Relay Box (Head Lamp Washer Relay), Panorama Sunroof, Rear Curtain Module, Driver
Active Seat Module, Rain Sensor
MF2815APOWER
OUTLETConsole Power Outlet
MF2925APDMSmart Key Control Module, Fob Holder
MF3015AP/HANDLEKey Solenoid, Tilt & Telescopic Module, Sport Mode Switch
MF3110ABRAKE
SWITCHPDM, Start Stop Button Switch
MF3220ADR/LOCKDriver Door Module
MF3320AIG1E/R Fuse & Relay Box (F12 15A, F11 10A, F10 10A)
MF3425AWIPERE/R Fuse & Relay Box (RLY. 11, RLY.12), Front Wiper Motor, Multifunction Switch
MF3520AC/LighterFront Cigarette Lighter
MF3610ASTARTTransaxle Range Switch, PCM

771
Maintenance
NO.Fuse ratingDescriptionProtected component
MULTIFUSE
F160A2B+IPM (F7, F8, F9, F10, F11, IPS1, IPS2, IPS3, IPS5, IPS7)
F260A3B+IPM (F14, F15, F17, F18, F25)
F340AIG1W/O Smart Key : Ignition Switch
With Smart Key : E/R Fuse & Relay Box (RLY. 1, RLY. 9)
F440A1ABSABS Control,ESP Control
F540ARR HTDE/R Fuse & Relay Box (RLY. 2)
F640ABLOWERE/R Fuse & Relay Box (RLY. 14)
F760A4B+IPM (F4, F5, IPS 0, IPS 4, IPS 6)
F880AMDPSMDPS_PWR
FUSE
(E/R Fuse & Relay Box)
F910AA/CONA/C Control Module
F1010ASTOP LAMPE/R Fuse & Relay Box (RLY. 8), Stop Lamp Switch, Multipurpose Check Connector
F1110AIG1Alternator, PCM
F1215AT2TCUTransaxle Range Switch
F1310AIDBIDB_LAG

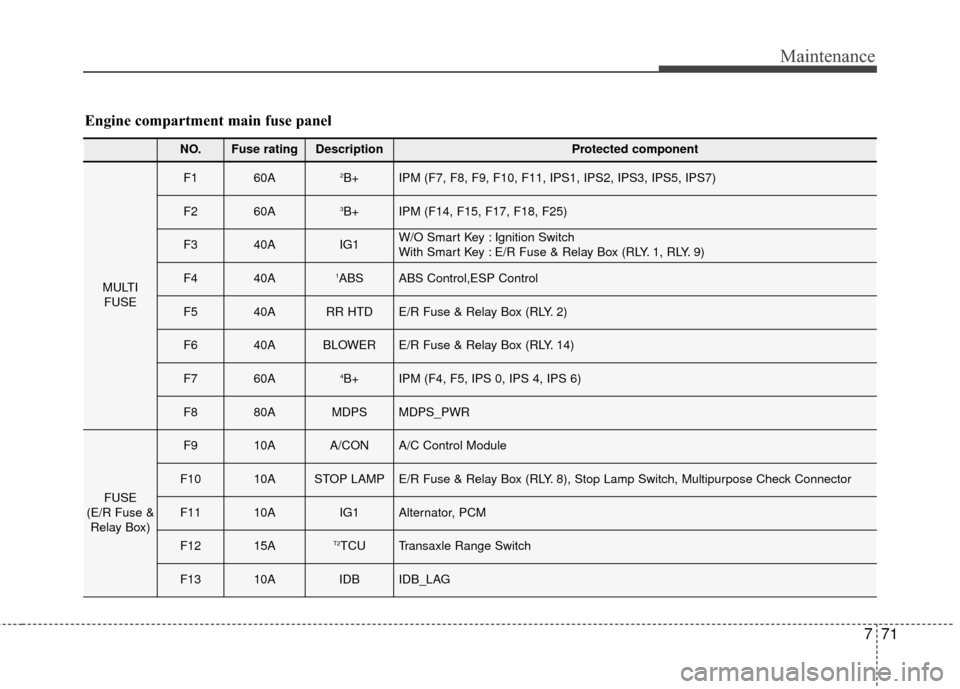

Engine compartment main fuse panel

Maintenance
72
7

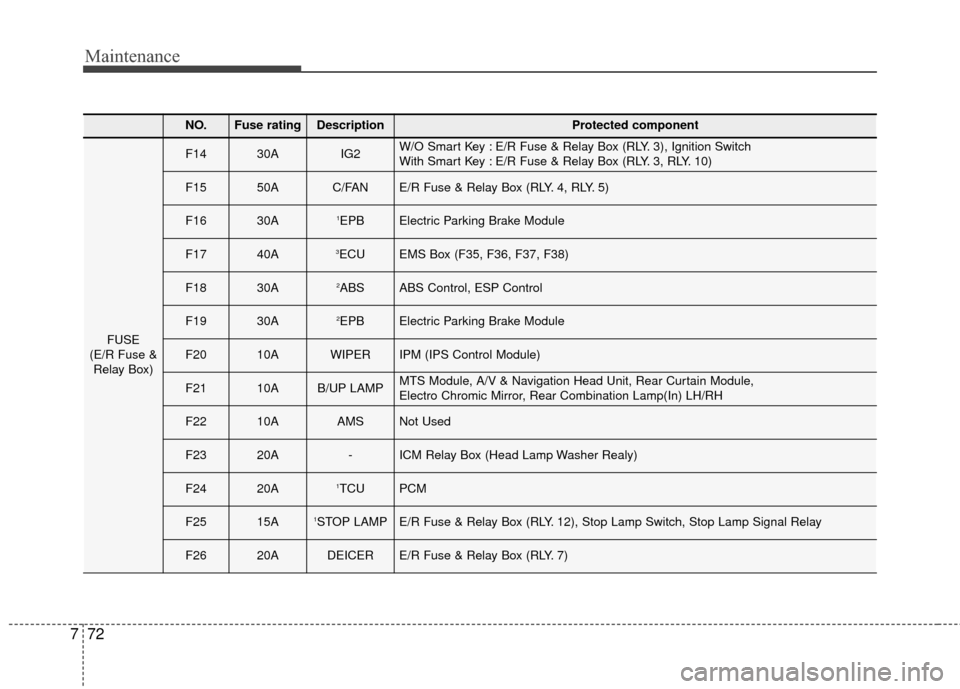

NO.Fuse ratingDescriptionProtected component
FUSE
(E/R Fuse & Relay Box)
F1430AIG2W/O Smart Key : E/R Fuse & Relay Box (RLY. 3), Ignition Switch
With Smart Key : E/R Fuse & Relay Box (RLY. 3, RLY. 10)
F1550AC/FANE/R Fuse & Relay Box (RLY. 4, RLY. 5)
F1630A1EPBElectric Parking Brake Module
F1740A3ECUEMS Box (F35, F36, F37, F38)
F1830A2ABSABS Control, ESP Control
F1930A2EPBElectric Parking Brake Module
F2010AWIPERIPM (IPS Control Module)
F2110AB/UP LAMPMTS Module, A/V & Navigation Head Unit, Rear Curtain Module,
Electro Chromic Mirror, Rear Combination Lamp(In) LH/RH
F2210AAMSNot Used
F2320A-ICM Relay Box (Head Lamp Washer Realy)
F2420A1TCUPCM
F2515A1STOP LAMPE/R Fuse & Relay Box (RLY. 12), Stop Lamp Switch, Stop Lamp Signal Relay
F2620ADEICERE/R Fuse & Relay Box (RLY. 7)

773
Maintenance

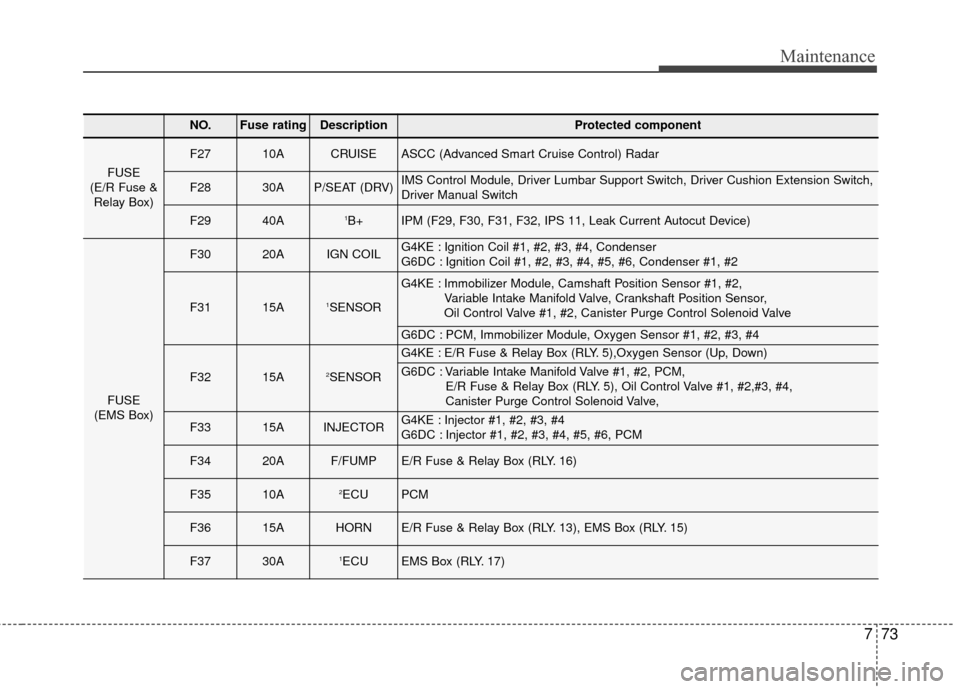

NO.Fuse ratingDescriptionProtected component
FUSE
(E/R Fuse & Relay Box)
F2710ACRUISEASCC (Advanced Smart Cruise Control) Radar
F2830AP/SEAT (DRV)IMS Control Module, Driver Lumbar Support Switch, Driver Cushion Extension Switch,
Driver Manual Switch
F2940A1B+IPM (F29, F30, F31, F32, IPS 11, Leak Current Autocut Device)
FUSE
(EMS Box)
F3020AIGN COILG4KE : Ignition Coil #1, #2, #3, #4, Condenser
G6DC : Ignition Coil #1, #2, #3, #4, #5, #6, Condenser #1, #2
F3115A1SENSOR
G4KE : Immobilizer Module, Camshaft Position Sensor #1, #2, Variable Intake Manifold Valve, Crankshaft Position Sensor,
Oil Control Valve #1, #2, Canister Purge Control Solenoid Valve
G6DC : PCM, Immobilizer Module, Oxygen Sensor #1, #2, #3, #4
F3215A2SENSOR
G4KE : E/R Fuse & Relay Box (RLY. 5),Oxygen Sensor (Up, Down)
G6DC : Variable Intake Manifold Valve #1, #2, PCM, E/R Fuse & Relay Box (RLY. 5), Oil Control Valve #1, #2,#3, #4,
Canister Purge Control Solenoid Valve,
F3315AINJECTORG4KE : Injector #1, #2, #3, #4
G6DC : Injector #1, #2, #3, #4, #5, #6, PCM
F3420AF/FUMPE/R Fuse & Relay Box (RLY. 16)
F3510A2ECUPCM
F3615AHORNE/R Fuse & Relay Box (RLY. 13), EMS Box (RLY. 15)
F3730A1ECUEMS Box (RLY. 17)
