battery replacement KIA CADENZA 2017 Owners Manual

Features of your vehicle
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Remote keyless entry system operations . . . . . . . . . . . 4-8
• Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-9
• This device complies with Part 15 of the FCC rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-10
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
• Mechanical key operations . . . . . . . . . . . . . . . . . . . . . 4-11
• Restrictions in Handling Keys . . . . . . . . . . . . . . . . . . 4-12
• Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
• This device complies with Part 15 of the FCC rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-13
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-14
• Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
• Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
• Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
• Operating door locks from outside the vehicle . . . . 4-16
• Operating door locks from inside the vehicle . . . . . . 4-17
• Impact sensing door unlock system . . . . . . . . . . . . . . 4-19
• Auto door lock/unlock feature . . . . . . . . . . . . . . . . . . 4-19
• Child-protector rear door lock. . . . . . . . . . . . . . . . . . 4-19
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-20
• Non-Powered Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
• Power Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
• Trunk Lid Control Button . . . . . . . . . . . . . . . . . . . . . 4-24
• Emergency Trunk Safety Release . . . . . . . . . . . . . . . 4-25
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
• Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-35
• Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
• Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
• Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-37
• Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-37
• Emergency fuel filler lid release . . . . . . . . . . . . . . . . 4-38
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-42
• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
43
• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
• Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
• Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
4

Features of your vehicle
10
4
If the transmitter is in close proxim-
ity to your cell phone or smart
phone, the signal from the trans-
mitter could be blocked by normal
operation of your cell phone or
smart phone. This is especially
important when the phone is active
such as making call, receiving
calls, text messaging, and/or send-
ing/receiving emails.
Avoid placing the transmitter and
your cell phone or smart phone in
the same pants or jacket pocket
and maintain adequate distance
between the two devices.This device complies with Part
15 of the FCC rules.
Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
✽ ✽NOTICE
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to changes
or modifications not expressly
approved by the party responsible
for compliance, it will not be cov-
ered by your manufacturer’s vehicle
warranty.
Battery replacement
A battery should last for several
years, but if the smart key is not
working properly, try replacing the
battery with a new one. If you are
unsure how to use or replace the
battery, contact an authorized Kia
dealer.
CAUTION - Transmitter
damage
Do not drop, wet or expose the
keyless entry system transmit-ter to heat or sunlight.

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
• Owner maintenance precautions . . . . . . . . . . . . . . . . . 7-5
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
• Owner maintenance schedule . . . . . . . . . . . . . . . . . . . 7-6
Scheduled maintenance service. . . . . . . . . . . . . . . . 7-8
Explanation of scheduled maintenance items . . . 7-20
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
• Checking the engine oil level . . . . . . . . . . . . . . . . . . . 7-24
• Changing the engine oil and filter . . . . . . . . . . . . . . . 7-25
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
• Checking the coolant level . . . . . . . . . . . . . . . . . . . . . 7-26
• Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . 7-28
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
• Checking the brake fluid level . . . . . . . . . . . . . . . . . . 7-29
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
• Checking the washer fluid level . . . . . . . . . . . . . . . . . 7-30
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
• Checking the parking brake. . . . . . . . . . . . . . . . . . . . 7-31
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Climate control air filter . . . . . . . . . . . . . . . . . . . . 7-34
• Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
40
• For best battery service . . . . . . . . . . . . . . . . . . . . . . . 7-40
• Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . 7-41
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42\
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-43
• Recommended cold tire inflation pressures . . . . . . . 7-43
• Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
• Checking tire inflation pressure. . . . . . . . . . . . . . . . . 7-44
• Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
• Wheel alignment and tire balance . . . . . . . . . . . . . . . 7-46
• Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
• Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Tire terminology and definitions . . . . . . . . . . . . . . . . 7-52
• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
55
• Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55\
7

Maintenance
58
7

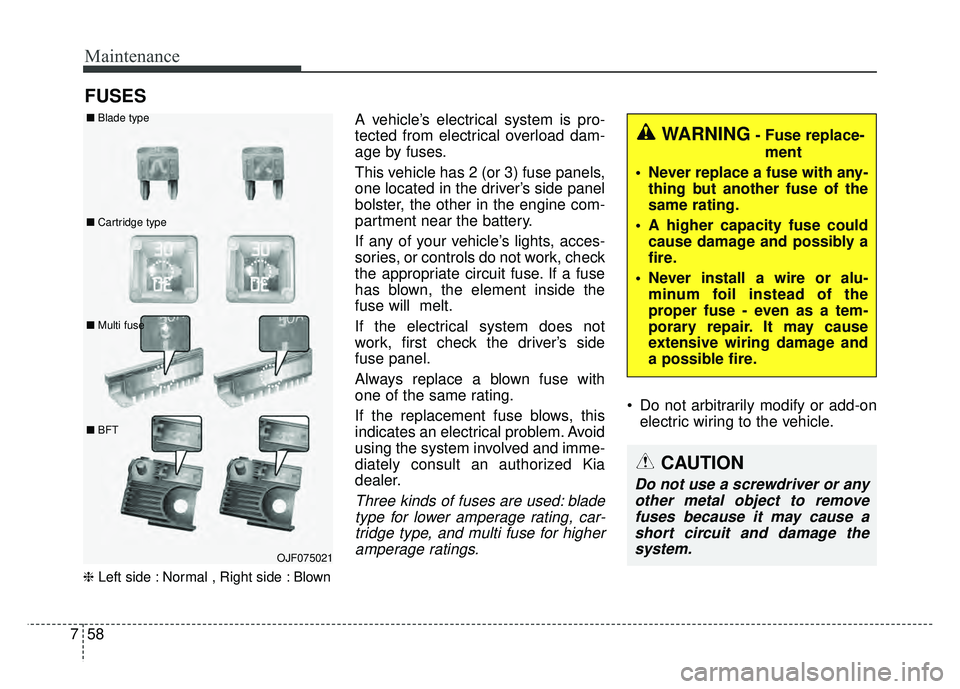

FUSES
❈ Left side : Normal , Right side : Blown
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver’s side panel
bolster, the other in the engine com-
partment near the battery.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will melt.
If the electrical system does not
work, first check the driver’s side
fuse panel.
Always replace a blown fuse with
one of the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and imme-
diately consult an authorized Kia
dealer.
Three kinds of fuses are used: blade
type for lower amperage rating, car-tridge type, and multi fuse for higheramperage ratings.
Do not arbitrarily modify or add-on electric wiring to the vehicle.
WARNING- Fuse replace-
ment
Never replace a fuse with any- thing but another fuse of the
same rating.
A higher capacity fuse could cause damage and possibly a
fire.
Never install a wire or alu- minum foil instead of the
proper fuse - even as a tem-
porary repair. It may cause
extensive wiring damage and
a possible fire.
CAUTION
Do not use a screwdriver or anyother metal object to removefuses because it may cause ashort circuit and damage thesystem.
OJF075021
■
Blade type
■ Cartridge type
■ Multi fuse
■ BFT

759
Maintenance
✽
✽NOTICE
• When replacing fuse, turn the
ignition “OFF” and turn off
switches of all electrical devices
then remove battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.
Inner panel fuse replacement
1. Turn the ignition switch and all
other switches off.
2. Open the fuse panel cover.
If the switch is located in the “OFF”
position, a caution indicator will be
displayed in the cluster.
WARNING- Electrical Fire
Always ensure replacements
fuses and relays are securely
fastened when installed. Failure
to do so can result in a vehicle
fire.
CAUTION
When replacing a blown fuse or relay, make sure the newfuse or relay fits tightly intothe clips. Failure to tightlyinstall the fuse or relay maycause damage to the wiringand electric systems.
Do not remove fuses, relays and terminals fastened withbolts or nuts. The fuses, relaysand terminals may not be fas-tened correctly which maycause vehicle damage.
OYG076028

775
Maintenance
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

I3
Index
AEB warning message and system control . . . . . . . 5-41
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42
Sensor to detect the distance from the vehicle infront (front radar) . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-44
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-45
Recognizing pedestrians. . . . . . . . . . . . . . . . . . . . . . 5-48
AUX, USB port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Back-up lamp bulb replacement . . . . . . . . . . . . . . . . . 7-84
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 7-40 For best battery service . . . . . . . . . . . . . . . . . . . . . . 7-40
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 7-41
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
Battery replacement(Smart key) . . . . . . . . . . . . . . . . . . 4-10
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Blind Spot Detection System(BSD) . . . . . . . . . . . . . . . 5-76 BSD (Blind Spot Detection) /LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 5-77
RCTA (Rear cross traffic alert) . . . . . . . . . . . . . . . . 5-80
Limitations condition . . . . . . . . . . . . . . . . . . . . . . . . 5-82
Bonnet see the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17 Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19 Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . 5-20
AUTO HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-26
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . 5-29
Electronic stability control (ESC) . . . . . . . . . . . . . . 5-31
Vehicle stability management (VSM) . . . . . . . . . . . 5-34
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . 5-36
Brakes fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29\
Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-29
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-75
Bulb replacement precaution . . . . . . . . . . . . . . . . . . . . 7-75
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Button start/stop, see engine start/stop button . . . . . . . . 5-6
California Perchlorate notice . . . . . . . . . . . . . . . . . . . 7-100
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Care Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43\
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-94
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-18
Chains - Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-99
B
C

I9
Index
Stop and tail lamp (LED type) bulb replacement . . 7-83
Back-up lamp bulb replacement . . . . . . . . . . . . . . . 7-84
License plate lamp bulb replacement. . . . . . . . . . . . 7-84
High mounted stop lamp (LED type) bulbreplacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-85
Map lamp bulb replacement. . . . . . . . . . . . . . . . . . . 7-85
Vanity mirror lamp bulb replacement . . . . . . . . . . . 7-86
Room lamp bulb replacement . . . . . . . . . . . . . . . . . 7-86
Personal lamp bulb replacement . . . . . . . . . . . . . . . 7-87
Glove box lamp bulb replacement . . . . . . . . . . . . . . 7-87
Trunk lamp (LED type) bulb replacement . . . . . . . . 7-88
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-106 Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-106
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-108
High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Turn signals and lane change signals . . . . . . . . . . . 4-110
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Check headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Headlight leveling device . . . . . . . . . . . . . . . . . . . 4-112
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5 Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Scheduled maintenance service . . . . . . . . . . . . . . . . . 7-8
Explanation of scheduled maintenance items . . . . . 7-20
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Maintenance schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8 Normal Maintenance Schedule . . . . . . . . . . . . . . . . . 7-9
Maintenance Under Severe Usage Conditions. . . . . 7-19
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4 Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Owner maintenance precautions . . . . . . . . . . . . . . . . 7-5
Manual mode - Automatic transaxle . . . . . . . . . . . . . . 5-13
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11\
8
Map lamp bulb replacement . . . . . . . . . . . . . . . . . . . . . 7-85
Mechanical key operations(Smart key) . . . . . . . . . . . . 4-11
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-52 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-52
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . 4-52
"Electric chromic mirror (ECM)with HomeLink
®
system and compass " . . . . . . . . . . . . . . . . . . . . . . 4-53
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-61
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Folding the outside rearview mirror. . . . . . . . . . . . . 4-63
M

I11

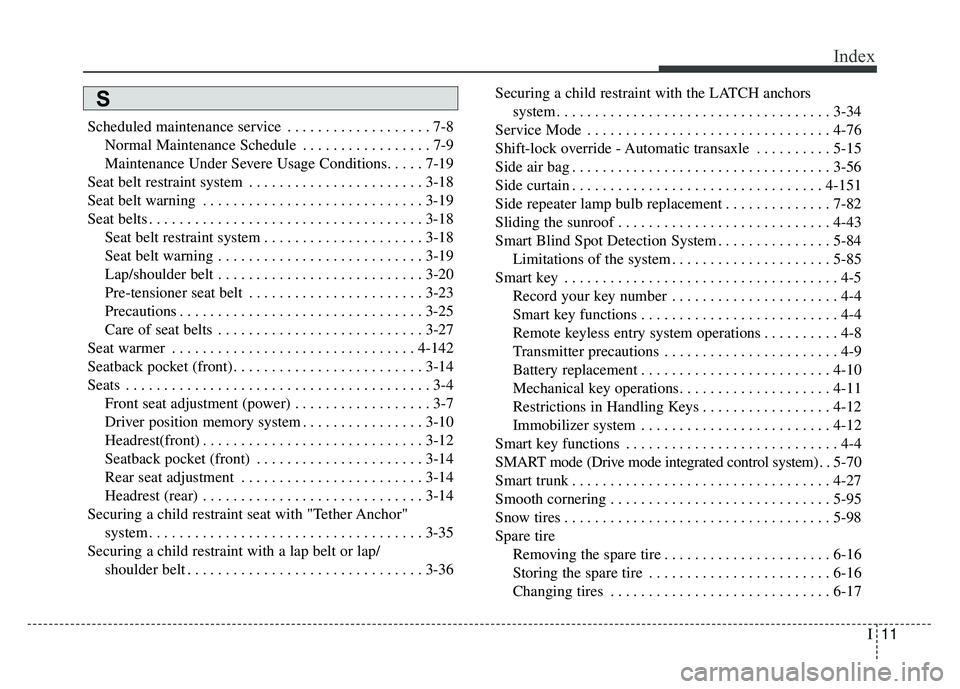

Index
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-8Normal Maintenance Schedule . . . . . . . . . . . . . . . . . 7-9
Maintenance Under Severe Usage Conditions. . . . . 7-19
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . . 3-18
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-18 Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-18
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Lap/shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-23
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-4 Front seat adjustment (power) . . . . . . . . . . . . . . . . . . 3-7
Driver position memory system . . . . . . . . . . . . . . . . 3-10
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Headrest (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Securing a child restraint seat with "Tether Anchor" system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-35
Securing a child restraint with a lap belt or lap/ shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36 Securing a child restraint with the LATCH anchors
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-34
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
Shift-lock override - Automatic transaxle . . . . . . . . . . 5-15
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56\
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Side repeater lamp bulb replacement . . . . . . . . . . . . . . 7-82
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Smart Blind Spot Detection System . . . . . . . . . . . . . . . 5-84 Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-85
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-5 Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote keyless entry system operations . . . . . . . . . . 4-8
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-9
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Mechanical key operations. . . . . . . . . . . . . . . . . . . . 4-11
Restrictions in Handling Keys . . . . . . . . . . . . . . . . . 4-12
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
SMART mode (Drive mode integrated control system) . . 5-70
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27\
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-95
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
98
Spare tire Removing the spare tire . . . . . . . . . . . . . . . . . . . . . . 6-16
Storing the spare tire . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
S
